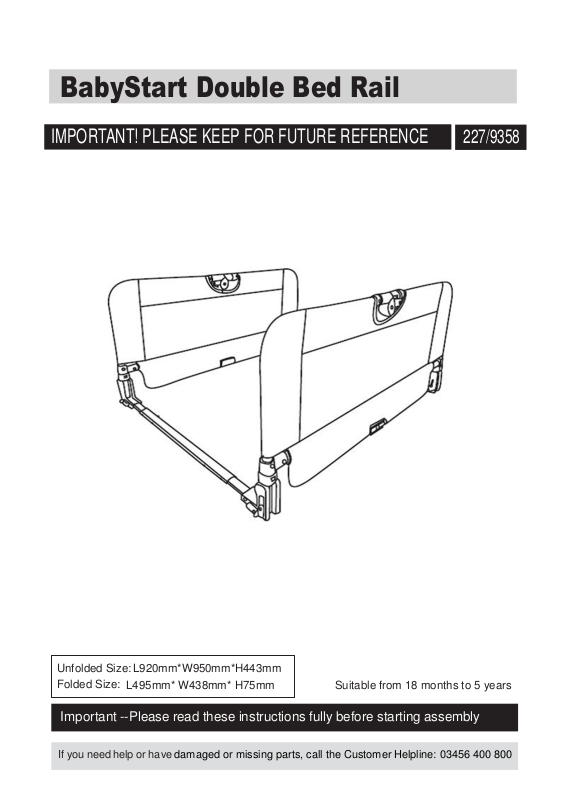

BabyStart Double Bed Rail
IMPORTANT! PLEASE KEEP FOR FUTURE REFERENCE
227/9358
Unfolded Size: L920mm*W950mm*H443mm
227/9358
Folded Size:
Important --Please read these instructions fully before starting assembly
L495mm* W438mm* H75mm
Suitable from 18 months to 5 years
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Page 2
-2-
Barrier part ( X2)
Restrain part (x4)
Link bar (x2)
Safety
instructions
IMPORTANT: KEEP FOR FUTURE
REFERENCE
Safety notice:
- It is recommended only to use the bed rail for children between 18 months and 5 years.
- Only use the bed rail when the child is able to climb in and out of the bed unaided.
- The bed rail must not be used as a substitute for a cot, as it cannot provide the same level
of safety.
- Do not use the bed rail in cribs or on sleeping surfaces more than 60 cm above the floor.
- The bed rail must only be used on a mattress with a thickness between 80-230 millimeter.
- Do not use the bed rail unless the fixings are in place.
- Secure check carefully all locking mechanisms and fixings.
- Periodically check all locking mechanisms and fixings.
- Always make sure to fit the bed rail so that it touches the side of the mattress when in the
locked position or when placed in the fitted position.
- Make sure child’s fingers/toes are clear away when in use to avoid potential pinching.
- Do not use this product if any parts damaged.
- Only order additional or replacement parts from manufacturer.
- The bed rail is made in conformity with the requirements: BS 7972:2001+A1:2009.
Warning:
- To prevent the risk of strangulation it is essential to ensure that the bed rail is fitted correctly
into position. There must be a gap of at least 25 cm (10 inches) between each end of the
bed and the corresponding end of the bed rail.
- The length of the mattress must be between 150-200cm with the width being 75 or 90cm.
Page 3
Step 1
Unfold the two bed barriers
and lock in place.
Step 2
Check your mattress width
before assembly. This bed rail
must only be used on a
mattress with width being
75cm or 90cm.
1) Assemble the restrain parts
and attach to bed barriers.
2) Insert the link bar into correct
hole of the restrain part, until
the spring pins click into the
hole.
3) According to the width of your
mattress. You can adjust the
bed rail. Slide the spring pins
into one of the holes to fit your
mattress width.
Press the spring pins and slide
it into hole 1, repeat both sides.
It fits 75cm width mattress.
Press the spring pins and slide
it into hole 2, repeat both sides.
It fits 90cm width mattress.
If one spring pin slides into hole
1 and the other side slides into
hole 2, this size cannot fit the
mattress.
Make sure they are locked in
place before continue next
steps.
Rotate hinge
downward
-3-
Page 4
-4
Step 3
Bed rail installation
Attention:
This step is very important and
related to use the bed rail in safe
condition, please follow the
instruction strictly. After finishing,
you need verify the bed rail has
been installed securely.
Take away the mattress from
the bed, position the assembled
bed rail in place according to
the right drawing.
There must be a gap of at
least 25 cm (10 inches)
between each end of the
bed and the corresponding
end of the bed rail.
Put on the mattress.
Please ensure that the two
barrier parts are tightly
against the mattress when
in place.
min 25cm
min 25cm
Step 4
Bed rail operation
1). Lay down the bed barrier to
unlock: push the button and
lift the tube at the same time.
Lay down the barrier while
both locking pins coming out
of their sockets.
2). Set up the bed barrier: push
the button and lift the tube to
center the locking pin in place.
Make sure the tube is lifted to
the top before lifting or laying
down the barrier. Don’t use the
bed rail when one bed barrier
is set up only
Make sure the barriers are set
up securely before use.
.
Page 5
-5
Step 5
Folding the bed rail for storing
1). Take off the bed rail from the
bed.
2). Reversely operate according
to step 2.
Folding button
Page 6
-6
Care & Maintenance
- Fabric composition: 100% Polyester.
- Do not remove the cover from frame.
- Clean with mild soap damp sponge.
- Cold water rinse and air dry.
- Never clean with abrasives, ammonia based, bleach based or spirit type
cleaners.
- Make sure it is dry and clean storing.
ARGOS LTD
489-499 Avebury Boulevard.
Central Milton Keynes MK9 2 NW.
Please keep all the relevant information for future reference.
