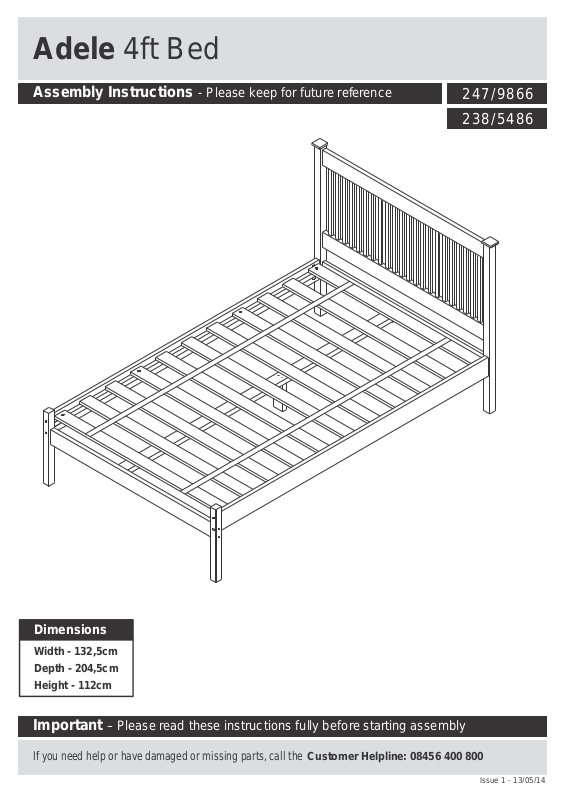

Page 1
Adele 4ft Bed
Issue 1 - 13/05/14
Assembly Instructions - Please keep for future reference
247/9866
238/5486
Dimensions
Width - 132,5cm
Depth - 204,5cm
Height - 112cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
Page 2
Safety and Care Advice
1
.
to its final position (in the same
room) as possible.
Important – Please read these instructions fully before starting assembly
.
Check you have all the
components and tools listed on
pages 2 and 3.
.
Remove all fittings from the
plastic bags and separate them
into their groups.
.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
.
Make sure you have enough
space to layout the parts before
starting.
.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
.
Parts of the assembly will be
easier with 2 people.
.
Dispose of all packaging
carefully and responsibly.
.
We do not
care and maintenance
.
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
.Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
.
From time to time check
that there are no loose
screws on this unit.
.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Page 3
Components - Panels
Please check you have all the panels listed below
Headboard (132.5 x 112cm)
01
Foot (45 x 6.5cm)
02
2A
2B
Central Support (194 x 6cm)
04
Support Foot (29.5 x 6cm)
05
Side rails x 2 (190 x 11.5cm)
03
Footboard Rail (117 x 11.5cm)
06
2
Page 4
If you have damaged or missing components,
3
Components - Fittings
call the Customer Helpline: 08456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
100mm Bolt x 08
D
40mm Wooden dowel x 06
G
50mm Bolt x 02
J
Nut x 02
B
Half-Moon Nut x 08
E
16mm Screw x 08
H
80mm L Shaped Bracket x 02
L
100mm Bolt x 04
C
Allen key
F
35mm Screw x 12
I
40mm Bolt x 02
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
45
55
50
60 65 70
75
80 85 90 95 100105110115120125130135140145150155160165170
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Page 5
Assembly Instructions
Step 1
Fitting dowels
Insert dowels
into the indicated parts.
D
D
D
03
03
D
D
D
D
06
D
4
Page 6
Assembly Instructions
Step 2
Fixing footboard:
Fix footboard rail into
2A
foot and foot using
bolts and allen key as
L
06
2B
C
shown.
C
L
L
L
L
C
Step 3
Assembling side rails:
Attach side rails to the
headboard. Insert half
moon nut into
side rails as shown.
B
03
Then fix them to the
headboard using bolts
A
and allen key .
Assembling of
Caution:
Step 3 and Step 4
will be easier with 2
people. It can also avoid
damages or brakes of any
part or component.
03
01
C
B
03
B
01
B
B
03
C
C
A
A
5
Page 7
Assembly Instructions
Step 4
Assembling side rails:
Insert half moon nut into
side rails as shown.
Then fix them to the
footboard using bolts
and allen key .
03
C
B
A
C
B
A
03
03
A
B
C
A
Step 5
Fixing support foot:
Fix support foot to
central support using
G
bolt and allen key as
shown.
05
04
C
G
C
C
04
05
6
Page 8
Assembly Instructions
Step 6
Fixing L shaped bracket:
Fix L shaped brackets
H
into pre-drilled holes in the
headboard and
footboard using screw
01
E
as shown.
E
E
H
E
E
01
Step 7
Fixing central support:
Fix central support
to L shaped brackets in
headboard and
01
footboard using bolts
and nut as shown.
J
04
I
I
J
7
Page 9
Assembly Instructions
Step 8
Fixing slats:
Centralize slats in bed
frame prior to fixing. Fix
slats using screws as
shown.
Fix slats in one side first,
then fix them in the other
side by pushing the rail
against the slats if
necessary.
Periodically check that all
screws are tight.
F
F
F
F
F
F
F
F
F
F
F
F
F
Step 9
Additional step to fixing
slats:
Warning!The screws that
attach the slatholders to
the sides never collide to
the screws that fix the slats
to the slatholders.
Warning!
Assemble is complete!
8
