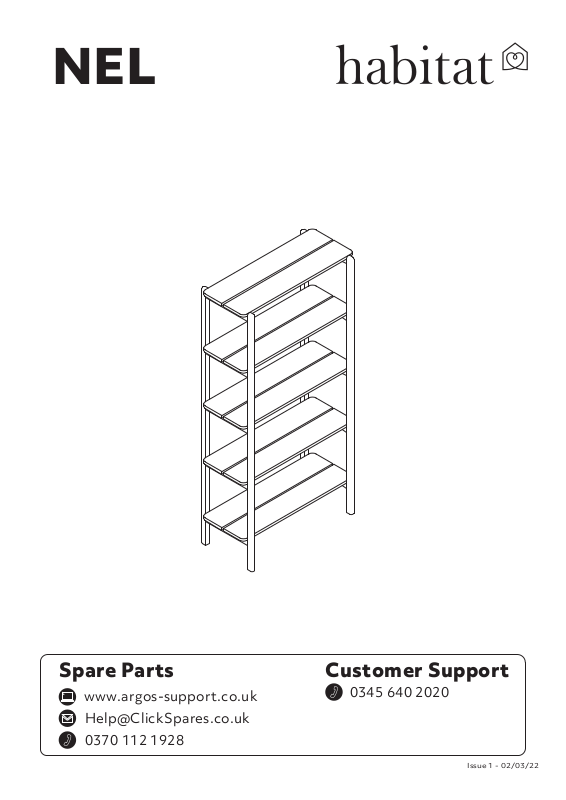

NEL
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 02/03/22
Page 2
Safety and Care Advice
Product Details
Nel bookcase oak 3415960
Nel bookcase black 2158541
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
to its final position(in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Additional Guidance
Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
Regularly check and ensure that all bolts and fittings are tightend properly.
Maximum loading weight 45kg/per layer.
•
This product is compliant EN14749, BS4875-7.
Any additional or replacement parts are obtained from the manufacturer.
Made in China for Habitat. Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre,
Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne,
County Meath, Ireland.
1
Page 3

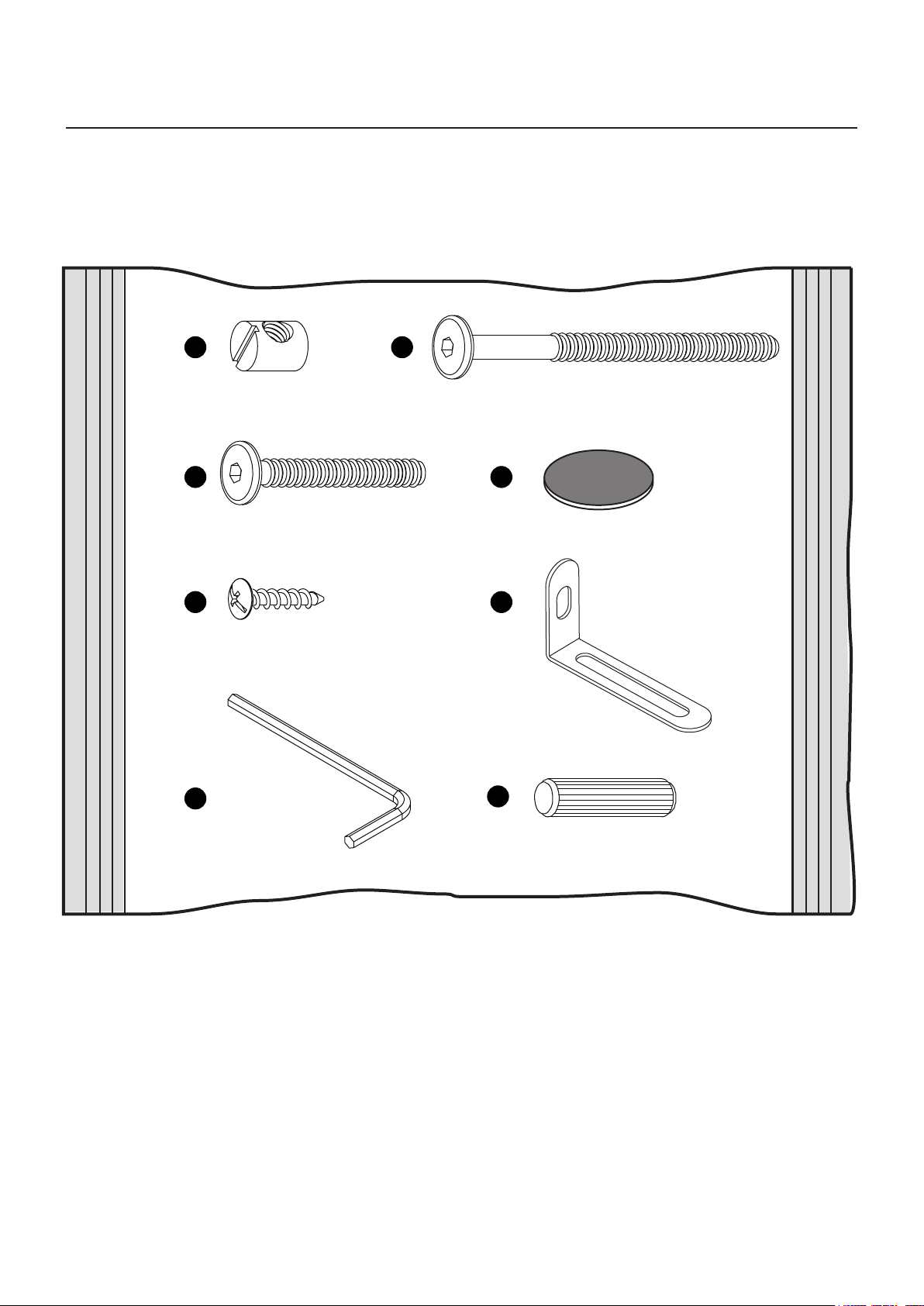

Fittings (Shown to scale)
Bag 1

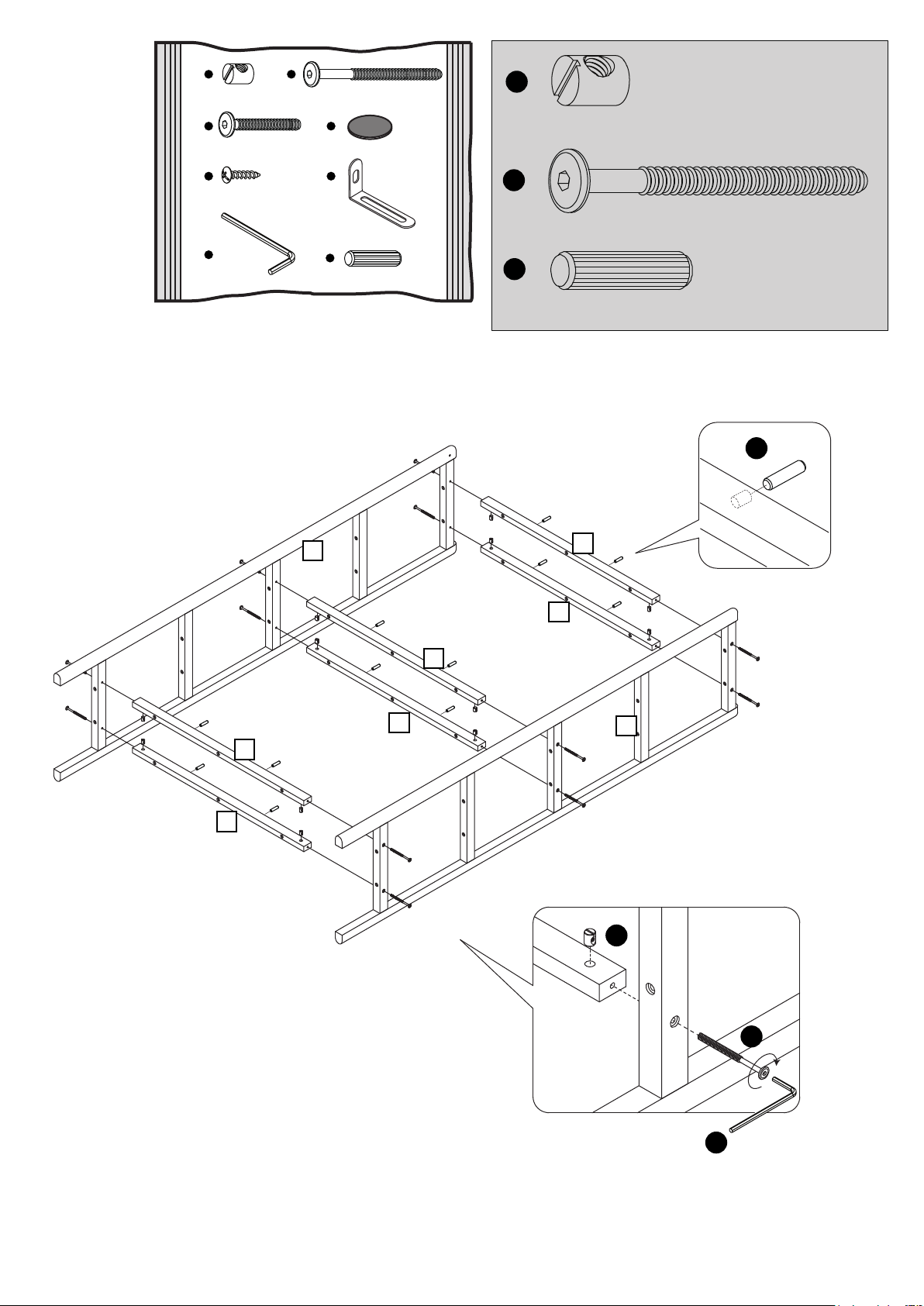

A
Ø10*15mm Nut x 12
C
M6*40mm Bolt x 38
E
15mm Screw x 2
G
B
M6*70mm Bolt x 12
D
25mm Foot Pad x 4
F
L Shap Bracket x 2
H
M4 Alley Key x 1
Ø8*30mm Wooden Dowel x 12
2
Page 4

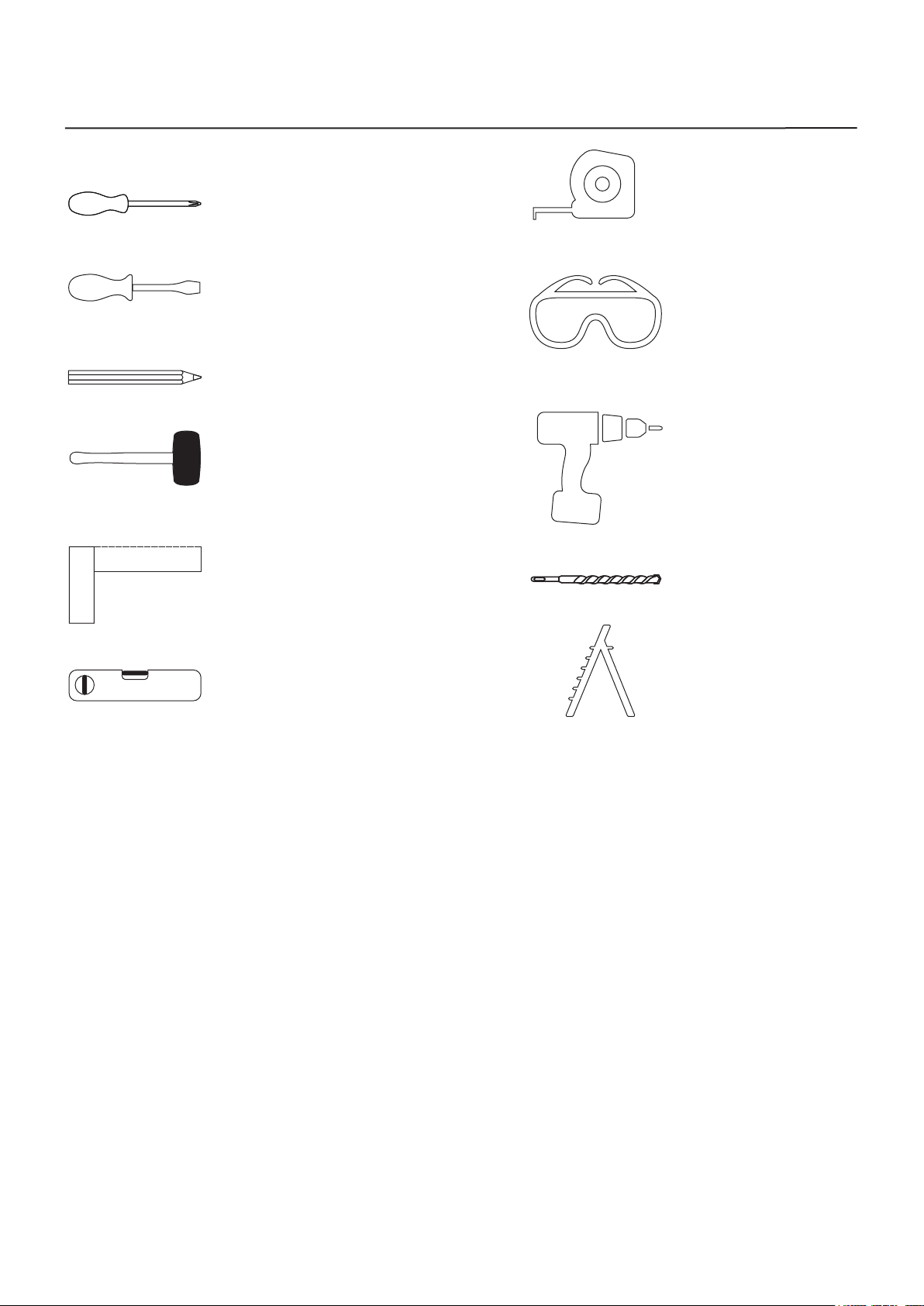

Tools required
Phillips screwdriver
(small & medium)
Phillips screwdriver
(small & medium)
Pencil
Mallet
Set Square
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Power Drill
Drill Heads
Spirit Level
Ladder
3
Page 5

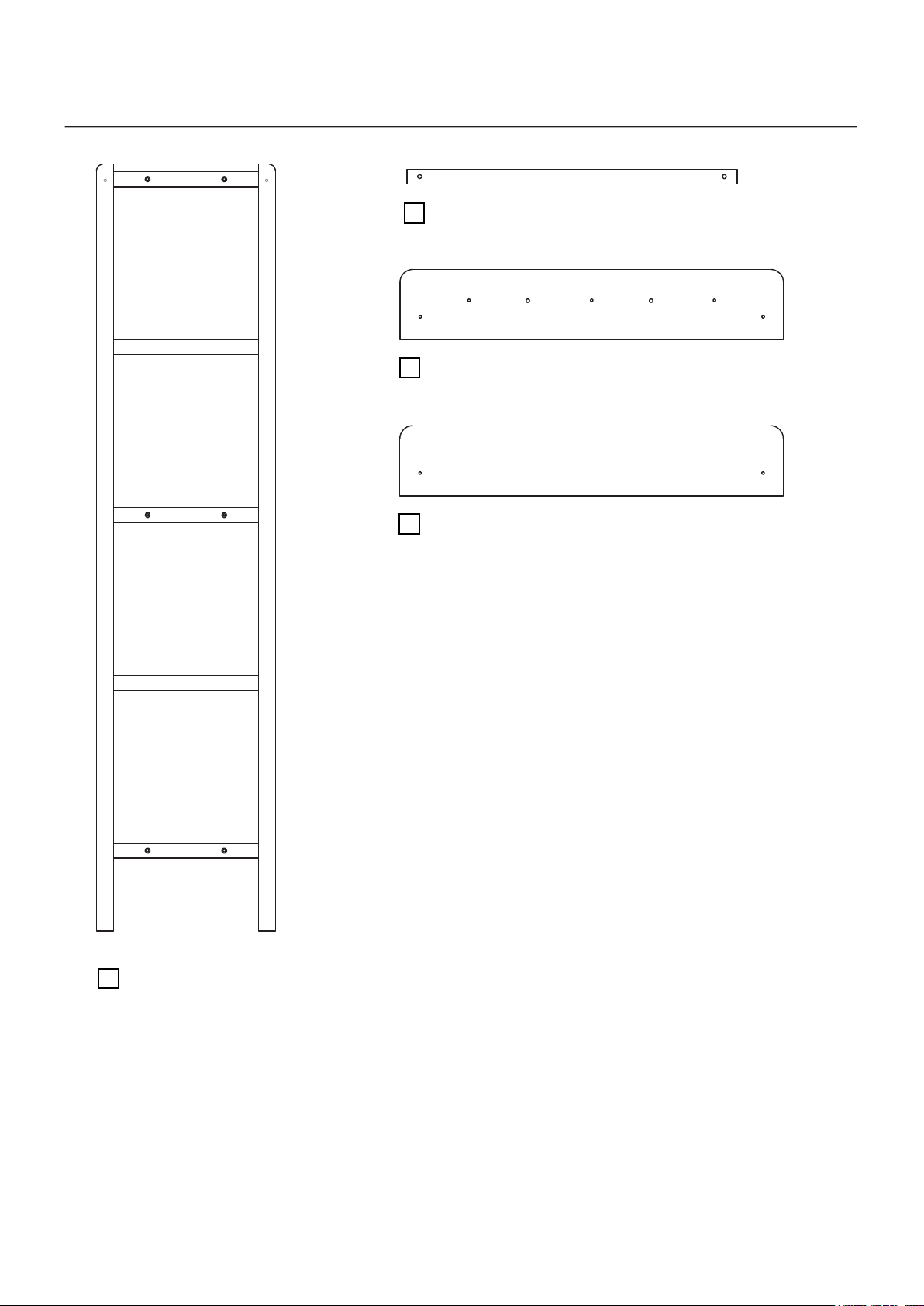

Panels
Rail (775 x 35mm) x 62
Shelf Panel (900 x 165mm) x 63
Shelf Panel (900 x 165mm) x 44
1
Side Frame x 2
(1800 x 420mm)
4
Page 6
A
Ø10*15mm Nut x 12
B
M6*70mm Bolt x 12
A
1
C
M6*40mm Bolt x 38
E
15mm Screw x 2
G
M4 Alley Key x 1
D
25mm Foot Pad x 4
F
L Shap Bracket x 2
H
Ø8*30mm Wooden Dowel x 12
1
Ø10*15mm Nut x 12
B
M6*70mm Bolt x 12
H
Ø8*30mm Wooden Dowel x 12
H
2
2
2
2
2
2
1
A
B
G
Warning!
Please do not fully tighten the bolts
in this step.
5
Page 7

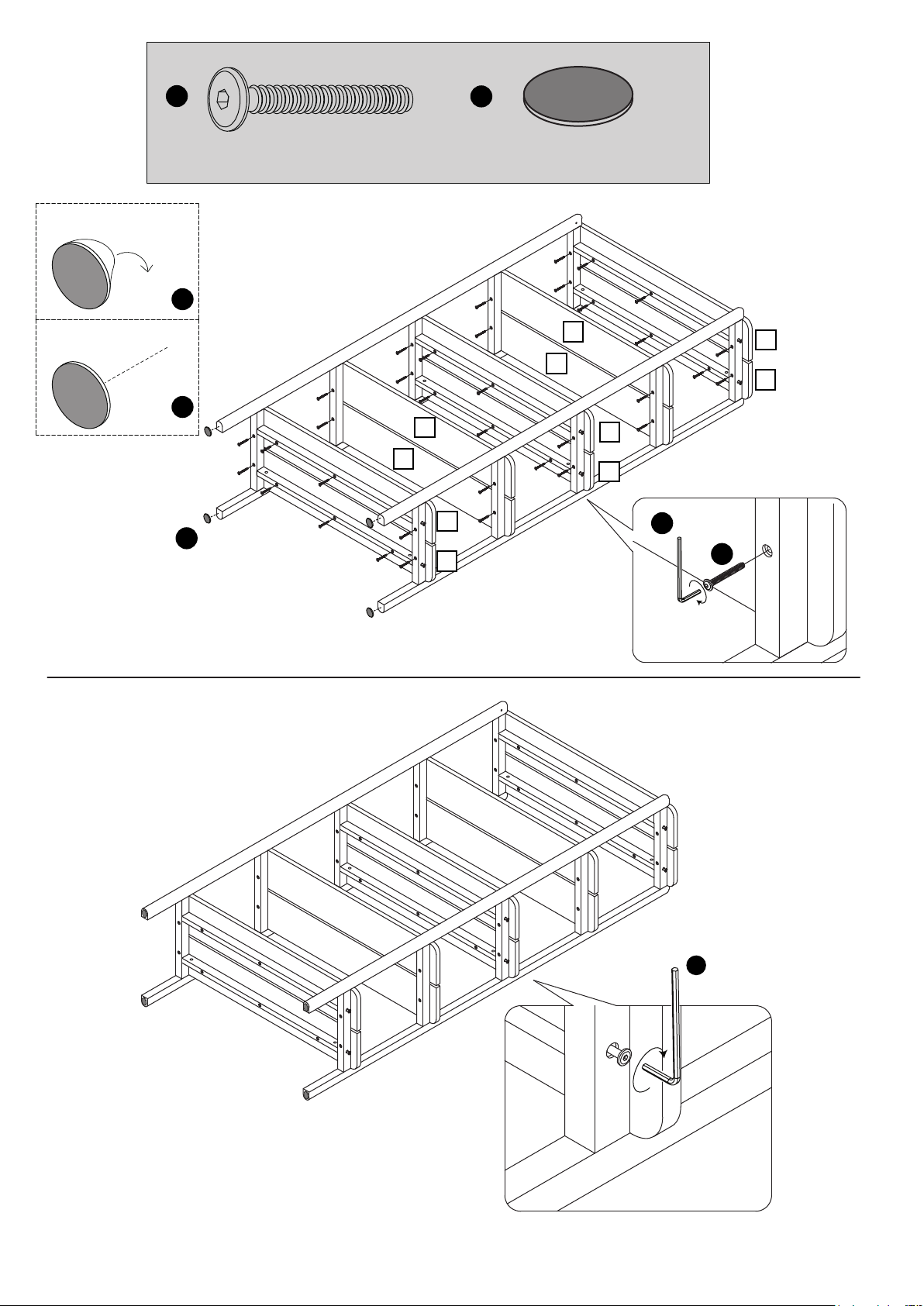

C
D
2
1
2
M6*40mm Bolt x 38
Peel off
the back
D
D
D
x4
25mm Foot Pad x 4
4
4
4
4
3
3
3
3
G
3
3
C
3
G
100%
Warning!
Fully tighten all the bolts.
6
Page 8

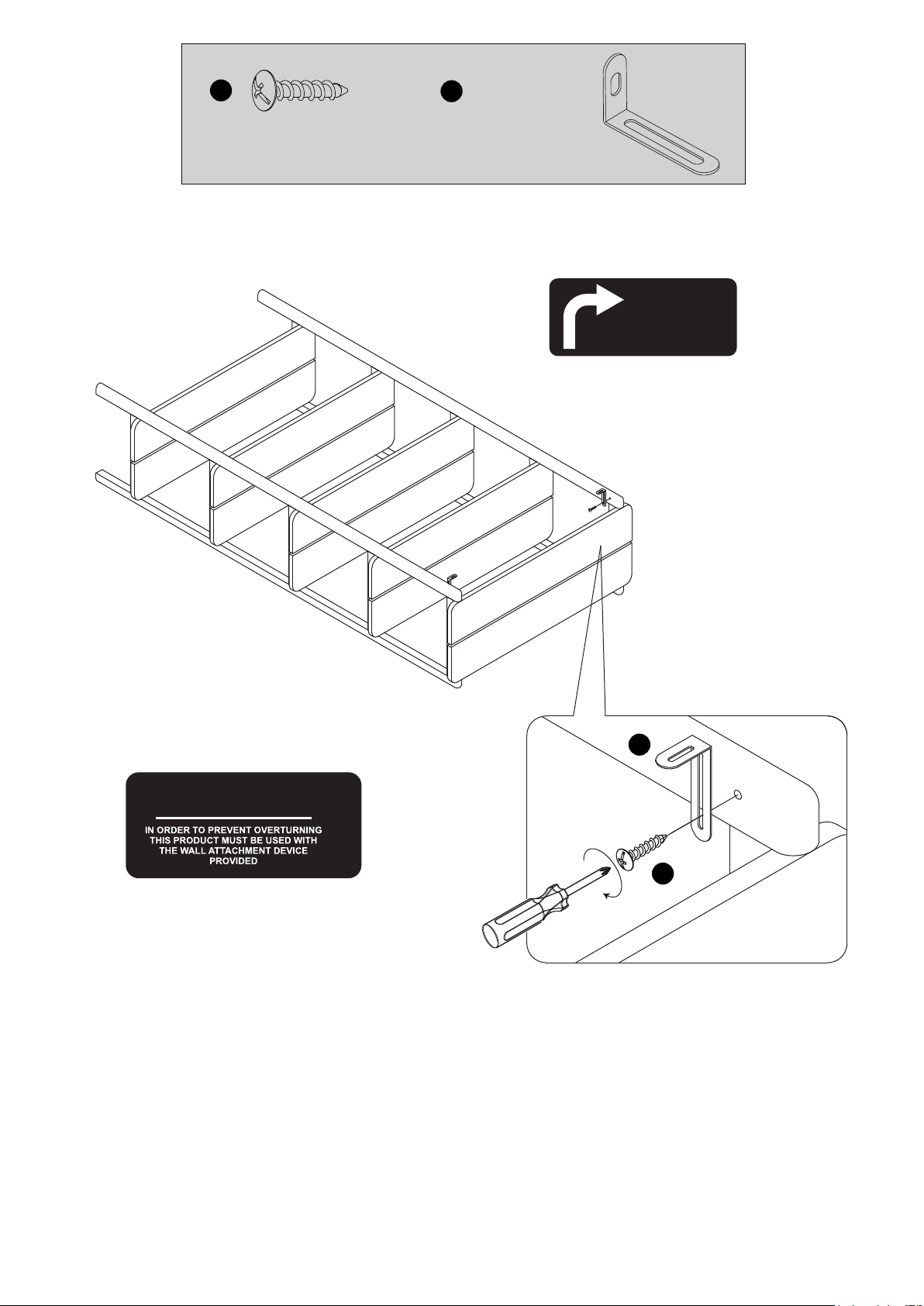

E
F
4
15mm Screw x 2
L Shap Bracket x 2
Rotate
Product
WARNING!
F
E
7
Page 9

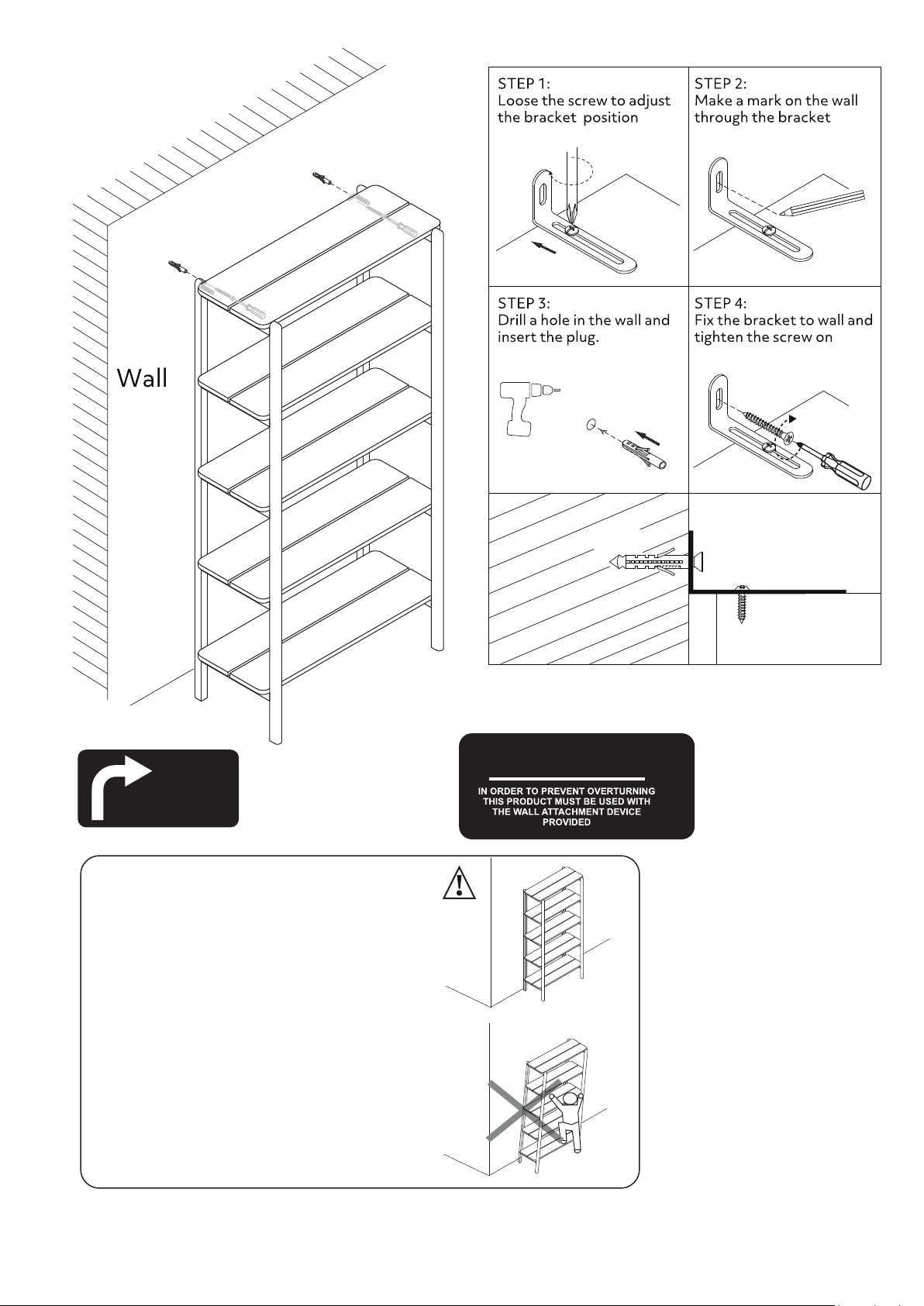

Wall
Wall
leg
frame
Leg Frame
Turn
Product
• WARNING: To prevent
possible overbalancing this unit
must be secured to a wall using
the overbalance protector kit
supplied.
• A unit that is allowed to topple
can cause serious or fatal injury.
In addition to wall fixing the unit,
place heavy items on the lower
shelves. do not put any heavy
objects on top of the unit and
never allow children to climb or
hang on drawers,doors or shelves.
WARNING!
Assembly is complete.
8
Page 10

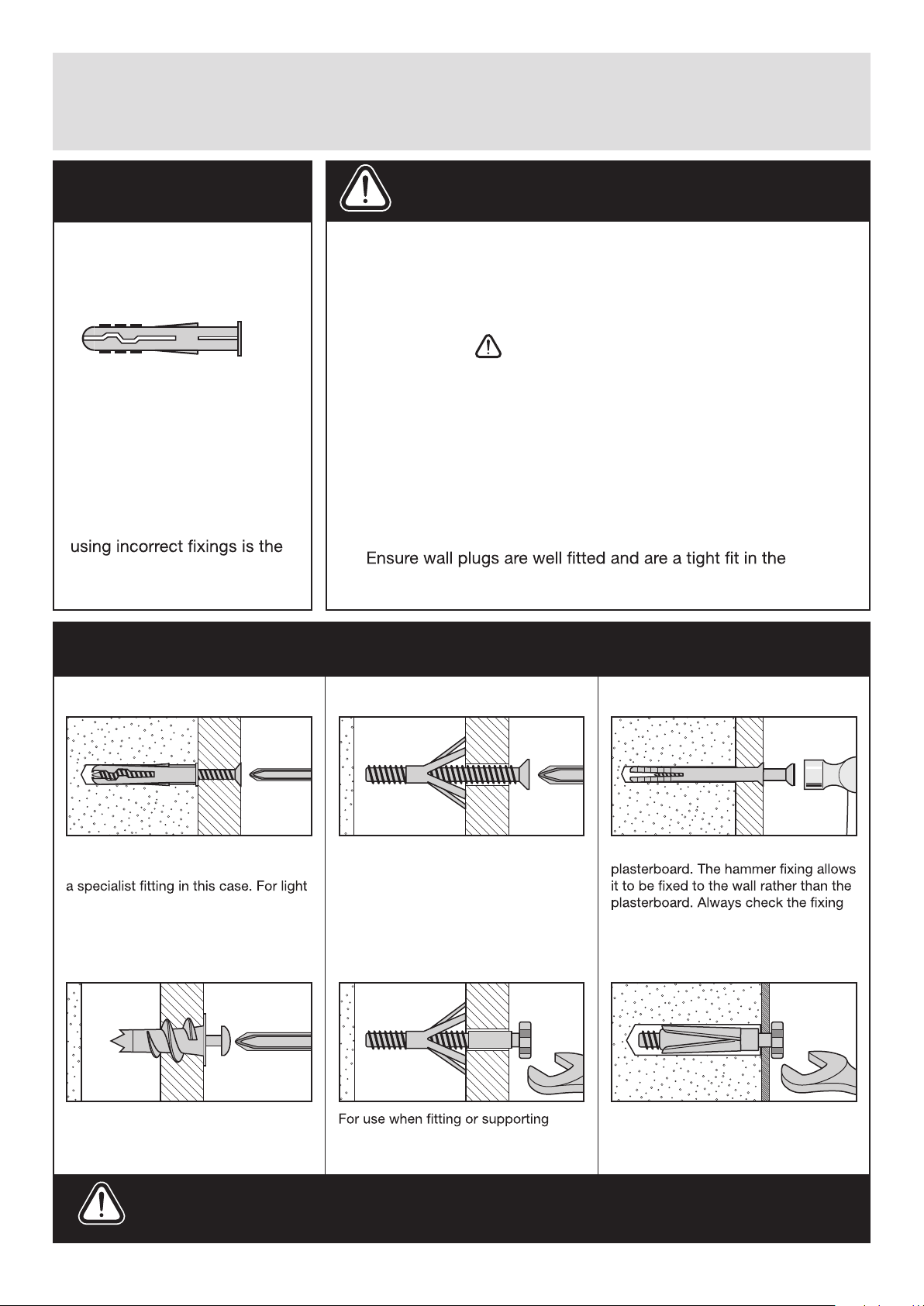

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
