Nel
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 19/04/22
Page 2
Safety and Care Advice
Product Details
NEL TABLE 2151885 BLACK
NEL TABLE 4543714 OAK
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
• This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
to its final position(in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Additional Guidance
● Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
● Regularly check and ensure that all bolts and fittings are tightend properly.
● This product is compliant EN12521.
● Maximum loading weight 100kg.
● Any additional or replacement parts are obtained from the manufacturer.
Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast,
United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County Meath, Ireland.
1
Page 3

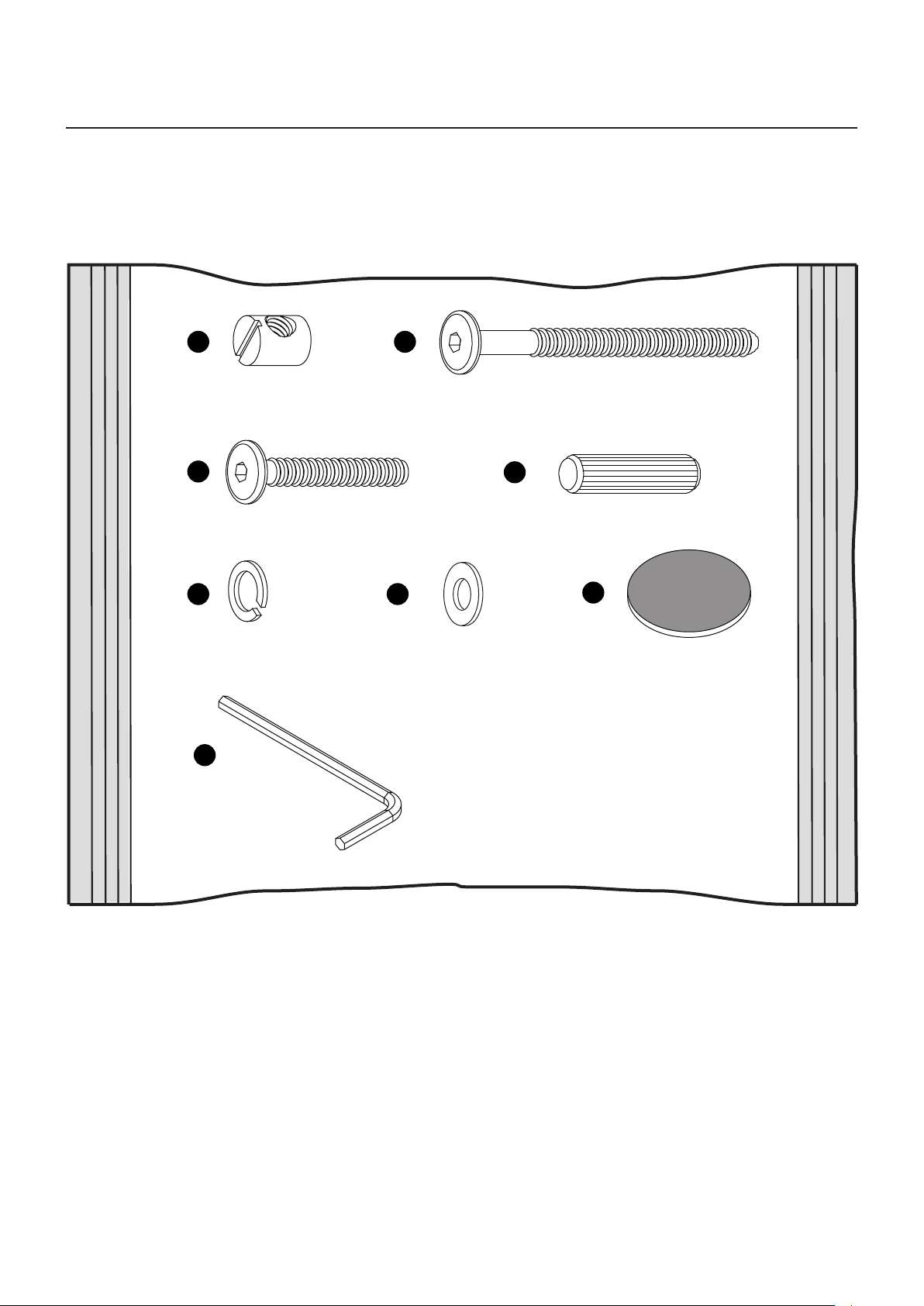

Fittings (Shown to scale)
Bag 1
A
Ø10*15mm Nut x 8
C
M6*50mm Bolt x 16
E
Spring Washer x 24
H
B
M6*70mm Bolt x 8
F
Flat Washer x 24
D
Ø8*30mm Bolt x 8
G
Ø30mm Foot Pad x 4
M4 Alley Key x 1
2
Page 4

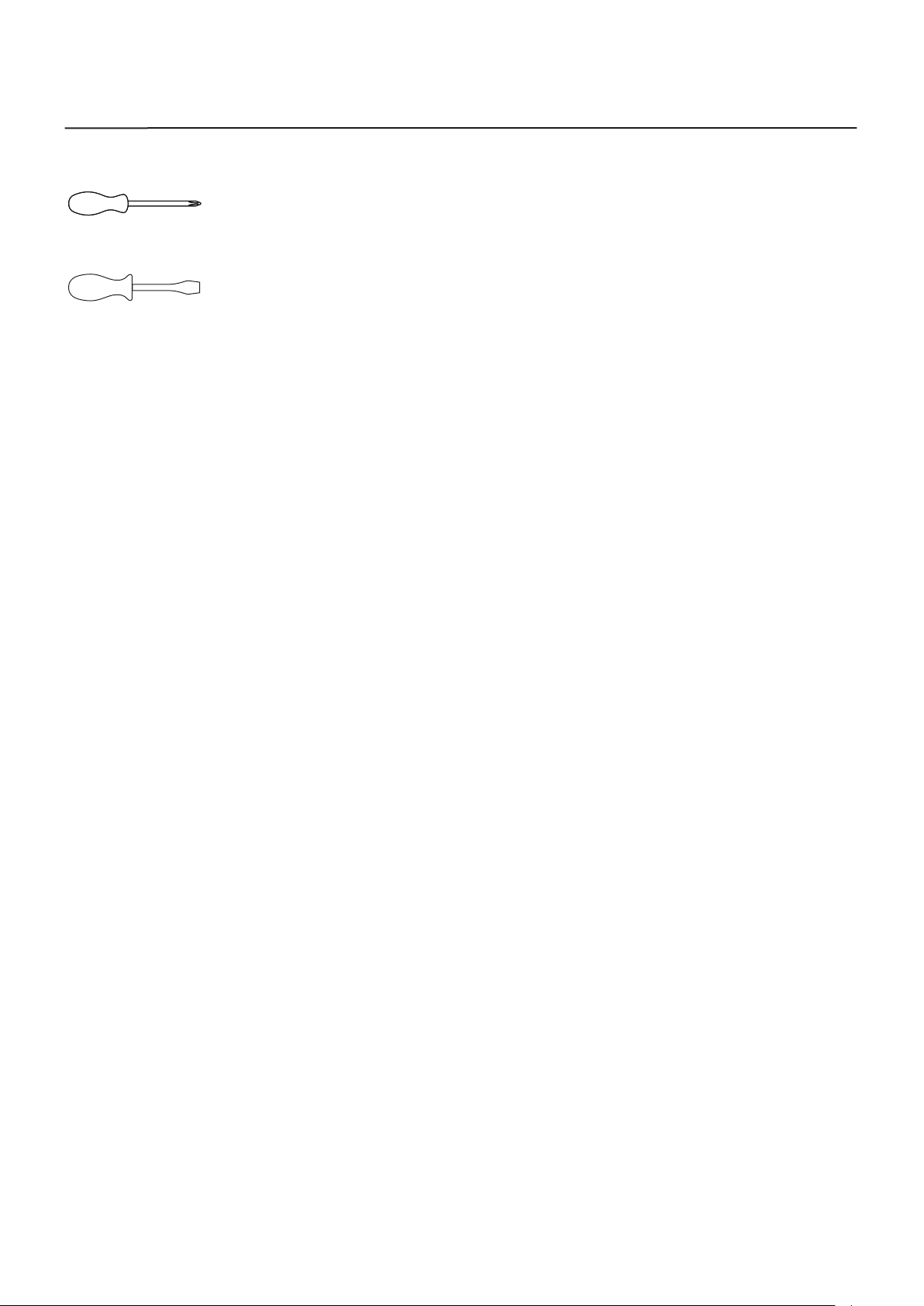

Tools required
Phillips screwdriver
(small & medium)
Phillips screwdriver
(small & medium)
3
Page 5

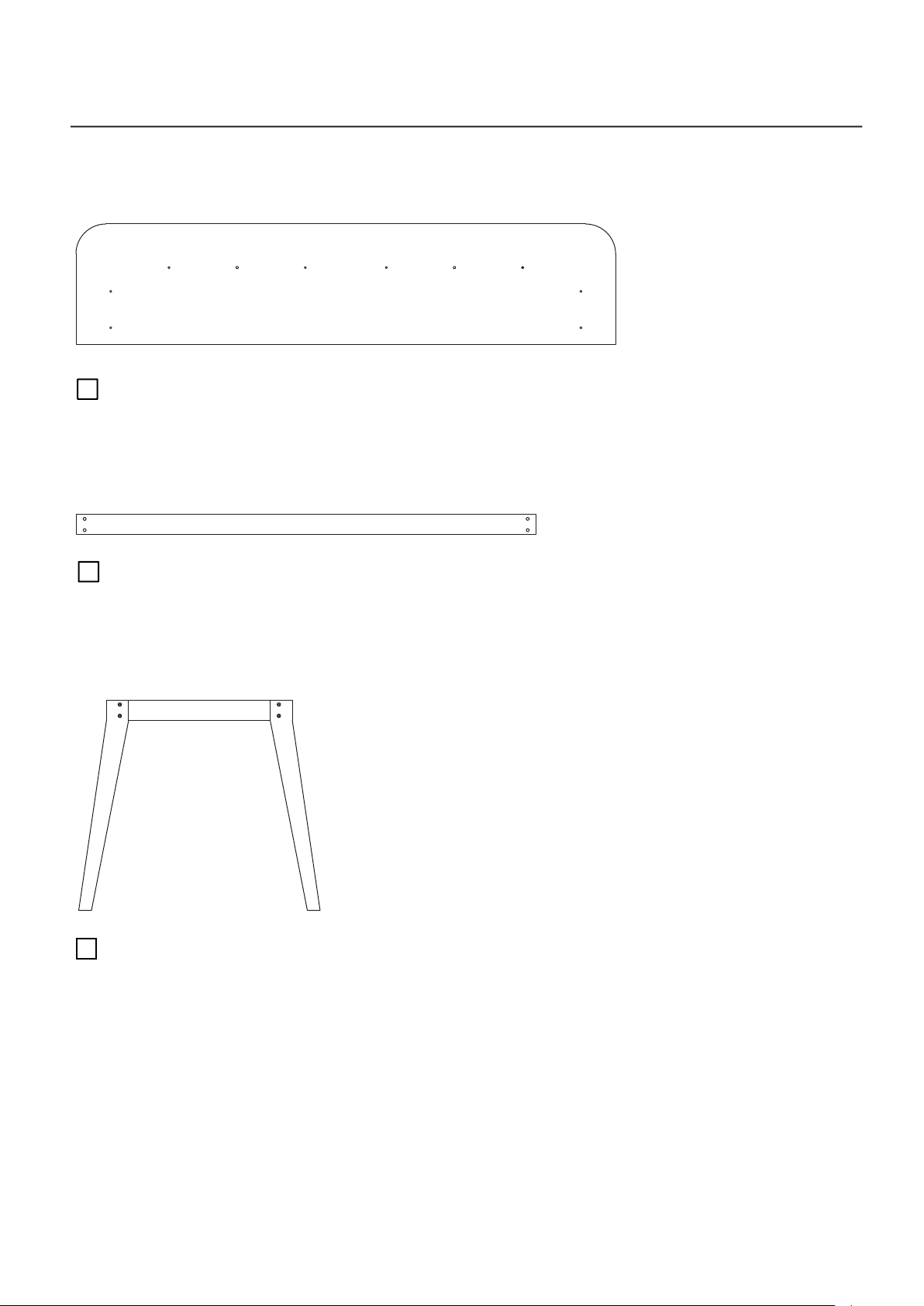

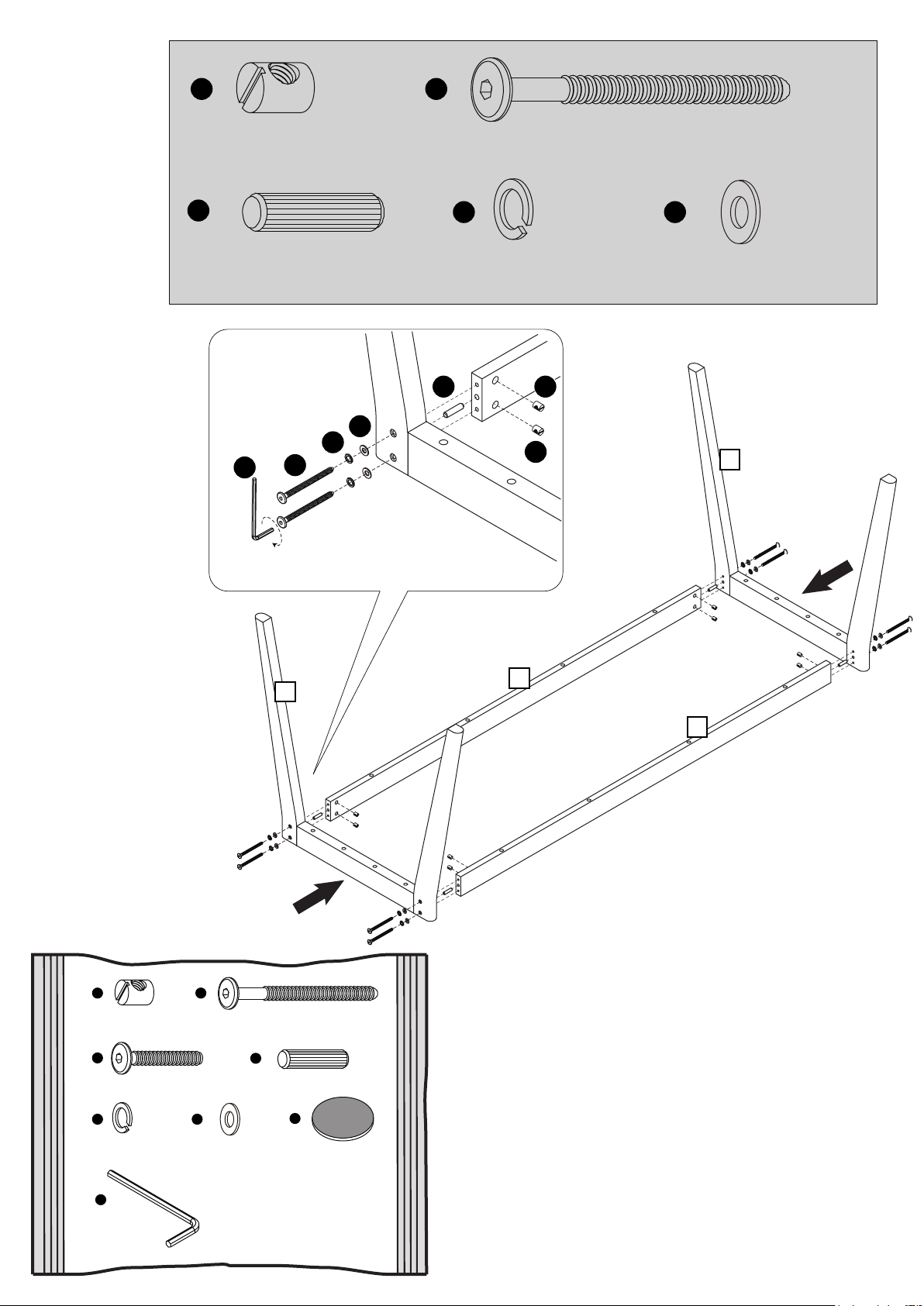

Panels
1
Top Panel x2
(1900 x 424mm)
2
Support Rail x2
(1620 x 70mm)
3
Side Leg x 2
(850 x 732mm)
4

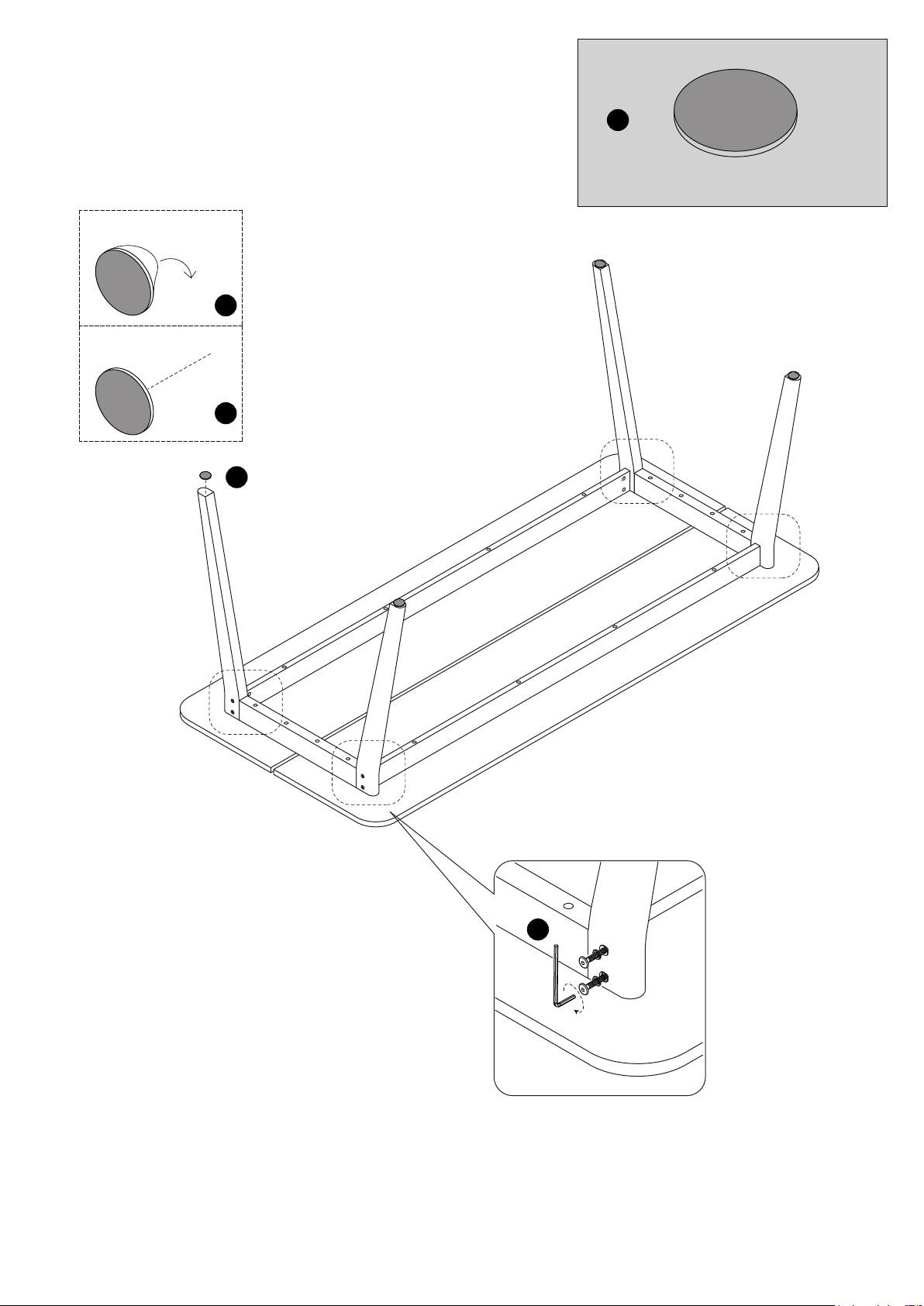

Page 6
A
B
1
Ø10*15mm Nut x 8
D
Ø8*30mm Bolt x 4
H
B
E
F
50%
M6*70mm Bolt x 8
E
Spring Washer x 8
D A
A
F
Flat Washer x 8
3
A
Ø10*15mm Nut x 8
C
M6*40mm Bolt x 16
E
Spring Washer x 24
B
M6*70mm Bolt x 8
F
Flat Washer x 24
3
2
2
Warning!
Please do not fully tighten the bolts
in this step.
D
Ø8*30mm Bolt x 8
G
Ø30mm Foot Pad x 4
H
M4 Alley Key x 1
5

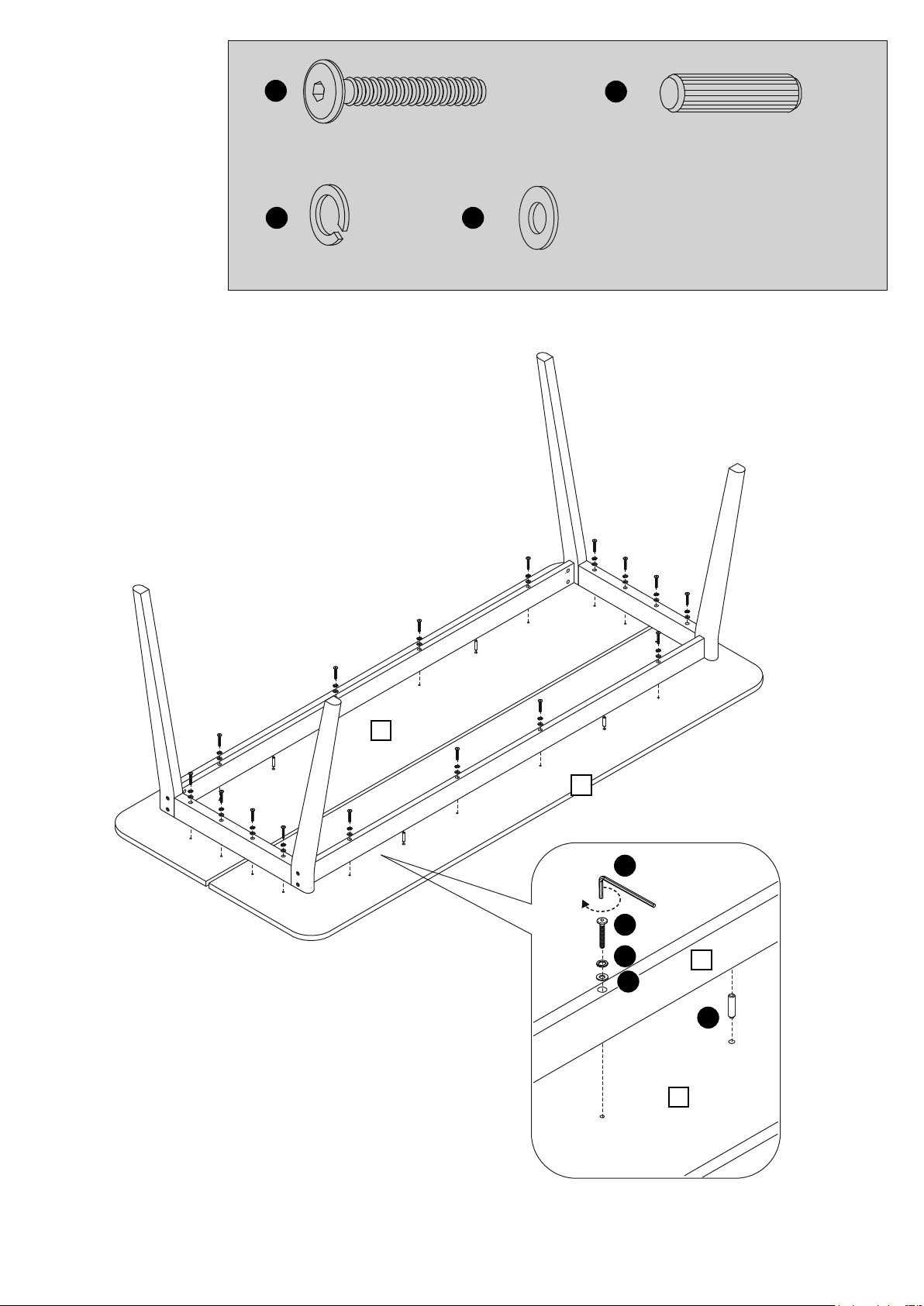

Page 7
C
D
2
M6*50mm Bolt x 16
E
Spring Washer x 16
Ø8*30mm Bolt x 4
F
Flat Washer x 16
1
1
H
C
E
F
2
D
1
6
Page 8
3
G
Ø30mm Foot Pad x 4
1
2
Peel off
the back
G
G
G
x4
Fully tighten all the bolts.
H
100%
7
Page 9
4

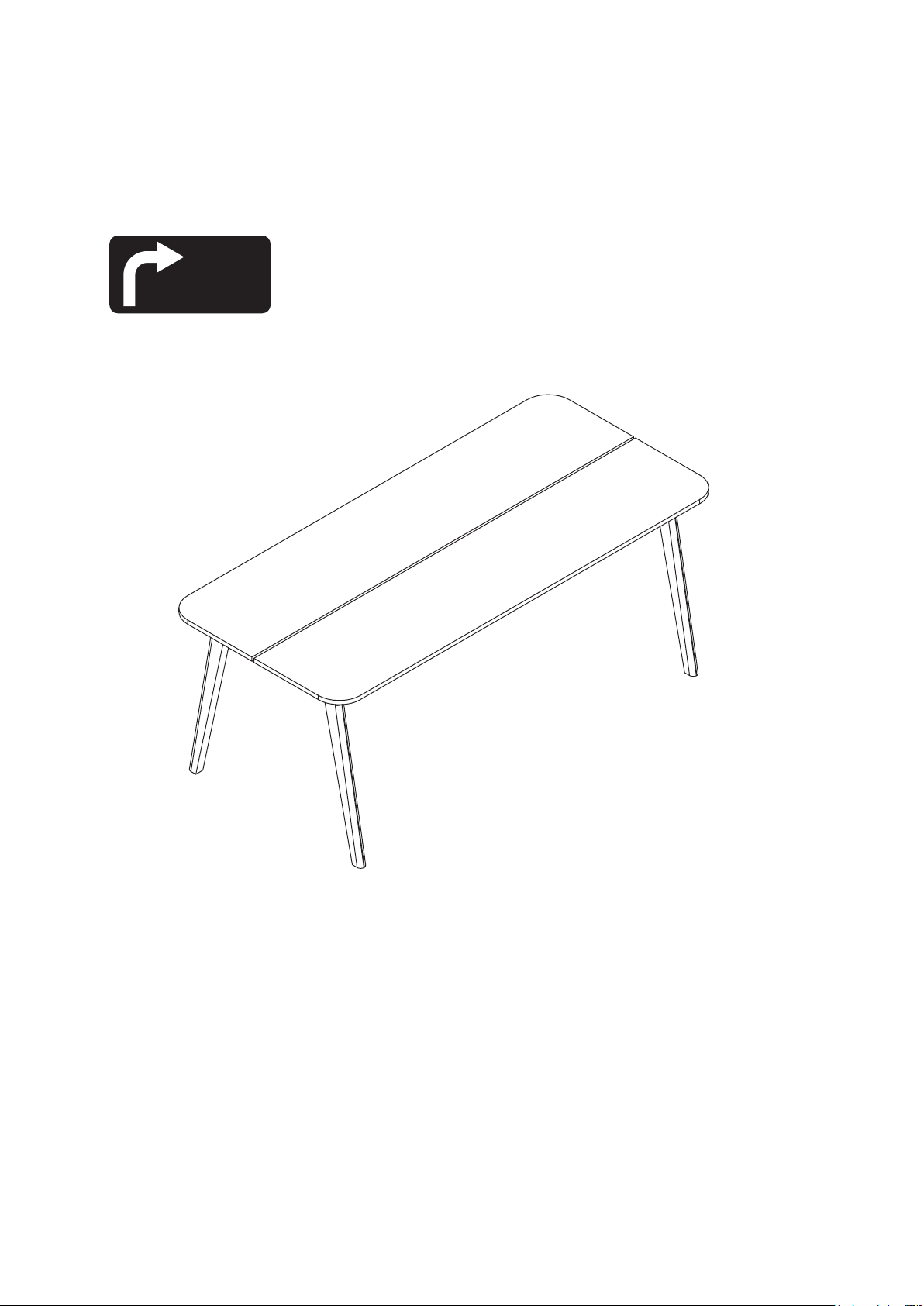

Rotate
Product
Assembly is complete.
8
