Page 1
PEIO
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 20/04/22
Page 2
Safety and Care Advice
Product Details
Peio cane 3Drw chest 2151744 Black
Peio cane 3Drw chest 3441013 Oak
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
· This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
to its final position(in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Additional Guidance
Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
Regularly check and ensure that all bolts and fittings are tightend properly.
Maximum loading weight 50kg.
•
This product is compliant EN14749,BS4875-7.
Any additional or replacement parts are obtained from the manufacturer.
Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast,
United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County Meath, Ireland.
1
Page 3
Fittings (Shown to scale)
Bag 1
A
Locking Nut x38
C
35mm Screw x 14
F
15mm Screw x 2
I
B
Metal Dowel x38
D
12mm Screw x 23
G
Ø25mm Foot Pad x 4
J
30mm Dowel x 6
E
30mm Dowel x 18
H
Pad x 3
L Shap Bracket x 2
2
Page 4
Tools required
Phillips screwdriver
(small & medium)
Phillips screwdriver
(small & medium)
Pencil
Mallet
Set Square
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Power Drill
Drill Heads
Spirit Level
Ladder
3
Page 5
Panels
1
Top Panel x 1
(863x 383mm)
Rail (796 x 60mm) x 1
4
Rail (796 x 60mm) x 2
5
Rail (796 x 30mm) x 36
2
Left Side Frame x 1
(813 x 360mm)
Right Side Frame x 1
3
(813 x 360mm)
7
Back Panel x 1
8
Back Panel x 1
Drawer Left Side x 3
12
(305 x 180mm)
(815 x 375mm)
(815 x 375mm)
Drawer Right Side x 3
13
(305 x 180mm)
9
Drawer Top Front x 1
(856 x 244mm)
10
Drawer Middle Front x 1
(856 x 244mm)
11
Drawer Bottom Front x 1
(856 x 244mm)
Drawer Back x 3
14
Drawer Rail x 3
15
(285 x 55mm)
(741 x 180mm)
16
Drawer Bottom Panel x 3
(756x 298mm)
4
Page 6
B
1
1
2
Peel off
the back
G
x4
G
G
Metal Dowel x34
E
30mm Dowel x 18
2
G
Ø25mm Foot Pad x 4
J
30mm Dowel x 6
B
3
A
Locking Nut x38
C
35mm Screw x 14
11
B
Metal Dowel x38
D
12mm Screw x 23
10
E
30mm Dowel x 18
9
14 x3
4
6 x3
J
15 x3
J
J
12 x3
13 x3
F
15mm Screw x 2
I
L Shap Bracket x 2
G
Ø25mm Foot Pad x 4
J
30mm Dowel x 6
H
Pad x 3
E
5
Page 7
2
B
Metal Dowel x4
F
I
15mm Screw x 2
F
I
1
L Shap Bracket x 2
B
3
A
4
5
6
5
6
3
6
A A
Locking Nut x 8
6
Page 8
A
4
2
A A
Locking Nut x 8
5
A
1
A A
Locking Nut x 4
Turn
Product
7
Page 9
Rotate
Product
D
H
6
12mm Screw x 23
7
8
Pad x 3
D
H
D
7
A
13
Locking Nut x 15
x3
15
9
12
9
10
11
A A
8
Page 10
A
C
8
C
16
Locking Nut x 3
14
35mm
Screw
x 12
x3
A A
9
9
10
11
9
Page 11
10
C
35mm Screw x 2
C

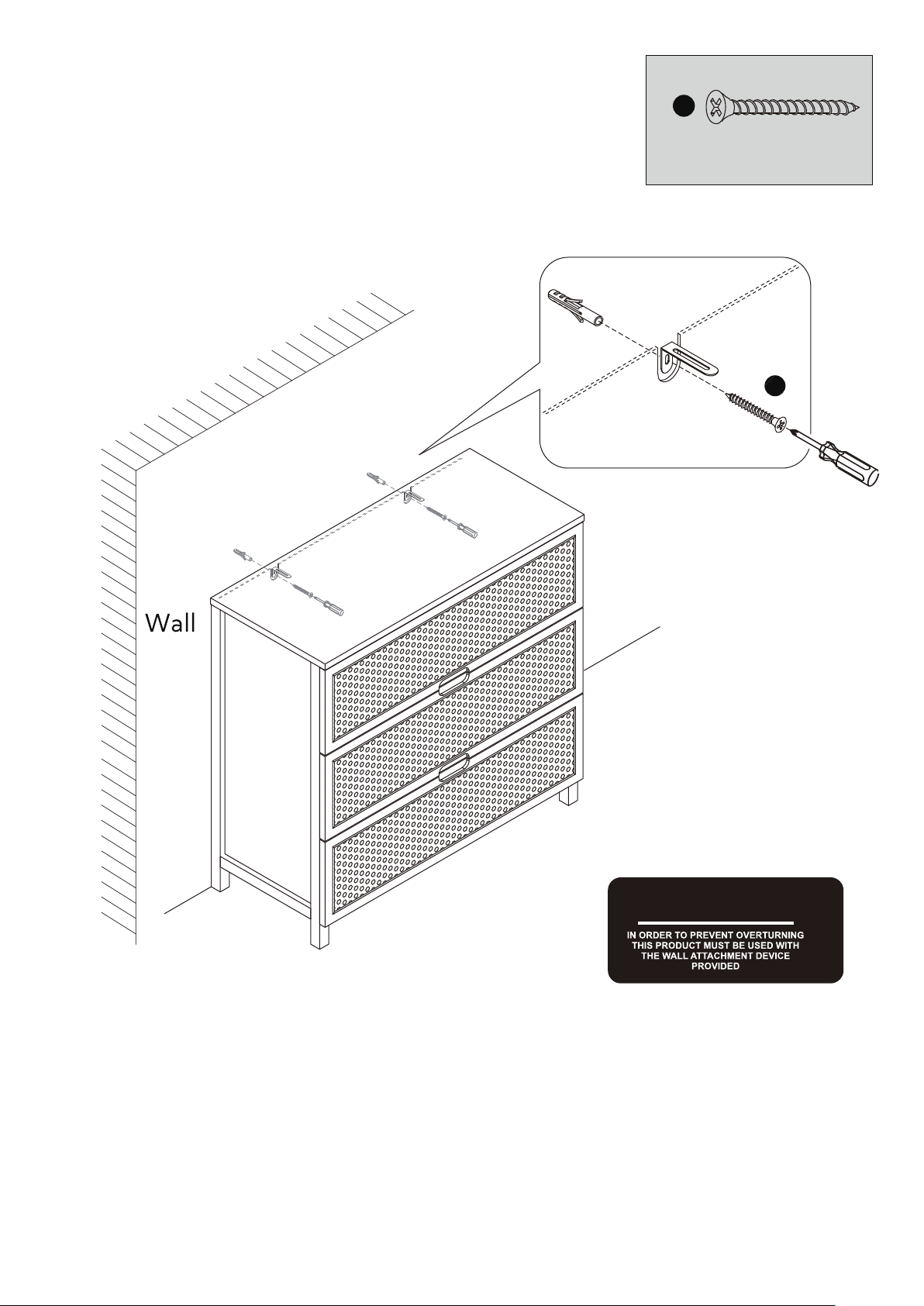

WARNING!
10
Page 12
11

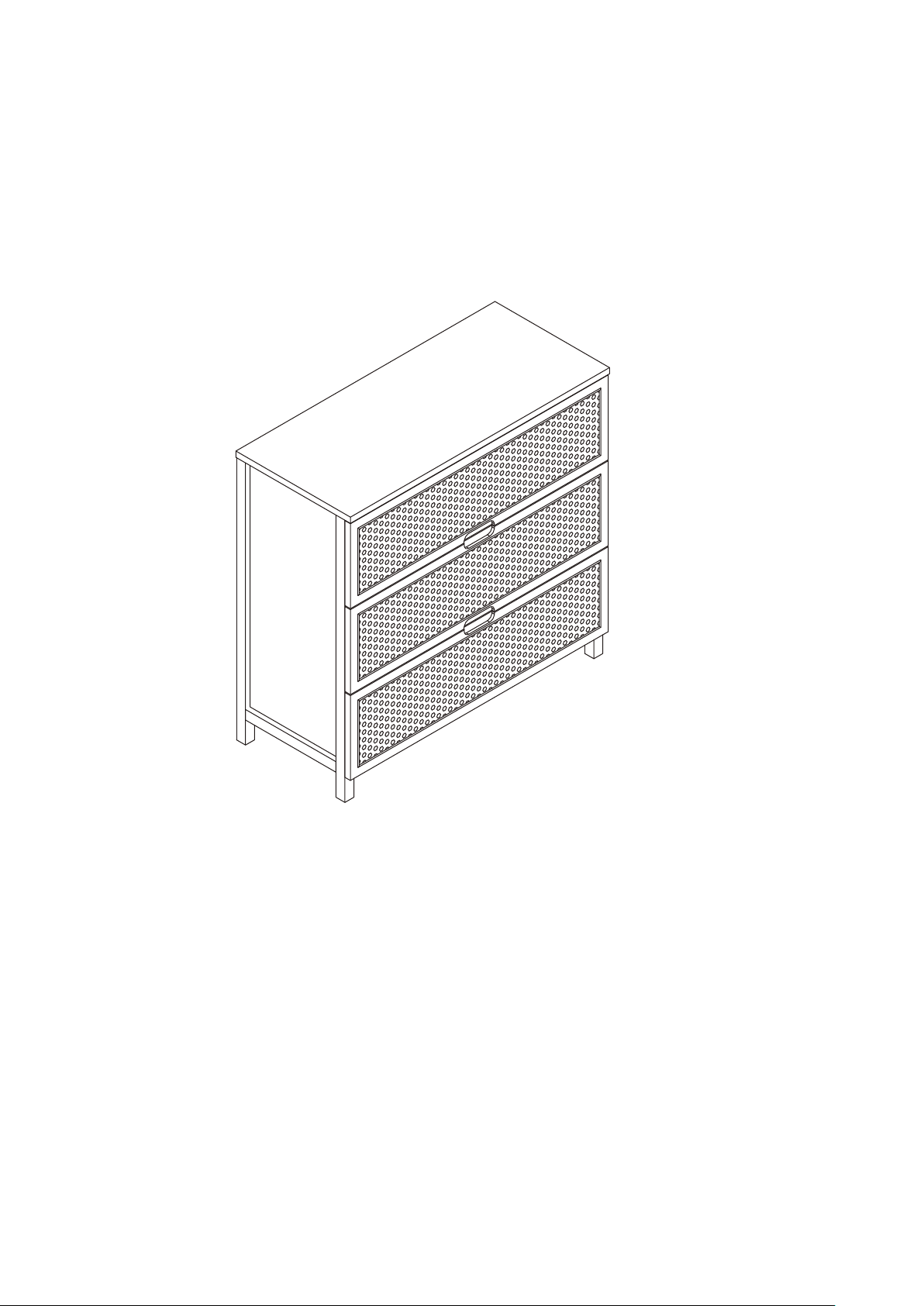

Assembly is complete.
11
Page 13
A Guide to
- Wall Mounting & Fixings
Important not
e:
Wall Fixings:
- because of the variety of
different wall types, Habitat
cannot provide you with the
exact fixings you will need to
fix this product to the wall.
You must first identify the
type of wall you intend to fix
product onto and then contact
your local hardware store to
get the appropriate fixings.
Important:
check that there ar
Make sur
When drilling int
e no hidden wires or pipes etc.
e that the screws and wall plugs being used are suitable
o walls always
for supporting your unit. Consult a qualified tradesperson if you are
unsure.
Hints:
1: General rul
if you ar
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3:
Ensure you drill the hole horizontally, do not force the drill or
enlarge the hol
4: Take extra care when drilling high walls, ceilings and ceramic tiles.
Ensure wall plugs are inserted beyond the thickness of the ceramic
tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hol
e: Always use a larger screw and wall plug
e not sure.
e.
e.
s of walls
Type
.1 “General Purpose” wall plug
No
Generall
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can be
used.
No.2 “Plasterboard” wall plug
y aerated blocks should not
You can use one of the following types of wall plug if your walls are made
of brick, breeze bl
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty” wall
plug
ock, concrete, stone or wood.
No.5 “Hammer Fixing” wall plug
For use with walls stuck with plasterboard.
The hammer fixing allows it to be fixed
to the wall rather than the plasterboard.
Always check the fixing is secure to the
retaining wall.
No.6 “Shield Anchor” wall plug Heavy
loads
For use when attaching light loads on to
plasterboard partitions.
Care &
Maintenance
For use when fitting or supporting heavy
loads such as shelving, wall cabinets and
coat racks.
ty: Always check the fitting and
Safe
location to ensure your safety in and
around the home.
For use with heavier loads such as TV &
HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
