Argos Valencia - Corner Base Cabinet, 633-2947, 633-2789, 204-5977, 633-2868 ASSEMBLY INSTRUCTIONS

...
MADE IN
BRITAIN
Dimensions
Width - 88cm
Depth - 88cm
Height - 87cm
Valencia - Corner Base Cabinet
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 05/08/14
Important - Please read these instructions fully before starting assembly
hygena
656/5800
633/2947
633/2789
204/5977
633/2868
205/3189
Black Door Pack
Cream Door Pack
Oak Door Pack
White Gloss Door Pack
White HN Door Pack
Cabinet
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 34kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 to 5.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: If there is any chance of this unit being pulled over by children etc. it is recommended that the unit is secured to a wall using suitable fixings (not supplied).
• Dispose of all packaging carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
Components - Panels
Please check you have all the panels listed below
2
1
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Top/Base (DPF136A)
(800 x 800mm) x 2
4
2
Left/Right Back (DPF139A)
(630 x 717mm) x 2
Loose Shelf (DPF137A)
(798 x 798mm)
3
Back (DPF138A)
(272 x 688mm)
Left/Right Side (DPF177A)
(720 x 560mm) x 2
5
6
Door (DPF145B)
(297 x 716mm) x 2
The front
surface of this
door is
protected with
a peel-off film
Please check you have all the fittings listed below
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
A
Wooden dowel (F22) x 16
B
Metal dowel (F901) x 8
C
D
Large locking nut (F900) x 8
F
G H I a
I c
I d
I e
I b
J K
13mm Screw (F63) x 8
E
13mm Screw (F79) x 2
Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2
L M
N O
QNP
25mm Screw (F50) x 18
Bracket (F945) x 2
Leg Bracket (F127) x 3
Leg Socket (F120) x 6
Leg Clip (F128) x 3
16mm Screw (F129) x 24
Leg (F122) x 6
40mm Screw (F910) x 2
Shelf support (F110) x 7
2mm Hinge Plate (F157) x 2
Bent Hinge Arm (F154) x 2
Cantilevered
Hinge Arm
(F155) x 2
Soft Close Unit (F156)
x 2
4mm Hinge Plate (F158) x 2
Valencia Door Handle (F214) x 1
R a R b
25mm Screw (F132) x 2
3
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Step 2
B
B
B
B
B
J
4
Q
Q
1
Q
Q N
Choose which way you would like the door to open
You can fit the door to the left side or right side.
If you would like your door
to open this way, fit the
hinge plates to the left side
If you would like your door
to open this way, fit the
hinge plates to the right side
H=2
Q
Prepare the left side
Refer to step 1 and, if required, fit 2 hinge
plates onto the left side , making sure that they face the same way as the diagram.
Screw 4 metal dowels into the holes shown on the left side .
Note: Tighten metal dowels up fully against the panels.
Fit a bracket flush to the top and back edge of the left side .
Secure the bracket using screw .
4
B
4
J
J
4
E
J
E
H=4
H=4
H=2
Assembly Instructions
5
Step 3
Step 4
2
J
J
E
B
B
B
B
4
Q
Q
Q
Prepare the right side
Refer to step 1 and, if required, fit 2 hinge
plates onto the right side , making sure that they face the same way as the diagram.
Screw 4 metal dowels into the holes shown on the right side .
Note: Tighten metal dowels up fully against the panels.
Fit a bracket flush to the top and back edge of the right side .
Secure the bracket using screw .
4
B
4
J
J
4
E
CC
C C
A
A
A
A
A
A
Prepare the top and base
Insert 4 large locking nuts into the top and base as shown.
Note: Arrow on locking nut must point towards hole in edge of panel.
Tap 6 wooden dowels into the top and base . as shown.
Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
C
C
1
1
1
10mm
A
A
1
1
Q N
H=2H=4
H=4
H=2
Q
Assembly Instructions
6
Step 5
Step 6
I a I a
I b
b:
a:
c: d:
Fit the legs to the base
a: Push the leg sockets
. into the holes in the base as shown.
b: Secure each leg
socket with 3 screws .
c: Tap in the centre plug
on each leg socket .
d: Push the leg into
the leg socket .
I a
I a
I a
I e
I e
1
x 3
I a
I a
I b
I a
I a
I a
I a
I a
I a
4
1
Join the right side and base
Push the base onto the right side .
Use a screwdriver to tighten the 2 large locking nuts fitted to the base .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
1
1
4
C
C
B
C
1
4
Finished
front edge
1
Bracket
Assembly Instructions
7
Step 7
Step 9
A
A
Prepare the back
Tap 4 wooden dowels into the back as shown.
A
A
L
A
3
3
3
1
3
L
Fit the back
Push the back onto the base and secure with screw .
1
3
Fit the top
Push the top onto the right side and back .
Use a screwdriver to tighten the 2 large locking nuts fitted to the top .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
Secure the back to the top with screw . .
Step 8
4
4
3
1
1
C
C
1
L
L
3
1
Assembly Instructions
8
Step 10
Step 11
Fit the left side
Push the left side onto the base and top .
Use a screwdriver to tighten the 4 large locking nuts fitted to the base and top .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
1
1
1
1
4
1 1
C
C
4
Insert the loose shelf
Place the loose shelf inside the unit.
2
2
Finished
front edge
Bracket
Assembly Instructions
9
Step 12
Step 13
F
Secure the left back
Secure the left back with 6 screws through its pre-drilled holes into the base and top.
F
F
F
F
F
F
Fit the left back
Slide the left back along the groove in the left side.
5
5
5
Assembly Instructions
10
Step 14
Step 15
Fit the loose shelf
Hold the loose shelf up and insert 7 shelf studs at the required height.
Lower the loose shelf down onto the shelf studs .
M
M
M
M M
2
2
2
Fit the right back
Slide the right back along the groove in the right side.
Secure the right back with 6 screws through its pre-drilled holes into the base and top.
5
5
5
F
F
F
F
F
F
F
x 3 x 3
Assembly Instructions
11
Step 16
N
N
N
D
D
D
D
Prepare 1 of the doors to be the carcase door
a: Fit 2 hinge plates
onto a door , making sure that they face the same way as the diagram.
b: Push fit 2
cantilevered hinge arms . into the door .
Secure each hinge arm with 2 screws .
Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the front edge of the door.
N
a:
b:
6
P
D
6
90
P
P
P
6
6
H=2
H=2
H=4
H=4
N Q
Assembly Instructions
12
Step 17
Fit the carcase door
2 people are needed here
Note: The easiest way to
attach the carcase door . is to fit the top hinge first, then align and fit the other hinge.
a: Push the hooks on
the cantilevered hinge arm underneath the front of the hinge plate . .
b: Press the front of the
hinge arm against the hinge plate until it clicks into place.
c: If you need to
seperate the hinge arm . from the hinge plate, . press the button at the end of the hinge arm and lift it off of the hinge plate.
Q
P
Q
P
6
P
Q
This shows the carcase door being fitted
to hinge plates on the left side.
You may have fitted them to the right side.
6
a:
b:
c:
Push and click
Push
P
P
P
Q
Q
Q
Q
P
Assembly Instructions
13
Step 18
90
D
D
D
D
Prepare the other door to be the hinged door
Push fit 2 bent hinge arms into the other door .
Secure each hinge arm with 2 screws .
Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the front edge of the door.
O
O
O
6
O
6
D
Assembly Instructions
14
Step 19
ONLY drill
these 2 holes
Drill these 2 holes if you
have fitted the carcase
door to the left side.
Drill the handle holes in the hinged door
Important: Please follow these instructions carefully.
Lay the door down onto a smooth surface.
Important: Carefully choose which holes you need to drill. This will depend on which side you fitted the hinge plates .
Check that the holes and hinges are in the same place as the diagrams.
Note: We recommend the use of a small piece of waste wood, placed behind the hole while drilling, to reduce the possibility of any breakout.
Using the pilot hole in the rear face of the door, . drill through the holes indicated opposite, using a 2.5mm diameter drill.
Turn the door over and open out the 2.5mm holes that you have just drilled by drilling back through them with a 5mm drill.
Note: Drill bits are not provided.
6
N
6
6
Drill these 2 holes if you
have fitted the carcase
door to the right side.
or
Small piece of
waste wood
Small piece of
waste wood
ONLY drill
these 2 holes
DO NOT drill
any other holes
DO NOT drill
any other holes
6
6
PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY
TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL
Assembly Instructions
15

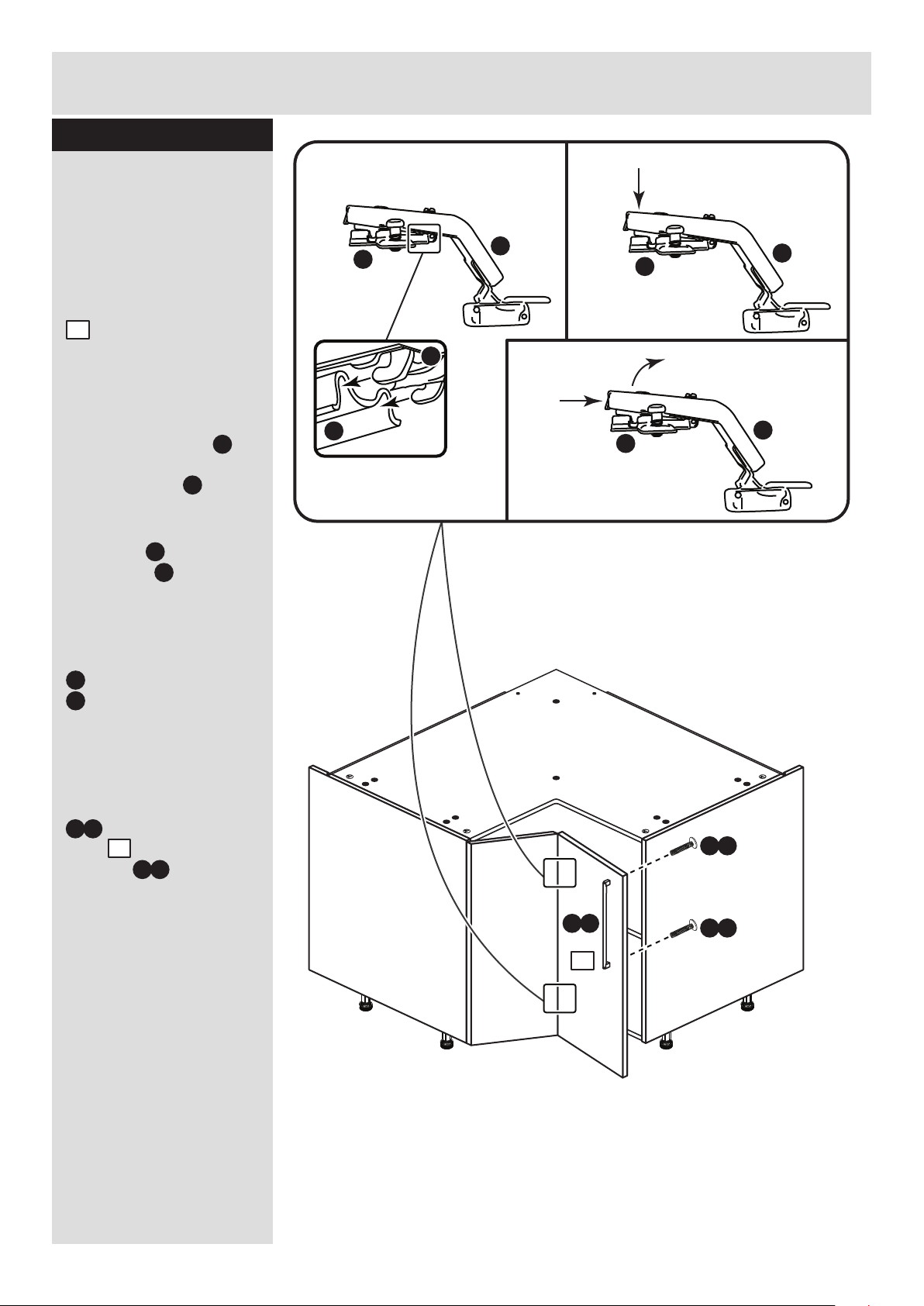

Step 20
Fit the hinged door
2 people are needed here
Note: The easiest way to
attach the hinged door . is to fit the top hinge first, then align and fit the other hinge.
a: Push the hooks on
the bent hinge arm underneath the front of the hinge plate .
b: Press the front of the
hinge arm against the hinge plate until it clicks into place.
c: If you need to
seperate the hinge arm . from the hinge plate, . press the button at the end of the hinge arm and lift it off of the hinge plate.
d: Attach the handle
. supplied with the door using the screw(s) packed with it.
N
O
N
O
8
O
N
R a
R b
6
R a
R b
R b
6
This shows the hinged door being fitted to
carcase door on the left side.
You may have fitted it to the right side.
a:
b:
c:
Push and click
Push
N
O
N
O
N
O
N
O
Assembly Instructions
16
Step 21
Fit the soft close unit
Push a soft close unit onto each cantileved hinge arm until it clicks into place.
K
P
K
P
Assembly Instructions
17
Step 22
Joining units together
Fittings have been supplied so you are able to join units together.
Make sure that your first unit is level.
Push the other unit up against first unit and ensure both units are level.
Check that the ends are flush and in line, then clamp them together.
Using a 5mm drill bit, drill 2 holes (approximate positions shown circled) in the side panel into the adjoining side panel of the other unit.
Push the connecting sleeves into the holes and then screw the connecting bolts in from the other side.
G
H
5mm
G
H
Assembly Instructions
18
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 23
Assembly is complete
Warning: The unit is heavy. Lift with care.
Adjust the doors if needed
Adjust the hinge plates and arms by turning the screws on them clockwise or anti­clockwise.
Step 24
Pencil mark
Plinth
I c
I c
I d
Plinth
I e I e
Fit the plinth
After cutting the plinth to the required length, offer the plinth up to the unit and using a pencil, mark the position of the unit’s legs on the back of the plinth.
Position the leg bracket . so it is in the centre of the pencil mark and half way up the plinth.
Fix the leg bracket to the back of the plinth using 2 screws .
Slide the leg clip into the leg bracket
Offer the plinth up to the unit and push the leg clips onto the legs . .
I b
I b
I c
I c
I c
I d
I d
.
I e
608/2345
608/2369
205/5668
198/9917
608/2352
Black Plinth Pack
Cream Plinth Pack
Oak Plinth Pack
White HN Plinth Pack
White Gloss Plinth Pack
ALR2656
Loading...
