Midsleeper - White
Assembly Instructions - Please keep for future reference
1838800
Dimensions
Length - 196cm
Depth - 102cm
Height - 115cm
Weight - 25kg
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 3 - 27/10/15
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could
damage the unit. Only use hand
screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
IMPORTANT - READ CAREFULLY -RETAIN FOR FUTURE REFERENCE
ASSEMBLY:
Always follow the instruction. Current legislation requires that the high bed / bunk bed must be fi tted with 4
safety-rails and a ladder or platform for the upper bunk. The high bed / bunk bed meets the European EN
747:2012 A1:2015 standards for security and durability.
MATTRESS:
This bed is designed to use a mattress size 190 cm long and 90 cm wide. The total thickness must not
exceed 16,1 cm. The mattress top must not pass the marking on the ladder / the post for the safety-rail.
WARNING:
High beds and the upper bed of bunk beds are not suitable for children under six years due to the risk of
injury from falls. Bunk beds and high beds can present a serious risk of injury from strangulation if not used
correctly. Never attach or hang items to any part of the bunk bed that are not designed to be used with the
bed, for example, but not limited to ropes, strings, cords, hooks, belts and bags. Children can be become
trapped between the bed and the wall, a roof pitch, the ceiling, adjoining pieces of furniture (e.g. cupboards)
and the like. To avoid risk of serious injury the distance between the top safety barrier and the adjoining
structure shall not exceed 75 mm or shall be more than 230 mm.
Do not use the high bed / bunk bed if any structural part is broken or missing.
MAINTENANCE INSTRUCTIONS:
Check regulary that all assembly fastenings are properly tightened. Ventilation of the room is necessary in
order to keep the humidity low and to prevent mould in and around the bed.
1
Page 3
Components - Parts
If you have damaged or missing components,
call the Customer Helpline: 0045 7668 8055
Endrail x2 (87.7x8.9x2.0cm)
1
No. 12-02008771-20
End panel x2 (
4
No. 4301-0808771-20
Tread x2 (35x6.5x2cm)
5
No. 12-02003503-20
87.7x27.6x0.8cm)
Endrail x 2
2
No. 12-02008772-20
(87.7x6.5x2.0cm)
Slat x15
3
No. 12-01508971
(89.7x6.5x1.5cm)
Safety list x2 (31.8x2.8x1.2cm)
6
No. 12-01203181-20
Bedside x2
9
No. 1305-18673-20
Safety rail x2 (186.7x6.5x2.0cm)
10
No. 12-02018673-20
Safety rail x2 (149.7x6.5x2.0cm)
11
No. 12-02014971-20
(186.7x8.9x2.0cm)
Ladder side x1 (111.3x8.9x2cm)
7
No. 12-02011132-20
Leg x4 (112.4x4.3x4.3cm)
8
No. 12-04311241-20
2
Page 4

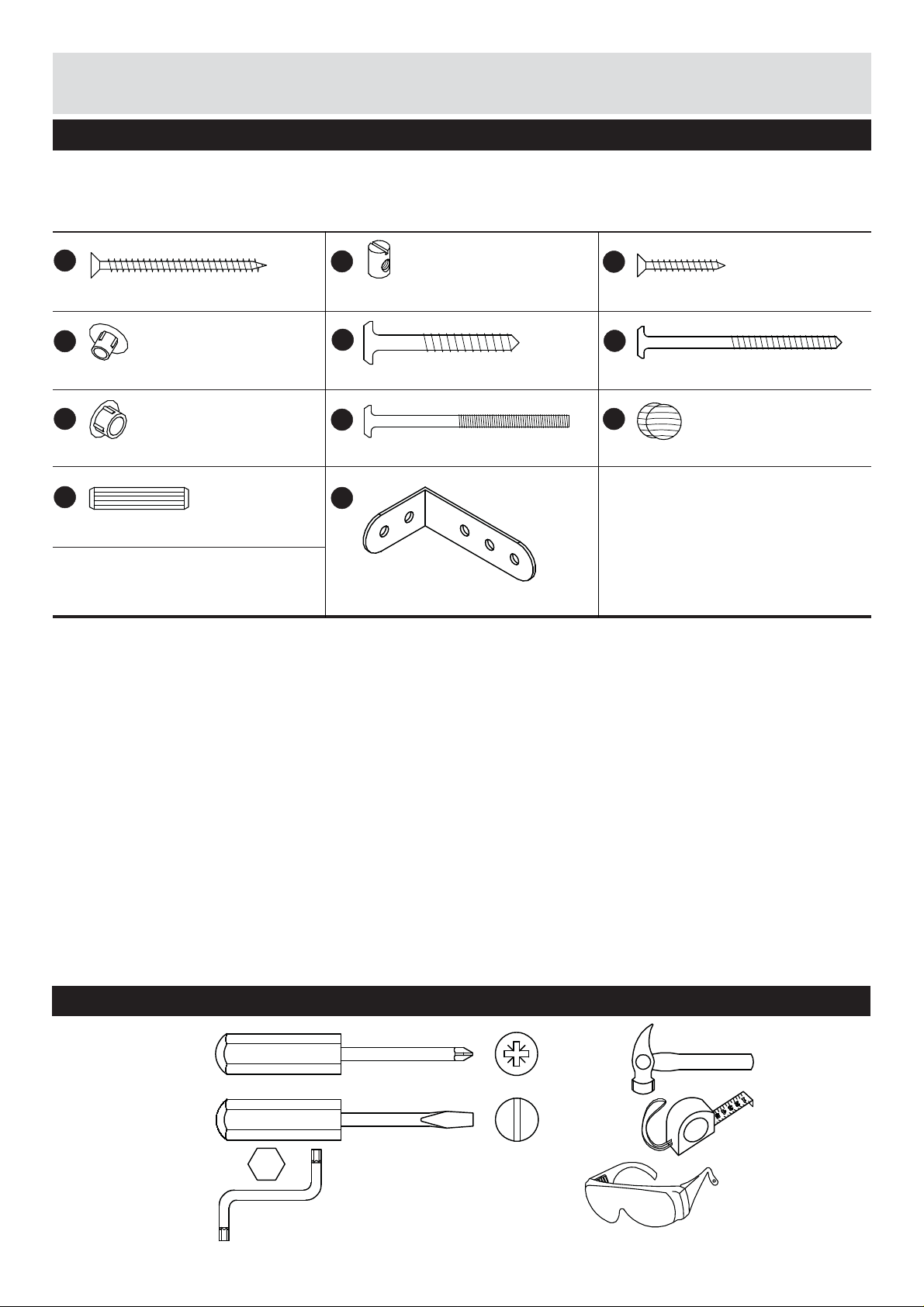

Components - Fittings
Please check you have all the fi ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings
may be supplied than are required.
No. 3901-45060
A
4.5x60mm Chipboard screw x2
No. 3938-00007-20
D
ø7mm Cover cap plastic x28
No. 3938-00010-20
G
ø10mm Cover cap plastic x2
No. 3930-10045
J
ø10x45mm Dowel x14
No. 3922-06014
B
M6 Ø10x14mm Barrel nut x4
No. 3909-63050
E
6,3x50mm Assembly screw x8
No. 3913-06090
H
M6x90mm Connecting bolt x4
No. 4008-022
K
Angle 70x40.5x20mm x2
No. 3901-40030
C
4x30mm Chipboard screw x42
No. 3909-63090
F
6,3x90mm Assembly screw x26
No. 3939-00012-20
I
ø12x10mm Cover cap wood x2
Tools required
Phillips
screwdriver
(medium)
Flatblade
screwdriver
(medium)
Allen key
4mm incl.
No. 4033-004
3
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Page 5
Assembly Instructions
Step 1

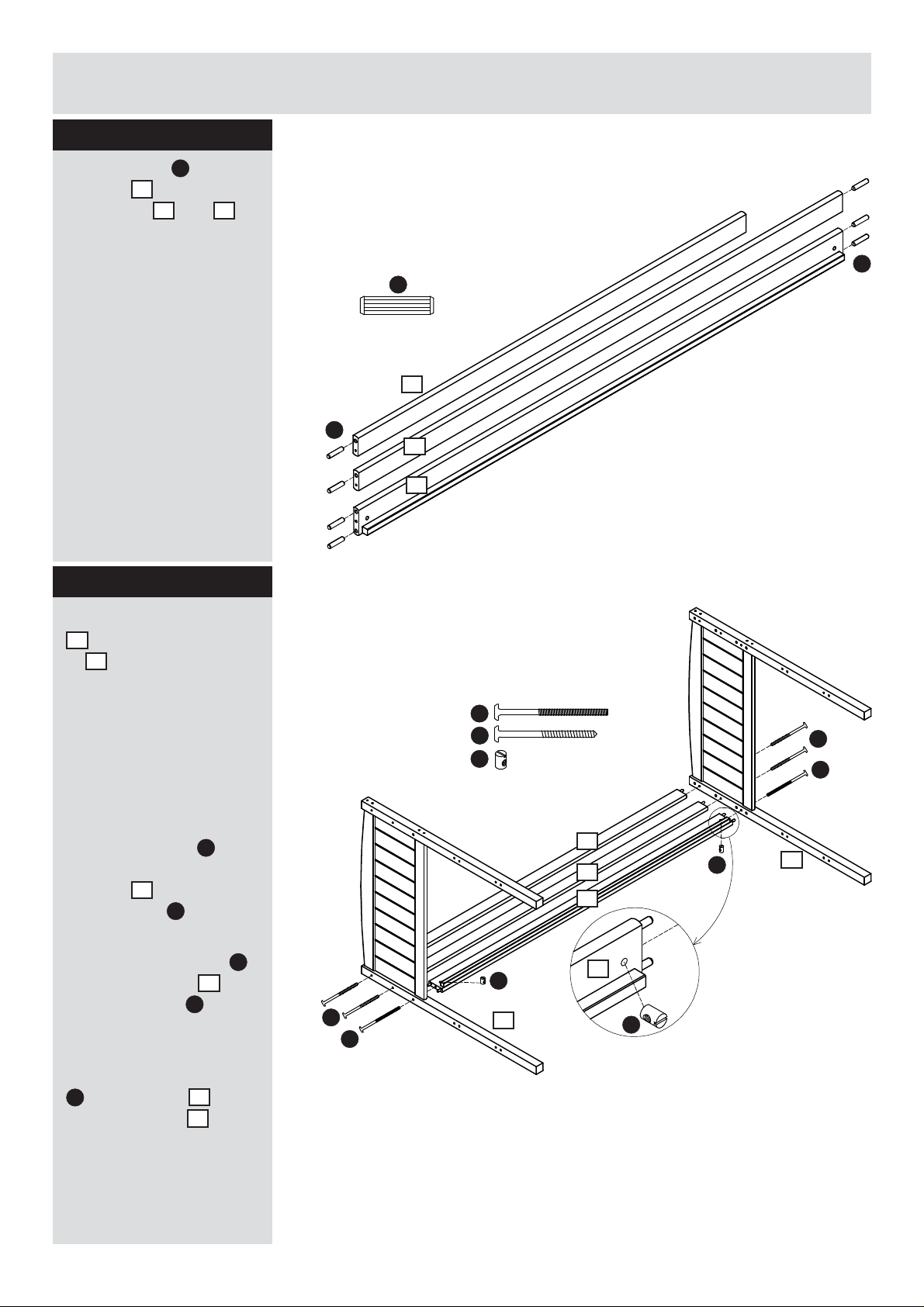

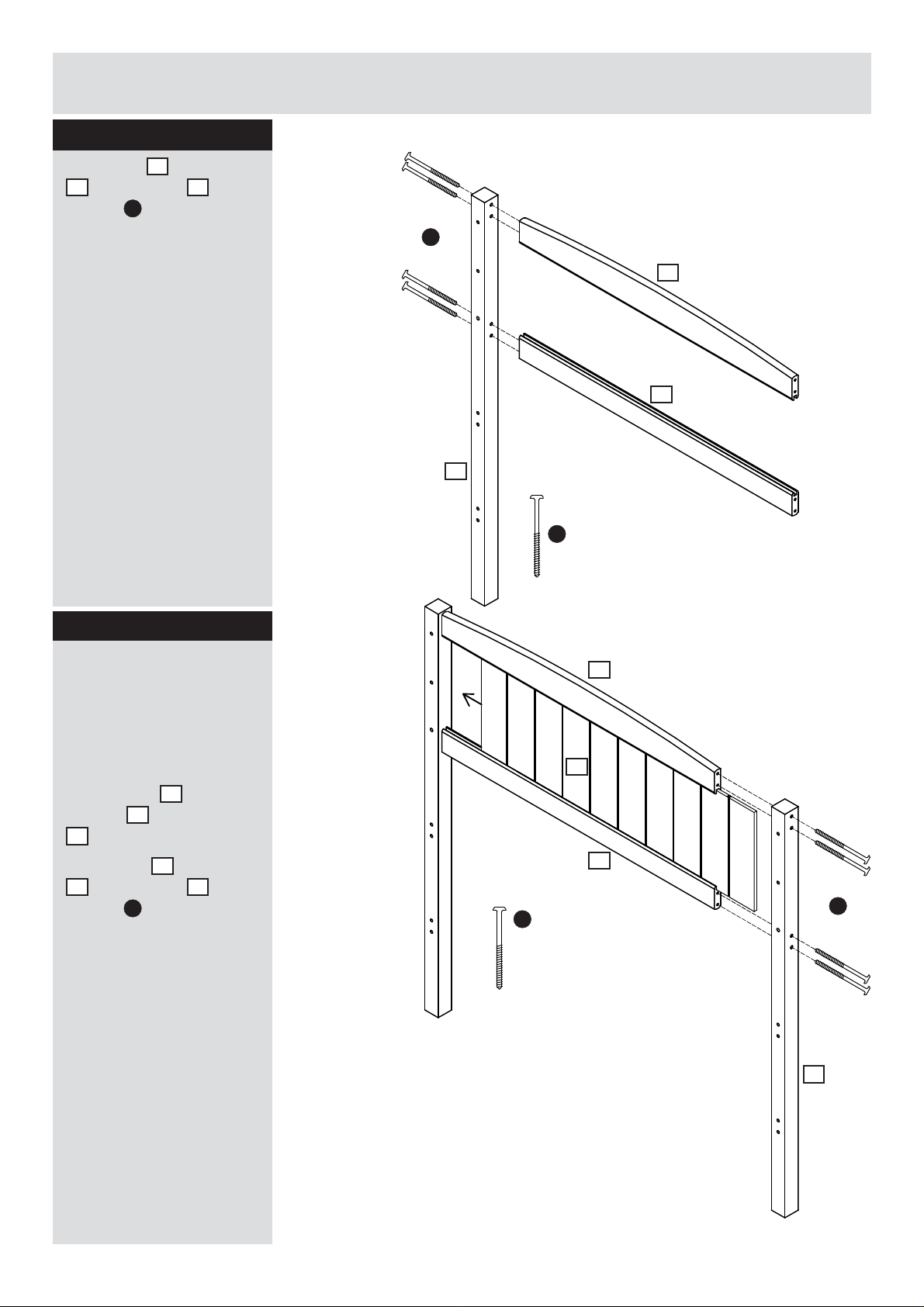

Attach leg 8 to end rail
1
and end rail 2 with 4
F
screws
Key
using the Allen
F
Repeat same procedure
for both headboard and
footboard
Step 2
During assembly
of headboard and
footboard, you must
decide if the grooves in
the MDF panels, should
face in or out of the bed
4
Slide panel
end rail
2
1
.
Attach leg
1
and end rail 2 with 4
screws
F
Key.
between
and end rail
8
to end rail
using the Allen
1
2
8
F
1
4
2
F
F
Repeat same procedure
for both headboard and
footboard
8
4
Page 6
Assembly Instructions
Step 3

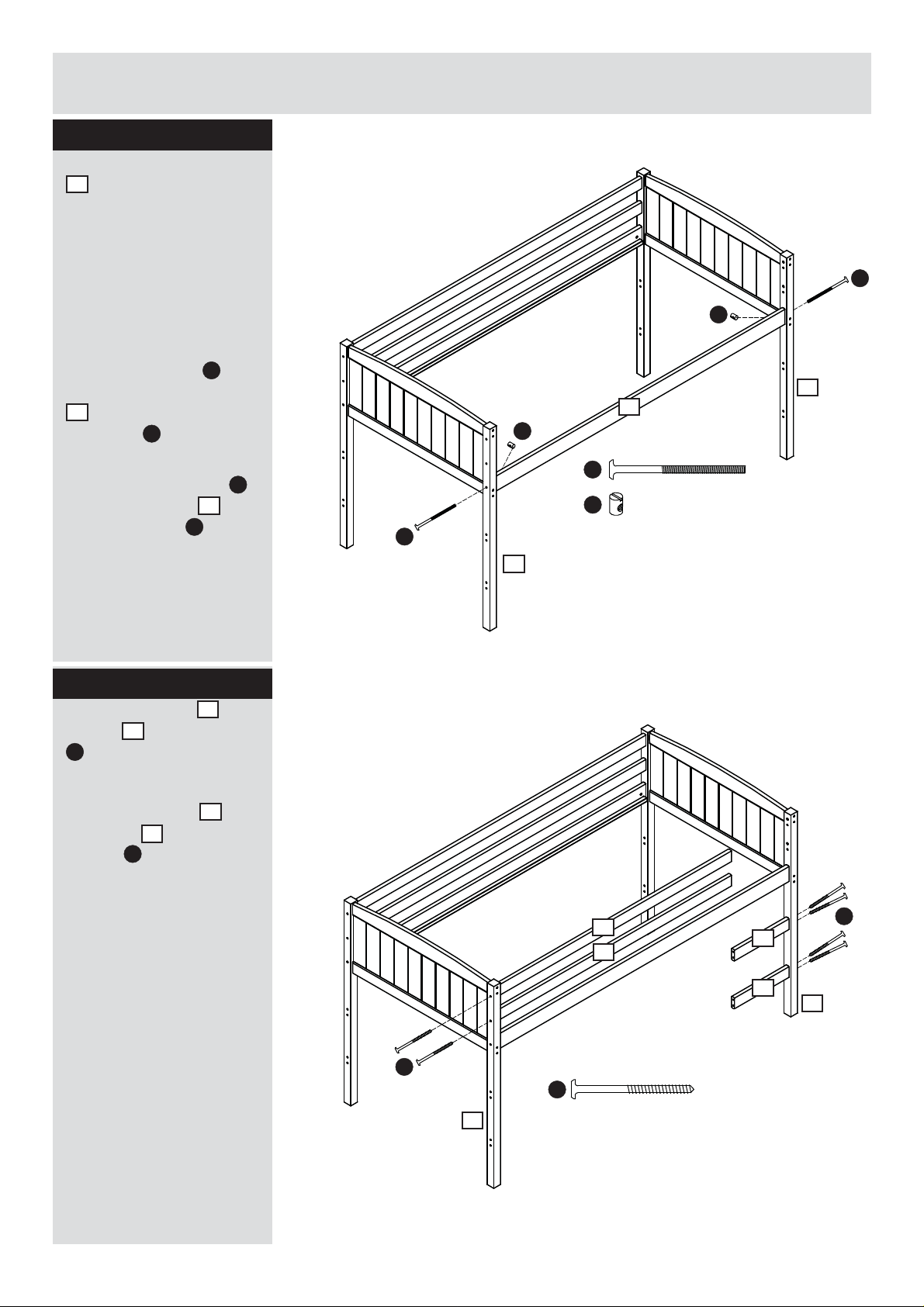

Insert dowels J to
9
bedside
safety rails
– it may be necessary
to tap the dowel in very
gently with a small
hammer.
and to the
10
and
11
J
J
Step 4
Attach the bedside
9
and the safety rail
10
headboard and
to
footboard fi rstly by
placing the dowels in the
holes in headboard and
footboard.
The thin rail attached to
the bedside should face
inwards.
B
B
should
B
and
into
8
H
to
Push Barrel nuts
the small holes in the
9
bedside
The groove
on barrel nut
be horizontal.
Push connecting bolt
through each leg
meet barrel nut
then fasten with the allen
key.
x2
11
J
F
H
10
x2
x2
9
H
F
B
10
10
9
B
8
9
B
B
F
H
8
Push assembly screws
F
through legs 8 to
10
meet safety rail
and
then fasten with the allen
key.
5
Page 7
Assembly Instructions
Step 5
Attach the bedside
9
to headboard and
footboard fi rstly by
placing the dowels in the
holes in headboard and
footboard.
The thin rail attached to
the bedside should face
inwards.
B
B
into
8
to
and
H
H
Push 2 Barrel nut
the small hole in bedside
9
The groove on
B
barrel nut
should be
horizontal.
Push connecting bolt
through each leg
meet barrel nut
then fasten with the allen
key.
H
B
8
9
B
H
B
8
Step 6

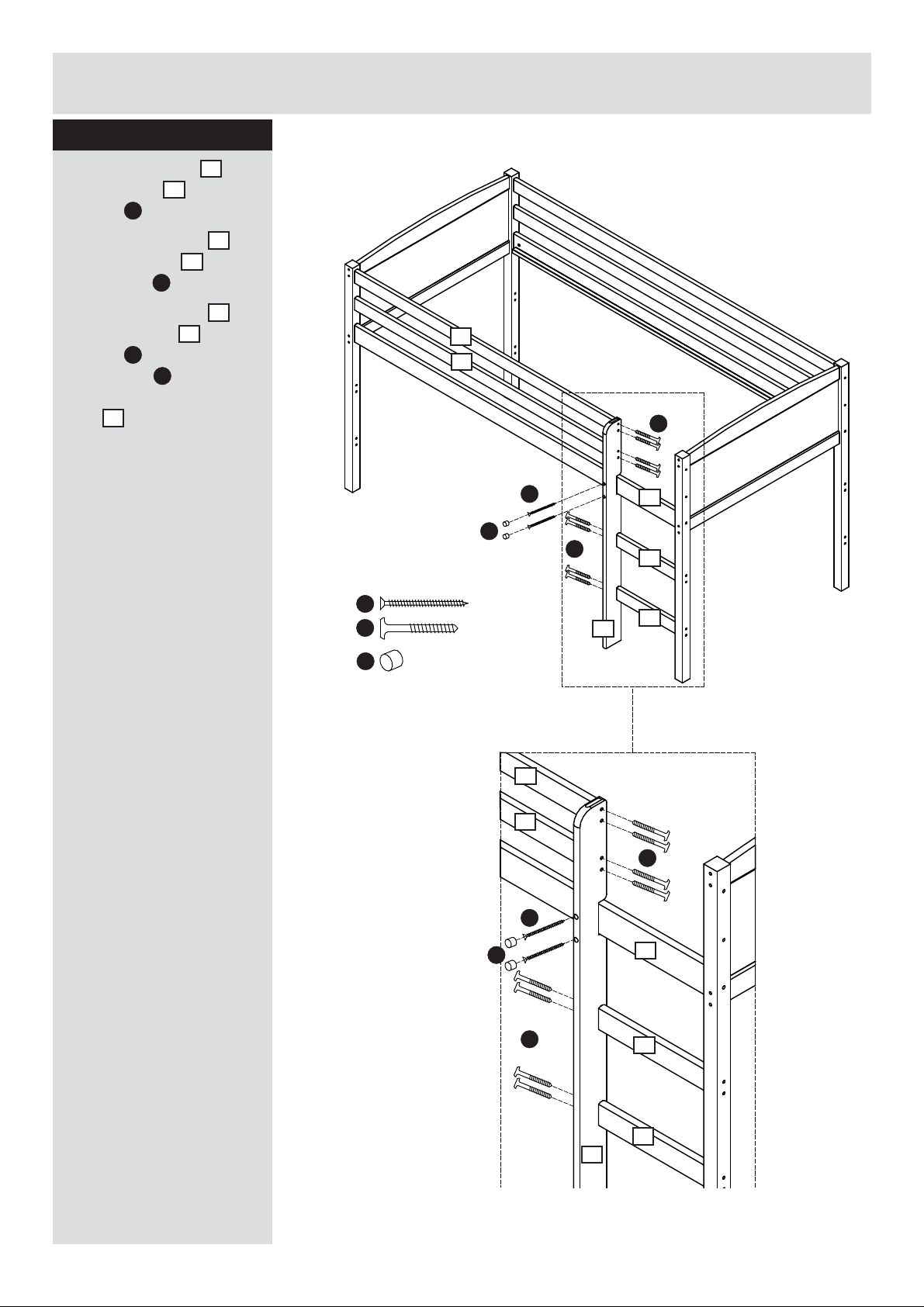

Attach safety rail
8
the leg
F
Attach the treads
to the leg
screws
with 2 screws
7
with the
E
11
to
5
11
11
5
5
F
8
F
F
8
Ladder can be positioned left or right !!
6
Page 8
Assembly Instructions
Step 7
Attach the treads
ladder sides
screws
E
5
7
with the
to
Attach ladder side 7 to
11
the safety rails
the screws
E
with
Attach ladder side 7
9
to the bedside
A
screws
. Push wooden
cover caps
with
I
into the
small holes in the ladder
7
side
11
11
E
A
I
E
A
E
9
5
5
7
I
11
11
E
A
I
E
9
5
5
7
7
Page 9
Assembly Instructions
Step 8

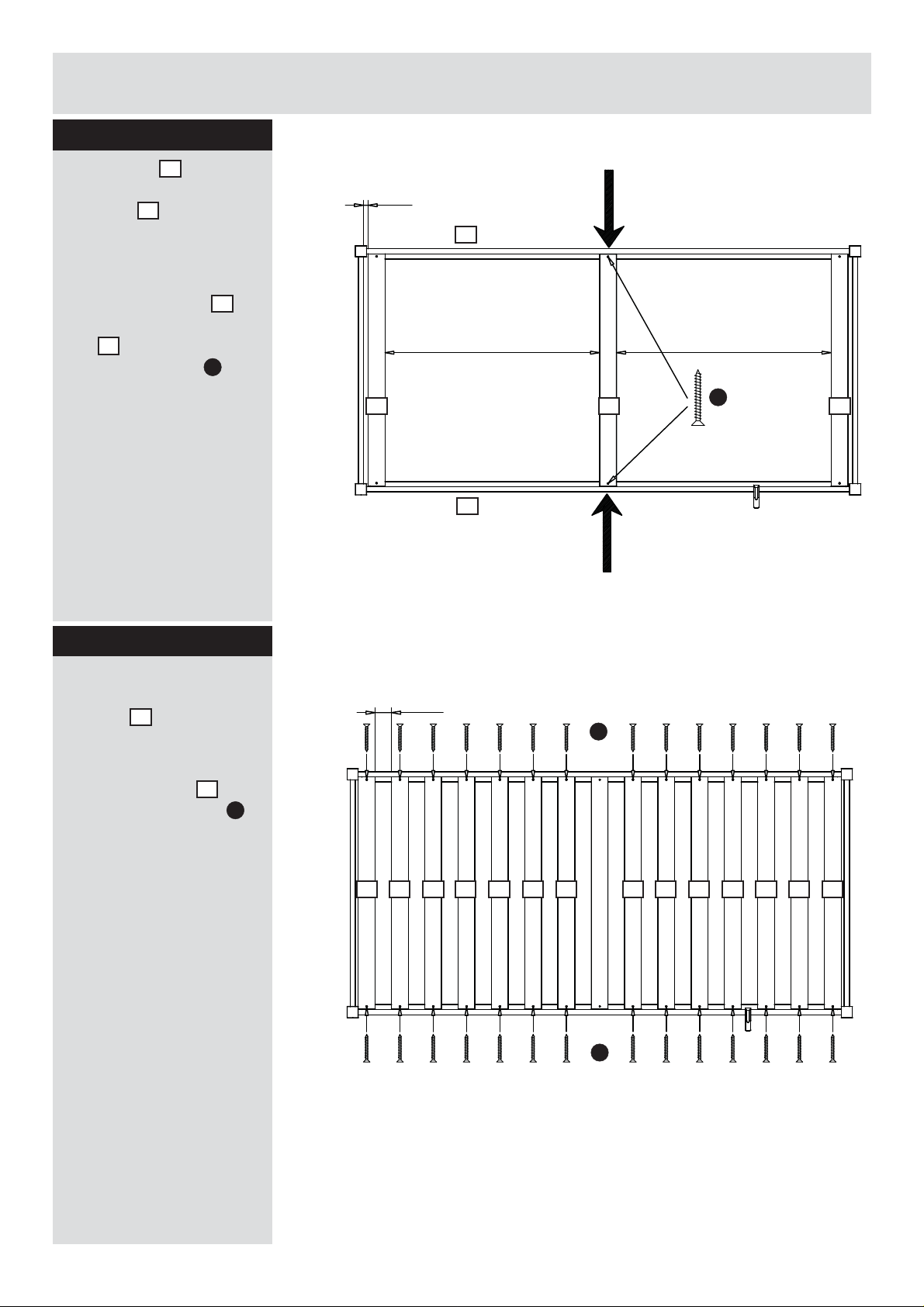

Place 1 slat 3 in the
center of the bed and
3
two slats
of the bed, 16mm from
bed ends. Follow the
measurements.
Push the bedsides
together whilst attaching
3
slat
chipboard screws
in both ends
9
to the bed with 2
C
16 mm
PUSH
9
832 mm 832 mm
33 3
9
C
Step 9
Position the remaining
3
12 slats
with a distance of 63 mm
between each.
Fasten each slat
2x chipboard screws
in the bed
3
with
C
PUSH
63mm
C
3
3 3 3 3 3 3 3 3 3 3 3 3 3
C
8
Page 10
Assembly Instructions
Step 10
11
6
.
C
6
Attach the safety list
inside the bed, on the
front safety rails
Should be in the center
of the front guards
between the slats.
6
Attach it
11
rails
to the safety
and bedside 9
with chipboard screws
Follow the measurement.
Attach the safety list
on the outside of the
bed, on the back safety
10
rails
. Should be in
the center of the back
guards.
Max. mattress height !
6
11
11
3
C
6
10
10
C
9
6
Attach it
10
rails
with chipboard screws
to the safety
and bedside 9
C
Follow the measurement.

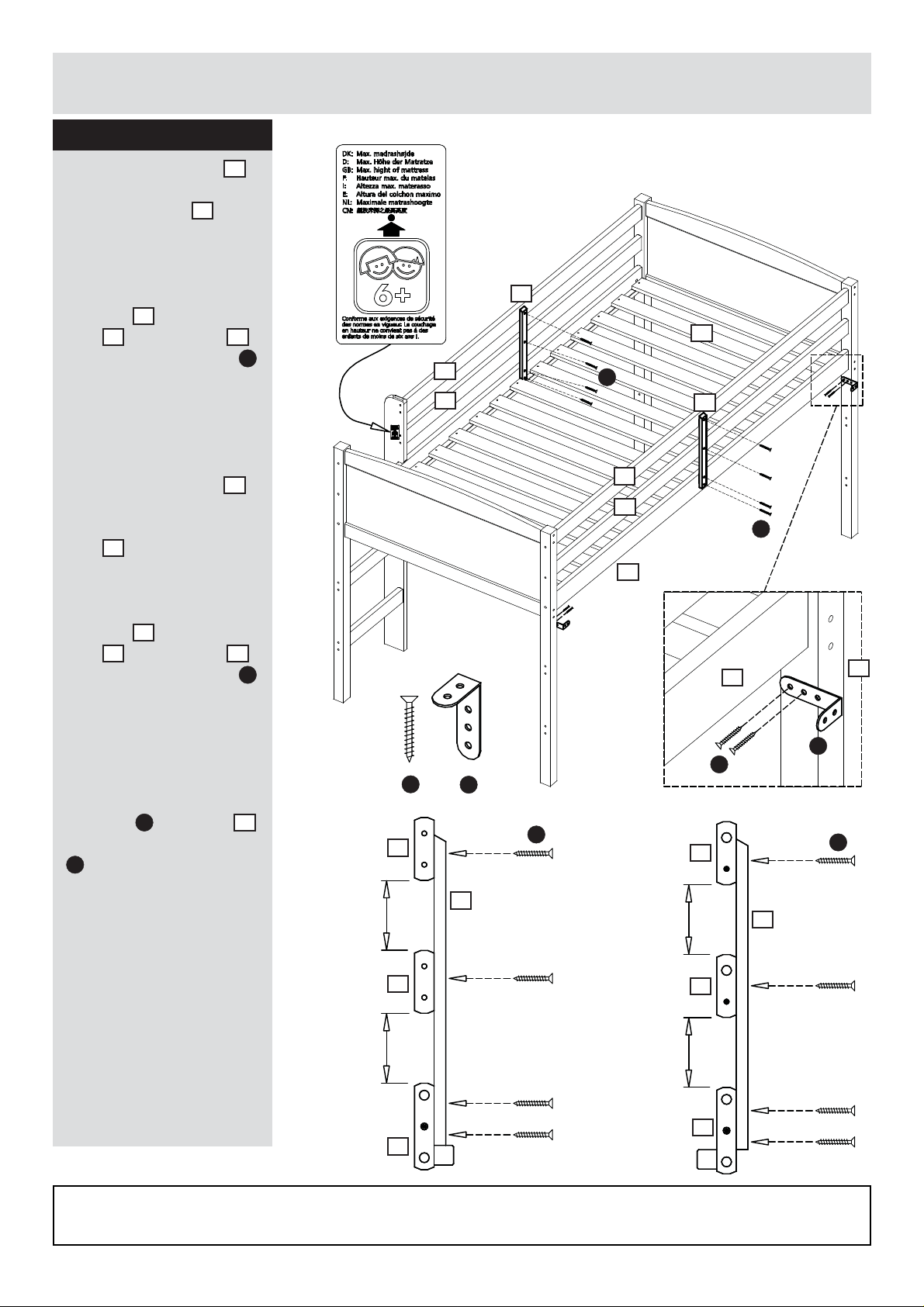

Attach wall mount
K
brackets
to the leg 8
with chipboard screws
C
.
Max. mattress height !
Assembly is complete.
71 mm
71 mm
11
11
9
C
C
K
C
10
6
71 mm
10
71 mm
6
8
K
C
9
If you need help or have damaged or missing parts,
call the Customer Helpline: 0045 7668 8055
E-mail: order@fl exa.dk
Ref.no. 44-01264-20 C Stand: 271015 Page 10 (80-10302-20)
9
