Argos 09H Sophia Motif 5FT FO ASSEMBLY INSTRUCTIONS

09H Sophia Motif 5FT FO

Assembly Instructions - Please keep for future reference

464/4084

Dimensions

Width - 211.1cm
Depth - 159.7cm

Height - 110cm

Important - Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts,call the Customer Helpline:03456 400800.
For further assistance please visit http://www.argos-support.co.uk/.

Issue 1 - 13/05/16

1

3

5

4

5

2

× 32

6

Dimensions

Width - 211.1cm
Depth - 159.7cm
Height - 110cm

Important - Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts,call the Customer Helpline:03456 400800.
For further assistance please visit http://www.argos-support.co.uk/.

Issue 1 - 17/12/15

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

·Check you have all the

components and tools listed on
pages 2 and 3.

·Remove all fittings from the

plastic bags and separate them
into their groups.

·Keep children and animals

away from the work area, small
parts could choke if swallowed.

·Make sure you have enough

space to layout the parts before
starting.

Care and maintenance

·Only clean using a damp cloth

and mild detergent, do no use
bleach or abrasive cleaners.

·Do not stand or put weight on

the product, this could cause
damage.

·Assemble the item as close to

its final position (in the same
room) as possible.

·Assemble on a soft level

surface to avoid damaging the
unit or your floor.

·Parts of the assembly will be

easier with 2 people.

·From time to time check that

there are no loose screws on
this unit.

·To reduce

the likelihood of
damaging your
product please

ensure that your
power drill is set on a low torgue
setting.

·This product should not be

discarded with household waste.
Take to your local authority
waste disposal centre.

Handy Hints

·Assemble all parts and bolts

loosely during assembly, only
once the product is complete
should you fully tighten the bolts

·Regularly check and ensure

that all bolts and fittings are
tightend properly.

1

If you have damaged or missing componets, call the

Components - Panels

Customer Helpline:03456 400800.For further
assistance please visit http://www.argos-support.co.uk/

Please check you have all the panels listed below

Headboard × 1 (159.7× 110cm)

1

Footboard × 1 (159.7 ×36.5cm)

2

Bed Frame × 2 (201 ×14cm)

3

Center rail × 1 (202.6 × 6.8cm)

4

Center support leg × 2 (26.2 × 6.8cm)

5

Sprung slats × 32 (74.9 × 6cm)

6

2

Components - Fittings

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.

A

Ø10 ×40mm Wooden dowel × 8

Nut × 4

G

Plastic cap× 32

J K

Angle× 2

M

Nut × 4
M6

P

B

Ø8 ×95mm
Bolt × 4

ED

Allen wrench × 1

D14

H

Plastic cap× 16

C

Connector × 4

F

Cap × 8

I

Ø7 ×50mm
Screw × 4

L

Ø6 ×40mm
Screw × 4

N

D4
Bolt × 1

O

Small washer

× 4

Ø3.5×15mm
Screw × 4

Q

Allen wrench × 1
D10

Tie bar × 1

Tools required

Phillips screwdriver
(medium & large)

Flatblade screwdriver
(medium)

Ruler - Use this ruler to help correctly identify the screws

0 101520253035404550556065707580859095100

5

3

105

110115120125130135140145150155160165170

Rubber
mallet

Assembly Instructions

Step 1

a. Fixing bolts

Insert 4 bolts into
Headboard and
Footboard .

B

1

2

b. Fixing Angle

Fixing Angle onto the
Footboard and
Headboard by 4
Screw .

J

2

1

O

c. Cover Cap

Cover the Cap to the
holes in the Footboard.

Note: There are 2 panels
inside the frame of the
headboard and footboard,
if there is a gap within
1mm, it is not a crack.

Step 2

1

O

O

J

O

O

J

O

O

J

2

Fitting dowels

Insert 4 wooden dowels

A

into side frame .

3

Repeat Step 2 for the
other side frame .

3

A

A

4

Assembly Instructions

Step 3

Fixing the Bed Frame

Two people are needed

here.
Fix the side frame 3

onto the Headboard .
Insert 4 Connectors

into Side Frame 3 as
shown.

Use Allen wrench to

turn Nut lockwise to

D

lock.

3

1

3

F

C

D

Cover the cap to the

F

holes in the side frame.

Step 4

Fixing the footboard

Fixing the Footboard
onto the unit as Step 3.

1 2 3

C

2

D

F

5

Assembly Instructions

Step 5

a. Fixing the Center Rail

Fixing the Center Rail
onto the unit by 4 Screws

and Allen Key .

K N

b. Fixing the Center
Support Leg

Fixing the Center Support
Legs under the
Center rail by 4 screws

show on picture.

45

44

and Allen Key as

K

4

N

Step 6

K x2

N

L x2

M x2

N

I x2

Attach plastic caps

Attach Plastic caps

G

and to Sprung slats

as show on picture.

6

H

G

6

H

6

× 16

G

× 16

6

Assembly Instructions

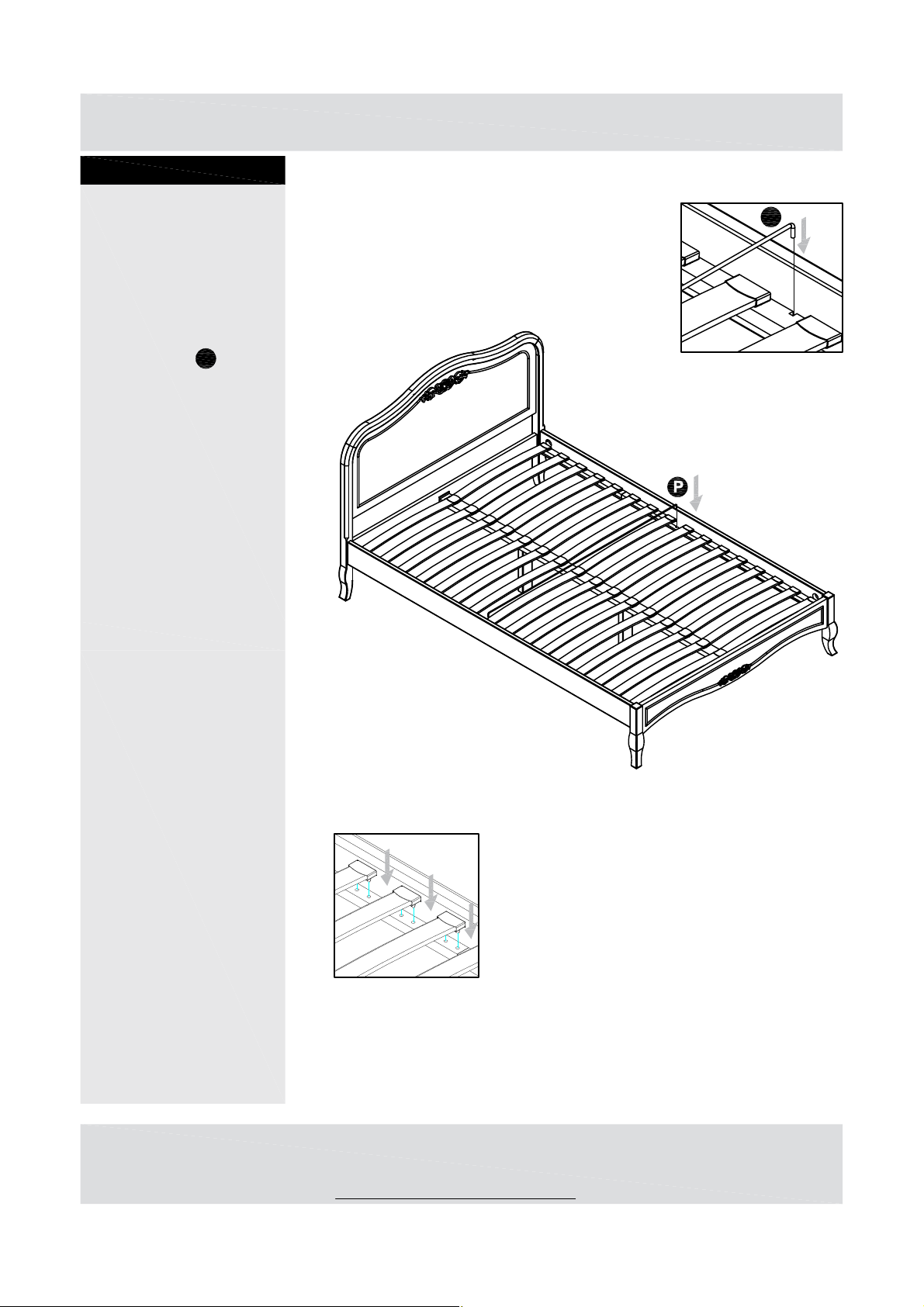

Step 7

a. Fixing the slats

Push the Pins of the
Plastic caps to the holds
on the bed frames to fix

the slats.

b. Attach Tie bar

Attach Tie bar to the

unit as show on picture.

P

P

This bed is made from timber which will continue to adjust to the
environment in which it is in (i.e. the bedroom). This may lead to
minor cracking at the joints and is to be expected on a premium

Assembly is complete.

If you need help or have damaged or missing parts,call the Customer Helpline: 03456 400800

Retailer: Argos

Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9,2NW

For further assistance please visit http://www.argos-support.co.uk/

7

solid timber piece of furniture.
