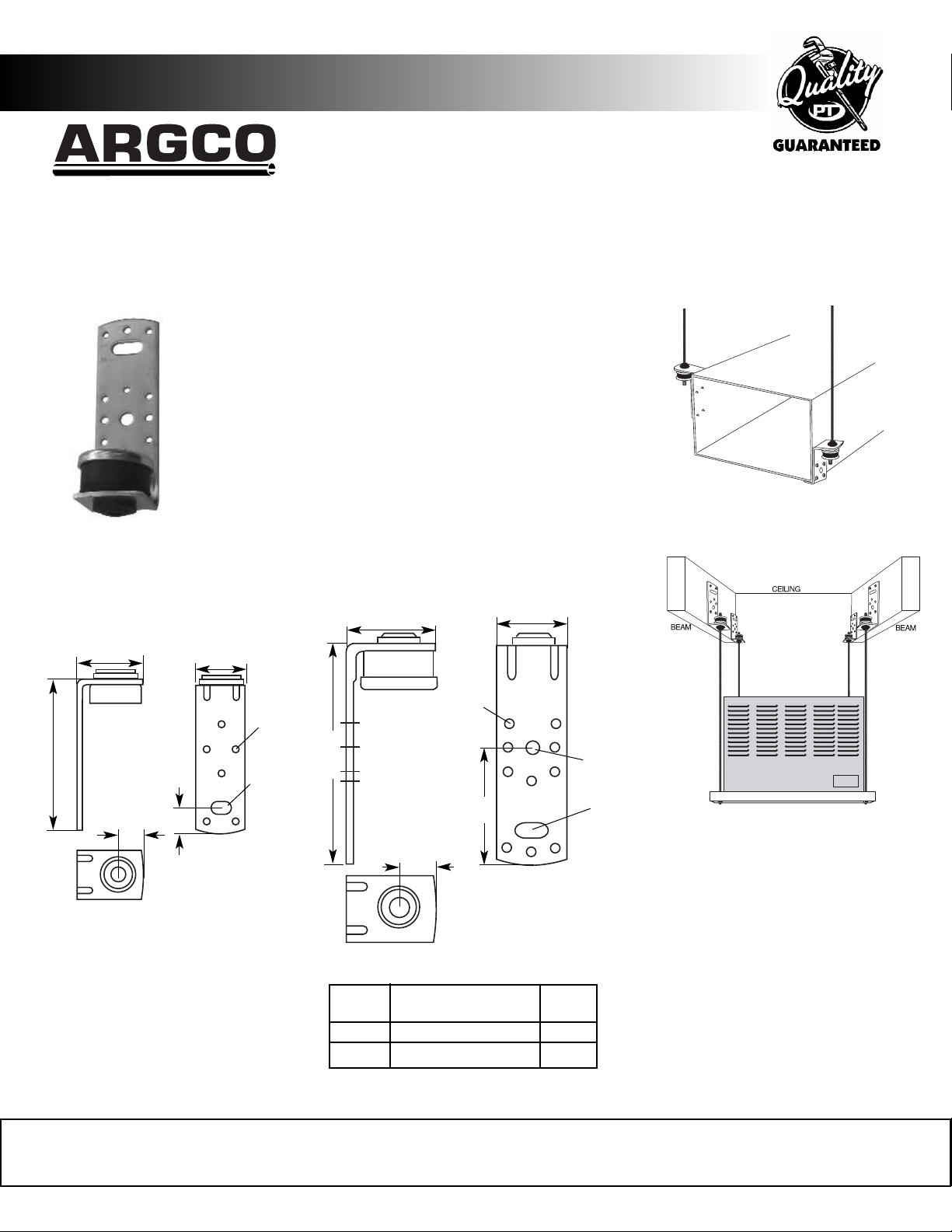

data sheet
DUCT SUPPORT ANGLE (L)
DUCT, FURNACE, AIR HANDLER ISOLATION SUPPORT BRACKET
•Vertically fastens to side of beam
•Easy to install suspension for air ducts
•Rubber insulation provides sound & vibration control
•Easy alignment and height adjustment with threaded rod
•Holes to fasten to air duct with rivets, self-drilling screws or bolts
•Zinc plated steel 1/8” thick for 3/8” rod
•Ideal for hanging furnaces
DUCT INSTALLATION
3-1/2”
1-1/2”
5/8”
Duct Fixing Angle
Type 1
5/8”
1-3/16”
3/16”
5/16” x 1/2”
4-15/16”
Item #
25-40-175
25-40-170
1-15/16”
3/16”
13/16”
Duct Fixing Angle
DESCRIPTION
Duct Fixing Angle Type 1 (L)
Duct Fixing Angle Type 2 (L)
2-5/8”
Type 2
1-9/16”
5/16”
5/16” x 13/16”
FURNACE INSTALLATION
Max.
Rec.Load
52 lbs.
180 lbs.
argco.com
For more information, call 800-854-1015
