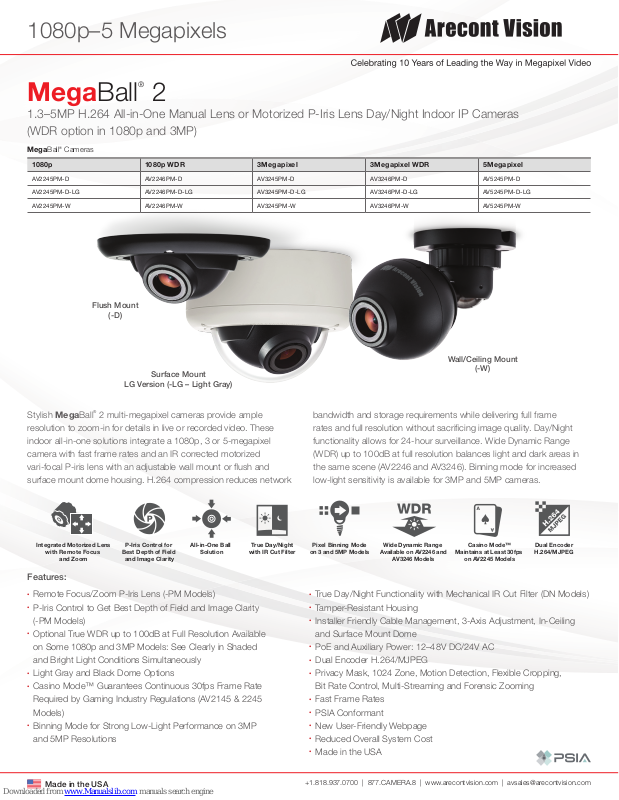

Arecont Vision AV2245, AV3246, AV2246, AV3245, AV5245 Specifications

1080p–5 Megapixels

MegaBall® 2

1.3–5MP H.264 All-in-One Manual Lens or Motorized P-Iris Lens Day/Night Indoor IP Cameras
(WDR option in 1080p and 3MP)

MegaBall® Cameras

1080p 1080p WDR 3Megapixel 3Megapixel WDR 5Megapixel

AV2245PM-D AV2246PM-D AV3245PM-D AV3246PM-D AV5245PM-D

AV2245PM-D-LG AV2246PM-D-LG AV3245PM-D-LG AV3246PM-D-LG AV5245PM-D-LG

AV224 5PM-W AV2246P M-W AV3245 PM- W AV3246PM-W AV5245PM-W

Flush Mount

(-D)

Surface Mount

LG Version (-LG – Light Gray)

Stylish MegaBall® 2 multi-megapixel cameras provide ample
resolution to zoom-in for details in live or recorded video. These
indoor all-in-one solutions integrate a 1080p, 3 or 5-megapixel
camera with fast frame rates and an IR corrected motorized
vari-focal P-iris lens with an adjustable wall mount or flush and
surface mount dome housing. H.264 compression reduces network

Integrated Motorized Lens

with Remote Focus

and Zoom

P-Iris Control for

Best Depth of Field

and Image Clarity

All-in-One Ball

Solution

True Day/Night

with IR Cut Filter

Features:

•

Remote Focus/Zoom P-Iris Lens (-PM Models)

•

P-Iris Control to Get Best Depth of Field and Image Clarity
(-PM Models)

•

Optional True WDR up to 100dB at Full Resolution Available
on Some 1080p and 3MP Models: See Clearly in Shaded
and Bright Light Conditions Simultaneously

•

Light Gray and Black Dome Options

•

Casino Mode™ Guarantees Continuous 30fps Frame Rate
Required by Gaming Industry Regulations (AV2145 & 2245
Models)

•

Binning Mode for Strong Low-Light Performance on 3MP
and 5MP Resolutions

Wall/Ceiling Mount

(-W)

bandwidth and storage requirements while delivering full frame
rates and full resolution without sacrificing image quality. Day/Night
functionality allows for 24-hour surveillance. Wide Dynamic Range
(WDR) up to 100dB at full resolution balances light and dark areas in
the same scene (AV2246 and AV3246). Binning mode for increased
low-light sensitivity is available for 3MP and 5MP cameras.

Pixel Binning Mode

on 3 and 5MP Models

•

True Day/Night Functionality with Mechanical IR Cut Filter (DN Models)

•

Tamper-Resistant Housing

•

Installer Friendly Cable Management, 3-Axis Adjustment, In-Ceiling

Wide Dynamic Range

Available on AV2246 and

AV3246 Models

Casino Mode™

Maintains at Least 30fps

on AV2245 Models

Dual Encoder
H.264/MJPEG

and Surface Mount Dome

•

PoE and Auxiliary Power: 12–48V DC/24V AC

•

Dual Encoder H.264/MJPEG

•

Privacy Mask, 1024 Zone, Motion Detection, Flexible Cropping,
Bit Rate Control, Multi-Streaming and Forensic Zooming

•

Fast Frame Rates

•

PSIA Conformant

•

New User-Friendly Webpage

•

Reduced Overall System Cost

•

Made in the USA

Made in the USA

+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | [e-mail]

MegaBall® 2 Specifications

Model Specific Features

Model

AV2245 1080p 31fps - Casino Mode

AV2246 1080p 30fps WDR - -

AV3245 3MP 21fps - - Binning

AV3246 3MP 21fps WDR - Binning

AV5245 5MP 14fps - - Binning

Create Your Model

Resolution Frame Rate Features

(Example: AV3246-PM-D-LG)

Megapixel
Resolution

Generation Body Type Compression Lens Mount Light Gray Body

2

**

AV

3

42

5

Build-to-Order Options

-W Wall Mount Model

™

-

5

Standard

6

WDR*

-D Dome or Recessed Dome Model

-LG Light Gray Dome

D

PM

Motorized Lens
P-iris Day/Night

Dome

W

Wall Mount

LG

Light Gray Dome***

* WDR for AV2246 and AV3246 only.
** “4” Represents MegaBall product line—which are then defined by “W” or “D”

*** LG only available on Dome version

Camera Imaging Specifications

Model

Image Sensor (CMOS) 1080 p 1080 p* 3MP* 3MP 5MP

Optical Format 1/2.7" 1/3. 2" 1/2.5" 1/3. 2" 1/2. 5"

Pixel Pitch 3μm 2.2μm 2.2μm 2.2μm 2. 2μm

Minimum
Illumination

Full FOV Re solu tion 1920 H x 1080 V 1920 H x 1080 V 2048 H x 1536 V 2048 H x 1536 V 2592 H x 1944 V

1/4 Resolution 960 H x 540 V 960 H x 540 V 1024 H x 768 V 1024 H x 768 V 1296 H x 972 V

Dynamic Range 69dB WDR up to 100 dB 70 .1d B WD R up to 100dB 7 0.1dB

Maximum SNR 45dB 49dB 45dB 49 dB 45dB

Frame Rates

Lens Motorized Lens

*effective

Color (day mode) 0.1 Lux 0.3 Lux 0.3 Lux 0.3 Lux 0.3 Lux

Color Binning (day mode) - - 0.1 5 L ux 0 .15 L ux 0 .15 L ux

B/W (ni ght mode) 0 Lux, IR s ensitive 0 Lux, IR se nsiti ve 0 Lux, IR se nsitive 0 Lux, IR sen sitive 0 L ux, IR sensitive

At Max Re solution 31fps (1920 x 1080) 30fps (1920 x 108 0) 21fps (2048 x 1536) 21fps (2048 x 1536) 14fps (2592 x 1944)

Cropped

Binning Mode

AV2245 AV2246 AV324 5 AV324 6 AV52 45

42fps (1280 x 1024) 41fps (1280 x 1024) 29fps (1920 x 1080)

- - 46fps (1024 x 768)

3-10 mm, 1 /2.7", F1. 3

RZ, RF, P-iris

H-FOV = 117°–36°

WDR WDR

41fps (1280 x 1024)

64fps (9 60 x 540)

3-10mm, 1/2.7", F1.3

RZ, RF, P-iris

H-FOV = 81°–26°

3-10mm, 1/2.7", F1.3

RZ, RF, P-iris

H-FOV = 86 °–28°

30fps (1920 x 108 0)
41fps (1280 x 1024)

21fps (1024 x 768)

27fps (80 0 x 600)
31fps (960 x 54 0)
32fps (6 40 x 512)

3-10mm, 1/2.7", F1.3

RZ, RF, P-iris

H-FOV = 86 °–28°

21fps (2048 x 1536)
29fps (1920 x 108 0)
41fps (1280 x 1024)

34fps (1296 x 972)
46fps (1024 x 768)

64fps (9 60 x 540)

3.4-10mm, 1/2.5", F1.4
RZ, RF, P-iris

H-FOV = 102°– 35°

Made in the USA

©2013 Arecont Vision. Specification sheets subject to change without notice.

+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | [e-mail]
