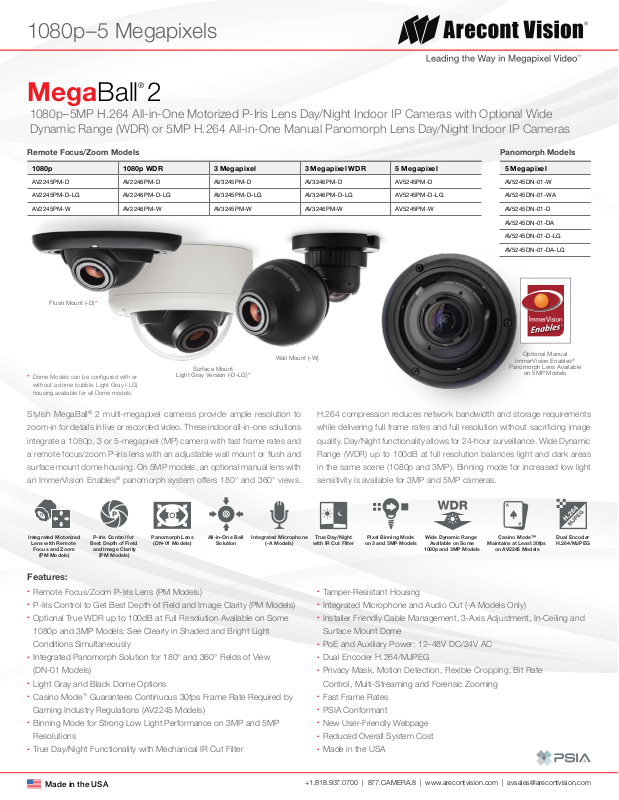

Page 1
1080p–5 Megapixels
®
MegaBall
1080p–5MP H.264 All-in-One Motorized P-Iris Lens Day/Night Indoor IP Cameras with Optional Wide
Dynamic Range (WDR) or 5MP H.264 All-in-One Manual Panomorph Lens Day/Night Indoor IP Cameras
Remote Focus/Zoom Models Panomorph Models
1080p 1080p WDR 3 Megapixel 3 Megapixel WDR 5 Megapixel
AV2245PM-D AV2246PM-D AV3245PM-D AV3246PM-D AV5245PM-D
AV2245PM-D-LG AV2246PM-D-LG AV3245PM-D-LG AV3246PM-D-LG AV5245PM-D-LG
AV224 5PM- W AV2246PM-W AV3245 PM-W AV324 6PM -W AV5245PM-W
Flush Mount (-D)*
2
5 Megapixel
AV5245DN-01-W
AV5245DN-01-WA
AV524 5DN -01- D
AV524 5DN -01- DA
AV5245DN-01-D-LG
AV5245DN-01-DA-LG
Wall Mount (-W)
Surface Mount
* Dome Models can be congured with or
without a dome bubble. Light Gray (-LG)
housing available for all Dome models.
Light Gray Version (-D-LG)*
Stylish MegaBall® 2 multi-megapixel cameras provide ample resolution to
zoom-in for details in live or recorded video. These indoor all-in-one solutions
integrate a 1080p, 3 or 5-megapixel (MP) camera with fast frame rates and
a remote focus/zoom P-iris lens with an adjustable wall mount or ush and
surface mount dome housing. On 5MP models, an optional manual lens with
an ImmerVision Enables
Integrated Motorized
Lens with Remote
Focus and Zoom
(PM Models)
®
panomorph system offers 180° and 360° views.
P-Iris Control for
Best Depth of Field
and Image Clarity
(PM Models)
Panomorph Lens
(DN-01 Models)
All-in-One Ball
Solution
Integrated Microphone
(-A Models)
Features:
•
Remote Focus/Zoom P-Iris Lens (PM Models)
•
P-Iris Control to Get Best Depth of Field and Image Clarity (PM Models)
•
Optional True WDR up to 100dB at Full Resolution Available on Some
1080p and 3MP Models: See Clearly in Shaded and Bright Light
Conditions Simultaneously
•
Integrated Panomorph Solution for 180° and 360° Fields of View
(DN-01 Models)
•
Light Gray and Black Dome Options
•
Casino Mode™ Guarantees Continuous 30fps Frame Rate Required by
Gaming Industry Regulations (AV2245 Models)
•
Binning Mode for Strong Low Light Performance on 3MP and 5MP
Resolutions
•
True Day/Night Functionality with Mechanical IR Cut Filter
Optional Manual
ImmerVision Enables®
Panomorph Lens Available
on 5MP Models
H.264 compression reduces network bandwidth and storage requirements
while delivering full frame rates and full resolution without sacricing image
quality. Day/Night functionality allows for 24-hour surveillance. Wide Dynamic
Range (WDR) up to 100dB at full resolution balances light and dark areas
in the same scene (1080p and 3MP). Binning mode for increased low light
sensitivity is available for 3MP and 5MP cameras.
True Day/Night
with IR Cut Filter
•
Tamper-Resistant Housing
•
Integrated Microphone and Audio Out (-A Models Only)
•
Installer Friendly Cable Management, 3-Axis Adjustment, In-Ceiling and
Pixel Binning Mode
on 3 and 5MP Models
Wide Dynamic Range
Available on Some
1080p and 3MP Models
Casino Mode™
Maintains at Least 30fps
on AV2245 Models
Dual Encoder
H.264/MJPEG
Surface Mount Dome
•
PoE and Auxiliary Power: 12–48V DC/24V AC
•
Dual Encoder H.264/MJPEG
•
Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate
Control, Multi-Streaming and Forensic Zooming
•
Fast Frame Rates
•
PSIA Conformant
•
New User-Friendly Webpage
•
Reduced Overall System Cost
•
Made in the USA
Made in the USA
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
Page 2
MegaBall
®
2 Specications
Model Specic Features
Model
AV2245 1080p 31fps - Casino Mode
AV2246 1080p 30fps WDR - -
AV3245 3MP 21fps - - Binning
AV3246 3MP 21fps WDR - Binning
AV5245 5MP 14fps - - Binning
Create Your Model
Resolution Frame Rate Features
(Example: AV3246-PM-D-LG)
Megapixel
Resolution
Generation Body Type Compression Lens Mount Light Gray Body
2
*
AV
3
42
5
* “4” Represents MegaBall® product line—which are then dened by “W” or “D”
** WDR for AV2246 and AV3246 models only
*** Manual Panomorph Lens only available for 5MP models
**** Light gray dome housing and audio only available for some models
Build-to-Order Options
-W Wall Mount Model
™
-
-D Dome or Recessed Dome Model
-LG Light Gray Dome
PM Remote Zoom, Remote Focus, P-iris, Day/Night
DN-01 Manual Panomorph Lens, Day/Night
-A Audio
DA
5
Standard
6
WDR**
PM
Motorized P-Iris
Lens, Day/Night
DN-01
Manual Panomorph
Lens, Day/Night***
Dome w/Audio****
D
Dome
W
Wall Mount
WA
Wall Mount w/Audio****
LG
Light Gray Housing****
Camera Imaging Specications
Model
Image Sensor (CMOS) 1080 p 1080 p* 3MP* 3MP 5MP
Optical Format 1/2.7" 1/3. 2" 1/2. 5" 1/3. 2" 1/2 .5"
Pixel Pitch 3μm 2.2μm 2.2μm 2. 2μm 2.2μm
Minimum
Illumination
Full FOV Re solu tion 1920 H x 1080 V 1920 H x 1080 V 2048 H x 1536 V 2048 H x 1536 V 2592 H x 1944 V
1/4 Resolution 960 H x 540 V 9 60 H x 540 V 1024 H x 768 V 1024 H x 768 V 1296 H x 972 V
Dynamic Range 69dB WD R up to 100dB 70 .1d B WDR up to 100 dB 70.1 dB
Maximum SNR 45dB 49dB 45dB 49 dB 45dB
Frame Rates
Lens
* Effective
Color (Day Mode) 0.1 Lux 0.3 Lux 0.3 Lux 0.3 Lux 0.3 Lux
Color Binning (Day Mode) - - 0.15 Lu x 0.15 L ux 0.15 Lux
B/W (Night Mode) 0 Lux, IR se nsitive 0 Lux, IR se nsitive 0 Lux, IR se nsitive 0 Lux, IR se nsitive 0 Lux, IR s ensitive
At Max Re soluti on 31fps (1920 x 1080) 30fps (1920 x 108 0) 21fps (2048 x 1536) 21fps (2048 x 1536) 14fps (2592 x 1944)
Cropped
Binning Mode
Motorized Lens
Manual Panomorph Lens - - - -
AV2245 AV2246 AV324 5 AV324 6 AV52 45
42fps (1280 x 1024) 41fps (1280 x 1024) 29fps (1920 x 1080)
- - 46fps (1024 x 768)
3-10 mm, 1 /2. 7", F1. 3
RZ, RF, P-iris
H-FOV = 117°–36°
WDR WDR
41fps (1280 x 1024)
64fps (9 60 x 540)
3-10mm, 1/2.7", F1.3
RZ, RF, P-iris
H-FOV = 81°–26°
3-10mm, 1/2.7", F1.3
RZ, RF, P-iris
H-FOV = 86 °–28°
30fps (1920 x 108 0)
41fps (1280 x 1024)
21fps (1024 x 768)
27fps (80 0 x 600)
31fps (960 x 54 0)
32fps (6 40 x 512)
3-10mm, 1/2.7", F1.3
RZ, RF, P-iris
H-FOV = 86 °–28°
21fps (2048 x 1536)
29fps (1920 x 108 0)
41fps (1280 x 1024)
34fps (1296 x 972)
46fps (1024 x 768)
64fps (9 60 x 540)
3.4-10mm, 1/2.5", F1.4
RZ, RF, P-iris
H-FOV = 102°– 35°
0.98mm (Short Axis)
1.12mm (Long Axis)
F2.0, H-FOV = 182°
Made in the USA
©2014 Arecont Vision. Specification sheets subject to change without notice.
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
Page 3
MegaBall
®
2
Specications
Data Transmission
Programmability
Compliance
Compression Type
Transmission Protocols
Multi-Streaming 8 non-identical streams
Remote focus, remote zoom and P-iris control (PM models)
Motion Detection and privacy mask with 1024 detection zones
Auto adjustment between WDR and LDR modes (WDR models only)
Programmable shutter speed to help control motion blur
Pixel Binning Mode (3MP and 5MP)
Casino Mode™ maintains 30fps (AV2245 model)
Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and
2x2 pixels for H.264)
Low light noise filter control
Bit rate and bandwidth limitation control
Backlight compensation and multi-matrix white balance
50/60Hz selectable flicker control
Electronic pan, tilt, zoom (PTZ) and image flip 180°
Programmable resolution, brightness, saturation, gamma, sharpness, tint
Industry Standard PSIA Conformant
Listings UL (CB)
FCC Compliance 47 CFR 15 Class A
Environmental RoHS, REACH, WEEE
Markings
H.264 (MPEG-4, Part 10)/Motion JPEG
21 levels of quality
RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
100Base-T Ethernet Network Interface
(CE) EN55022 Class A, EN55024,
EN61000-3-2, EN61000-3-3, EN60950
Mechanical
Casing
Gimbal
Dimensions
Weight
Dome Color
-W
-D
(in-ceiling)
-W Die-cast aluminum 3" metal ball and mount
-D Plastic surface/in-ceiling dome with Acrylic bubble
Easy 3-axis camera adjustment with 360° pan, 90° tilt
and 360° z-axis
-W Ø 3" (76.2mm) x 6.15" H (156.2mm)
-D (in-ceiling) Ø 5.1" (130mm) x 1.74" H (44mm)
-D (surface
mount w/ bubble)
-W 1.2lbs (0.54kg) 2.0lbs (0.9kg)
-D 1.2lbs (0.54kg) 1.9lbs (0.86kg)
-LG Light Gray Dome
6.15"
(156.2mm)
Ø 5.1"
(130mm)
Ø 5.1" (130mm) x 3.85" H (98mm)
Camera Unit Packaged
1.74"
(44mm)
-W
-D
(in-ceiling)
Ø 3"
(76.2mm)
Ø 5.1"
(130mm)
Environmental
General Electrical
Audio Electrical
(-A models only)
Operating temperature -5°C (-23°F) to +50°C (122°F)
Humidity 0% to 90% (non-condensing)
Stable image temperature 0°C (32°F) to +50°C (122°F)
Storage temperature -20°C (-4°F) to +60°C (140°F)
Alarm Input General purpose opto-coupled
Alarm Output
Power Over Ethernet PoE 802.3af, Class 2
Auxiliary Power 12–48V DC, 24V AC
Max Power Consumption
Streaming Two-way
Compression G.711 PCM 8 kHz
Input/Output Integrated microphone / line output
General purpose opto-coupled
(except -A models)
AV2245PM 5.9 Watts DC Power
AV3245PM /
AV5245PM
AV2246PM /
AV3246PM
AV5245DN-01 5.7 Watts DC Power
6.3 Watts DC Power
6.8 Watts DC Power
Accessories
3.85"
(98mm)
-D
(w/Bubble)
D4S-WMT-B Black wall mount with 3/4" NPT standard
D4S-CMT-B Black ceiling mount with 3/4" NPT standard
D4S-WMT Light Gray Wall mount with 3/4" NPT standard
D4S-CMT Light Gray Ceiling mount with 3/4" NPT standard
SV-EBA Light Gray Electrical box adapter
SV-JBA Light Gray Junction box adapter
Ø 5.1"
(130mm)
-D
Ø 5.1"
(130mm)
Made in the USA
Rev 003 .001 ©2014 Arecont Vision. Specification sheets subject to change without notice.
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
