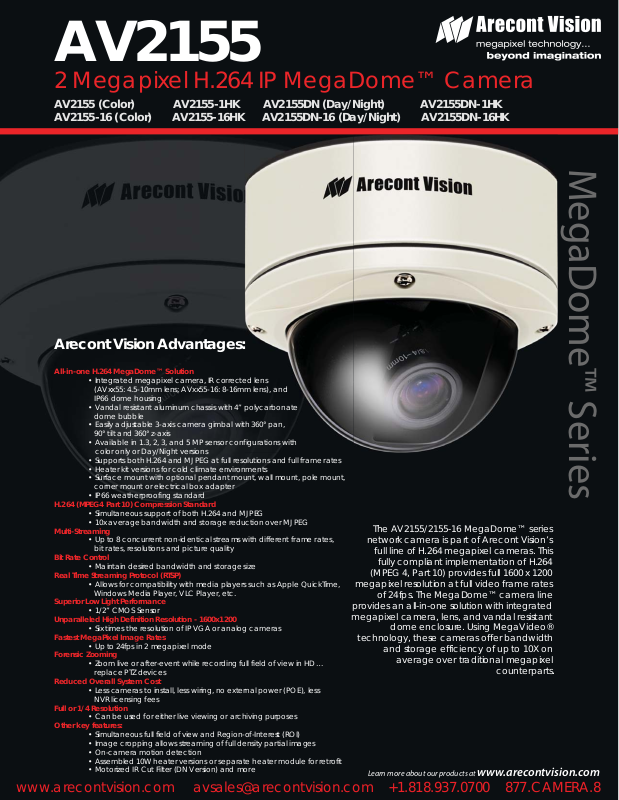

Arecont Vision AV2155-16HK, AV2155DN, AV2155DN-16, AV2155DN-1HK, AV2155DN-16HK Specifications

AV2155

2 Megapixel H.264 IP MegaDome™ Camera

AV2155 (Color)
AV2155-16 (Color)

AV2155-1HK AV2155DN (Day/Night) AV2155DN-1HK

AV2155-16HK AV2155DN-16 (Day/Night) AV2155DN-16HK

MegaDome™ Series

Arecont Vision Advantages:

All-in-one H.264 MegaDome™ Solution

• Integrated megapixel camera, IR corrected lens
(AVxx55: 4.5-10mm lens; AVxx55-16: 8-16mm lens), and
IP66 dome housing

• Vandal resistant aluminum chassis with 4” polycarbonate

www.arecontvision.com [e-mail] +1.818.937.0700 877.CAMERA.8

dome bubble

• Easily adjustable 3-axis camera gimbal with 360° pan,
90° tilt and 360° z-axis

• Available in 1.3, 2, 3, and 5 MP sensor configurations with
color only or Day/Night versions

• Supports both H.264 and MJPEG at full resolutions and full frame rates

• Heater kit versions for cold climate environments

• Surface mount with optional pendant mount, wall mount, pole mount,
corner mount or electrical box adapter

• IP66 weatherproofing standard

H.264 (MPEG4 Part 10) Compression Standard

• Simultaneous support of both H.264 and MJPEG

• 10x average bandwidth and storage reduction over MJPEG

Multi-Streaming

• Up to 8 concurrent non-identical streams with different frame rates,

bit rates, resolutions and picture quality

Bit Rate Control

• Maintain desired bandwidth and storage size

Real Time Streaming Protocol (RTSP)

• Allows for compatibility with media players such as Apple QuickTime,

Windows Media Player, VLC Player, etc.

Superior Low Light Performance

• 1/2” CMOS Sensor

Unparalleled High Definition Resolution - 1600x1200

• Six times the resolution of IP VGA or analog cameras

Fastest MegaPixel Image Rates

• Up to 24fps in 2 megapixel mode

Forensic Zooming

• Zoom live or after-event while recording full field of view in HD …

replace PTZ devices

Reduced Overall System Cost

• Less cameras to install, less wiring, no external power (POE), less

NVR licensing fees

Full or 1/4 Resolution

• Can be used for either live viewing or archiving purposes

Other key features:

• Simultaneous full field of view and Region-of-Interest (ROI)

• Image cropping allows streaming of full density partial images

• On-camera motion detection

• Assembled 10W heater versions or separate heater module for retrofit

• Motorized IR Cut Filter (DN Version) and more

The AV2155/2155-16 MegaDome™ series

network camera is part of Arecont Vision’s

full line of H.264 megapixel cameras. This

fully compliant implementation of H.264

(MPEG 4, Part 10) provides full 1600 x 1200

megapixel resolution at full video frame rates

of 24fps. The MegaDome™ camera line

provides an all-in-one solution with integrated

megapixel camera, lens, and vandal resistant

dome enclosure. Using MegaVideo®

technology, these cameras offer bandwidth

and storage efficiency of up to 10X on

average over traditional megapixel

counterparts.

Learn more about our products at www.arecontvision.com

AV2155

2 Megapixel H.264 IP MegaDome™ Camera

Model Numbers:

AV2155 - Color
AV2155-1HK - Color w/Heater
AV2155DN - Day/Night
AV2155DN-1HK - Day/Night w/Heater

Imaging

• 2 megapixel CMOS image sensor

• 1600(H) x 1200(V) pixel array

• 1/2” optical format

• 4.2 μm pixel pitch

• Bayer mosaic RGB lter

• Minimum illumination of:

• Color: 0.1 Lux @ F1.4

• Day/Night: 0 Lux, IR sensitive

• Dynamic range 61 dB

• Maximum SNR 50 dB

Full Field of View (FOV) Resolutions

• 1600(H)x1200(V) 2 megapixel

• 800(H)x600(V) 1/4 resolution

Cropped Field of View Resolutions

• 1280x1024 1.3 MP

• 1280x720 HDTV-720p

• 1024x768 XGA

• 800x600 SVGA

• 704x570 PAL

• 704x480 NTSC

• 640x480 VGA

• 352x288 CIF

• 320x240 SIF

AV2155-16 - Color
AV2155-16HK - Color w/Heater
AV2155DN-16 - Day/Night
AV2155DN-16HK - Day/Night w/Heater

Camera Electrical

• General purpose opto-coupled input and output

• Power over Ethernet (PoE): PoE 802.3af

• Auxiliary power: 12-48VDC and 24VAC

• Power consumption 5 Watts maximum

Heater Electrical

• Voltage Input: 10V to 50V DC (separate power required)

• Power Output: 10W Max

• Switch: On: 17C° (62.6 °F), O: 30 °C (86 °F)

Regulatory Approvals

• FCC, Class A

• CE and RoHs compliant

Environmental

• IP66 weatherproong standard

• Operating temperature:

• No heater: 0˚C (32°F) to +50˚C (122°F)

• With heater: -30˚C (-22°F) to +50˚C (122°F)

• Storage temperature: -20˚C (-4°F) to +60˚C (140°F)

• Humidity: 0% to 90% (non condensing)

Mechanical

• Easily adjustable 3-axis camera gimbal with 360° pan, 90° tilt and 360° z-axis

• Die-cast aluminum chassis with 4” polycarbonate dome bubble

• Total Unit dimensions:

• Ø5.5 x 4.9 in (H), bubble only: Ø4.0 x 2.4 in (H)

• Ø140.3 x 124.6 mm (H), bubble only: Ø102 x 61.8 mm (H)

• 2.0 lbs (0.91 kg)

102.0 mm (4”)

Data Transmission

• Video frame rate up to:

•

• 24fps @ 1600x1200

• 32fps @ 1280x1024

• Compression type:

• H.264 (MPEG4, Part 10)

• Motion JPEG

• 21 levels of quality

• TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols

• 100Base-T Ethernet Network Interface

• Data rate:

• bit rate control from 100Kbps to 10Mbps

• bit rate control available for full view, multi view, and archive

• unthrottled data rate up to 55Mbps

• Multi-streaming: 8 non-identical streams

Programmability

• Auto Exposure (AE) and Gain Control (AGC) >120dB

• On-camera real-time motion detection with 64 detection zones

• Programmable backlight compensation

• Auto multi-matrix white balance

• 50/60Hz selectable icker control

• Electronic pan, tilt, zoom (PTZ)

• Electronic image ip - 180 degree rotation

• Resolution windowing down to 32x32 pixels window

• Programmable shutter speed to help control motion blur

• MoonLight™ mode - extended exposure and proprietary noise
cancellation

• Programmable resolution, brightness, saturation, gamma,
sharpness, tint

• Picture-in-Picture: simultaneous delivery of full eld of view and
zoomed images

• Bandwidth & storage savings by running at 1/4 resolution

61.8 mm (2.4”)

62.8 mm (2.5”)

47.8 mm (1.9”)

Ø144.0 mm (5.7”)

Ø140.3 mm (5.5”)

Ø101.7 mm (4”)

Ø154.1 mm (6.1”)

Ø - Diameter

Pendant Mount Bracket

195.8 mm (7.7”)

85.5 mm (3.4”)

Ø154.1 mm (6.1”)

Wall Mount Bracket

MegaDome™ Accessories:

MD-WMT: Wall Mount for MegaDome
MD-PMT: Pendant Mount for MegaDome
MD-CRMA: Corner mount adapter
MD-PMA: Pole mount adapter
MD-EBA: Electrical box adapter
MD-1HK: Optional 10W Heater Kit
(for retrot and on-site installation)

Lens:

Integrated 4.5-10mm IR corrected Megapixel Varifocal Lens (AVxx55 models)
Integrated 8-16mm IR corrected Megapixel Varifocal Lens (AVxx55-16 models)

43.0 mm (1.7”)

233.4 mm (9.2”)

53.9 mm (2.1”)

Made in USA

www.arecontvision.com [e-mail] +1.818.937.0700 877.CAMERA.8

Revised on 12/10/09

©2008 Arecont Vision

©2009 Arecont Vision
