Ardesto AP-200-W1 User guide [uk]

Model No.:BKJ-16A

Attention

AUT O

Function description of control panel

indicator light of ON/OFF button

indicator light of low fan speed

indicator light of medium fan speed

indicator light of fast fan speed

indicator light of sleep mode

indicator light of timer

indicator light of child-lock

indicator light of reset

AUT O

Anion

(Reset)

Chil d lock

（Press 3 s）

Tim er Slee p mode

Spee d ON/O FF

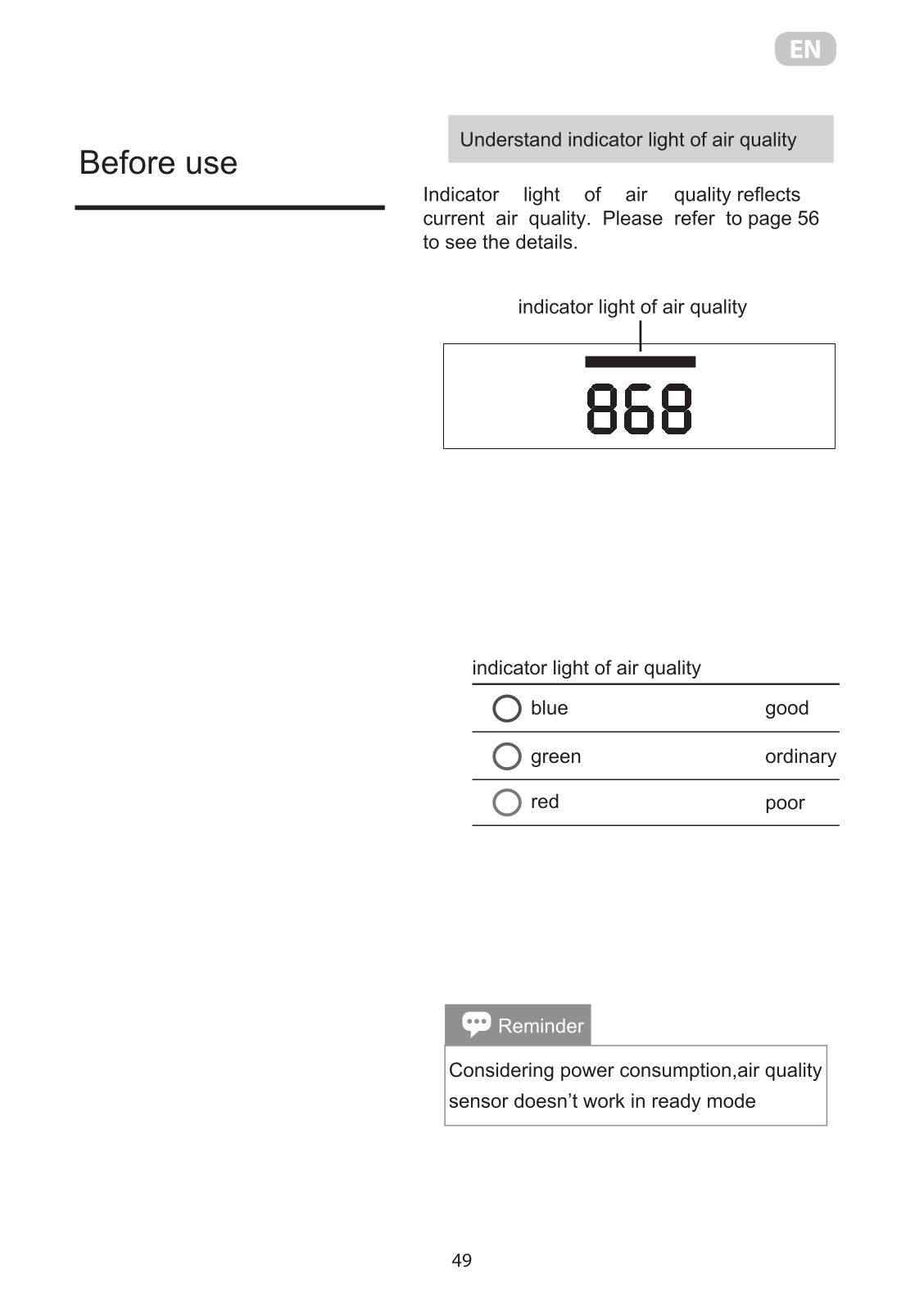

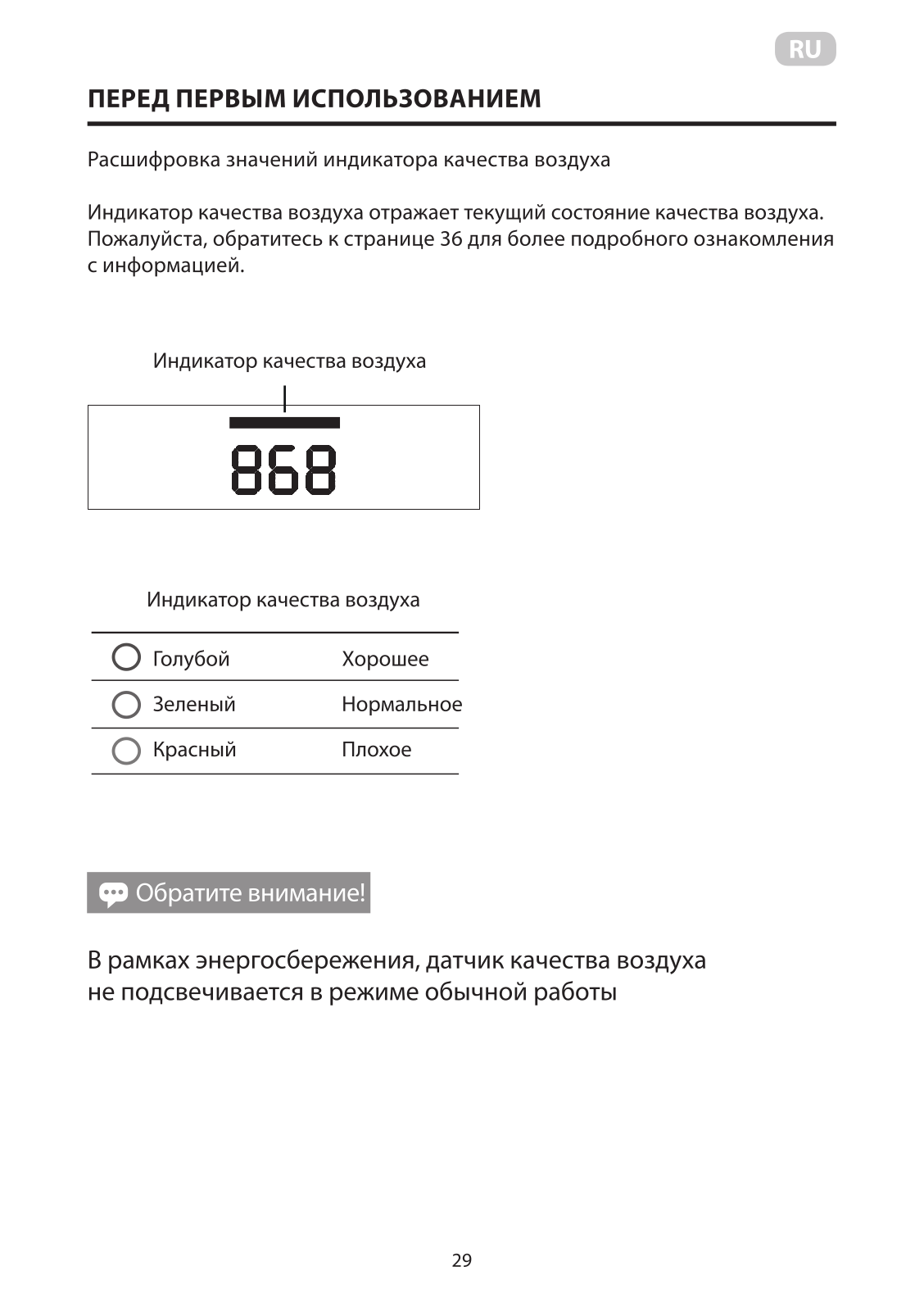

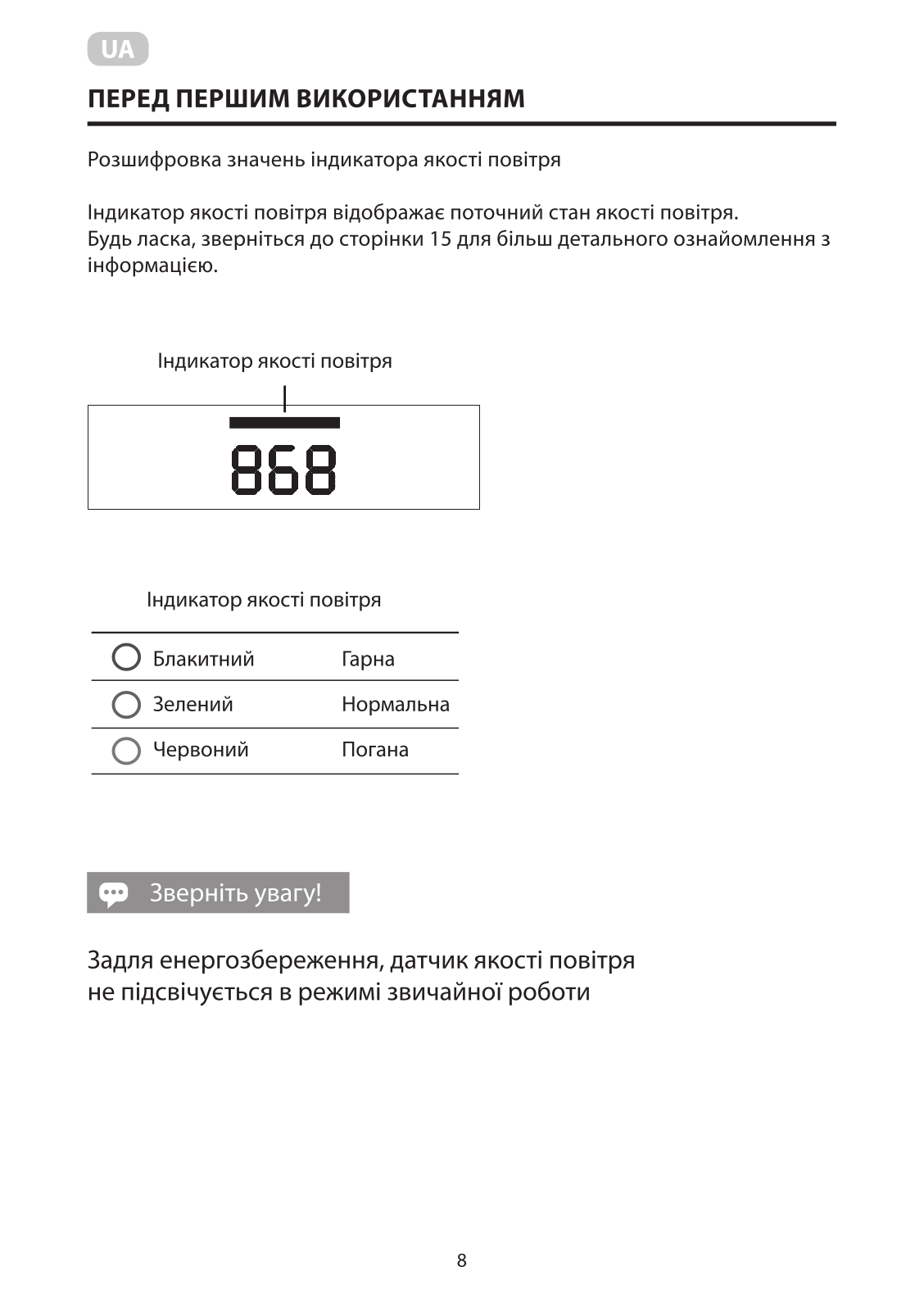

Understand indicator light of air quality

Indicator light of air quality reflects current air
quality.Please refer to page 7 and page 14 to
see the details.

indicator light of air quality

Understand indicator light of air quality

Indicator light of air quality reflects current air
quality.Please refer to page 7 and page 14 to
see the details.

indicator light of air quality

50cm

50cm

50cm

50cm

50cm

50cm

Function description of control panel

AUTO

indicator light of ON/OFF button

indicator light of low fan speed

indicator light of medium fan speed

indicator light of fast fan speed

indicator light of sleep mode

indicator light of timer

indicator light of child-lock

indicator light of reset

Anion

(Reset)

Child l ock

（Pre ss 3s）

Tim er Sleep m ode

Speed ON/OF F

AAUUTTOO

AAUUTTOO

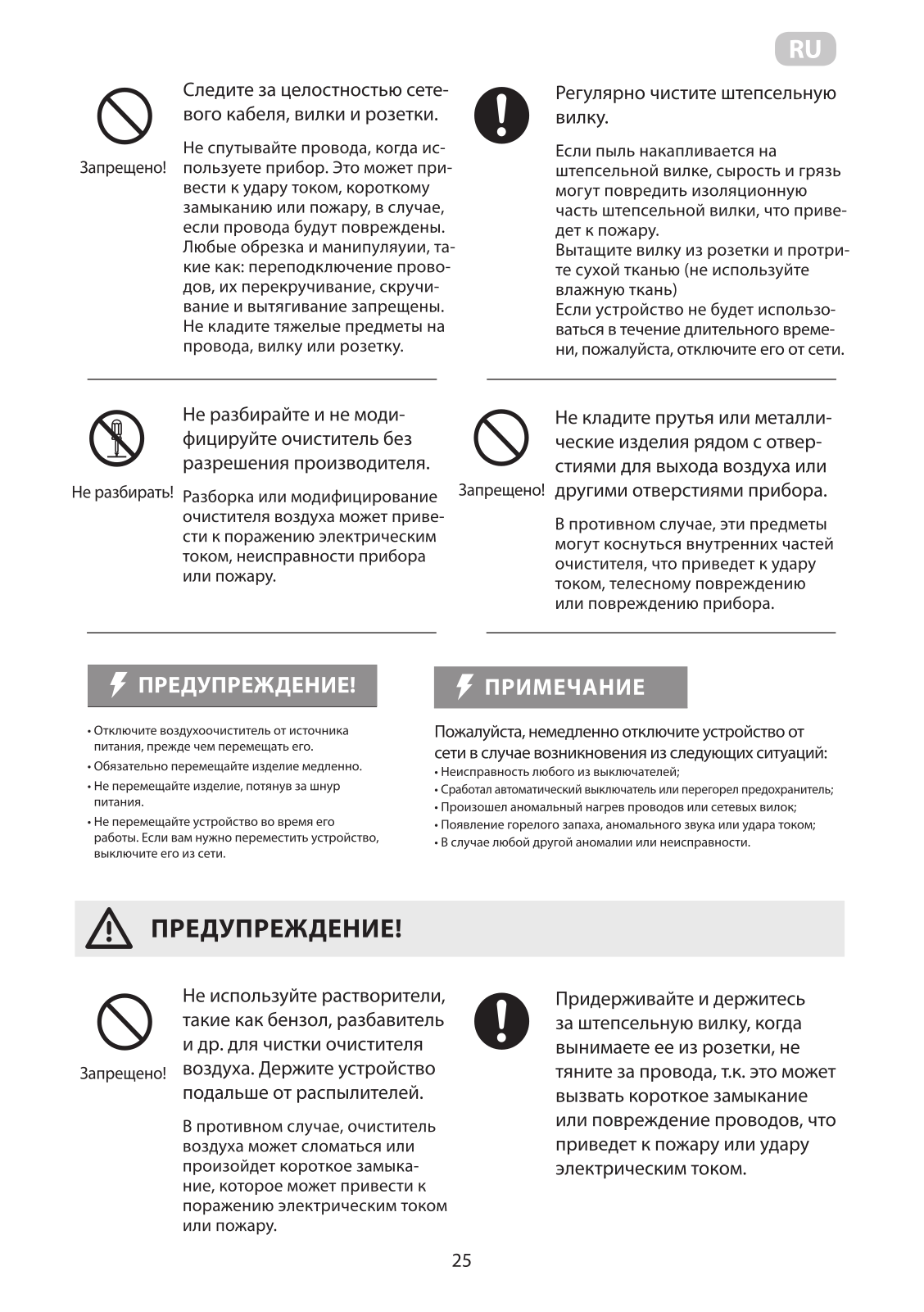

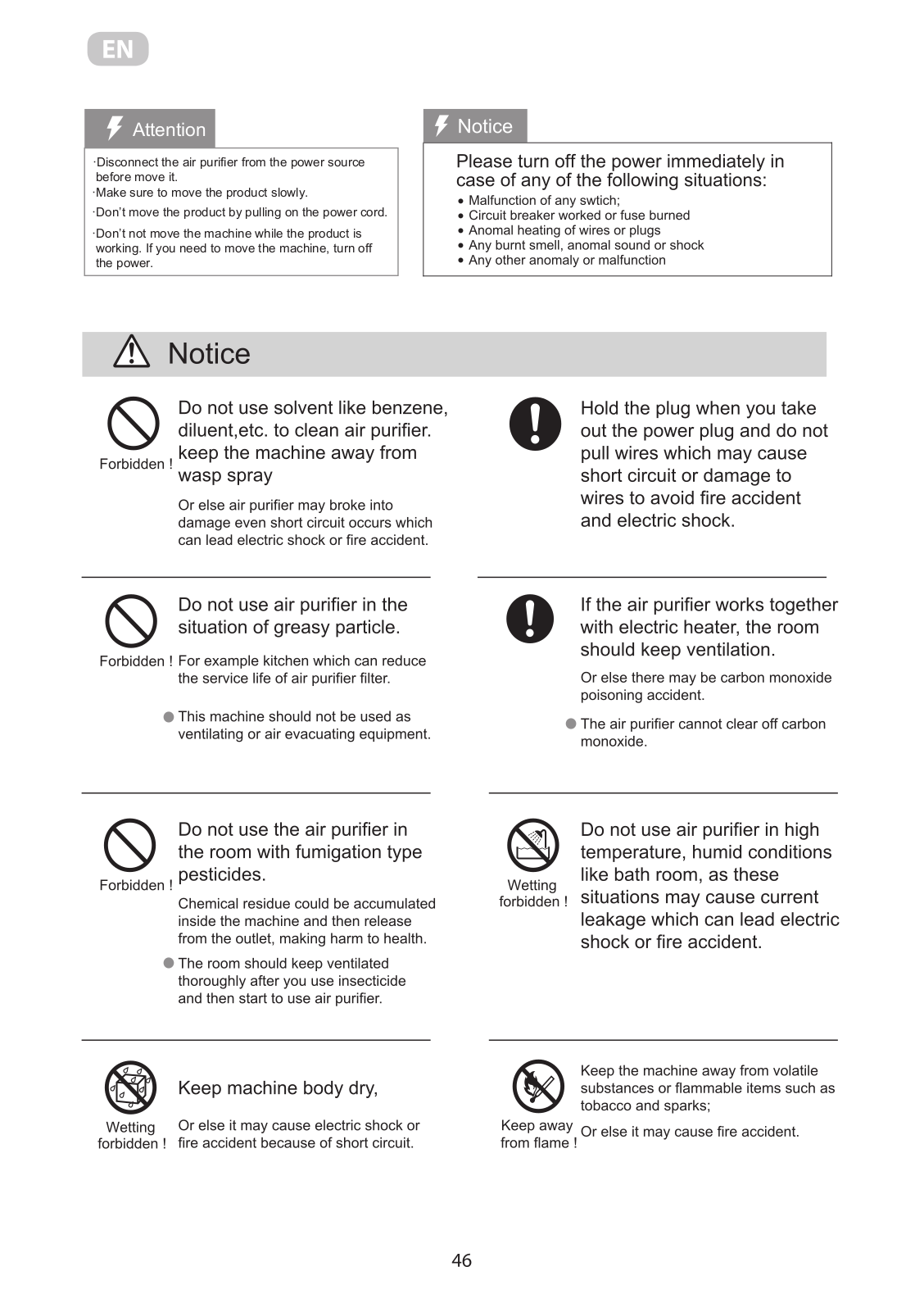

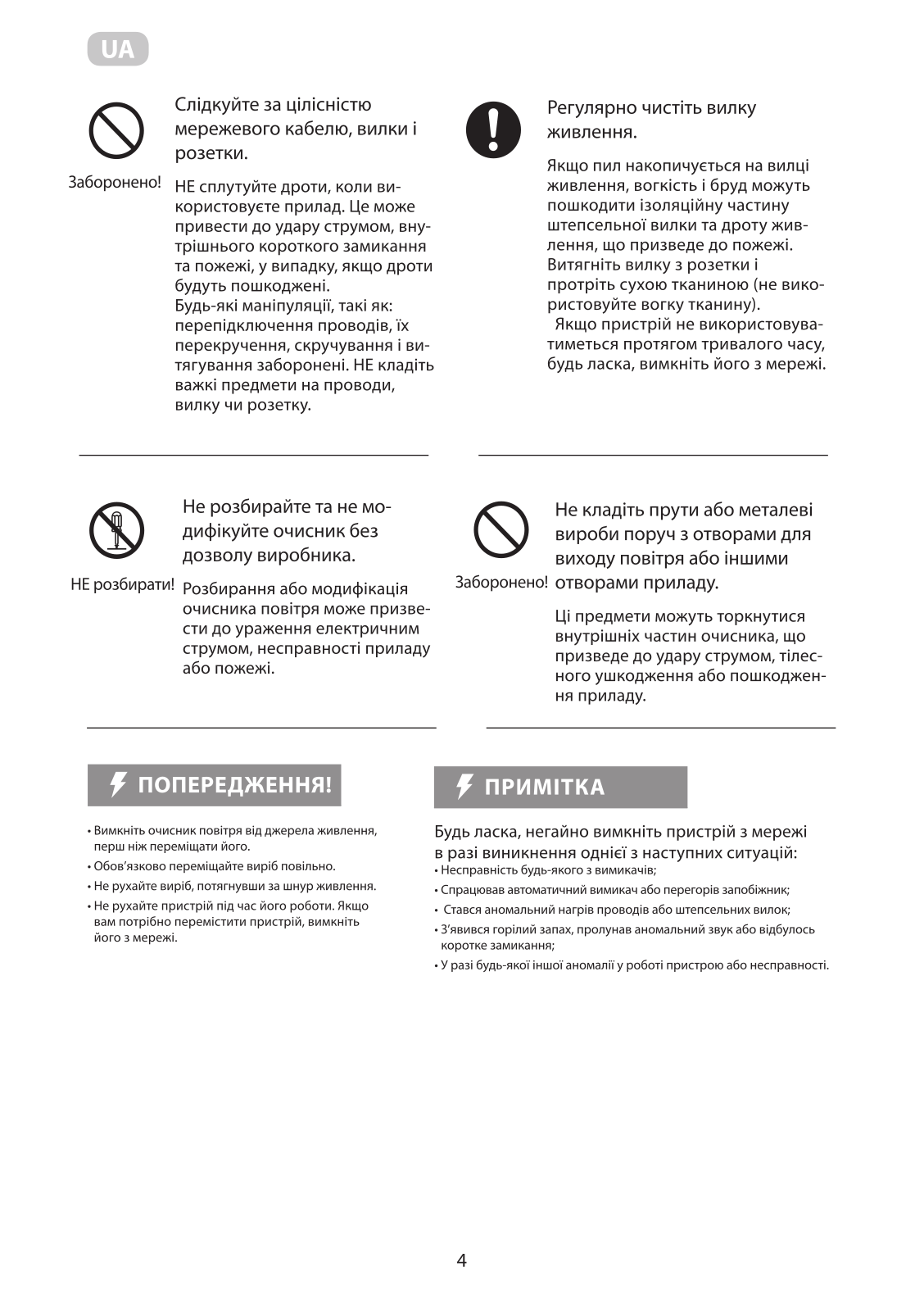

·Disconnect the air purifier from the power source
before move it.

·Make sure to move the product slowly.

·Don’t move the product by pulling on the power cord.

·Don’t not move the machine while the product is
working. If you need to move the machine, turn off
the power.

Attention

AUT O

Function description of control panel

indicator light of ON/OFF button

indicator light of low fan speed

indicator light of medium fan speed

indicator light of fast fan speed

indicator light of sleep mode

indicator light of timer

indicator light of child-lock

indicator light of reset

AUT O

Anion

(Reset)

Chil d lock

（Press 3 s）

Tim er Slee p mode

Spee d ON/O FF

Understand indicator light of air quality

Indicator light of air quality reflects current air
quality.Please refer to page 7 and page 14 to
see the details.

indicator light of air quality

Understand indicator light of air quality

Indicator light of air quality reflects current air
quality.Please refer to page 7 and page 14 to
see the details.

indicator light of air quality

50cm

50cm

50cm

50cm

50cm

50cm

Function description of control panel

AUTO

indicator light of ON/OFF button

indicator light of low fan speed

indicator light of medium fan speed

indicator light of fast fan speed

indicator light of sleep mode

indicator light of timer

indicator light of child-lock

indicator light of reset

Anion

(Reset)

Child l ock

（Pre ss 3s）

Tim er Sle ep mo de

Speed ON/OFF

AAUUTTOO

AAUUTTOO

·Disconnect the air purifier from the power source
before move it.

·Make sure to move the product slowly.

·Don’t move the product by pulling on the power cord.

·Don’t not move the machine while the product is
working. If you need to move the machine, turn off
the power.

Attention

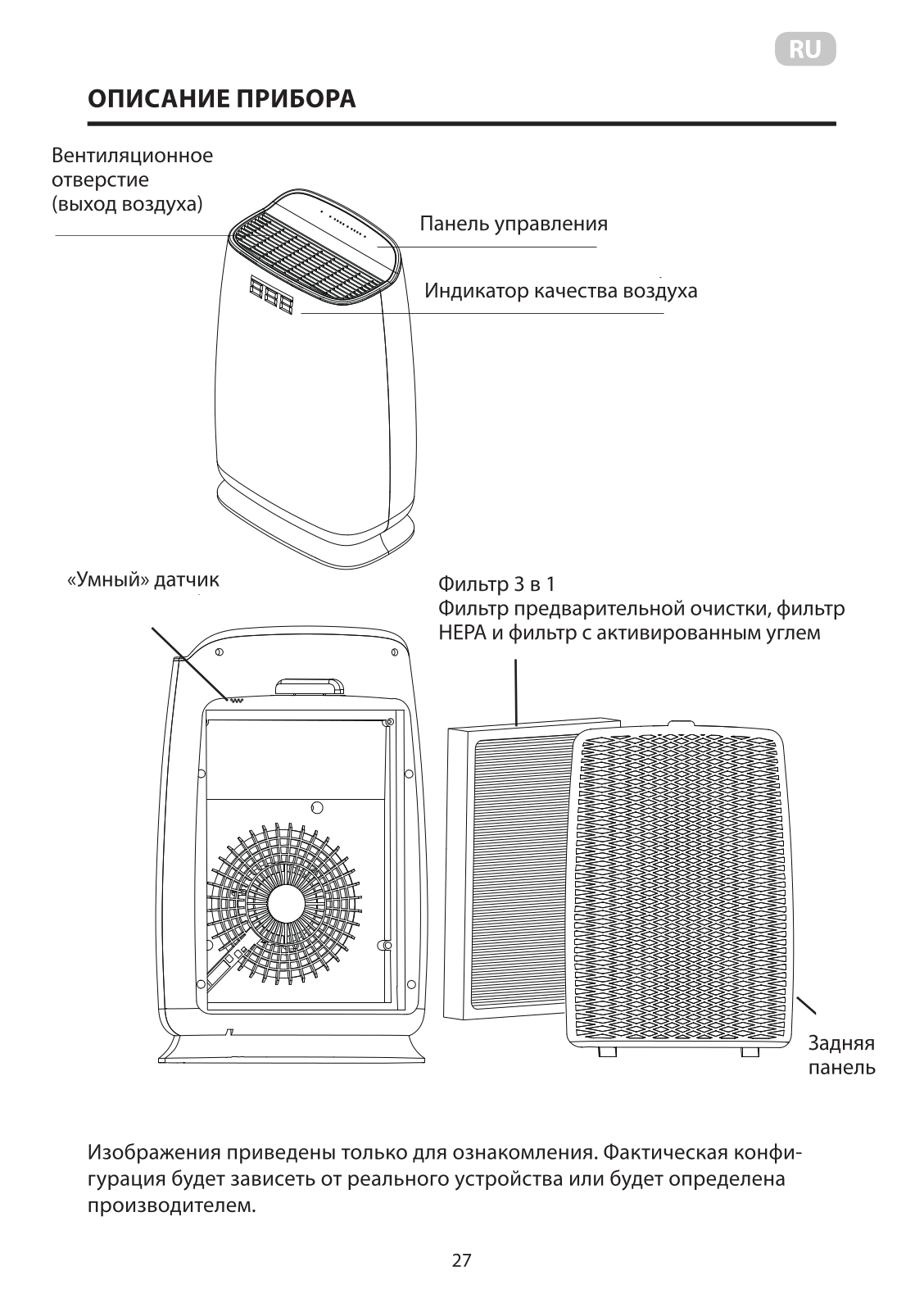

air quality indicator

air outlet

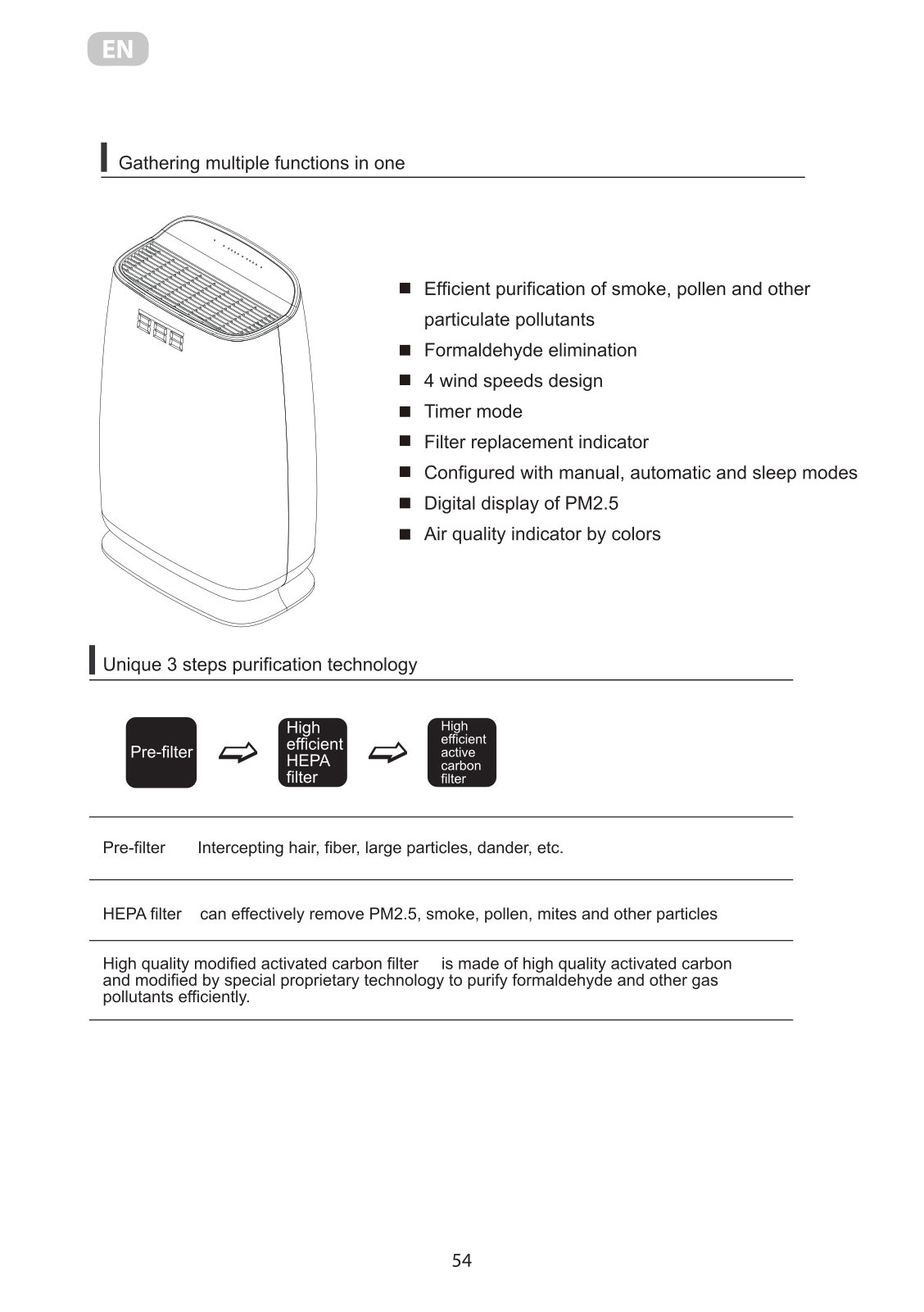

3 in 1 filter net(Pre-filter,HEPA
filter ,Active carbon filter)

Back cover

smart sensor

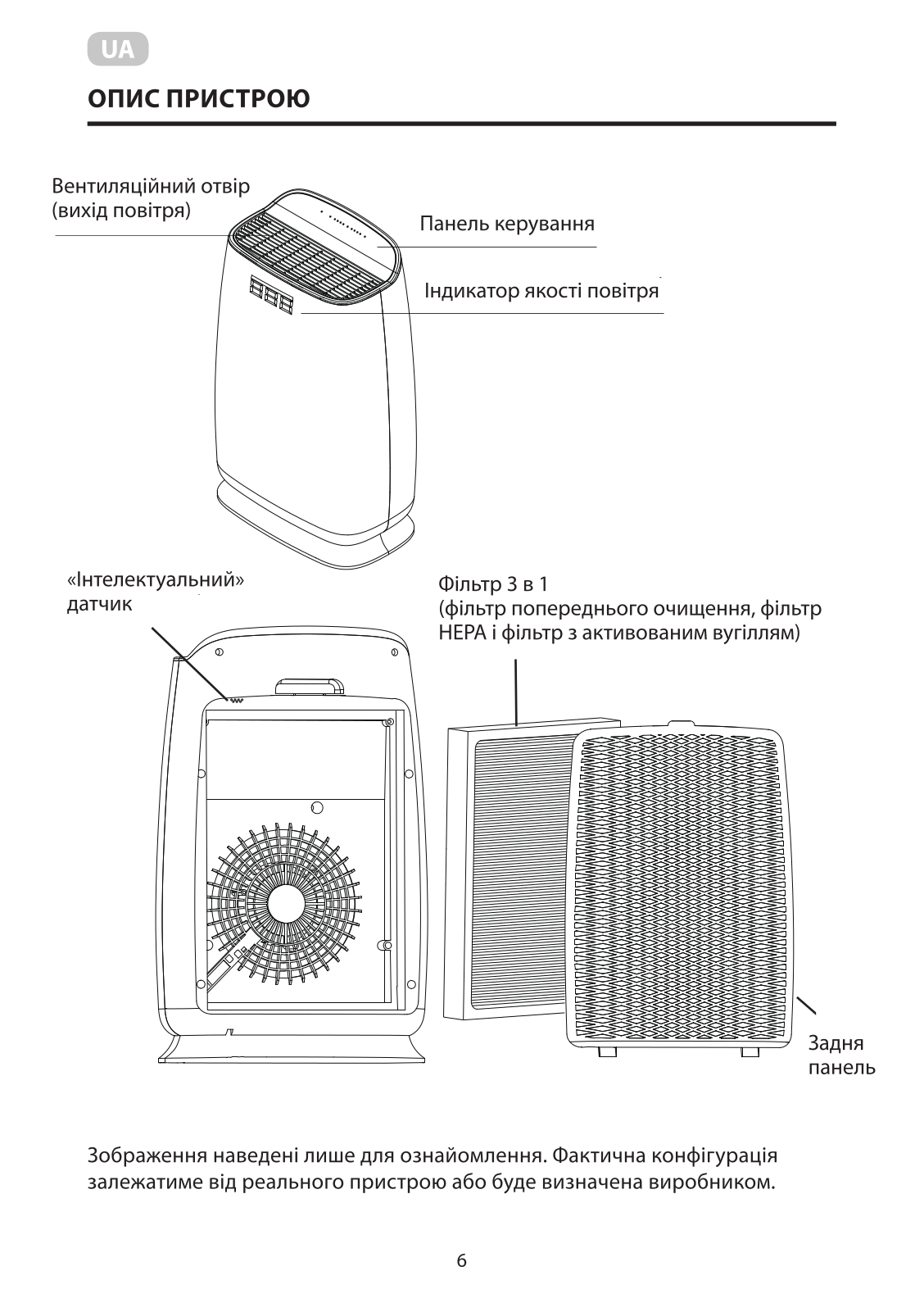

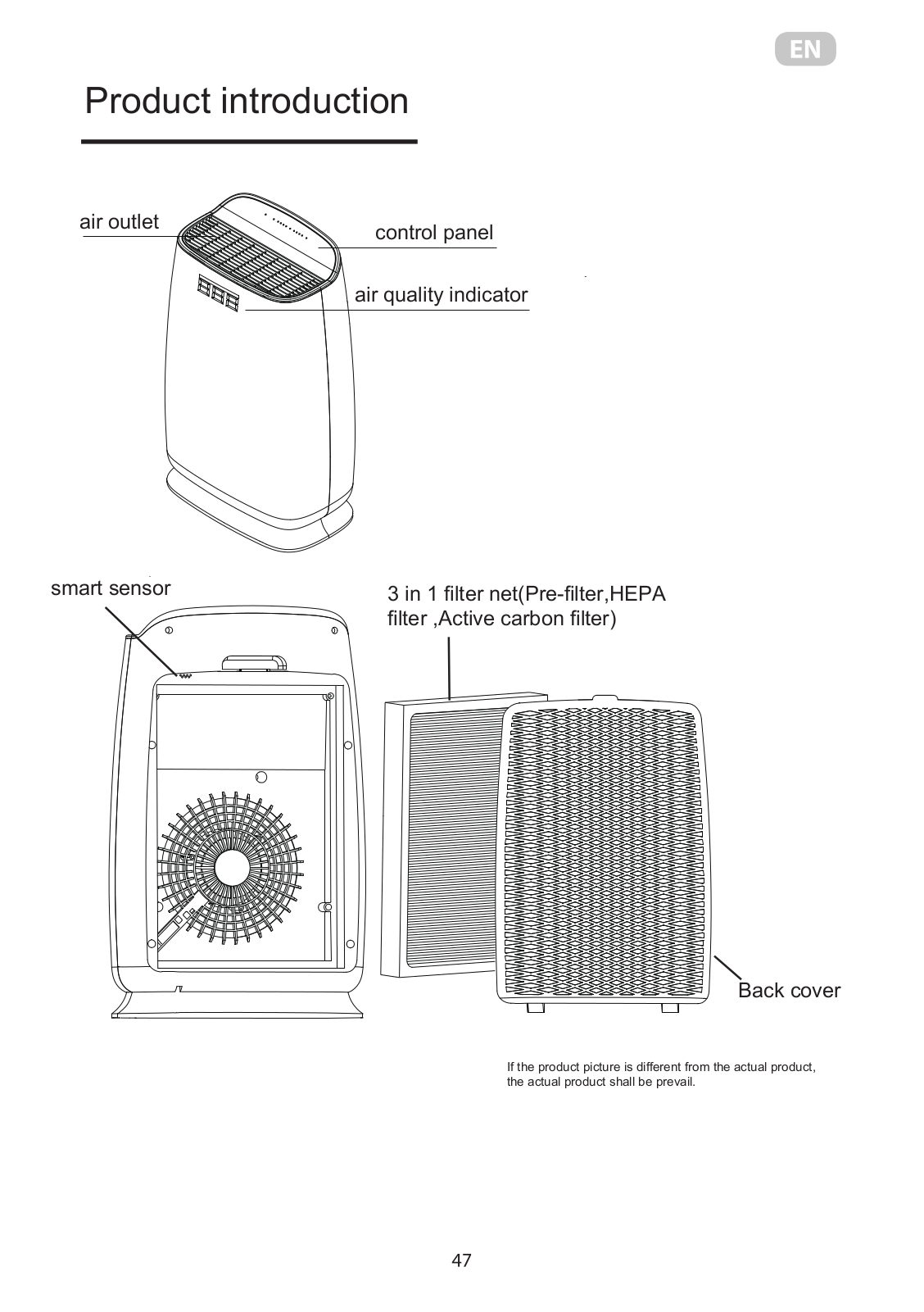

Product introduction

control panel

If the product picture is different from the actual product,
the actual product shall be prevail.

·Disconnect the air purifier from the power source
before move it.

·Make sure to move the product slowly.

·Don’t move the product by pulling on the power cord.

·Don’t not move the machine while the product is
working. If you need to move the machine, turn off
the power.

Product introduction

the actual product shall be prevail.

Product introduction

air outlet

smart sensor

control panel

air quality indicator

3 in 1 filter net(Pre-filter,HEPA
filter ,Active carbon filter)

Back cover

If the product picture is different from the actual product,

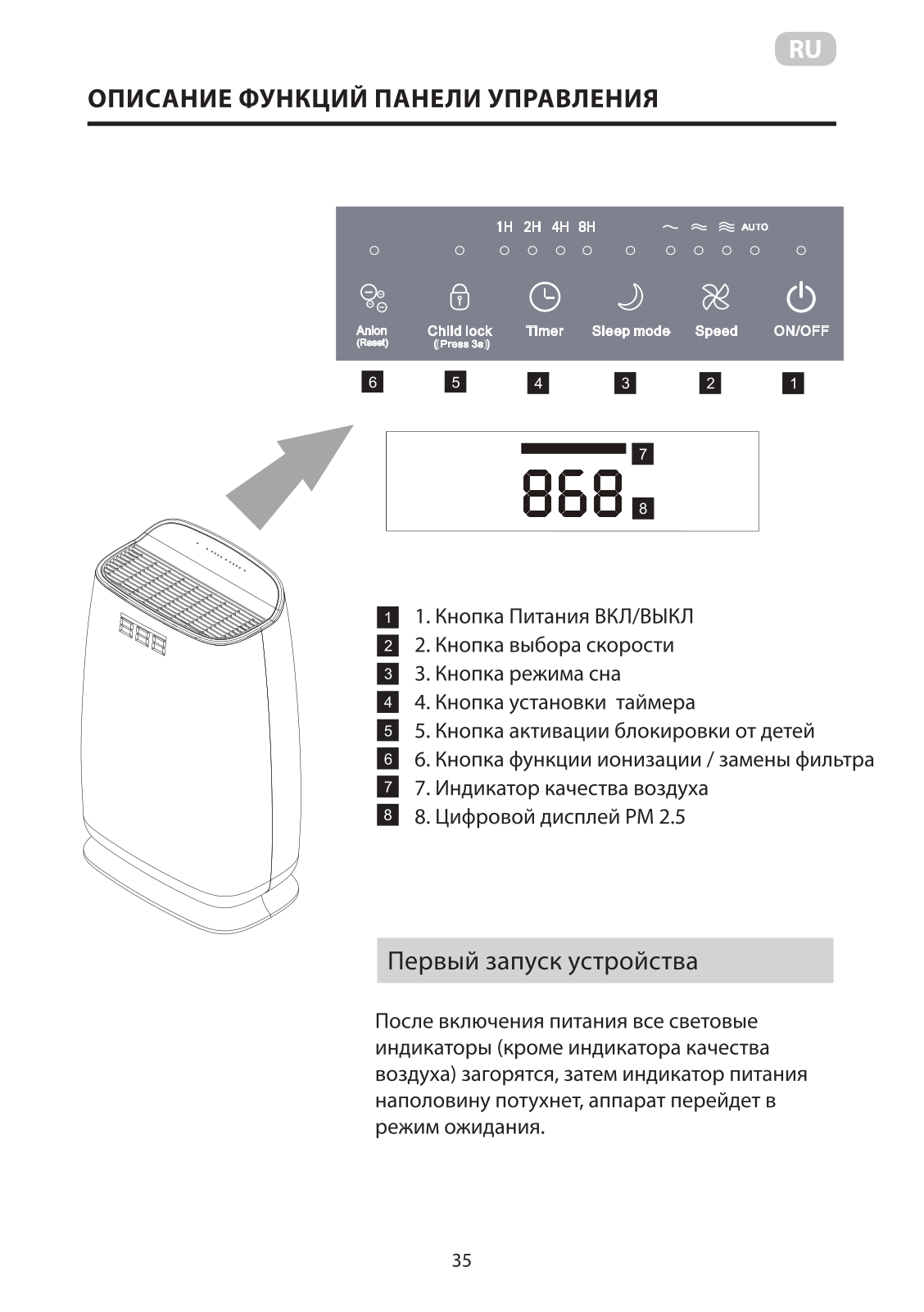

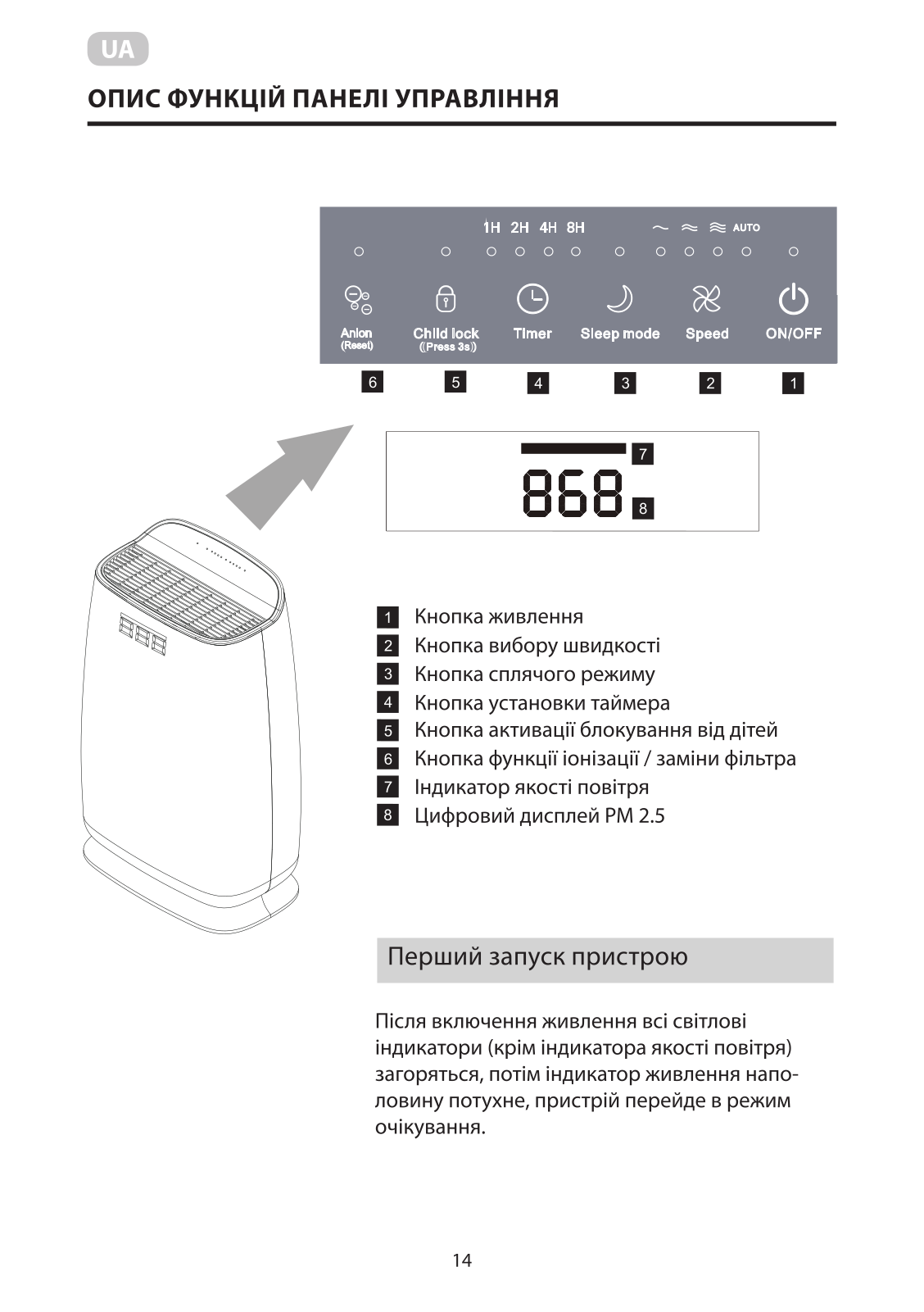

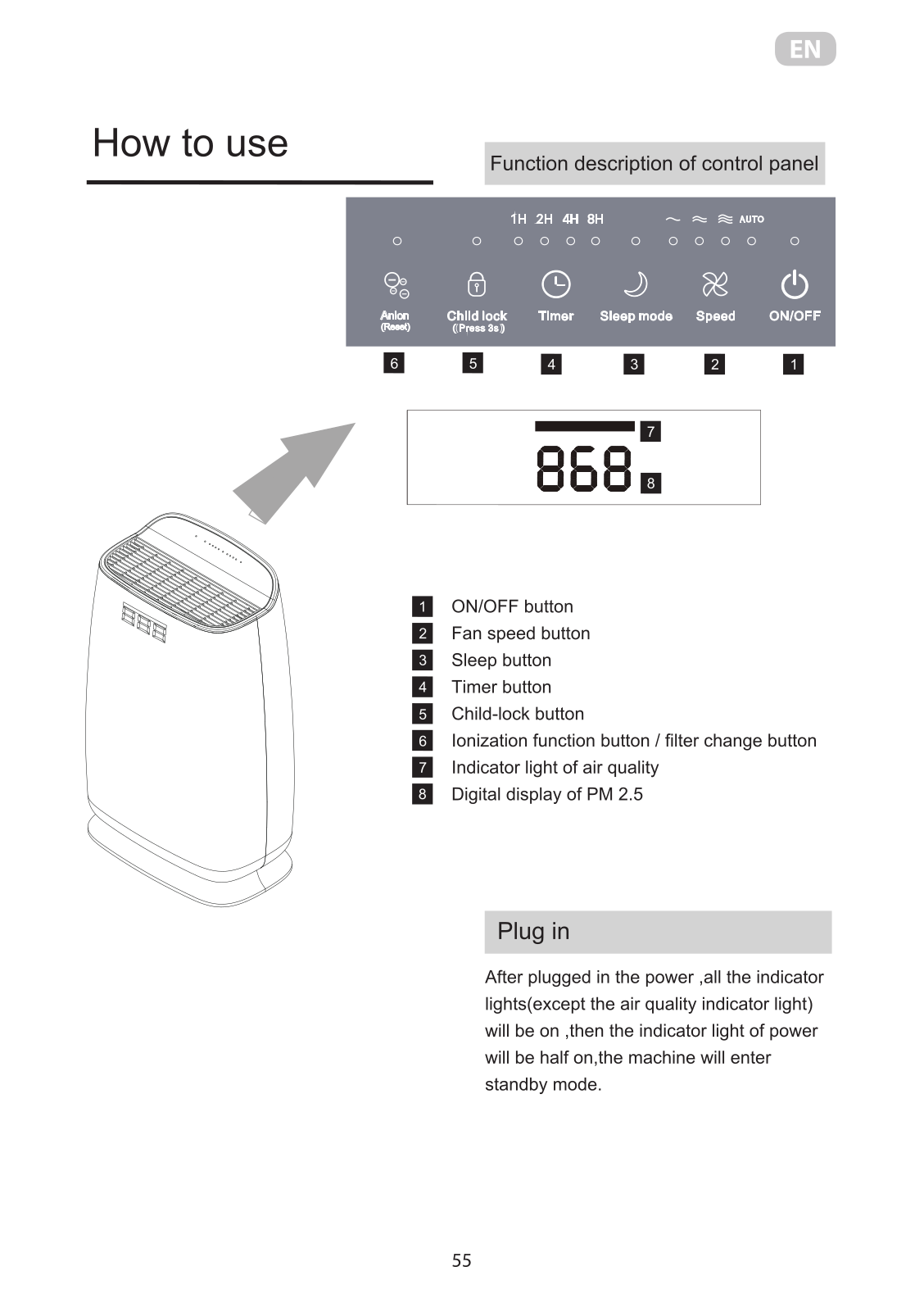

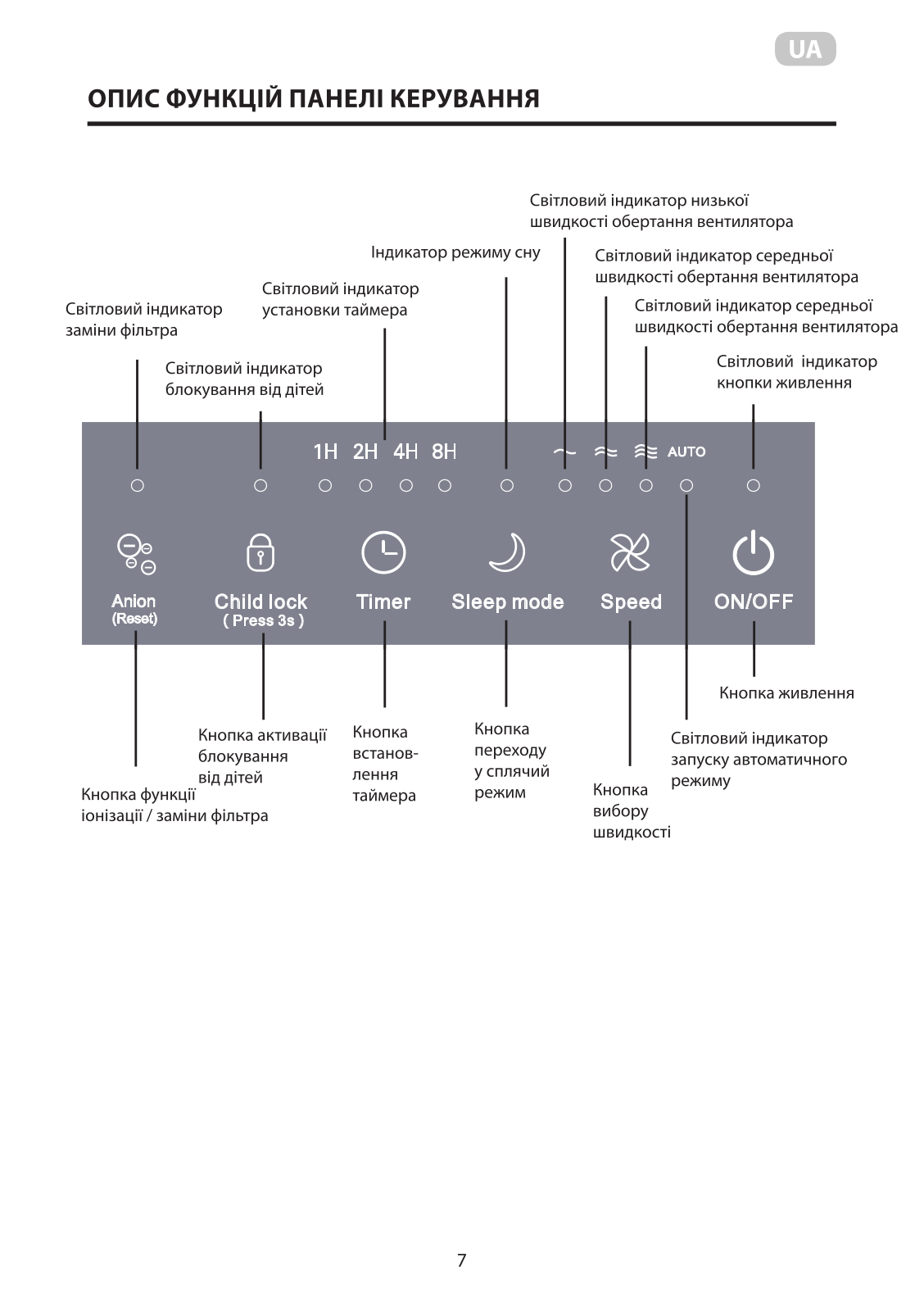

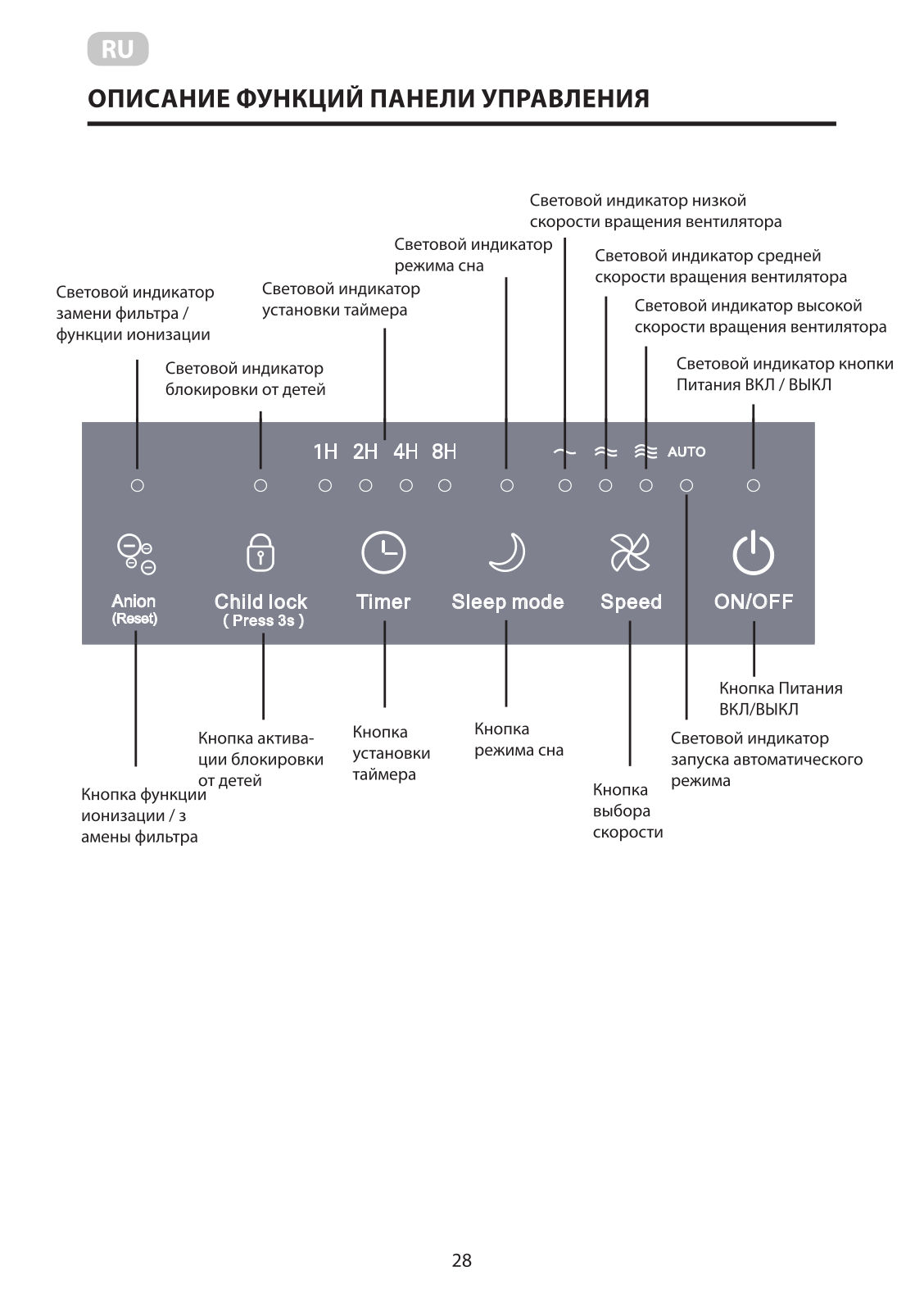

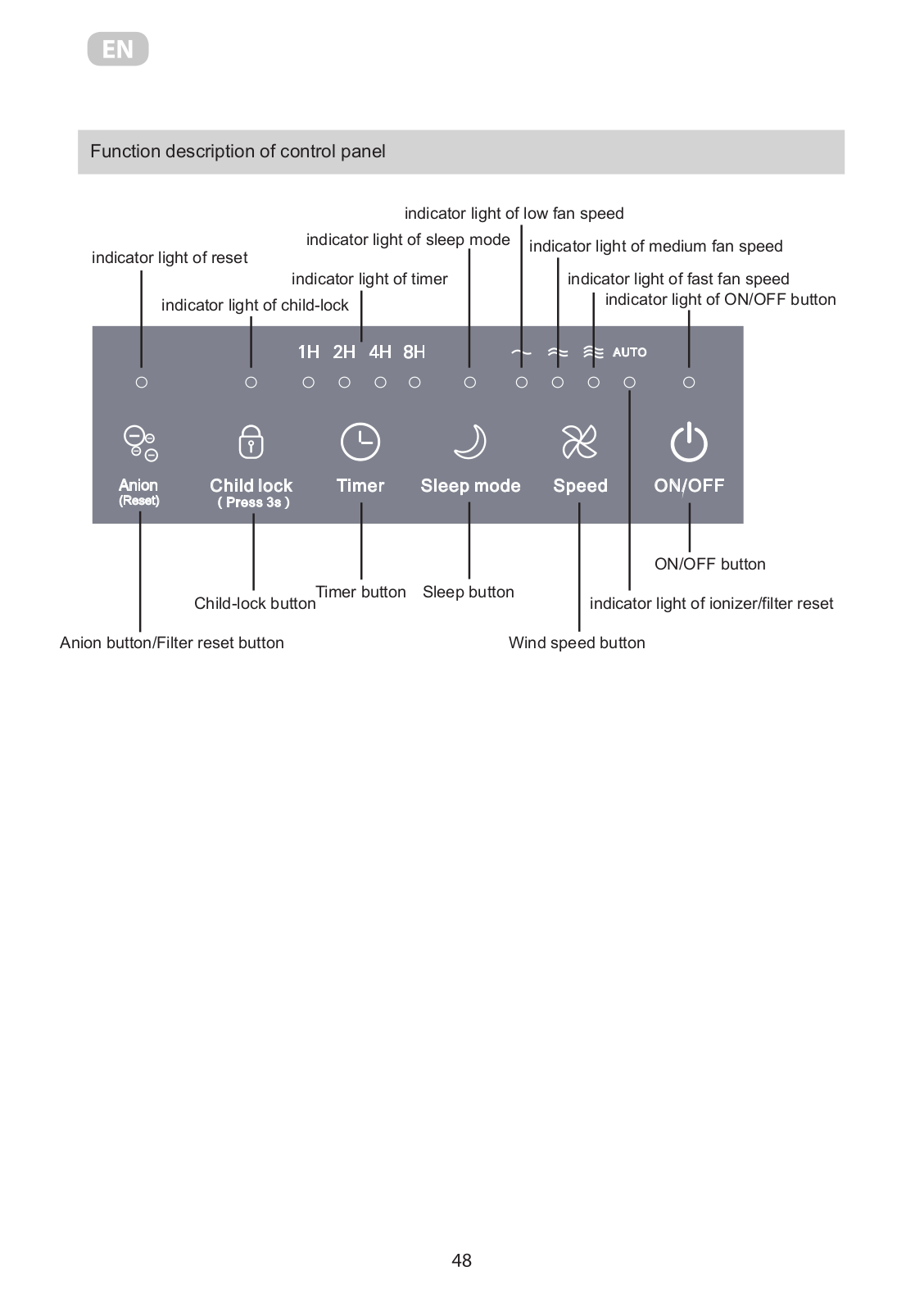

Function description of control panel

indicator light of sleep mode

indicator light of reset

indicator light of timer

indicator light of child-lock

indicator light of low fan speed

indicator light of medium fan speed

indicator light of fast fan speed

indicator light of ON/OFF button

AUT O

Anion

(Reset)

Child lock

（Pre ss 3s）

Child-lock button

Anion button/Filter reset button

Tim er Sleep mo de

Timer button

Sleep button

Speed ON/OFF

ON/OFF button

indicator light of ionizer/filter reset

Wind speed button

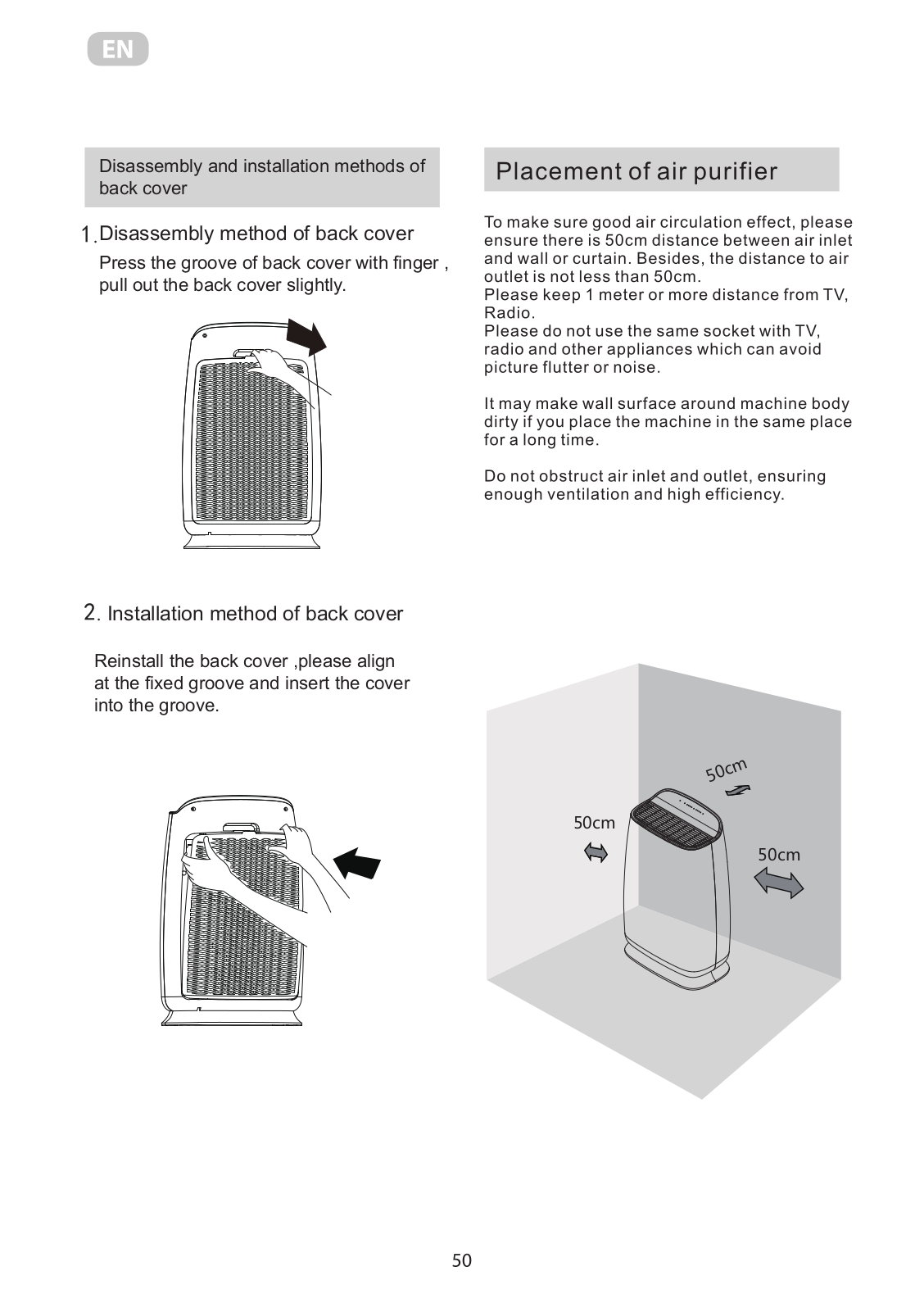

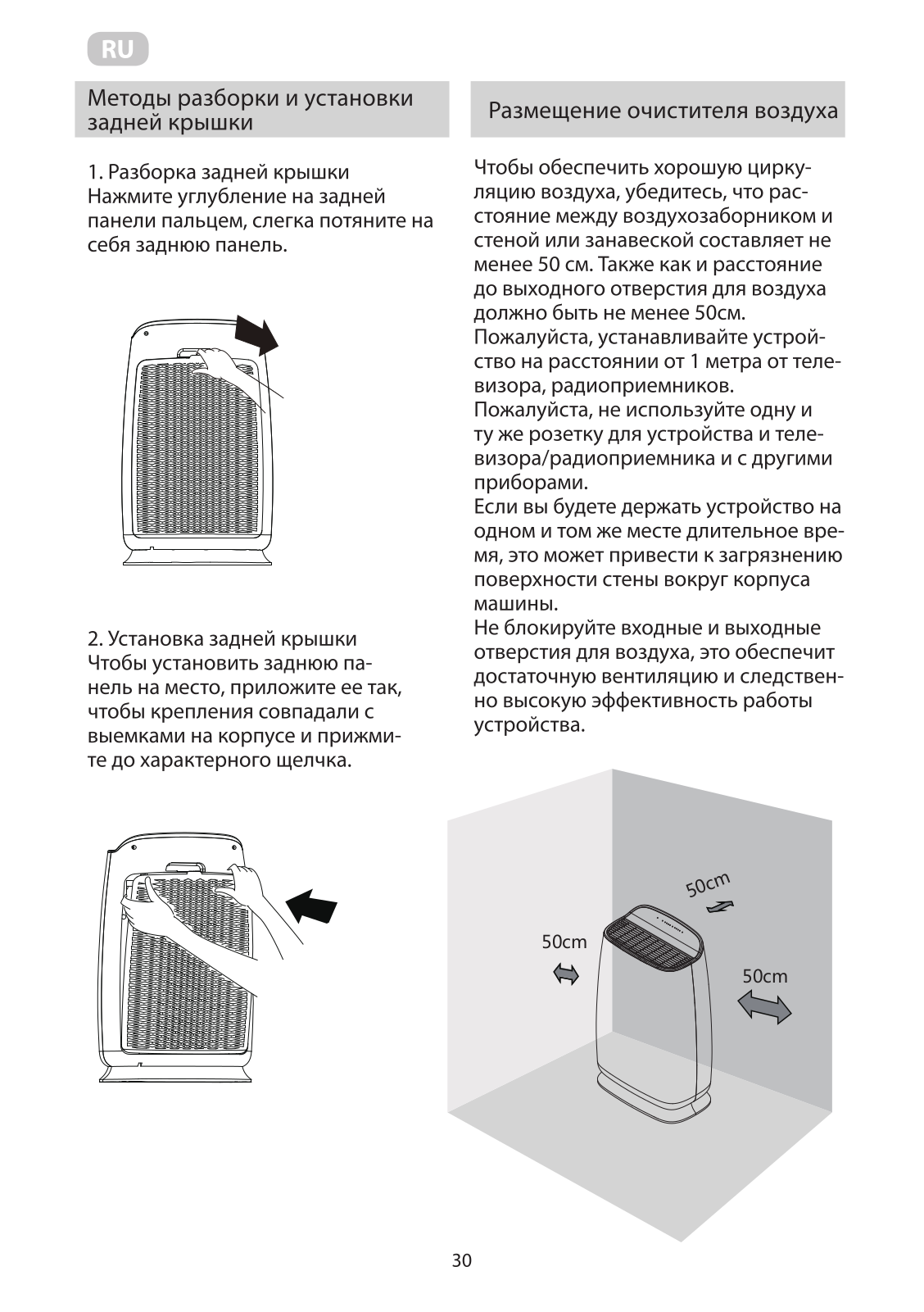

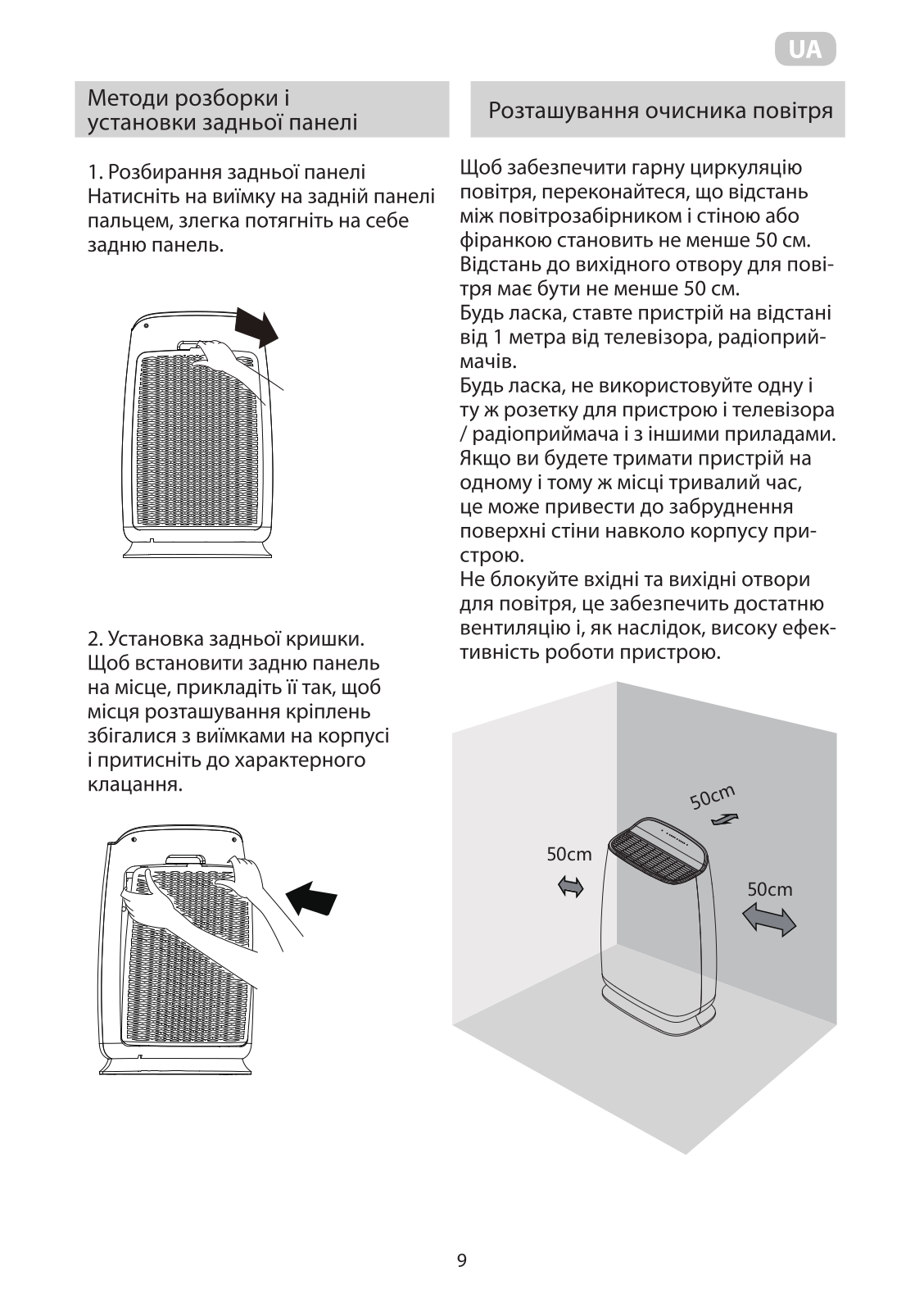

Disassembly and installation methods of
back cover

Disassembly method of back cover

1.

Press the groove of back cover with finger ,
pull out the back cover slightly.

2.

Installation method of back cover

Reinstall the back cover ,please align
at the fixed groove and insert the cover
into the groove.

50cm

50cm

50cm

Press the groove of back cover with

finger ,pull out the back cover slightly.

The filter net can’t be washed.

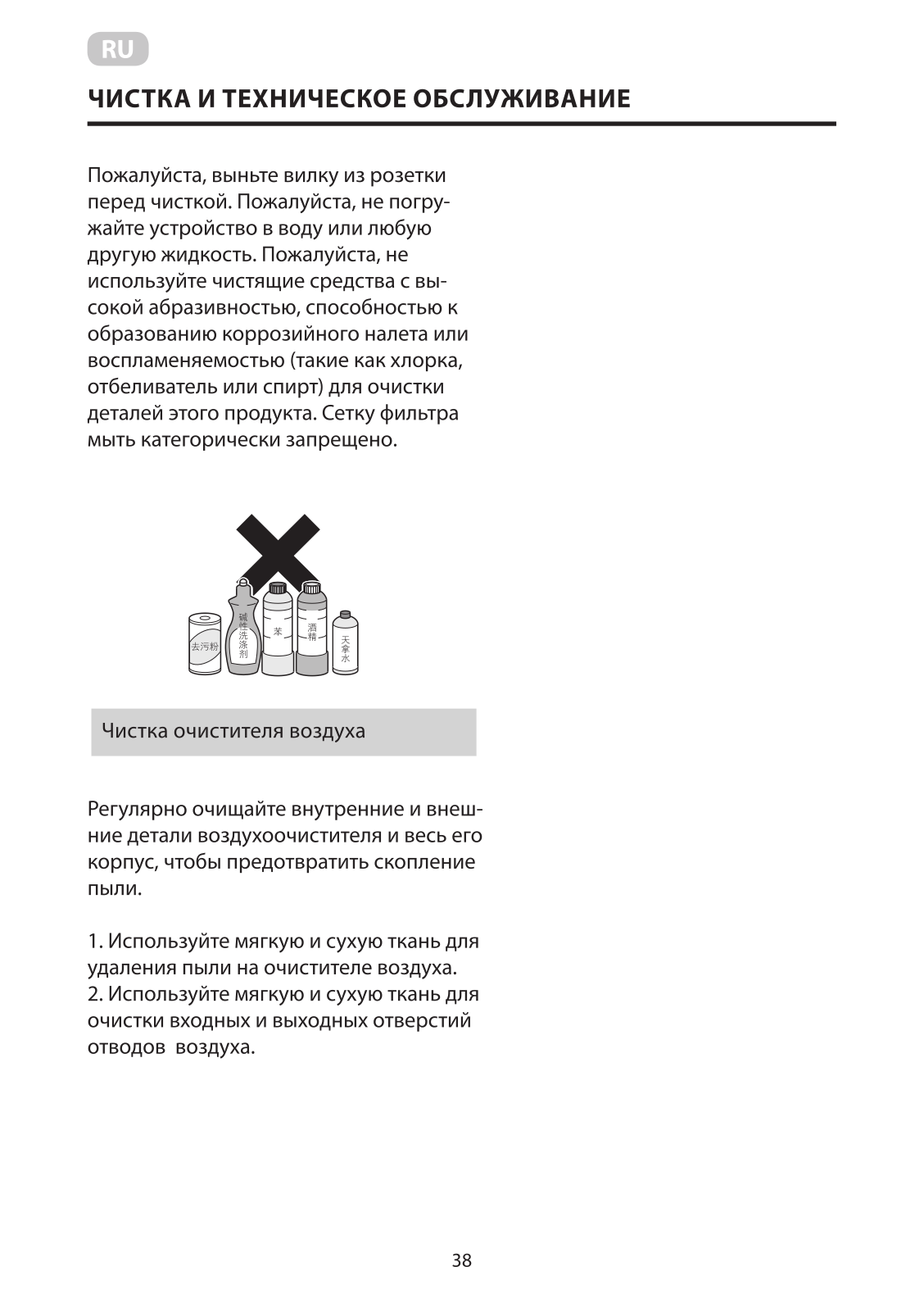

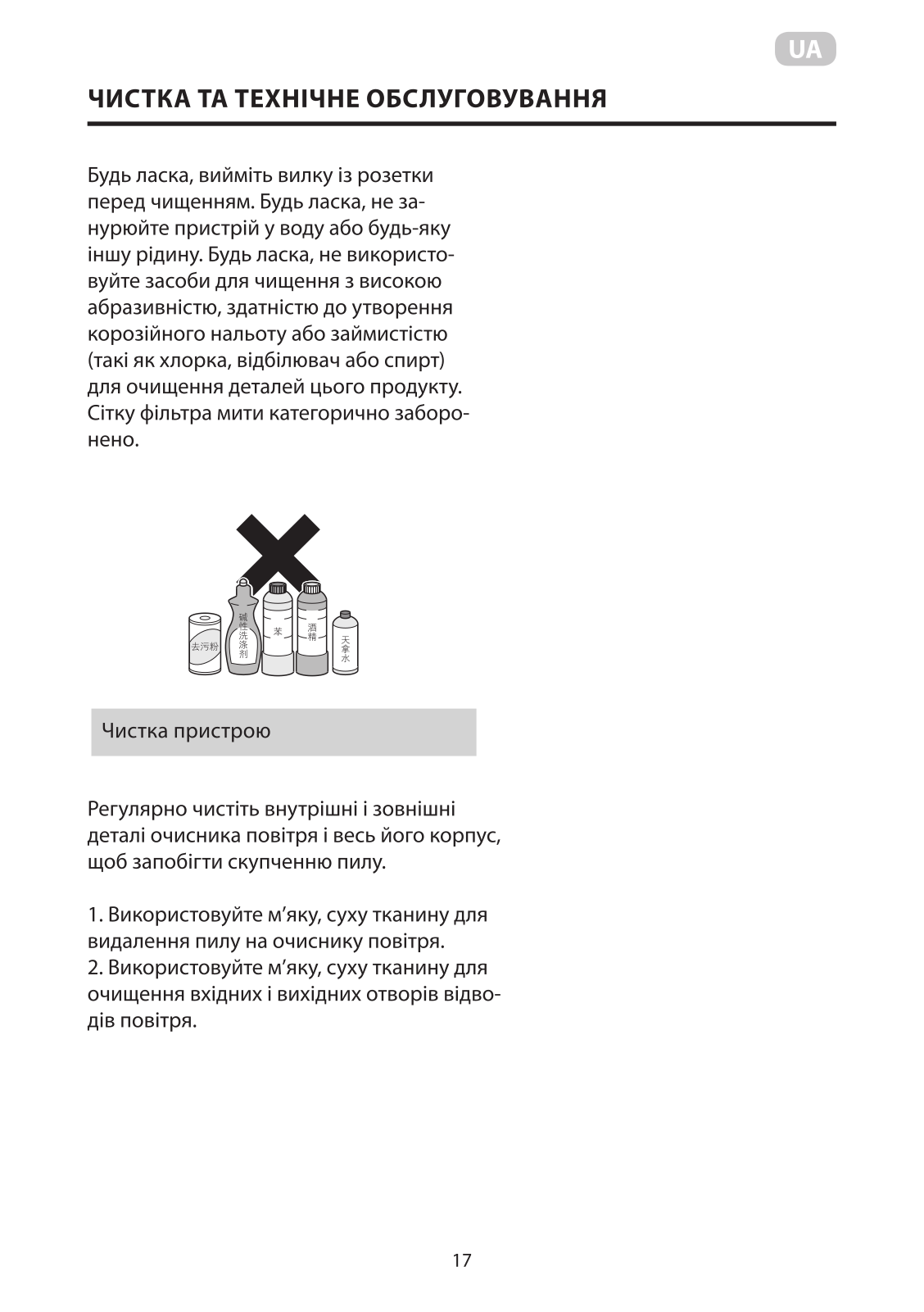

Clean the air purifier

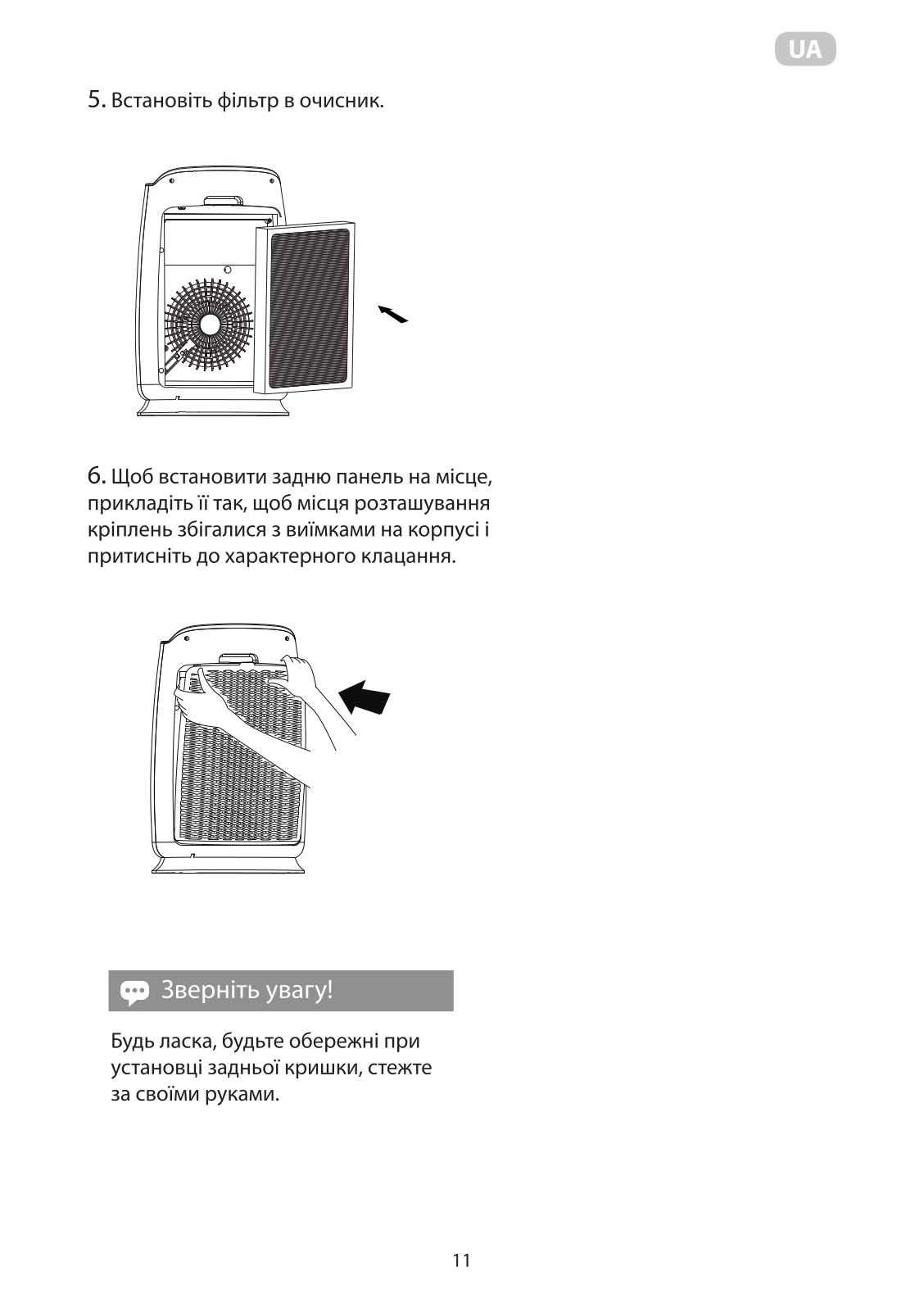

Put the filter into the air purifier

To reinstall the back cover,please align
at the fixed groove and insert the back
cover into the groove.

Reminder

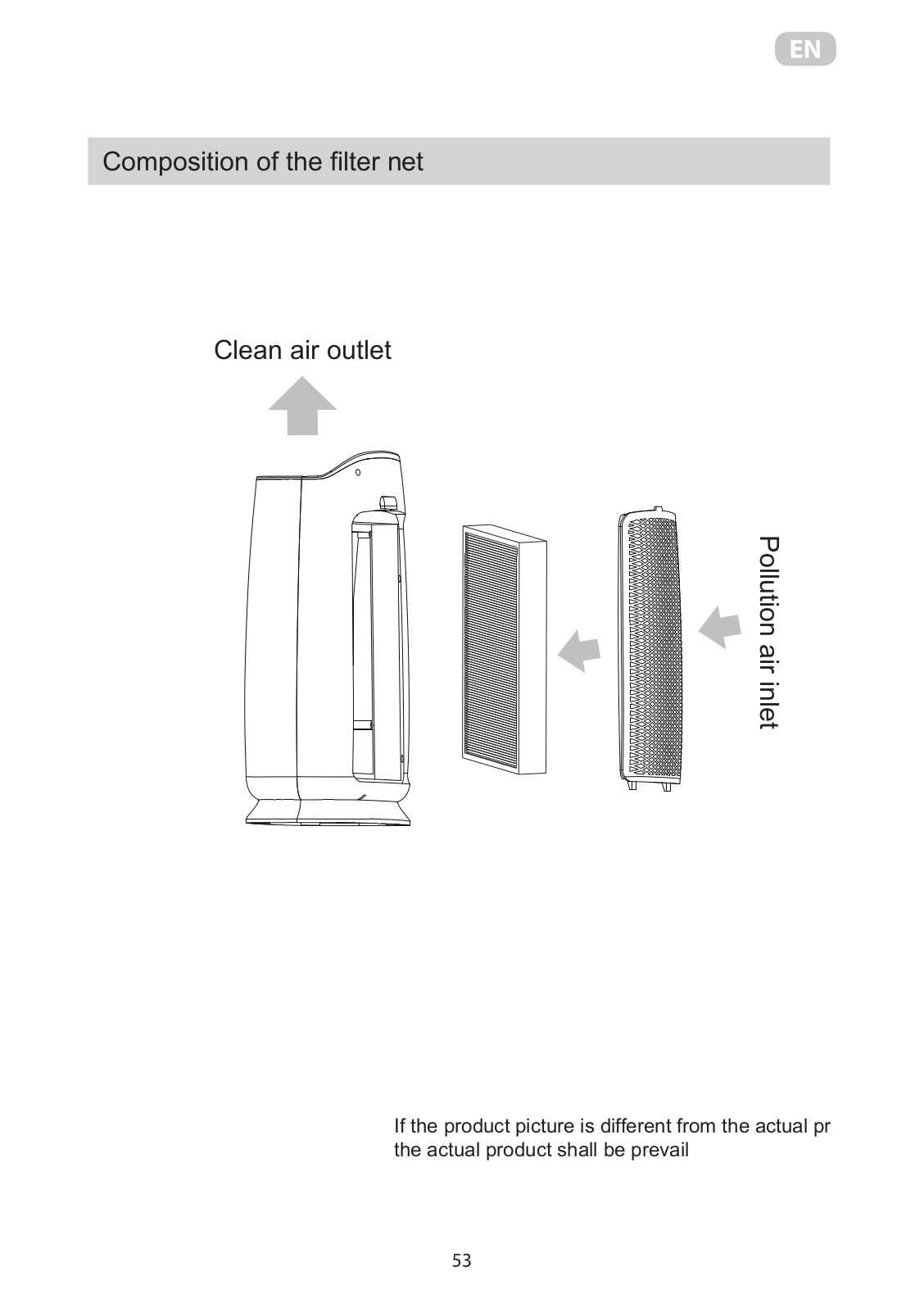

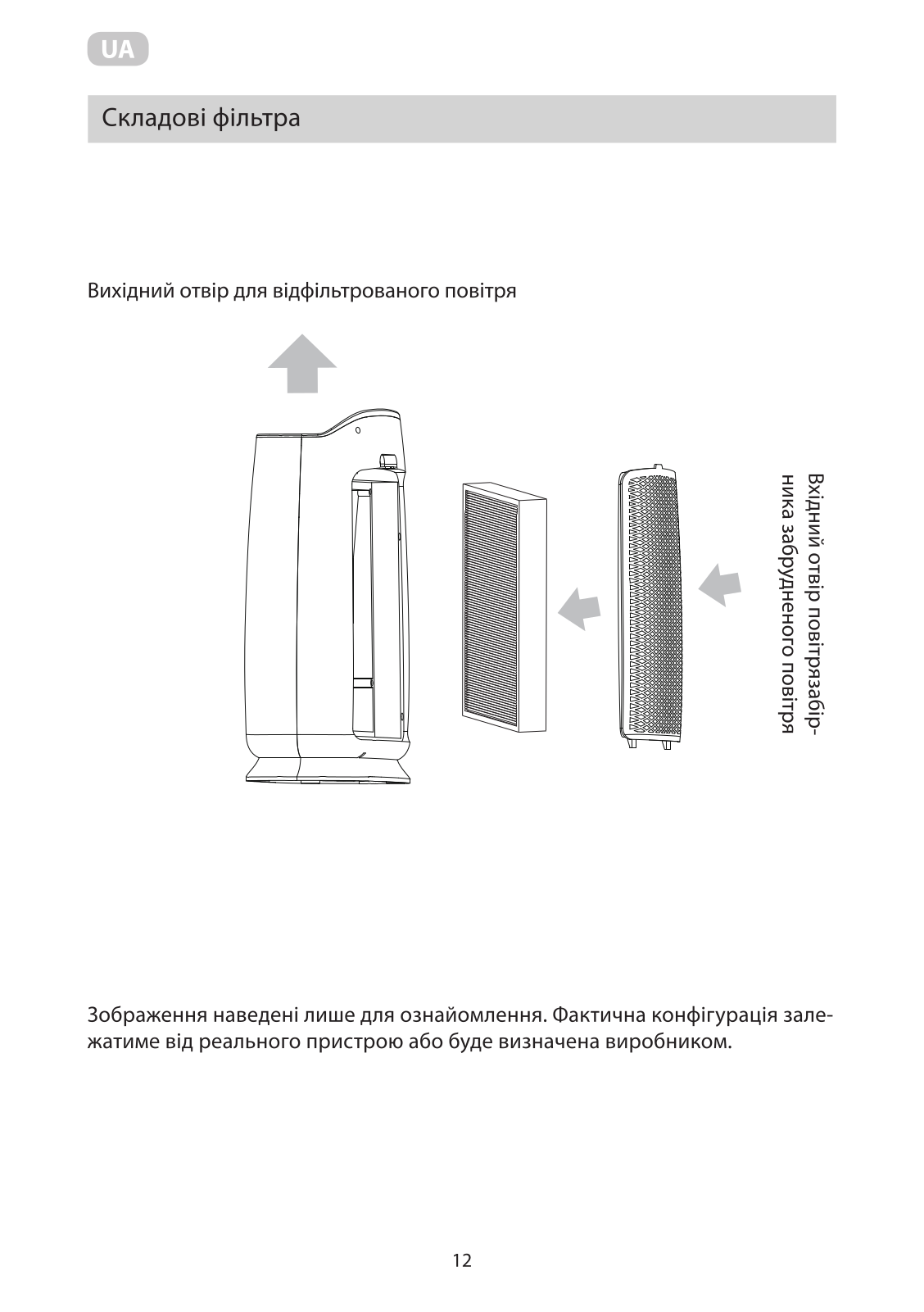

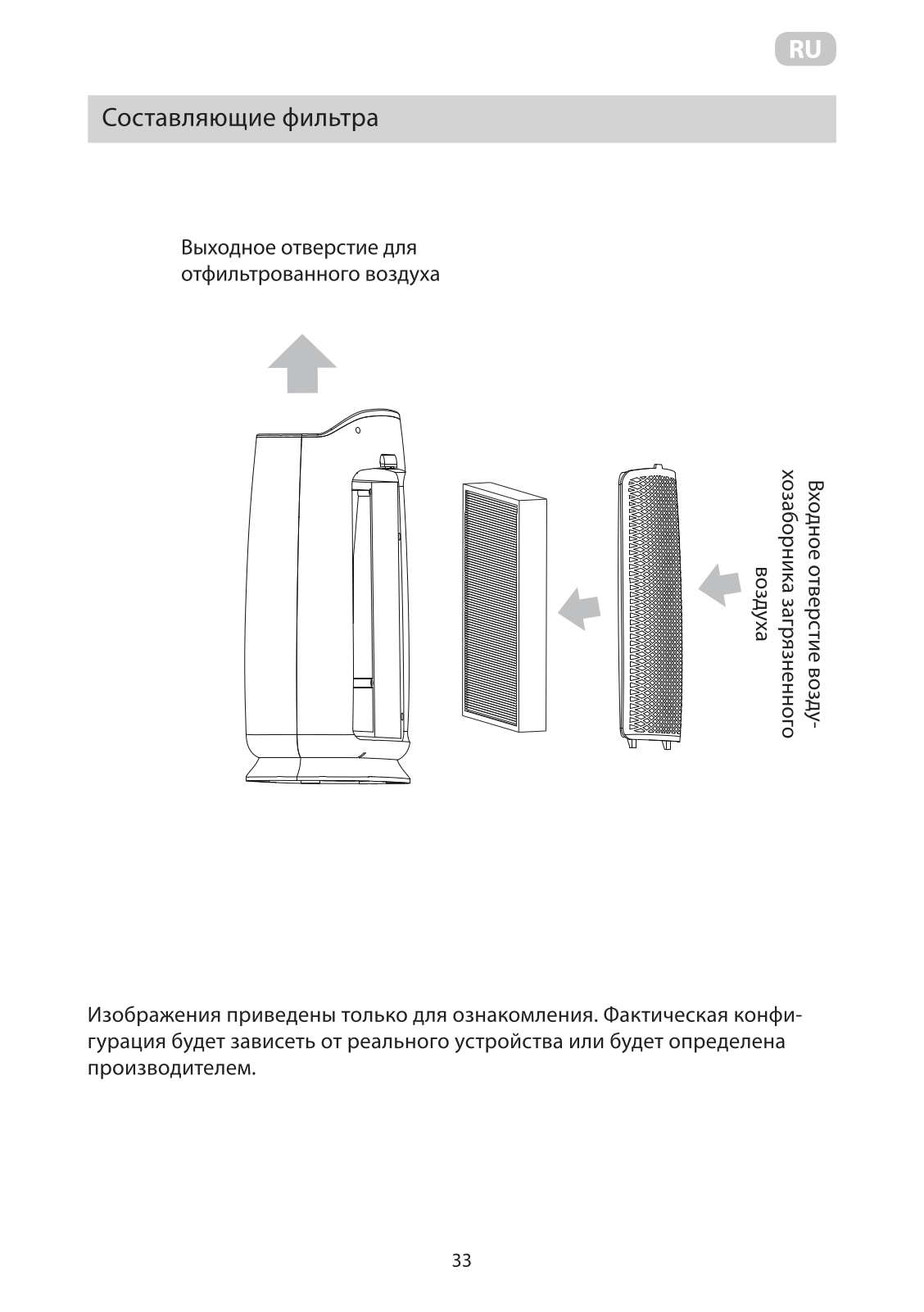

Composition of the filter net

If the product picture is different from the actual product,

Turn on the air purifier

After plugged in the power ,all the indicator
lights(except the air quality indicator light) will
be on ,then the indicator light of power will be
half on,the machine will enter standby mode.
Press ON/OFF button (as shown in above
figure),the air purifier will start to work,in the
beginning 30 seconds,the smart sensor
needs to preheat(the indicator light of air
quality will be in blue,the PM 2.5 value will be
shown as “———”),after 30 seconds’
preheating,the smart air quality sensor will
detect the air quality automatically .It will
show the air quality by different indicator
light colour (as shown in below figure).

indicator light color of air quality

Clean air outlet

Pollution air inlet

the actual product shall be prevail

Function description of control panel

AUTO

indicator light of ON/OFF button

indicator light of low fan speed

indicator light of medium fan speed

indicator light of fast fan speed

indicator light of sleep mode

indicator light of timer

indicator light of child-lock

indicator light of reset

Anion

(Reset)

Chi ld lock

（Pre ss 3s）

Tim er Sle ep mode

Spe ed ON/ OFF

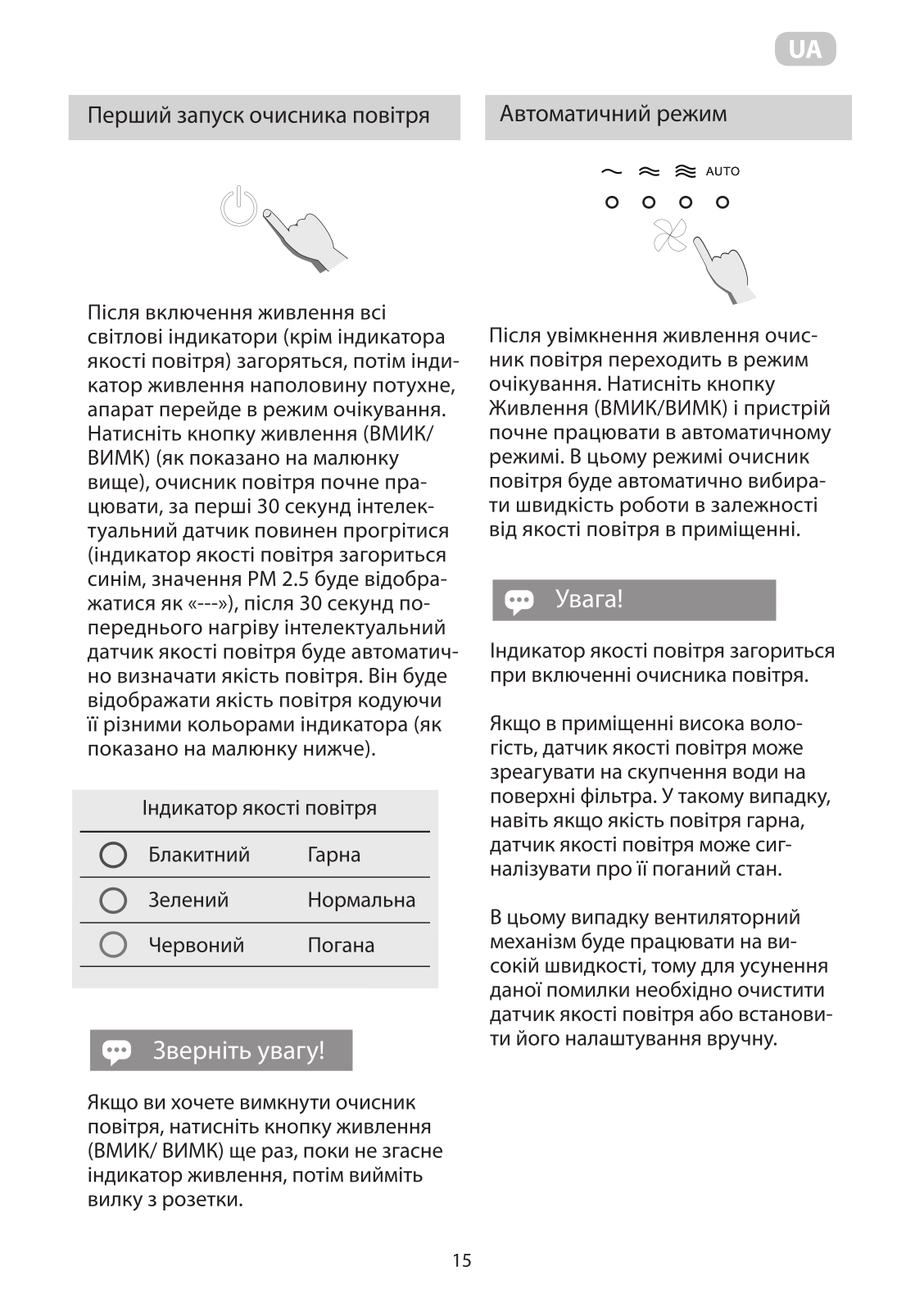

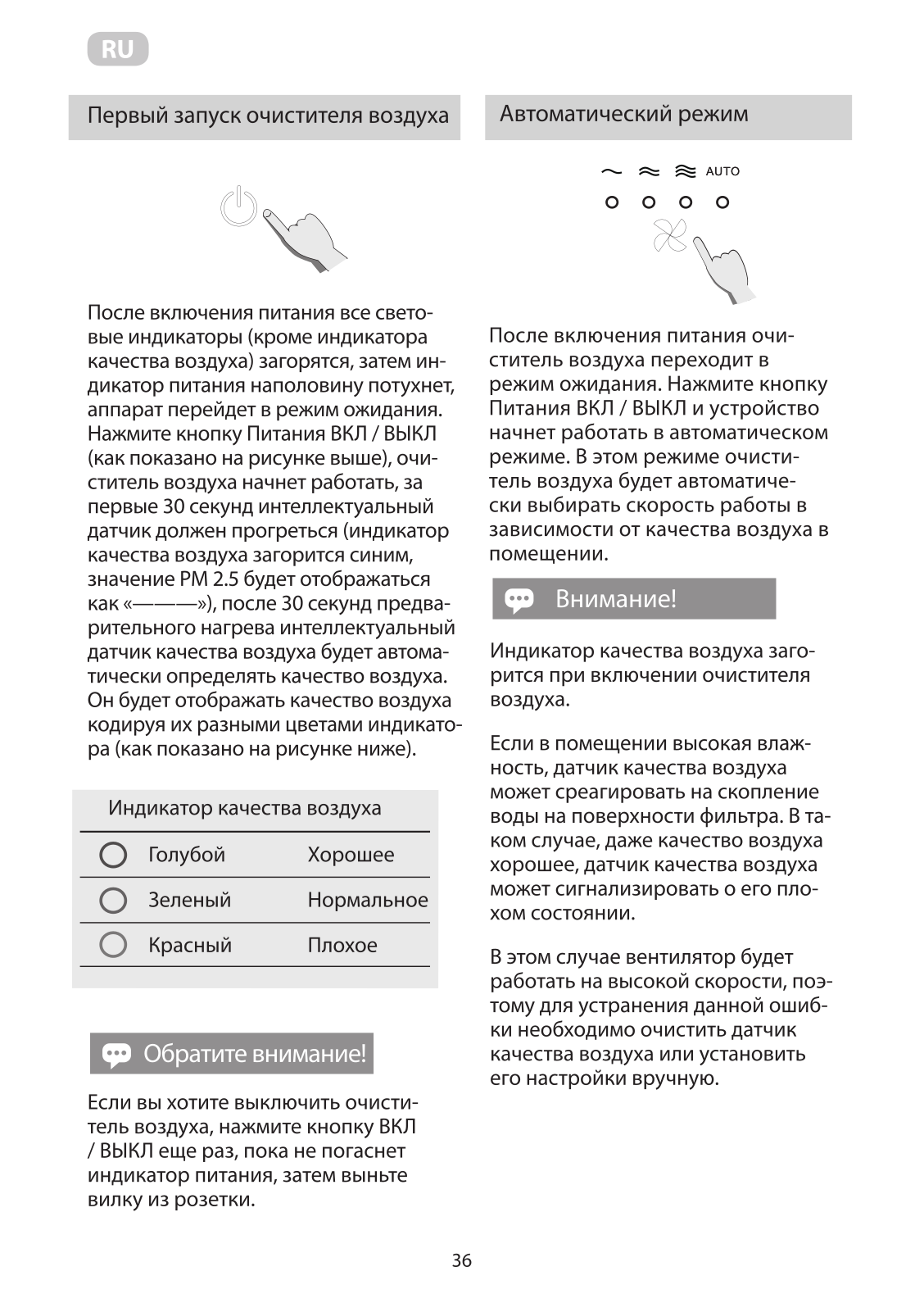

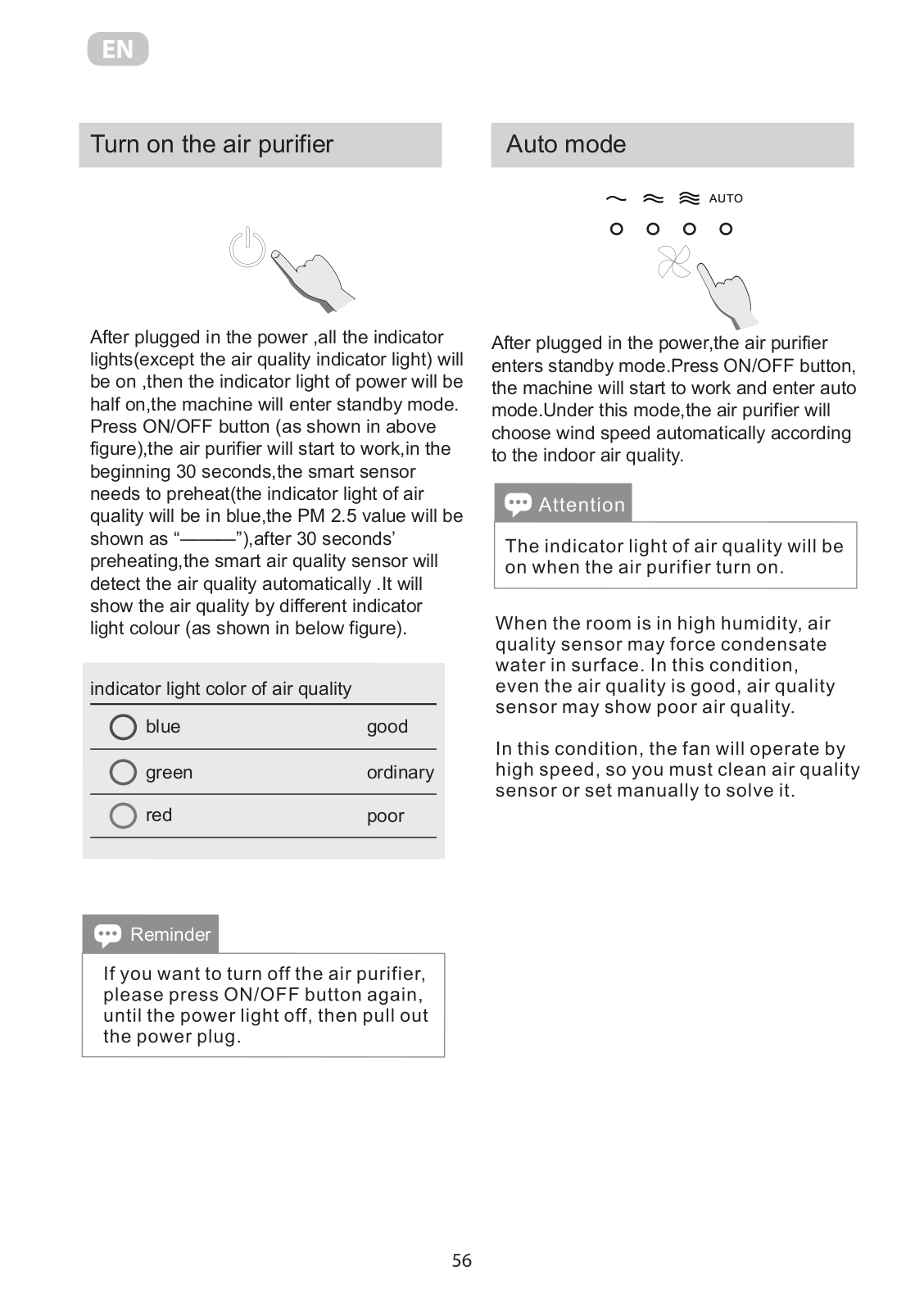

Turn on the air purifier

Auto mode

AAUUTTOO

After plugged in the power ,all the indicator
lights(except the air quality indicator light) will
be on ,then the indicator light of power will be
half on,the machine will enter standby mode.
Press ON/OFF button (as shown in above
figure),the air purifier will start to work,in the
beginning 30 seconds,the smart sensor
needs to preheat(the indicator light of air
quality will be in blue,the PM 2.5 value will be
shown as “———”),after 30 seconds’
preheating,the smart air quality sensor will
detect the air quality automatically .It will
show the air quality by different indicator
light colour (as shown in below figure).

indicator light color of air quality

blue

green

red

Reminder

good

ordinary

poor

After plugged in the power,the air purifier
enters standby mode.Press ON/OFF button,
the machine will start to work and enter auto
mode.Under this mode,the air purifier will
choose wind speed automatically according
to the indoor air quality.

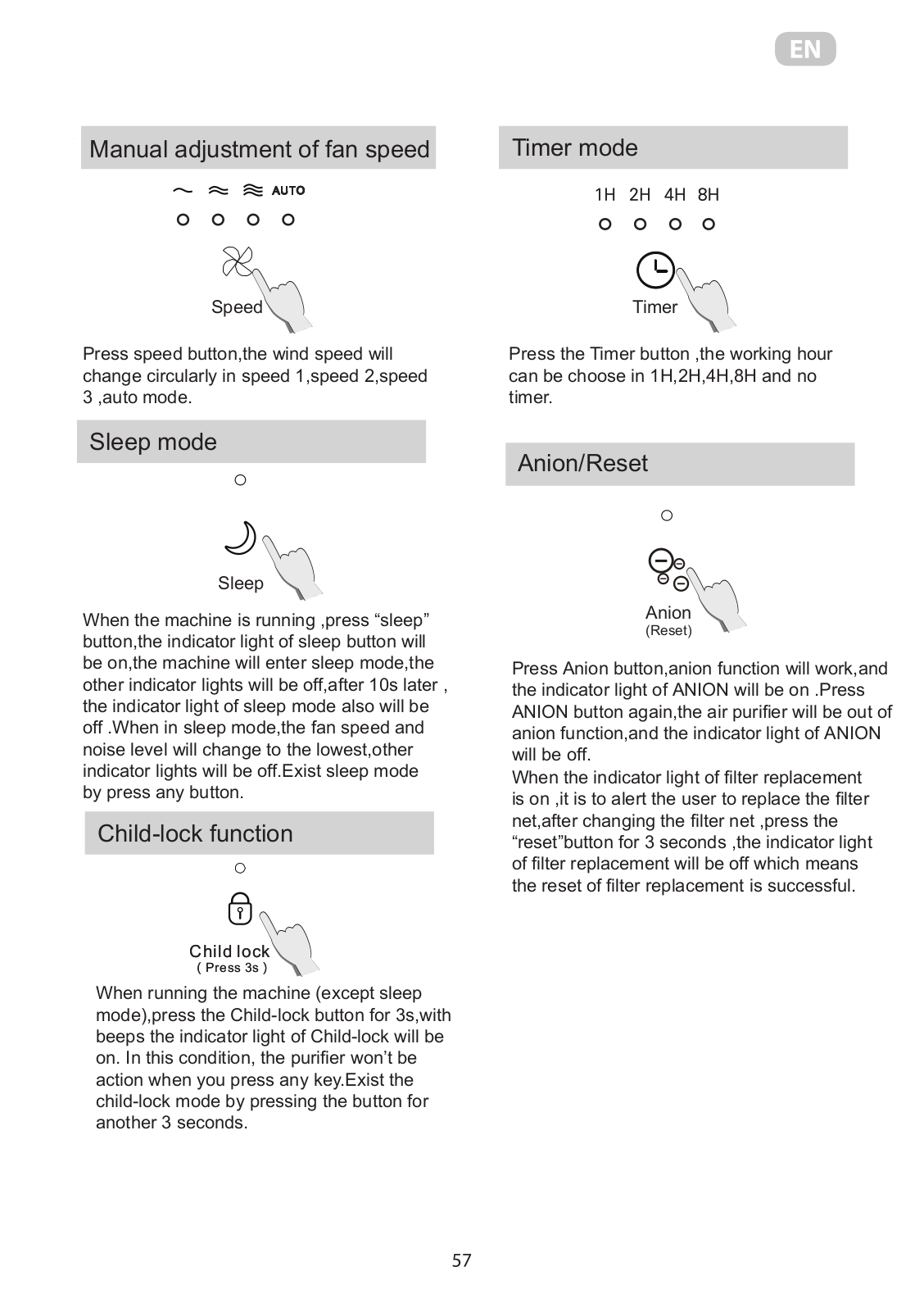

Manual adjustment of fan speed

ANION button again,the air purifier will be out of

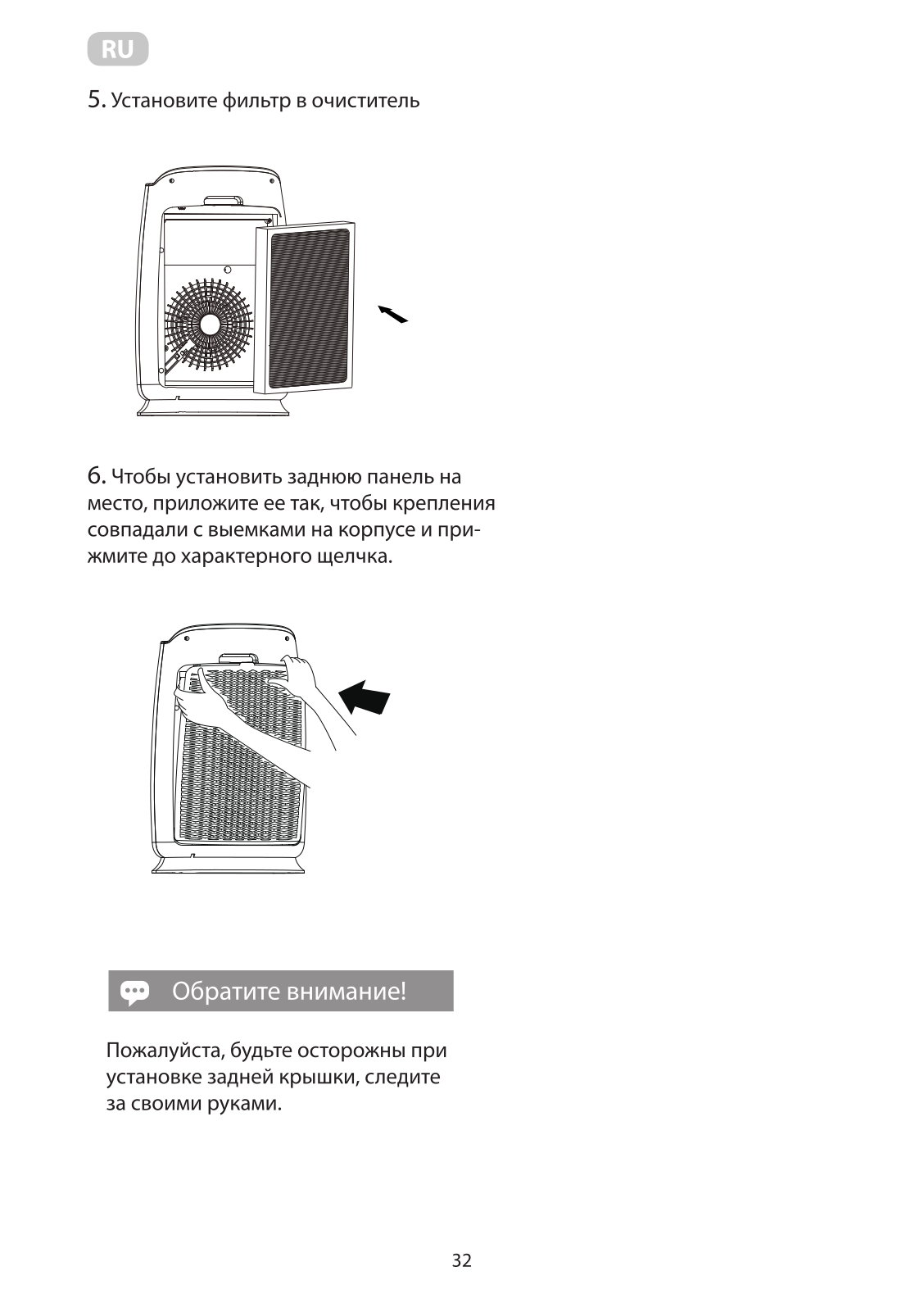

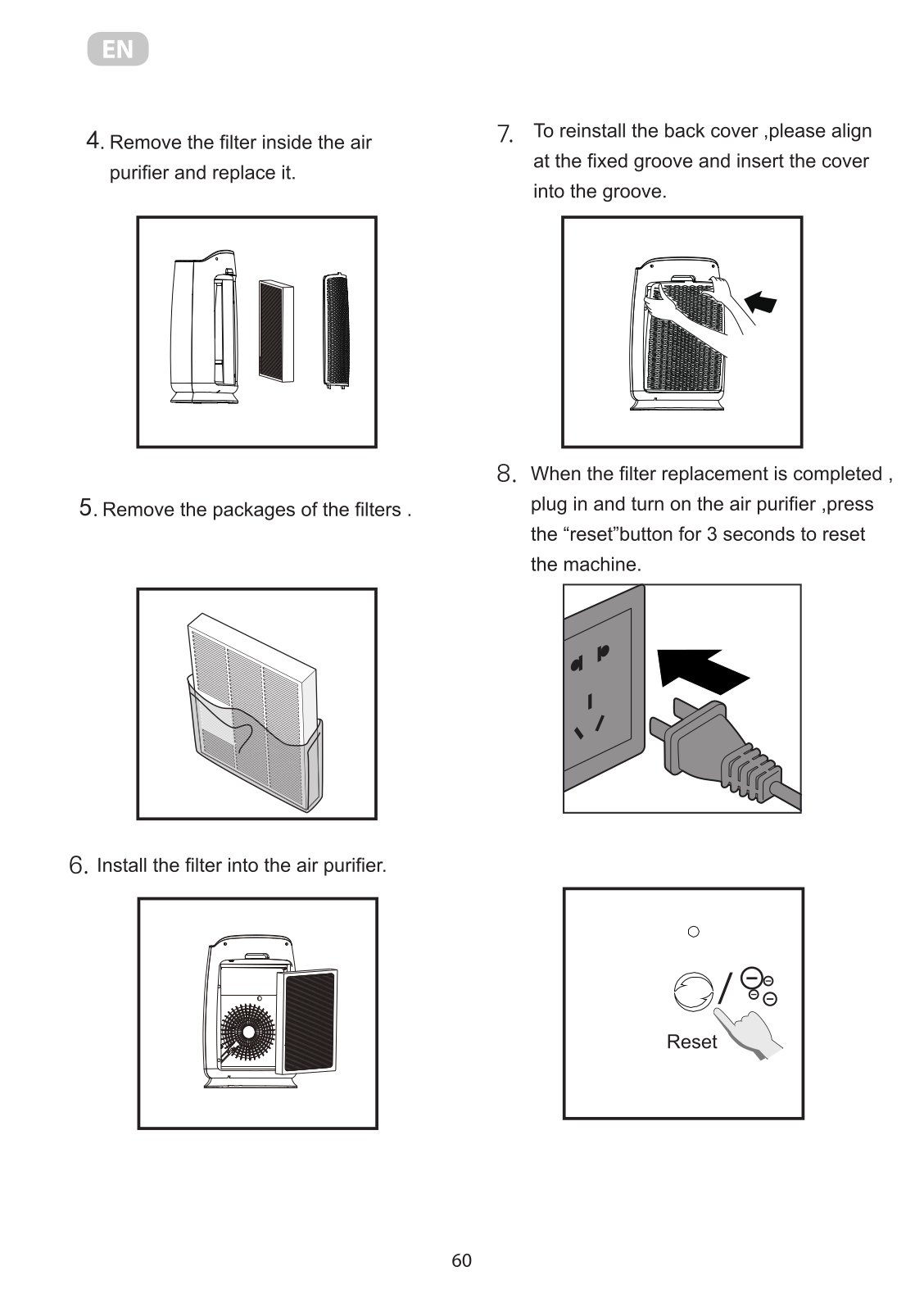

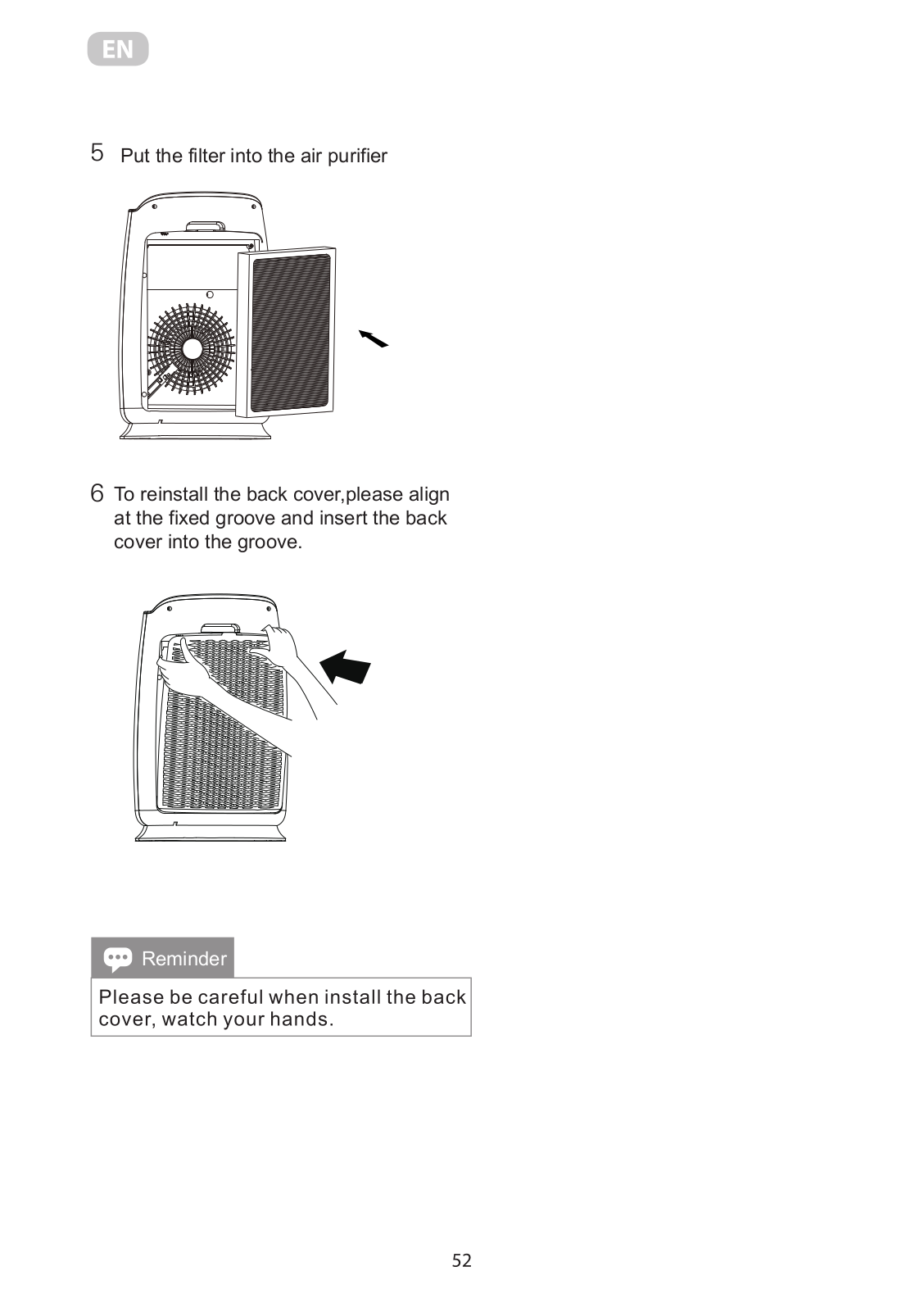

Put the filter into the air purifier

To reinstall the back cover,please align
at the fixed groove and insert the back
cover into the groove.

Reminder

AAUUTTOO

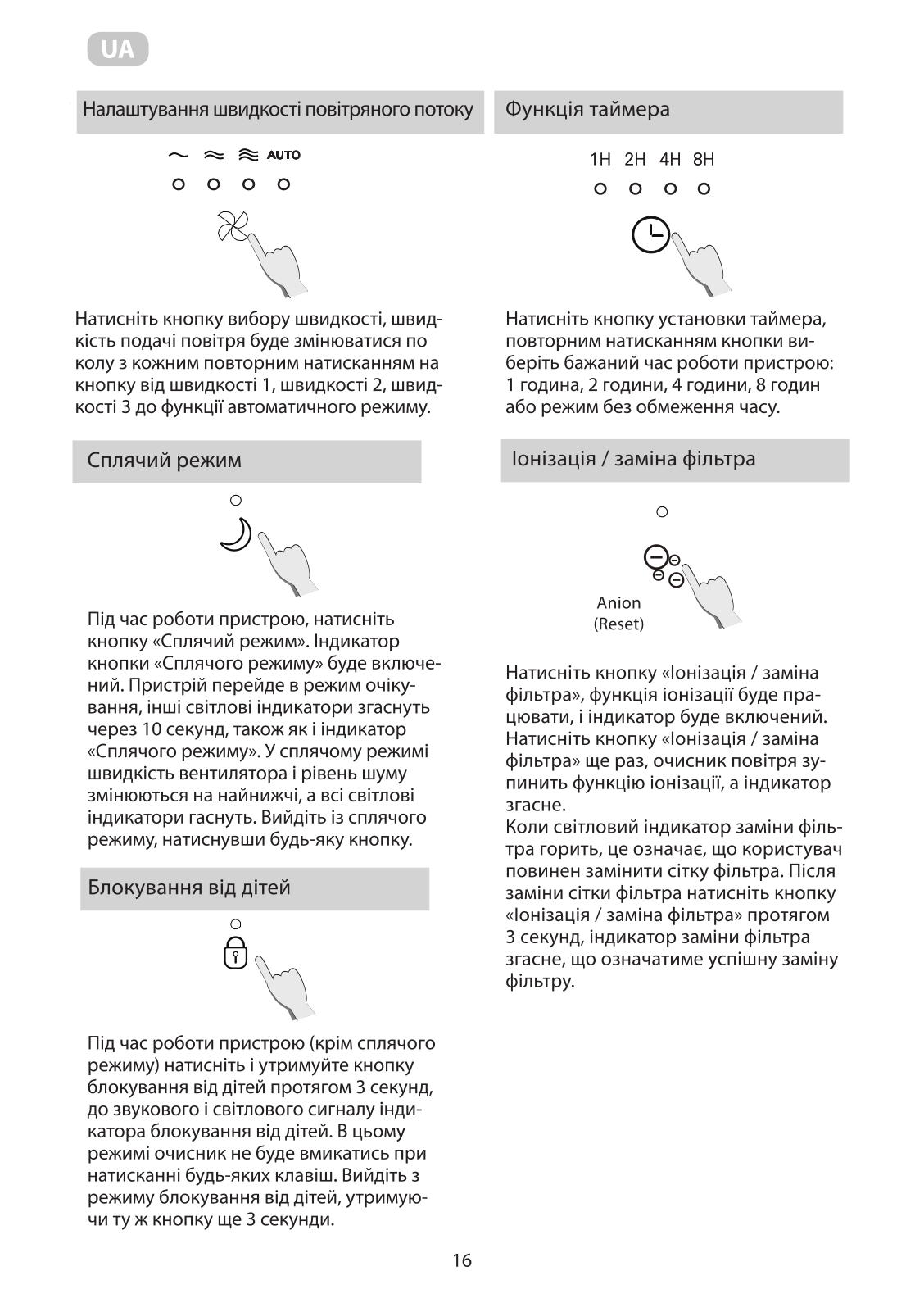

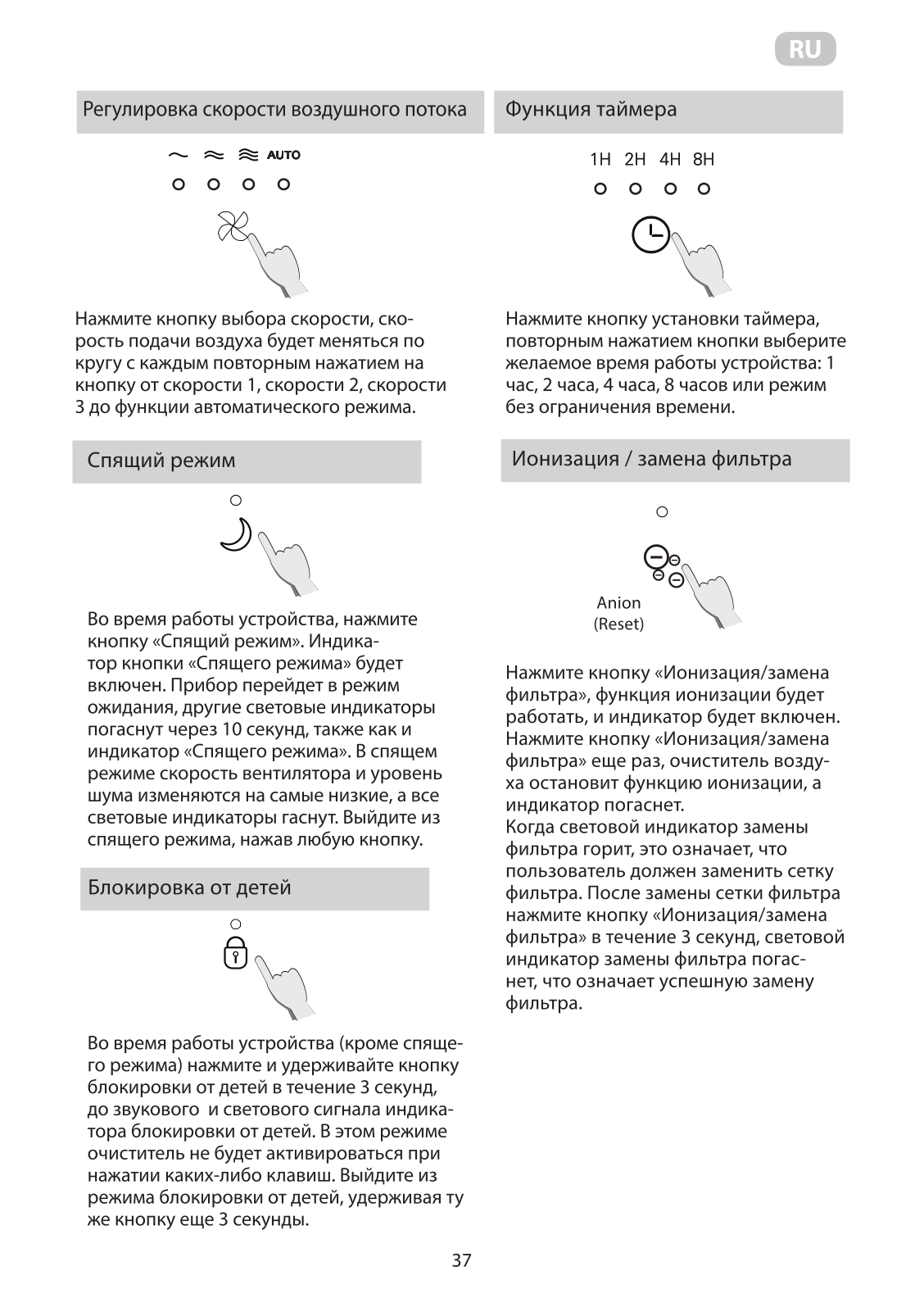

Timer mode

Speed

Press speed button,the wind speed will
change circularly in speed 1,speed 2,speed
3 ,auto mode.

Sleep mode

Sleep

When the machine is running ,press “sleep”
button,the indicator light of sleep button will
be on,the machine will enter sleep mode,the
other indicator lights will be off,after 10s later ,
the indicator light of sleep mode also will be
off .When in sleep mode,the fan speed and
noise level will change to the lowest,other
indicator lights will be off.Exist sleep mode
by press any button.

Child-lock function

Timer

Press the Timer button ,the working hour
can be choose in 1H,2H,4H,8H and no
timer.

Anion/Reset

Anion

(Reset)

Press Anion button,anion function will work,and
the indicator light of ANION will be on .Press

anion function,and the indicator light of ANION
will be off.
When the indicator light of filter replacement
is on ,it is to alert the user to replace the filter
net,after changing the filter net ,press the
“reset”button for 3 seconds ,the indicator light
of filter replacement will be off which means
the reset of filter replacement is successful.

CC hhiilldd lloocckk

（（PPrr eessss 33 ss））

When running the machine (except sleep
mode),press the Child-lock button for 3s,with
beeps the indicator light of Child-lock will be
on. In this condition, the purifier won’t be
action when you press any key.Exist the
child-lock mode by pressing the button for
another 3 seconds.

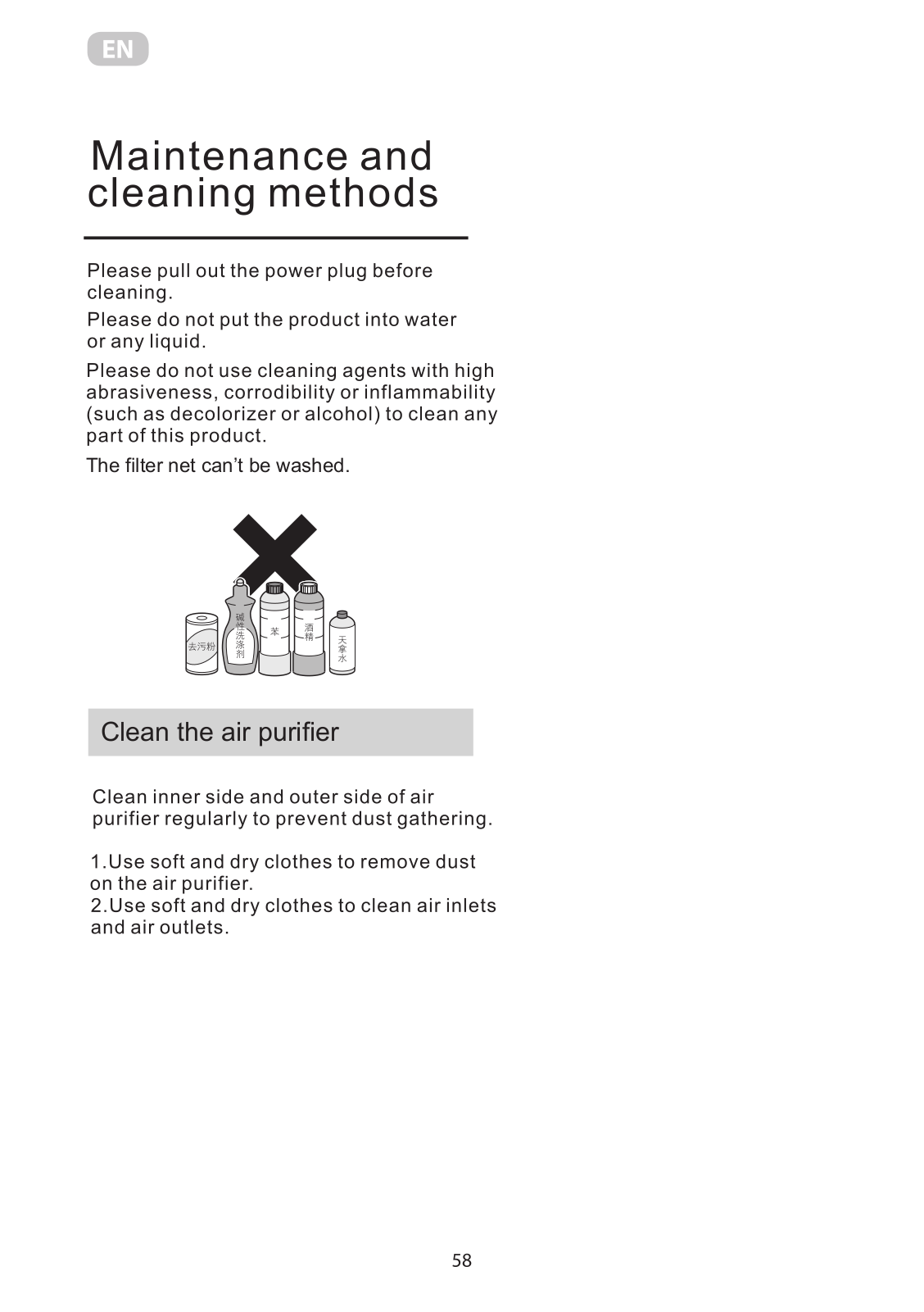

The filter net can’t be washed.

Clean the air purifier

1.

2.

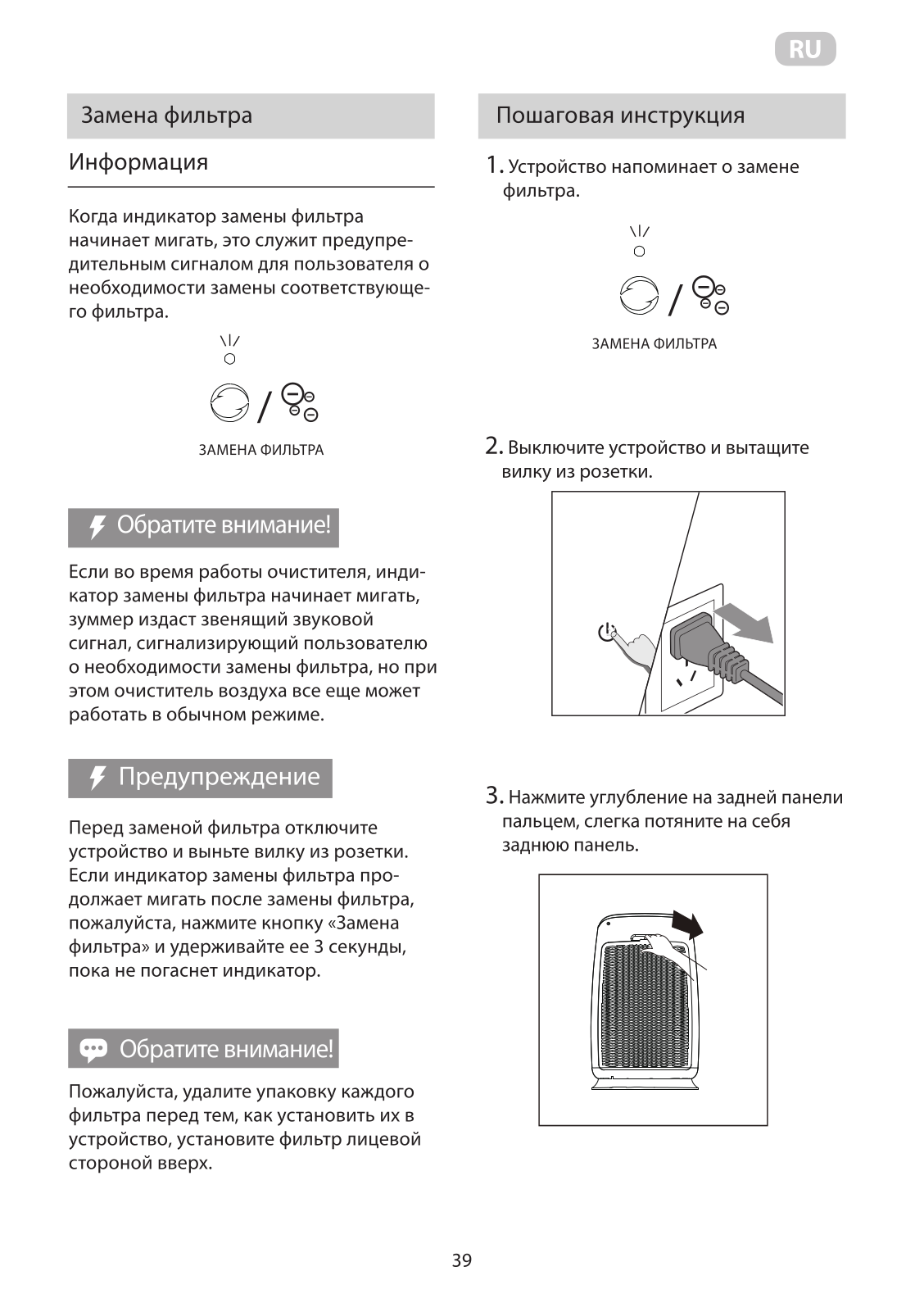

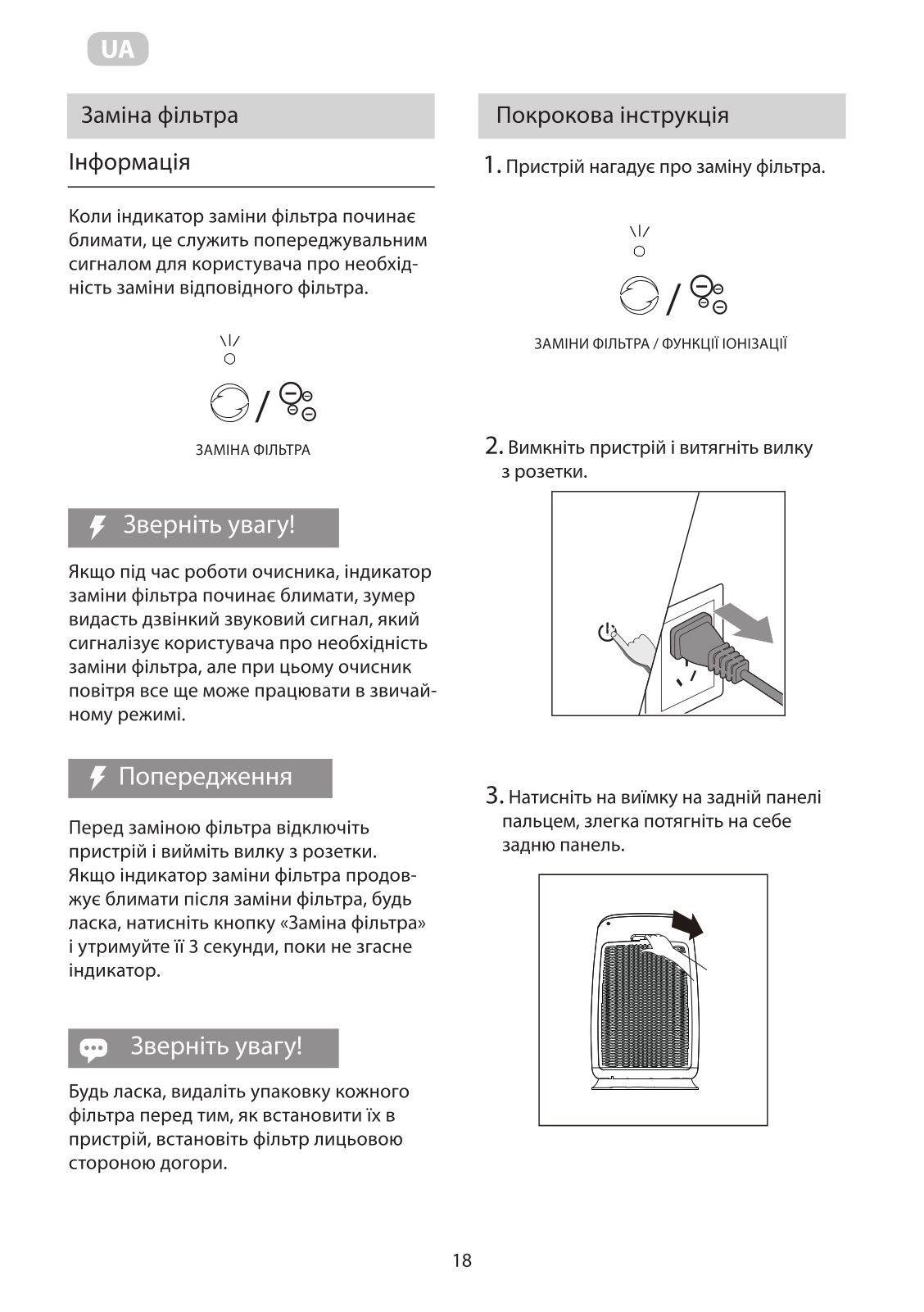

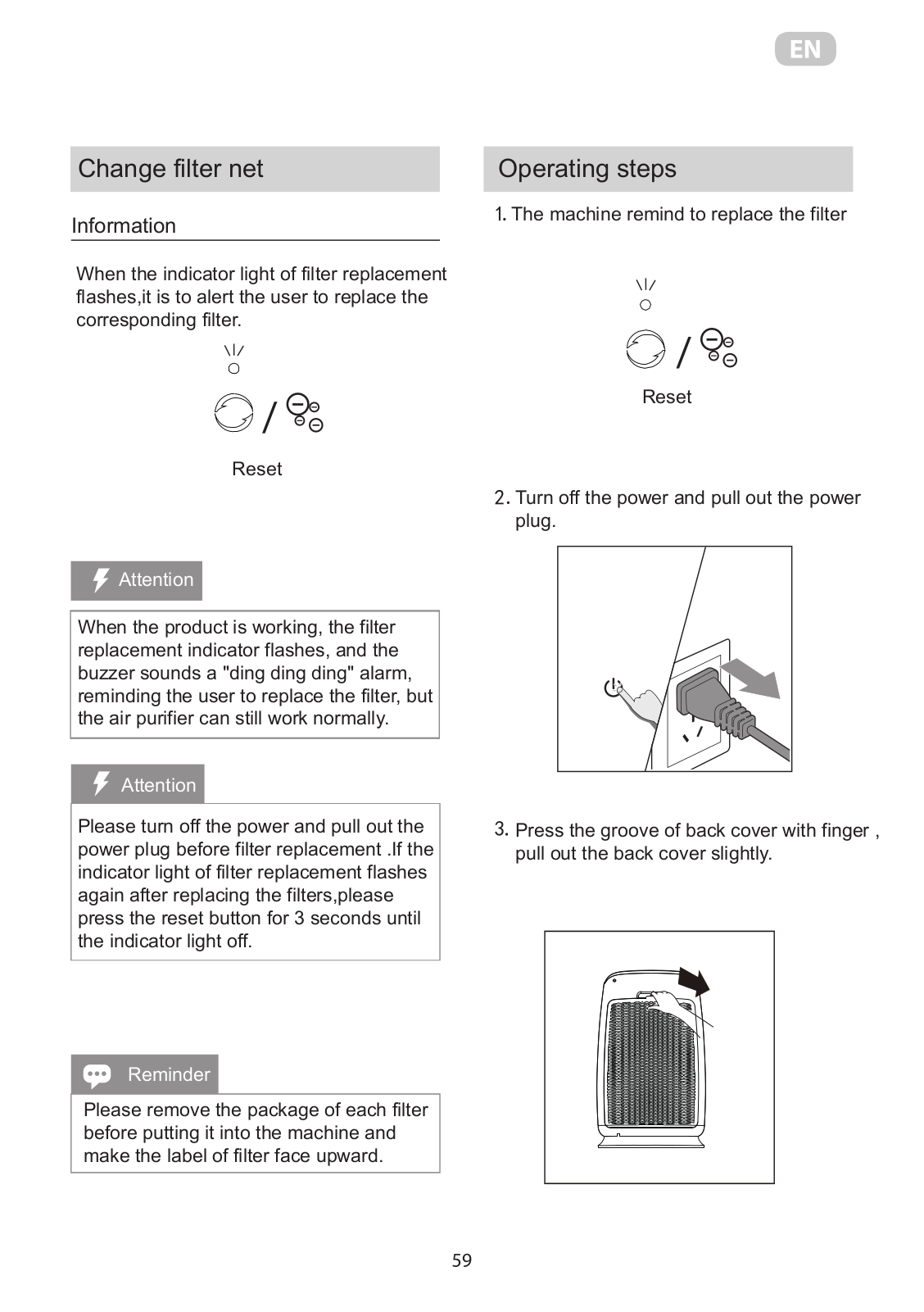

Change filter net

Operating steps

Information

When the indicator light of filter replacement
flashes,it is to alert the user to replace the
corresponding filter.

Reset

Attention

When the product is working, the filter
replacement indicator flashes, and the
buzzer sounds a "ding ding ding" alarm,
reminding the user to replace the filter, but
the air purifier can still work normally.

Attention

Please turn off the power and pull out the
power plug before filter replacement .If the
indicator light of filter replacement flashes
again after replacing the filters,please
press the reset button for 3 seconds until
the indicator light off.

The machine remind to replace the filter

Reset

Turn off the power and pull out the power
plug.

Press the groove of back cover with finger ,
pull out the back cover slightly.

Reminder

Please remove the package of each filter
before putting it into the machine and
make the label of filter face upward.

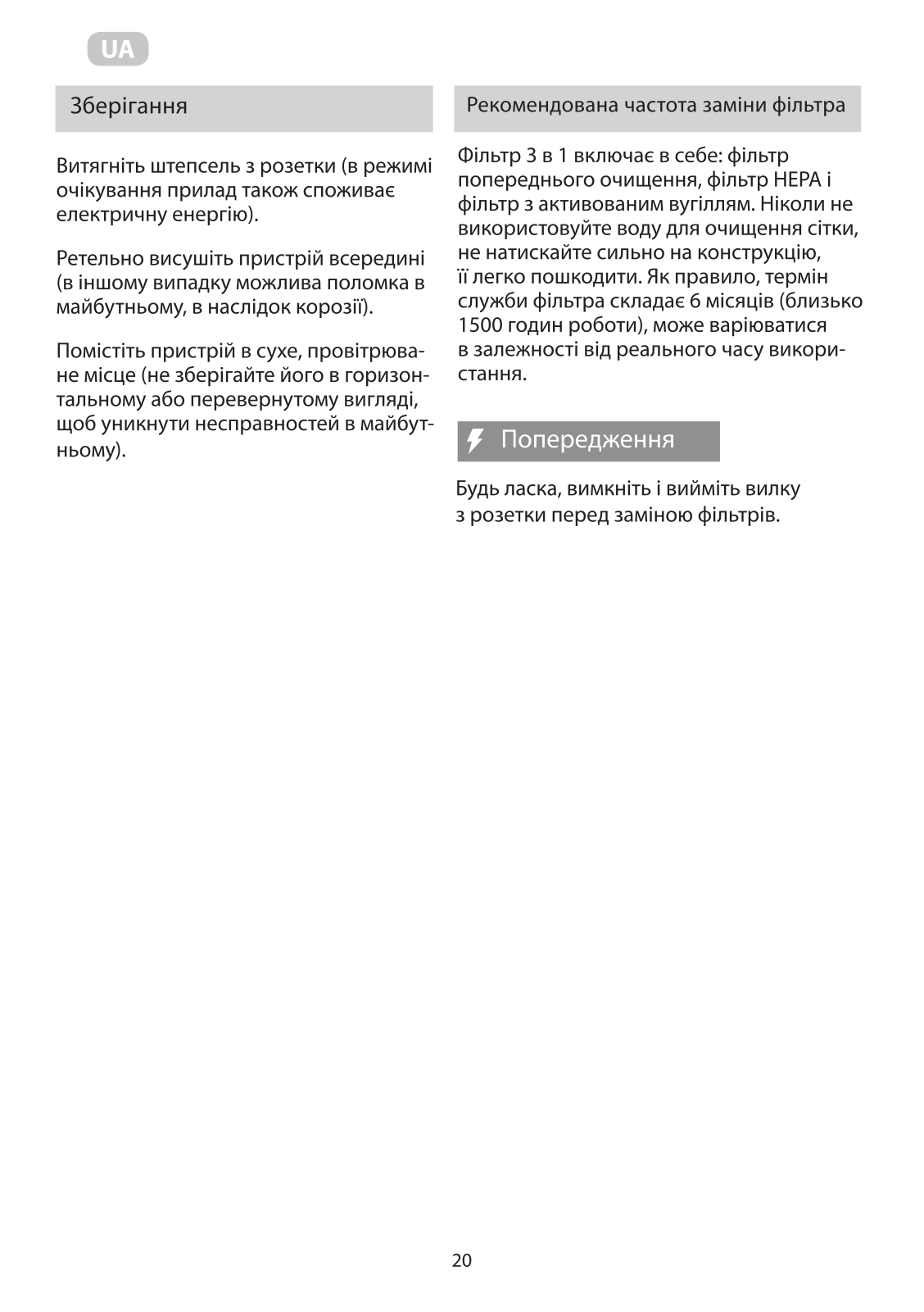

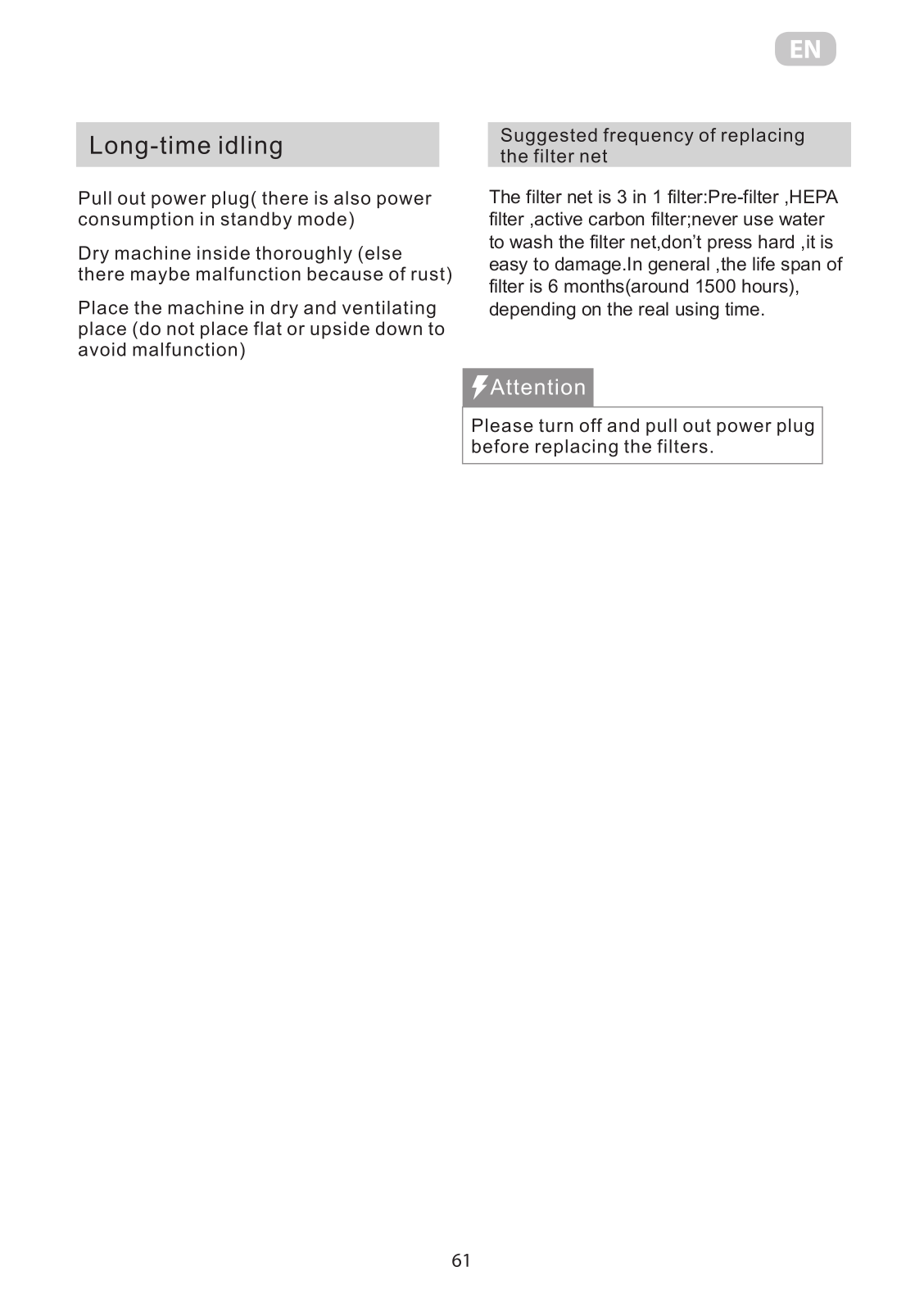

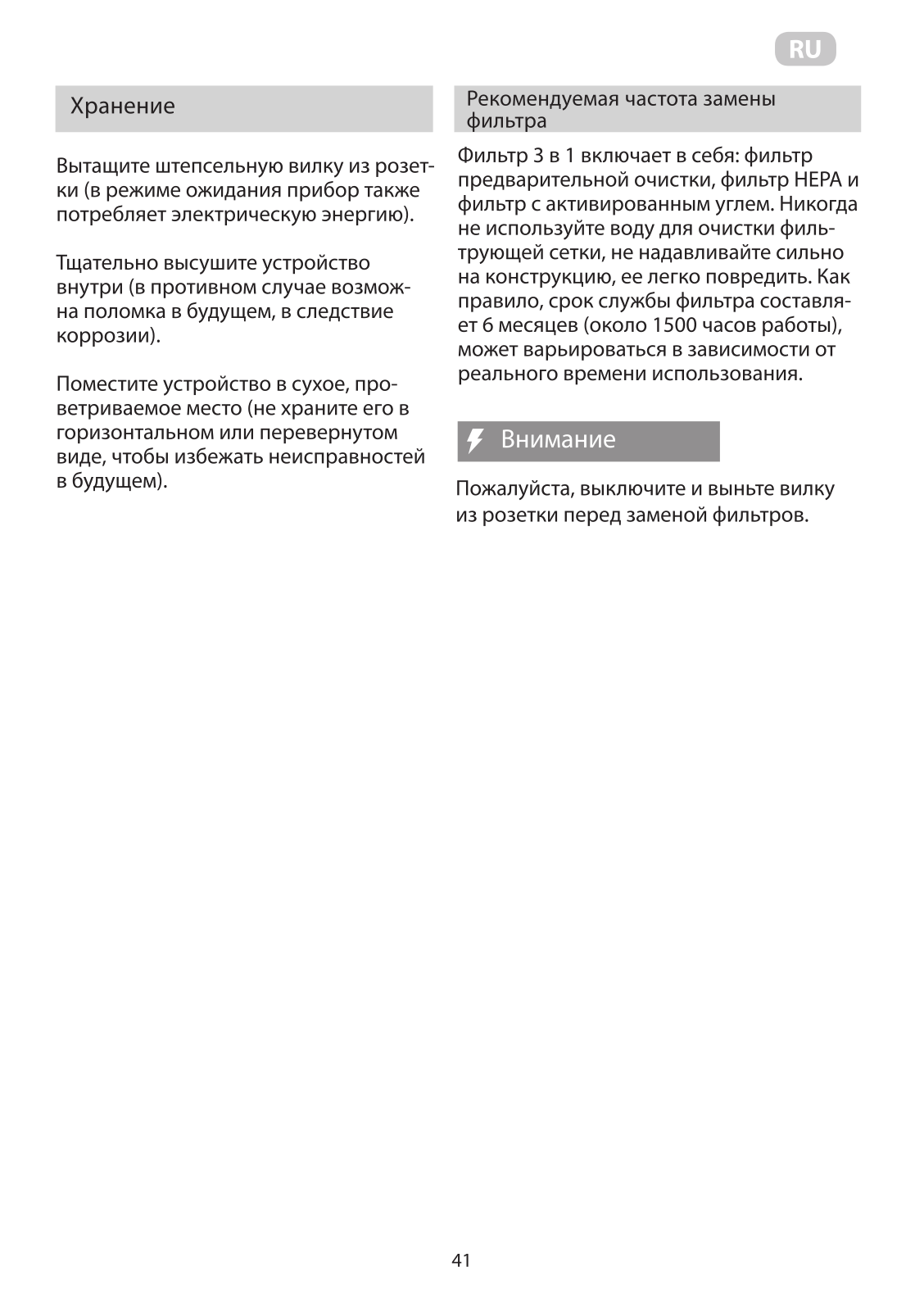

The filter net is 3 in 1 filter:Pre-filter ,HEPA

Function description of control panel

Anion

(Reset)

indicator light of reset

filter ,active carbon filter;never use water
to wash the filter net,don’t press hard ,it is
easy to damage.In general ,the life span of
filter is 6 months(around 1500 hours),
depending on the real using time.

back cover

back cover

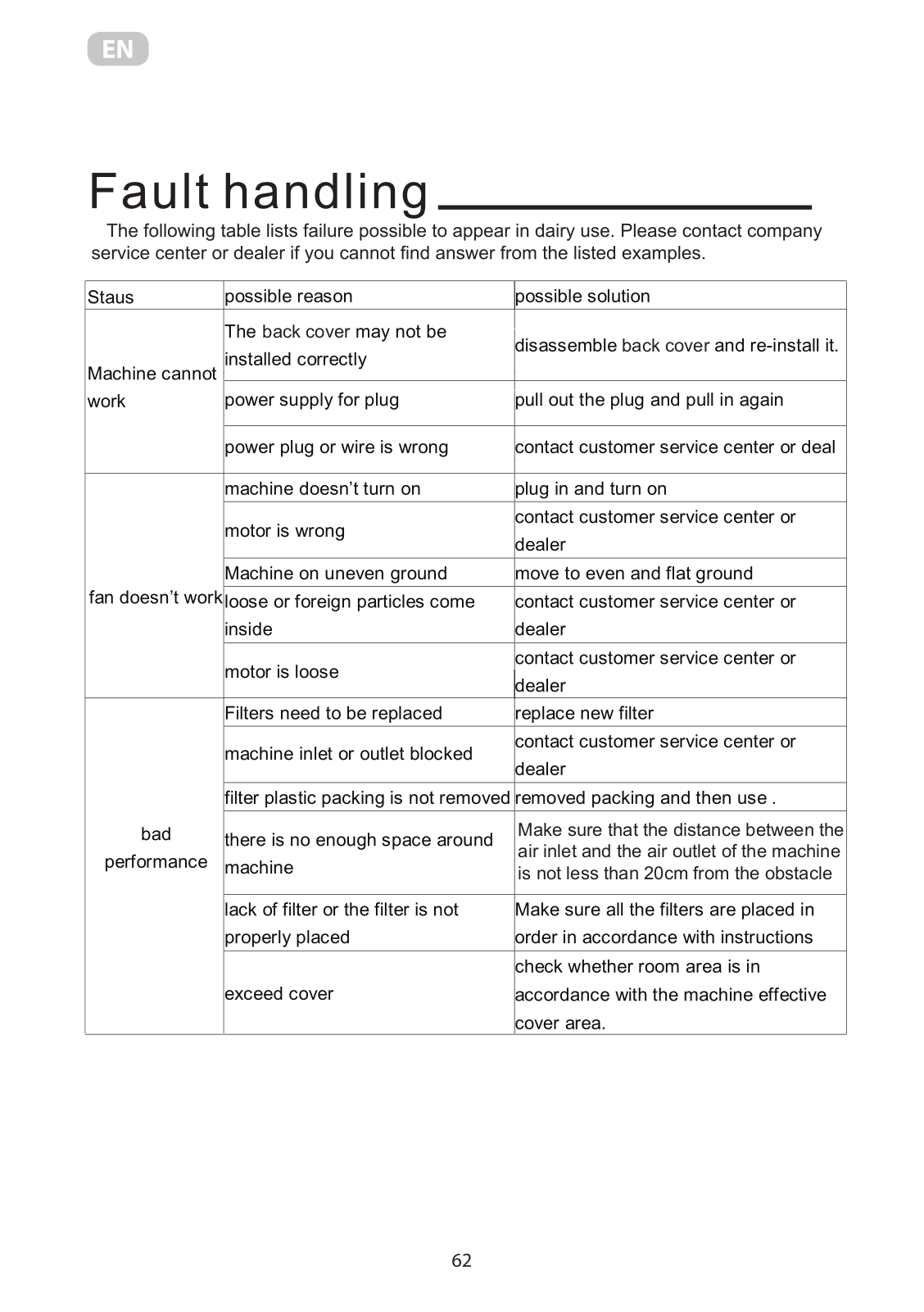

Make sure that the distance between the
air inlet and the air outlet of the machine
is not less than 20cm from the obstacle

·Disconnect the air purifier from the power source
before move it.

·Make sure to move the product slowly.

·Don’t move the product by pulling on the power cord.

·Don’t not move the machine while the product is
working. If you need to move the machine, turn off
the power.

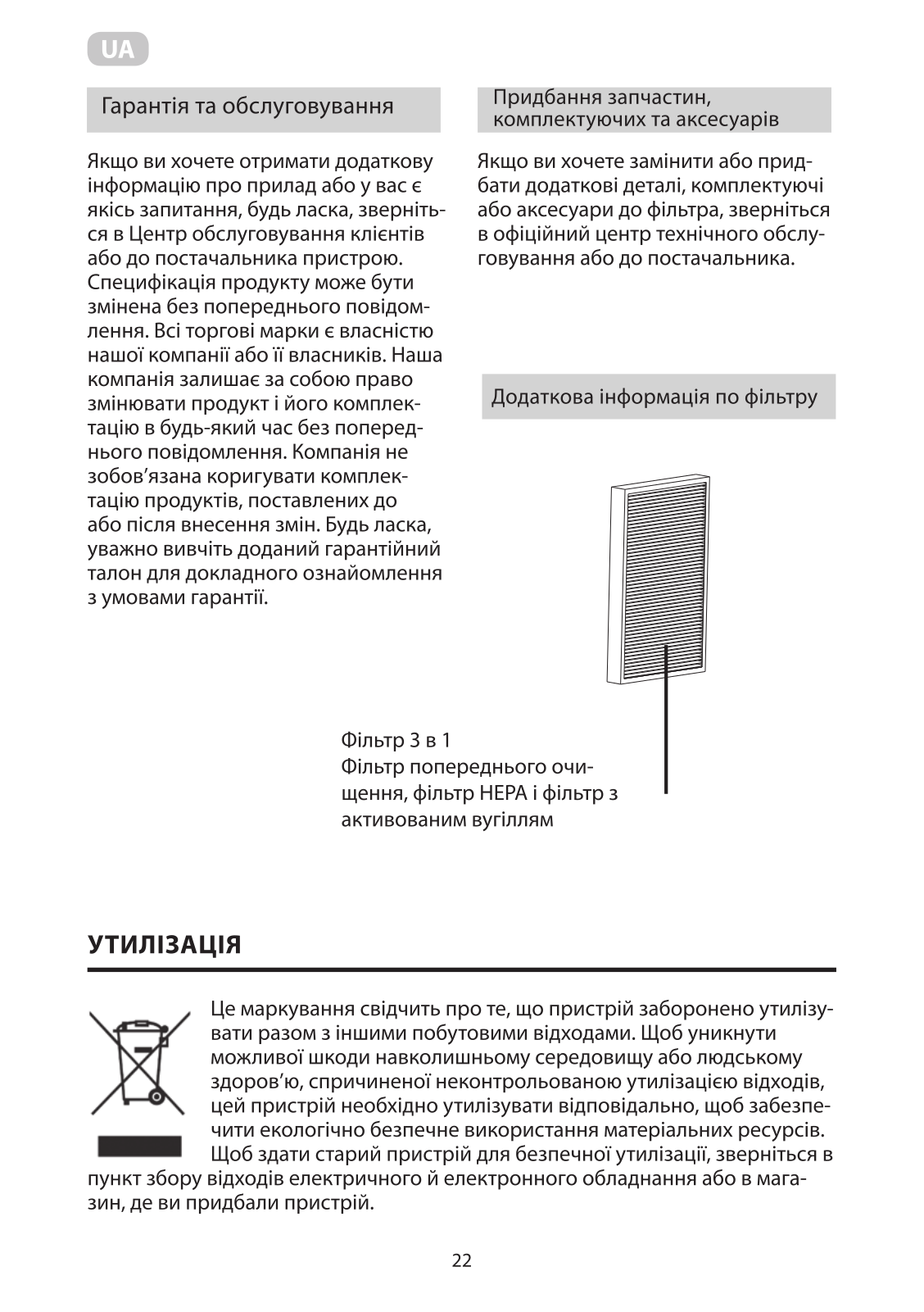

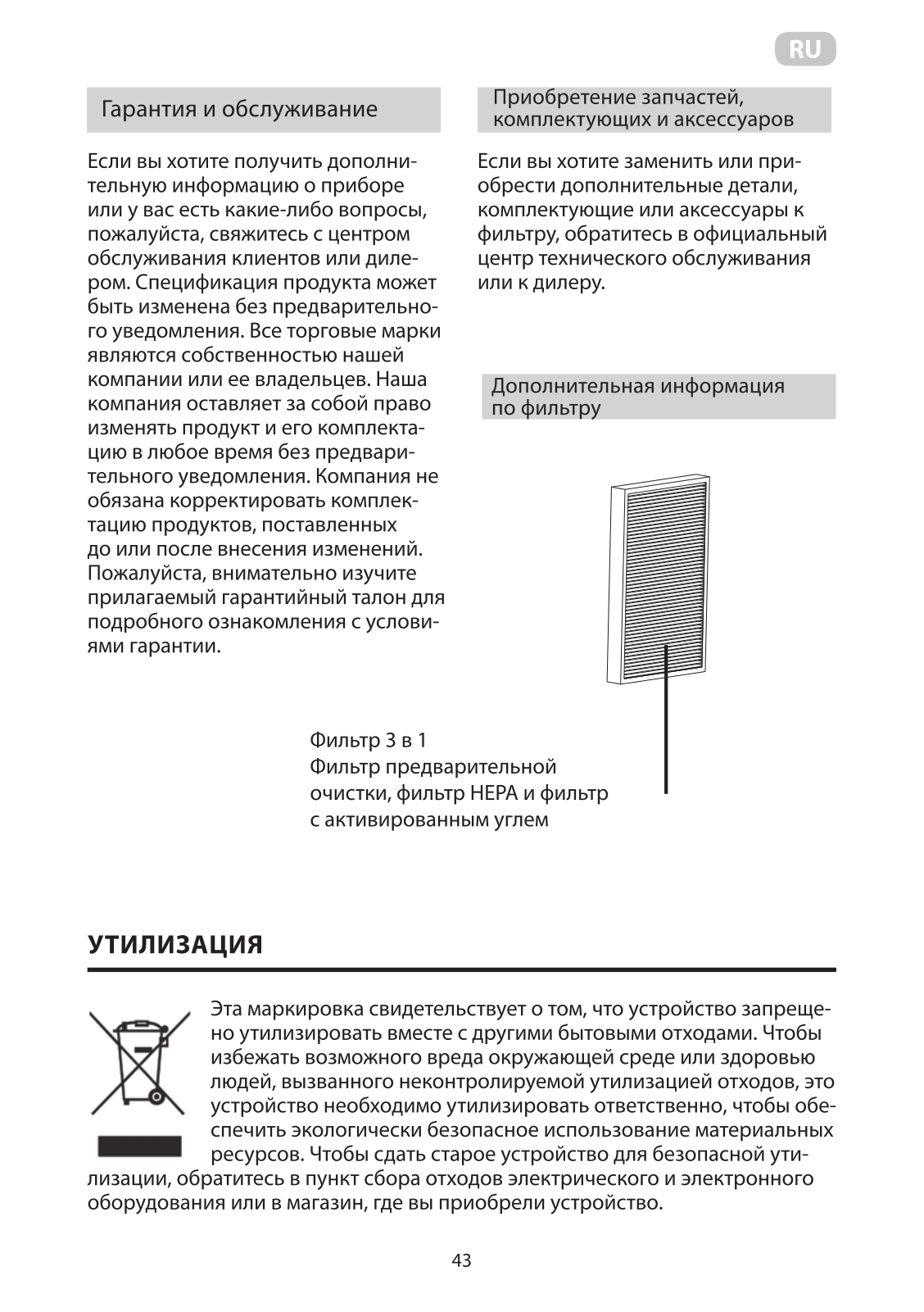

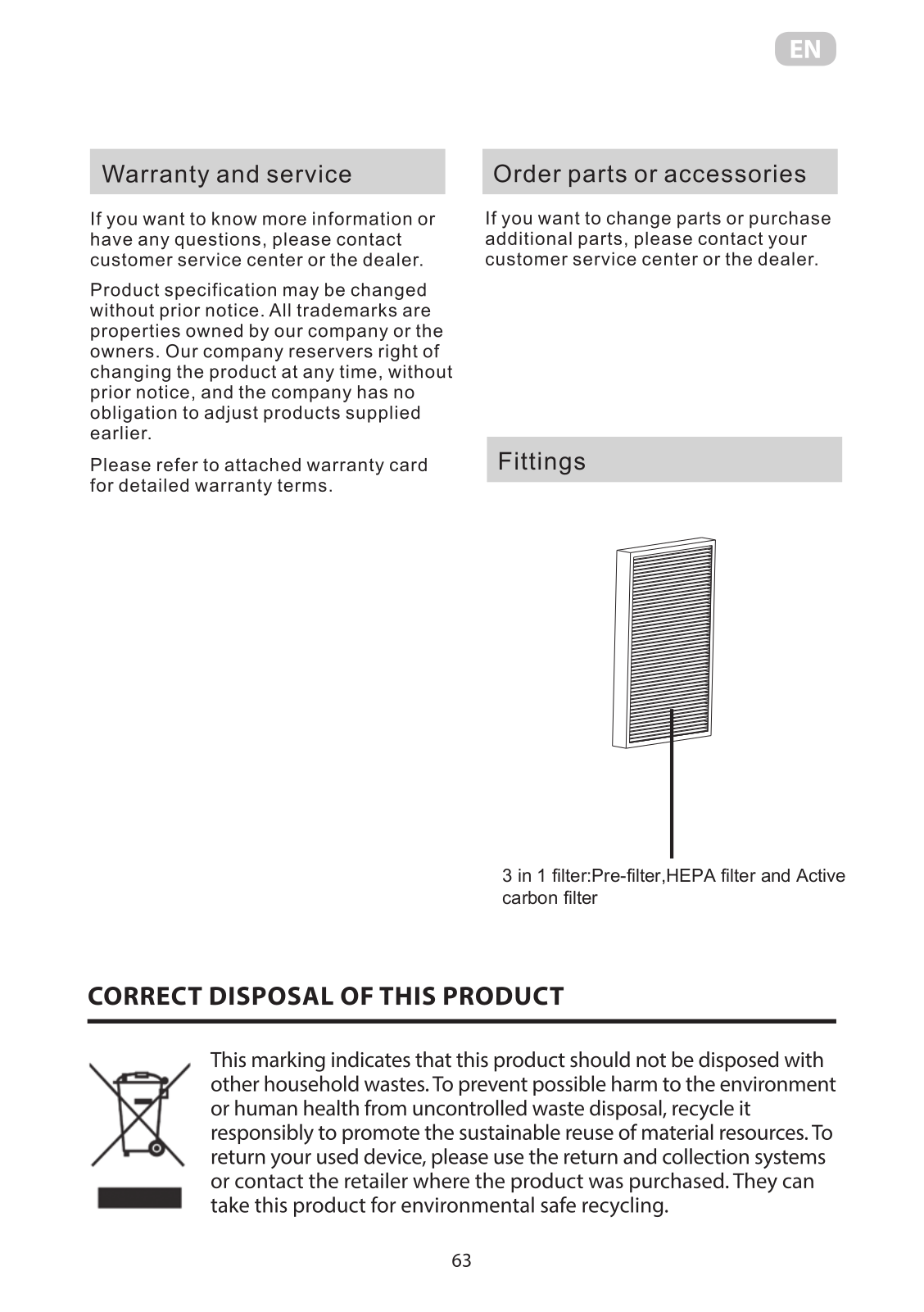

3 in 1 filter:Pre-filter,HEPA filter and Active

Attention

carbon filter
