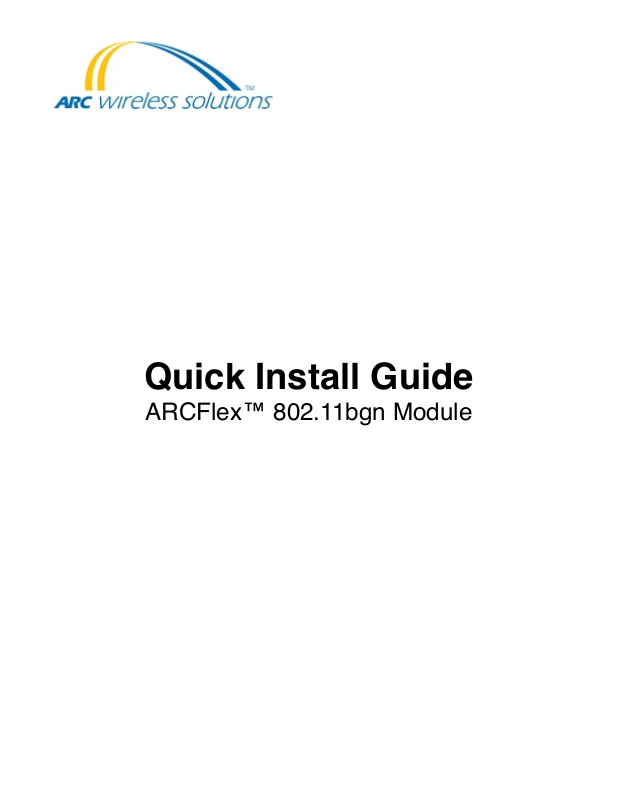

Quick Install Guide

ARCFlex™ 802.11bgn Module

Operation

The ARCFlex™ 802.11bgn Module is a high power wireless module board designed to be integrated into
indoor and outdoor wireless systems. Please follow the following instruction while using this module. This
module is meant to be operated (and used) by system integrators who are aware of the regulatory
requirements in the area it is being used. The following instructions need to be followed while using the
module:

• Before inserting the module in a host board, please power down the host board first.

• The antenna port (u.fl connector) should be connected to the appropriate load or antenna before
powering up the host board. Lack of Antenna (or load) while the module is powered up may cause
damage to the card.

• Please make sure any person handling the card with bare hands follows proper ESD precautions.
Improper handling could cause ESD damage.

• The card should not be tampered or modified in any way. Tampering or modification could cause the
module to fail standard tests.

Note: This card is designed to be installed, operated, and used by system integrators and/or professional
installers. As such, the product is required to comply with all applicable FCC equipment authorization
regulations, requirements and equipment functions not associated with the transmitter module. The OEM is
responsible for demonstration of compliance to regulations for non-transmitter components within the host
product to requirements for unintentional radiators (Part 15B), such as digital devices and to additional
authorization requirements for the non-transmitter functions of the transmitter module (i.e., Verification, or
Declaration of Conformity) (e.g., Bluetooth and WiFi transmitter modules).

FCC Information

Electronic Emission Notices
This device complies with CFR 47 Part 15 of the FCC rules.

Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired
operation.

FCC Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
CFR47 Part 15. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential environment, not withstanding use in commercial,
business and industrial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. There is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
