Portable
PD
Rated voltage: 115V
Frequency: 60Hz
en
USER MANUAL
Warning notices: Before using
this product, please read this
manual carefully and keep it
for future reference.
The design and specifications
are subject to change without
prior notice for product
improvement. Consult with
your dealer or the manufacturer
for details.
version B - 11 - 2018
WPPD08CW0N
WPPD10CW0N
WPPD10HW0N
www.midea.com
Owner’s Manual
Safety Precautions ........................................................................................ 3
Unit Specifications and Features ............................................................... 6
Operating Instructions ................................................................................. 7
Installation Instructions ............................................................................... 12
Care and Cleaning ....................................................................................... 17
Troubleshooting Tips .................................................................................. 18

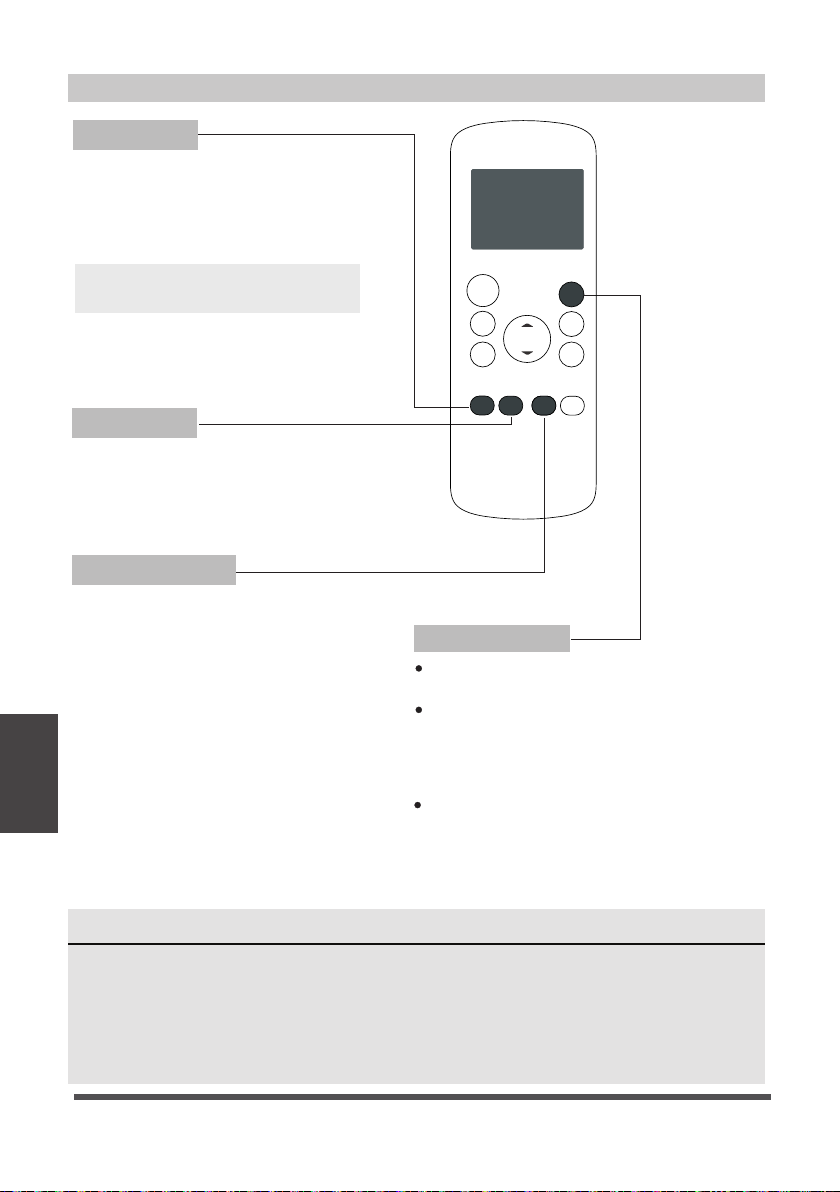

Remote Control Instructions ..................................................................... 19
Warranty ................................................................... and Return Policy ...
2
Read This Manual
Inside you’ll find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You’ll find many answers to common
problems in the chart of troubleshooting tips - you should be able to fix most of
them quickly before calling service. These instructions may not cover every possible
condition of use, so common sense and attention to safety is required when installing,
operating and maintaining this product.
CAUTION
• Contact an authorized service technician for repair or maintenance of this unit.
• The air conditioner is not intended for use by young children or infirm persons
without supervision.
• Young children should be supervised to ensure that they do not play with the air
conditioner.
• If the power cord needs to be replaced, please contact our consumer service and
look for an authorized technician.
• Electrical installation must be performed in accordance to national regulation
standards by qualified personnel only.
8
Page 2
Safety Precautions
To prevent injury to the user or other people and property damage, the instructions
shown here must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The level of risk is shown by the following indications.
This symbol indicates the possibility of death or serious injury.
WARNING
This symbol indicates the possibility of injury or damage to property.
CAUTION
This symbol shows that this appliance uses a flammable refrigerant.
If the refrigerant is leaked and exposed to an external ignition source,
WARNING
CAUTION
CAUTION
CAUTION
there is a risk of fire.
This symbol shows that the operation manual should be read carefully.
This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
This symbol shows that information is available such as the operating
manual or installation manual.
Precautions
Safety
WARNING
Please read through these instructions before you start the installation process.
Improper installation can cause damage to the unit, your personal property, and
also poses a personal safety hazard.
• Installation must be performed according to the installation instructions.
Improper installation can cause water leakage, electrical shock, or fire.
• Use only the included accessories and parts, and specified tools for the
installation. Using non-standard parts can cause water leakage, electrical shock,
fire, and injury or property damage.
• Make sure that the outlet you are using is grounded and has the appropriate
voltage. The power cord is equipped with a three-prong grounding plug to
protect against shock. Voltage information can be found on the side of the unit,
behind the grille.
• Install the unit on a flat, sturdy surface. Failure to do so could result in damage
or excessive noise and vibration.
• The unit must be kept free from obstruction to ensure proper functioning and to
mitigate safety hazards.
• DO NOT modify the length of the power cord or use an extension cord to power
the unit. DO NOT share a single outlet with other electrical appliances. Improper
power supply can cause fire or electrical shock.
Page 3
Precautions
Safety
WARNING
• DO NOT install your air conditioner in a wet room such as a bathroom or laundry
room. Exposure to water can cause electrical components to short circuit.
• DO NOT install the unit in a location that may be exposed to combustible gas, as
this could cause fire.
• The unit has wheels to facilitate moving. Do not attempt to roll the unit across
thick carpet or to roll over objects, as this could cause the unit to tip over.
• DO NOT attempt to operate a unit that has been dropped or damaged.
• DO NOT allow children to play with the air conditioner. Children must be
supervised around the unit at all times.
• If the air conditioner is knocked over during use, turn off the unit and unplug it
from the main power supply immediately. Visually inspect the unit to ensure there
is no damage. If you suspect the unit has been damaged, contact a technician or
customer service for assistance.
• In a thunderstorm, the unit should be turned off to avoid damage to the machine
due to lightning.
CAUTION
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• If the power cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• Prior to cleaning or other maintenance, the appliance must be disconnected
from the supply mains.
• Do not install the appliance in a location that may be exposed to combustible
gas. If combustible gas accumulates around the unit, it may cause fire.
• Do not run the power cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or appliances.
Arrange cord away from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, do not use this air conditioner with
any solid-state speed control device.
• The appliance shall be installed in accordance with national wiring regulations.
• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the authorized installer for installation of this unit.
• When there are significant differences between features or operation implied by
the remote control illustration and the actual functions described in the USER
MANUAL, the descriptions in the USER MANUAL shall prevail.
• Do not mix old and
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc.)
batteries.
new bat
teries.
Page 4
Safety Precautions
WARNINGS (for using R32 refrigerant only)
• Do not use any means to accelerate the defrosting process or to clean the unit,
other than those recommended by the manufacturer.
• Do not use or store the appliance in spaces with potential ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn refrigerant tubing. Be aware that refrigerants may not
contain an odor.
• Keep ventilation openings clear of obstruction.
• Store the appliance in a way that will prevent mechanical damage from occurring.
• Store the appliance in a well-ventilated area where the room size corresponds to
the room area as specified for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorizes their competence to handle refrigerants safely in
accordance with an industry recognized assessment specification.
• Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of the person competent
in the use of flammable refrigerants.
• Flammable refrigerant (R32) is used within the air conditioner. When maintaining
or disposing of the air conditioner, the refrigerant (R32) shall be recovered
properly, do not discharge to air directly.
Precautions
Safety
Ca ution : Ris k o f fire/
flam mab le ma t erial s
(Requir ed fo r R 32/R290 units on ly)
IMPORTANT NO TE: Rea d thi s man ual
careful ly be fore ins tal lin g or opera tin g
your new air conditi oning unit . M ake s ure
to s ave t his manual fo r fut ure r eferen ce.
Page 5
Unit Specifications and Features
Specifications
and Features
Unit
Preparation
control panel
horizontal louver
blade
(automatic swing)
upper air filter
(behind the grille)
handle
(both sides)
upper air intake
drain outlet
Panel
air outlet
lower air filter
lower air intake
drain outlet
(only for pump
heating mode)
power cord buckle
Caster
power cord outlet
power plug socket
bottom tray
drain outlet
Design and Compliance Notes
Design Notice:
In order to ensure the optimal performance of our products, the design specifications of
the unit and remote control are subject to change without prior notice.
raeRtnorF
Energy Rating Information:
This product is tested in accordance to the DOE SACC capacity energy rating test.
Unit Temperature Range:
Mode
Cool
Dry
Heat(pump heat mode)

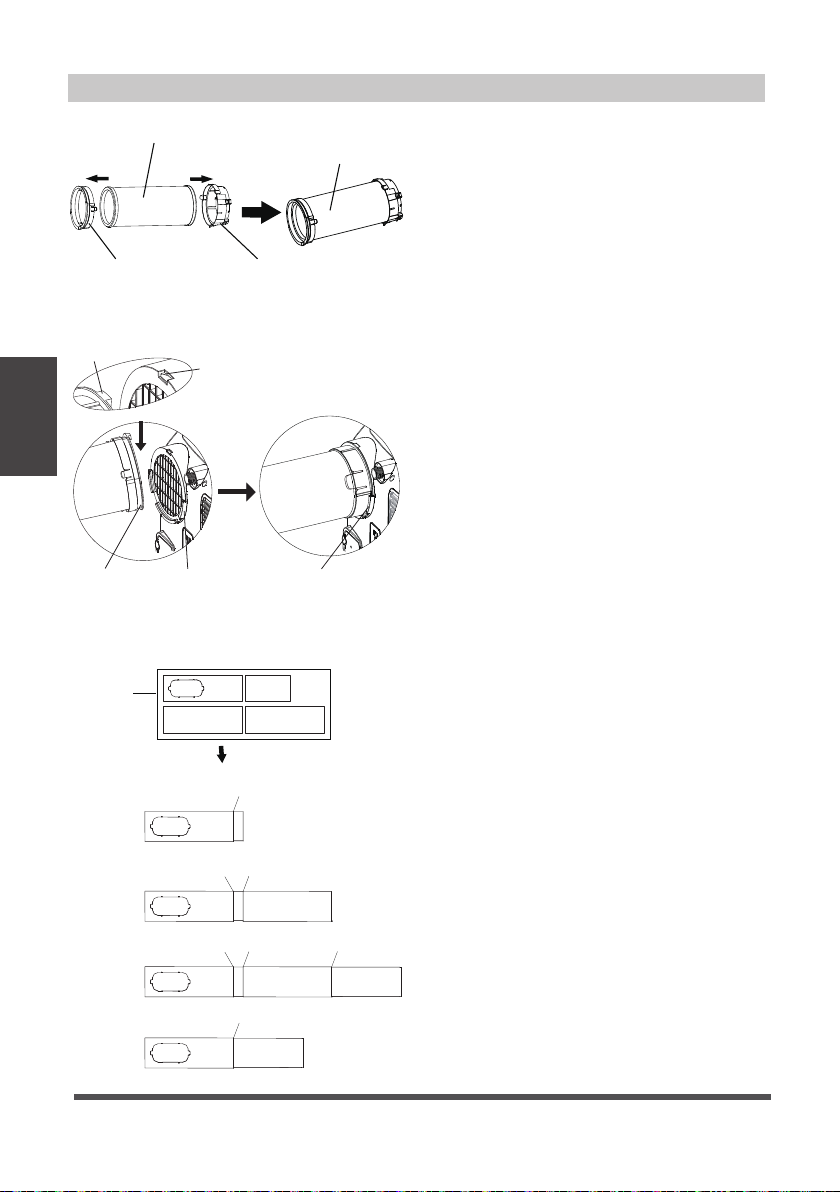

Exhaust Hose Installation:
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode.
For COOL or AUTO mode, exhaust hose must be installed.
For FAN or DEHUMIDIFY exhaust hose must be removed.
Temperature Range
17°C ~ 35°C (62°F ~ 95°F)
13°C ~ 35°C (55°F ~ 95°F)
5-30°C (41-86°F)
Page 6
Operating Instructions
Control Panel Features
Follow me
Swing
Control
Swing Button (optional)
(Applicable to the models with auto swing
feature only)
Used to initiate the Auto Swing feature.
When the operation is ON, pressing the
SWING button can stop the louver at the
desired angle.
Timer button
Used to initiate the AUTO ON start time
and AUTO OFF stop time program,
in conju
The timer on or off light will illuminate
depending on the selected setting.
Mode button
Selects the desired operating mode.
Each time you press the button, a mode
is selected in a sequence that goes
from AUTO, COOL, DRY FAN and HEAT.
The mode light illuminates and indicates
the selected mode.
Up (+) and Down (-) buttons
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F
increments in a range of 17°C/62°F to
30°C/86°F or the TIMER setting in a
range of 0 ~ 24hrs.
Auto
Timer
nction with the + & - buttons.
Mode
Selector

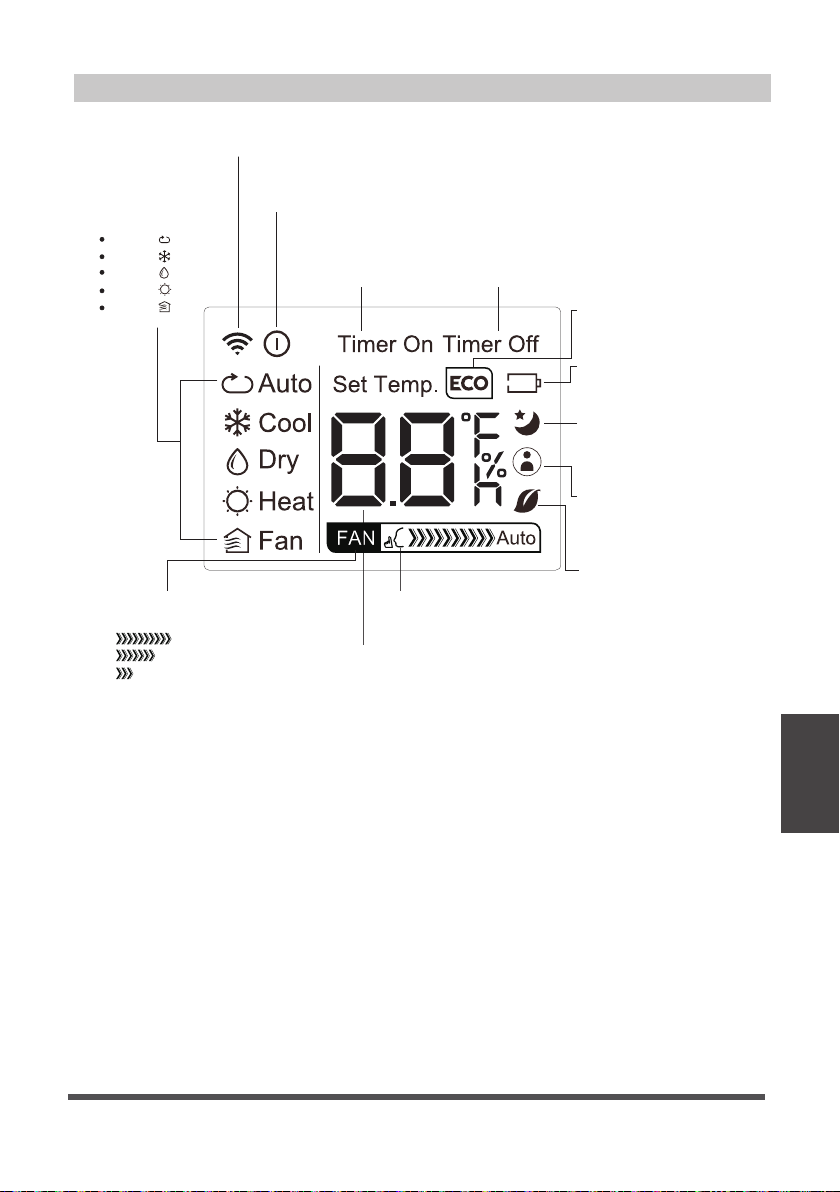

LED Display
Up (+) and
Down (-) Control
CONSTANT FAN(Press 3s)
Fan
Speed
Sleep
Mode
Power
Button
NOTE
The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius. To convert from one to
the other, press and hold the Up and
Down buttons at the same time for 3
seconds.
Fan/ Constant fan button
Controls the fan speed. Press to control
the fan speed in four steps - LOW, MID,
HIGH and AUTO. The selected fan speed
light (except AUTO) will illuminate. When
AUTO is selected, no lights will illuminate.
NOTE
In cooling or Dry mode, press the button
for 3 seconds to turn on or off the
constant fan function. When the function
is turned on, the constant fan light will
illuminate, identifying the fan continuous
run for cooling. When the function is
turned off, the constant fan light will go
out, identifying the fan cycle run with
compressor stop.
Sleep (Eco)/Filter button
Used to initiate the SLEEP/ECO operation.
Power button
Power switch on/off.
Instructions
Operating
Page 7
Control Panel Features (cont.)
Follow me
Instructions
Operating
Swing
Control
Auto
Timer
Mode
Selector
LED display
Shows the set temperature in °C or °F
and the Auto-timer settings. While on
DRY and FAN modes, it shows the room
temperature.
Shows Error codes and protection code:
E1 - Room temperature sensor error.
E2 - Evaporator temperature sensor error.
E3 - Condenser temperature sensor error
(select models).
E4 - Display panel communication error.
P1 - Bottom tray is full -- Connect the
drain hose and drain the collected
water away. If protection code
repeats, call for service.
NOTE
When one of the above malfunctions
occurs, turn off the unit and check
for any obstructions. Restart the
Unit. If the malfunction persists, turn
off the unit and unplug the power
cord. Contact the manufacturer or its
service agents or a similar qualified
person for service.
LED Display
Up (+) and
Down (-) Control
Wireless button
• Used to initiate the Wireless function. For
the first time to use Wireless function,
press and hold the swing button for 3
seconds to initiate the Wireless
connection mode. The LED DISPLAY
shows 'AP' to indicate you can set
Wireless connection. If connection(router)
is successful within 8 minutes, the unit will
exit Wireless connection mode
automatically and the Wireless indicator
illuminates. If connection is failure within 8
minutes, the unit exits Wireless connection
mode automatically. After Wireless
connection is successful, you can press and
hold SWING and DOWN (-) buttons at the
same time for 3 seconds to turn off Wireless
function and the LED DISPLAY shows 'OF'
for 3 seconds, press SWING and UP(+)
buttons at the same time to turn on Wireless
function and the LED DISPLAY shows 'ON'
for 3 seconds.
NOTE: When you restart the Wireless
function, it may take a period of time to
connect to the network automatically.
CONSTANT FAN(Press 3s)
Fan
Speed
Sleep
Mode
Power
Button
Page 8
Operating Instructions
HEAT operation (Only for heat & cool
models)
• Press the "MODE" button until the
"HEAT" indicator light comes on.
• Press the ADJUST buttons "+" or " - "
to select your desired room temperature.
The temperature can be set within a
range of 17°C~30°C/62°F~86°F(or 88°F).
• Press the "FAN SPEED" button to choose
the fan speed. For some models, the fan
speed can not be adjusted under HEAT
mode.
COOL operation
• Press the “MODE” button until the
“COOL” indicator light comes on.
• Press the ADJUST buttons “+” or “-”
to select your desired room temperature.
The temperature can be set within a
range of 17°C~30°C/62°F~86°F.
• Press the “FAN SPEED” button to
choose the fan speed.
DRY operation
• Press the “MODE” button until the
“DRY” indicator light comes on.
• While in this mode, you cannot select
a fan speed or adjust the temperature.
The fan motor operates at LOW speed.
• Keep windows and doors closed for the
best dehumidifying effect.
• Do not connect the duct to a window.
AUTO operation
• When you set the air conditioner to
AUTO mode, it will automatically select
cooling, heating (cooling only models
excluded), or fan only operation
depending on what temperature you
have selected and the current room
temperature.
• The air conditioner will control room
temperature automatically according
to the temperature point set by you.
• Under AUTO mode, you cannot select
the fan speed.
FAN operation
• Press the “MODE” button until the
”FAN“ indicator light comes on.
• Press the “FAN SPEED” button to
choose the fan speed. The
temperature cannot be adjusted.
• Do not connect the duct to a window.
TIMER operation
• When the unit is on, pressing the Timer
button will initiate the Auto-off stop
program. The TIMER OFF indicator light
illuminates. Press the Up or Down button
to select the desired time. Press the TIMER
button again within 5 seconds. The Autoon start program is initiated and the TIMER
ON indicator light illuminates. Press the up
or down button to select the desired Autoon start time.
• When the unit is off, press the Timer button
to initiate the Auto-on start program.
Pressing it again within five seconds will
initiate the Auto-off stop program.
• Press or hold the Up or Down button
to change the Auto time by 0.5 hour
increments, up to 10 hours, then at 1 hour
increments up to 24 hours. The control will
count down the time remaining until start.
• The system will automatically revert
display the previous temperature setting if
there is no operation within 5 seconds.
• Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel
the Auto Start/Stop timer program.
• Should a malfunction occur, the Auto Start/
Stop timed program will be cancelled.
SLEEP/ECO operation
Pressing this button will increase
(during cooling operation) or decrease
(during heating operation, applicable
models) 1°C/1°F after 30 minutes. The
temperature will again increase (cooling)
or decrease (heating) by another 1°C/1°F
after an additional 30 minutes. This new
temperature will be maintained for 7 hours
before returning to the originally selected
temperature. This ends the Sleep/Eco
mode and the unit will continue to operate
as originally programmed.
back to
NOTE
This feature is unavailable in FAN or
DRY mode.
Instructions
Operating
Page 9
Other Features
FOLLOW ME/TEMP SENSING
Feature (optional)
NOTE
This feature can be activated from the remote control ONLY. The remote control serves
Instructions
as a remote thermostat allowing for the precise temperature control at its location.
Operating
To activate the Follow Me/Temp Sensing feature, point the remote control towards
the unit and press the Follow Me/Temp Sensing button. The remote display is actual
temperature at its location. The remote control will send this signal to the air conditioner
every 3 minutes interval until press the Follow Me/Temp Sensing button again. If the unit
does not receive the Follow Me/Temp Sensing signal during any 7 minutes interval, the
unit will beep to indicate the Follow Me/Temp Sensing mode has ended.
AUTO-RESTART
If the unit shuts off unexpectedly due to a power outage, it will restart with the
previously set function automatically when the power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it cannot be restarted until 3 minutes time has elapsed.
This is to protect the unit. Operation will automatically resume after 3 minutes.
AIRFLOW DIRECTION ADJUSTMENT
The louver can be adjusted automatically. Adjust the airflow direction automatically.
NOTE
On some models the louver can be adjusted manually only):
• When the Power is ON, the louv
• Press the SWING button on the panel or remote controller to initiate the Auto
Swing feature. The louver will swing up and down automatically.
• Please do not adjust the louver manually.
er opens fully.
Remove
the upper
drain plug
Continuous
drain hose
¥
Page 10

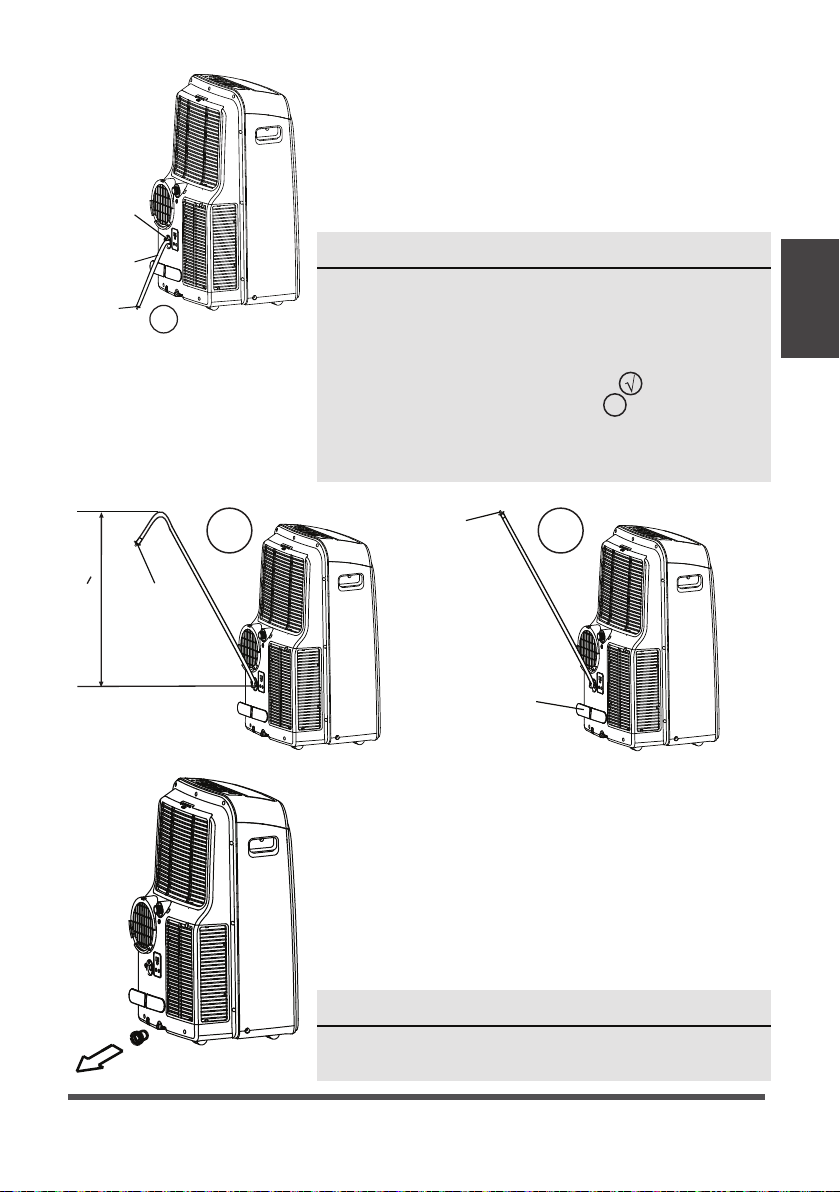

Water drainage
• During dehumidifying modes, remove the upper
drain plug from the back of the unit and install the
drain connector (5/8” universal female mender) with
3/4” hose (locally purchased). For models without
drain connector, just attach the drain hose to the
hole. Place the open end of the hose directly over
the drain area in your basement floor.
6&$/(
Remove
the lower
drain plug
• During heat pump mode, remove the lower drain
plug from the back of the unit and install the drain
connector (5/8” universal female mender) with 3/4”
hose (locally purchased). For models without drain
connector, just attach the drain hose to the hole. Place
the open end of the hose adaptor directly over the
drain area in your basement floor.
Continuous
drain hose
Drain hose
adaptor
¥
Drain
hose
adaptor
Delivery lift <1.8m
¥
NOTE
Make sure the hose is secure so there are no leaks.
6&$/(
Direct the hose toward the drain, making sure that
there are no kinks that will impede water flow. Place
the end of the hose into the drain and make sure the
end of the hose is directed downward to let the
water flow smoothly. (See Figs with ). Installation
not recommended. (See Figs with X ). When the
continuous drain hose is not used, ensure that the
corresponding drain plug and knob are installed
firmly to prevent leakage.
Instructions
Operating
Drain
hose
X
adaptor
Press the power
cord buckle into
6&$/(
• When the water level of the bottom tray reaches a
predetermined level, the unit beeps 8 times. The digital
display shows “P1.” At this time the air conditioning/
dehumidification process will immediately stop.
However, the fan motor will continue to operate (this
is normal). Carefully move the unit to a drain location,
remove the bottom drain plug and let the water drain
away. Reinstall the bottom drain plug and restart the
machine until the “P1” symbol disappears. If the error
repeats, call for service.
the rear cover
NOTE
6&$/(
Be sure to reinstall the bottom drain plug firmly to
prevent leakage before using the unit.
Page 11
Instructions
Installation
Installation Instructions
Choosing the Right Location
Your installation location should meet the following
requirements:
19.7inch
50cm
Recommend Installation
• Make sure that you install your unit on an even
surface to minimize noise and vibration.
• The unit must be installed near a grounded plug,
and the Collection Tray Drain (found on the back
of the unit) must be accessible.
• The unit should be located at least 30 cm (12”)
from the nearest wall to ensure proper air
conditioning. The horizontal louver blade should
be at least 50cm (19.7”) away from obstacles.
• DO NOT cover the Intakes, Outlets or Remote
Signal Receptor of the unit, as this could cause
damage to the unit.
NOTE
All the illustrations in the manual are for
explanation purpose only. Your machine may be
slightly different.
The unit can be controlled by the unit control
panel alone or with the remote controller. This
manual does not include. See the Remote
Controller Instruction for details.
50cm
19.7inch
Note About Fluorinated Gasses
• This air-conditioning unit is a hermetically sealed unit that contains fluorinated
gasses. For specific information on the type of gas and the amount, please refer
to the relevant label on the unit itself.
• Service, maintenance and repair of this unit must be performed by a certified
technician.
• Product recycling must be done according to local regulations.
Page 12
Tools Needed
• Medium Phillips screwdriver
• Tape measure or ruler
• Knife or scissors
• Saw (optional, to shorten window adaptor for narrow windows).

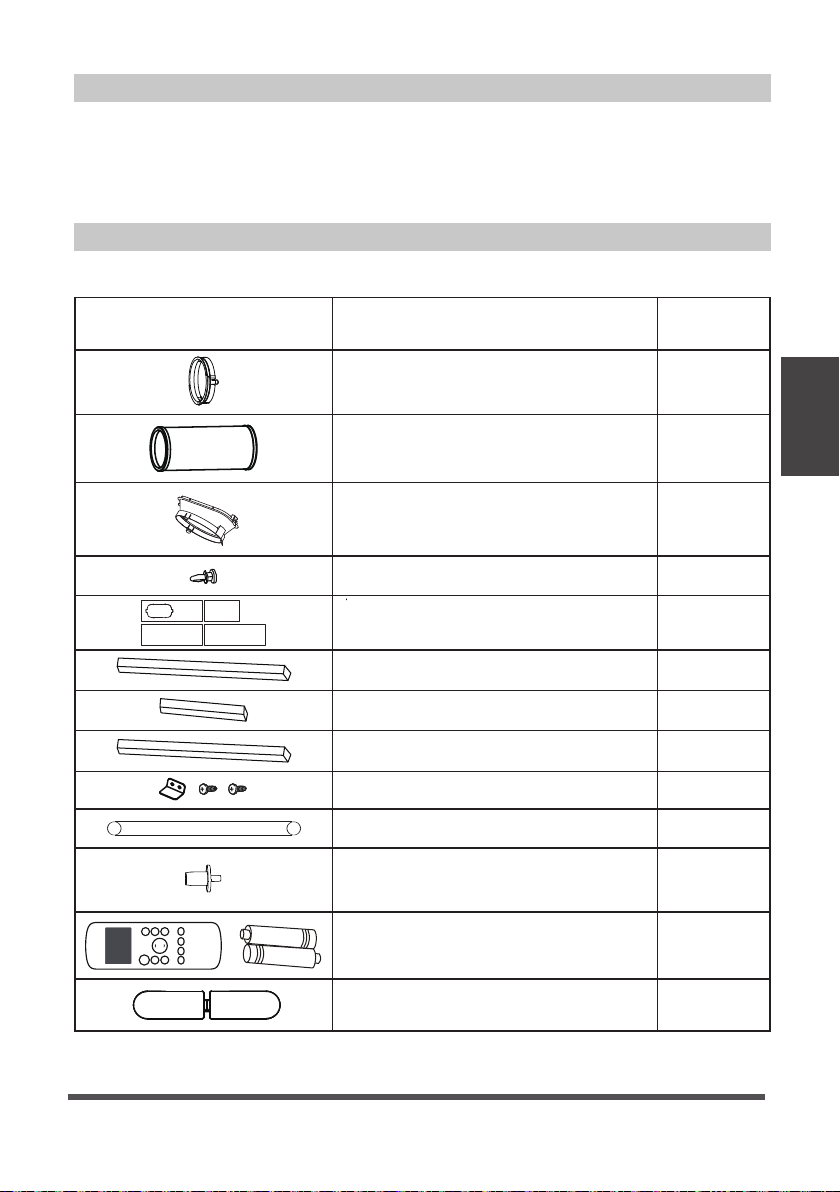

Accessories
Your Window Installation Kit fits windows 67.5-123 cm (26.5”-48”) and can be shortened
for smaller windows.
noitpircseDtraP
Unit adaptor
Exhaust hose
Window slider adaptor
Bolt
Window slider set
Foam seal A (adhesive)
Foam seal B (adhesive)
Foam seal C (Non-adhesive)
Security bracket and 2 screws
Drain hose
Drain hose adaptor
(for heat pump mode only)
Quantity
1 pc
1 pc
1 pc
3 pc
1 set
4 pc
2 pc
2 pc
1 set
1 pc
1 pc
Instructions
Installation
LED
OFF
ON
TIMER
TIMER
CUT
SHORT
ME
FOLLOW
TEMP
ING
SW
FAN
MODE
SLEEP
ON/OFF
Re
mote controller and batteries
(For remote control models only)
Power Cord Buckle
1 set
1 pc
Page 13
Window Installation Kit
Instructions
Installation
Window Sliders
Exhaust hose Exhaust hose
Unit
adaptor
Hook
Adaptor
Lower
groove
Window slider
adaptor
Hole Seat
Make sure the adaptor
is inserted into the
assembly
lower groove of the
air outlet.
Before assembly
After assembly
Bolt
1+2：
Bolt
Bolt
1+2+3：
Step One: Preparing the exhaust hose
assembly
Press the exhaust hose into the window
slider adaptor and unit adaptor, clamp
automatically by elastic buckles of the
adaptors.
Step Two: Install the exhaust hose
assembly to the unit
Insert unit adaptor of the Exhaust hose
assembly into the lower groove of the
air outlet of the unit with the hook of the
adaptor aligned with the hole seat of the
air outlet and slide down the Exhaust
hose assembly along the direction
indicated by the arrow for installation.
Step Three: Preparing the Adjustable
Window Slider
1. Depending on the size of your window,
adjust the size of the window slider.
2. If the length of the window requires two
or three window sliders, use the bolt(s)
to fasten the window sliders once they
are adjusted to the proper length.
1+2+3+4：
1+4：
Page 14
Bolt
BoltBolt
Bolt
NOTE
Once the Exhaust Hose assembly and Adjustable Window Slider are prepared,
choose from one of the following two installation methods.
Foam seal B
(Adhesive type-shorter)
Foam
seal A
(Adhesive
type)
Window
slider A
Foam seal C
(Non-adhesive type)
Window
slider B
(if required)
Type 1: Hung window installation
1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window sash
and frame as shown.
2. Insert the window slider assembly into the window
opening.
3. Cut the non-adhesive foam seal C strip to match the
width of the window. Insert the seal between the glass
and the window frame to prevent air and insects from
getting into the room.
Instructions
Installation
2 Screws
Security Bracket
4. If desired, install the security bracket with 2 screws as
shown.
5. Insert the window slider adaptor into the hole of the
window slider.
Page 15
Instructions
Installation
Foam seal A
(Adhesive
type)
(Non-adhesive type)
Foam seal B
(Adhesive
type-shorter)
Window slider B
(if required)
Window slider A
Foam seal C
Type 2: Sliding window installation
1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window sash
and frame as shown.
2. Insert the window slider assembly into the window
opening.
3. Cut the non-adhesive foam seal C strip to match the
window height. Insert the foam seal between the glass
and the window frame to prevent air and insects from
getting into the room.
4. If desired, install the security bracket with 2 screws
as shown.
2 Screws
Security
Bracket
5. Insert the window slider adaptor into the hole of the
window slider.
NOTE
To ensure proper functioning, DO NOT overextend or bend the hose. Make sure that there
is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order
for the exhaust system to work properly. All illustrations in this manual are for explanation
purposes only. Your air conditioner may be slightly different. The actual shape shall prevail.
Page 16
Care and Cleaning
Safety Precautions
• Always unplug the unit before cleaning or servicing.
• DO NOT use flammable liquids or chemicals to clean the unit.
• DO NOT wash the unit under running water. Doing so causes electrical danger.
• DO NOT operate the machine if the power supply was damaged during cleaning.
A damaged power cord must be replaced with a new cord from the manufacturer.
Clean the Air Filter
Upper filter
(take out)
Remove the
screw, then
• Be sure to clean the air filter every
2 weeks for optimal performance.
• The water collection tray should
be drained immediately after P1
error occurs, and before storage to
prevent mold.
• In households with animals, you will
have to periodically wipe down the
grill to prevent blocked airflow due
to animal hair.
take the lower
filter out.
Maintenance Tips
6&$/(
Clean the Unit
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry,
lint-free cloth.
Store the Unit When Not in Use
• Drain the unit’s water collection tray according to the instructions in the following section.
• Run the unit on FAN mode for 12 hours in a warm room to dry it and prevent mold.
• Turn off the unit and unplug it.
• Clean the air filter according to the instructions in the previous section. Reinstall the
clean, dry filter before storing.
• Remove the batteries from the remote control.
Care and
Cleaning
NOTE
Be sure to store the unit in a cool, dark place. Exposure to direct sunlight or extreme
heat can shorten the lifespan of the unit.
Page 17
Troubleshooting Tips
Malfunction Diagnosis
Please check the machine according to the following table before calling for service:
Problem Possible Cause Troubleshooting
P1 Error Code. The water collection tray is full.
Turn off the unit, drain the water
from the water collection tray
and restart the unit.
Reset the temperature.
Turn off the unit and clean the
filter according to instructions.
Turn off the unit, disconnect the
hose, check for blockage and
reconnect the hose.
inspect the unit and top off
refrigerant.
Make sure all windows and doors
are closed.
Remove the heat sources if
possible.
surface.
Turn off the unit and clean the
filter according to instructions.
This is normal.
Troubleshooting
Tips
Unit does not
turn on when
pressing ON/
OFF button
Unit does not
cool well
The unit is
noisy and
vibrates too
much
The unit makes
a gurgling
sound
In COOL mode: room temperature
is lower than the set temperature.
The air filter is blocked with dust
or animal hair.
Exhaust hose is not connected or
is blocked.
The unit is low on refrigerant. Call a service technician to
Temperature setting is too high. Decrease the set temperature.
The windows and doors in the
room are open.
The room area is too large. Double-check the cooling area.
There are heat sources inside the
room.
The floor is not level. Place the unit on a flat, level
The air filter is blocked with dust
or animal hair.
This sound is caused by the flow
of refrigerant inside the unit
Page 18
Remote Control Instructions
Remote Control Specifications
Model
RG57H4(B)/BGEFU1-B
Rated voltage 3.0V (Dry batteries R03/LR03x2)
Signal receiving range
8 m (appr
ox. 26 ft.)
Environment -5°C ~ 60°C (23°F ~ 140°F)
Function Buttons
Before you begin using your new air conditioner, make sure to familiarize yourself with
its remote control. The following is a brief introduction to the remote control itself. For
instructions on how to operate your air conditioner, refer to the Operating Instructions
section of this manual.
Turns the unit on or off.
Scrolls through operation modes
AUTO COOL DRY HEAT FAN
NOTE:
Please do not select HEAT mode
if the machine you purcha sed is
cool-only type. Heat mode is not
supported by the cool-only models.
Selects fan speeds in the
AUTO LOW MED HIGH
ON/OFF
MODE
as follows:
FAN SPEED
following order:
Saves energy during
SLEEP
sleeping hours.
SWING
Starts and stops
louver movement.
ON /O F F
MODE
FAN
SLEEP
SWING
T E MP
FOLLO W
ME
SHORT
CUT
TIMER
ON
TIMER
OFF
LED
SHORT CUT
Sets and activates your favorite pre-settings.
TEMP
Increases temperature in 1°C (1°F) increments.
Max. temperature is 30°C (86°F).
TEMP
Decreases temperature in 1°C (1°F) increments.
Min. temperature is 17°C (62°F).
NOTE: Pressing and hold and buttons
together for 3 seconds will alternate the
temperature display between the °C & °F scale.
TIMER ON
Sets timer to turn unit on (see How to Use
Basic Functions for instructions)
TIMER OFF
Sets timer to turn unit off (see How to Use
Basic Functions for instructions)
LED
Turns indoor unit’s LED display on and off.
If you are sensitive to light while sleeping,
you can press the LED button to turn off the
LED display on the unit. Press the button
again to turn it back on.
FOLLOW ME
Temperature sensing and room
temperature display button.
(With Remote)
Instructions
Operating
Page 19
Handling the Remote Control
NOT SURE WHAT A FUNCTION DOES?
Refer to the Operating Instructions section of this manual for a detailed description of
how to use your air conditioner.
SPECIAL NOTE
Button designs on your unit may differ slightly from the example shown.
If the unit does not have a particular function, pressing that function’s button on the
remote control will have no effect.
When there are significant differences between features or operation implied by the
remote control illustration and the actual functions described in the USER’S MANUAL,
the descriptions in the USER’S MANUAL shall prevail
INSERTING AND REPLACING BATTERIES
Your air conditioning unit comes with two AAA batteries.
Insert the batteries in the remote control before use.
1. Slide the back cover of the remote control downward,
exposing the battery compartment.
2. Insert the batteries, paying attention to align the (+)
and (-) ends of the batteries with the symbols inside
the battery compartment.
3. Slide the battery cover back into place.
BATTERY NOTES
For optimum product performance:
• Do not mix old and new batteries, or batteries of
(With Remote)
Instructions
Operating
different types.
• Do not leave batteries in the remote control if you
don’t plan on using the device for more than 2
months.
Page 20
BATTERY DISPOSAL
Do not dispose of batteries as unsorted municipal waste.
Refer to local laws for proper disposal of batteries.
TIPS FOR USING REMOTE CONTROL
• The remote control must be used within 8 meters /
26 feet of the unit.
• The unit will beep when remote signal is received.
• Curtains, other materials and direct sunlight can
interfere with the infrared signal receiver.
• Remove batteries if the remote will not be used more
than 2 months.
Remote LED Screen Indicators
Transmission Indicator
Lights up when remote sends signal to unit
MODE display
Displays the current
mode, including:
AUTO
COOL
DRY
HEAT
FAN
FAN SPEED display
Displays selected FAN SPEED:
HIGH
MED
LOW
This display is blank when
set to AUTO speed.
ON/OFF display
Appears when the unit is turned on and disappears when it is turned off
TIMER ON display
Displays when
TIMER ON is set
SILENT display
Not available on this unit
Temperature/Timer display
Displays the set temperature by default, or timer setting
when using TIMER ON/OFF functions:
- Temperature range: 17-30°C (62°F-86°F)
- Timer setting range: 0-24 hours
This display is blank when operating in FAN mode.
TIMER OFF display
Displays when
TIMER OFF is set
ECO display
Not available on this unit
Battery display
Low battery detection
SLEEP display
Displays when SLEEP
function is activated
FOLLOW ME display
Indicates that the FOLLOW
ME function is on
Not available on this unit
(With Remote)
Instructions
Operating
Page 21
(With Remote)
Instructions
Operating
Basic Functions
ON/OFF
3
MODE
1
FAN
SLEEP
ON/OFF
4
MODE
1
FAN
3
SLEEP
SWING
SWING
SHORT
CUT
TIMER
ON
TEMP
TIMER
OFF
FOLLOW
LED
ME
SHORT
CUT
TIMER
ON
TEMP
TIMER
OFF
FOLLOW
LED
ME
SETTING THE DESIRED TEMPERATURE
The operating temperature range for this unit is 17-30°C
(62°F-86°F). You can increase or decrease the set
temperature in 1°C (1°F) increments.

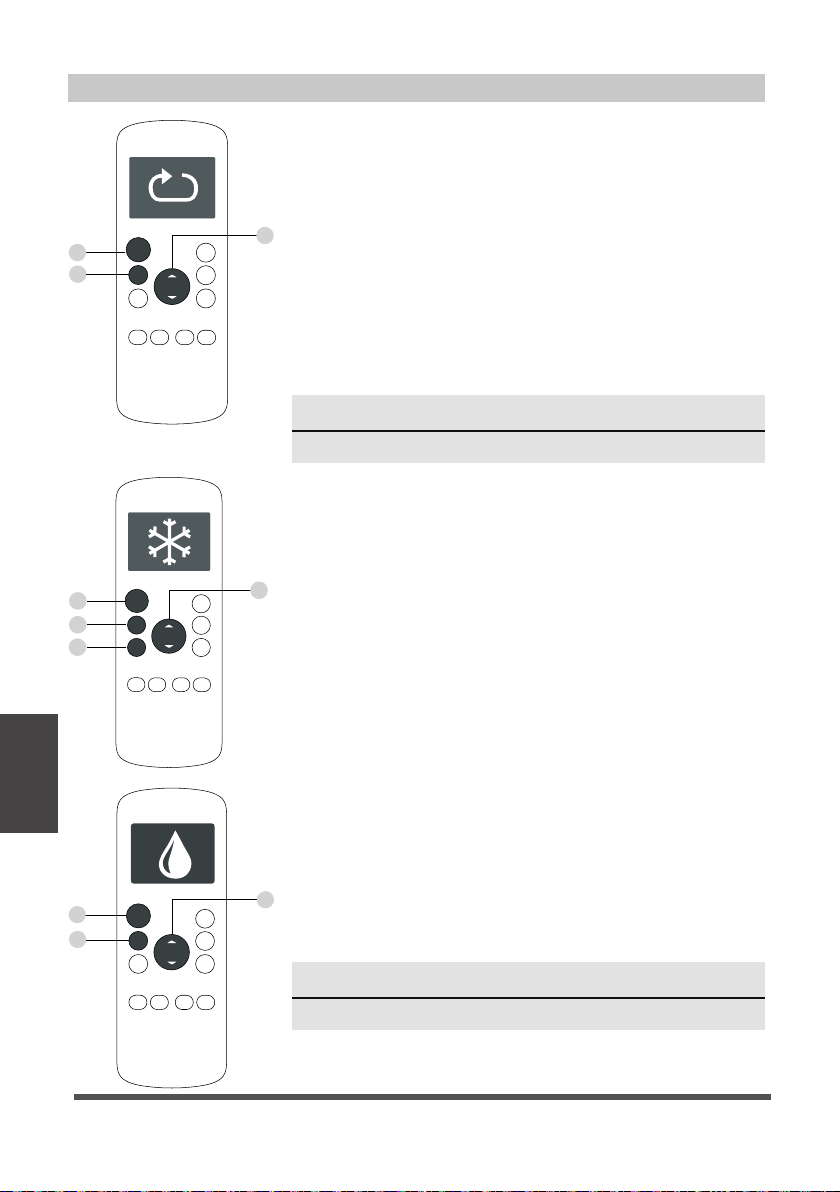

AUTO operation
2
In AUTO mode, the unit will automatically select the COOL,
FAN, HEAT or DRY mode based on the set temperature.
1. Press the MODE button to select Auto mode.
2. Set your desired temperature using the Temp
Temp button.
3. Press the ON/OFF button to start the unit.
NOTE
FAN SPEED cannot be set in AUTO mode.
COOL operation
1. Press the MODE button to select COOL mode.
2. Set your desired temperature using the Temp
Temp button.
3. Press the FAN button to select the fan speed: AUTO,
2
LOW, MED,or HIGH.
4. Press the ON/OFF button to start the unit.
or
or
ON/OFF
3
1
SLEEP
Page 22
MODE
DRY operation (dehumidifying)
1. Press the MODE button to select DRY mode.
2. Set your desired temperature using the Temp
Temp button.
3. Press the ON/OFF button to start the unit.
SHORT
CUT
TIMER
ON
TEMP
SWING
FOLLOW
ME
TIMER
OFF
FAN
2
NOTE
LED
FAN SPEED cannot be set in DRY mode.
or
Basic Functions (cont.)
ON/OFF
3
MODE
1
FAN
2
SLEEP
ON/OFF
4
MODE
1
3
SLEEP
SHORT
CUT
TIMER
ON
TEMP
TIMER
OFF
FOLLOW
SWING
LED
ME
SHORT
CUT
TIMER
ON
TEMP
SWING
FOLLOW
ME
TIMER
OFF
FAN
2
LED
FAN operation
1. Press the MODE button to select FAN mode.
2. Press FAN button to select the fan speed: AUTO, LOW,
MED or HIGH.
3. Press the ON/OFF button to start the unit.
NOTE
You cannot set temperature in FAN mode. As a result,
your remote control’s LCD screen will not display
temperature.
HEAT operation
1. Press the MODE button to select HEAT mode.
2. Set your desired temperature using the Temp
Temp button.
or
3. Press the FAN button to select the fan speed: AUTO,
LOW, MED, or HIGH.
4. Press the ON/OFF button to start the unit.
NOTE
As outdoor temperature drops, the performance of your
unit’s HEAT function may be affected. In such instances,
we recommend using this air conditioner in conjunction
with another heating appliance.
(With Remote)
Instructions
Operating
Page 23
Timer Functions
1
TIMER ON TIMER ON
3
ON/OFF
MODE
SHORT
CUT
F
AN
TEMP
TIMER ON
S
L
E
EP
TIMER OF
F
1sec
2
x5
4
2s e c

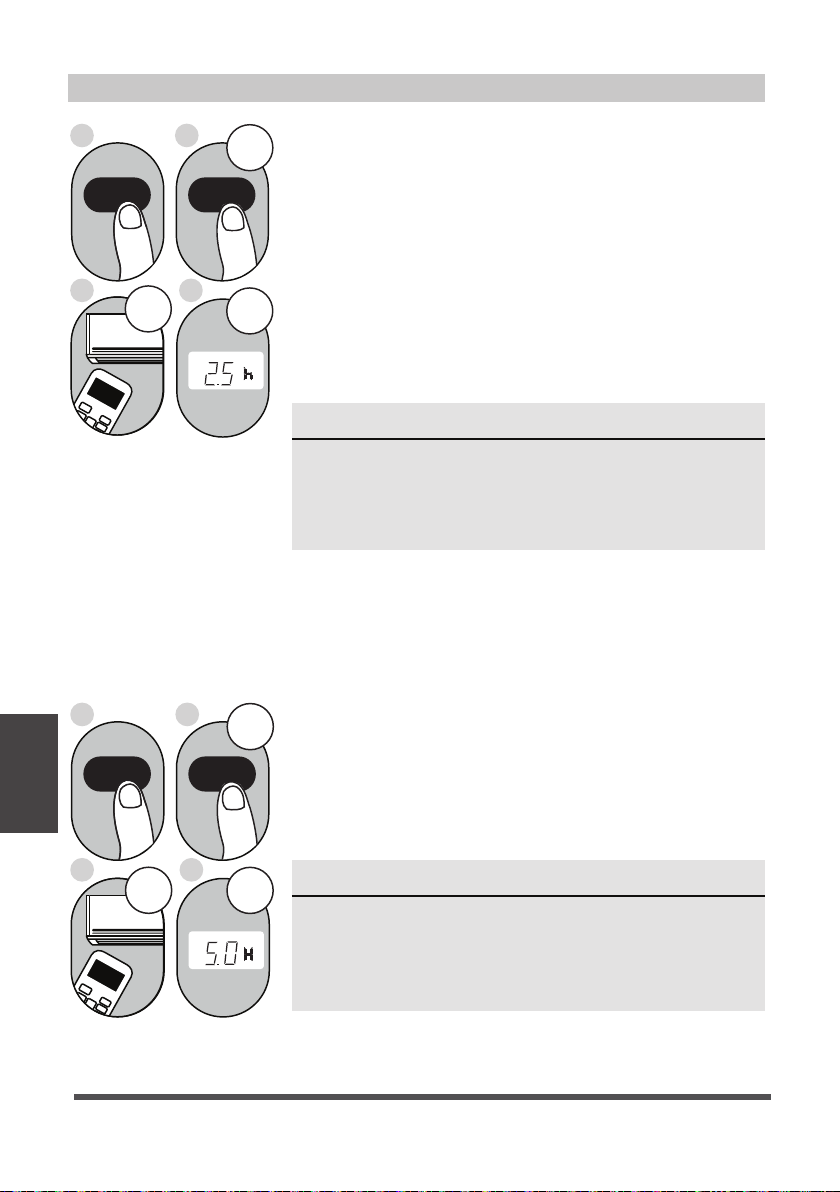

Example: Setting unit to
turn on after 2.5 hours.
Your air conditioning unit has two timer-related functions:
TIMER ON - sets the amount of time after which the unit
will automatically turn on.
TIMER OFF - sets the amount of time after which the unit
will automatically turn off.
TIMER ON function
The TIMER ON function allows you to set a period of time
after which the unit will automatically turn on, such as when
you come home from work.
1. Press the TIMER ON button. By default, the last time
period that you set and an “h” (indicating hours) will
appear on the display.
NOTE
This number indicates the amount of time after the
current time after which you want the unit to turn on.
For example, if you set TIMER ON for 2 hours, “2.0h“
will appear on the screen, and the unit will turn on
after 2 hours.
2. Press the TIMER ON button repeatedly to set the time
that you want the unit to turn on.
3. Wait 2 seconds, then the TIMER ON function will be
activated. The digital display on your remote control will
then return to the temperature display.
Instructions
Operating
1
TIMER OFF
(With Remote)
3
1sec
ON/OFF
MODE
SHORT
CUT
F
AN
TEMP
TIMER ON
S
LEEP
TIMER OF
F
Example: Setting unit to
turn off after 5 hours.
Page 24
2
x10
TIMER OFF function
The TIMER OFF function allows you to set a period of time
after which the unit will automatically turn off, such as when
TIMER OFF
you wake up.
1. Press the TIMER OFF button. By default, the last time
4
2sec
period that you set and an “h” (indicating hours) will
appear on the display.
NOTE
This number indicates the amount of time after the
current time after which you want the unit to turn off.
For example, if you set TIMER OFF for 2 hours, “2.0h“
will appear on the screen, and the unit will turn off
after 2 hours.
2. Press the TIMER OFF button repeatedly to set the time
that you want the unit to turn off.
Timer Functions (cont.)
3. Wait 2 seconds, then the TIMER OFF function will be
Timer on
ON/OFF
MODE
TEMP
FAN
SWING
SLEEP
FOLLOW
ME
SHORT
CUT
TIMER
ON
TIMER
OFF
LED
Continue
to press
TIMER ON
or
TIMER OFF
until desired
time is
reached.
NOTE
activated. The digital display on your remote control will
then return to the temperature display.
When setting the TIMER ON or TIMER OFF functions,
up to 10 hours, the time will increase in 30 minute
increments with each press. After 10 hours and up to
24, it will increase in 1 hour increments. The timer will
revert to zero after 24 hours.
You can turn off either function by setting the timer to
“0.0h“.
1
TIMER ON
2
TIMER ON
X12
3
4
Setting both TIMER ON and
TIMER OFF at the same time
sec
Keep in mind that the time
periods you set for both
functions refer to hours after
the current time.
For example, say that the
current time is 1:00 PM, and
you want the unit to turn on
automatically at 7:00 PM and
sec
want it to operate for 2 hours,
then automatically turn off at
9:00 PM.
Do the following (side figure):
5
TIMER OFF
6
TIMER OFF
X16
ON/OFF
MODE
SHORT
CUT
TEMP
TIMER ON
7
8
ON/OFF
MODE
SHORT
CUT
TEMP
TIMER ON
Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off
(see the figure below)
Your remote display
Timer On
Timer Off
Timer is set
To turn ON
6 hours from
current time
Timer is set
To turn OFF
8 hours from
current time
Timer
Starts
Current
Time 1PM
2PM 3PM
4PM 5PM
6 hours later
8 hours later
Unit turns
ON
6PM 7PM 8PM 9PM
Unit turns
OFF
(With Remote)
Instructions
Operating
Page 25
Advanced Functions
SLEEP Function
The SLEEP function is used to decrease
energy use while you sleep (and don’t need
the same temperature settings to stay
comfortable). This function can only be
activated via remote control.
Note:
The SLEEP function is not
available in FAN or DRY mode.
ON/OFF
MODE
FAN
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
(With Remote)
Instructions
Operating
SWING
FOLLOW
ME
LED
SLEEP
SWING Function
Used to stop or start louver movement and set
the desired up/down air flow direction. The louver
angle changes in 6 degree increments).
By pressing for more than 2 seconds, the louver
auto swing feature is activated.
FOLLOW ME Function
The FOLLOW ME function enables the
remote control to measure the
temperature at its current location.
When using AUTO, COOL, or HEAT
functions, measuring ambient
temperature from the remote control
(instead of from the indoor unit it self)
will enable the air conditioner to
optimize the temperature around you
and ensure maximum comfort.
1. Press FOLLOW ME button to activate
function. The remote control will send
temperature signal to the unit every
three minutes.
2. Press FOLLOW ME button again to
turn off this function.
SHORTCUT Function
Used to restore the current settings or resume
previous settings.
Push this button when remote controller is on,
the system will automatically revert back to the
previous settings including operating mode,
setting temperature, fan speed level and sleep
feature (if activated).
By pressing for more than 2 seconds, the
system will automatically restore the current
operation settings including operating mode,
setting temperature, fan speed level and sleep
feature (if activated).
NOTES
• Button configuration shown in illustrations is based on a typical model and may
be slightly different from the actual one you purchased. In this case, the actual
physical remote shall prevail.
• All the functions described can also be accomplished by using the unit’s control
panel. If the unit is without this feature, there will be no corresponding operation
when pressing the relevant button on the remote controller.
Page 26
NOTES
• When there are differences between features or operation implied by the
remote control illustration and the actual functions described in the USER
MANUAL, the descriptions in the USER MANUAL shall prevail.
• The device may comply with local national regulations. In Canada, it should
comply with CAN ICES-3(B)/NMB-3(B). In USA, this device complies with part
15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
• This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Changes
or modifications not approved by the party responsible for compliance could
void users authority to operate the equipment.
Page 27
(With Remote)
Instructions
Operating
Warranty
Air Conditioner Limited Warranty
Your product is protected by this Limited Warranty:
Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.
Warranty
• One year full warranty from original purchase date.
Midea, through its authorized servicers will:
• Pay all costs for repairing or replacing parts of this appliance which prove to be defective in materials or
workmanship.
Consumer will be responsible for:
• Diagnostics, removal, transportation and reinstallation cost required because of service.
• Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES OF THE CONSUMER**
Midea replacement parts shall be used and will be warranted only for the original warranty.
NORMAL RESPONSIBILITIES OF THE CONSUMER**
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in acordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the
appliance and in accordance with all local plumbing, electrical and/or gas codes.
4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after installation.
EXCLUSIONS
This warranty does not cover the following:
1) Failure caused by damage to the unit while in your possession (other than damage caused by defect or
malfunction), by its improper installation, or by unreasonable use of the unit, including without limitation, failure to
provide reasonable and necessary maintenance or to follow the written installation and Operating Instructions.
2) Damages caused by services performed by persons other than authorized Midea costumer service; or external
causes such as abuse, misuse, inadequate power supply or acts of God.
3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make
no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness
for use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered or cannot
be readily determined.
NOTE: Some states do not allow the exclusions or limitation of incidental or consequential damages. So this
limitation or exclusion may not apply to you.
IF YOU NEED SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment Record.
The date on the bill establishes the warranty period, should service be required.
Warranty
If service is performed, its your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.
2) If there is a question as to where to obtain service, contact our consumer relations Department.
Page 28
RETURN POLICY
Return policy
Questions about installing or operating your
Arctic King product?
If you still need assistance, please call Customer
Service at 1-866-646-4332.
Have your sales receipt, serial number and product model
mumber available when you call.
The product may be returned within 90 days of purchase
with receipt, After 90 days, the product is covered under
limited warranty. Please refer to the warranty section
in the User Manual for details.
save your
receipt
How to Stay Cool with a New Portable Air Conditioner
Because of a new federal test procedure for Portable Air Conditioners, you may
notice that the cooling capacity claims on portable air conditioner packaging are
significantly lower than that of models produced prior to 2017. This is due to
changes in the test procedure, not to the portable air conditioners themselves.
What should I look for first when purchasing a portable air conditioner?
The right air conditioner helps you cool a room efficiently. An undersized unit
won't cool adequately while one that's too large will not remove enough humidity,
leaving the air feeling damp. To find the proper air conditioner, determine the
square footage of the room you want to cool by multiplying the room length by
its width. You also need to know the air conditioner's BTU (British Thermal Unit)
rating, which indicates the amount of heat it can remove from a room. A higher
number means more cooling power for a larger room. (Be sure you are
comparing only newer models to each other- older models may appear to have
a higher capacity, but are actually the same). Be sure to “size up” if your portable
air conditioner will be placed in a very sunny room, in a kitchen, or in a room with
high ceilings. After you’ve found the right cooling capacity or your room, you can
look at other features.
Why is the cooling capacity lower on newer models than on older units?
Federal regulations require manufacturers to calculate cooling capacity based
on a specific test procedure. Models manufactured before 2017 were tested
under a different procedure and cooling capacity is measured differently than
in prior years’ models. So, while the BTUs may be lower, the actual cooling
capacity of the air conditioners has not changed.
What is SACC ?
SACC is the representative value of Seasonally Adjusted Cooling Capacity, in
Btu/h, as determined in accordance with the DOE test procedure at title 10
Code of Federal Regulations (CFR) 430, subpart B, appendix CC and applicable
sampling plans.
Loading...
