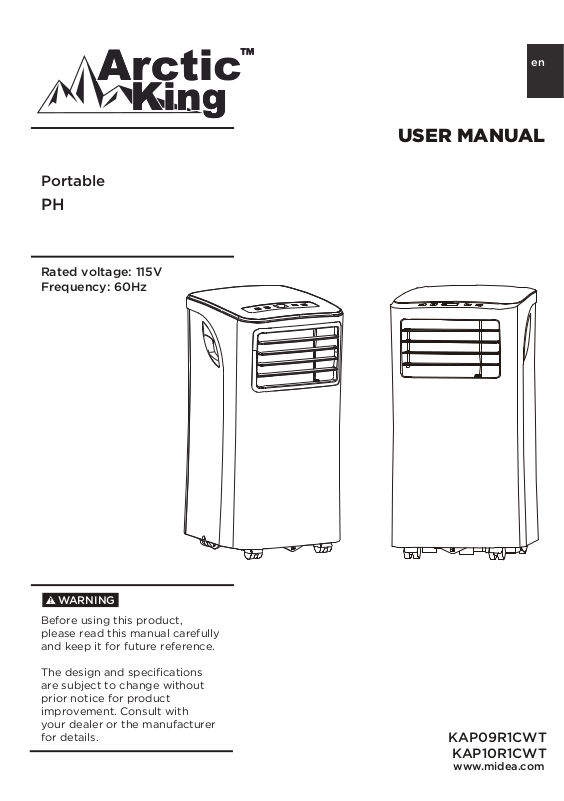

Arctic King KAP09R1CWT, KAP10R1CWT User Manual

Portable

PH

Rated voltage: 115V
Frequency: 60Hz

en

USER MANUAL

WARNING

Before using this product,
please read this manual carefully
and keep it for future reference.

The design and specifications
are subject to change without
prior notice for product
improvement. Consult with
your dealer or the manufacturer
for details.

KAP09R1CWT

KAP10R1CWT

www.midea.com

Owner’s Manual

Safety Precautions ....................................................................................... 3

Unit Specifications and Features .............................................................. 8

Operating Instructions ................................................................................ 9

Installation Instructions ............................................................................... 12

Care and Cleaning ....................................................................................... 17

Troubleshooting Tips .................................................................................. 18

Remote Control Instructions ..................................................................... 19

Warranty ................................................................... and Return Policy ...

27

Read This Manual

Inside you’ll find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You’ll find many answers to common
problems in the chart of troubleshooting tips - you should be able to fix most of
them quickly before calling service. These instructions may not cover every possible
condition of use, so common sense and attention to safety is required when installing,
operating and maintaining this product.

CAUTION

• For support, please call the Service Center at 1-866-646-4332.

• This appliance is not intended for use by people (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the air conditioner.

• The appliance shall be installed in accordance with national wiring regulations.

• Do not operate your air conditioner in a humid room such as a bathroom or laundry
room.

Page 2

Safety Precautions

To prevent injury to the user or other people and property damage, the instructions
shown here must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The level of risk is shown by the following indications.

Precautions

Safety

WARNING

CAUTION

NOTICE

This symbol indicates a hazardous situation which, if not
avoided, could result in death or serious injury.

This symbol indicates a hazardous situation, which, if not
avoided, could result in minor or moderate injury.

This symbol addresses practices not related to physical
injury.

WARNING

• Plug in power cord plug properly.
Otherwise, it may cause electric shock or fire due to excess heat generation.

• Do not modify power cord length or share the outlet with other appliances as it
may cause electric shock or fire due to overheating.

• Always ensure effective grounding.
Incorrect grounding may cause electric shock.

• Unplug the unit if you notice unusual sounds or smells, or smoke comes from it.
A damaged product may cause fire and electric shock.

• Keep firearms away from the unit.

• Ventilate room before operating the air conditioner if there is a gas leakage from
another appliance.

• Do not operate or stop the unit by inserting or pulling out the power cord plug.

• Do not operate with wet hands or in very humid enviroments.
It may cause electric shock.

• Do not allow water to come into contact with any electric parts.
It may cause failure or electric shock.

• Do not use the socket if it is loose or damaged.
It may cause fire and electric shock.

• Do not place the power cord close to heating appliances.
It may cause fire and electric shock

• Do not disassemble or modify unit.
It may cause failure and electric shock.

Page 3

Precautions

Safety

WARNING

• Do not damage or use an alternate power cord.
It may cause fire and electric shock.
If the power cord is damaged, it must be replaced by the manufacturer or an
authorized service center or a similarly qualified person in order to avoid a hazard.

• Do not direct airflow straight into persons to avoid possible health hazard.

• Do not open the unit during operation.
It may cause electric shock.

• Do not use the power cord near flammable gas or combustibles, such as gasoline,
benzene, thinner, etc.
It may cause an explosion or fire.

• Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor
plug. Do not remove any prongs from the power cord.

• Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.

• Your air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle you intend to use is not adequately grounded or protected by a
time delay fuse or circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit installation.

• Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the
cabinet and behind the grille.

• D o not drink water drained from the air conditioner.

CAUTION

• When the air filter is to be removed, do not touch the metal parts of the unit.
It may cause injury.

• When the unit needs cleaning, switch off, and turn off the circuit breaker.
Do not clean unit when power is on as it may cause fire, electric shock or injury.

• Do not place obstacles around air inlets or inside of air outlet.
It may cause failure or accident.

• Clean with a soft cloth only. Do not use strong detergents that
thinners as it may damage the product.

• Use caution when unpacking and installing. Sharp edges could cause injury.

• Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation which could lead to

electric shock.

contain wax or

Page 4

CAUTION

• Do not put a pet or house plant where it will be exposed to direct air flow.
This could injure the pet or harm the plant.

• Hold the plug by the head of the power plug when taking it out.
Otherwise, it may cause electric shock and damage.

• Ensure that the installation is properly secured to prevent the product from
potentially falling.

• Do not place heavy objects on the power cord and ensure that the cord is not
compressed.

Otherwise, there is danger of fire or electric shock.

• If water is spilled on the unit, turn off the unit and switch off the circuit breaker.
Isolate supply by taking the power-plug out and contact a qualified service
technician.

• Do not use near gas stove or other gas burning appliances,
gas combustion.

• Do not use for any purpose other than room comfort.
Do not use this air conditioner to

and art objects. It may cause deterioration.

• Turn off the main power switch if the unit is not to be used for an extended time.

• Always insert the filters securely. Clean filter once every two weeks.
Operation without filters may cause failure.

preserve precision devices, food, pets, plants,

as air flow may affect

Precautions

Safety

Page 5

Precautions

Safety

Operation of Current Device

Plug in &
press RESET

RESET

TEST

The power supply cord contains a
measurement current device that senses
damage to the power cord. Test your power
supply cord as follows:

1. Plug in the air conditioner.

2. The power supply cord will have TWO
buttons on the plug head. Press the
TEST button. You will notice a click as
the RESET button pops out.

3. Press the RESET Button. You will
notice a click as the button engages.

4. The power supply cord is now
supplying electricity to the unit. (On
some products this is also indicated
by a light on the plug head.)

Grounding type wall receptacle

Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.

NOTICE

The power supply cord with this
air conditioner contains a current
detection device designed to reduce
the risk of fire.

In the event that the power supply
cord is damaged, it can not be
repaired. It must be replaced with a
cord from the manufacturer.

Power supply cord with 3-prong grounding
plug and current detection device.

NOTICE

• Do not use this device to turn the unit on or off.

• Always make sure the RESET button is pushed in for correct operation.

• The power supply must be replaced if it fails to reset when either the TEST button
is pushed, or it can not be reset. Please contact Customer Service.

Page 6

EXPLANATION OF SYMBOLS DISPLAYED ON THE UNIT

Precautions

Safety

WARNING

refrigerant. If the refrigerant is leaked and exposed to an
external ignition source, there is a risk of fire.

This symbol shows that this appliance used a flammable

CAUTION

CAUTION

CAUTION

This symbol shows that the operation manual should be read
carefully.

This symbol shows that a service personnel should be handling
this equipment with reference to the installation manual.

This symbol shows that information is available such as the
operating manual or installation manual.

WARNING (for using R32 refrigerant only)

• Do not try to accelerate the defrosting process or methods of cleaning that are
not recommended by the manufacturer.

• The appliance shall be stored in a room without a continuously operating ignition
source (for example, open flames or an operating gas appliance) or an ignition
source (for example, an operating electric heater) close to the appliance. The
appliance shall also be stored in a room without ignition sources.

• Do not pierce or burn.

• Be aware that the refrigerants may not contain an odor.

• Keep ventilation openings clear of o

• Unit is only to be serviced by a Midea authorized servicer, please call Customer
Service at 1-866-646-4332 for support.

• Flammable refrigerant R32 is used within air conditioner. Please follow the
instructions carefully to handle, install, clean, and service the air conditioner
to avoid damage or hazard. Do not dispose of air conditioner in r
Contact qualified agency for proper disposal.

• No open fire or devices that generate spark/arcing shall be around the air
conditioner to avoid causing ignition of the flammable refrigerant used. Please
follow the instructions ca

refully to store or maintain the air conditioner to

prevent mechanical damage from occurring.

bstruction.

egular trash.

Ca ut ion : Risk of f ire /
flam mab le ma teria ls

(Req uir ed fo r R32/R 290 u nits only)

IMPO RTANT NOTE:Re ad th is manu al
care ful ly befo re in sta lling o r opera tin g
your n ew ai r con ditio nin g unit. Make s ure
to s av e thi s man ual f or f utu re re ference.

Page 7

Unit Specifications and Features

Specifications

and Features

Unit

Preparation

control panel
remote signal receptor
outlet louver - vertical

direction control lever
(adjust manually)
NOTE: PHA cannot be
adjusted.
outlet louver - horizontal

direction control lever
(adjust manually)
NOTE: PHA cannot be
adjusted.

panel

handle

(both sides)

air filter

(behind the grille)

upper air intake

drain outlet

air outlet

lower air intake

Caster

bottom tray
drain outlet

raeRtnorF

Design and Compliance Notes

Design Notice:

In order to ensure the optimal performance of our products, the design specifications of
the unit and remote control are subject to change without prior notice.

Energy Rating Information:

This product is tested in accordance to the DOE SACC capacity energy rating test.

Unit Temperature Range:

Mode

Cool

Dry

Temperature Range

17°C ~ 35°C (62°F ~ 95°F)

13°C ~ 35°C (55°F ~ 95°F)

EXHAUST HOSE INSTALLATION:

The exhaust hose and adaptor must be installed or removed in accordance with the
usage mode.
For COOL or AUTO mode, exhaust hose must be installed.
For FAN or DEHUMIDIFY exhaust hose must be removed.

Page 8

Operating Instructions

Control Panel Features

Mode

Selector

Up (+) and Down (-) Control

Mode Button

Selects the desired operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
COOL, FAN and DRY. The mode light
illuminates and indicates the selected
mode.

LED Display

NOTE

On above modes, the unit operates
the auto fan speed automatically. You
can set fan speed only by the remote
controller on COOL and FAN modes.

Up (+) and Down (-) Buttons

Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F increments
in a range of 17°C/62°F to 30°C/86°F.

NOTE

The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius. To convert from one
to the other, press and hold the Up
and Down buttons at the same time
for 3 seconds.

Power Button

Power switch on/off.

Power

Button

LED display

Shows the set
temperature while on cool
mode. While on DRY and
FAN modes, it shows the
room temperature.

Shows Error codes:

E1 - Room temperature sensor error.

E2 - Evaporator temperature sensor error.

E3 - Condenser temperature sensor error.

E4 - Display panel communication error.

Shows protection code:

P1 - Bottom tray is full - Connect the drain

hose and drain the collected water
away. If protection code repeats, call
for service.

Power
indicator light

Timer mode indicator
light (set only by
remote controller)

NOTE

When one of the above malfunctions
occurs, turn off the unit and check for
any obstructions. Restart the Unit. If the
malfunction persists, turn off the unit
and unplug the power cord. Contact
the manufacturer or its service agents
or a similar qualified person for service.

Instructions

Operating

Page 9

Operating Instructions

COOL operation

• Press the “MODE” button until the “COOL”
indicator light comes on.

• Press the UP and DOWN buttons “+” or “-” to
select your desired room temperature. The
temperature can be set within a range of

Instructions

17°C~30°C/62°F~86°F.

Operating

• The fan speed is automatically set to auto.

Use the remote to adjust the fan speed if
desired.

DRY operation

• Press the “MODE” button until the “DRY”
indicator light comes on.

• While in this mode, you cannot select a
fan speed or adjust the
fan motor operates at LOW speed.

• Keep windows and doors closed for the
best dehumidifying effect.

FAN operation

• Press the “MODE” button until the ”FAN“
indicator light comes on.

• Press the “FAN SPEED” button to
the fan speed. The temperature cannot
be adjusted.

temperature. The

Other Features

SLEEP/ECO operation

This feature can be activated from
the remote control ONLY. To activate
SLEEP feature, the set temperature will
increase by 1°C/2°F in 30 minutes. The set
temperature will then increase by another
1°C/2°F after an additional 30 minutes.
This new temperature will be maintained
for 7 hours before it returns to the
originally selected temperature. This ends
the Sleep mode and the unit will continue
to operate as originally programmed.

NOTE

This feature is unavailable in FAN or
DRY mode.

COMFORTSENSE

Feature (optional)

choose

NOTE

This feature can be activated from
the remote control ONLY. The remote
control serves as a remote thermostat
allowing for the precise temperature
control at its location.

To activate the Follow Me/Temp Sensing
feature, point the remote control towards
the unit and press the Follow Me/Temp
Sensing button. The remote display is
actual temperature at its location. The
remote control will send this signal to the
air conditioner every 3 minutes until the
ComfortSense button is pressed again.
If the unit does not receive the Follow
Me/Temp Sensing signal during any 7
minutes interval, the unit will exit the
Follow Me/Temp Sensing mode.

Constant Fan button

Feature (optional) in cooling or Dry mode,
press the button for 3 seconds to turn on
or off the constant fan function. When the
function is turned on, the constant fan light
will illuminate, identifying the fan continuous
run for cooling. When the function is
turned off, the constant fan light will go
out, identifying the fan cycle run with
compressor stop.

AUTO-RESTART

If the unit shuts off unexpectedly due to a
power outage, it will restart with the previous
set function when the power resumes.

WAIT 3 MINUTES BEFORE RESUMING
OPERATION

After the unit has stopped, it cannot be
restarted until 3 minutes time has elapsed.
This is to protect the unit. Operation will
automatically resume after 3 minutes.

OW DIRECTION ADJUSTMENT

AIRFL

Adjust the air flow direction manually:

- The louver can be set to the desired
position manually.

- Do not place any heavy objects or
other loads on the louver, doing so will
cause damage to the unit.

- Keep the louver fully opened during
operation.

Page 10

Remove the
drain plug

Water drainage

• During DRY mode, remove the upper drain plug from
the back of the unit and install the drain connector
(5/8” universal female adapter) with a 3/4“ hose
(not included). For models without the drain connector,
attach the drain hose to the connector. Place the end of
the hose in the drain area you’re using.

Instructions

Operating

Continuous
drain hose

NOTE

Make sure the hose is secure so there are
no leaks. Direct the hose toward the drain,
making sure that there are no kinks that
will restrict water flow. Place the end of the
hose into the drain making sure the end of
the hose is directed downward. When the
continuous drain hose is not used, ensure
that the corresponding drain plug and knob
are securely installed to prevent leaks.

• When the water level of the bottom tray reaches
a predetermined level, the unit beeps 8 times.
The digital display shows “P1.” At this time the
air conditioning/dehumidification process will
immediately stop. However, the fan motor will
continue to operate (this is normal). Carefully move
the unit to a drain location, remove the bottom
drain plug and let the water drain away. Reinstall
the bottom drain plug and restart the machine until
the “P1” symbol disappears. If the error repeats, call
for service.

NOTE

Be sure to reinstall the bottom drain plug firmly to
prevent leakage before using the unit.

Bottom drain plug

Page 11

Instructions

Installation

Installation Instructions

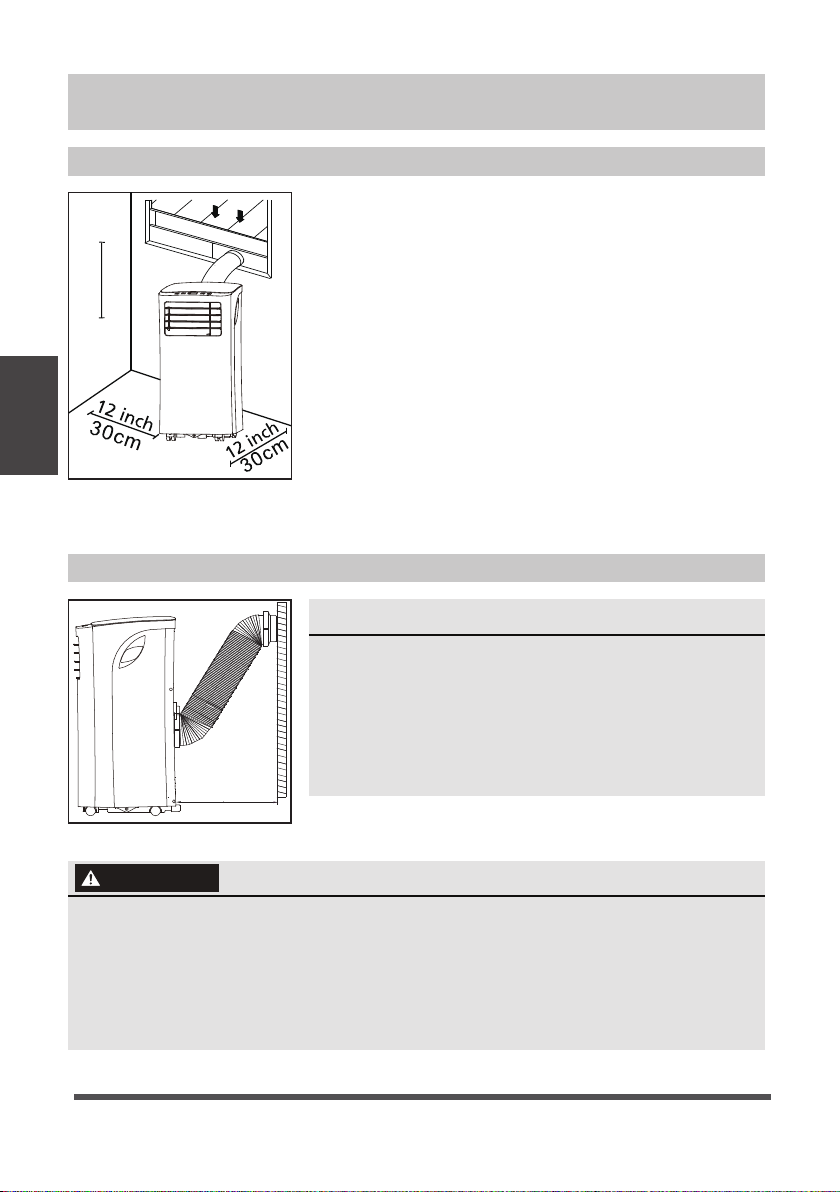

Choosing the Right Location

Your installation location should meet the following
requirements:

19.7inch

50cm

Recommend Installation

• The unit must be near a window to install the exhaust
hose and window kit into.

• Ma

ke sure that you install your unit on an even surface

to minimize noise and vibration.

• The unit must be installed near a grounded plug, and
the Collection Tray Drain (found on the back of the
unit) must be accessible.

• The unit should be located at least 12” (30cm) from
the nearest wall to ensure proper air conditioning.
Obstacles should be at least 19.7” (50cm) away from
the outlet louver.

• DO NOT cover the Intakes, Outlets or Remote Signal
Receptor of the unit, as this could cause damage to
the unit.

NOTE

All the illustrations in the manual are for explanation
purpose only. Your machine may be slightly different.

The unit can be controlled by the unit control panel
alone or with the remote controller. See the
Remote Controller Instruction for details.

19.7inch
50cm

WARNING

• This air-conditioning unit is a hermetically sealed unit that contains fluorinated
gasses. For specific information on the type of gas and the amount, please refer
to the relevant label on the unit itself.

• Service, maintenance and repair of this unit must be performed by a certified
technician.

• Product recycling must be done according to local regulations.

Page 12

Tools Needed

• Phillips screwdriver

• Tape measure or ruler

• Knife or scissors

• Saw (optional, to shorten window adaptor for narrow windows).

Accessories

Your Window Installation Kit fits windows 26.5”-48” (67.5-123cm) and can be shortened
for smaller windows.

noitpircseDtraP

Unit adaptor

Exhaust hose

Window slider adaptor

Bolt

Window slider A

Window slider B

Foam seal A (adhesive)

Foam seal B (adhesive)

Foam seal C (Non-adhesive)

Security bracket and 2 screws

Drain hose

Quantity

1 pc

1 pc

1 pc

1 pc

1 pc

1 pc

2 pc

2 pc

1 pc

1 set

1 pc

Instructions

Installation

TEMP

Remote controller and batteries
(For remote control models only)

1 set

Page 13

Window Installation Kit

Instructions

Installation

Exhaust hose Exhaust hose

assembly

Unit

adaptor

Window slider A Window slider B

Window

slider A

Hung Window Sliding Window

Window slider

adaptor

Windows Type

Bolt

Window

slider A

1. Preparing the exhaust hose

assembly

Press the exhaust hose into the window
slider adapter and the unit adapter until
the plastic clips click onto the hose.

Install the exhaust hose

2.
assembly to the unit

Slide the Exhaust hose into the air
outlet opening of the unit along the
arrow direction.

3. Preparing the adjustable
window slider

1. Depending on the size of your window,

adjust the size of the window slider.

2. If the length of the window requires

two window sliders, use the bolt to
fasten the window sliders once they
are adjusted to the proper length.

NOTE

Once the Exhaust Hose assembly and
Adjustable Window Slider are prepared,
choose from one of the following two
installation methods.

Page 14

Window Installation Kit (cont.)

Foam seal B
(Adhesive type-shorter)

Window

slider A

Foam seal C

(Non-adhesive type)

Window

slider B

(if required)

Foam
seal A
(Adhesive
type)

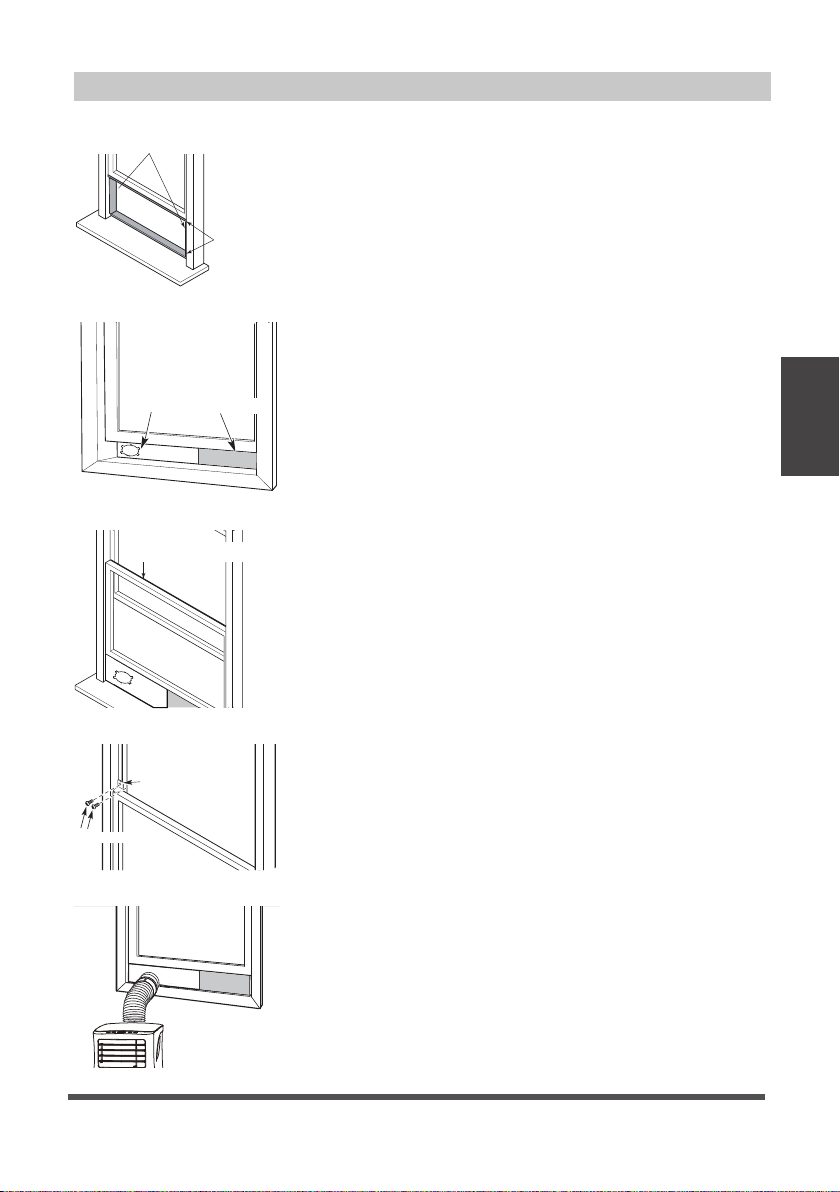

Type 1: Hung window installation

1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window sash
and frame as shown.

2. Insert the window slider assembly into the window
opening.

3. Cut the non-adhesive foam seal C strip to match the
width of the window. Insert the seal between the glass
and the window frame to prevent air and insects from
getting into the room.

Instructions

Installation

2 Screws

Security Bracket

4. If desired, install the security bracket with 2 screws as
shown.

5. Insert the window slider adaptor into the hole of the
window slider.

Page 15

Instructions

Installation

Foam seal A

(Adhesive

type)

(Non-adhesive type)

Foam seal B
(Adhesive
type-shorter)

Window slider B
(if required)

Window slider A

Foam seal C

Type 2: Sliding window installation

1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window sash
and frame as shown.

2. Insert the window slider assembly into the window
opening.

3. Cut the non-adhesive foam seal C strip to match the
window height. Insert the foam seal between the glass
and the window frame to prevent air and insects from
getting into the room.

4. If desired, install the security bracket with 2 screws
as shown.

2 Screws

Security
Bracket

5. Insert the window slider adaptor into the hole of the
window slider.

NOTE

To ensure proper functioning, DO NOT overextend or bend the hose. Make sure there are no
obstacles within 0.5m (1.6ft) of the air outlet of the exhaust hose for the exhaust system to
properly function. All illustrations in this manual are for explanation purposes only. Your air
conditioner may slightly differ.

Page 16

Care and Cleaning

Safety Precautions

• Always unplug the unit before cleaning or servicing.

• DO NOT use flammable liquids or chemicals to clean the unit.

• DO NOT wash the unit under running water. D

• DO NOT operate the machine if the power supply was damaged during cleaning.
A damaged power cord must be replaced with a new cord from the manufacturer.

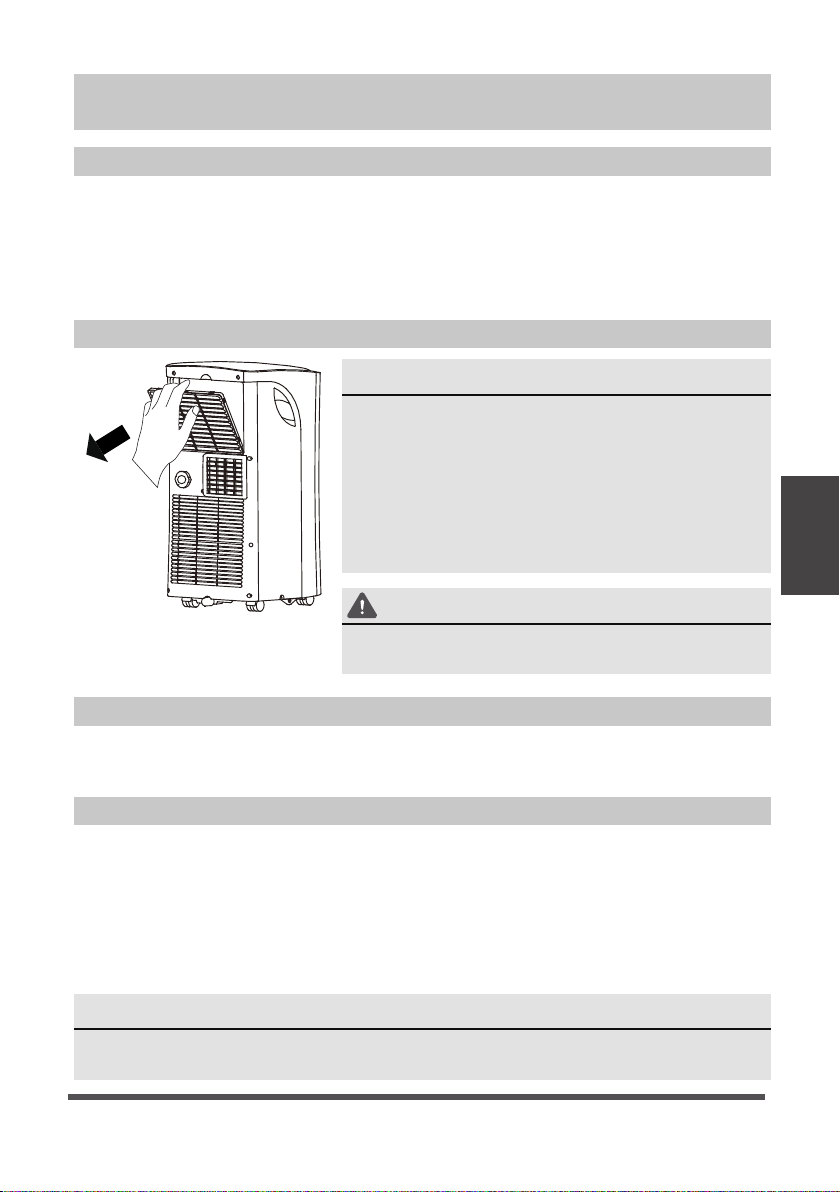

Clean the Air Filter

oing so causes electrical danger.

Air filter

(take out)

Maintenance Tips

• Be sure to clean the air filter every 2 weeks for
optimal performance.

• The water collection tray should be drained
immediately after P1 error occurs, and before
storage to prevent mold.

• In households with animals, you will have to
periodically wipe down the grill to prevent
blocked airflow due to animal hair.

CAUTION

Remove the air filter

DO NOT operate the unit without filter because
dirt and lint will clog it and reduce performance.

Clean the Unit

Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry,
lint-free cloth.

Store the Unit When Not in Use

• Drain the unit’s water collection tray according to the instructions in the following section.

• Run the unit on FAN mode for 12 hours in a warm room to dry it and prevent mold.

• Turn off the unit and unplug it.

• Clean the air filter according to the instructions in the previous section. Reinstall the
clean, dry filter before storing.

• Remove the batteries from the remote control.

Care and

Cleaning

NOTE

Be sure to store the unit in a cool, dark place. Exposure to direct sunlight or extreme
heat can shorten the lifespan of the unit.

Page 17

Troubleshooting Tips

Before calling for service, review this list. It may save you time and expense. This list
includes common occurrences that are not the result of defective workmanship or
materials in this appliance.

Problem Solution

Displays P1 Error Code and means the water collection tray is full.

Unit does not turn
on when pressing
ON/OFF button

Unit does not
cool well

Troubleshooting

The unit is noisy

Tips

and/or vibrates too
much.

Turn off the unit, drain the water from the water collection tray,
and restart the unit.

If room temperature is lower than the set temperature in COOL
mode, reset the temperature.

The air filter is blocked with dust or animal hair. Turn off the unit
and clean the filter according to the instructions.

Exhaust hose is not connected or is blocked. Turn off the unit,
disconnect the hose, check for blockage, and reconnect the hose.

Temperature setting is too high; decrease the set temperature.

Make sure all windows and doors are closed.

The room area could be too large; doublecheck the cooling area.

Check the room for possible heat sources and remove them if
possible.

The floor is not level. Place the unit on a flat, level surface.

The air filter is blocked with dust or animal hair. Turn off the unit
and clean the filter according to the instructions.

The unit makes a
gurgling sound.

Unit will not
connect to WiFi or
App does not
work(some models).

Page 18

This sound is cause by the refrigerant flow inside the unit and is
normal.

For additional support and troubleshooting tips,follow the link in
this QR code:

TE

M

P

Remote Control Instructions

Using The Remote Control

Location of the remote controller

Use the remote controller within a distance of 8 meters
/ 26 feet from the appliance, pointing it towards the
receiver. Reception is confirmed by a beep.

CAUTION

• The air conditioner will not operate if curtains, doors
or other materials block the signals from the remote
controller to the indoor unit.

• Prevent any liquid from falling into the remote
controller. Do not expose the remote controller to

8m

Remote Control Specifications

direct sunlight or heat.

• If the infrared signal receiver on the indoor unit is
exposed to direct sunlight, the air conditioner may
not function properly. Use curtains to prevent the
sunlight from falling on the receiver.

• If other electrical appliances react to the remote
controller, either move these appliances or call
customer support.

Model RG57H3(B)/BGCEFU1-M

Rated voltage 3.0V (Dry batteries R03/LR03x2)

Signal receiving range

8 m (approx. 26 ft.)

Environment -5°C ~ 60°C (23°F ~ 140°F)

Page 19

(With Remote)

Instructions

Operating

Function Buttons

Before you begin using your new air conditioner, make sure to familiarize yourself with
its remote control. The following is a brief introduction to the remote control itself. For
instructions on how to operate your air conditioner, refer to the Operating Instructions
section of this manual.

(With Remote)

Instructions

Operating

Turns the unit on or off.

Scrolls through operation modes

AUTO COOL DRY HEAT FAN

NOTE:

Please do not select HEAT mode
if the machine you purchased is
cool-only type. Heat mode is not
supported by the cool-only models.

Selects fan speeds in the

AUTO LOW MED HIGH

Saves energy during

ON/OFF

MODE

as follows:

FAN SPEED

following order:

SLEEP

sleeping hours.

ON /OF F

MOD E

FAN

SLE EP

T EM P

C-SENSE

SHO RT
CUT

TIME R
ON

TIME R
OFF

LED

SHORT CUT

Sets and activates your favorite pre-settings.

TEMP

Increases temperature in 1° increments.
Max. Temperature 86 °F (30 °C).

TEMP

Decreases temperature in 1° increments.
Min. Temperature 62 °F (17 °C).

NOTE: Pressing and hold and buttons
together for 3 seconds will alternate the
temperature display between the °C & °F scale.

TIMER ON

Sets timer to turn unit on (see How to Use
Basic Functions for instructions)

TIMER OFF

Sets timer to turn unit off (see How to Use
Basic Functions for instructions)

LED

Turns the AC’s LED display on and off.

COMFORTSENSE

Turns the ComfortSense feature on and off.

Page 20

Handling the Remote Control

Not sure what a function does?

Refer to the Operating Instructions section of this manual for detailed descriptions of the
functions available using the remote.

Notice

Button designs on your unit may differ slightly from the examples below.
If the unit does not have a specific function, using that function’s button on the
remote control will have no eff.

INSERTING AND REPLACING BATTERIES

Your air conditioning unit comes with two AAA batteries.
Insert the batteries in the remote control before use.

1. Slide the back cover of the remote control downward,
exposing the battery compartment.

2. Insert the batteries, paying attention to align the (+)
and (-) ends of the batteries with the symbols inside
the battery compartment.

3. Slide the battery cover back into place.

BATTERY NOTES

For optimum product performance:

• Do not mix old and new batteries, or batteries of
different types.

• Do not leave batteries in the remote control if you
don’t plan on using the device for more than 2
months.

(With Remote)

Instructions

Operating

BATTERY DISPOSAL

Ensure used batteries are disposed of properly.

TIPS FOR USING REMOTE CONTROL

The remote control must be used within 26 feet/

•
8 meters of the unit.

The unit will beep when it receives a signal from

•
the remote.

Curtains, other materials, and direct sunlight can

•
inter

fere with the IR signal receiver.

In order to properly transmit a command, the ON/

•
OFF indicator must be illuminated on the remote’s
display. (See the Remote LED Screen Indicators
section for more information.)

Page 21

Remote LED Screen Indicators

Transmission Indicator

Lights up when remote sends signal to unit

ON/OFF Indicator

Appears when the remote is enabled and can send a signal to the unit.
If you would like to turn the remote off without affecting the unit,
point the remote away from the unit and press the ON/OFF button.
To turn the remote on, point the remote away from the unit and press

MODE display

Displays the current
mode, including:

AUTO
COOL
DRY
HEAT
FAN

The unit will not receive commands from the remote if this indicator is
not illuminated.

TIMER ON display

Displays when
TIMER ON is set

TIMER OFF display

Displays when
TIMER OFF is set

Battery display

Low battery detection

SLEEP display

Displays when SLEEP
function is activated

COMFORTSENSE display

Indicates that the COMFORT
SENSE function is on

(With Remote)

Instructions

Operating

FAN SPEED display

Displays selected FAN SPEED:
HIGH
MED
LOW
This display is blank when

set to AUTO speed.

22 egaP

Temperature/Timer display

Displays the set temperature by default, or timer setting
when using TIMER ON/OFF functions:

-Temperature range 62°F - 86 °F (17 °C - 30 °C)

- Timer setting range: 0-24 hours

This display is blank when operating in FAN mode.

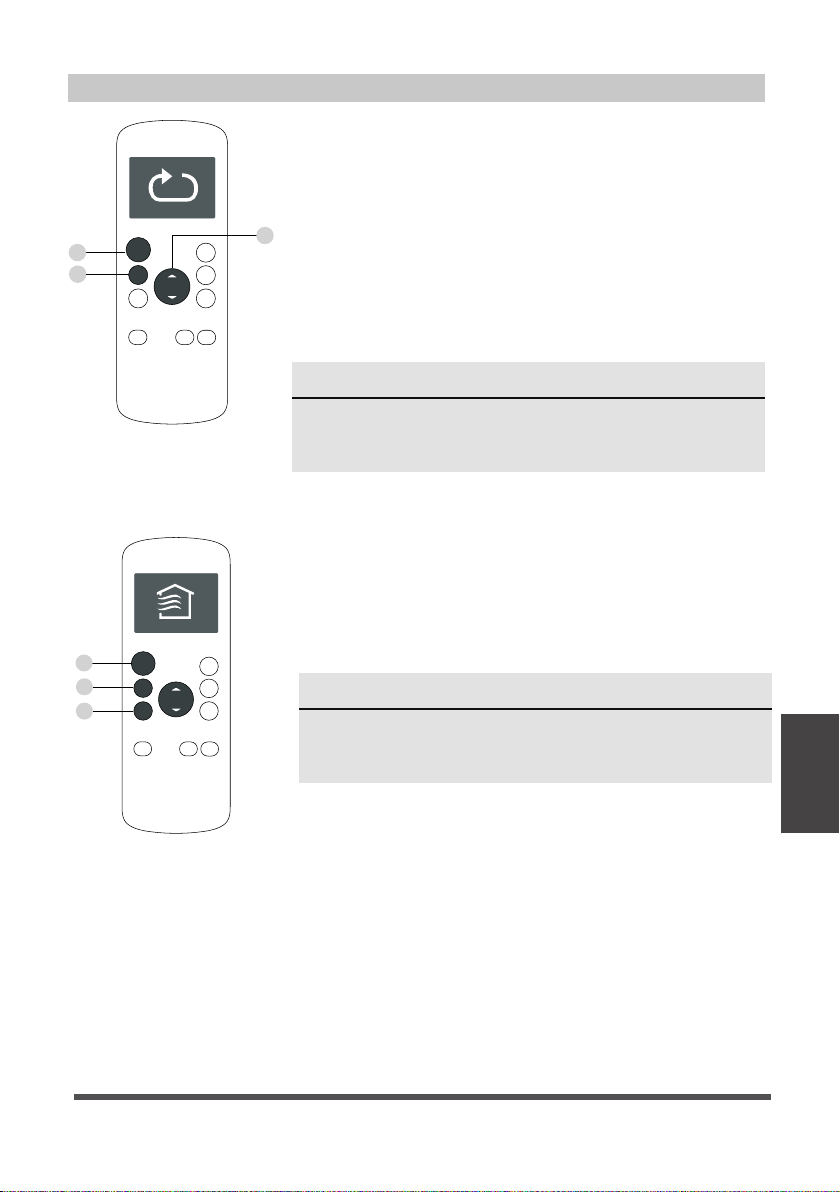

Basic Functions

ON /OF F

3

MODE

1

FAN

SLEEP

TE MP

C-SENSE

SHORT
CUT

TIMER
ON

TIMER
OFF

LED

SETTING THE DESIRED TEMPERATURE

1. The operating temperature range for this unit is 62°F-86°F
(17-30°C). You can increase or decrease the set temperature
in 1°F (1°C) increments by pressing the ↑ or ↓buttons.

2

CHANGING THE MODE

1. To change the operating mode, press the MODE button
until the desired mode appears on the remote’s display.

2. Set the desired temperature.

NOTICE

If the unit does not change when the button is pressed,
check that the ON/OFF indicator is illuminated. If it is not,
point the remote at the unit and press the ON/OFF button.

Changing the Fan Speed

1. To change the fan speed, press the FAN button until the
desired fan speed appears on the remote’s display.

ON /OF F

3

MODE

1

FAN

2

SLEEP

SHORT
CUT

TIMER
ON

TE MP

TIMER
OFF

C-SENSE

LED

NOTICE

If the unit does not change when the button is pressed,
check that the ON/OFF indicator is illuminated. If it is not,

(With Remote)

Instructions

Operating

point the remote at the unit and press the ON/OFF button.

Page 23

Timer Functions

ON/OFF

MODE

FAN

SHORT
CUT

TIMER ON

TIMER OF

F

TEMP

S

L
E

EP

ON/OFF

MODE

F

AN

SHORT
CUT

TIMER ON

TIMER OF

F

TEMP

S

LEEP

1

TIMER ON TIMER ON

3

1sec

2

x5

4

2sec

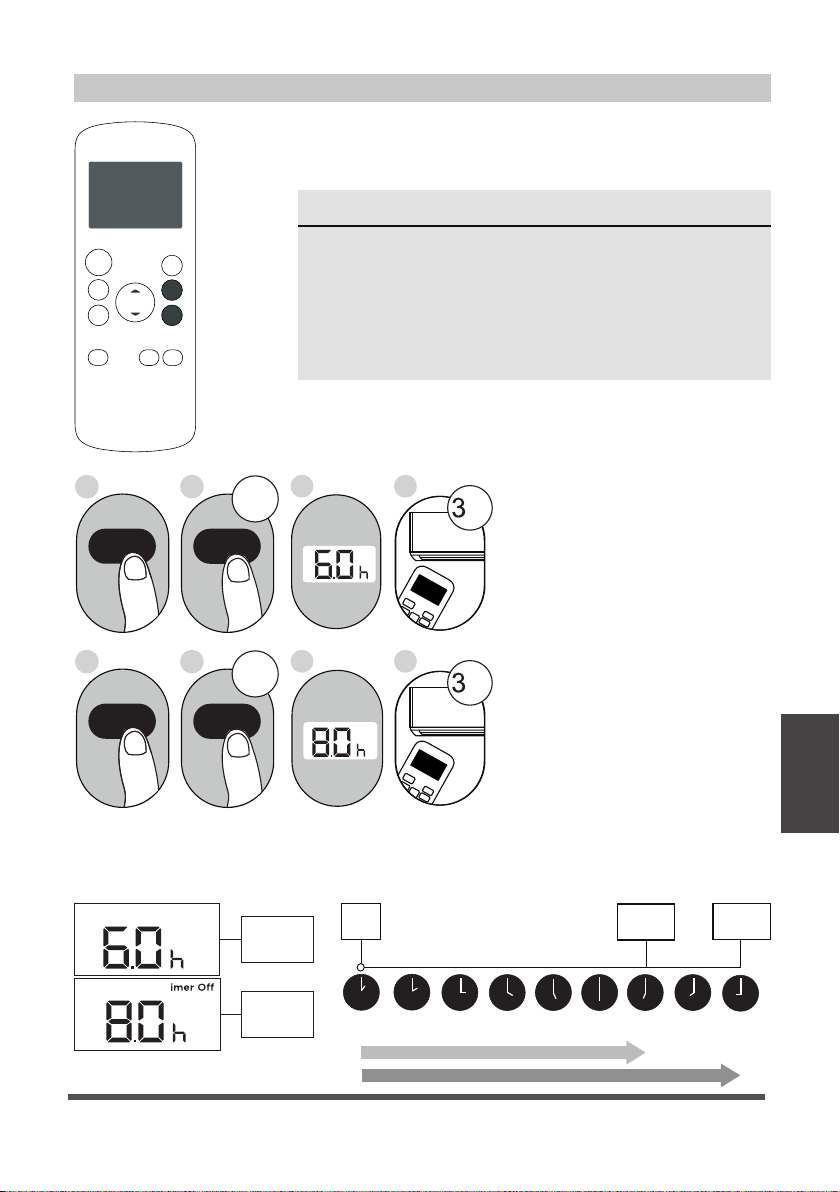

Example: Setting unit to
turn on after 2.5 hours.

Your air conditioning unit has two timer-related functions:

TIMER ON - sets the amount of time after which the unit
will automatically turn on.

TIMER OFF - sets the amount of time after which the unit
will automatically turn off.

TIMER ON function

The TIMER ON function allows you to set a period of time
after which the unit will automatically turn on, such as when
you come home from work.

1. Press the TIMER ON button. By default, the last time
period that you set and an “h” (indicating hours) will
appear on the display.

NOTICE

This number indicates the amount of time after the
current time after which you want the unit to turn on.

For example, if you set TIMER ON for 2 hours, “2.0h“
will appear on the screen, and the unit will turn on
after 2 hours.

2. Press the TIMER ON button repeatedly to set the time
that you want the unit to turn on.

3. Wait 2 seconds, then the TIMER ON function will be
activated. The digital display on your remote control will
then return to the temperature display.

Instructions

Operating

1

TIMER OFF TIMER OFF

(With Remote)

3

1sec

Example: Setting unit to
turn off after 5 hours.

Page 24

2

TIMER OFF function

x10

The TIMER OFF function allows you to set a period of time
after which the unit will automatically turn off, such as when
you wake up.

1. Press the TIMER OFF button. By default, the last time
period that you set and an “h” (indicating hours) will
appear on the display.

4

2sec

NOTICE

This number indicates the amount of time after the
current time after which you want the unit to turn off.

For example, if you set TIMER OFF for 2 hours, “2.0h“
will appear on the screen, and the unit will turn off
after 2 hours.

2. Press the TIMER OFF button repeatedly to set the time
that you want the unit to turn off.

Timer Functions (cont.)

3. Wait 2 seconds, then the TIMER OFF function will be

T im er on

ON /OF F

MODE

TE MP

FAN

C-SENSE

SLEEP

SHORT
CUT

TIMER
ON

TIMER
OFF

LED

Continue
to press

TIMER ON

or

TIMER OFF

until desired
time is
reached.

NOTE

activated. The digital display on your remote control will
then return to the temperature display.

When setting the TIMER ON or TIMER OFF functions,
up to 10 hours, the time will increase in 30 minute
increments with each press. After 10 hours and up to
24, it will increase in 1 hour increments. The timer will
revert to zero after 24 hours.

You can turn off either function by setting the timer to
“0.0h“.

1

TIMER ON

2

TIMER ON

X12

3

4

Setting both TIMER ON and
TIMER OFF at the same time

sec

Keep in mind that the time
periods you set for both
functions refer to hours after
the current time.
For example, say that the
current time is 1:00 PM, and
you want the unit to turn on
automatically at 7:00 PM and

sec

want it to operate for 2 hours,
then automatically turn off at
9:00 PM.

Do the following (side figure):

5

TIMER OFF

6

TIMER OFF

X16

ON/OFF

MODE

SHORT
CUT

TEMP

TIMER ON

7

8

ON/OFF

MODE

SHORT
CUT

TEMP

TIMER ON

Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off
(see the figure below)

Your remote display

Timer On

T

Timer is set
To turn ON
6 hours from
current time

Timer is set
To turn OFF
8 hours from
current time

Timer

Starts

Current

Time 1PM

2PM 3PM

4PM 5PM

6 hours later

8 hours later

Unit turns

ON

6PM 7PM 8PM 9PM

Unit turns

OFF

(With Remote)

Instructions

Operating

Page 25

(With Remote)

Instructions

Operating

Advanced Functions

SLEEP Function

The SLEEP function is used to decrease
energy use while you sleep (and don’t need
the same temperature settings to stay
comfortable).

Note:

The SLEEP function is not
available in FAN or DRY mode.

COMFORTSENSE Function

The COMFORTSENSE function
enables the emote control to measure the
temperature at its current location.
When using AUTO, COOL, or HEAT
functions, measuring ambient
temperature from the remote control
(instead of from the indoor unit it self)
will enable the air conditioner to
optimize the temperature around you
and ensure maximum comfort.

1. Press COMFORTSENSE button to activate
function. The remote control will send
temperature signal to the unit every
three minutes.

2. Press COMFORTSENSE button again to
turn off this function.

ON /OF F

MODE

FAN

SLEE P

TE M P

C-SENSE

SHOR T
CUT

TIME R
ON

TIME R
OFF

LED

SHORTCUT Function

Used to restore the current settings or resume
previous settings.

Push this button when remote controller is on,
the system will automatically revert back to the
previous settings including operating mode,
setting temperature, fan speed level and sleep
feature (if activated).

By pressing for more than 2 seconds, the
system will automatically store the current
operation settings including operating mode,
setting temperature, fan speed level and sleep
feature (if activated).

Page 26

Warranty

Air Conditioner Limited Warranty

Your product is protected by this Limited Warranty:

Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.

Warranty

• One year full warranty from original purchase date.

Midea, through its authorized servicers will:

• Pay all costs for re
workmanship.

Consumer will be responsible for:

• Diagnostics, removal, transportation and reinstallation cost required because of service.

• Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES OF THE CONSUMER**

Midea replacement parts shall be used and will be warranted only for the original warranty.

NORMAL RESPONSIBILITIES OF THE CONSUMER**

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Routine maintenance and cleaning necessary to keep the good working condition.

3. Proper installation by an authorized service professional in accordance with instructions provided with the

appliance and in accordance with all local plumbing, electrical and/or gas codes.

4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.

5. Expenses for making the appliance accessible for servicing.

6. Damages to finish after installation.

EXCLUSIONS

This warranty does not cover the following:

1) Failure caused by damage to the unit while in your possession (other than damage caused by defect or
malfunction), by its improper installation, or by unreasonable use of the unit, including without limitation, failure to
provide reasonable and necessary maintenance or to follow the written installation and Operating Instructions.

2) Damages caused by services performed by persons other than authorized Midea costumer service; or external
causes such as abuse, misuse, inadequate power supply or acts of God.

3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make
no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness
for use or purpose.

4) Products without original serial numbers or products that have serial numbers which have been altered or cannot
be readily determined.

NOTE: Some states do not allow the exclusions or limitation of incidental or consequential damages. So this
limitation or exclusion may not apply to you.

IF YOU NEED SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment Record.

The date on the bill establishes the warranty period, should service be required.

If service is performed, its your best interest to obtain and keep all receipts.

This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Service under this warranty must be obtained by following these steps, in order:

1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.

2) If there is a question as to where to obtain service, contact our consumer relations Department.

pairing or replacing parts of this appliance which prove to be defective in materials or

Warranty

Page 27

How to Stay Cool with a New Portable Air Conditioner

Because of a new federal test procedure for Portable Air Conditioners, you may
notice that the cooling capacity claims on portable air conditioner packaging are
significantly lower than that of models produced prior to 2017. This is due to
changes in the test procedure, not to the portable air conditioners themselves.

What should I look for first when purchasing a portable air conditioner?

The right air conditioner helps you cool a room efficiently. An undersized unit
won't cool adequately while one that's too large will not remove enough humidity,
leaving the air feeling damp. To find the proper air conditioner, determine the
square footage of the room you want to cool by multiplying the room length by
its width. You also need to know the air conditioner's BTU (British Thermal Unit)
rating, which indicates the amount of heat it can remove from a room. A higher
number means more cooling power for a larger room. (Be sure you are
comparing only newer models to each other- older models may appear to have
a higher capacity, but are actually the same). Be sure to “size up” if your portable
air conditioner will be placed in a very sunny room, in a kitchen, or in a room with
high ceilings. After you’ve found the right cooling capacity or your room, you can
look at other features.

Why is the cooling capacity lower on newer models than on older units?

Federal regulations require manufacturers to calculate cooling capacity based
on a specific test procedure. Models manufactured before 2017 were tested
under a different procedure and cooling capacity is measured differently than
in prior years’ models. So, while the BTUs may be lower, the actual cooling
capacity of the air conditioners has not changed.

What is SACC ?

SACC is the representative value of Seasonally Adjusted Cooling Capacity, in
Btu/h, as determined in accordance with the DOE test procedure at title 10
Code of Federal Regulations (CFR) 430, subpart B, appendix CC and applicable
sampling plans.
