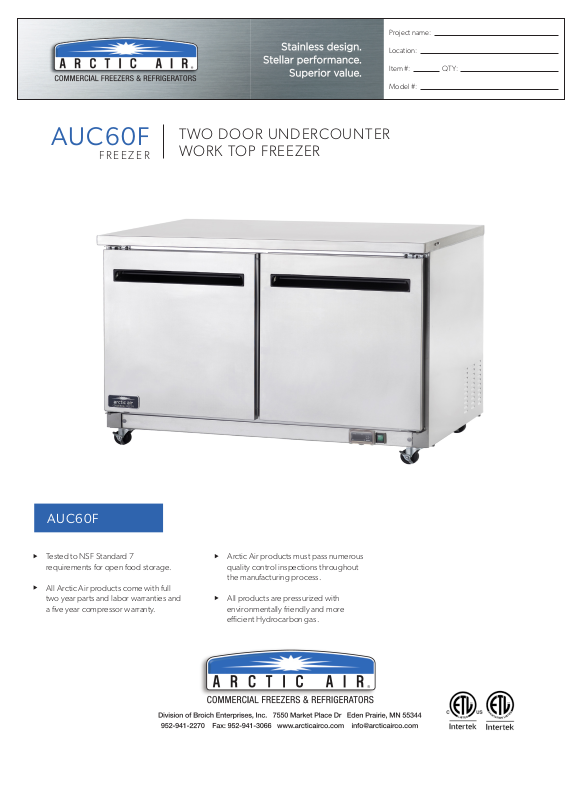

Arctic Air AUC60F Specifications

Project name:

Location:

Item #: QTY:

Model #:

AUC60F

FREEZER

TWO DOOR UNDERCOUNTER
WORK TOP FREEZER

Tested to NSF Standard 7

requirements for open food storage.

All Arctic Air products come with full

two year parts and labor warranties and
a five year compressor warranty.

Arctic Air products must pass numerous

quality control inspections throughout
the manufacturing process.

All products are pressurized with

environmentally friendly and more
efficient Hydrocarbon gas.

AUC60F

AUC60F

FREEZER

TWO DOOR UNDERCOUNTER
WORK TOP FREEZER

STAINLESS STEEL DESIGN • STELLAR PERFORMANCE • SUPERIOR VALUE

*Depth with door open 90 = 59.60”

**Height includes 3” for casters

Height with worktop panel removed = 34.125”

30.00

61.25

ARCTIC AIR
MODEL: AUC60F
TWO DOOR UNDERCOUNTER/
WORK TOP FREEZER

PLAN

29.60

35.625

35.625

61.25

30.00

30.00

61.25

ARCTIC AIR
MODEL: AUC60R
TWO DOOR UNDERCOUNTER/
WORK TOP REFRIGERATOR

ELEVATION

PLAN

SIDE

3.25

29.60

29.60

35.625

30.00

ARCTIC AIR
MODEL: AUC60R
TWO DOOR UNDERCOUNTER/
WORK TOP REFRIGERATOR

SIDE

29.60

29.60

Solid door construction with
foamed-in-place recessed
handle.

Magnetic door gaskets are
removable and replaceable
without tools.

Interior cabinet is bright
white ABS liner with full
stainless steel floor with
coved corners.

Exterior cabinet construction
consists of full stainless steel
front and sides.

Larger fan motors and
blades for more efficient
air flow ensuring faster
recovery times.

Efficient condensate hot gas
loop built into condensate pan
for energy saving evaporation of
excess condensate water.

Self contained capillary
tube system using environmentally
friendly R290 Hydrocarbon gas.

Electronic thermostat with
external digital LED display for
accurate control and easy reading.

Two adjustable, heavy-duty
epoxy coated wire shelves.

All units come standard with
heavy- duty worktop surface.

Vaulted self closing doors that
remain open at 90 degrees.
Easy to mount plate casters
(two lockable) are standard
with all units.

Tested to NSF Standard 7
requirements for open food
storage.

All Arctic Air products come
with full two year parts and
labor warranties and a five year
compressor warranty.

Model

Number

AUC60F 2 2 15.5 8’ 1/2 5 R290 5-15P 315Llbs-10 F to +10 F

Doors Shelves

Cubic

Feet

Temperature

Range

Cord

Length

HP AMPS REF

NEMA

Plug

Crate

Weight

External Dimensions

Width Depth* Height**

61.25” 30” 35.625”
