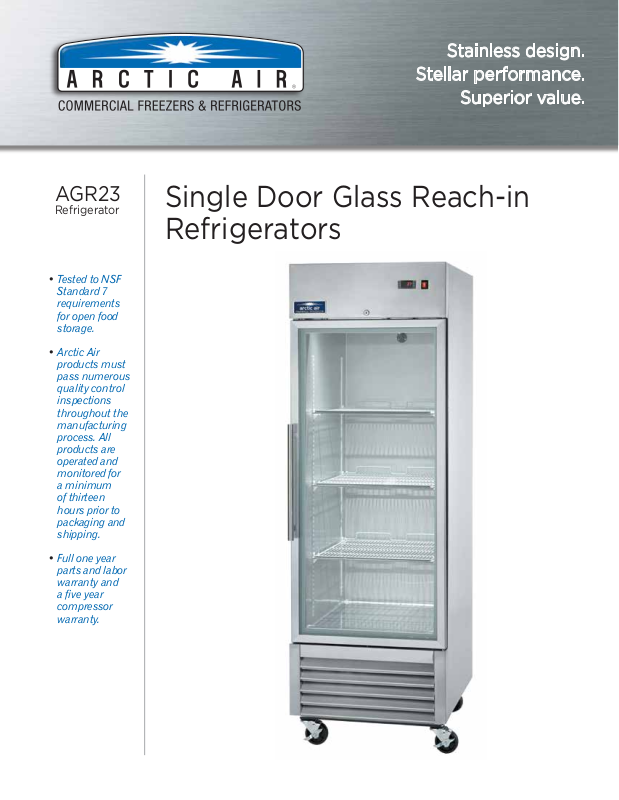

Arctic Air AGR23 Specifications
Stainless design.
Stellar performance.
Superior value.
AGR23
Refrigerator
• Tested to NSF
Standard 7
requirements
for open food
storage.
• Arctic Air
products must
pass numerous
quality control
inspections
throughout the
manufacturing
process. All
products are
operated and
monitored for
a minimum
of thirteen
hours prior to
packaging and
shipping.
Single Door Glass Reach-in
Refrigerators
• Full one year
parts and labor
warranty and
a five year
compressor
warranty.
Single Door Glass Reach-in
Refrigerators
Stainless design • Stellar performance • Superior value.
• Electronic thermostat with
external digital LED display
for accurate control and easy
reading.
• Interior cabinet is bright
stainless liner with full
stainless steel floor with
coved corners.
• Three adjustable, heavy-duty
epoxy coated wire shelves.
• Self-contained capillary tube
system using environmentally
friendly CFC free refrigerant.
• Exterior cabinet construction
consists of full stainless steel
front and sides.
• Condensate heating element
built into condensate pan
for efficient evaporation of
excess water.
• Bottom mounted compressor
for more efficient operation in
coolest area of the kitchen.
• Self-closing lockable door.
• Magnetic door gasket is
removable and replaceable
without tools.
• Larger fan motors and blades
for more efficient air flow
ensuring faster recovery times.
• Front accessible, bottom
mounted condensing unit is
mounted on slide out rack
for easy maintenance.
• Easy to mount casters
(two lockable) are standard
with all units.
Tested to NSF Standard 7
•
requirements for open food
storage.
•
Full one year parts and labor
warranty and a five year
compressor warranty.
Model External Dimensions Doors Shelves Cubic Temperature Cord HP Amps NEMA Crated
Number Width Depth* Height** Feet Range Length Plug Weight (lbs.)
AGR23 27.09 31.259 83.259 1 3 23 337F to 417F 8* 1/3 6 5-15P 330
*Depth with door open 907 — AGR23 = 56.759. Handles add 2.259 to depth. **Height includes 59 for casters.
Optional Shelf Kit (#65333K)
Each kit contains one shelf and
four mounting clips.
Division of Broich Enterprises, Inc. 7550 Market Place Drive Eden Prairie, MN 55344
952-941-2270 Fax: 952-941-3066 www.arcticairco.com info@arcticairco.com
