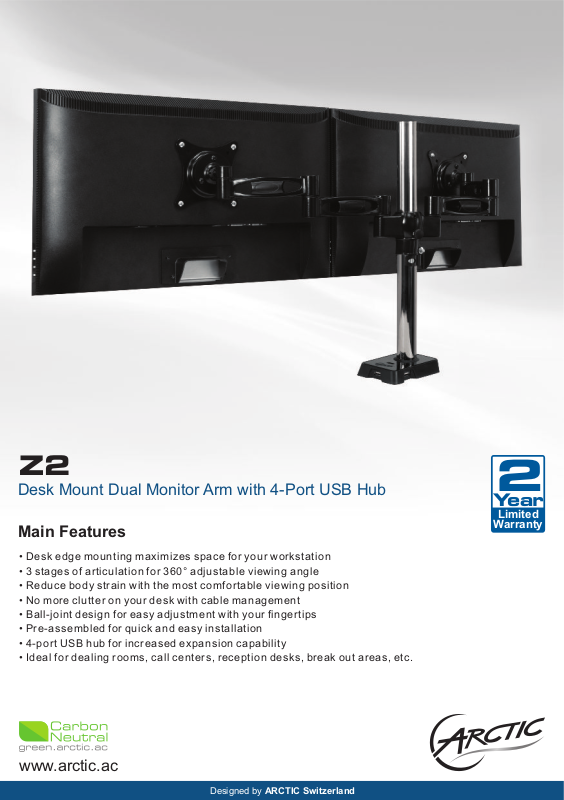

Arctic Z2 User Manual [de]

Z2

Desk Mount Dual Monitor Arm with 4-Port USB Hub

Main Features

• Desk edge mounting maximizes space for your workstation

• 3 stages of articulation for 360° adjustable viewing angle

• Reduce body strain with the most comfortable viewing position

• No more clutter on your desk with cable management

• Ball-joint design for easy adjustment with your fingertips

• Pre-assembled for quick and easy installation

• 4-port USB hub for increased expansion capability

• Ideal for dealing rooms, call centers, reception desks, break out areas, etc.

www.arctic.ac

Designed by ARCTIC Switzerland

2

Year

Limited

Warranty

Z2

Desk Mount Dual Monitor Arm with 4-Port USB Hub

Z2 is desi gned to offer ample fle xibilit y to your
moni tors in t he office. You can adjus t the hei ght, til t,
swiv el and ro tate you r monitors to the optimal vi ewing
angl e, allo wing long hours of comf ort while you can
easi ly share them w ith your co lleagues.
In addi tion t o the 4-por t USB hub at tached to the
bott om for inc reased exter nal exp ansion capab ility,
th e pro fes sional- loo kin g Z2 is und oubt edl y you r
ulti mate solut ion to increase y our work space an d
redu ce clutter on y our desk.

Specifications

Arm

Material
Number of Mountable Monitors
Screen Size
Maximum Monitor Weight
VESA Standard
Rotation
Swivel
Tilt
Distance to the Pole
Max Table Thickness
Weight

USB Hub

Type
Compatibility

Cable Length

Aluminum Alloy ADC12
2
13”- 32”
10 kg / 22 Ibs per mount
75/100
360°
180°
+/-15°
11 - 41 cm
60 mm

3.2 kg

4 ports USB 2.0
Windows 10 , 8.1 , 7 , Vista , XP
Mac OS X
Linux
2 m

Package Contents

Pole x 1 / Mounting Arm with Lockable Screw x 1 / Clamp x 1 / USB Hub x 1 /
Pole Clamp x 1 / Hex Key x 2 / Rubber Pad x 1 / Spacer x 8 / Cable Clip x 1 /
Screw x 35 / Welcome Guide x 1

4-Port USB Hub for
Extension
Connection

Adjustment

Desk Edge
Mounting

Cable Management360° Flexible

www.arctic.ac

Designed by ARCTIC Switzerland

160216_r10_EN
