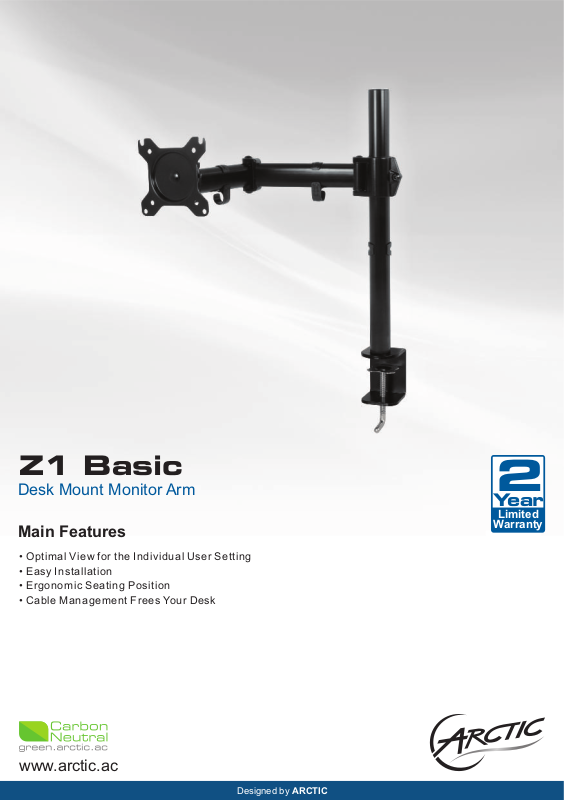

Arctic Z1 Basic User Manual

Z1 Basic

Desk Mount Monitor Arm

Main Features

• Optimal View for the Individual User Setting

• Easy Installation

• Ergonomic Seating Position

• Cable Management Frees Your Desk

www.arctic.ac

Designed by ARCTIC

2

Year

Limited

Warranty

Z1 Basic

Desk Mount Monitor Arm

The Z1 B asic moni tor arm pro vides you a new se nse
of work at your scre en. Tha nks t o the ea sy in stallat ion
and the cable manageme nt you will win a lot of space
on your ta ble. Concu rrent your ergo nomic seat ing
po s i t i o n is i m p r ov e d th ro u g h ideal a l i g nm e n t
acco rding to you r indiv idual eye le vel. A must-hav e for
ever y desk!

Specifications

Material
Number of Mountable Monitors
Screen Size
Maximum Monitor Weight
VESA Standard
Rotation
Swivel
Tilt
Distance to the Pole
Max Table Thickness
Weight

Package Contents

Pole x 1 / Mounting Arm x 1 / Clamp x 1 / Hex Key x 2 / Cable Hook x 2 /

Rubber Pad x 1 / Spacer x 4 / Cable Clip x 1 / Screw x 19 / Manual x 1

Steel
1
13”- 32”
8 kg/17.6 Ibs per mount
75/100
360°
180°
+/-15°
19-40 cm
60 mm

2.1 kg

The VESA 100/75 compliant mounting
accommodates most flat panel displays

Desk Edge Mounting Cable Management

www.arctic.ac

Designed by ARCTIC

Increased flexibility with
360° rotation, 180° swivel
and 45° tilt

Cable management
for a tangle-free
workspace
