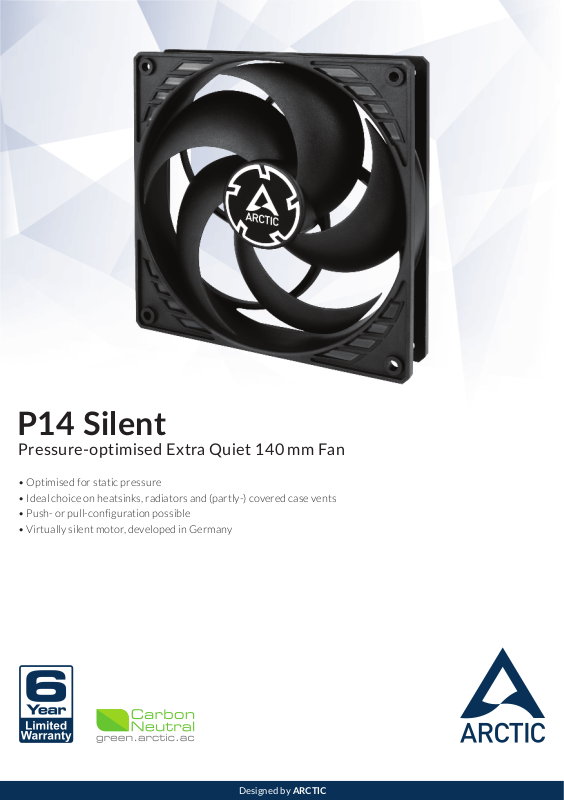

P14 Silent
Pressure-optimised Extra Quiet 140 mm Fan
• Optimised for static pressure
• Ideal choice on heatsinks, radiators and (partly-) covered case vents
• Push- or pull-configuration possible
• Virtually silent motor, developed in Germany
Designed by ARCTIC
P14 Silent
Pressure-optimised Extra Quiet 140 mm Fan
The P14 Silent fan features completely redesigned fan blades
and is optimised for high static pressure.
Thus, the P14 Silent is especially effective when used on
heatsinks and with higher air resistance.
The motor of the fan was developed in Germany and is
virtually silent.
Specifications
Fan
Airflo w
Noise Leve l
Voltage /Curr ent
Dimens ions
140 mm, 95 0 RPM
29.8 CFM /50.66 m³/h (@ 950 RPM)
0.6 mm H2O (@ 950 RPM)Static P ressure
Fluid Dy namic Bearin gBearin g
0.08 Son e (@ 950 RPM)
0.05 A /12 V DC
3-pin Co nnectorConnec tor
140 (L) x 14 0 (W) x 27 (H) mm
191 gWeight
Optimised for Static Pressure
During the development of the new P14 Silent, special
emphasis was placed on a focused airstream and thus a high
static pressure.
The fan guarantees extremely efficient cooling, even with
increased air resistance.
Therefore, the P14 Silent is particularly suitable for use on
heatsinks and radiators.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is
achieved.
As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Virtually silent motor
At low fan speed, the motor is the main source of unwanted
noise. A motor developed in Germany with an enhanced
bearing reduces friction and noise.
Impeller
Teflon Plate
Steel Shaft
Precision Bearing
Lubricant Capsule
Lubricant
Designed by ARCTIC
180917_r1_EN
