P14 PWM PST CO

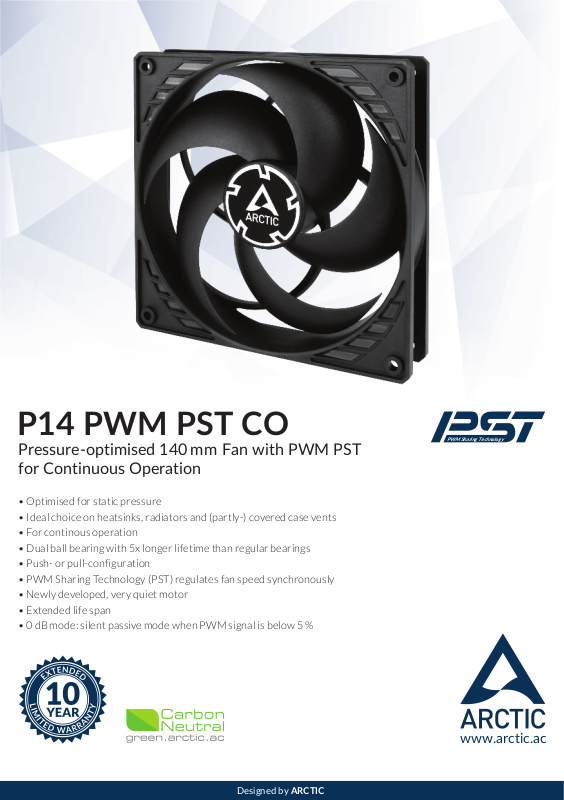

Pressure-optimised 140 mm Fan with PWM PST
for Continuous Operation
• Optimised for static pressure
• Ideal choice on heatsinks, radiators and (partly-) covered case vents
• For continous operation
• Dual ball bearing with 5x longer lifetime than regular bearings
• Push- or pull-configuration
• PWM Sharing Technology (PST) regulates fan speed synchronously
• Newly developed, very quiet motor
• Extended life span
• 0 dB mode: silent passive mode when PWM signal is below 5 %
Designed by ARCTIC
PWM Sharing Technology
www.arctic.ac
Page 2
P14 PWM PST CO
Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation
The P14 PWM PST CO is a fan with PWM PST
140 mm
connectors.
It features completely redesigned fan blades and is optimised
for high static pressure.
Thanks to this, it is especially effective when used on heatsinks
and in situations with higher air resistance.
With its japanese dual ball bearing, the P14 PWM PST CO is
optimised for continous operation.
The wide RPM range from 200 to 1 700 RPM can be regulated
seamlessly and synchronously with other fans thanks to
ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature
significantly increases the life span of the fan.
Therefore we have extended the warranty to 10 years.
Specifications
Fan
Airflo w
Static P ressure
Bearin g
Noise Leve l
Voltage /Cur rent
Connec tor
Dimens ions
Weight
140 mm, 20 0–1700 RPM (Cont rolled by PWM) ,
0 dB fan mod e below 5 % PWM
72.8 CFM /123.7 6 m³/h (@ 1700 RPM)
2.4 mm H2O (@ 1700 RPM )
Dual Bal l Bearing
0.3 Sone (@ 1700 RPM)
0.12 A /12 V DC
4-pin Co nnector + 4-pi n Socket
140 (L) x 14 0 (W) x 27 (H) mm
194 g
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely
noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the
commutator oscillations of a regular DC-motor.
Consequently, there is no need for rubber spacers due to the steady and smooth
torque of the new motor.
Fan with newly developed
ARCTIC motor
Fan with regular motor and
anti-vibration-rubbers
Fan with regular motor
without vibration absorption
vibration from
5 %
commutation
50 %
commutation
Noise Level
vibration from
Designed by ARCTIC
100%
vibration from
commutation
180208_r6_EN
Page 3
P14 PWM PST CO
Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation
Optimised for Static Pressure
During the development of the new P14 PWM PST CO,
special emphasis was placed on a focused airstream and thus
a high static pressure.
The fan guarantees extremely efficient cooling, even with
increased air resistance.
Therefore, the P14 PWM PST CO is particularly suitable for
use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet
ring of the newest generation, which allows the new P14
PWM PST CO to run much more efficiently than its
predecessors.
This saves energy and lowers the coil temperature without
comprimising the performance.
P14
PWM PST CO
F14
PWM PST CO
.44 W @ 1700 RPM
1
Power Consumption
.6 W @ 1350 RPM
3
For Continous Operation
The premium quality Japanese dual ball bearing allows
continuous operation 24/7 without the slightest
compromise in performance.
Dust and high temperature are affecting this bearing a lot
less than generic sleeve or one ball bearings and thus make it
the perfect choice when reliability is essential.
Impeller
Steel shaft High precision Japan made
ball bearing & lubricant
Extended Life Span
A 10 °C lower motor temperature roughly
doubles the life span of a fan.
The new ARCTIC motor has a four times longer
service life through its low coil temperature.
Consequently, we have extended the warranty
to 10 years.
P14 PWM PST CO
(New ARCTIC Motor)
No-Name 140 mm Fan
(Typical DC-Motor)
35.3 °C
Coil Temperature @ 22 °C
Ambient Temperature
54.5 °C
200 to 1700 RPM regulated via PWM PST
With a wide range of regulation and the PWM Sharing
Technology (PST), the P14 PWM PST CO fan speed can be
controlled synchronously with all your other fans together.
This keeps noise at a minimum while guaranteeing maximum
cooling performance when needed.
Designed by ARCTIC
0 dB Mode
The P14 PWM PST CO is able to switch into silent passive
mode when PWM signal is below 5 % due to its new motor.
This allows working at your PC in complete silence without
any unwanted noise.
> 5 % PWM< 5 % PWM
