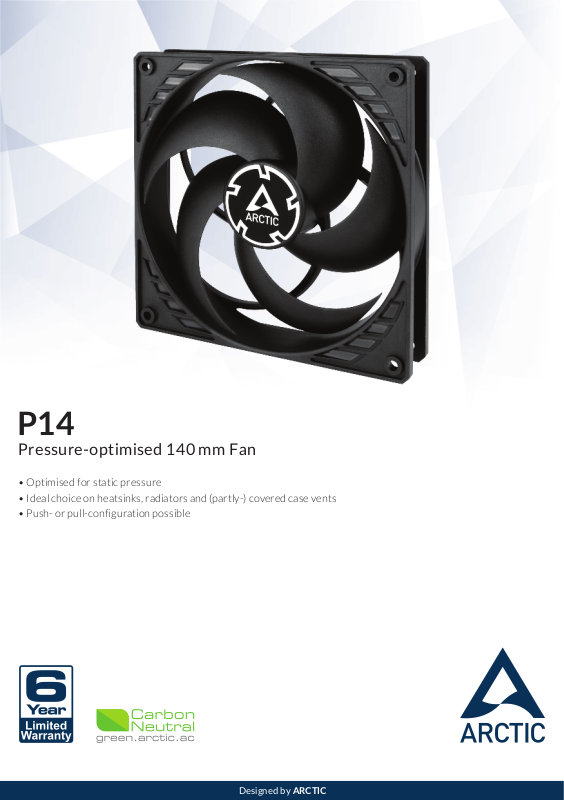

Arctic P14 User Manual

P14

Pressure-optimised 140 mm Fan

• Optimised for static pressure

• Ideal choice on heatsinks, radiators and (partly-) covered case vents

• Push- or pull-configuration possible

Designed by ARCTIC

P14

Pressure-optimised 140 mm Fan

The P14 fan features completely redesigned fan blades and
is optimised for high static pressure.
Thus, the P14 is especially effective when used on heatsinks
and with higher air resistance.

Specifications

Fan
Airflo w

Noise Leve l
Voltage /Cur rent

Dimens ions

Optimised for Static Pressure

During the development of the new P14, special emphasis was placed on a
focused airstream and thus a high static pressure.
The fan guarantees extremely efficient cooling, even with increased air resistance.
Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

120 mm, 1 700 RPM

72.8 CFM /123.76 m³/h (@ 1700 RP M)

2.4 mm H2O (@ 170 0R PM)Static P ressure
Fluid Dy namic Bearin gBearin g

0.3 Sone (@ 1700 RPM)

0.15 A /12 V DC
3-pin Co nnectorConnec tor
140 (L) x 14 0 (W) x 27 (H) mm
191 gWeight

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction
within the bearing is reduced and greater efficiency is achieved.
As a result, there is less heat development as well as less bearing noise,
which means you can enjoy a longer service life from your fan.

Impeller

Teflon Plate

Steel Shaft

Precision Bearing

Lubricant Capsule
Lubricant

Designed by ARCTIC

180917_r1_EN
