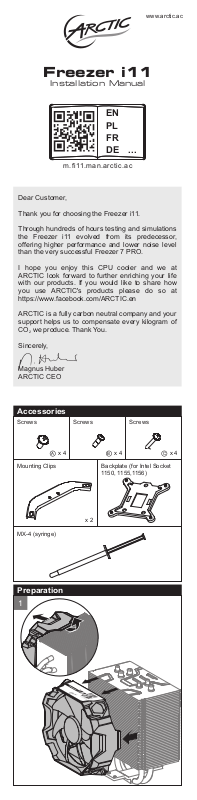

Freezer i11
Installation Manual
EN
PL
FR
DE ...
m.fi11.m an .a rc ti c. ac
Dear Customer,
Thank you for choosing the Freezer i11.
Through hundreds of hours testing and simulations
the Freezer i11 evolved from its predecessor,
offering higher performance and lower noise level
than the very successful Freezer 7 PRO.
I hope you enjoy this CPU cooler and we at
ARCTIC look forward to further enriching your life
with our products. If you would like to share how
you use ARCTIC's products please do so at
https://www.facebook.com/ARCTIC.en
ARCTIC is a fully carbon neutral company and your
support helps us to compensate every kilogram of
CO we produce. Thank You.
2
Sincerely,
Magnus Huber
ARCTIC CEO
Accessories
Screws Screws Screws
B
x 4 x 4
Backplate (for Intel Socket
1150, 1155,1156)
x 2
Mounting Clips
MX-4 (syringe)
A
x 4
Preparation
1
C
1
1
m.fi11.man.arctic.ac
Page 2
2
CPU Fan
CPU Fan
socket on
socket on
motherboard
motherboard
3
Remove the residue paste by
Remove the residue paste by
paper tissue carefully.
paper tissue carefully.
Stock CoolerStock Cooler
4
Screws
5
MX-4
(syringe)
Page 3

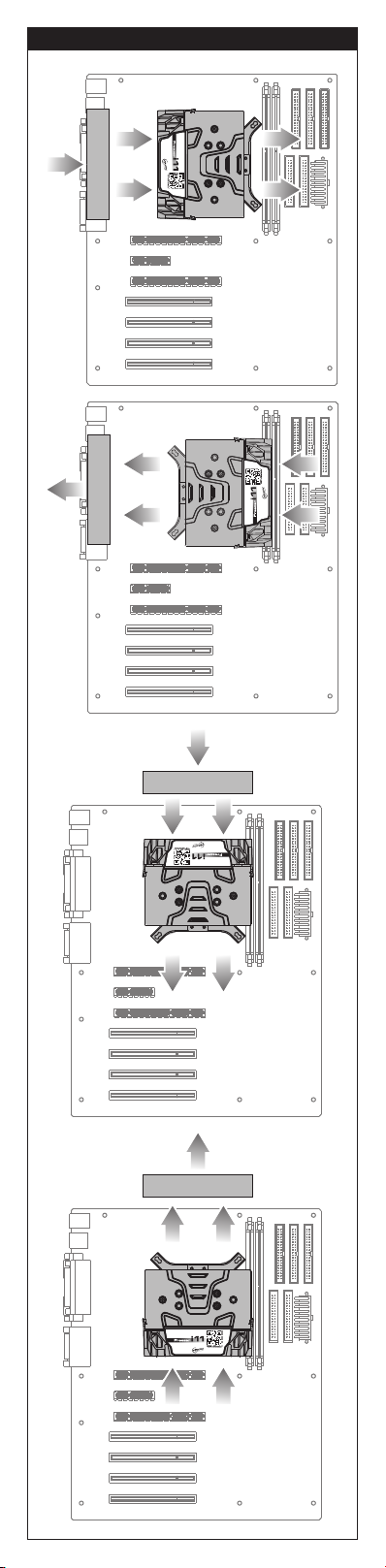

Cooler Orientation
PC Case Fan
PC Case Fan
PC Case Fan
PC Case Fan
Page 4
Installation for Intel Socket 2011
1
Socket 2011Socket 2011
A B C D
25% Increments
2
ScrewsScrews
BB
CPU Fan
CPU Fan
socket on
socket on
motherboard
motherboard
Page 5
Installation for
Intel Socket 1150, 1155, 1156
1
Flip
2
Page 6
3
Socket 1150,
Socket 1150,
1155, 1156
1155, 1156
A B C D
25% Increments
4
ScrewsScrews
C
CPU Fan
CPU Fan
socket on
socket on
motherboard
motherboard
Thermal Compound
If the cooler has to be installed a second time, we highly
recommend using the MX-4 thermal compound from ARCTIC.
Only this compound guarantees optimal performance in
combination with the surface of our heatsinks.
Warranty
This ARCTIC product includes a six-year limited warranty. For
further information, please consult warranty.arctic.ac
Like us on facebook
www.facebook.com/ARCTIC.en
© 2013 ARCTIC Switzerland AG. All Rights Reserved.
