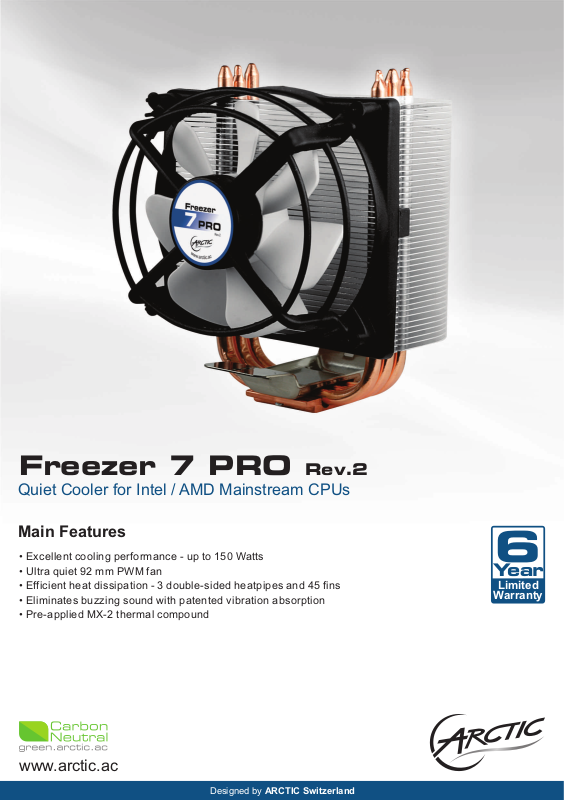

Arctic Freezer 7 Pro User Manual

Freezer 7 PRO Rev.2

Quiet Cooler for Intel / AMD Mainstream CPUs

Main Features

• Excellent cooling performance - up to 150 Watts

• Ultra quiet 92 mm PWM fan

• Efficient heat dissipation - 3 double-sided heatpipes and 45 fins

• Eliminates buzzing sound with patented vibration absorption

• Pre-applied MX-2 thermal compound

www.arctic.ac

Designed by ARCTIC Switzerland

6

Year

Limited

Warranty

Freezer 7 PRO Rev.2

Quiet Cooler for Intel / AMD Mainstream CPUs

The Freezer 7 PRO Rev.2 is th e upgraded version
of the renowned Freezer 7 PRO. With a flexible
mounting system, it is compatibl e with almost all
mai n s tream pro c e ssors fro m In t el and AM D .
Equipped with a n ultra qu iet 92 m m fan and 6
hea t p ipes, the Fre e zer 7 P RO R ev.2 works
perfect ly in enhancing cooling performance and
reducing noise level significantly.

Specifications

Max. Cooling Capacity

Heatpipe

Heatsink Material

Fan

Bearing

Noise Level

Current / Voltage

Dimensions
Net Weight

Patents

150 Watts

Ø 6 mm x 3 (Double-Sided)

Aluminum Fins x 45, Thickness: 0.4 mm

92 mm, 900 - 2,200 RPM (Controlled by PWM)

Fluid Dynamic Bearing

0.5 Sone

0.25 A / +12 V DC

108 (L) x 9696 (W) x 127 (H) mm

477 g

DE 20307981, DE 202005011514
US 7101149, CN 200610106209

Cooling Performance & Noise Level on Intel Core i5-4670K (Overclocked)

Freezer 7 PRO
(2,200 RPM)

Boxed cooler
(3,000 RPM)

Better

Compatibility

Intel Socket

1366, 1156, 1155, 775

AMD Socket

FM2, FM1, AM3+, AM3, AM2+, AM2, 2600, 939, 754

Fluid Dynamic Bearing

Steel Shaft

Especially Hardened
Plate for Low Friction

0.5 Son e

43.4 ° C

54°C

2.0 Son e

Impeller

High Precision
Bearing & Lubricant

www.arctic.ac

Designed by ARCTIC Switzerland

160309_r7_EN
