Arctic F9 Pro TC User Manual

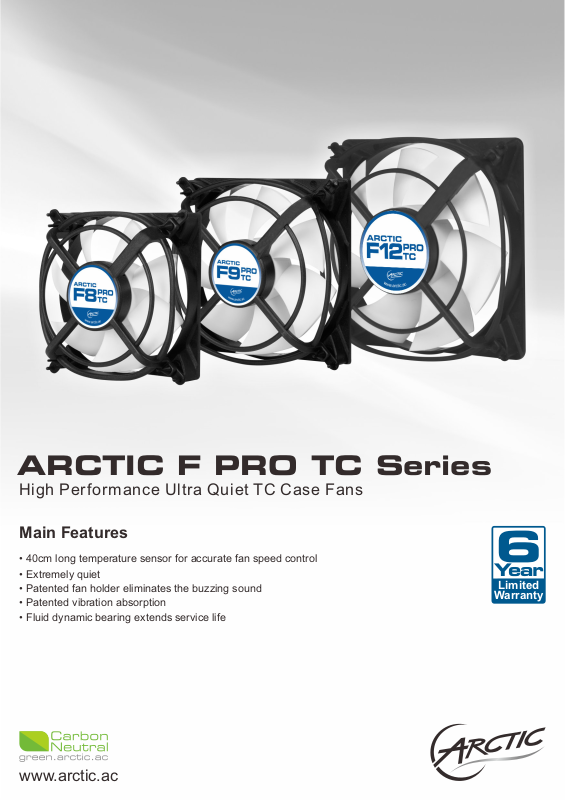

ARCTIC F PRO TC Series
High Performance Ultra Quiet TC Case Fans
Main Features
• 40cm long temperature sensor for accurate fan speed control
• Extremely quiet
• Patented fan holder eliminates the buzzing sound
• Patented vibration absorption
• Fluid dynamic bearing extends service life
www.arctic.ac
6
Year
Limited
Warranty
ARCTIC F PRO TC Series
High Performance Ultra Quiet TC Case Fans
The case fans deliver
ARCTI C F PR O TC Serie s
efficien t case cooling with automatic fan speed control
us ing th e tem p eratur e sens o r. Th e fan speed is
autom atic ally adj uste d accord ing to the surro undi ng
tempe ratu re – the hotter the area, the higher the fa n
speed a nd vice vers a. The 4 0 cm lon g te mper atur e
senso r allows yo u to place it at the critical spo t wit hin
the PC cas e to ensu re reliable and acc urat e fan spe ed
contr ol. The are available in
80mm, 9 2mm an d 120m m to cat er you r cool ing ne eds.
Specifications:
ARCTIC F8 TCPRO
Dimensions
Fan
Airflow
Bearing
Current / Voltage
Noise Level
Weight
ARCTI C F PRO T C Series
80 (L) x 80 (W) x 34 (H) mm
80mm, 500 - 2,000 RPM
33 CFM / 56.1 m /h
Fluid Dynamic Bearing
0.16A / 12V
0.3 Sone
72g
3
ARCTIC F9 PRO TC
Dimensions
Fan
Airflow
Bearing
Current / Voltage
Noise Level
Weight
92 (L) x 92 (W) x 34 (H) mm
92mm, 500 - 1,800 RPM
43 CFM / 73.1 m /h
Fluid Dynamic Bearing
0.16A / 12V
0.4 Sone
84g
3
ARCTIC F12 PRO TC
Dimensions
Fan
Airflow
Bearing
Current / Voltage
Noise Level
Weight
Patents
DE 20307981, DE 202005011514, DE 202006015577, US 7101149,
CN 200610106209
Noise Level and Cooling Performance
The programmed temperature controller is equipped with a high quality Japanese
sensor. It detects the case temperature accurately and guarantees lowest noise
level and sufficient cooling at the same time.
2000
RPM
500
0
* Performance is based on ARCTIC F9 PRO TC
Elimination
Case Temperature ( C)
120 (L) x 120 (W) x 38.5 (H) mm
120mm, 400 - 1,300 RPM
51 CFM / 86.6 m /h
Fluid Dynamic Bearing
0.20A / 12V
0.5 Sone
140g
Noise
32
380
o
3
ARCTIC F PRO TC fan*
Generic TC fan
Case temperature
should always be kept between 30 C to 40 C
Ambient temperature : 24oC
o o
www.arctic.ac
Airflow Directions
40 cm Temperature Sensor Cable
Fluid Dynamic Bearing
Steel Shaft
Especially Hardened
Plate for Low Friction
High Precision
Bearing & Lubricant
Impeller
