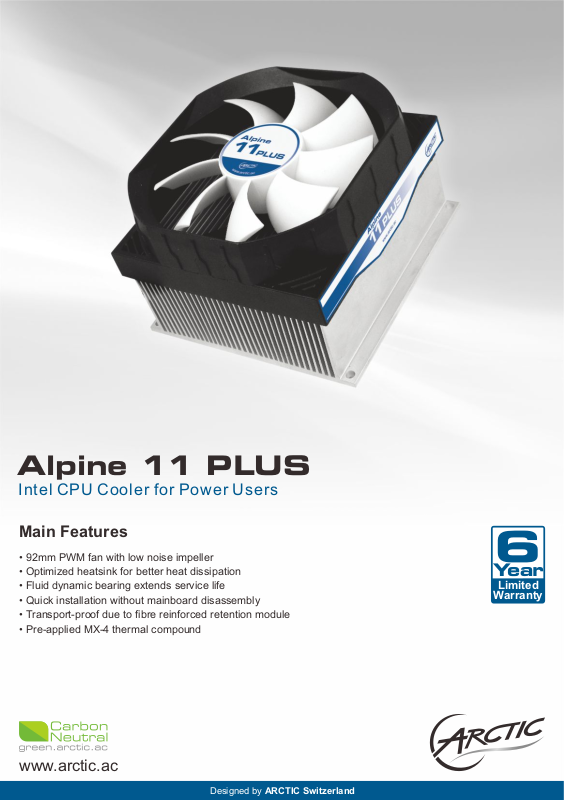

Arctic Alpine 11 Plus User Manual

Alpine 11 PLUS

Intel CPU Cooler for Power Users

Main Features

• 92mm PWM fan with low noise impeller

• Optimized heatsink for better heat dissipation

• Fluid dynamic bearing extends service life

• Quick installation without mainboard disassembly

• Transport-proof due to fibre reinforced retention module

• Pre-applied MX-4 thermal compound

www.arctic.ac

Designed by ARCTIC Switzerland

6

Year

Limited

Warranty

Alpine 11 PLUS

Intel CPU Cooler for Power Users

Alpin e 11 PLUS is especially d esigned for users who
are not satisfied with their noisy stock coole rs.
Providing a coolin g capacity of up to 100 Watts, the
CPU cooler i s compati ble with Intel S ocket LGA 1150,
1156, 1155 and 775. Offering efficient cooling for your
CPU in virtu al si lence, Alpine 11 PLUS is also quick
and easy to install with push pins.

Specifications

Max. Cooling Cap acity

Fan

Bearing

Noise Level

Current / Voltage

Dimensions

Net Wei ght

Compatibilit y

Please visit a11p.arctic.ac for the latest updates.

Cooling Performance on Intel Core i7-4770K

Alpine 11 PLUS (at 2,000 RPM)

Boxed Cooler (at 3,000 RPM)

Better

Ambient temperature: 25 °C I * Heat spreader temperature

100 Watt s

92 mm, 600 – 2,000 RPM ( Control led by PWM)

Fluid Dynamic Be aring

0.4 Sone

0.24A / +12 V

98 (L) x 95 (W) x 70 (H) mm

450 g

Intel Socket LGA 1150 (Haswell), 1156, 1155, 775

45.3 °C*

49.3 °C*

Noise Level on Intel Core i7-4770K

Alpine 11 PLUS (at 2,000 RPM)

Boxed Cooler (at 3,000 RPM)

Better

Virtually Silent Fan

0.4 Sone

www.arctic.ac

2 Sone

Pre-applied MX-4Easy Installation

Designed by ARCTIC Switzerland

141210_r3_EN
