Arctic Alpine 11 GT Rev.2 User guide
Alpine 11 GT Rev.2
Installation Manual
Installation Manual: www.arctic.ac/fileadmin/alpine11gtrev2/manual_en.pdf
Montageanleitung: www.arctic.ac/fileadmin/alpine11gtrev2/manual_de.pdf
Guide d’installation: www.arctic.ac/fileadmin/alpine11gtrev2/manual_fr.pdf
Manual de instalación: www.arctic.ac/fileadmin/alpine11gtrev2/manual_es.pdf
Manual de Instalação: www.arctic.ac/fileadmin/alpine11gtrev2/manual_pt.pdf
Installationsmanual: www.arctic.ac/fileadmin/alpine11gtrev2/manual_se.pdf
Instalační příručka: www.arctic.ac/fileadmin/alpine11gtrev2/manual_cz.pdf
Telepítési kézikönyv: www.arctic.ac/fileadmin/alpine11gtrev2/manual_hu.pdf
Instrukcja montażu: www.arctic.ac/fileadmin/alpine11gtrev2/manual_pl.pdf
Installatiehandleiding: www.arctic.ac/fileadmin/alpine11gtrev2/manual_nl.pdf
RU
Руководство пользователя: www.arctic.ac/fileadmin/alpine11gtrev2/manual_ru.pdf
IT
Manuale di installazione: www.arctic.ac/fileadmin/alpine11gtrev2/manual_it.pdf

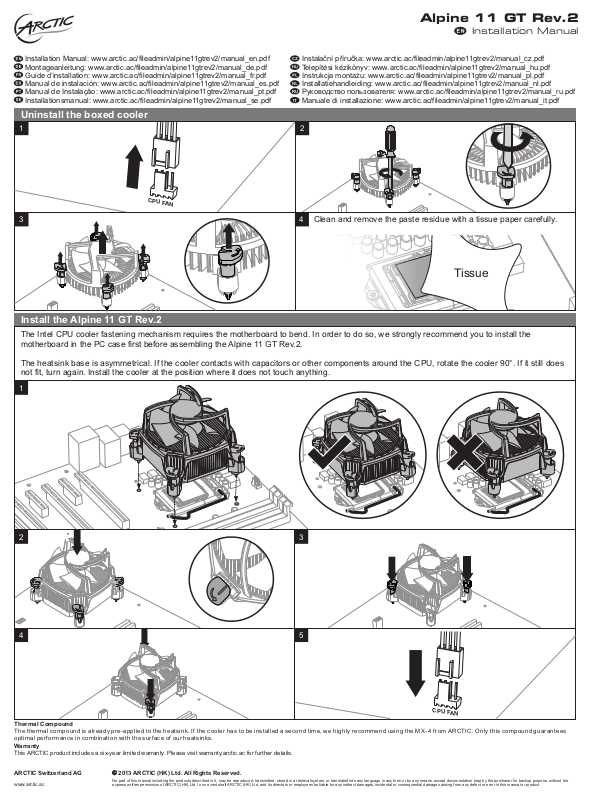

Uninstall the boxed cooler
1
CPU FAN
3 4
2
Clean and remove the paste residue with a tissue paper carefully.Clean and remove the paste residue with a tissue paper carefully.
Tissue
Install the Alpine 11 GT Rev.2
The Intel CPU cooler fastening mechanism requires the motherboard to bend. In order to do so, we strongly recommend you to install the
motherboard in the PC case first before assembling the Alpine 11 GT Rev.2.
The heatsink base is asymmetrical. If the cooler contacts with capacitors or other components around the CPU, rotate the cooler 90°. If it still does
not fit, turn again. Install the cooler at the position where it does not touch anything.
1
2 3
4 5
CPU FAN
Thermal Compound
The t hermal compound is already pre-applied to the heatsink. If the cooler has to be i nst all ed a se con d tim e, we h igh ly re com men d usi ng th e MX- 4 f rom AR CTI C. On ly th is co mpo und g uar ant ees
optimal performance in combination with the surface of our heatsinks.
Warranty
This ARCTIC product includes a six-year limited warranty. Please visit warranty.arctic.ac for further details.
2013 ARCTIC (HK) Ltd. All Rights Reserved.ARCTIC Switzerland AG
www.arctic.ac
No part of this manual including the products described in it, may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purpose, without the
express written permission of ARCTIC (HK) Ltd. In no event shall ARCTIC (HK) Ltd. and its directors or employees be liable for any indirect damages, incidental or consequential damages arising from any defect or error in this manual or product.
