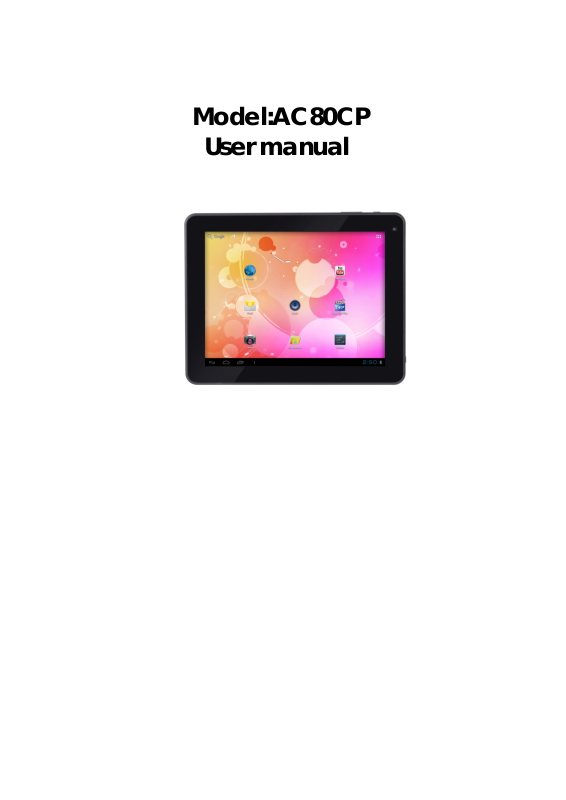

Archos AC80CP User Manual

Model:AC80CP

User manual

Note:
This manual includes some important safety method and some information about how to use the
product correctly to avoid the unnecessary troubles.Before you use the product,please refer to the
manual carefull y.

● Don’t put the product in high temperature ,humid amd dusty environment

● Don’t put the product in the vehicles,whose windows are closed.

● Don’t throw and crash the product strongly.Don’t vibrate the TFT screen, or it will be broken down or displays

abnormally.

● Choose the suitable volume,turn down the volume or power off if you feel syrigmus arised from the high volume.

● Charge in the following case:

● A、The icon shows no charge.

● B、The operation system self-closing,shutdown after restarting-up.

● C、No response of the operation icon.

● Don’t stop abruptly during the player formatting、uploading and downloading,or lead to the error of software.

● As for the losses of internal storage leads by the damage、maintainance and other reasons, no responsibility this

company will bear,so please use according to the manual.

● Don’t remove the package without permission.Don’t clean the products by alcohol、thinningagent and Benzene
scrubbing stuff.

● Don’t use the products in the non-

● Don’t use the products when you are driving and walking ,or traffic accident will be arised.

● The USB only can be used to transfer data.

This company retain the right to improve products,no notice will be released when ※

changed

( No waterproof )※

electronics areas(like the aeropla ne)

specification or design is

•

【Note】:All the pictures in this manual is for your reference! no notice will be released when

specification or appearance is changed!

1.Illustartion of

appearance and button

1.Illustartion of

2.First usage

2.1 battery management and charge

2.2 Connect the PC

3.Operation Model

3.1 Main Model description

3.2 Status bar describe

3.3 The usage of touch screen

3.4 basic setting

3.5 sound and realistic setting ring,inform and screen brightness

3.6 application

3.7 privacy

3.8 device memory

3.9 language and keyboard

3.10 the date and time

3.11 USB mode choice

3.12 APK installer(application installation tools)

3.13 settings

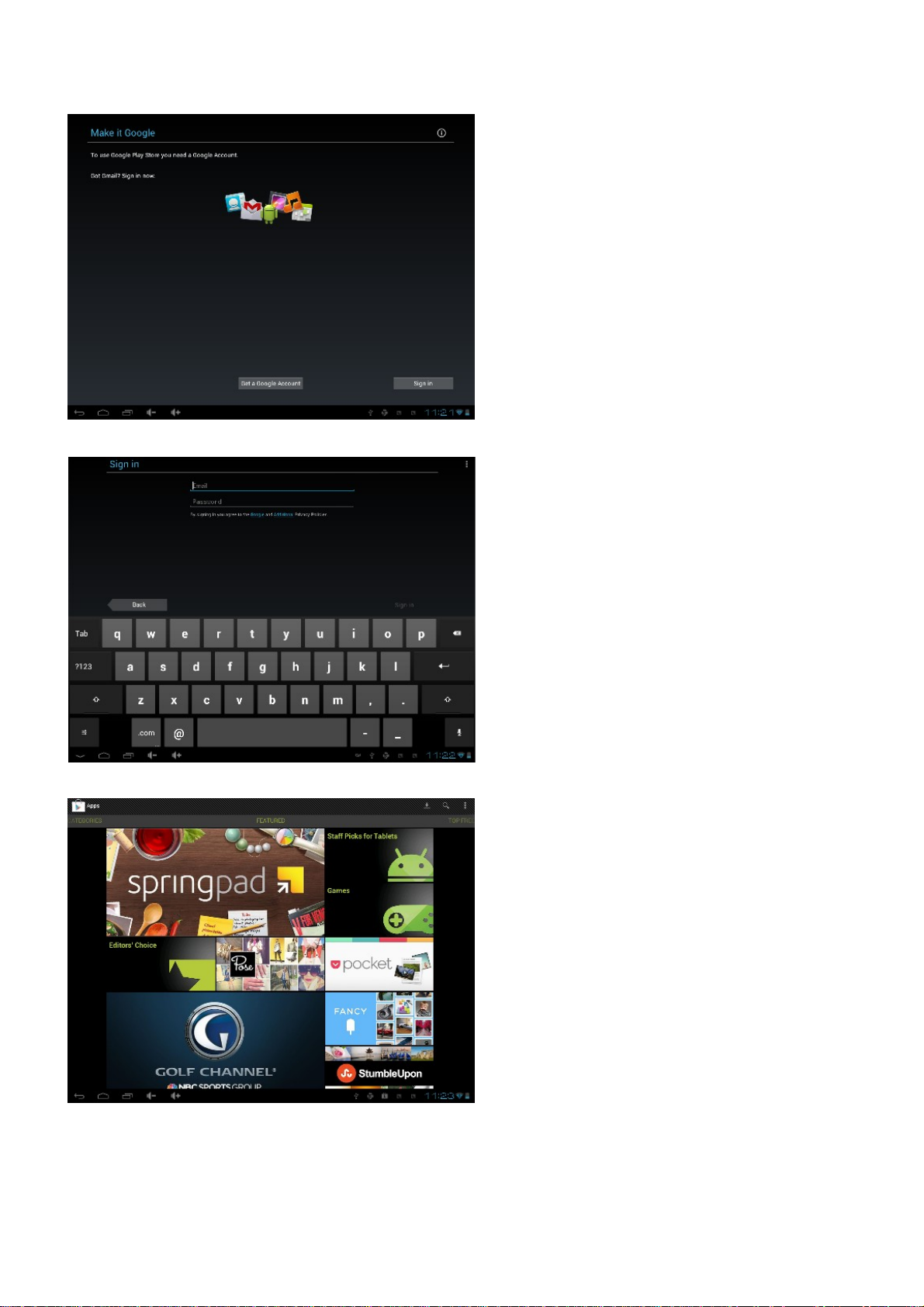

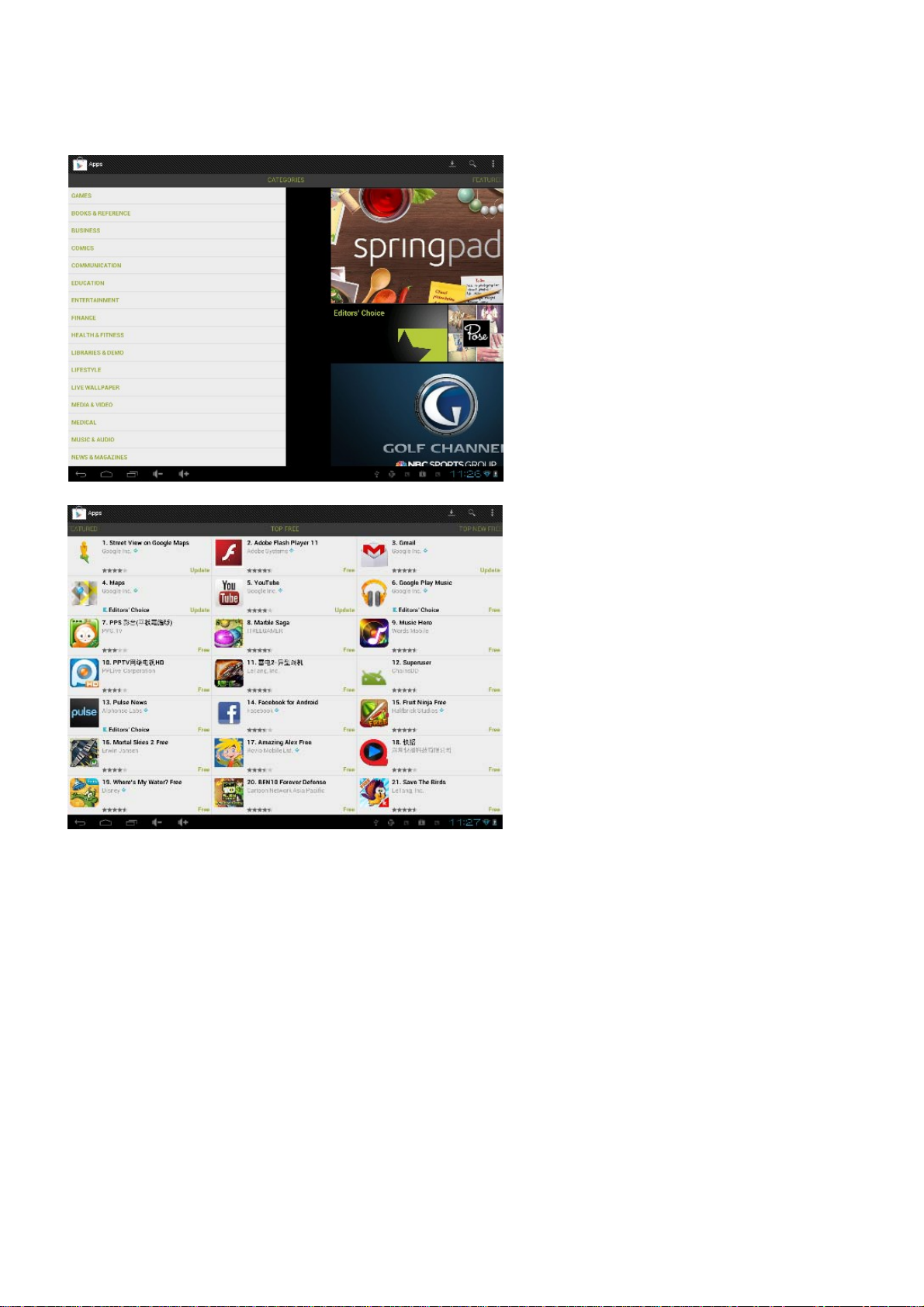

3.14 Play Store

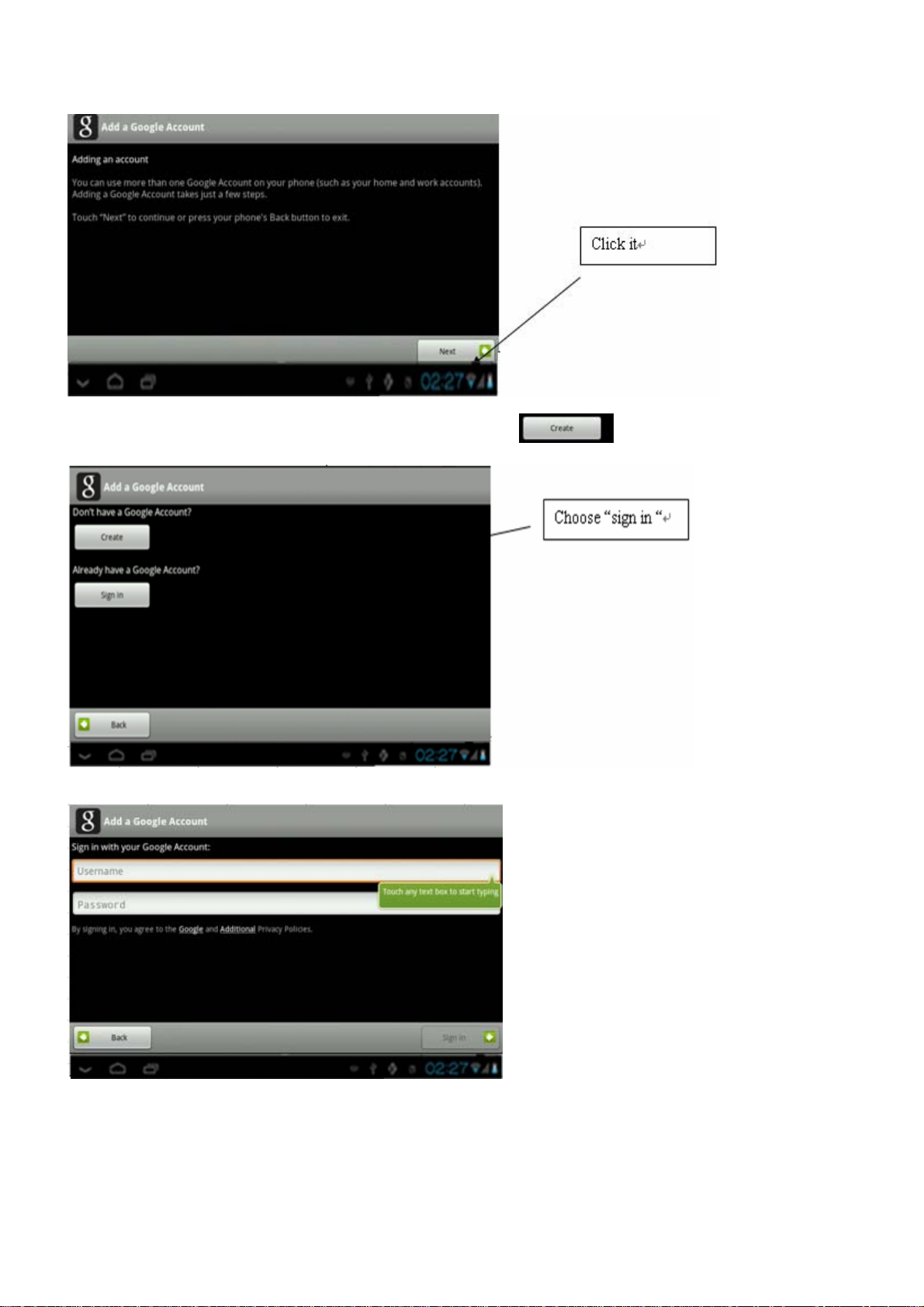

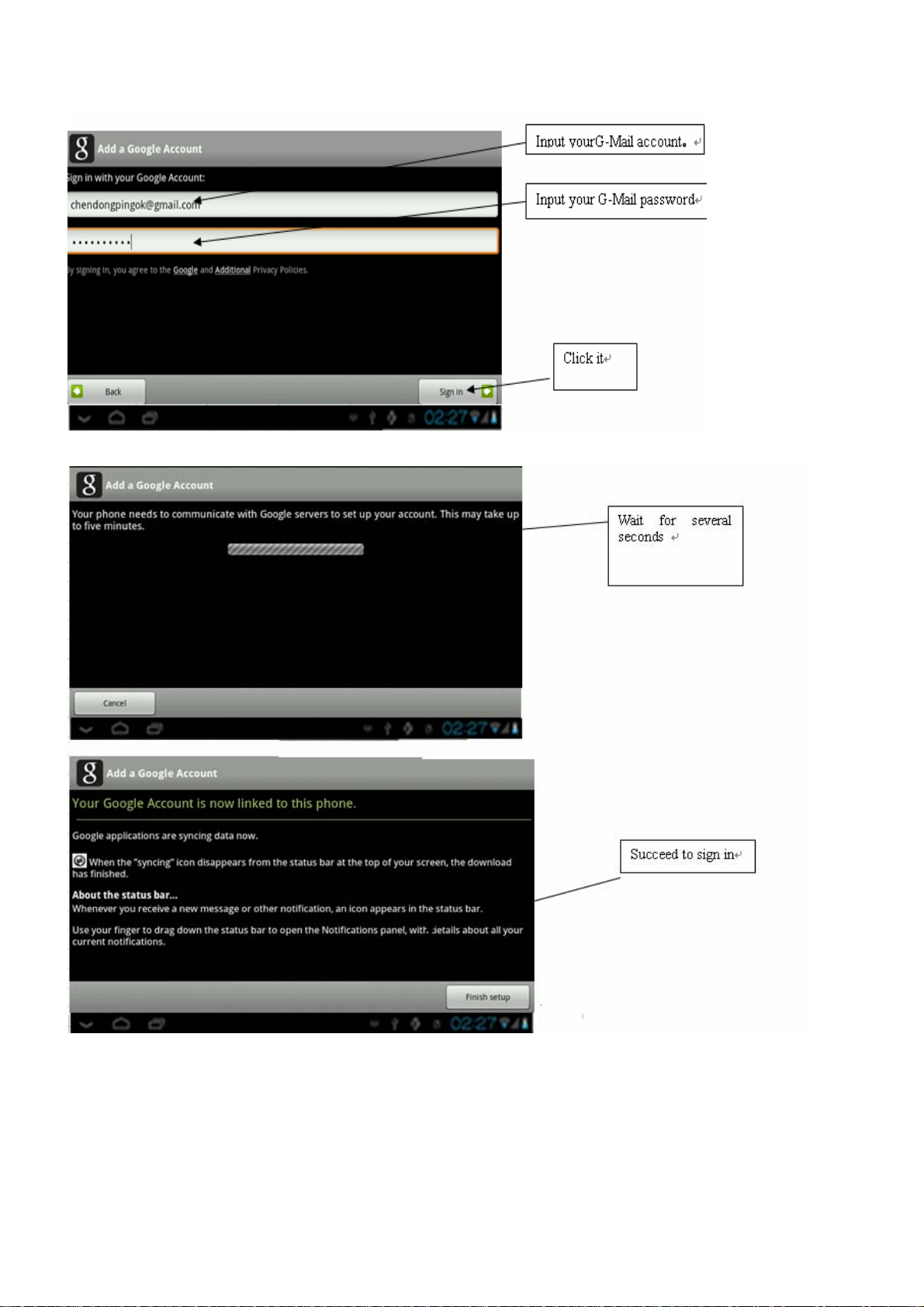

3.15 How to use G-mail

4.Installation

4.1 basic function

4.2 internet synchronization

4.3 buttons

4.4 labels

4.5 file path

4.6 progress bar

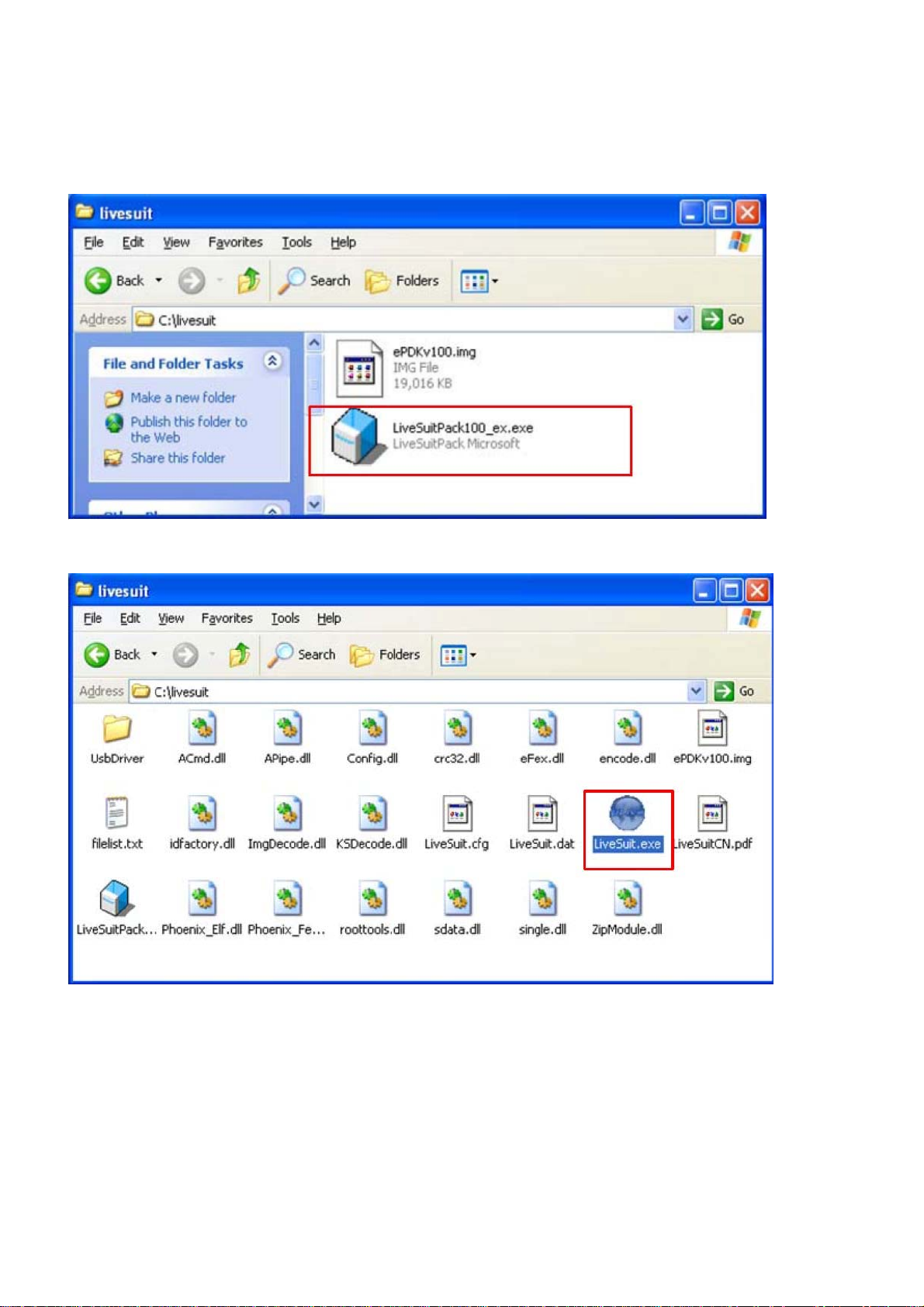

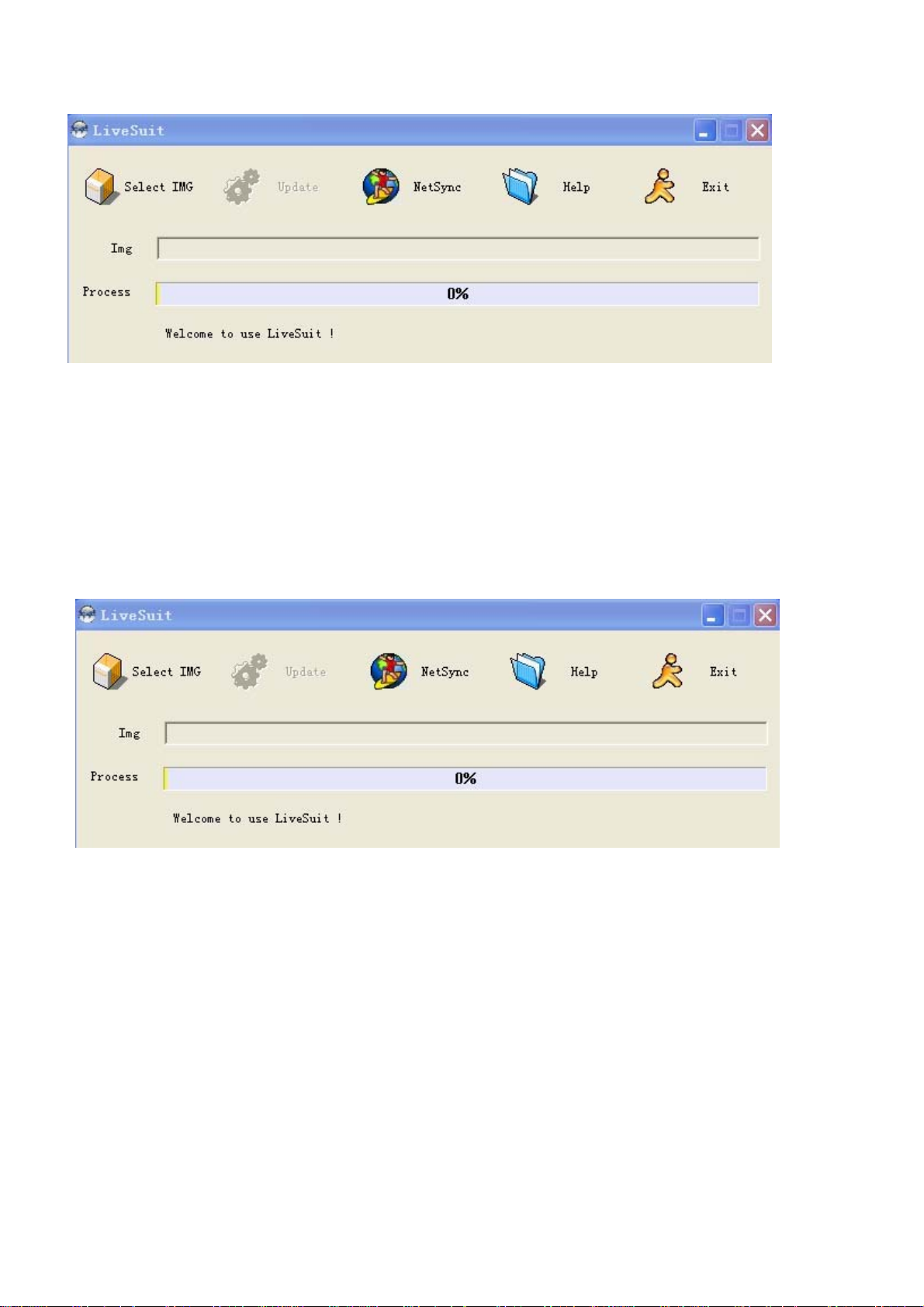

5. Installing the update tool

5.1 steps

5.2 internet synchronization

6.Help

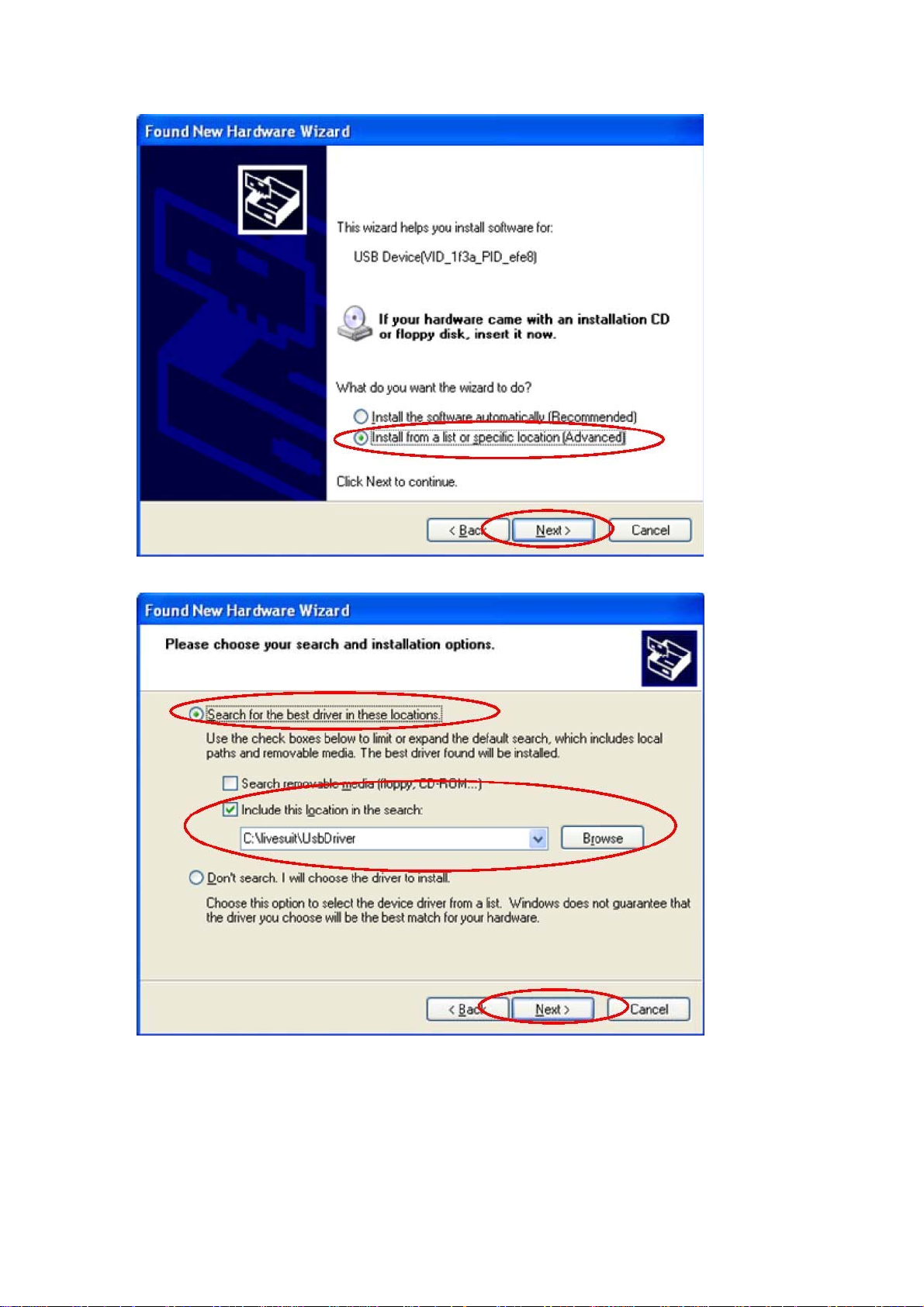

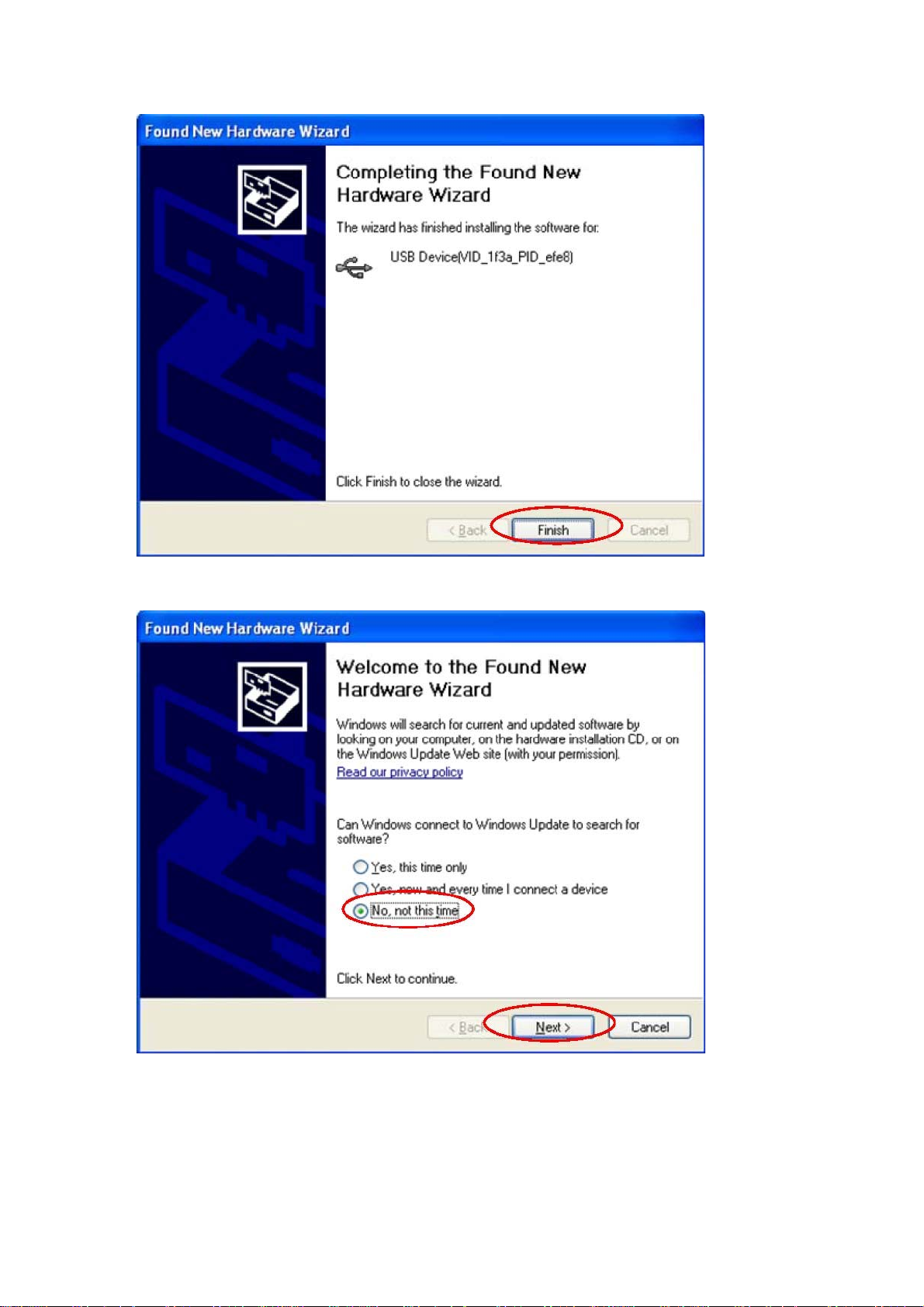

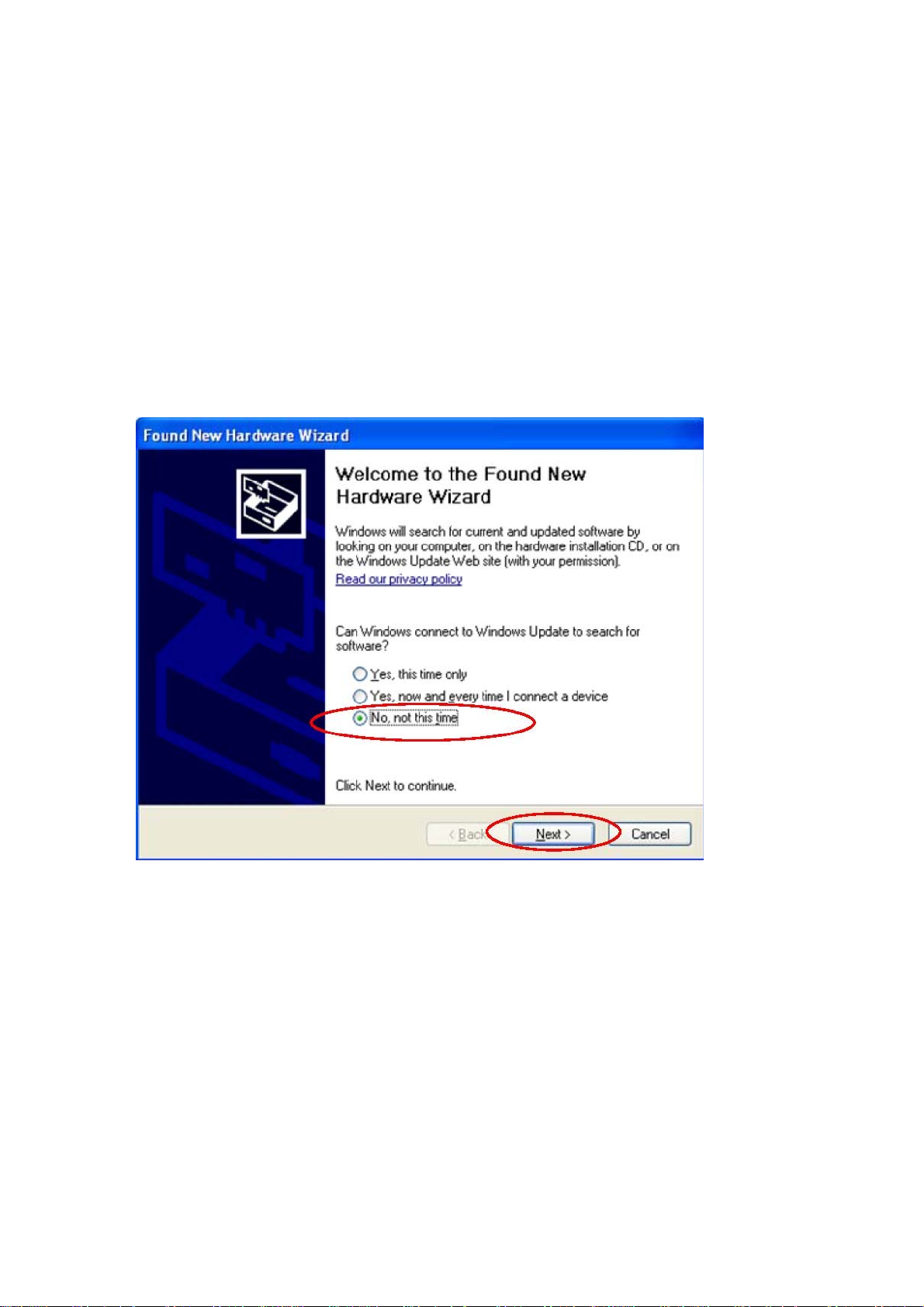

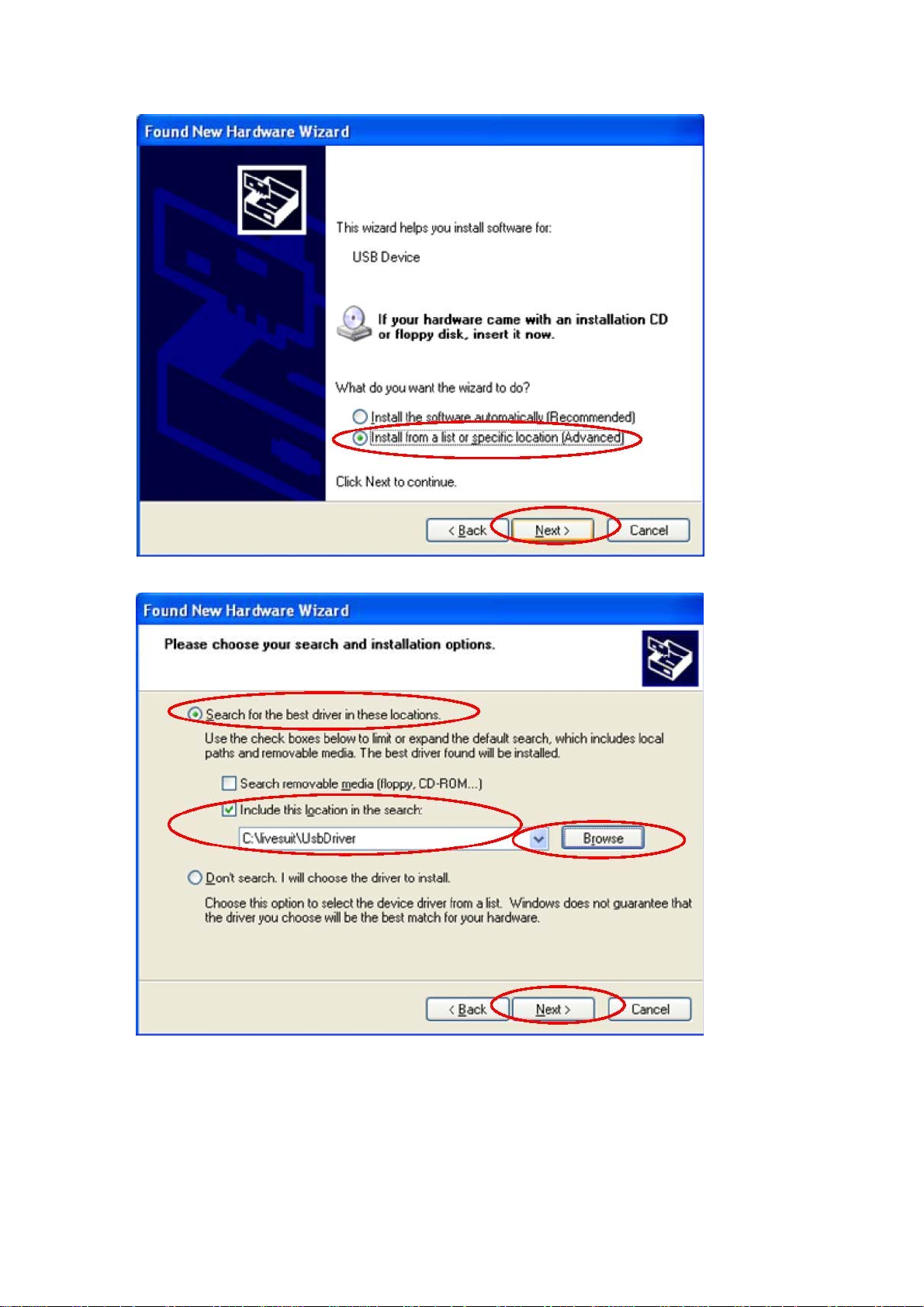

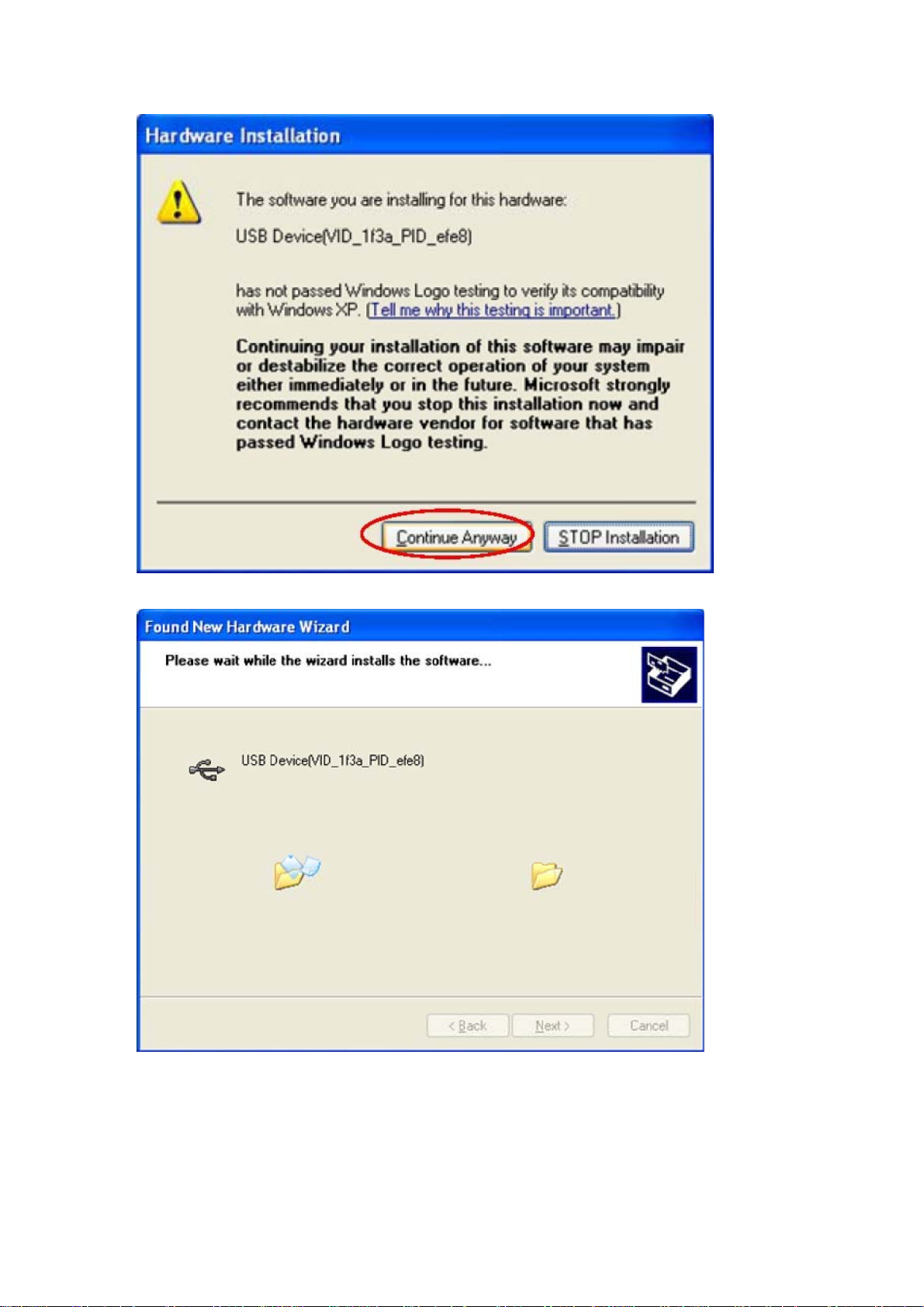

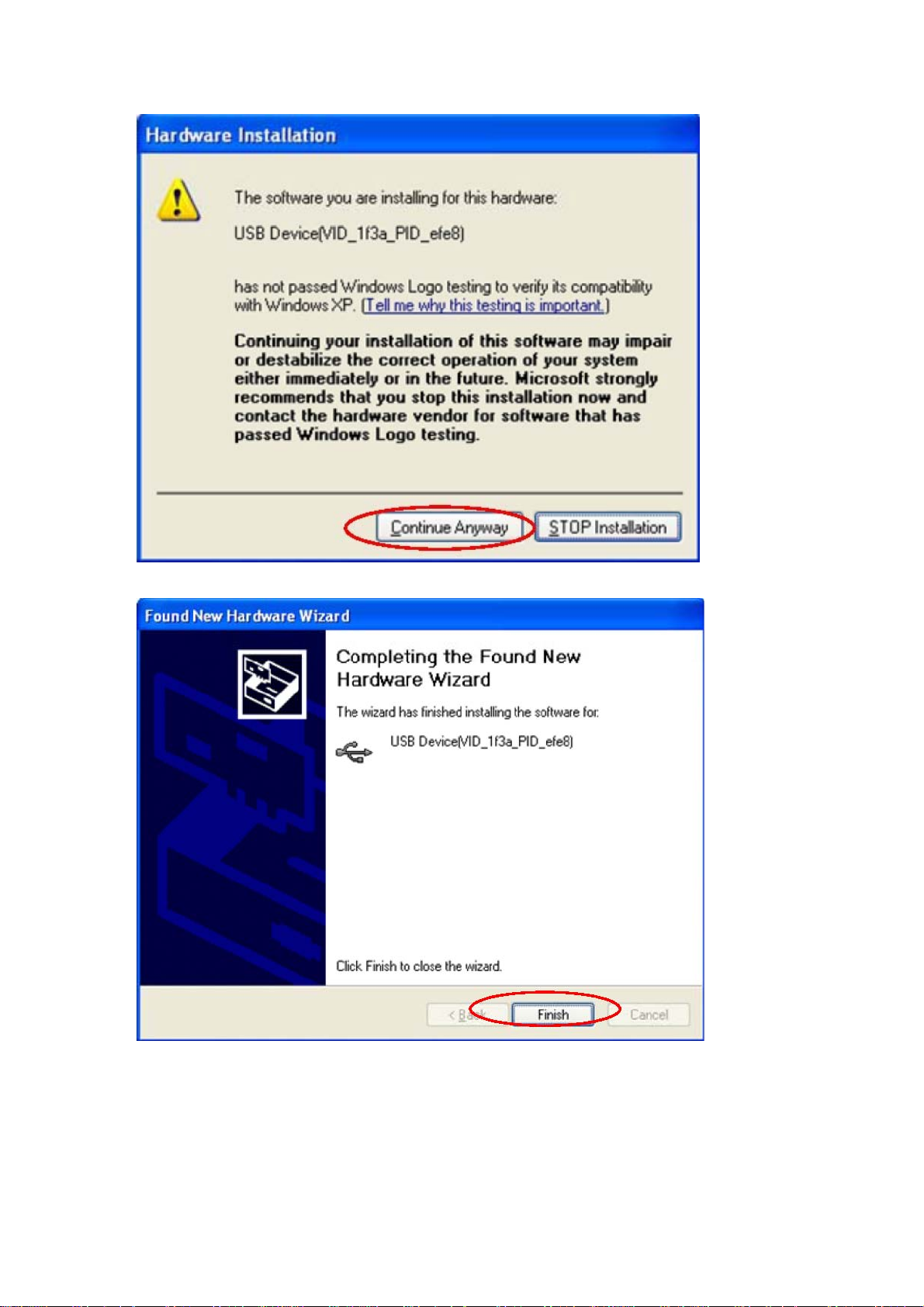

7.Appendix:USB Device Install

8.Limited Warranty

9.Warranty Repairs

appearance and button

1.1 Touch screen

9.7Inch touch screen：to click、drag and other operation within the touch area

1.2 POWER
Power on ： Press the button and the player show the start-uping picture then the machine show the menu:

Power off：Press th e button ME NU for 5 seconds,the syst em shows “Power off ”,click the “Power Off”to end

system operation.

Screen lock ：Press the button to lock or unlock the screen

【Note】: 1.In the case of low battery,the system will end automatically

2: After improperly shutdown,if you want to restart-up,the machine will scan and repair

disk ,in the case of this the screen will show the progress strip.

1.3 Return button

Press ESC to return the former operation for short time ,the menu to for a long time

1.4 Menu

Press the button”M”to popup the relevant “Menu”.

1.5 Volume

Press “+、 - ”to adjust the volume.

1.6 Headphone interface

Standard 3.5mm Headphone interface

1.7 Videos output interface

HDMI output interface；

1.8 TF-CARD

TF-CARD SLOT：CONNECT T-FLASHT STORAGE CARD；

1.9 USB

USB Interface：to connect computer to transfer the data,charge or connect U disk

1.10 Reset Key

In the case of software crash,by thin article to press RESET key,the machine will shutdown

【Note】:It isn’t recommended that use the RESET key often,or the machine system will be damaged.

2、First usage

2.1 battery management and charge

When you use the machine for the first time ,please secure that the battery is full-charged:

Connect the charger the first time for at least 6 hours.
【Note】:Standard charge(input: AC110~240V 50/60Hz Max：500MA output:

DC5.0~5.5V/2.5A)needed.When connecting the charger, the battery icon shows up for
about 2 seconds. You can check the capacity by pressing shortly on the on/off button.

When charge end,the battery icon will be green and stop running.
In order to

extend lifetime,it is suggested to recharge when battery level is low ;

【Note】：1、If no usage for a long time,please recharge within a month to avoid damage to the

machine resulted from the

exhaustion of battery.

2、After Power off,ins ert the char ge ,if the machine showes low battery、charging,a short
time is needed before the battery can support the machine to start up.

2.2 Connect PC
Connect the PC and this machine by USB cable,then the machine shows USB has been connecting,

Press the 'T urn on USB storage” button and the PC will recognise the tablet as removable disk.

3.Operation Model

3.1 Main Model description
The model after turn on the machine:

On the main screen, you can :

Manage the soft ware icon on the main screen:the icon becomes bigger after pressing the software icon for 3

seconds ,you can move it to anywhere you want

Delete icon：drag the icon to bin then the icon becomes red after press ing the software icon for 3 seconds
Press the touch screen then popup:add to “main page”window
Widgets；Wallpapers：

3.2 Status bar describe

● status bar is on the bottom of the screen

It shows main screen software、T-Fl ash car d、the status of USB connection , the capacity of battery 、the
time 、return key, home key, etc.

3.3 The usage of touch screen
9,7inch touch screen The machine was

allocated for the machine,Description for main touch screen,some

introduction about how to use the touch screen has included.

You can touch

In different application program,by touching return key

at the left corner to return the previous menu, to the main menu

the top of right corner,you can return the former

operation.
【Note】：software menu

are equal to the menu of the machine

In different browser(file、music、media、picture browser,etc),you can drag the
draged smoothly.

3. 4.basic settings

roll to make the file list can be

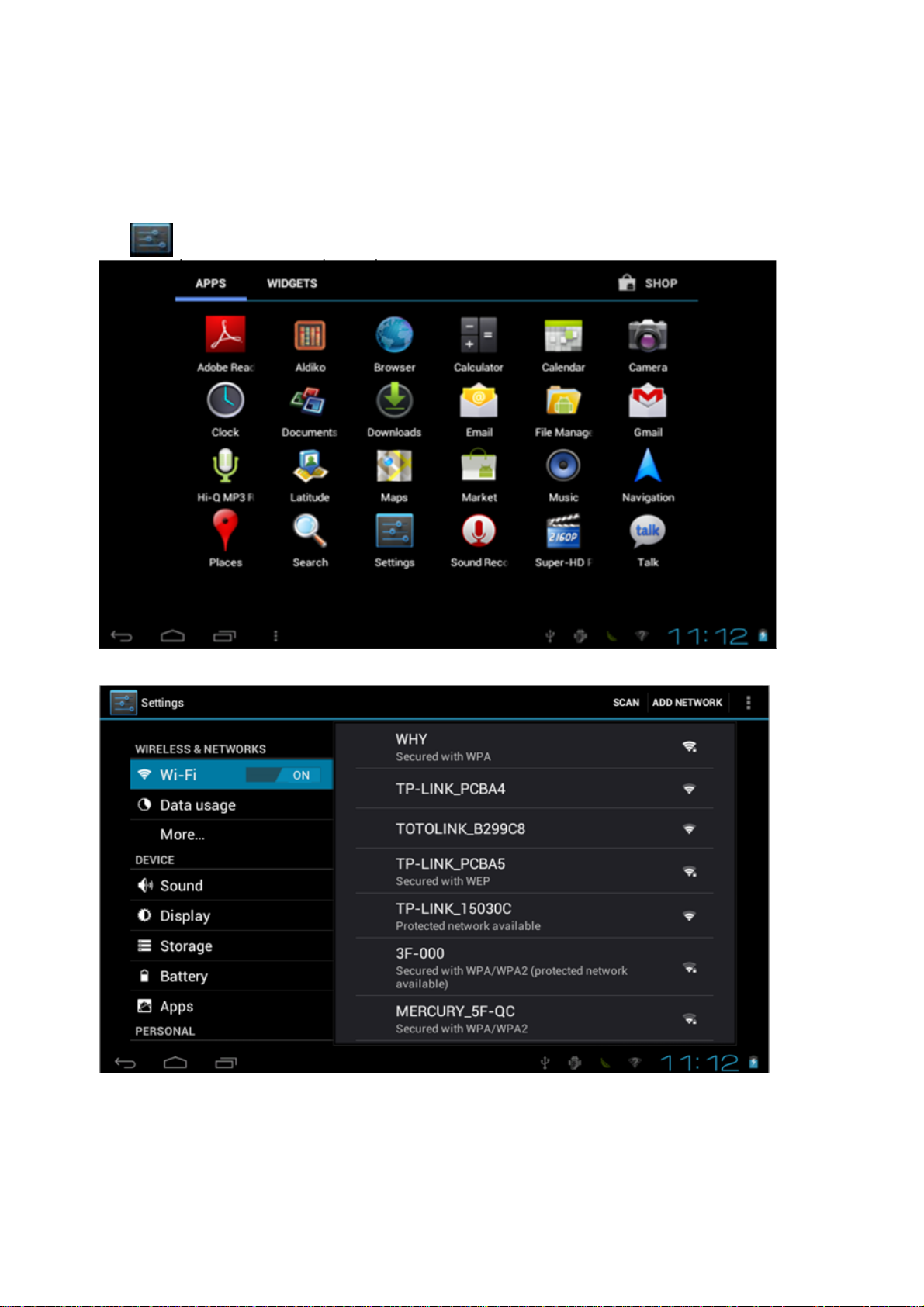

Setting ：Click the settimg icon

on the menu to setting

3.5 sound and realistic Settings ring, info r m and screen brightness
Set up voice: adjust the media volume. Also can press and key to adjust the volume
Animation: open and close window display animations
Brightness: adjustment screen brightness, in stripes around the northeast high click to adjust brightness Settings
Screen standby: in the screen off automatically adjust delay before. 15 seconds, 30 se conds, 1 minute, 2 minutes,
10 minutes, never standby six time options can choose.

3.6 application

File Management

Choose the file and than the software or file ,if you want to delete the icon or the file,please long press to delete
Management application: management and delete the installation of applications
Development: set the application's development options

【 note 】 : when the firmware upgrade please close USB debug mode

3.7 Personal setting

3.8 device memory
Remove TF card, view of the available storage space

【 note 】 : please through the option of the "delete SD card" to remove security SD card, avoid hot plug pulled by
the equipment damage.

3.9 language and keyboard
Set up regional (language and regional), text input and automatic correction option;

Choose regional: 54 species of national languages are available
Note: android system support of 54 species of language, the menu interface support and kind of language.
Android keyboard: Android keyboard Sett ings
The voice of the button
Automatic capital
Show Suggestions: automatic shows suggested word and input
Auto-complete: automatically Spaces and punctuation automatic insert emphasis on words
Google pinyin input method: Google pinyin input method Settings
Key voice/lenovo input
Note: the installation of software can install your own I/o, installation input method in this after setting for normal use
Equipment keyboard: built-in keyboard Settings
Automatic substitution: correct mistakes key input words
Automatic capital: the first of the sentence uppercase
Automatic punctuation: according to two times the blank space key to insert "."
The user dictionary: to users add words in the dictionary from the user in the dictionary and delete words

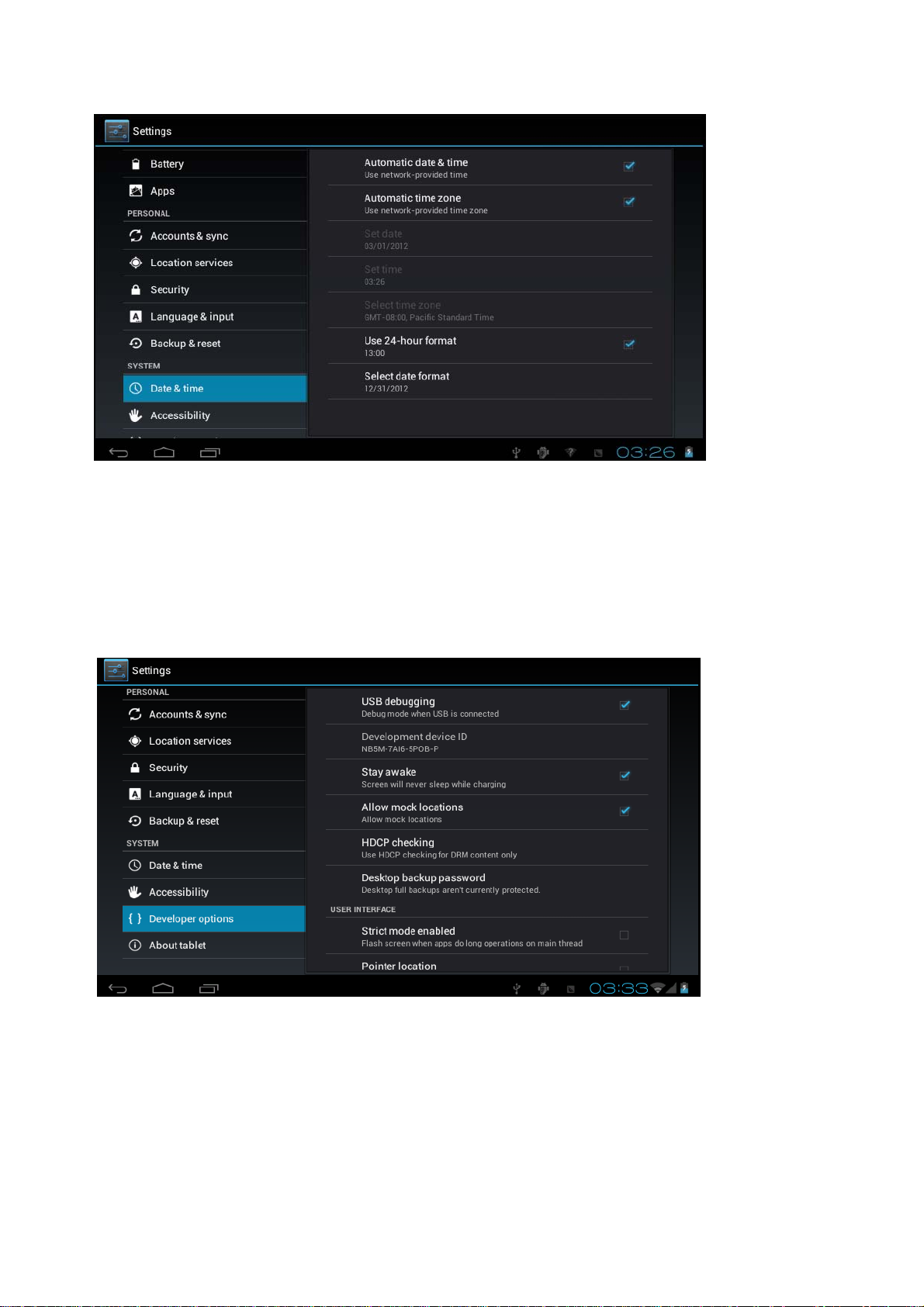

3.10 the date and time
