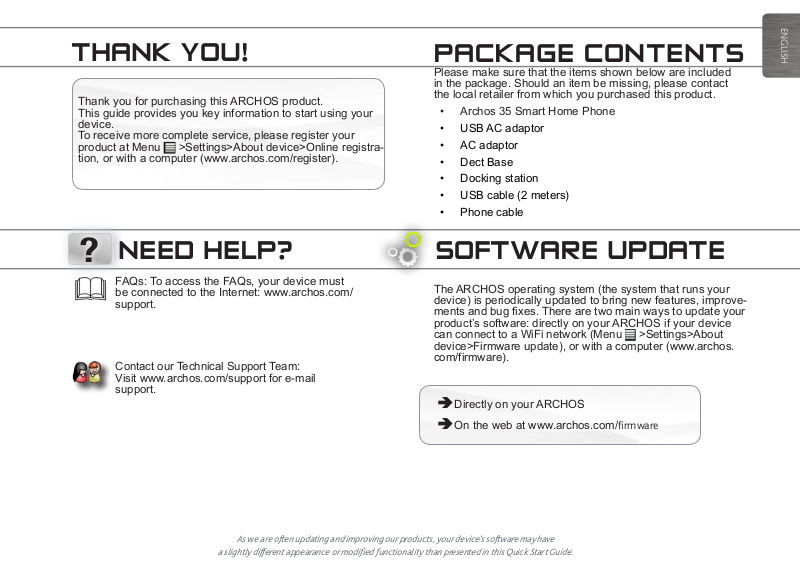

THANK YOU!
Thank you for purchasing this ARCHOS product.
This guide provides you key information to start using your
device.
To receive more complete service, please register your
product at Menu >Settings>About device>Online registration, or with a computer (www.archos.com/register).
NEED HELP?
?
FAQs: To access the FAQs, your device must
be connected to the Internet: www.archos.com/
support.
Contact our Technical Support Team:
Visit www.archos.com/support for e-mail
support.
As we are often updating and improving our products, your device’s software may have
a slightly different appearance or modified functionality than presented in this Quick Start Guide.
PACKAGE CONTENTS
Please make sure that the items shown below are included
in the package. Should an item be missing, please contact
the local retailer from which you purchased this product.
• Archos 35 Smart Home Phone
• USB AC adaptor
• AC adaptor
• Dect Base
• Docking station
• USB cable (2 meters)
• Phone cable
SOFTWARE UPDATE
The ARCHOS operating system (the system that runs your
device) is periodically updated to bring new features, improvements and bug fixes. There are two main ways to update your
product’s software: directly on your ARCHOS if your device
can connect to a WiFi network (Menu >Settings>About
device>Firmware update), or with a computer (www.archos.
com/firmware).
ÄDirectly on your ARCHOS
ÄOn the web at www.archos.com/firmware
ENGLISH
Power Button: press and hold to switch on/off.
1
When your device is plugged in, press the Power button once to put your device in clock
mode. When the device is not plugged in, press the Power button once to put your device in standby mode.When you press and hold on the Power button, a window appears
with a list of options. Tap on “Power Off” > “Power Off” to fully shut down your ARCHOS
Charging indicator - light on: battery charging / blinking: battery charged
2
Headphones input
3
Micro-USB port: 1- to charge the device using the power adapter or the USB cable con-
4
nectedtoarunningcomputer.2-totransferlesfromyourcomputertoyourARCHOS/
from your ARCHOS to your computer using the USB cable.
Micro-SD card slot
5
6
7
8
9
10
Camera
11
Touchscreen calibration: If the touchscreen functioning is impaired, carry out a calibration. Tap the Settings widget or on the Home
screen, tap the Menu icon ,/Settings. Down the list, tap Repair&formatting/Touchscreen calibration. Follow the on-screen instructions.
Hardware Reset: In the event that your ARCHOS freezes operation, you can force the device to shut down by holding the button for 10 seconds.
DESCRIPTION OF THE DEVICE
Back - returns to the previous screen.
Menu icon - gives menu options according to the current screen.
Volume buttons
Home icon - Short press: return to the Home screen. Hold: jump to one of the recent applications.
Search icon - allows you to search for an item on the device or on the Internet.
Loudspeaker Microphone
12
13
7
4
11
5
7
6
8
13
1
2
3
9
10
2
12
STARTING UP
Charging the Battery
Before using your ARCHOS for the first time, completely charge the battery:
Connect the supplied USB cable to the USB AC adapter and to the docking station.
1
Plug the USB AC adapter into a wall outlet.
Connect the AC adapter to the Dect Base and into a wall outlet.
2
Connect the phone cable to the Dect Base and into a telephone outlet.
3
The ARCHOS device will turn on and start charging.
Startup Wizard
The first time you start up your ARCHOS, the installation wizard will bring you through a few screens to help you
set up the principal settings: Language, country, time, preinstalled applications etc.
Touchscreen actions
Touch to activate
an item
Touch and hold
for an alternate
action
Drag an item to
change its position
Swipe up/down to
scroll through a list
Swipe left/right to
change the view
Double-tap
Touchwithyourngertip.
Totouchandholdanitem,touchtheitemanddonotliftyourngertipuntiltheaction
occurs.
Todraganitem,touchandholditforamoment,thenwithoutliftingyourngertip,move
yourngertiponthescreenuntiltheitemreachesitsdestination.
Toswipe,touchthescreenandthenquicklymoveyourngertipsacrossthescreenwithoutliftingyourngertip.Donotpauseonthescreenwithyourngertipsattheinitialpoint
of contact or you may drag an item.
Quickly tap the screen twice on a webpage or other application screen to zoom.
ENGLISH
3
ENGLISH
4
CONNECTING YOUR BASE TO YOUR PHONE
Plug out the Dect Base. Wait 5 seconds.
1
2
Plug it in.
IMPORTANT: Your Dect Base is in Registration mode.
You have 60 seconds to connect your Smart Home Phone to your Dect Base.
After this period, the Registration mode ends and you will need to restart the above process.
3
Tap Settings > Dect settings > Registration.
4
For the requested pin number, tap 0000 (Zero =4*), then tap Register.
5
Tap OK.
6
Your Smart Home Phone is now connected to your Dect Base.
www
1
2
4
5
* For free access WiFi points, there is no need to enter any special information. For secured networks, you will need either a key (a series of numbers
and/or letters) of the type WEP, WPA, or WPA2. Check with the person who manages the WiFi network to obtain the exact connection parameters
required.
CONNECTING TO A WIFI NETWORK
For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the ARCHOS is in range of
a network that you have already configured once, it will attempt to make a connection.
To configure a new WiFi network, go on the Home screen, tap on the Menu icon , then select Settings .
In the Settings screen, select Wireless & networks.
If the WiFi is off, tap on the Wi-Fi line to turn it on. Then select Wi-Fi settings. The ARCHOS will
3
scan for available WiFi networks and display them at the bottom of the screen.
Tap on the network you want to connect to. Then tap inside the Wireless password field to
make the virtual keyboard appear. We recommend that you select Show password, to be able
to see the characters you are typing.
Enter the required network information*, tap on Done, and then tap on Connect. Your
ARCHOS will now attempt to establish a connection to that WiFi access point with the
network parameters you entered.
ENGLISH
5
ENGLISH
6
CALL TRANSFER
1
WithyourSmartHomePhone,dialthephonenumberoftherstcorrespondent.
2
Iftherstcorrespondentpicksup,taptheRbuttonanddialthesecondcorrespondent’snumber.
IMPORTANT:Therstcorrespondentshouldholdtheline.
3
When the second correspondent picks up, you terminate the call with your Smart Home Phone.
4
Therstandthesecondcorrespondentscannowtalktoeachother.
NOTE:Ifthesecondcorrespondenthangsupbeforethecallistransferedtotherstcorrespondent,andyourterminatesthe
callwithyourSmartHomePhone,therstcorrespondentswillcallyoubackautomatically.
