User Manual

(User Manual ARCHOS 605 H WiFi – v.2.0)

ARCHOS 605 H WiFi

ENGLISH

405

GEN 5

Please visit www.archos.com/manuals to download the latest version of this manual.

Dear Customer,

Thank you for choosing this ARCHOS product. We hope that you will enjoy using it and that it will give you entire satisfaction for many years to come.

ENGLISH USER MANUAL

605 WIFI

Version 2.0

Please do register your product on our website (www.archos.com/register) to ensure that you get access to our help line and to be informed of free software updates for your product.

Wishing you the best Multimedia experience,

The ARCHOS Team.

All the information contained in this manual was correct at the time of publication. However, as our engineers are always updating and improving our products, your device’s software may have a slightly different

appearance or modied functionality than presented in this manual.

Entertainment

way

GEN 5

MANUAL

V2.0

TABLE OF CONTENTS > P. 2

TABLE OF CONTENTS

INTRODUCTION ........................................................................................4

ARCHOS DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FIRST TIME USAGE: CHARGING THE BATTERY . . . . . . . . . . . . . . . . . . . . 6

TURNING THE ARCHOS ON/OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

USING THE ARCHOS INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CHANGING THE LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

PRODUCT CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1. PLAYING VIDEO ..................................................................................11

1.1 BROWSING THROUGH YOUR VIDEOS . . . . . . . . . . . . . . . . . . . . . . . . 11

1.2 VIDEO PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.3 VIDEO PLAYER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.4 PUTTING VIDEOS ONTO YOUR ARCHOS . . . . . . . . . . . . . . . . . . . . . . 16

1.5 RECORDING VIDEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1.6 PLAYING YOUR PC’S SHARED VIDEOS . . . . . . . . . . . . . . . . . . . . . . 17

2. PLAYING MUSIC ...............................................................................18

2.1 BROWSING THROUGH YOUR MUSIC FILES . . . . . . . . . . . . . . . . . . . . 18

2.2 MUSIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.3 MUSIC PLAYER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.4 PLAYLISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.5 PUTTING MUSIC ONTO YOUR ARCHOS . . . . . . . . . . . . . . . . . . . . . . . 26

2.6 RECORDING ANALOGUE AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.7 PLAYING YOUR PC’S SHARED MUSIC . . . . . . . . . . . . . . . . . . . . . . . 28

3. VIEWING PHOTOS ..........................................................................29

3.1 BROWSING THROUGH YOUR PHOTOS . . . . . . . . . . . . . . . . . . . . . . . . 29

3.2 PHOTO VIEWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.3 PHOTO VIEWER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.4 PLAYING A SLIDESHOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.5 VIEWING PHOTOS WHILE LISTENING TO MUSIC . . . . . . . . . . . . . . . 33

3.6 PUTTING PHOTOS ONTO YOUR ARCHOS . . . . . . . . . . . . . . . . . . . . . . 34

3.7 PLAYING YOUR PC’S SHARED PHOTOS . . . . . . . . . . . . . . . . . . . . . . 34

4. USING THE FILE BROWSER ......................................................35

4.1 NAVIGATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.2 USING THE VIRTUAL KEYBOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.3 USING THE FILE BROWSER WHILE LISTENING TO MUSIC . . . . . . . . 38

4.4 BROWSING OTHER COMPUTERS ON THE NETWORK . . . . . . . . . . . . 39

4.5 USING THE PDF READER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

TABLE OF CONTENTS CONTINUED ON NEXT PAGE...

GEN 5

MANUAL

V2.0

TABLE OF CONTENTS > P. 3

5. CONNECTING TO A WIFI NETWORK .....................................42

5.1 WIFI CONNECTION PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

5.2 WIFI NETWORK CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

6. THE WIFI FEATURES ................................................................... 46

6.1 BROWSING THE WEB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

6.2 PLAYING YOUR PC’S SHARED MEDIA FILES . . . . . . . . . . . . . . . . . . 48

6.3 THE ARCHOS CONTENT PORTAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

7. TRANSFERRING FILES .................................................................52

7.1 CONNECTING THE ARCHOS TO A COMPUTER . . . . . . . . . . . . . . . . . 52

7.2 PUTTING FILES ONTO THE ARCHOS . . . . . . . . . . . . . . . . . . . . . . . . . 52

7.3 DISCONNECTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

8. MAIN SETTINGS ..............................................................................55

8.1 “SOUND” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.2 “DISPLAY” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.3 “APPEARANCE” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

8.4 “LANGUAGE (AND REGION)” SETTINGS . . . . . . . . . . . . . . . . . . . . . . 59

8.5 “TV CONTROL” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

8.6 “CLOCK” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

8.7 “POWER” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

8.8 “FIRMWARE AND PLUG-INS” SETTINGS . . . . . . . . . . . . . . . . . . . . . 62

8.9 UPDATING THE FIRMWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

8.10 “SYSTEM” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9. OPTIONAL FUNCTIONALITIES ..................................................66

9.1 ARCHOS ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

9.2 ARCHOS PLUG-INS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.3 SCHEDULING A TV RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.4 RECORDING EXTERNAL VIDEO MANUALLY . . . . . . . . . . . . . . . . . . . 68

9.5 RECORDING EXTERNAL AUDIO MANUALLY . . . . . . . . . . . . . . . . . . . 69

9.6 DISPLAYING THE ARCHOS ON A TV . . . . . . . . . . . . . . . . . . . . . . . . . 69

9.7 EDITING VIDEO FILES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

TROUBLESHOOTING ..........................................................................72

RESETTING YOUR ARCHOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

SYSTEM RECOVERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

TOUCHSCREEN PROBLEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

REPAIR AND FORMATTING TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

TECHNICAL SPECIFICATIONS ........................................................75

TECHNICAL SUPPORT INFORMATION ......................................

GEN 5

MANUAL

V2.0

INTRODUCTION

The information presented in this manual might vary ac-

• cording to which ARCHOS Gen 5 model you have.

Every time you see one of these icons, it means that the

• following section will only concern this and only this model.

ARCHOS DESCRIPTION

INTRODUCTION > P. 4

405

605

MAIN BUTTONS

On top of the device:

ARCHOS 605 WiFi

Press and hold to turn your ARCHOS on/off.*

• The LED indicator, located on the right of the button, lights up when the

• device is on.

* When you press this button to turn off the ARCHOS, your device will keep using a small amount of battery power to allow a quick start up.

If you do not plan on using the ARCHOS for an extended period of time, you should turn it off completely, so that there is absolutely no battery usage. See “Power” Settings.

TV/ LCD

Press once to switch the display of the image between the built-in LCD

• screen and a TV (with the optional DVR Station Gen 5, Mini Dock or Battery Dock, available at www.archos.com). See

Optional Functionalities

When the image is displayed on a TV, the TV/LCD LED indicator lights up

• and the built-in LCD screen turns off.

Press and hold to lock/unlock your device’s buttons/touchscreen. This can

• be useful if your ARCHOS is in your pocket, for example, and you do not want to press a button or touch the screen by accident.

GEN 5

LED INDICATORS

MANUAL

V2.0

INTRODUCTION > P. 5

405

605

* On the high capacity ARCHOS 605, the LED indicators are located on top of the device, next to the buttons.

CHG

HDD

On top of the device:

On the left side of the device*:

Battery charge indicator.

light on: the battery is charging

•

ashing: the battery is fully charged

•

Hard Disk Drive activity indicator

(depending on model)

the light ickers when the hard drive is active (playing/transferring les) •

TV/ LCD

Video display indicator:

the light is on when the image of the ARCHOS is displayed on a TV (see TV/

•

LCD button).

CONNECTORS

On the left side of the device:

Headphone jack: to connect headphones

Underneath the device:

Connect your ARCHOS to a computer (see

• Charge the battery of your ARCHOS (see

•

The Docking connectors also allow you to plug one of our optional accessories (available from www.archos.com):

Connect a compatible USB device to the ARCHOS, with the optional DVR

• Station Gen 5, Mini dock or Battery Dock.

Record external audio/video, with the optional DVR Station Gen 5 or DVR

• Travel Adapter.

See Optional Functionalities.

•

These connectors allow you to:

Connecting the ARCHOS to a Computer

First Time usage: Charging the Battery

)

GEN 5

MANUAL

V2.0

INTRODUCTION > P. 6

605

BUILT-IN LOUDSPEAKER

On the right side of the device, below the buttons

605

•

Your ARCHOS is equipped with a leg stand, located on the back of the device.

•

Carefully pull it out, and it will allow your ARCHOS to stand by itself on a at,

LEG STAND

stable surface.

MEMORY CARD SLOT

(depending on model)

The memory card slot, located on top of the device, on the right side, allows you to insert one of the following cards (which are not supplied):

• MMC

• Mini and micro SD (with adapter)

• RS MMC (with adapter)

•

To learn how to browse the contents of your card, see: Browsing Through

your Videos, Browsing Through your Music Files, Browsing Through your Photos or Using the File Browser.

FIRST TIME USAGE: CHARGING THE BATTERY

Before using your ARCHOS for the rst time, completely charge its battery. The battery of your ARCHOS charges via your computer’s USB port:

Plug the ARCHOS USB cable into your ARCHOS (which is off).

Plug the USB end of the cable into your computer (which is turned on).

The ARCHOS will turn on and start charging:

A lightning bolt symbol will ash over the battery icon in the task bar while

the battery is charging: .

The CHG indicator LED is on while the battery is charging. It will blink when the battery is fully charged.

You can also charge your ARCHOS device without a computer, and more rapidly, via the optional DVR Station Gen 5, Mini Dock or Battery Dock (available at www.archos.com). See Optional Functionalities.

GEN 5

MANUAL

V2.0

TURNING THE ARCHOS ON/OFF

INTRODUCTION > P. 7

ARCHOS 605 WiFi

Press and hold the button to turn your ARCHOS on/off. See

• The LED indicator, next to the button, lights up when the device is on.

•

ARCHOS Description

USING THE ARCHOS INTERFACE

INTERFACE DESCRIPTION

Status Bar

In the top right corner of the screen, the status

• bar indicates the volume, the battery level and the current time of your device.

Tabs

In the top left corner of the screen, the tabs area

• shows other available applications and screens. They vary, depending on where you are in the interface.

When there is only one tab available, the Tab icon

•

in the top left corner is grayed out.

Contextual Menu

In the lower right corner of the screen, the contextual menu area

• shows the menu icons. The available options will vary, depending on where you are in the interface.

In the Home screen, choose the “Settings” menu item to access

• the main settings of your ARCHOS.

In the Home screen, the “Resume” menu item allows you to re-

•

sume the last-played music or video le, if it was interrupted before

the end. If the “Resume” menu icon does not appear, it means that

no music or video le playback can be resumed.

(depending

on model)

GEN 5

MANUAL

(depending on model)

V2.0

INTRODUCTION > P. 8

Home Screen

This is the main screen of your ARCHOS, showing

• its main functions.

605

USING THE TOUCHSCREEN

Your ARCHOS is equipped with a touchscreen. Below is a description of the main tactile screen areas and a few tips on how to use the touchscreen.

In order to avoid damaging the screen surface, you should use only the in-

cluded stylus or your ngernail.

Main Touchscreen Actions

To open an application/screen via its icon or item, tap on the icon/item to high-

• light it, and tap on it again.

In the different applications, you can go back one level in the hierarchy by tapping

• on the Exit icon (in the top right corner of the screen). Wherever you are in the hierarchy, you can go back directly to the Home screen by tapping and holding the Exit icon.

When several tabs are available, you can switch between them by tapping on the

• Tab icon (in the top left corner of the screen). You can also tap directly on one of the tabs to access the corresponding screen.

To execute a menu item’s function, simply tap on its icon. In order to display a

• text description of the icon, tap on the menu word.

While playing a video or song, you can pause/resume it by tapping on the Pause

•

/ Play icon.

Other Touchscreen Actions

When watching a video or listening to music, you can tap on the progres-

• sion bar to go directly to a different location in the video or song. You can also use the stylus to drag the cursor in the progression bar to another location in the video or song.

In the screens where it appears, the volume bar can be dragged in the same way.

• In the different browsers (File, Music, Video, Photo), you can drag the scroll

•

bar up and down to scroll the le list up and down. You can also scroll faster

by tapping above or below the cursor in the scroll bar.

GEN 5

In the Web browser and the PDF viewer, you can scroll up and down by tapping

•

MANUAL

V2.0

INTRODUCTION > P. 9

on the page and dragging it up or down (be careful however not to tap on a link!).

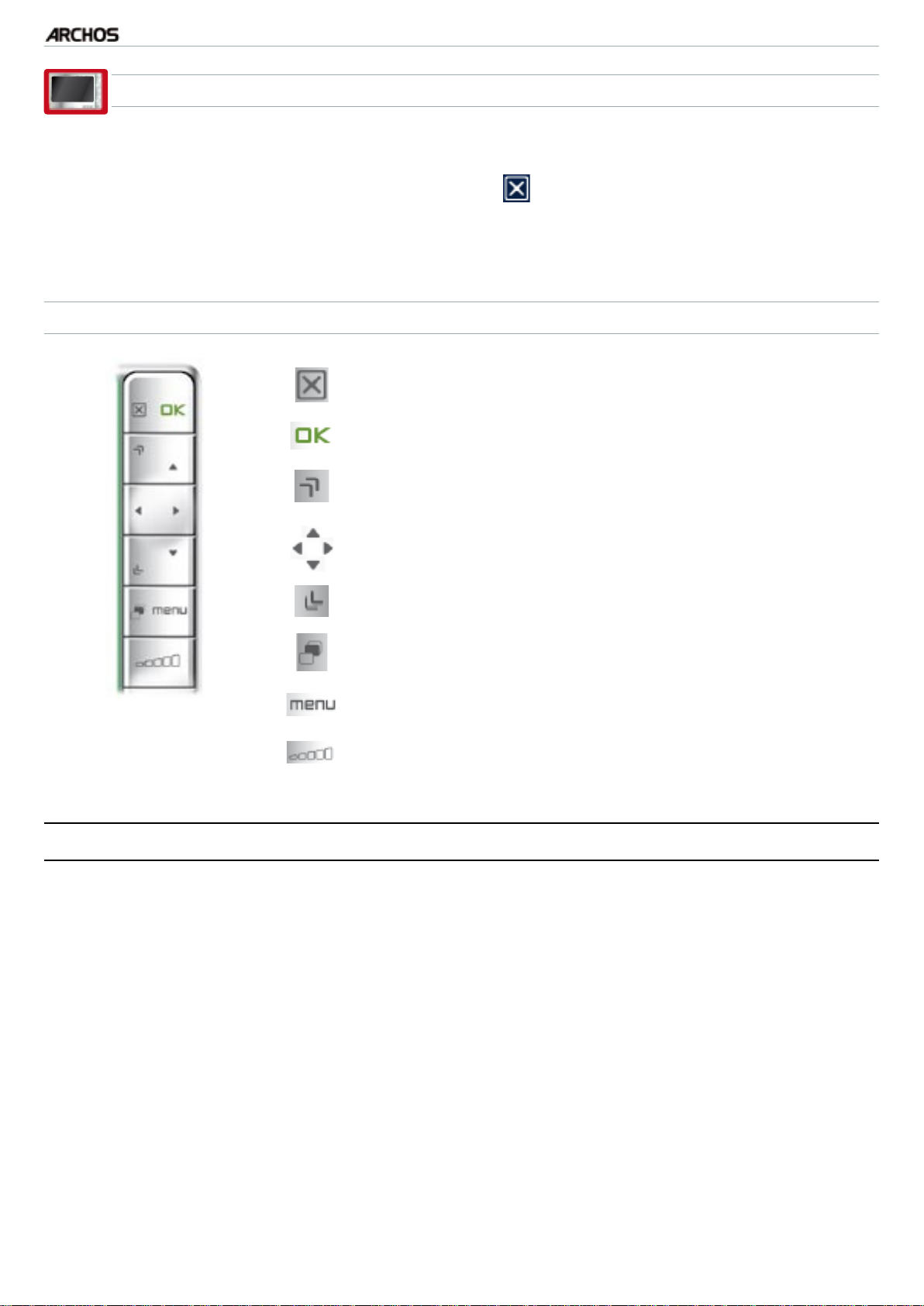

USING THE BUTTONS

The navigation buttons are located on the right side of the device:

Exit button

OK button

Up Accelerator button

Navigation buttons

(Escape / Back / Stop)

(Enter/Accept or Play/Pause/Resume)

(high-speed fast forward, list scrolling or zoom in)

(move from an item to another)

Down Accelerator button

Tab button

Menu button

Volume button

(tab between available screens)

(display a text description of the available menu icons)

(increase/decrease volume)

(high-speed fast rewind, list scrolling or zoom out)

Main Button Actions:

To open an application/screen via its icon or item, use the Navigation buttons to

• highlight the icon/item and press OK.

In the different applications, you can go back one level in the hierarchy by press-

• ing the Exit button once. Wherever you are in the hierarchy, you can go back

directly to the Home screen by holding the Exit button. When several tabs are available, you can switch between them by pressing the

• Tab button .

To execute a menu icon’s function, press the menu button, select a menu item

• with the navigation pad, and press OK.

While playing a video, song or photo slideshow, you can pause/resume it by

• pressing OK.

GEN 5

Other Button Actions

When watching a video or listening to music, you can hold the left/right

• Navigation buttons to move the cursor in the progression bar to another location in the video or song.

To increase/decrease volume, use the Volume button .

• In the different browsers (File, Music, Video, Photo), you can hold the up/

•

down Navigation buttons to scroll the le list up and down. You can also

scroll faster by using the Accelerator buttons.

MANUAL

V2.0

INTRODUCTION > P. 10

In the Web browser

•

(depending on model)

and the PDF viewer, you can

scroll up and down by holding the up/down Navigation buttons.

CHANGING THE LANGUAGE

The interface of your ARCHOS is available in various languages.

• If your language is not available, go to the ARCHOS website (www.

•

archos.com/rmware) and download and install the latest version of the rmware. New languages are included in the rmware as they

become available. See

To change the system’s language:

In the Home screen, select the “Settings” menu item, and choose “Language

(and Region)”.

Select a different language using

2. the left/right arrows (your settings are saved instantly).

Updating the Firmware

Close the screen to exit and go back to the Home screen.

PRODUCT CARE

Your ARCHOS is an electronic product that needs to be treated with care:

Do not subject it to unnecessary shock or vibration.

• Do not subject it to heat, keep it ventilated (especially when connected to a computer).

• Keep it away from water and excessively humid areas.

•

Keep it away from high electromagnetic elds.

• Do not open it up. There are no user-serviceable parts inside. Opening will void

• your warranty.

GEN 5

MANUAL

V2.0

PLAYING VIDEO > P. 11

1. PLAYING VIDEO

In the Home screen, select the “Video” icon to enter the Video mode.

1.1 BROWSING THROUGH YOUR VIDEOS

The “Video” browser allows you to navigate through the Video folder of the

• ARCHOS’ hard drive.

You can go back one level in the hierarchy by closing the current screen .

• Wherever you are in the hierarchy, you can go back directly to the Home screen by pressing and holding the Exit icon/button.

THE VIDEO BROWSER

The rst screen of the Video mode

• shows you all the videos and subfolders located in the Video folder.

To play a video, highlight it, then

• open it.

If a video is in a subfolder of the

•

Video folder, open the subfolder, and

you will see your video.

In the “Video” browser, each video le appears with a thumbnail, displayed

•

on the left of the le’s name. To dene a new thumbnail for a video le, open the video, select the “Set”

• menu item, and choose “Thumbnail” (see: Video Playback Menu Items).

BROWSING THROUGH YOUR MEMORY CARD’S VIDEOS

(Depending on model)

If you have inserted a memory card into the ARCHOS (see:

•

Memory Card Slot

select the line “SD/MMC card”, in the rst screen of the “Video” Browser. You can now browse the contents of your card and play your videos (if your card

•

contains any). In the Video browser, only video les and folders will appear.

GEN 5

VIDEO BROWSER MENU ITEMS

MANUAL

“Info”

displays a message box with information about the highlighted video le.-

“File Management”

“Rename”: allows you to change the name of the highlighted video le using

the virtual keyboard. See: “Delete”: allows you to delete the highlighted video le. A conrmation

screen will pop up.

“Bookmark”

“Resume”: will resume playing the highlighted video from the bookmark.

“Clear”: will remove the bookmark from the highlighted video le.

V2.0

Using the Virtual Keyboard

PLAYING VIDEO > P. 12

“Bookmark” only appears in the menu when a bookmarked video le is highlighted.

“Settings”

you can choose to display the Video Player settings screen (see:

Settings

) or the “Sound” settings screen (see:

“Sound” Settings

Video Player

1.2 VIDEO PLAYBACK

To play a video, highlight the le and open it. The menu overlay will disappear automatically after a few seconds.

VIDEO PLAYBACK SCREEN

Exit icon

video le name

Tab icon

volume level

play / pause icon

video progression bar

menu items

GEN 5

MANUAL

V2.0

PLAYING VIDEO > P. 13

605

To pause/resume the video, tap on the Pause / Play icon (see n° 5 in the

•

VIDEO PLAYBACK TOUCHSCREEN CONTROLS

previous screen).

•

To display the menu overlay again, tap once anywhere on the screen. To make it disappear again, wait for a few seconds or tap on the Tab icon , in the top left corner (see n° 3).

•

You can tap on the progression bar to go directly to a different location in the video. You can also use the stylus to drag the cursor in the progression bar to another location in the video (see n° 6).

The volume bar can be dragged in the same way (see n° 4).

• To execute a menu item’s function, simply tap on its icon. In order to display a

• text description of the icon, tap on the menu word (see n° 7).

To stop the video and go back to the “Video” browser, tap on the Exit icon

• (see n° 1).

To exit the Video mode and go back directly to the Home screen, tap

and hold the Exit icon.

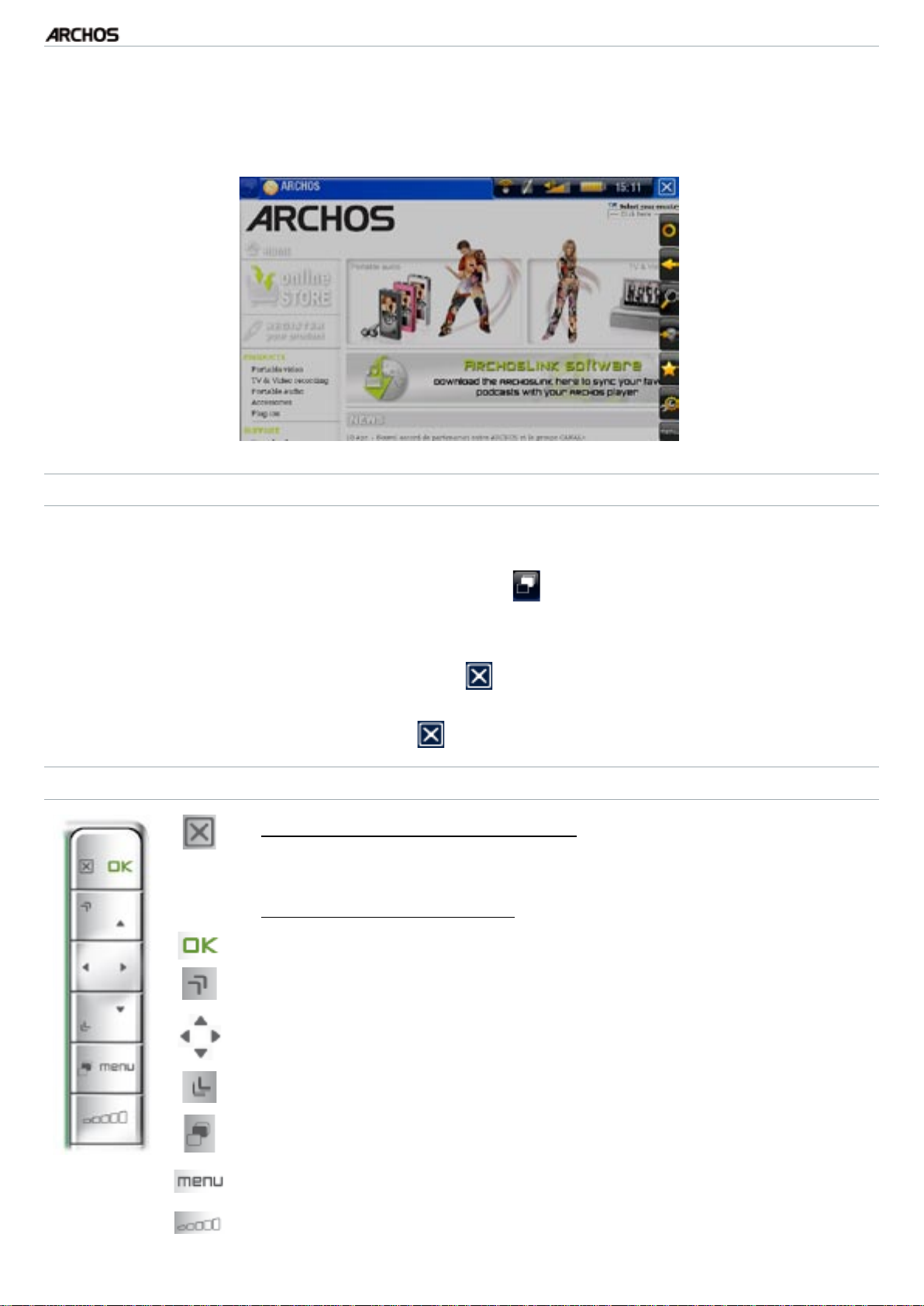

VIDEO PLAYBACK BUTTON CONTROLS

press once: stop the video and go back to the

“Video” browser hold: exit the Video mode and go back directly to

the Home screen.

pause/resume the video

accelerated fast forward

left/right: fast rewind/forward

accelerated fast rewind

display/hide the menu overlay

display available menu items

VIDEO PLAYBACK MENU ITEMS

“Info”

displays a message box with information about the current video le.-

increase/decrease volume

GEN 5

MANUAL

V2.0

PLAYING VIDEO > P. 14

“Soundtrack” and/or “Subtitles”

allows you to select a different audio track (only if the video le contains sev-

eral audio tracks).

allows you to choose subtitles (only if the video le includes subtitles).

This menu item only appears in the menu if the video le includes subtitles or

several audio tracks.

“Format”

allows you to change the way the image is displayed.

“Auto”: adjusts the video size to best adapt to the built-in screen (or TV, with the op-

tional DVR Station Gen 5, Mini Dock or Battery Dock: see “Full Screen”: enlarges the picture to ll the screen. In order to t the

Optional Functionalities

ARCHOS’ screen, your device might need to cut small parts of the image, most likely at the top and bottom.

“Maximized”: enlarges the picture to ll the screen, considering the image is

encoded in 2.35 format with black bands at the top and bottom.

“Original”: displays the entire picture in its original format.

“Speed”

will play the current video in slow motion or high speed.

while paused in slow motion, you can advance frame by frame, using the right

arrow.

“Set”

“Bookmark”: sets a bookmark at the current spot in the video. Only one

bookmark per le is allowed. You can bookmark up to 32 les. Bookmarked

videos will appear, in the “Video” browser, with a bookmark symbol and a progression bar.

to resume playing a video from a bookmark, go to the “Video” browser and highlight the bookmarked video le. Select the “Bookmark” menu item, then choose “Resume” (“Clear” will remove the bookmark from the video).

“Thumbnail”: saves the current image as a new thumbnail for this le. In the “Video” browser, the video’s thumbnail will be replaced by the new one.

“Wallpaper”: the current image will be dened as your device’s background

image.

“Settings”

you can choose to display the Video Player settings screen (see:

Settings

) or the “Sound” settings screen (see:

“Sound” Settings

Video Player

GEN 5

MANUAL

V2.0

PLAYING VIDEO > P. 15

1.3 VIDEO PLAYER SETTINGS

In the Video mode, you can access the Video Player settings screen by using the

• “Settings” menu item .

Use the left/right arrows to select a different setting for a parameter.

•

“PlayMode”, “Repeat & Shufe”

the following table explains how the video player will work according to the set-

tings you chose in “PlayMode” AND “Repeat & Shufe”.

“Repeat &

“PlayMode”

What the video player does...

Shufe”

“Single” “Normal”

“Repeat”

“Folder”

“Normal”

“Repeat”

plays the current video le and stops.-

plays the current video le repeatedly.-

plays all the video les of the current folder

one after the other, and then stops.

plays all the video les of the current folder

one after the other. This will be repeated in-

denitely.

“Shufe”

605

“Network thumbnails (UPnP)”

here you can enable/disable the video thumbnails while browsing through your PC’s shared videos (see:

Playing your PC’s Shared Media Files

plays all the videos of the current folder ran-

domly.

). If you choose

“Disabled”, you will be able to browse through your PC’s shared videos faster.

GEN 5

MANUAL

V2.0

PLAYING VIDEO > P. 16

“LCD Backlight”, “Brightness”, “Contrast” and “Gamma”

adjusts the level of backlight/contrast/brightness/gamma of the built-in screen.

you can also reset the LCD parameters to the default values (“Reset” button).

1.4 PUTTING VIDEOS ONTO YOUR ARCHOS

605

On the ARCHOS Content Portal, you have the possibility to purchase videos directly from your ARCHOS, without using a computer. See: The ARCHOS Content Portal.

There are two main methods to transfer the videos stored on your computer onto the ARCHOS:

Windows Media® Player: copy your videos using Windows Media® Player 10 or

1. higher*:

Use Windows Media® Player 10 or higher* (Sync tab) to synchronize

your computer’s video les with the ARCHOS.

See

Putting Files onto the ARCHOS

to learn more about how to transfer

your computer’s video les with Windows Media® Player.

* For best performance, we recommend that users update to Windows Media® Player 11 or higher.

Windows® Explorer: Copy and paste your video les from your computer into the

Video folder of your ARCHOS.

To learn how to connect/disconnect the ARCHOS from your computer, see the

Transferring Files

CREATING COMPATIBLE VIDEO FILES WITH YOUR COMPUTER

section.

If some of your videos don’t play on your ARCHOS, you may need to transcode them to a compatible format:

The easiest way to do this is by using Windows Media® Player 10 or higher to

• transfer videos to your ARCHOS. Windows Media® Player will automatically convert most formats to the WMV format that your device can play.

See your Windows Media® Player help instructions for more information.

If you don’t want to use Windows Media® Player, a search on the Internet should

•

allow you to nd suitable utility programs to do this job. If you would like to simply copy and paste unprotected DVD video les from

• your PC onto your ARCHOS without converting them to WMV format, you can

GEN 5

MANUAL

V2.0

PLAYING VIDEO > P. 17

purchase the Cinema plug-in from the ARCHOS website (www.archos.com). The same is also true for video podcasts in the H.264 format. In this case, purchase the Video Podcast plug-in.

1.5 RECORDING VIDEO

With the optional DVR Station Gen 5, DVR Travel Adapter, or

• Helmet CamCorder (available at www.archos.com), your ARCHOS will be able to record video from most any standard video source.

See:

•

Optional Functionalities

With the optional DVR Station Gen 5, you will also have the possibility to schedule TV recordings easily, via the TV Program Guide (EPG).

605

See the manual of your DVR Station Gen 5 to learn more about this

• feature.

DVR TRAVEL ADAPTER DVR STATION GEN 5

1.6 PLAYING YOUR PC’S SHARED VIDEOS

When connected to your home WiFi network, your ARCHOS gives

• you the possibility to watch, directly on your device, shared videos stored in your PC’s Windows Media® Library.

For this to work, you will need a WiFi connection and Windows

• Media® Player 11 or higher* installed on your PC.

The ARCHOS uses the UPnP (Universal Plug-and-play) standard to

• stream shared videos from your PC’s Windows Media® Library.

See:

•

* There are other products on the market that also can share media les using

the UPnP standard.

Playing your PC’s Shared Media Files

GEN 5

MANUAL

V2.0

PLAYING MUSIC > P. 18

2. PLAYING MUSIC

In the Home screen, select the “Music” icon to enter the Music mode.

2.1 BROWSING THROUGH YOUR MUSIC FILES

There are two types of views for you to browse through your songs: the Music

• Library and the Music Browser.

In both views, you can go back one level in the hierarchy by closing the current

• screen . Wherever you are in the hierarchy, you can go back directly to the Home screen by pressing and holding the Exit icon/button.

THE MUSIC LIBRARY

The Music Library (default view)

• shows your music sorted by categories (Artist, Album, Genre, etc.) if

your music les contain these song

information tags. When new music is copied to the

• ARCHOS, the Music Library will be updated automatically.

If some of your music les do not

• contain information tags, they will be classied as (Unknown) in the Music Library.

THE MUSIC BROWSER

The music browser allows you to

• navigate through the Music folder of your device’s hard drive.

To use it, select “Browse Hard

•

Drive” in the initial Music Library

view.

GEN 5

BROWSING THROUGH YOUR MEMORY CARD’S SONGS

(Depending on model)

•

If you have inserted a memory card into the ARCHOS (see:

MANUAL

V2.0

PLAYING MUSIC > P. 19

Memory Card Slot

select the line “SD/MMC card”, in the initial Music Library view. You can now browse the contents of your card and play your songs (if your card

•

contains any). In Music mode, only music les, playlists and folders will appear.

When you insert a memory card, its contents (songs and playlists) are automatically integrated into the Music library.

MUSIC LIBRARY AND MUSIC BROWSER MENU ITEMS*

“Info”

displays a message box with information about the highlighted music le.-

“Show playlist”

opens a playlist edition window on the right (see:

Playlists

).-

“Bookmark”

“Resume”: will resume playing the highlighted song from the bookmark.

“Clear”: will remove the bookmark from the highlighted music le.

“Bookmark” only appears in the menu when a bookmarked music le is highlighted.

“File Management”

“Rename”: allows you to change the name of the highlighted music le using

the virtual keyboard. See:

Using the Virtual Keyboard

“Delete”: allows you to delete the highlighted music le. A conrmation

screen will pop up.

“Settings”

you can choose to display the Music Player settings screen (see:

Settings

* The available menu items will vary depending on the mode you chose (Music Library or Music Browser).

) or the “Sound” settings screen (see:

“Sound” Settings

Music Player

GEN 5

MANUAL

V2.0

2.2 MUSIC PLAYBACK

•

Use the scroll bar to browse through the list of audio tracks.

•

To play a song, highlight the corresponding le and open it.

MUSIC PLAYBACK SCREEN

Exit icon

artist name, album title, song title, playback status icon(s) and track number

available tabs

volume level

play / pause icon

previous track

next track

progression bar

menu items

PLAYING MUSIC > P. 20

605

To pause/resume the song, tap on the Pause / Play icon (see n° 5 above).

•

To play the previous/next song, tap in the corresponding area (n° 6 or 7). To browse through your songs while listening to music, simply tap on the Tab icon

•

MUSIC PLAYBACK TOUCHSCREEN CONTROLS

. This will take you to the Music Library or browser screen that you launched

the current song from (see n° 3). You can tap on the progression bar to go directly to a different location in the

• song. You can also drag the cursor in the progression bar to another location in the song (see n° 8).

The volume bar can be dragged in the same way (see n° 4).

• To execute a menu item’s function, simply tap on its icon. In order to display a

• text description of the icon, tap on the menu word (see n° 9).

To stop the song and go back to the Music Library or browser, tap on the Exit icon

•

(see n° 1). To exit the Music mode and go back directly to the Home screen, tap

and hold the Exit icon.

GEN 5

MUSIC PLAYBACK BUTTON CONTROLS

MANUAL

V2.0

PLAYING MUSIC > P. 21

press once: stop the song

“Music” hold: exit the Music mode and go back directly to

Library or browser

and go back to the

the Home screen.

pause/resume the video

accelerated fast forward

left:

press once: back to the beginning of the song, or

previous song (in the rst 10 seconds of a track)

hold: fast rewind

right:

press once: next song

hold: fast forward

MUSIC PLAYBACK MENU ITEMS

“Info”

displays a message box with information about the current music le.-

“ARCHOS home screen”

allows you to go back to the Home screen, and browse your hard drive or

view your photos while listening to music.

accelerated fast rewind

tabs back to the Music Library or Music browser (depending on which mode you launched the song from)

display available menu items

increase/decrease volume

“Set bookmark”

sets a bookmark at the current spot in the song. Only one bookmark per le is

allowed. You can bookmark up to 32 les.

to resume playing a song from a bookmark, go to the Music Library or the Music

Browser, highlight the bookmarked music le. Select the “Bookmark” menu

item, then choose “Resume” (“Clear” will remove the bookmark from the song).

GEN 5

MANUAL

V2.0

PLAYING MUSIC > P. 22

“Set rating”

allows you to give a rating to the current song (1-5) or to remove the rating

(none).

“Settings”

you can choose to display the Music Player settings screen (see next section)

or the “Sound” settings screen (see:

“Sound” Settings

2.3 MUSIC PLAYER SETTINGS

In the Music mode, you can access the Music Player settings screen by using the

• “Settings” menu item .

Use the left/right arrows to select a different setting for a parameter.

•

“PlayMode”, “Repeat & Shufe”

the following table explains how the audio player will work according to the set-

tings you chose in “PlayMode” AND “Repeat & Shufe”. An icon shows the current modes in the Music playback screen.

“Repeat &

“PlayMode”

What the video player does...

Shufe”

“Single”

“Normal”

“Repeat”

plays the current song and stop.-

plays the current song repeatedly.-

Table continued on next page...

GEN 5

MANUAL

V2.0

PLAYING MUSIC > P. 23

“PlayMode”

“Folder”

“All”

“Repeat &

Shufe”

“Normal”

“Repeat”

“Shufe”

“Normal”

“Repeat”

What the video player does...

plays all the songs of the current folder one

after the other, and then stops.

plays all the songs of the current folder one

after the other. This will be repeated indenitely.

plays the songs of the current folder ran-

domly.

plays all the songs of your ARCHOS one

after the other, and then stops.

plays all the songs of your ARCHOS one

after the other. This will be repeated indenitely.

“Queue”

“Intro”

“Intro duration”

plays all the songs of your ARCHOS ran-

“Shufe”

allows you to select a track to be played after the current one

domly.

is nished.

while a track is playing, switch to the browser window, select

a track to highlight it, then open it. This is your queued track, which will be played after the current track.

you can only queue one track at a time, and you need to se-

lect the song to queue before the end of the current track.

plays the rst few seconds of each track. You can dene the

length to play in “Intro duration”. Press OK during the intro period to let the whole song play.

denes for how long each track will be played when “PlayMode” is set to “Intro”.-

GEN 5

MANUAL

V2.0

PLAYING MUSIC > P. 24

2.4 PLAYLISTS

A playlist is a list of audio tracks that the music player will automatically

• play one after the other.

On your ARCHOS, you can play, create and edit as many playlists as you want.

• In the ARCHOS Browser, playlists are the les with the icon.

•

Note: when you delete a playlist, you are only deleting the list and not the music itself.

PLAYING A PLAYLIST

In the Music Library, highlight the

• “Playlist” line and open it.

Highlight a playlist and open it. A

• panel showing the contents of the playlist will open on the right.

Open the rst item in the playlist to

•

start playing from the rst track.

PLAYLIST MENU ITEMS

These menu items appear when a music le is highlighted on the left panel:

“Add to playlist”

“Selected le”: will add the highlighted track at the end of the current playlist.

“All les”: will add all the tracks (from the left panel) at the end of the current

playlist.

“Insert in playlist”

“Selected le”: will insert the highlighted track before the selected item in

the current playlist. “All les”: will add all the tracks (from the left panel) before the selected

item the current playlist.

These menu items appear when the focus is on the right panel (playlist editor):

“Track”

“Remove track”: deletes the highlighted track from the playlist.

“Move”: allows you to change the position of the highlighted track within the

playlist. Highlight the track you want to move, select the “Track” menu item, then choose “Move”. Now highlight the position to which you want to move the track and validate.

GEN 5

“Playlist”

“Clear”: clears the current playlist.

“Shufe”: randomly shufes the order of the songs in the current playlist.

“Save playlist”

“Save”: saves the current playlist to the Playlists folder.

“Save As”: same as “Save”, but it also allows you to give a personalized name

to the playlist. See:

“Hide playlist”

closes the playlist editor.-

“Settings”

MANUAL

V2.0

Using the Virtual Keyboard

PLAYING MUSIC > P. 25

you can choose to display the Music Player settings screen (see

Settings

CREATING A NEW PLAYLIST

While you are in the Music browser, select the “Show playlist” menu item. A

) or the “Sound” settings screen (see:

“Sound” Settings

Music Player

playlist panel will open on the right. By default, the new playlist contains the same songs as the last opened playlist. You can now start modifying the playlist.

In the left panel, locate the songs you would like to add to your playlist. Highlight

2. a song and open it to add it to the playlist. Repeat this operation with all the tracks you want.

To add all the songs of a folder to a playlist: open the folder in the left panel

and highlight the rst song. Then use the “Add to playlist” or “Insert in playlist” menu item and choose “All les”.

When you are satised with your new playlist, select the “Save playlist” menu

3. item, and then choose “Save as”.

Enter the name of your new playlist with the virtual keyboard (see:

Virtual Keyboard

Use the tabs to jump back and forth between the left and right panels.

EDITING A PLAYLIST

) and select “OK”.

Using the

To edit an existing playlist:

In the Music Library, highlight the “Playlist” line and open it.

GEN 5

Highlight the playlist you want to modify and open it. A panel showing the con-

MANUAL

V2.0

PLAYING MUSIC > P. 26

tents of the playlist will open on the right.

You can now add, shufe, move or remove tracks within the playlist, using the

3. appropriate menu items. The available menu items will vary according to which panel you selected (see:

After you have made the changes you want, select the “Save playlist” menu item

Playlist Menu Items

and choose “Save” to save the playlist. If you wish to give it a different name, choose “Save As”.

ADDING SONGS TO A PLAYLIST WHILE LISTENING TO MUSIC

While playing a song, use the tab button/icon to go back to the Music Library or

1. Music Browser, and select the “Show playlist” menu item.

Your window will then have two panels: the music les on the left and the last-

2. opened playlist on the right.

While listening to your song, you can edit the last-opened playlist.

3. Close the playlist editor to return to the playback screen.

Please note: this can only be done if you have entered the Music folder via the “Music” icon in the Home screen and not via the “Files” icon.

2.5 PUTTING MUSIC ONTO YOUR ARCHOS

There are two main methods to transfer the music stored on your computer onto the ARCHOS:

Windows Media® Player: copy your music using Windows Media® Player 10 or

1. higher*:

Use Windows Media® Player 10 or higher* (Sync tab) to synchronize

your computer’s music les with the ARCHOS.

See

Putting Files onto the ARCHOS

your computer’s music les with Windows Media® Player.

to learn more about how to transfer

* For best performance, we recommend that users update to Windows Media® Player 11 or higher.

Windows® Explorer: Copy and paste your music les from your computer into the

Video folder of your ARCHOS.

To learn how to connect/disconnect the ARCHOS from your computer, see the

Transferring Files

section.

GEN 5

TRANSFERRING YOUR CD COLLECTION TO YOUR ARCHOS

MANUAL

V2.0

PLAYING MUSIC > P. 27

You can easily create audio content with your computer by using Windows Media® Player 10 or higher to convert your own CDs to MP3 or WMA format:

Place a music CD in your computer, and

1. Windows® will ask you what action you would like to perform.

Choose Rip music from CD, and Windows

2. Media® Player will start ripping the CD. The songs will be automatically extracted from the CD and encoded into the MP3 or WMA format, according to what you chose in Windows Media® Player’s ripping options. The default format is WMA.

Once this is done, the album will become part

3. of your Music Library.

See

Transferring Files

to learn how to transfer

the ripped music les onto the ARCHOS.

See your Windows Media® Player help instructions for more information.

Check the laws and regulations in your country or jurisdiction to know if pri-

• vate copying of your CDs for your own use is authorized.

Some music CDs have a special copy protection system that will not allow

• Windows Media® Player to make music les from them.

2.6 RECORDING ANALOGUE AUDIO

With the optional DVR Station Gen 5 or DVR Travel Adapter (avail-

• able at www.archos.com), your ARCHOS will be able to record audio from most any standard line level analogue audio source.

See:

•

DVR TRAVEL ADAPTER DVR STATION GEN 5

Optional Functionalities

GEN 5

MANUAL

V2.0

PLAYING MUSIC > P. 28

605

2.7 PLAYING YOUR PC’S SHARED MUSIC

When connected to your home WiFi network, your ARCHOS gives

• you the possibility to play, directly on your device, shared music stored in your PC’s Windows Media® Library.

For this to work, you will need a WiFi connection and Windows

• Media® Player 11 or higher* installed on your PC.

The ARCHOS uses the UPnP (Universal Plug-and-play) standard to

• stream shared music from your PC’s Windows Media® Library.

See:

•

* There are other products on the market that also can share media les using

the UPnP standard.

Playing your PC’s Shared Media Files

GEN 5

MANUAL

V2.0

VIEWING PHOTOS > P. 29

3. VIEWING PHOTOS

In the Home screen, select the “Photo” icon to enter the Photo viewer.

3.1 BROWSING THROUGH YOUR PHOTOS

The “Photo” browser allows you to navigate through the Pictures folder of the

• ARCHOS’ hard drive.

You can go back one level in the hierarchy by closing the current screen .

• Wherever you are in the hierarchy, you can go back directly to the Home screen by pressing and holding the Exit icon/button.

THE PHOTO BROWSER

The rst screen of the Photo mode

• shows all the photos and subfolders located in the Pictures folder.

To view a photo, highlight its

• thumbnail, then open it. If a photo is in a subfolder of the Pictures folder, open the subfolder, and you will see your photo.

The Photo Browser also allows you

• to view your pictures, sorted by date.

In the “Photo” browser each photo is displayed with a thumbnail.

BROWSING THROUGH YOUR MEMORY CARD’S PHOTOS

(Depending on model)

If you have inserted a memory card into the ARCHOS (see:

•

Memory Card Slot

select the line “SD/MMC card”, in the rst screen of the Photo mode. You can now browse the contents of your card and view your photos (if your card

•

contains any). In Photo mode, only picture les and folders will appear.

When you insert a memory card, its contents (pictures) are automatically integrated into the Photo library (“All by date” and Browse by date” views).

GEN 5

PHOTO BROWSER MENU ITEMS*

MANUAL

V2.0

“Info”

displays a message box with information about the highlighted picture.-

“Delete”

allows you to delete the highlighted picture. A conrmation screen will pop

up.

“Start slideshow”

starts a slideshow from the highlighted image.

the “Pause slideshow” menu item will appear, allowing you to pause the

slideshow.

VIEWING PHOTOS > P. 30

“Settings”

will display the Photo viewer settings screen (see

* The available menu items will vary depending on where you are in the “Photo” Browser.

Photo Viewer Settings

).-

3.2 PHOTO VIEWER

To view a picture, highlight the corresponding thumbnail and open it. The menu overlay will disappear automatically after a few seconds.

PHOTO VIEWER SCREEN

GEN 5

MANUAL

V2.0

VIEWING PHOTOS > P. 31

605

To display the menu overlay again, tap once anywhere on the screen. To make it dis-

•

PHOTO VIEWER TOUCHSCREEN CONTROLS

appear again, wait for a few seconds or tap on the Tab icon , in the top left corner. To display the next picture, drag the stylus (anywhere on the screen) from left to

• right. Drag from right to left to go back one picture.

To rotate the picture 90° counterclockwise, drag the stylus (anywhere on the

• screen) from bottom to top. To rotate the picture 90° clockwise, drag from top to bottom.

To execute a menu item’s function, simply tap on its icon. In order to display a

• text description of the icon, tap on the menu word.

To close the picture and go back to the “Photo” browser, tap on .

•

To exit the

Photo mode and go back directly to the Home screen, tap and hold the Exit icon.

PHOTO VIEWER BUTTON CONTROLS

press once: close the photo viewer and go back to

the “Photo” browser hold: exit the Music mode and go back directly to

the Home screen.

start/pause a slideshow

zoom in

left/right: previous/next picture down/up: rotate 90° clockwise/counterclockwise

zoom out

display/hide the menu overlay

display available menu items

PHOTO VIEWER MENU ITEMS

“Info”

displays a message box with information about the current picture.-

increase/decrease volume

GEN 5

“Rotate”

choose “Left” to rotate the picture 90° counterclockwise.

choose “Right” to rotate the picture 90° clockwise.

“Start slideshow”

starts a slideshow from the current image.

the “Pause slideshow” menu item will appear, allowing you to pause the

slideshow.

“Set as wallpaper”

denes the current picture as your ARCHOS’ background image.-

“Settings”

MANUAL

V2.0

VIEWING PHOTOS > P. 32

will display the Photo viewer settings screen (see next section).-

“Zoom”

use the slider to magnify/demagnify the current picture.-

3.3 PHOTO VIEWER SETTINGS

In the Photo mode, you can access the Photo viewer settings screen via the

• “Settings” menu item .

Use the left/right arrows to select a different setting for a parameter.

•

“Picture Pause”

denes the time that each picture will be displayed during a slideshow.

GEN 5

MANUAL

V2.0

VIEWING PHOTOS > P. 33

“Transition”

denes the transition effect to be used between two pictures. There are several

cool effects that you can choose from.

“Sequence”

allows you to enable/disable the shufe mode. If this parameter is set to

“Shufe”, your pictures will be displayed randomly. To disable the shufe mode, select “Normal”.

“Format”

allows you to change the way the picture is displayed.

“Original”: displays the entire picture in its original format.

“Full Screen”: enlarges the picture to ll the screen. In order to t the ARCHOS’

screen, your device might need to cut small parts of the image, most likely at the top and bottom.

3.4 PLAYING A SLIDESHOW

To view a slideshow, highlight a picture le in the “Photo” browser or while view-

• ing photos viewing, and choose the “Start slideshow” menu item.

While a slideshow is playing, you can pause it at any time by selecting the

• “Pause slideshow” menu item.

You can dene the time that each picture is displayed and the transition effects

• in the “Photo” settings (see:

“Photo” Settings

3.5 VIEWING PHOTOS WHILE LISTENING TO MUSIC

You can view photos and play slideshows while listening to music:

Choose the “ARCHOS home screen” menu item while playing a song.

• In the Home screen, select the “Photo” icon to enter the Photo mode.

• Browse through your photos (see:

• show as normal (see:

To go back to the Music playback screen, go to the Home screen and select the

•

Playing a Slideshow

Browsing Through your Photos

) or start a slide-

“Music” icon.

GEN 5

MANUAL

V2.0

VIEWING PHOTOS > P. 34

3.6 PUTTING PHOTOS ONTO YOUR ARCHOS

There are two main methods to transfer the pictures stored on your computer onto the ARCHOS:

Windows Media® Player: copy your pictures using Windows Media® Player 10 or

1. higher*:

Use Windows Media® Player 10 or higher* (Sync tab) to synchronize

your computer’s pictures with the ARCHOS. See

Putting Files onto the ARCHOS

your computer’s pictures with Windows Media® Player.

* For best performance, we recommend that users update to Windows Media® Player 11 or higher.

to learn more about how to transfer

Windows® Explorer: Copy and paste your pictures from your computer into the

Video folder of your ARCHOS.

To learn how to connect/disconnect the ARCHOS from your computer, see the

Transferring Files

605

3.7 PLAYING YOUR PC’S SHARED PHOTOS

section.

When connected to your home WiFi network, your ARCHOS gives

• you the possibility to view, directly on your device, shared photos stored in your PC’s Windows Media® Library.

For this to work, you will need a WiFi connection and Windows

• Media® Player 11 or higher* installed on your PC.

The ARCHOS uses the UPnP (Universal Plug-and-play) standard to

• stream shared photos from your PC’s Windows Media® Library.

See:

•

* There are other products on the market that also can share media les using

the UPnP standard.

Playing your PC’s Shared Media Files

GEN 5

MANUAL

V2.0

USING THE FILE BROWSER > P. 35

4. USING THE FILE BROWSER

The ARCHOS File Browser gives you the possibility to navigate the le

system of your ARCHOS’ hard drive. In the Home screen, select the “Files” icon to enter the File Browser.

You will see two panels:

The one on the left is the panel that

• you usually use to navigate through your device’s hard drive.

The panel on the right is the one

• you will use when you want to

copy or move les and folders

(see:

Folders

Copying and Moving Files and

About your ARCHOS’ hard drive: DO NOT delete or rename the original folders: Music, Pictures, Video,

Playlists, etc. The icons on the Home screen (“Video, “Music”, “Photo”...) lead directly to these folders and they may no longer work correctly if the folders are deleted or renamed.

BROWSING THROUGH YOUR MEMORY CARD’S FILES

(Depending on model)

If you have inserted a memory card into the ARCHOS (see:

•

Memory Card Slot

select the line “SD/MMC card”, in the rst screen of the File browser.

You can now browse the contents of your card. In the File browser, all les and

• folders will appear.

4.1 NAVIGATION

605

You can drag the scroll bar up and down to scroll the le list up and down. You

•

TOUCHSCREEN CONTROLS

can also scroll faster by tapping above or below the cursor in the scroll bar.

To open a le or folder, tap on it to highlight it, then tap on it again.

•

GEN 5

To jump between the left and right panels, tap on , or tap directly on the panel

•

MANUAL

V2.0

USING THE FILE BROWSER > P. 36

that you want to highlight. To execute a menu item’s function, simply tap on its icon. In order to display a

• text description of the icon, tap on the menu word.

You can go back one level in the hierarchy by tapping on

•

(see n° 1)

. Wherever you are in the hierarchy, you can go back directly to the Home screen by tapping and holding the Exit icon.

BUTTON CONTROLS

press once: go back one level in the hierarchy

hold: exit the

File Browser

and go back directly to

the Home screen.

open a le or folder

scroll up the le list faster

left: go back up one level in the folder hierarchy

up/down: scroll the le list up and down scroll down the le list faster

jump between the left and right panels.

display available menu items

increase/decrease volume

BROWSER MENU ITEMS

Note that some of the above menu items may not appear if they are not avail-

able for the highlighted le or folder.

“Info”

displays a message box with information about the highlighted le.-

“Create folder”

creates a folder at the current location.

you will have to enter the folder’s name with the virtual keyboard (see:

the Virtual Keyboard

Using

GEN 5

MANUAL

V2.0

“File Management”

“Rename”: allows you to change the name of the highlighted le or folder us-

ing the virtual keyboard. See: “Delete”: allows you to delete the highlighted le or folder (and all its con-

Using the Virtual Keyboard

tents). A conrmation screen will pop up.

“Copy”

“Copy”: allows you to copy the highlighted le or folder to the location de-

ned in the other browser panel. “Copy all les”: allows you to copy all the les of the current folder to the

location dened in the other browser panel. “Move”: allows you to move the highlighted le or folder to the location de-

ned in the other browser panel.

COPYING AND MOVING FILES AND FOLDERS

USING THE FILE BROWSER > P. 37

In the left panel, highlight the le/folder that you want to copy or move.

•

In the right panel, navigate to the location where you wish to copy the le/folder to.

• Go back to the left panel, select the “Copy” menu item and then choose “Copy”,

• “Copy all les” or “Move”, depending on the action that you want to carry out.

4.2 USING THE VIRTUAL KEYBOARD

The virtual keyboard is an interface that allows you to type in text, for instance to rename

a le or folder, or when you want to give a title to a playlist that you have just created.

current name of the

le/folder

Exit icon

Shift key

Alt/Alt Gr key : enable/disable the keys’ secondary functions

Caps Lock key

move cursor one character to the left

move cursor one character to the right

the virtual keyboard might vary according to your model.

•

if a key is transparent, it means that it is disabled.

•

delete character before cursor

save the name.

GEN 5

MANUAL

V2.0

USING THE FILE BROWSER > P. 38

605

To enter a character, tap on the corresponding key.

•

To exit the keyboard without saving, tap on

• When you are satised with the name, tap on the Ok key (see n° 9) to save it

•

KEYBOARD TOUCHSCREEN CONTROLS

(see n° 2 in the previous screen).

and exit the keyboard. A conrmation screen will pop up.

KEYBOARD BUTTON CONTROLS

close keyboard without saving

enters the highlighted character

same as the Shift key

jump from one key to another

same as the Alt/Alt Gr key

(depending on model)

4.3 USING THE FILE BROWSER WHILE LISTENING TO MUSIC

You can browse your les while listening to music:

Choose the “ARCHOS home screen” menu item while playing a song.

• In the Home screen, select the “Files” icon to enter the File Browser and start

•

browsing through your les.

To go back to the Music playback screen, go to the Home screen and select the

• “Music” icon.

GEN 5

MANUAL

V2.0

USING THE FILE BROWSER > P. 39

605

When you are connected to a Windows® network, you can browse* the shared

•

4.4 BROWSING OTHER COMPUTERS ON THE NETWORKBROWSING OTHER COMPUTERS ON THE NETWORK

folders of other computers in the network, using the ARCHOS File Browser. From the Home screen, select the “Files” icon. In the left panel of the browser,

• select the rst line in the list (“Network”). Your device will connect to your WiFi access point and then search for other computers in the Windows® network. You can then choose a computer and start browsing its shared folders.

* If the computer with the shared folders normally has a Windows® username and password, you will be asked to enter these before you can access the folder contents.

Using the ARCHOS double browser, you will be able to play media les or transfer any le from a networked computer onto your device. You can also transfer les from your

device onto a computer’s write-enabled shared folder (see

and Folders

If the WiFi is not enabled or if you are not connected to a network, the device will scan for available networks and connect to a known network or display the list of available networks so that you can connect to one of them.

Copying and Moving Files

4.5 USING THE PDF READER

Your ARCHOS features a PDF reader with hyperlink support.

•

In the Browser, PDF les are displayed with the

• To view a PDF document, highlight the PDF document in the File Browser and

• open it.

ATTENTION: The ARCHOS PDF reader may not implement all PDF features.

For example, you will not be able to open password protected PDF les.

icon.

GEN 5

MANUAL

V2.0

USING THE FILE BROWSER > P. 40

605

To follow a link, highlight the link (red outline) and tap again.

• To display the menu overlay while viewing a PDF document, tap once in the bot-

•

PDF TOUCHSCREEN CONTROLS

tom right corner of the screen. To go to the next/previous page, tap on the “Next/Previous page” menu item.

•

To exit the PDF reader, tap on .

•

PDF BUTTON CONTROLS

1st press: t to width (if zoomed)

2nd press: exit PDF reader

follow a highlighted link

navigate within the current page

display available menu items

FOLLOWING HYPERLINKS

Some PDF documents have hyperlinks (for instance, a table of contents, links to

• an external website, etc.).

Links are surrounded by a blue outline. A highlighted link (active link) is surround-

• ed by a red outline.

If you want to go back to the previous page (where you ‘clicked’ the link), select

• the “Link back” menu item.

Note that hyperlinks referring to an external document or to a URL may not work.

GEN 5

PDF READER MENU ITEMS

MANUAL

V2.0

USING THE FILE BROWSER > P. 41

“Hide text overlay”

will hide all overlaid graphics (status bar, menu items, etc.) to only show the PDF

document.

“Zoom in”

magnies the document.-

“Zoom out”

demagnies the document.-

“Link back”

will take you back to the page that you came from.

only appears when you have previously followed a link.

“Go to page...”

allows you to select a specic page.

use the left/right buttons to select a page number.

Select “Ok” to go to this page.

“Previous page”

goes to the previous page in the document.-

“Next Page”

goes to the next page in the document.-

GEN 5

MANUAL

V2.0

CONNECTING TO A WIFI NETWORK > P. 42

605

5. CONNECTING TO A WIFI NETWORK

Your ARCHOS can connect to a variety of wireless networks. You will nd

below the procedure to connect to these different WiFi networks.

5.1 WIFI CONNECTION PROCEDURE

ENABLING WIFI

From the Home screen, select the “Enable WiFi” menu item . Your device will scan for available WiFi networks.

The rst time you use your device, you may get a message “No congured net-

•

work found”. Select “View available networks”, and the list of available networks

will be displayed. If you get the message “Could not connect to any WiFi network!”, select “View

•

available networks”, and the list of available networks will be displayed.

Once you are connected to a WiFi network, the status bar icon (WiFi not connected) will become (WiFi connected). There is no status bar icon at all when WiFi is not enabled.

When you enter an application that uses the WiFi (Web Browser, ARCHOS Content Portal, etc. See: The WiFi Features), your ARCHOS will try to connect

to the WiFi. If a congured network is detected, the ARCHOS will automatically

connect to it and then launch the application.

THE LIST OF AVAILABLE NETWORKS

The list of available networks shows

• all the wireless networks in range of your device.

The list is constantly refreshed au-

• tomatically.

In the list of available networks, for

• each network you will see the following information:

GEN 5

MANUAL

V2.0

CONNECTING TO A WIFI NETWORK > P. 43

Conguration status:

The name of the network (SSID), if it is broadcasted

congured network

(if the SSID is not broad-

uncongured network

casted, you will be prompted to enter it in the next conguration screen).

The strength of the signal.

The type of encryption key that is required:

Open network (no key) WEP key WPA key

The channel used by the network.

The type of network (Infrastructure or Ad-Hoc).

Ad-Hoc networks are not sup-

WPA2 key

ported at this time.

Select the network that you want to connect to (your home wireless network or

• a free hotspot).

You will be taken to the conguration screen for this network, where you will

• have to enter some information to set up your access to this network.

5.2 WIFI NETWORK CONFIGURATION

In order to connect to a wireless network, the ARCHOS will need some specic information about the network. Your device will automatically pick up certain pieces of information that it needs from the WiFi hot spot. You can enter the rest of the in-

formation manually in the network’s conguration screen, as shown in the following

sections.

Note that your device will remember the network connection information that you enter, in order to re-use it and connect automatically to the network when it is in range.

GEN 5

OPEN NETWORKS

Open networks do not require an

•

MANUAL

V2.0

authentication key. If the network has automatic con-

• guration turned on (DHCP), simply tap on the “Connect” button, and your ARCHOS will connect to this network, provided the signal is strong enough.

If the network needs to be cong-

• ured manually, use the left/right arrows to select the “Manual” setting on the “Conguration” parameter.

CONNECTING TO A WIFI NETWORK > P. 44

Other parameters will appear: the

• required information can be obtained from the person who manages the network.

When you have nished entering all the information, tap on the “Connect” button, and your ARCHOS will connect to this network, provided the signal is strong enough.

(

PROTECTED NETWORKS

Protected networks require an en-

•

WEP, WPA OR WPA2 KEY

)

cryption key to connect. The type of key (WEP, WPA or

• WPA2) will be detected automatically by your device.

The rest of the required information

• can be obtained from the person who manages the network.

GEN 5

MANUAL

V2.0

CONNECTING TO A WIFI NETWORK > P. 45

You will have to specify the following settings:

“Key length” (for WEP networks only)

the authentication key can be 10 characters long (64bit) or 26 characters long (128bit).

“Key” (WEP or WPA)

type in the authentication key.

you will be taken to a virtual keyboard (see: type in the key and tap on “OK” when you have nished.

Using the Virtual Keyboard

“Authentication” (for WEP networks only)

the network’s authentication method can be based on an “Open System (de-

fault)” or a “Shared Key”.

“Conguration”

it can be “Automatic (DHCP)” or “Manual”.

if it is “Automatic (DHCP)”, then you do not have to enter any more information. Simply use the “Connect” button, and your ARCHOS will connect to this network, provided the signal is strong enough.

if you must congure the network manually, select the “Manual” setting. Other parameters will appear: the required information can be obtained from the person who manages the network.

When you have nished entering all the information, use the “Connect” button, and your ARCHOS will connect to this network, provided the signal is strong enough.

Filtered networks: If your network manager allows only specic devices to connect to the network (known as MAC address ltering), you can supply the network manager with the MAC address of your ARCHOS. To nd out what

your MAC address is, select the “Settings” menu item from the Home screen, then choose “System”. See: “System” Settings.

GEN 5

MANUAL

V2.0

THE WIFI FEATURES > P. 46

605

6. THE WIFI FEATURES

When connected to a WiFi network, your ARCHOS gives you the possibility to:

rent or purchase on-line videos/music via the ARCHOS Content

• Portal. See:

browse the web with the optional Web Browser plug-in, available at

•

The ARCHOS Content Portal

www.archos.com. See next section.

play shared media les stored on other computers in your network.

• See:

Playing your PC’s Shared Media Files

6.1 BROWSING THE WEB

In order to browse the web, you will need the Web Browser plug-in, available at www.archos.com. With this Internet browser, specially designed for your ARCHOS, you will have the possibility to browse websites*, use web-based e-mailing, download content, etc.

*supports Flash™ content and Javascript. Java virtual machine not supported.

LAUNCHING THE WEB BROWSER

From the Home screen, select the “Web” icon.

If you are already connected to a network, the Web browser will simply open and

• you can start browsing the Web.

If WiFi is not enabled or if you are not connected to a network, the device will

• scan for available networks and connect to a known network or display the list of available networks so that you can connect to one of them.

Please note: not all wireless networks offer access to the Internet. Some WiFi net-

• works only link several computers together, without any Internet connection.

If the time and date are not correctly set, you might not be able to access certain web pages (See: “Clock” settings). If you choose to set the clock automatically when the ARCHOS connects to a WiFi network, you will need to select your Country and City/Zone (see: “Language (and Region)” Settings).

USING THE WEB BROWSER

You can use the Web browser to read your Web-based e-mail, view Web sites, and

• download documents from the Internet.

The menu overlay will disappear after a few seconds.

•

GEN 5

The Web browser features ‘tabbed browsing’. You can have several pages opened

•

MANUAL

V2.0

THE WIFI FEATURES > P. 47

at the same time. They will appear in the tabs area, in the upper left corner of the screen. When several pages are open, simply select a tab to access the page that you want. See next section.

WEB BROWSER TOUCHSCREEN CONTROLS

You can use your stylus to scroll the current web page horizontally or vertically. To

• open a link, simply tap on it.

To switch between the available tabs, tap on , or tap directly on the corre-

• sponding tab.

To display the available menu items, tap on the menu word.

• When several tabs are displayed, tap on to close the current one or tap and

• hold the icon to close the Web browser and go back directly to the Home screen. When there is only one tab, tap on to exit the Web browser.

WEB BROWSER BUTTON CONTROLS

When several tabs are displayed: press once to close the cur-

rent tab. Press and hold to close the Web browser and go back directly to the Home screen.

When there is only one tab: press once to close the Web browser.

validate (enter button) zoom in

scroll left/right/up/down

zoom out

go to the next tab

display available menu items

increase/decrease volume

GEN 5

BROWSER MENU ITEMS

MANUAL

V2.0

THE WIFI FEATURES > P. 48

“Reload” / “Stop”

will stop loading the web page, if it is currently loading.

will refresh the current web page, if it has stopped loading.

“Back”

will go back to the previous page that you browsed.

“Zoom”

changes the way the web page is displayed. Select a zoom mode.

“Go to”

“Enter URL...”: allows you to enter the address of a Web site you’d like to visit.

Enter the address with the virtual keyboard (see:

Using the Virtual Keyboard

Select “OK” to open the website in the current window, or select “Open in new

tab” to open it in a new window.

“Search...”: allows you to search an address in one of the congured search

engines. Enter the key words using the virtual keyboard (see:

Keyboard

in new tab” to open them in a new window.

). Select “OK” to open the results in the current window, or select “Open

Using the Virtual

“Favorites”

will open the “Favorites” manager. Here you can add favorites, rename or delete

them. Select a favorite and use the “Open in new tab” menu item to open the corresponding web page in a new window.

“Settings”

will open the “Web Browser” settings screen. Here you can decide whether to

accept/ignore popup windows, enable/disable ash content, delete your Internet

history and cookies, etc.

Please note that some Web features requiring special plug-in software or Active X controls may not work in this special version of the Web Browser.

6.2 PLAYING YOUR PC’S SHARED MEDIA FILES

When connected to your home WiFi network, your ARCHOS gives you the possi-

• bility to watch, directly on your device, shared media les (videos, music or photos) stored in your PC’s Windows Media® Library.

For this to work, you will need a WiFi connection and Windows Media® Player 11

• or higher installed on your PC*.

GEN 5

This is especially useful when you have a large library of music and video and you

•

MANUAL

V2.0

THE WIFI FEATURES > P. 49

cannot t it all onto the internal hard drive of the ARCHOS.

•

The ARCHOS uses the UPnP (Universal Plug-and-play) standard to stream shared

media les from your PC’s Windows Media® Library.

Streaming one of your PC’s shared videos and displaying it on your TV

* If you cannot install Windows Media® Player 11 or higher, it is possible to ac-

cess and stream your PC’s les from the ARCHOS File Browser. See Browsing Other Computers on the Network.

SETTING WINDOWS MEDIA® PLAYER’S SHARING OPTIONS

Connect the ARCHOS to your WiFi network (see

Connecting to a WiFi Network

Connect your PC to the same WiFi network and

start Windows Media® Player, version 11 or higher.

Click on the Library tab, and select Media shar-

ing...

Check the box Share my media to, and click on

OK. The ARCHOS’ icon should appear in the win-

dow, with a warning symbol next to it*.

* ATTENTION: the rst time you set your sharing options, it might take a couple of minutes for your PC to display the ARCHOS’ icon.

GEN 5

Select the ARCHOS’ icon and click on the Allow button.

To modify your sharing settings, click on Settings. You can, for example, enter a

MANUAL

V2.0

THE WIFI FEATURES > P. 50

name for your shared media les. You will then see this name on your ARCHOS.

Click on OK to save the modications.

Click on OK to close the Media Sharing window.

You can now close Windows Media® Player, and start viewing your PC’s shared

media les directly on your ARCHOS (see next section).

PLAYING YOUR SHARED MEDIA FILES ON THE ARCHOS

Your PC needs to be connected to the same WiFi network as the one the ARCHOS will connect to. You also need to have congured Windows Media® Player’s sharing options (see the previous section).

On your ARCHOS, enter the Video, Music or Photo mode.

You will notice that the rst item in the list is the shared media les: “Network

Media Libraries (UPnP)”. Open this item to start scanning for devices and com-

puters sharing their media les on the WiFi network.

If you entered a name for your shared media les in Windows Media® Player, it

should appear. Open it, and you will see all your shared videos, songs or photos.

If you are in the Video mode,

• you will then have access to all the videos stored in your PC’s Windows Media® Library.

In the same way, the Music and

• Photo modes will allow you to access all the music/photos stored in your PC’s Windows Media® Library.

Note: You may have some video les of very high quality and these require

that the WiFi connection transfers data at a high speed. If your ARCHOS is far away from your WiFi box, it may happen that the connection speed is reduced

thus not allowing some video les to stream from your PC to the ARCHOS and

the television.

GEN 5

MANUAL

V2.0

6.3 THE ARCHOS CONTENT PORTAL

The ARCHOS Content Portal is an on-line store that regroups several

• video and music partners. This portal will allow you to purchase or rent videos and songs, directly on your ARCHOS, without even using a computer.

Or, if your ARCHOS is connected to the optional DVR Station Gen 5

• you will be able to select your internet media content directly from your television.

In order to activate the ARCHOS

1. Content portal, you will need to register your ARCHOS product on-line on the ARCHOS web site (www.archos. com/register).

THE WIFI FEATURES > P. 51

Make sure you have congured your

2. ARCHOS on a WiFi network (see:

Connecting to a WiFi Network

Select the ARCHOS “Content Portal”

icon to view available on-line media stores and purchase videos or songs.

You can also visit the ARCHOS on-line

4. store to purchase accessories.

Depending on your connection speed, you will have the possibility to start playing the video/song you purchased or rent while it’s being downloaded. The videos/songs you get from the ARCHOS Content Portal are saved in the Video/Music folders.

GEN 5

MANUAL

V2.0

TRANSFERRING FILES > P. 52

7. TRANSFERRING FILES

7.1 CONNECTING THE ARCHOS TO A COMPUTER

Turn on your ARCHOS.

Plug the ARCHOS USB cable into the ARCHOS.

Plug the USB end of the cable into your computer.

The ARCHOS will ask you if you want to connect it or charge its battery. Choose

4. to connect it.

The ARCHOS’ icon will appear on your computer. You can now start transferring

les to it.

7.2 PUTTING FILES ONTO THE ARCHOS

There are two main methods to transfer your les onto the ARCHOS:

Copy your media les (videos, music, photos) with Windows Media® Player 10 or

1. higher*:

* For best performance, we recommend that users update to Windows Media® Player 11 or higher.

The Synchronize button in Windows Media® Player is a one way ‘sync’ button. It will add

video, music and photo les to your ARCHOS. If will give you the possibility to have the

same digital media on your ARCHOS as you have in your Windows Media® Player media library.

GEN 5

MANUAL

V2.0

TRANSFERRING FILES > P. 53

Connect your ARCHOS to the computer. See

to a Computer

On your computer, start Windows Media® Player.

2. Select the Sync tab.

3. Choose the media les you want to transfer.

Click on the Start Sync button.

5. The selected videos, songs or photos will be copied directly into the

Connecting the ARCHOS

corresponding Video, Music or Pictures folder of the ARCHOS.

See your Windows Media® Player help instructions for more information.

The second method is to use Windows® Explorer to copy and paste your les

2. from your computer to the Video, Music or Pictures folder of your ARCHOS.

You cannot copy les larger that 2 GB to the ARCHOS due to the FAT32 le

system constraints. For advanced users: in “PC Hard Drive” connection

modes (mode 2 and 3), the maximum size is 2 GB for .AVI les and 4 GB for any other type of le. See: “System” Settings.

7.3 DISCONNECTING

When you disconnect the ARCHOS from a computer, your device automati-

cally updates the ARCLibrary, so that the media les you just copied appear in

the Music and Photo Libraries.

Windows® XP or higher & WMP10 or higher

Verify that no data are being transferred between your ARCHOS and your com-

•

puter (the HDD indicator on your ARCHOS is not ickering).

Now unplug the USB cable from your ARCHOS and/or computer.

•

Windows® 2000 or Me

DO NOT SIMPLY PULL OUT THE CABLE AT ANY TIME! You must remove/unmount the ARCHOS from the computer before disconnecting the USB cable to avoid loss of data or freezing.

Once all your transfers are nished, click on the ‘safely

• remove’ icon in the system tray, next to the clock.

Click on the ‘safely remove’

• message.

GEN 5

A message will pop up, telling you that it is

•

MANUAL

V2.0

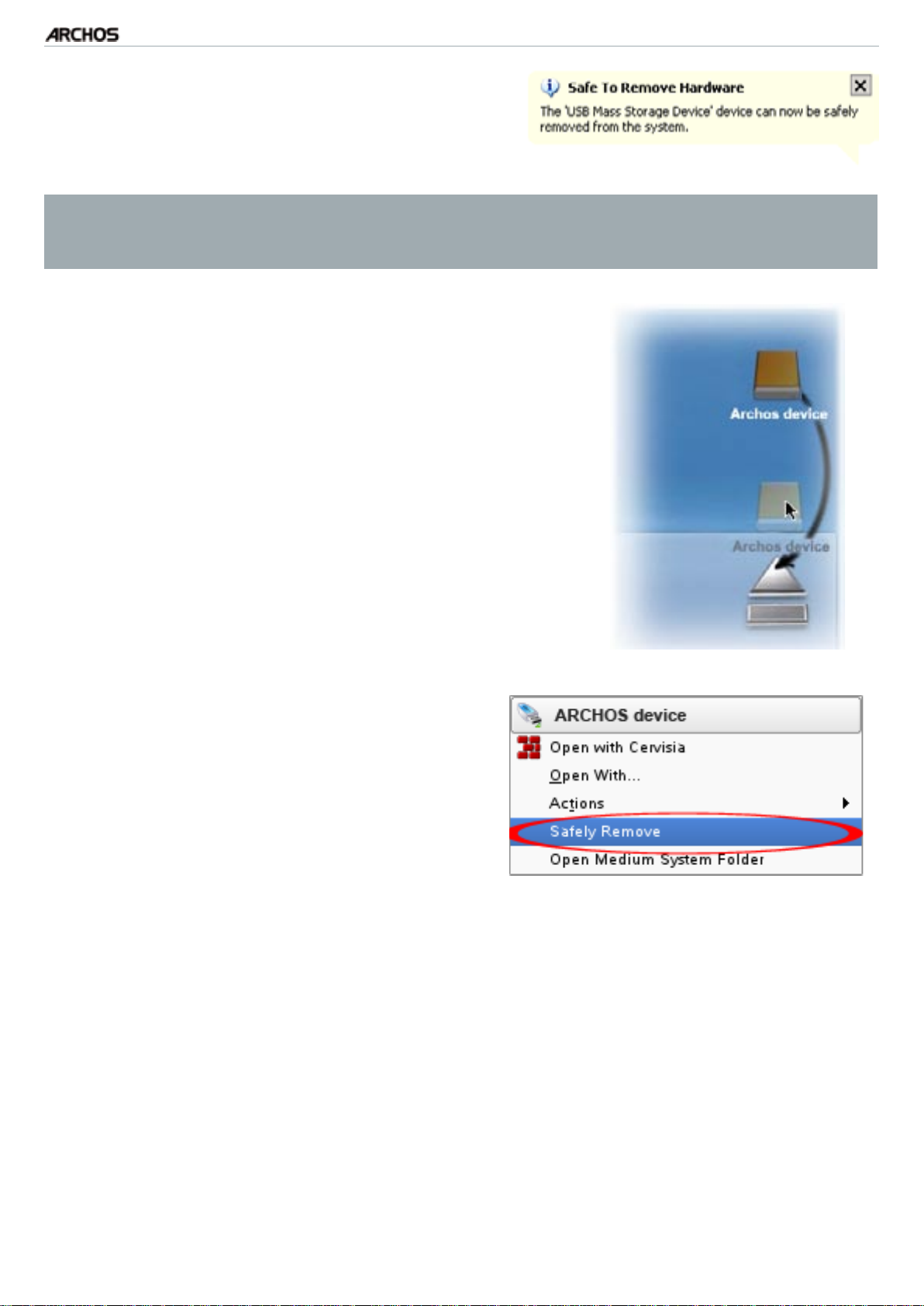

TRANSFERRING FILES > P. 54

now safe to disconnect the device*. You can now safely unplug the USB cable from your ARCHOS and/or computer.

* If you get a message saying that the device cannot be removed, close any computer program that may still be using data on your device, such as media players or Windows® Explorer.

Mac® OS X

DO NOT SIMPLY PULL OUT THE CABLE AT ANY TIME!

You must remove/unmount the ARCHOS from the computer before disconnecting the USB cable to avoid loss of data or freezing.

On your desktop, drag the ARCHOS’ icon towards

• the trashcan, which will turn into a big eject symbol.

Drop the icon onto this eject symbol: the ARCHOS’

• hard drive will disappear from the desktop.

You can now safely unplug the USB cable from

• your ARCHOS and/or computer.

Linux

DO NOT SIMPLY PULL OUT THE CABLE AT ANY TIME!

You must remove/unmount the ARCHOS from the computer before disconnecting the USB cable to avoid loss of data or freezing.

On your computer, right-click on the ARCHOS icon and select Safely Remove.

• Wait until the ARCHOS icon disappears, and safely unplug the USB cable from

• your ARCHOS and/or computer.

GEN 5

MANUAL

V2.0

MAIN SETTINGS > P. 55

8. MAIN SETTINGS

In the Home screen, select the “Settings” menu item and choose a setting.

605

Tap on the “Settings” menu item, and choose a setting to open its corre-

•

USING THE TOUCHSCREEN

sponding screen. Once you are in a settings screen:

•

tap on a parameter to highlight it.

tap on the left/arrows to select a different setting.

when you have nished adjusting your settings, tap on to save them and

go back to the Home screen. When it is possible, drag the scroll bar up and down to scroll the screen up

and down.

USING THE BUTTONS

To open a settings screen, press the menu button, use the navigation pad to

• highlight the “Settings” menu item, and press OK.

Once you are in a settings screen:

•

use the up/down navigation buttons to highlight a parameter.

use the left/right navigation buttons to select a different setting.

when you have nished adjusting your settings, press the Exit button to

save them and go back to the Home screen. When it is possible, use the up/down navigation buttons to scroll the screen

up and down.

8.1 “SOUND” SETTINGS

This screen allows you to adjust the sound settings of your ARCHOS to your personal taste.

GEN 5

MANUAL

V2.0

MAIN SETTINGS > P. 56

605

“Built-in Speaker”

“ON” / “OFF”: the built-in speaker remains on or off regardless if headphones are attached.

“Automatic”: the built-in speaker automatically turns off when you plug in headphones or connect your ARCHOS to the optional DVR Station Gen 5.

“Audio Output”

denes whether the audio signal is sent out via the “Analog Line-Out” or the “SPDIF” interface when connected to a DVR Station Gen 5.

“Bass Boost Level”

adjusts the bass boosting level.

“Preset”

allows you to quickly select a sound prole.

“Set Equalizer”

allows you to use a custom sound prole. Select this option to enter the equalizer

screen (see next section).

“Balance”

allows you to balance the sound between the left and right stereo channels.

“Reset”

resets the sound parameters to the default values.

“EQUALIZER” SCREEN

Your ARCHOS features a 5-band

• equalizer.

Select a band (Bass, Mid. bass, Mid.

• range, Mid. treble or Treble), then use the up/down arrows to change the gain level for these frequency ranges.

It is advised that you change these settings while listening to music, in order to be able to appreciate the sound changes.

GEN 5

MANUAL

V2.0

8.2 “DISPLAY” SETTINGS

“LCD SETTINGS”

MAIN SETTINGS > P. 57

“LCD Backlight”

adjusts the level of backlight of the built-in screen.

605

“Brightness/Contrast”

use this button to adjust the display parameters of the built-in screen (contrast, brightness and gamma).

you can also reset the LCD param-

eters to the default values (“Reset” button).

605

“Touch-Screen Calibration”

If the touchscreen is not responding properly, use this button and follow the instructions on the screen.

405

“LCD stability”

If you nd that the LCD screen ickers, use this button to access the “LCD stabil-

ity” screen.

Press the left/right navigation buttons until the screen stops ickering.

GEN 5

“TV SETTINGS”

MANUAL

V2.0

MAIN SETTINGS > P. 58

“TV Standard”

choose between the “NTSC (USA)” and “PAL (Europe)” systems (select the one that is compatible with your country’s television system).

“TV Format”

“4:3” or “16:9” - the format used by your television set to display images.

the option “Wide screen” becomes available when you set the “TV standard” parameter to “PAL (Europe)”.

“TV Connection”

when your ARCHOS is connected to the optional DVR Station Gen 5 (available at www.archos.com), select the type of video output (“Composite”, “S-Video” or “RGB”), based on how you have connected the DVR Station Gen 5 to your TV.

8.3 “APPEARANCE” SETTINGS

“Picture name”

allows you to select a picture to use as a wallpaper image. Select “None” if you do not want any background image.

you can choose between all default backgrounds or the images that you have previously set as wallpapers.

you can also set a picture as wallpaper from the Photo and Video modes.

“Theme color”

denes the theme color for your icons (and for the background, if you have disabled the use of a wallpaper).

GEN 5

MANUAL

V2.0

MAIN SETTINGS > P. 59

“Cancel”

use this button to discard any changes you may have made since entering this

screen.

8.4 “LANGUAGE (AND REGION)” SETTINGS

“Language”

choose a language.

visit www.archos.com to check the availability of other languages. New lan-

guages are included in the rmware as they become available. See

Firmware

605

“Select location”

if your clock is set to “Automatic” (see

“Clock” Settings

), select your “Country”,

Updating the

and “City/Zone”.

605

“WiFi Region”

this is congured automatically according to how you set your location.

8.5 “TV CONTROL” SETTINGS

This is where you can set the DVR Station’s IR emitter to communicate with

• your tuner. This will allow you to schedule recordings easily via the ARCHOS TV Program Guide (EPG).

See the manual of the optional DVR Station Gen 5.

•

GEN 5

MANUAL

V2.0

MAIN SETTINGS > P. 60

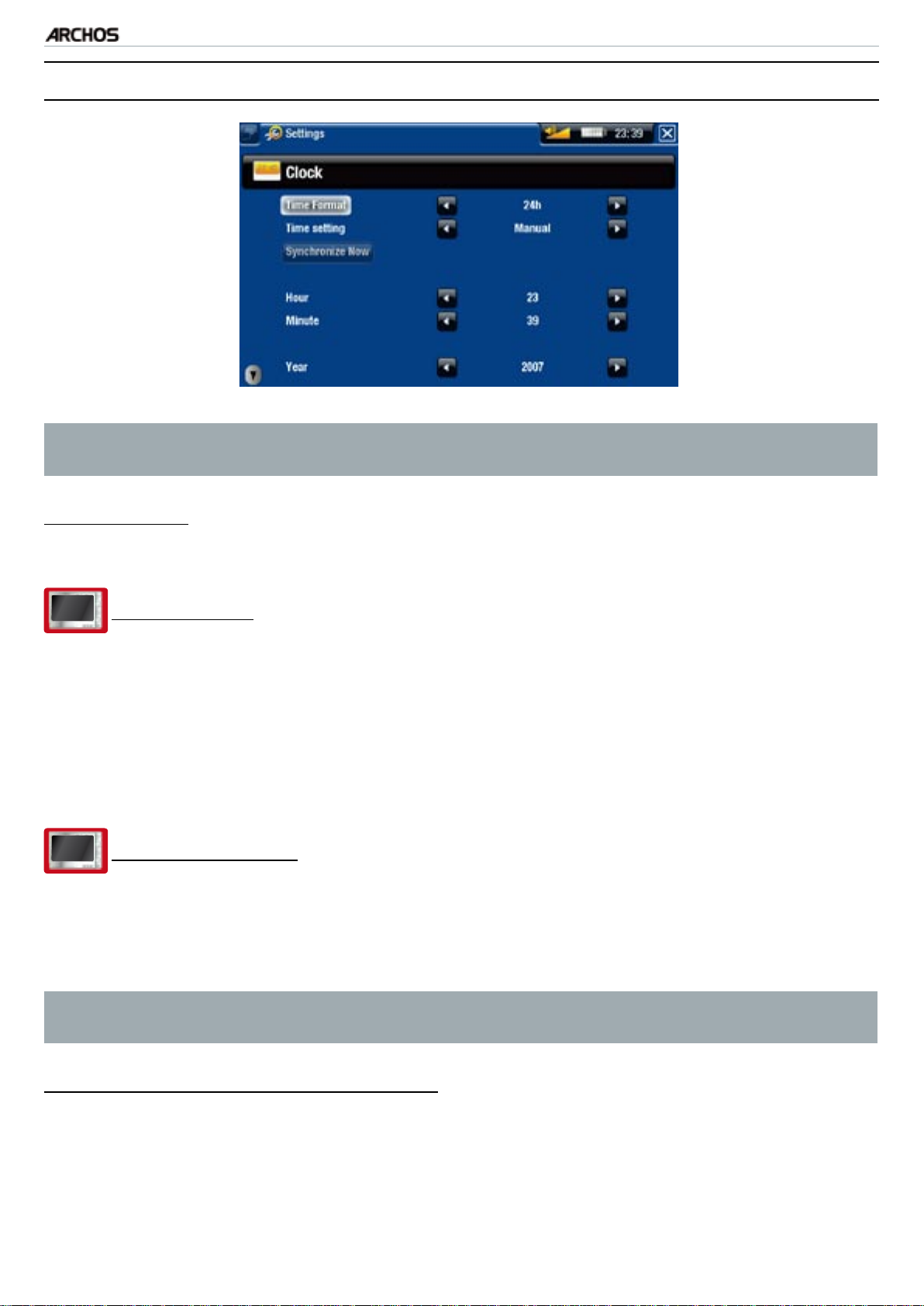

8.6 “CLOCK” SETTINGS

If you use the optional DVR Station Gen 5 to schedule video recordings on your TV system, make sure that the time and date are set correctly!

“Time Format”

choose between 12h or 24h mode.

605

“Time setting”

“Automatic”: select this parameter if you want to set the clock automatically when your ARCHOS is connected to a WiFi network. You will need to select your location in the “Language (and Region)” settings screen (see:

Region)” Settings

“Manual”: select this parameter to set the current date & time manually. The fol-

“Language (and

lowing parameters will appear: “Hour”, “Minute”, “Year”, “Month” and “Day”.

605

“Synchronize now”

if the “Time setting” parameter is set to “Automatic”, use this button to set the clock automatically via a WiFi network.

for this to work, the ARCHOS needs to be connected to a WiFi network.

ATTENTION: If the time & date are not correctly set, you might not be able to access certain web pages.

“Hour”, “Minute”, “Year”, “Month”, “Day”

these parameters allow you to set the current time and date manually.

GEN 5

MANUAL

V2.0

MAIN SETTINGS > P. 61

8.7 “POWER” SETTINGS

These settings will help you save

• battery power, thus allowing a longer battery autonomy.

You can adjust settings for both

• battery operation and power supply operation (when the ARCHOS is connected to a powered DVR Station Gen 5, Mini Dock or Battery Dock).

Your ARCHOS will consume more power as these parameters are set to higher values. In battery operation, it is advised to set these parameters to lower values in order to save power.

“Device Full Power Off”

If you do not plan on using the ARCHOS for an extended period of time, use this

button to completely turn off your device, so that there is absolutely no battery usage*.

* Remember that when you turn off the ARCHOS using the button, your device will keep using a small amount of battery power to allow a quick start up.

“BATTERY OPERATION”

“Power Off”

the amount of time of user inactivity before the device shuts off.

the device will not shut down during a slideshow, audio/video playback, audio/

video recording, or USB connection.

“Backlight Off”

the amount of time of user inactivity before the LCD display turns off.

the display will not turn off while a video or slideshow is playing, or when you are

browsing the web.

605

“Web Browser”

“normal power off”: while browsing the web, the ARCHOS will shut down according to the setting selected for the “Power Off” parameter.

“prevents power off”: while browsing the web, the ARCHOS will not shut off au-

tomatically from user inactivity.

GEN 5

“POWER SUPPLY OPERATION”

MANUAL

V2.0

MAIN SETTINGS > P. 62

“Standby”

the amount of time of user inactivity before the ARCHOS goes into Standby mode.

the system will not go into Standby mode during a slideshow, audio/video play-

back, audio/video recording, or USB connection.

“Backlight Off”

the amount of time of user inactivity before the LCD display turns off.

the display will not turn off while a video or slideshow is playing.

605

“Web Browser”

“normal power off”: while browsing the web, the ARCHOS will go into Standby mode according to the setting selected for the “Standby” parameter.

“prevents power off”: while browsing the web, the system will never go into

Standby mode.

8.8 “FIRMWARE AND PLUG-INS” SETTINGS

“Firmware Ver.”

displays the current version of the rmware and Digital Rights Management

(DRM) system.

“Plug-ins”

displays the current plug-ins installed on your device.

“Product Key”

each ARCHOS has a unique number.

you will need this number to register your product online (www.archos.com/register).

“Firmware Update”

use this button to update the rmware manually (see:

Updating the Firmware)

GEN 5

MANUAL

V2.0

MAIN SETTINGS > P. 63

605

“Online Firmware Update”

use this button to search for an online update via a WiFi network. If there is one available, it will be installed automatically. See

Updating the Firmware

to learn more.

8.9 UPDATING THE FIRMWARE

The rmware is the operating system (OS) of your ARCHOS. It is periodically updated to bring new features, improvements and bug xes. There are two main ways to update your product’s rmware:

Directly on your ARCHOS if your device can connect to a WiFi network.

• With a computer connected to the internet

•

605

UPDATE DIRECTLY ON THE ARCHOS

(

WIFI CONNECTION NEEDED

)

This is the easiest way to update the rmware. For this to work, you only need an access a WiFi network. See

From to the Home screen, select the “Settings” menu item, and choose

Connecting to a WiFi Network

“Firmware and Plug-ins”. Use the “Online Firmware Update” button.

The ARCHOS will connect to the WiFi and search on-line for a new rmware. If

3. there is one available, it will start downloading, and it will be installed automatically.

UPDATE USING A COMPUTER

(

INTERNET CONNECTION NEEDED

)

If you do not have access to a WiFi network, or if your ARCHOS is not WiFi-enabled,

you can also update the rmware using a computer connected to the internet:

On your PC, go to www.archos.com/rmware.

Search for the latest rmware available for your ARCHOS.

2. Compare the latest on-line version with the one installed on your ARCHOS: your

3. ARCHOS’ rmware version number appears in the “Firmware and Plug-ins” settings screen (see:

If the on-line version is more recent than yours, follow the instructions to down-

“Firmware and Plug-ins” Settings

load and install the new rmware.

Your Internet browser may warn you that the contents of the rmware le

could harm your computer. ARCHOS has taken precautions to insure that this

le will not harm your computer.

GEN 5

MANUAL

V2.0

8.10 “SYSTEM” SETTINGS“SYSTEM” SETTINGS

“Free Storage Space”

displays the amount of free space on the hard drive.

MAIN SETTINGS > P. 64

Note: reported number of megabytes is binary-based counting (1Kb=1024

bytes). Thus each reported Mb represents approximately 1.05 megabytes (decimal), and each reported Gb represents approximately 1.07 gigabytes. Formatting also takes up space.

“USB preference” (for advanced users)

Your preferred connection mode will be used every time you connect the

ARCHOS to a computer. The connection mode determines how your device interacts with your computer:

Mode 1: “Windows Media Device”: Recommended for users of Windows® XP or

higher & WMP10 or higher. When set to this mode, the ARCHOS uses the Media Transfer Protocol (MTP).

The ARCHOS will ask you if you want to charge it or connect it: choose to connect it. When connected to your computer, your ARCHOS will be locked.

You will be able to synchronize your media library automatically

every time you connect your ARCHOS to your computer (with WMP10 or higher).

When your le transfer is over, simply unplug the cable from the ARCHOS, and

your device will update the ARCLibrary (Music/Photo libraries). Mode 2: “PC Hard Drive”: Recommended for users of Windows® XP with Windows

Media® Player 9, Windows® 2000, Me, Mac® OS X or Linux. The ARCHOS will ask you if you want to charge it or connect it as a mass storage device (Hard Drive). Choose to connect it as a mass storage device (external hard drive). When connected

to your computer, your ARCHOS will be locked. Disconnection: when the le transfer

is over, safely unmount the ARCHOS (See:

Disconnecting

) and your device will do a

quick ARCLibrary update (Music/Photo libraries). May not index all les.

Mode 3: “PC Hard Drive (auto-ARCLib)”: Same as mode 2, but with a full

ARCLibrary update (Music/Photo libraries) at disconnection.

“Update ARCLibrary”

Available only when “USB Preference” is set to “PC Hard Drive” (mode 2).

GEN 5

This USB mode only does a quick ARCLibrary update (Music/Photo libraries). Use

MANUAL

V2.0

MAIN SETTINGS > P. 65

the “Update ARCLibrary” button if you want to do a full ARCLibrary update.

“Product Key”

each ARCHOS has a unique number.

you will need this number to register your product online (www.archos.com/register).

605

“MAC address”

some WiFi networks lter MAC addresses. You might need to communicate this

address to the person who manages the network.

“Repair and Formatting Tools”

use this button to access the “Repair and Formatting Tools” settings screen. This

screen allows you to do the following actions:

“Clear temporary system les and cache” (does not erase any data)

605

“Format Hard Drive” (erase all data, media les, and licenses)

“Full Reinitialization” (erase all data, media les, licenses and settings)

“Reset WiFi conguration” (WiFi settings are lost)-

In the event that your ARCHOS freezes or does not respond anymore, try to reset it (see: Troubleshooting).

If this does not work or if you cannot access the Repair and Formatting Tools, you can try a system recovery (see: Troubleshooting).

GEN 5

MANUAL

V2.0

OPTIONAL FUNCTIONALITIES > P. 66

9. OPTIONAL FUNCTIONALITIES

9.1 ARCHOS ACCESSORIES

DVR STATION GEN 5

When connected to your ARCHOS and to your home entertainment system, the DVR Station Gen 5 will allow you to:

schedule TV recordings easily via the ARCHOS TV Program

• Guide (EPG) (available for most countries).

record video directly to your ARCHOS, from your cable box, sat-

• ellite receiver, digital tuner, or most any standard video source.

•

DVR TRAVEL ADAPTER

When connected to your ARCHOS, the DVR Travel Adapter will allow you to:

•

MINI DOCK

When connected to your ARCHOS, the Mini Dock will allow you to:

•

connect a compatible USB device to your ARCHOS (Mass storage or PTP).

play video back to your TV. charge your ARCHOS.

record audio/video, directly on your ARCHOS, from most any standard audio/video source.

display the image of the ARCHOS on your TV.

BATTERY DOCK

connect a compatible USB device to your ARCHOS (Mass

• storage or PTP).

charge your ARCHOS.

•

The battery dock is like the Mini Dock but also includes a battery to give your ARCHOS extra play time.

GEN 5

HELMET CAMCORDER

MANUAL

V2.0

High resolution Mini-Cam with remote control and microphone.

9.2 ARCHOS PLUG-INS

CINEMA PLUG-IN

To allow you to play MPEG-2 (.VOB) video les without any re-encoding (type of le found on DVDs). Also allows playback of AC3

audio format.

OPTIONAL FUNCTIONALITIES > P. 67

VIDEO PODCAST PLUG-IN

To allow you to play H.264 video les without any special re-encoding (type of le often used for video podcasts). Also allows playback of AAC music les (non-protected).

605

WEB BROWSER PLUG-IN

A specially designed Internet browser for your ARCHOS that will allow you to surf the web on your ARCHOS. Supports websites with Flash™.

9.3 SCHEDULING A TV RECORDING

With the optional DVR Station Gen 5 connected to your home tuner (cable box, satellite receiver, digital tuner or VCR), you will be able to schedule recordings easily via the ARCHOS TV Program Guide (EPG).

In the Home screen, select the “Recorder” icon to display the ARCHOS TV

1. Program Guide (EPG).

GEN 5

This screen’s menu items will allow you

MANUAL

V2.0

OPTIONAL FUNCTIONALITIES > P. 68

to choose a different day, update the Program Guide data, or change various settings (program guide update and

channel list conguration).

Navigate through the different TV pro-

3. grams, and simply select the one you wish to record.

When the time comes, your ARCHOS will automatically start recording the

4. scheduled program.

The manual that comes with the DVR Station Gen 5 will tell you more about how to setup and use the TV Program Guide.

9.4 RECORDING EXTERNAL VIDEO MANUALLY

With the optional DVR Station Gen 5, DVR Travel Adapter or Helmet CamCorder, you will be able to record video from most any standard video source:

In the Home screen, select the “Recorder” icon and use the tabs to access the

1. “Video recorder” mode.

This screen will allow you to adjust the recording sound volume (left/right ar-

2. rows), or change various settings (scheduling and video parameters).

You can now tell the ARCHOS to start recording from the video source (“Start

recording” red icon/menu item).

Close the screen to stop and save the recording*.

The manual that comes with the DVR Station Gen 5 or DVR travel Adapter will tell you more about how to record external video manually.

* All video recordings made by your ARCHOS device are saved in the Video folder. If you wish to keep them in a different location, you can use the “Move”

function of the ARCHOS le browser after recording (see: Using the File Browser).

GEN 5

MANUAL

V2.0

OPTIONAL FUNCTIONALITIES > P. 69

9.5 RECORDING EXTERNAL AUDIO MANUALLY

With the optional DVR Station Gen 5 or DVR Travel Adapter, you will be able to record audio from most any standard audio source.

In the Home screen, select the “Recorder” icon and use the tabs to access the

1. “Video recorder” mode. Then select the “Audio recorder” menu item.

This screen will allow you to adjust the recording sound volume (left/right ar-

2. rows), or change various settings (recording title, audio format).

You can now tell the ARCHOS to start recording from the audio source (“Start

recording” red icon/menu item).

Close the screen to stop and save the recording*.

The manual that comes with the DVR Station Gen 5 or DVR travel Adapter will tell you more about how to record external audio manually.

* All audio recordings made by your ARCHOS device are saved in the Music/ (Rec) folder. If you wish to keep them in a different location, you can use the

“Move” function of the ARCHOS le browser after recording (see: Using the File Browser).

9.6 DISPLAYING THE ARCHOS ON A TV

With the optional DVR Station Gen 5, Battery Dock or Mini dock, you will be able

• to display the image of the ARCHOS on your TV.

Connect the ARCHOS with the adapter to the TV, press the TV/LCD button on the

• ARCHOS, and the display of the ARCHOS will switch to the TV.

When the image is displayed on a TV, the TV/LCD LED indicator lights up and the

• built-in LCD screen turns off.

The manual that comes with the DVR Station Gen 5, Battery Dock or Mini dock will tell you more about how to display the image of the ARCHOS on your TV.

9.7 EDITING VIDEO FILES

Video les recorded with the ARCHOS DVR Station Gen 5 or Travel Adapter can

• be edited by deleting the sections you do not wish included. The editing you can

do is either cropping or cutting of particular segments of the video le. You will mark a segment of your video le, and then you will tell the ARCHOS to

• delete everything except the marked segment or to delete the marked segment from

the video le. These operations can be done multiple times on the same video le.

GEN 5

Once nished, you will have the option to save the edit marks with the video or

•

MANUAL

V2.0

OPTIONAL FUNCTIONALITIES > P. 70

to write a new video le. If you save your le with edit marks, you can always go

back and change your edits at another time. The actual video information is not

deleted. On the other hand, you can write a new le which will only include the video parts that you specied in the edit session. This le will be smaller but you

can never un-edit it.

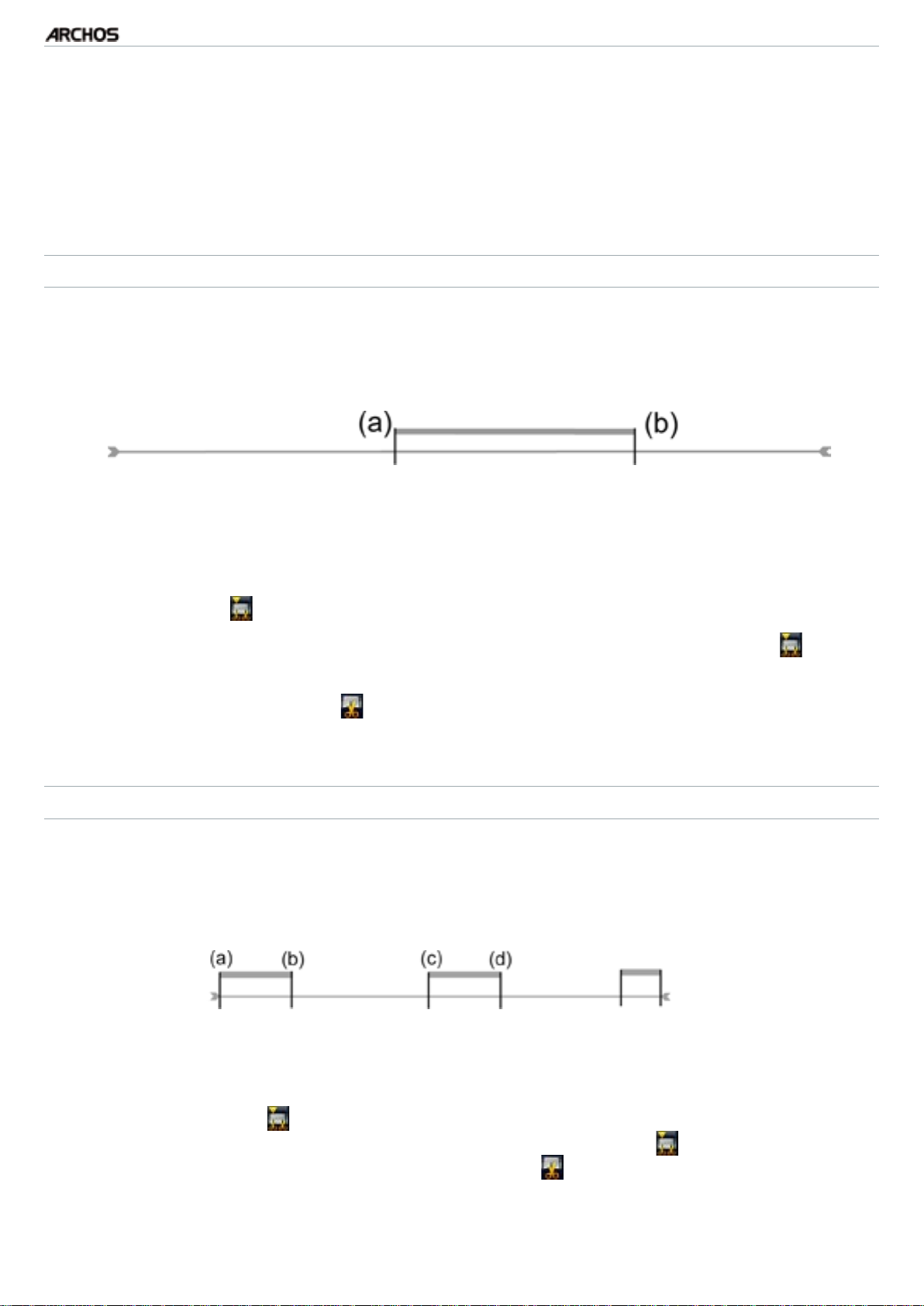

EXAMPLE 1

You have recorded a music video program and would like to keep one single music presentation. But you do not want to keep the rest of the television recording.

Beginning of recording

Open the video le you want to edit and pause it (See:

1. In the progression bar, go to the beginning of the desired section (a), select the

Video section to keep

Playing Video

End of recording

“Insert a mark” menu item, and choose “Start Mark”. Forward to the end of the desired section (b), select the “Insert a mark” menu

3. item, and choose “End Mark”.

Select the “Edit Selection” menu item and choose “Crop”, which will delete

4. everything except the designated section.

EXAMPLE 2

You have recorded a television program but would like to remove certain sections before the program started, parts during the program, and the program afterwards because you had recorded a little extra.

Open the video le you want to edit and pause it (See:

In the progression bar, go to the beginning of the rst undesired section (a), select

Playing Video

the “Insert a mark” menu item, and choose “Start Mark”. Forward to the end of the rst undesired section (b), select the “Insert a mark” menu item, and choose “End Mark”. Select the “Edit Selection” menu item and choose “Cut”, which will cut out this part of the recording.

GEN 5

Go to the beginning of the second undesired section (c), select the “Insert a

mark” menu item, and choose “Start Mark”. Forward to the end of the second

MANUAL

V2.0

OPTIONAL FUNCTIONALITIES > P. 71

undesired section (d), select the “Insert a mark” menu item, and choose “End

Mark”. Select the “Edit Selection” menu item and choose “Cut”, which will cut

out this section. Do the same for the other section(s) that you want to cut out.

If you want to keep the edit points and be able to re-edit another time, select

• the “Save edit” menu item, and choose “Save”.

If you want to save the edited le as a new individual le, select the “Save

• edit” menu item, and choose “Write to new File”. A conrmation screen will pop up.

If you want to cancel the edit points and restart editing, choose the “Cancel

• changes and restart edit” menu item.

GEN 5

MANUAL

V2.0

TROUBLESHOOTING > P. 72

TROUBLESHOOTING

RESETTING YOUR ARCHOS

In the event that your ARCHOS freezes or does not respond anymore, try to reset

• it: press the button for 15 seconds (the ARCHOS will shut down completely) and turn it on as usual.

If this does not work, you can also press the “master reset” button as shown be-

• low. You can use the end of a paper clip to press the button in the hole.

405

605

Note: Resetting your ARCHOS will not erase any data from your device.

On the left side of the device:

Underneath the device:

SYSTEM RECOVERY

If your ARCHOS does not respond correctly, or does not show certain songs or

• videos that you have copied to it, try using the “Repair and Formatting Tools” (see:

System Settings

If using the “Repair and Formatting Tools” did not solve your problem, you can

• try a system recovery. It allows you to repair the hard drive, format it, etc.

Press the button to turn on your device.

1. When the built-in LCD screen turns on, immediately press and hold the TV/LCD

2. button until the Recovery mode starts (blue screen).

To move from an option to another, use the up/down Navigation buttons.

•

To validate an option, press OK.

•

GEN 5

MANUAL

V2.0

TROUBLESHOOTING > P. 73

The system recovery mode gives you several options:

“No”

cancels the system recovery.

“Repair Disk”

attempts to repair the le structure on the hard drive.

does not erase any data.

“Format Disk”

formats the hard drive.

all data (music, photos, videos, etc.), licenses and settings are erased.

605

If the touchscreen is not responding

•

TOUCHSCREEN PROBLEMS

properly, or if it is not responding at all, go to the “Display” settings screen.

Then use the “Touch-Screen

•

Calibration” button, and follow the

instructions on the screen. See:

•

“Touch-Screen Calibration”

REPAIR AND FORMATTING TOOLS

to access the “Repair and Formatting Tools” settings screen: from the Home

screen, select the “Settings” menu item, choose “System”, then use the “Repair

and Formatting Tools” button. This screen allows you to do the following actions:

GEN 5

“Clear temporary system les and cache” (does not erase any data)

MANUAL

V2.0

TROUBLESHOOTING > P. 74

605

“Format Hard Drive” (erase all data, media les, and licenses)

“Full Reinitialization” (erase all data, media les, licenses and settings)

In the event that your ARCHOS freezes or does not respond anymore, try to reset it (see: Resetting your ARCHOS).

If this does not work or if you cannot access the Repair and Formatting Tools, you can try a system recovery (see: System Recovery).

“Reset WiFi conguration” (WiFi settings are lost)-

GEN 5

MANUAL

V2.0

TECHNICAL SPECIFICATIONS > P. 75

TECHNICAL SPECIFICATIONS

CAPACITY

See packaging

•

DISPLAY

High resolution 4.3’’ TFT LCD, 16 million colors, 800x480 pixels.

605

405

VIDEO PLAYBACK**

•

Touch Screen

High resolution 3.5’’ TFT LCD, 320 x 240. -

MPEG-4

(2)

WMV (MP@ML, up to DVD resolution). With optional software plug-ins (available for purchase at www.archos.com):

Video Podcast plug-in: H.264 up to DVD resolution and AAC.

Cinema Plug-in: MPEG-2 MP@ML up to 10 Mbps (up to DVD resolution) and

(ASP@L5 AVI, up to DVD resolution).

AC3 stereo sound (5.1).

AUDIO PLAYBACK**

Stereo MP3 decoding @ 30-320 Kbits/s CBR & VBR, WMA, Protected WMA, WAV

• (PCM/ADPCM).

With optional software plug-ins (available for purchase at www.archos.com):

•

(3)

AAC

AC3 stereo audio and 5.1 sound les.

PHOTO VIEWER***

JPEG, BMP, PNG.

•

PDF VIEWER

Reads PDF documents. May not implement all PDF features.

•

VIDEO RECORDING

Via the optional DVR Station Gen 5 or DVR Travel Adapter. Records NTSC/PAL/

•

stereo audio les.

(4)

SECAM in MPEG-4 AVI format with stereo sound, VGA resolution (640 x 480) @ 30 or 25 f/s.

GEN 5

AUDIO RECORDING

Via the optional DVR Travel Adapter or DVR Station Gen 5: stereo line-in, WAV

•

MANUAL

V2.0

TECHNICAL SPECIFICATIONS > P. 76

(IMA ADPCM or PCM) format.

INTERFACES

USB 2.0 High-Speed Device (compatible USB 1.1): Mass Storage Class (MSC) and

• Media Transport Protocol (MTP).

USB 2.0 Host: Mass Storage Class (MSC) and Picture Transfer Protocol (PTP) with

• optional Mini Dock, Battery Dock and DVR Station Gen 5.

CONNECTIONS

WiFi (802.11b/g) connection. Optional Internet plug-in (Opera® web

605

• browser - supports Adobe Flash® content) for web browsing. Available for purchase at www.archos.com)

405

SD Slot compatible with SD, mini SD and micro SD card

•

USB 2.0 port.•

(Only on the models that

feature a built-in ash memory).

3.5 mm mini jack for headphones.

• Docking connectors to connect DVR Station Gen 5 and other ARCHOS accessories.

•

605

Built-in speaker

•

POWER SOURCE

Internal: Lithium-Ion Polymer battery.

• Device charges via computer USB port.

• External: Power adapter/charger (via optional accessories).

•

SPEAKERS

SCALABILITY

Downloadable rmware updates.

•

PACKAGE INCLUDES

ARCHOS device, headphones, ARCHOS USB cable, protective pouch, DVR Adapter

• Quick Start Guide (QSG), legal and safety notice.

605

2 stylus•

GEN 5

COMPUTER SYSTEM REQUIREMENTS

For Computer:

•

PC with Windows® ME, 2000, XP, Vista, Media Center.

Macintosh® OS X or higher (with USB Mass Storage Class support).

Linux (with mass storage device support), USB port.

For PlaysForSureTM audio, video and subscription services: PC with Windows® XP

•

MANUAL

V2.0

TECHNICAL SPECIFICATIONS > P. 77

SP1 or higher, Windows Media® Player 10 or higher, and USB 2.0 port.

* 1GB= 1 billion bytes; actual formatted capacity is less.

** Certain bitrates, resolutions, and/or le variations may not be compatible. *** Certain resolutions and le sizes may not be compatible.

(2)

(MPEG-4: ISO standard by Moving Picture Experts Group; AVI: audio/video le contain-

er by Microsoft) without GMC and Quarter Pixel and WMV (including protected WMV).

(3)

Does not read AAC protected les.

(4)

External video output disabled for Macrovision®-protected contents.

LCD PIXEL POLICY

The LCD screen on your ARCHOS unit has been manufactured to rigorous standards to provide a high quality viewing experience. Nevertheless, your LCD screen may have slight imperfections. This is not particular to the ARCHOS screen, but to all devices which have LCD screens regardless of the original manufacturer of the LCD. Each product vendor guarantees that his screen will contain no more than a certain number of defective pixels. Each screen pixel contains three dot elements (Red, Blue, and Green). One or all of the dots in a given pixel may be stuck on or stuck off. A single dot stuck off is the least noticeable. All three dots of a pixel stuck on is the most noticeable.

605

ARCHOS guarantees that this device’s screen will have no more than 3 defective pixels (regardless if these pixels have one or more defective dots). This means that during the period of guarantee for your country or jurisdiction, if the screen on your product has four or more defective pixels, ARCHOS will repair or replace your product at its cost. Thus, three or less defective pixels is not grounds for replacement or repair of the product.

405

ARCHOS guarantees that this device’s screen will have no more than 2 defective pixels (regardless if these pixels have one or more defective dots). This means that during the period of guarantee for your country or jurisdiction, if the screen on your product has three or more defective pixels, ARCHOS will repair or replace your product at its cost. Thus, two or less defective pixels is not grounds for replacement or repair of the product.

GEN 5

MANUAL

V2.0

TECHNICAL SUPPORT INFORMATION > P. 78

TECHNICAL SUPPORT INFORMATION

Need Help? You can nd the information you need:

On our Website: see the frequently asked questions section on

• www.archos.com/faq

By asking our technical support team: visit www.archos.com/support for e-mail

• support.

U.S. & Canada: Call 877-300-8879 (toll free).

•

All brands and product names are registered trademarks and the property of their respective owners. Windows Media® and Windows® are trademarks or registered trademarks

of Microsoft Corporation in the United States and/or other countries. Specications

are subject to change without notice. Errors or omissions excepted. Images and illustrations may not always match contents. All the information contained in this guide was correct at the time of publication.

Archos 54V25H Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
