Archelon CAS User Manual

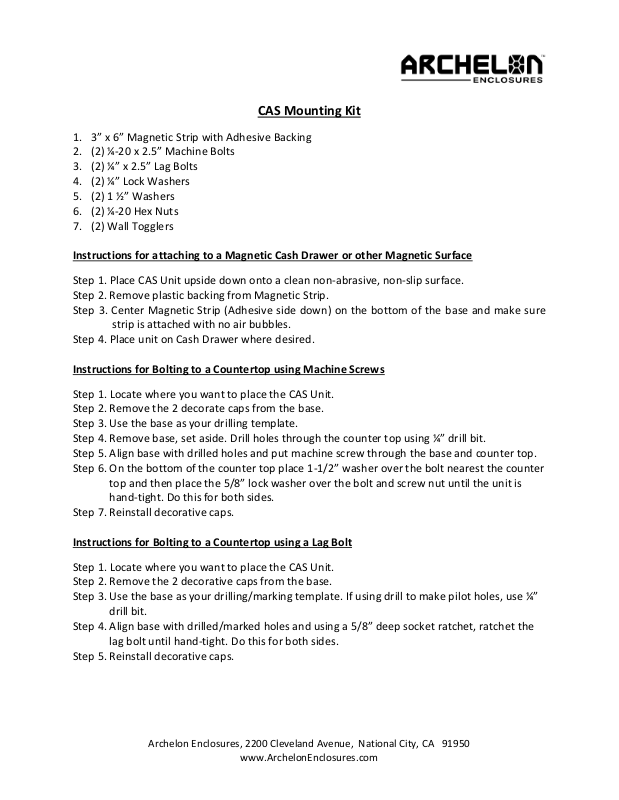

CAS Mounting Kit

1. 3” x 6” Magnetic Strip with Adhesive Backing

2. (2) ¼-20 x 2.5” Machine Bolts

3. (2) ¼” x 2.5” Lag Bolts

4. (2) ¼” Lock Washers

5. (2) 1 ½” Washers

6. (2) ¼-20 Hex Nuts

7. (2) Wall Togglers

Instructions for attaching to a Magnetic Cash Drawer or other Magnetic Surface

Step 1. Place CAS Unit upside down onto a clean non-abrasive, non-slip surface.
Step 2. Remove plastic backing from Magnetic Strip.
Step 3. Center Magnetic Strip (Adhesive side down) on the bottom of the base and make sure
strip is attached with no air bubbles.
Step 4. Place unit on Cash Drawer where desired.

Instructions for Bolting to a Countertop using Machine Screws

Step 1. Locate where you want to place the CAS Unit.
Step 2. Remove the 2 decorate caps from the base.
Step 3. Use the base as your drilling template.
Step 4. Remove base, set aside. Drill holes through the counter top using ¼” drill bit.
Step 5. Align base with drilled holes and put machine screw through the base and counter top.
Step 6. On the bottom of the counter top place 1-1/2” washer over the bolt nearest the counter
top and then place the 5/8” lock washer over the bolt and screw nut until the unit is
hand-tight. Do this for both sides.
Step 7. Reinstall decorative caps.

Instructions for Bolting to a Countertop using a Lag Bolt

Step 1. Locate where you want to place the CAS Unit.
Step 2. Remove the 2 decorative caps from the base.

Step 3. Use the base as your drilling/marking template. If using drill to make pilot holes, use ¼”

drill bit.
Step 4. Align base with drilled/marked holes and using a 5/8” deep socket ratchet, ratchet the
lag bolt until hand-tight. Do this for both sides.
Step 5. Reinstall decorative caps.

Archelon Enclosures, 2200 Cleveland Avenue, National City, CA 91950

www.ArchelonEnclosures.com

Instructions For Mounting to Dry Wall

Step 1. Drill ¾ bit Holes into Drywall using the CAS Base to place the holes.
Step 2. Insert Togglers into each hole.
Step 3. Push zip cap flush with surface.
Step 4. Snap off legs of the toggle flush with your surface.
Step 5. Place Wall Mount up to the holes.
Step 6. Using a 7/16 Ratchet (Not Supplied) - ratchet the 7/16” bolt with Supplied 5/8” washers
into the holes.
Step 7. Place decorative caps over bolt holes

Instructions for Attaching to a Wood Stud

Step 1. Locate Wood Stud
Step 2. Drill 1/8” Pilot Holes into stud using the CAS Base to place the holes
Step 3. Using a 7/16” Ratchet (tools not supplied) – ratchet the Lag Screws (x2) into Pilot Holes
until Wall Mount is snug to the Surface.
Step 4. Place decorative caps over bolts holes

Note: 1 5/8” Washers are for leveling surfaces that are not flat or for custom applications.
