C D 7 2
C D 8 2
H A N D B O O K
Arcam Compact Disc players
Page 2
CD72/82
2
Eng li sh
CD72/82
3
Safety guidelines
Safety instructions
This product is designed and manufactured to meet strict
quality and safety standards. However, you should be aware of
the following installation and operation precautions:
1. Take heed of warnings and instructions
You should read all the safety and operating instructions
before operating this appliance. Retain this handbook for future
reference and adhere to all warnings in the handbook or on
the appliance.
2. Water and moisture
The presence of electricity near water can be dangerous. Do
not use the appliance near water – for example next to a
bathtub, washbowl, kitchen sink, in a wet basement or near a
swimming pool, etc..
3. Object or liquid entry
Take care that objects do not fall and liquids are not spilled into
the enclosure through any openings. Liquid lled objects such
as vases should not be placed on the equipment.
4. Ventilation
Do not place the equipment on a bed, sofa, rug or similar
soft surface, or in an enclosed bookcase or cabinet, since
ventilation may be impeded. We recommend a minimum
distance of 50mm (2 inches) around the sides and top of the
appliance to provide adequate ventilation.
5. Heat
Locate the appliance away from naked ames or heat
producing equipment such as radiators, stoves or other
appliances (including other ampliers) that produce heat.
6. Climate
The appliance has been designed for use in moderate climates.
7. Racks and stands
Only use a rack or stand that is recommended for use with
audio equipment. If the equipment is on a portable rack it
should be moved with great care, to avoid overturning the
combination.
8. Cleaning
Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft, damp,
lint-free cloth. Do not use paint thinners or other chemical
solvents for cleaning.
We do not advise the use of furniture cleaning sprays or
polishes as they can cause indelible white marks if the unit is
subsequently wiped with a damp cloth.
9. Power sources
Only connect the appliance to a power supply of the type
described in the operating instructions or as marked on the
appliance.
10. Power-cord protection
Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords and plugs, and the
point where they exit from the appliance.
11. Grounding
Ensure that the grounding means of the appliance is not
defeated.
12. Power lines
Locate any outdoor antenna/aerial away from power lines.
13. Non-use periods
If the unit has a standby function, a small amount of current will
continue to ow into the equipment in this mode. Unplug the
power cord of the appliance from the outlet if left unused for
a long period of time.
14. Abnormal smell
If an abnormal smell or smoke is detected from the appliance,
turn the power off immediately and unplug the unit from the wall
outlet. Contact your dealer immediately.
15. Servicing
You should not attempt to service the appliance beyond that
described in this handbook. All other servicing should be
referred to qualied service personnel.
16. Damage requiring service
The appliance should be serviced by qualied service personnel
when:
A. the power-supply cord or the plug has been damaged, or
B. objects have fallen, or liquid has spilled into the
appliance, or
C. the appliance has been exposed to rain, or
D. the appliance does not appear to operate normally or
exhibits a marked change in performance, or
E. the appliance has been dropped or the enclosure
damaged.
Safety compliance
This product has been designed to meet the EN60065
international electrical safety standard.
Page 3
Eng li sh
CD72/82
3
Using this handbook
Contents
Safety guidelines 2
Safety instructions 2
Safety compliance 2
Using this handbook 3
Safety 3
Models covered 3
Installation 4
Positioning the unit 4
Connecting to other equipment 4
Connecting to a power supply 4
CD72 rear panel 4
CD82 rear panel 4
Using your CD player 5
CDs with text 5
Using the remote control 6
CR-314 remote control 6
Technical specication 7
Guarantee 8
On-line registration 8
This handbook has been designed to give you all the
information you need to install, connect, set up and use the
Arcam CD72 or CD82 compact disc players. The CR-314
remote control handset supplied with this equipment is also
described, as it applies to operating the CD players.
Safety
Safety guidelines are set out on the inside front cover of this
handbook.
Many of these items are common sense precautions, but for
your own safety, and to ensure that you do not damage the unit,
we strongly recommend that you read them.
Models covered
This handbook covers two CD players:
CD72
CD82
These use the same basic chassis and mechanics and the
controls are identical. They differ in the audio path electronics
used.
These CD players have been designed to be upgradeable
to a higher specication player in the Arcam range. For
example, the CD72 can be upgraded to CD82; the CD82 can
be upgraded to CD92. Your Arcam dealer can give you more
information on this upgrade path.
CD72 player
This has a Delta-Sigma DAC (Digital to Analogue Converter) with
24-bit ltering.
CD82 player
The CD82 uses two 24-bit 192kHz capable Wolfson DACs in
a dual-mode conguration with one DAC chip used for the left
channel and one DAC chip used for the right channel.
The player uses high quality Burr Brown op-amps in the output
stage and the DAC module includes a high stability Class 1
crystal oscillator.
Page 4
CD72/82
4
Eng li sh
CD72/82
5
Installation
Positioning the unit
Always place the CD player on a level, rm surface. Placing
your player on a set of dedicated sorbothane isolation feet
will isolate the unit from its surroundings as well as absorbing
the vibrations created within the player itself. You will
generally hear some sonic improvements, which makes this
an extremely cost-effective upgrade. Your Arcam dealer can
demonstrate this to ou.
Connecting to other equipment
Interconnect cables
Interconnecting cables are not supplied with this CD player. We
recommend high quality cables as inferior quality cables will
degrade the sound quality of your system. Please contact your
Arcam dealer for details of suitable cables.
Audio outputs
Connect these to your amplier’s CD or any other line-level
input using suitable high quality interconnect cables. Ensure
that the left and right audio outputs from the CD player are
connected to the same left and right inputs on your amplier.
CD82 only: The second set of sockets can be used to
connect to a second amplier set up for multi-room use.
Coaxial digital output
Use this socket if you are using a separate digital to analogue
converter (DAC) or digital recorder. Connect to the DAC or
recorder’s digital input using a suitable 75Ω screened cable.
CAUTION: Never connect the digital output socket to a
conventional audio input.
Optical digital output
Use this socket if you are using a separate DAC or digital
recorder with an optical connection. Connect using a suitable
optical cable.
Remote input connection
It is not necessary to make any connection to this socket in
normal use. This connection is for ease of installation to multiroom remote control systems and is suitable for modulated
IR commands. Contact your multi-room installer for more
information.
Connecting to a power supply
Wrong plug?
Check that the plug supplied with the unit ts your supply and
that your mains supply voltage agrees with the voltage setting
(120V or 230V) indicated on the rear panel of the unit.
If your mains supply voltage or mains plug is different, consult
your Arcam dealer or Arcam Customer Support on +44
(0)1223 203203.
Mains lead
The appliance is normally supplied with a moulded mains plug
already tted to the lead. If for any reason the plug needs to
be removed, it must be disposed of immediately and securely,
as it is a potential shock hazard when inserted into the mains
socket. Should you require a new mains lead, contact your
Arcam dealer.
Plugging in
Push the plug (IEC line socket) of the power cable supplied with
the unit into the socket (POWER INLET) in the back of the unit.
Make sure it is pushed in rmly.
Put the plug on the other end of the cable into your power
supply socket and switch the socket on.

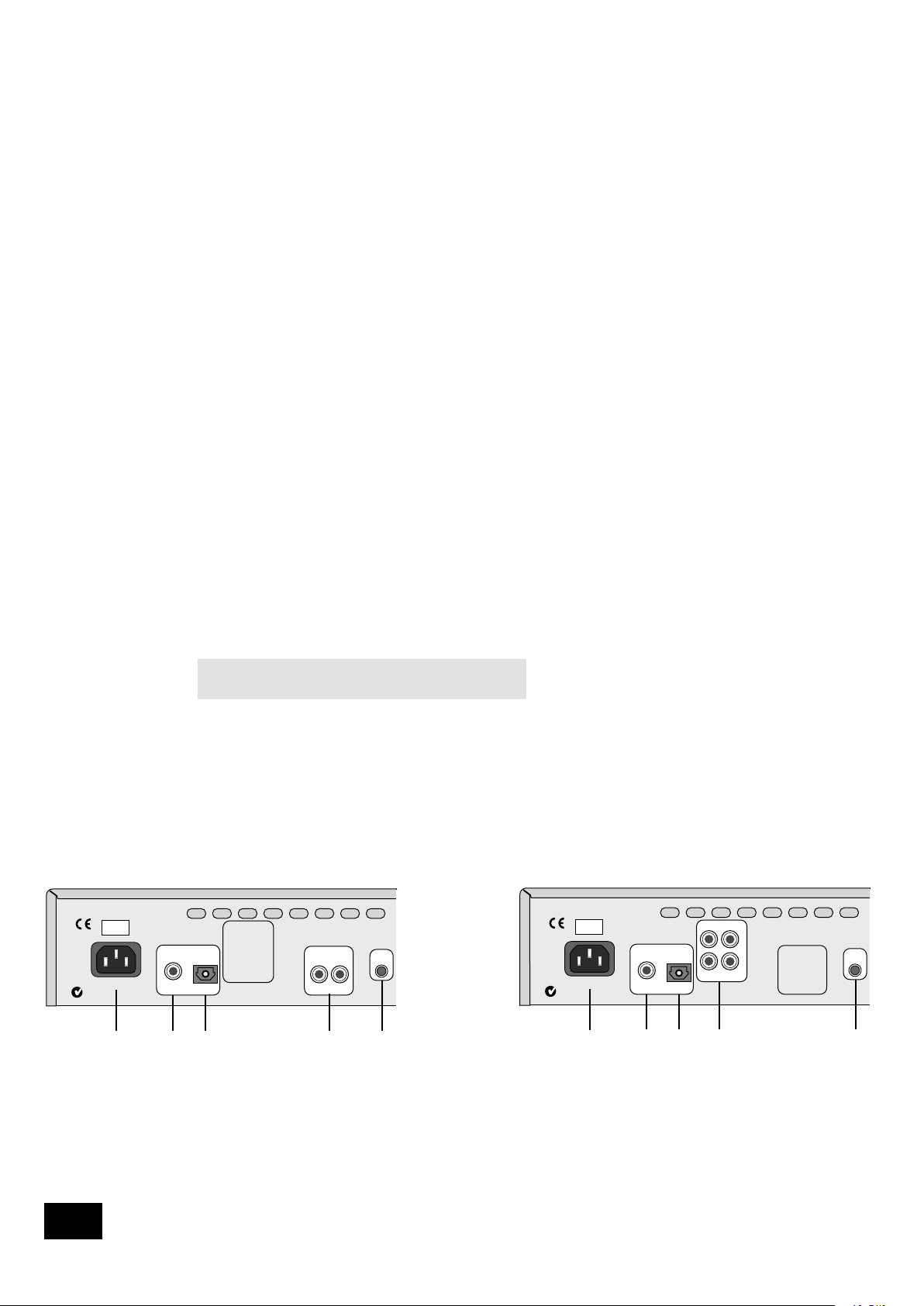

CD72 back panel: CD92 back panel:
POWER INLET
230V
21 43
REMOTE
IN
AUDIO OUTPUT
R L
CO-AXIAL
OPTICAL
DIGITAL OUTPUTS
5
POWER INLET
230V
21 3
REMOTE
IN
CO-AXIAL
OPTICAL
DIGITAL OUTPUTS
54
AUDIO OUTPUTS
1 2
L
R
CD72 rear panel (part) CD82 rear panel (part)
1
Power inlet, with voltage indicator
2
Coaxial digital output
3
Optical digital output
4
Single audio output
5
Remote input
1
Power inlet, with voltage indicator
2
Coaxial digital output
3
Optical digital output
4
Twin audio outputs
5
Remote input
Page 5
Eng l i s h
CD72/82
5

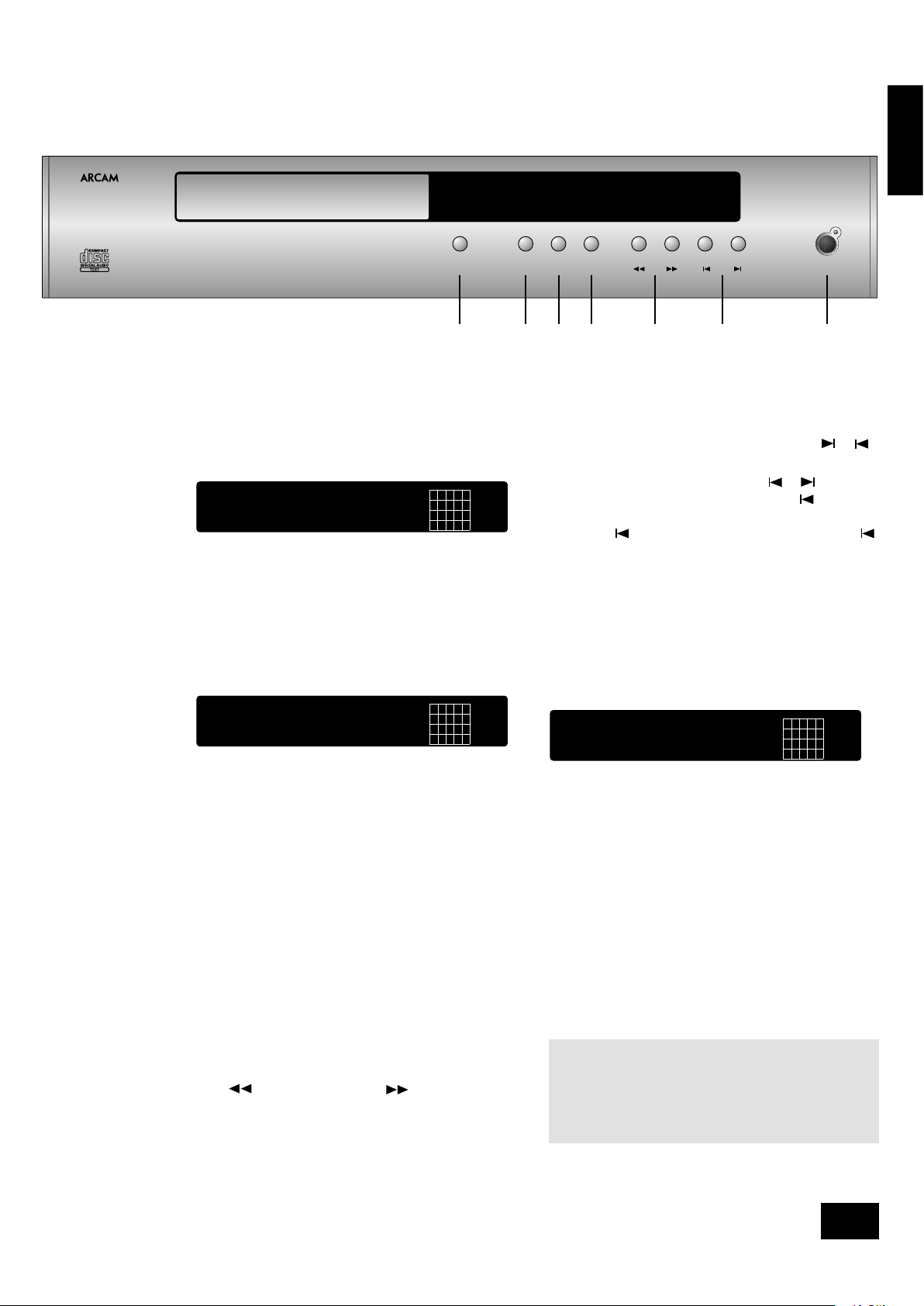

Using your CD player
POWER
1
Press this button to switch the CD player on and off. When rst
powered up with no CD installed the display shows:
--NO DISC--
LOAD
2
To install a CD, press LOAD (or OPEN on the remote control).
The CD tray opens – it accepts 12cm and 8cm discs. Place
the CD in the tray with the label facing uppermost. Press LOAD
again (or press PLAY, or gently push the tray in 5mm) to close
the tray. You will see the total number of tracks and total disc
time, for example…
8 52.19
TRACK INDEX MIN SEC
1
1 2 345
6 7 8
The display returns to ‘0’ after a few seconds. The disc is now
ready to play.
PLAY
3
Press to play the CD. To restart from track 1, press STOP and
then PLAY.
Make sure your amplier’s input source selector is set to the
correct input.
STOP
4
Press to stop the CD playing. The display shows ‘0’ and the
number of tracks.
PAUSE
5
Press to pause the disc (interrupt play).
Press PAUSE again, or PLAY to resume play from the same
point.
SEARCH
6
Press to search backwards, or to search forwards
for a particular passage within the currently playing track. If the
player is in ‘PAUSE’ mode the search is made at high speed
with the sound muted.
SKIP TRACK
7
To start a CD with a track other than the rst, press or
to locate the desired track.
To select another track during play, press or . The track
is played automatically after selection. Pressing once
returns to the start of the current track. To select the previous
track, press twice quickly. To go back two tracks, press
three times, and so on.
CDs with text
Load
You will see the total number of tracks and the total disc time
with ‘CD TEXT’ illuminated in the display. The artist and album
title scrolls across the display before returning to show the
artist and total number of tracks.
ANASTACIA
TRACK INDEX MIN SEC
CD TEXT
1 2 3
4
5
6 7 8
9
10
1112
Play
The track number is briey displayed, followed by the track title
scrolling across the display. The display returns to showing the
track number and time.
Track selection
When a new track is selected, the track number is briey
displayed, followed by the track title scrolling across the
display. The display returns to showing the track number and
time.
POWER
COM PACT DI SC PL AYER
TRACK
PAUSESTOPPLAYLOAD
7
1
6532 4
CD82
24 BIT D UAL MO NO DA CS
NOTE: The track title is always displayed when a track is
selected, either for playing or programming.
The artist is always displayed when the disc is stopped.
The TITLE button turns the text display off.
The text display supports English only.
Page 6
CD72/82
6
Eng l i s h
CD72/82
7

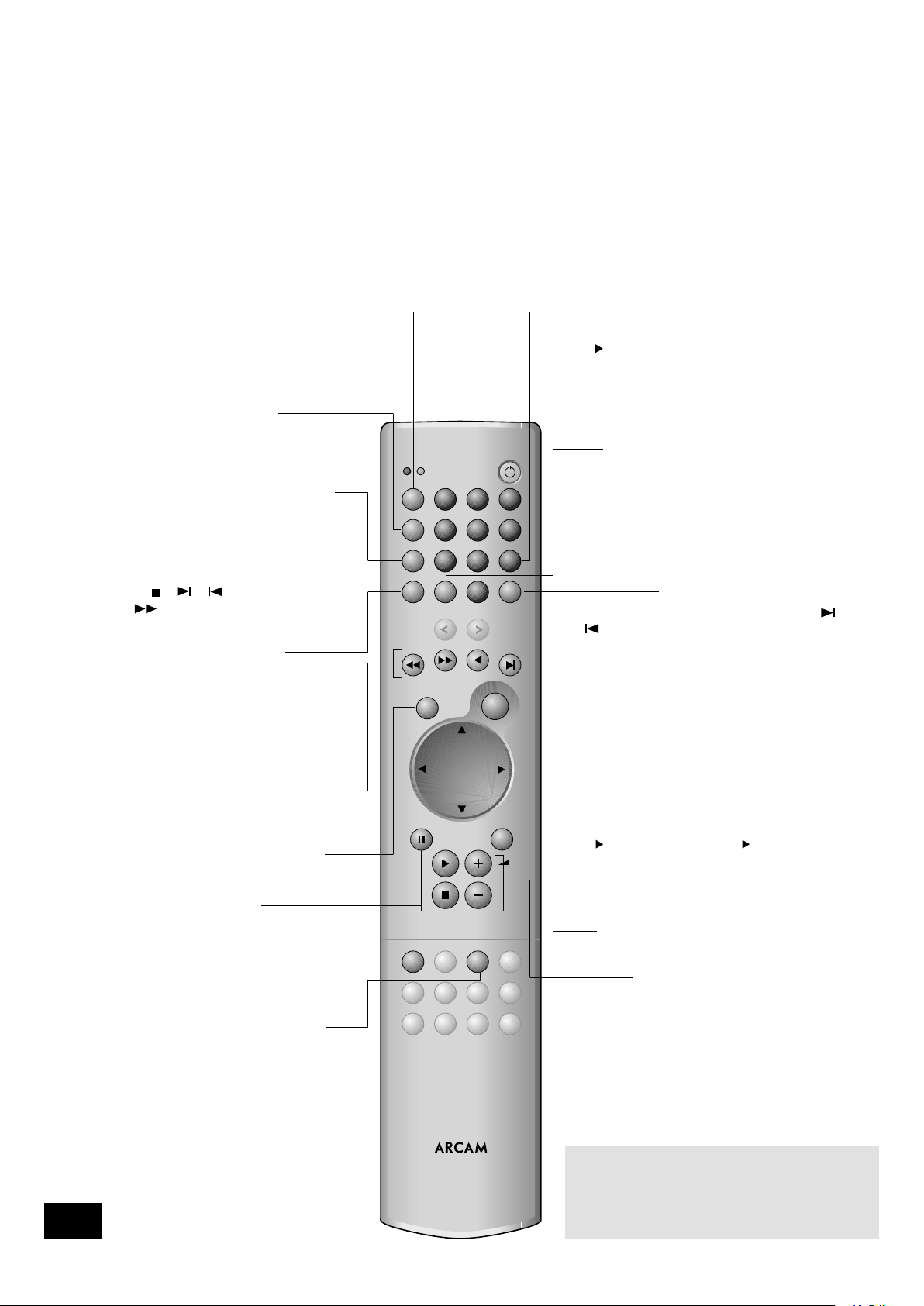

Using the remote control
CR-314
RPT CLEAR
0
PROG
A-B
7
8
9
DISP
4
5 6
CD
DVD
1
2
3
OK
OPEN
MUTE
P
MODE
CD/DVD REMOTE
CD DVD
SUBT
ZOOM AUDIO MEM RTN
ANGLE SETUP STATUS SRCH
MENU
TITLE
CR-314 Remote Control
Note that greyed-out buttons on the remote control are DVDspecic and are not used with the CD player.
CD/DVD
Ensure that CD mode is selected using the CD/DVD
toggle button. The ‘CD’ LED above the CD/DVD
button is lit briey when CD mode is selected.
DISP (display)
Turns the display on or off. Turning the display off generally
produces a slight improvement in sound quality.
A–B
This button enables you to repeat any section of music within
a track. Whilst the disc is playing, press the A–B button at the
start of the section you wish to repeat. ‘REPEAT’ is shown on
the display and the letter ‘A–’ ashes. Press the button a second
time when you reach the end of the section you wish to repeat.
The ‘A–B’ letters stop ashing and remain lit. This section will
repeat until you press or or . The forward search button
( ) moves forward within the selected loop.
RPT (repeat)
To repeat the entire CD or a pre-programmed selection of tracks
press RPT once: ‘REPEAT’ lights on the display. To repeat a
particular track, select that track and then press RPT twice so
that ‘REPEAT 1’ is shown on the display. If you now select a
different track, that track is repeated instead.
To cancel the repeat function press RPT a third time.
CLEAR
If you make a mistake whilst programming you can delete
the last entered track by pressing CLEAR. To delete all
the programmed tracks, press CLEAR repeatedly until ‘0’ is
displayed.
To exit the program facility, press PROG.
TITLE
Press TITLE once to display the remaining time of the currently
playing track. Press again to display the time remaining of
the disc. Press a third time to turn the text display on.
Press TITLE again and the display reverts to its original setting,
showing the time elapsed for the current track.
For CDs with text, pressing TITLE once while the disc
is loaded but not playing displays the artist’s name.
Pressing TITLE a second time displays the total number of
tracks and the total playing time.
0–9 keypad
This allows direct access to individual tracks on the disc. To
select a track, press the corresponding keypad button and then
press . For tracks greater than 9, enter the digits in sequence.
For example, to play track 15, press and hold 1 until the number
on the display moves to the left, then press 5.
PROG (Program)
You can program a selection of up to 24 tracks from a
disc to play in any order. Select a track by using the
and buttons, then press PROG to program the track into
memory (‘PROGRAM’ appears on the display to indicate that you
have started programming a sequence). Repeat these steps to
program the remaining tracks in your selection. Alternatively,
press PROG once and enter your track selection using the 0–9
keypad.
The display shows the track numbers programmed, the total
length of the programmed sequence and the number of tracks
programmed (shown by a number below the word ‘STEP’).
Each time you enter a track the number below ‘STEP’ increments
by one and ashes until you press PROG to conrm. If you fail to
press PROG within about ve seconds the display stops ashing
and you will have to reselect the track.
Press to play the program. Press again to replay the entire
sequence from the start. Press and hold CLEAR to erase the
programmed sequence. Press PROG again to exit the program
facility: the display ashes ‘CONTINUE’ and shows ‘0’.
MUTE
Stops sound to the speaker outputs of certain Arcam ampliers.
Volume +/–
Adjusts the volume on Arcam remote-controllable ampliers.
Note that the volume (+/–) controls and MUTE button have
no effect on the audio output level of the CD players.
NOTE: Remember to install the two AAA batteries supplied
before trying to use your remote control.
Do not place anything in front of the display area on the
CD player (where the IR receiver is located), or the remote
control may not work.
OPEN
Opens and closes the CD tray
Search and Skip Track
Search backwards and forwards;
Skip track backwards and forwards (see page 5)
Playback control
Pause, Play and Stop (see page 5)
P MODE
Press once to shufe play CD tracks (i.e. play them in
a random order). Press again to cancel shufe play.
Page 7
Eng l i s h
CD72/82
7
Digital to Analogue conversion
CD72: 24-bit multilevel Delta-Sigma DAC
CD82: Dual mono 24-bit Wolfson DAC
Laser pick-up 3 beam
Laser wavelength 780nm
Numerical aperture 0.45
Dynamic range 106dB
Signal to noise ratio (CCIR) >100dB
Harmonic distortion (0dB, 1kHz) <0.005%
Frequency response (±0.5dB) 5Hz–20kHz
Output level (0dB) 2.3Vrms
Output impedance
CD72 120Ω
CD82 50Ω
Minimum recommended load 5kΩ
Technical specication
Physical
Dimensions W430 x D290 x H84mm
Weight
CD72 4.6kg nett/6.1kg packed
CD82 5.5kg nett/7.0kg packed
Power consumption 32VA maximum
Digital output connection 75Ω co-axial
optical TOSLINK
Supplied accessories
Mains lead
CR-314 remote control
2 x AAA batteries
E&OE
Continual improvement policy
Arcam has a policy of continual improvement for its products.
This means that designs and specications are subject to
change without notice.
Radio interference
The CD72 and CD82 players are digital audio devices which
have been designed to very high standards of electromagnetic
compatibility.
Both CD players and DACs generate, and can radiate RF (radio
frequency) energy. In some cases this can cause interference
with FM and AM radio reception. If this is the case, keep the CD
player and its connecting cables as far from the tuner and its
aerials as possible. Connecting the CD player and the tuner to
different mains sockets can also help to reduce interference.
EC COUNTRIES -– These products have been designed to
comply with directive 89/336/EEC.
USA – These products comply with FCC requirements.
Laser radiation
If an Arcam CD player is operated whilst the outer casing is
removed, invisible laser radiation could cause eye damage.
NOTE: All specication values are typical unless otherwise
stated.
Page 8
Eng l i s h
CD72/82
9
Worldwide Guarantee
This entitles you to have the unit repaired free of charge,
during the rst two years after purchase, at any authorised
Arcam distributor provided that it was originally purchased
from an authorised Arcam dealer or distributor. The
manufacturer can take no responsibility for defects arising
from accident, misuse, abuse, wear and tear, neglect or
through unauthorised adjustment and/or repair, neither can
they accept responsibility for damage or loss occurring during
transit to or from the person claiming under the guarantee.
The warranty covers:
Parts and labour costs for two years from the purchase date.
After two years you must pay for both parts and labour costs.
The warranty does not cover transportation costs at any time.
Claims under guarantee
This equipment should be packed in the original packing
and returned to the dealer from whom it was purchased, or
failing this, directly to the Arcam distributor in the country of
residence.
It should be sent carriage prepaid by a reputable carrier -– NOT
by post. No responsibility can be accepted for the unit whilst in
transit to the dealer or distributor and customers are therefore
advised to insure the unit against loss or damage whilst in
transit.
For further details contact Arcam at:
Arcam Customer Support Department,
Pembroke Avenue, Waterbeach, CAMBRIDGE
CB5 9PB, England.
Telephone: +44 (0)1223 203203
Fax: +44 (0)1223 863384
Email: [email protected]
Problems?
Always contact your dealer in the rst instance.
If your dealer is unable to answer any query regarding this
or any other Arcam product please contact Arcam Customer
Support on +44 (0) 1223 203203 or write to us at the above
address and we will do our best to help you.
Guarantee
On-line registration
You can register your Arcam product on line at:
www.arcam.co.uk/reg
PEMBRO KE AVEN UE, WAT ERBEACH , CAMBR IDGE CB 5 9PB, ENGLAND
SH127EIssue B
Loading...
