Arcam DiVA A65 User Manual [ru]

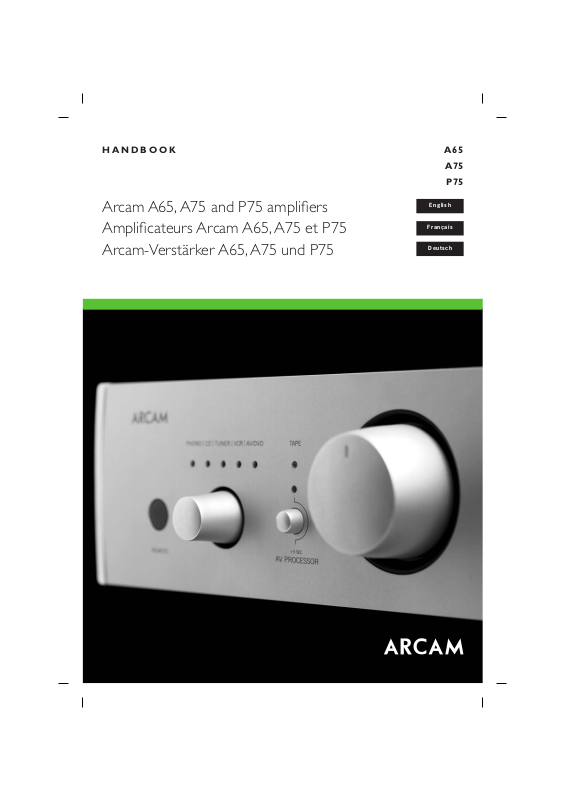

HANDBOOK

A65

A75

P75

Arcam A65, A75 and P75 amplifi ers
Amplifi cateurs Arcam A65, A75 et P75
Arcam-Verstärker A65, A75 und P75

English

Français

Deutsch

Safety guidelines

Safety instructions

This product is designed and manufactured to meet strict
quality and safety standards. However, you should be aware of
the following installation and operation precautions:

1. Take heed of warnings and instructions

You should read all the safety and operating instructions
before operating this appliance. Retain this handbook for future
reference and adhere to all warnings in the handbook or on
the appliance.

2. Water and moisture

The presence of electricity near water can be dangerous. Do
not use the appliance near water – for example next to a
bathtub, washbowl, kitchen sink, in a wet basement or near a
swimming pool, etc.

3. Object or liquid entry

Take care that objects do not fall and liquids are not spilled into
the enclosure through any openings. Liquid fi lled objects such
as vases should not be placed on the equipment.

4. Ventilation

Do not place the equipment on a bed, sofa, rug or similar
soft surface, or in an enclosed bookcase or cabinet, since
ventilation may be impeded. We recommend a minimum

distance of 50mm (2 inches) around the sides and top of the
appliance to provide adequate ventilation.

5. Heat

Locate the appliance away from naked fl ames or heat
producing equipment such as radiators, stoves or other
appliances (including other amplifi ers) that produce heat.

6. Climate

The appliance has been designed for use in moderate climates.

7. Racks and stands

Only use a rack or stand that is recommended for use with
audio equipment. If the equipment is on a portable rack it
should be moved with great care, to avoid overturning the
combination.

8. Cleaning

Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft, damp,

lint-free cloth. Do not use paint thinners or other chemical
solvents for cleaning.

We do not advise the use of furniture cleaning sprays or
polishes as they can cause indelible white marks if the unit is
subsequently wiped with a damp cloth.

10. Power-cord protection

Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords and plugs, and the
point where they exit from the appliance.

11. Grounding

Ensure that the grounding means of the appliance is not
defeated.

12. Power lines

Locate any outdoor antenna/aerial away from power lines.

13. Non-use periods

If the unit has a standby function, a small amount of current will
continue to fl ow into the equipment in this mode. Unplug the
power cord of the appliance from the outlet if left unused for
a long period of time.

14. Abnormal smell

If an abnormal smell or smoke is detected from the appliance,
turn the power off immediately and unplug the unit from the wall
outlet. Contact your dealer immediately.

15. Servicing

You should not attempt to service the appliance beyond that
described in this handbook. All other servicing should be
referred to qualifi ed service personnel.

16. Damage requiring service

The appliance should be serviced by qualifi ed service personnel
when:

A. the power-supply cord or the plug has been damaged, or
B. objects have fallen, or liquid has spilled into the

appliance, or
C. the appliance has been exposed to rain, or
D. the appliance does not appear to operate normally or

exhibits a marked change in performance, or
E. the appliance has been dropped or the enclosure

damaged.

Safety compliance

This product has been designed to meet the EN60065
international electrical safety standard.

A65/A75/P75

2

9. Power sources

Only connect the appliance to a power supply of the type
described in the operating instructions or as marked on the
appliance.

Using this handbook

This handbook has been designed to give you all the
information you need to install, connect, set up and use the
Arcam A65, A75 and P75 amplifi ers. The remote control
handset supplied with the equipment is also described.

It may be that your amplifi er has been set up as part of your
system installation by a qualifi ed Arcam dealer. In this case, you
may wish to skip the sections of this handbook dealing with
installation and setting up the unit. Use the Contents list on this
page to guide you to the relevant sections.

Models covered

This handbook covers two integrated amplifi ers:

A65
A75

and one power amplifi er:

P75

These amplifi ers have many features in common.
Both the A65 and A75 have remote controlled input selection

and a motorised volume control which can be operated by the
CR-389 remote control handset supplied.

Safety

Safety guidelines are set out on the inside front cover of this
handbook.

Many of these items are common sense precautions, but for
your own safety, and to ensure that you do not damage the unit,
we strongly recommend that you read them.

Contents

Safety guidelines 2

Safety instructions 2
Safety compliance 2

Using this handbook 3

Models covered 3
Safety 3

Installation: A65 and A75 4

Positioning the unit 4
Connecting to loudspeakers 4
Connecting to a power supply 4

Connecting to other equipment 5

Using the amplifi ers 6

Recording onto tape 6
Using a remote control 6

Using the remote control 7

CR-389 remote control 7

Installation: P75 8

Loudspeaker connection 8
Connecting to other equipment 8
Connecting to a power supply 8

Using the power amplifi er 8
Bi-wiring and bi-amping loudspeakers 9

Before you start 9
Bi-wiring your loudspeakers 9
Bi-amping your system 9

Technical specifi cations 10
Guarantee 11
On-line registration 11

A65/A75/P75

3
