INTRODUCTION
The Arbortech SpheroPlane™ is a revolutionary power carving tool, which allows
users to freehand carve spherical object s and shapes such as balls (convex
spheres) and bowls (concave spheres). The SpheroPlane™ attaches to a
standard angle grinder. The appropriate size angle grin der for this tool is:
• 115-125 mm angle grinder with M14 spindle and a maximum speed of
12,000 rpm or less.
A variable speed angle grinder is recommended for sanding f unctions to prevent
burning, but not essential.
The SpheroPlane™ patent-pending technology uses an adj ustable guide that
controls the cutting disc or sanding disc along spherical arcs. By adjusting the
height of the Guide Base, the radius of sphere is altered. This allows the user to
freehand carve spherical shapes and create c ompletely unique and aesthetically
pleasing spherical pieces of wood, wit hout the need for large and complex tools.
It is recommended that users of the SpheroPlane™ lear n the appropriate user
technique of the tool. Please refer to the ‘User Instructions’ section of this manual
and the Arbortech website for directions on the use of the Sphero Plane™.
www.arbortechtools.com
Always ensure that users have read the Instr uction Manual for the SpheroPlane™
and the angle grinder used in combination with the Spher oPlane™. Failure to
read both Instruction Manuals may result in deat h or serious injury.
Definitions: Safety Guidelines
The definitions below describe the level of sever ity for each signal word. Please
read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situat ion which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially hazardous situat ion which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situat ion which, if not avoided,
may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicat es a potentially hazardous
situation which, if not avoided, may result in p roperty damage.
Denotes risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instruct ions, illustrations and
specifications provided with this tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious inj ury.
Save all warnings and instructions for future r eference.
The term "power tool" in the warnings refers to your mains -operated (corded)
power tool or battery operated (cordless) power tool used in combination with the
SpheroPlane™.
Work Area Safety
a) Keep the work area clean and well lit. Cluttered and dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power t ools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control .
Electrical Safety
DANGER: Refer to the electrical safety warnings specific to the power tool
used in combination with the SpheroPlane™.
Page 9
INTRODUCTION
The Arbortech SpheroPlane™ is a revolutionary power carving tool, which allows
users to freehand carve spherical object s and shapes such as balls (convex
spheres) and bowls (concave spheres). The SpheroPlane™ attaches to a
standard angle grinder. The appropriate size angle grin der for this tool is:
• 115-125 mm angle grinder with M14 spindle and a maximum speed of
12,000 rpm or less.
A variable speed angle grinder is recommended for sanding f unctions to prevent
burning, but not essential.
The SpheroPlane™ patent-pending technology uses an adj ustable guide that
controls the cutting disc or sanding disc along spherical arcs. By adjusting the
height of the Guide Base, the radius of sphere is altered. This allows the user to
freehand carve spherical shapes and create c ompletely unique and aesthetically
pleasing spherical pieces of wood, wit hout the need for large and complex tools.
It is recommended that users of the SpheroPlane™ lear n the appropriate user
technique of the tool. Please refer to the ‘User Instructions’ section of this manual
and the Arbortech website for directions on the use of the Sphero Plane™.
www.arbortechtools.com
Always ensure that users have read the Instr uction Manual for the SpheroPlane™
and the angle grinder used in combination with the Spher oPlane™. Failure to
read both Instruction Manuals may result in deat h or serious injury.
Definitions: Safety Guidelines
The definitions below describe the level of sever ity for each signal word. Please
read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situat ion which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially hazardous situat ion which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situat ion which, if not avoided,
may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicat es a potentially hazardous
situation which, if not avoided, may result in p roperty damage.
Denotes risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instruct ions, illustrations and
specifications provided with this tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious inj ury.
Save all warnings and instructions for future r eference.
The term "power tool" in the warnings refers to your mains -operated (corded)
power tool or battery operated (cordless) power tool used in combination with the
SpheroPlane™.
Work Area Safety
a) Keep the work area clean and well lit. Cluttered and dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power t ools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control .
Electrical Safety
DANGER: Refer to the electrical safety warnings specific to the power tool
used in combination with the SpheroPlane™.
Page 10
Personal Safety
Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement part s. This will ensure that the safety of the power tool
is maintained.
Safety Instructions for Angle Grinders
DANGER: Always read and understand the instruct ion manual and safety
warning specific to the angle grinder used in combinat ion with the
SpheroPlane™.
Safety Instructions for Use of the SpheroPlane™
a) This power tool is intended to function for carving and sanding of wood.
Read all safety warnings, instructions, illus trations and specifications provided
with this power tool. Failure to follow all instruct ions listed below may result in
serious injury.
b) Before operating the tool, read the Operation instructions in this
Instruction Manual for setup and user instructions.
c) Always inspect the tool, and the installation of the tool before use.
d) Use clamps or another practical way to secure and support the
workpiece to a stable platform. Holding the workpiece by hand or against
your body leaves it unstable and may lead to loss of control or accidental
contact with moving parts.
e) Do not operate the tool with any attachment other than those
recommended in this instruction manual.
f) Never start a tool under load. Start the tool before engaging the work piece.
g) Never start or operate the tool with fingers or other objects in contact
with the cutting disc.
h) Use care when handling cutting discs during and after use. The cutting
discs and some areas of the tool become hot in use.
i) Always en sure that before starting the tool that there are no hazards,
such as electrical wiring, in the working vicinity.
j) Allow for resting periods to ease the effect of the vibration of the tool.
k) Ensure the dust extraction equipment is connected and p roperly used.
l) The use of any acces sory or attachment other than those recommended in this
instruction manual may present a risk of personal injury.
m) Do not force the tool. It is designed to operate with moderate effort.
Overheating of the drive system and motor can occur if the tool is overloaded.
n) Always operate the angle grinder by holding it with both hands.
o) Do not use the tool with any spindle adapter on the angle grinder. The
tool is specifically designed for the angle grinder size stated and any additional
adaptor may cause premature failure and injury.
SYMBOLS The following symbols are used in this manual and m arking of this
tool
Read instruction manual
Wear hearing protection
Wear eye protection
Wear breathing protection
Wear gloves
rpm
Revolutions per minute
mm
Millimetres
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid s afety shoes, hard hat or
hearing protection used for appropriate condit ions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, pi cking up or
carrying the tool. Carrying power tools with y our finger on the switch or
energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpect ed situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes , jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Us e
of these devices can reduce dust-related hazards .
h) Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety. A careless act ion can cause
severe injuries within a fraction of a second.
Power Tool Use and Care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the swit ch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the b attery pack from
the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operat e
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or
binding of moving parts, breakage of parts and any other condition that
may affect the power tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maint ained power
tools.
f) Keep cutting tools sharp and clean. Properly maint ained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
Page 11
Service
SYMBOLS The following symbols are used in this manual and m arking of this
tool
Read instruction manual
Wear hearing protection
Wear eye protection
Wear breathing protection
Wear gloves
rpm
Revolutions per minute
mm
Millimetres
a) Have your power tool serviced by a qualified repair person using only
identical replacement part s. This will ensure that the safety of the power tool
is maintained.
Safety Instructions for Angle Grinders
DANGER: Always read and understand the instruct ion manual and safety
warning specific to the angle grinder used in combinat ion with the
SpheroPlane™.
Safety Instructions for Use of the SpheroPlane™
a) This power tool is intended to function for carving and sanding of wood.
Read all safety warnings, instructions, illus trations and specifications provided
with this power tool. Failure to follow all instruct ions listed below may result in
serious injury.
b) Before operating the tool, read the Operation instructions in this
Instruction Manual for setup and user instructions.
c) Always inspect the tool, and the installation of the tool before use.
d) Use clamps or another practical way to secure and support the
workpiece to a stable platform. Holding the workpiece by hand or against
your body leaves it unstable and may lead to loss of control or accidental
contact with moving parts.
e) Do not operate the tool with any attachment other than those
recommended in this instruction manual.
f) Never start a tool under load. Start the tool before engaging the work piece.
g) Never start or operate the tool with fingers or other objects in contact
with the cutting disc.
h) Use care when handling cutting discs during and after use. The cutting
discs and some areas of the tool become hot in use.
i) Always en sure that before starting the tool that there are no hazards,
such as electrical wiring, in the working vicinity.
j) Allow for resting periods to ease the effect of the vibration of the tool.
k) Ensure the dust extraction equipment is connected and p roperly used.
l) The use of any acces sory or attachment other than those recommended in this
instruction manual may present a risk of personal injury.
m) Do not force the tool. It is designed to operate with moderate effort.
Overheating of the drive system and motor can occur if the tool is overloaded.
n) Always operate the angle grinder by holding it with both hands.
o) Do not use the tool with any spindle adapter on the angle grinder. The
tool is specifically designed for the angle grinder size stated and any additional
adaptor may cause premature failure and injury.
Page 12
FUNCTIONAL DESCRIPTION

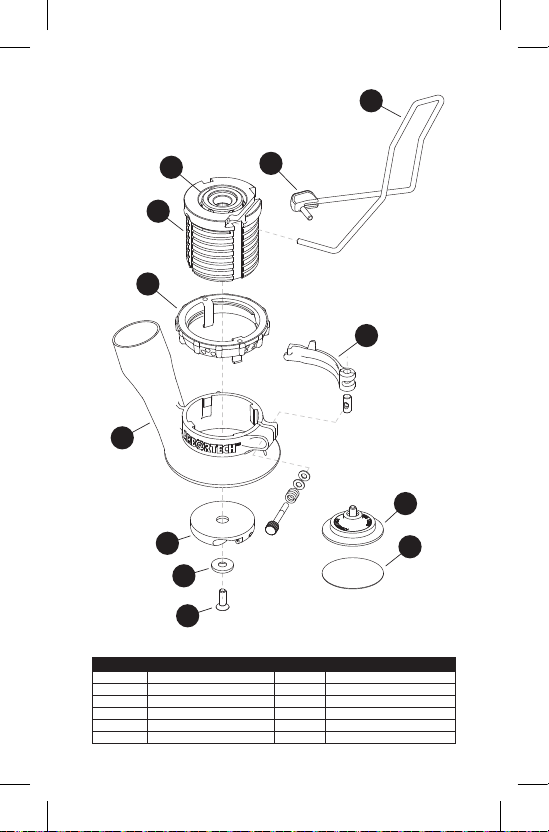

ITEM
SPECIFICATION
Cutting Disc
Ø 50 mm x 8 mm, Ø9.53 mm arbor
Blade construction
Tungsten Carbide (MAN-HW)
Required spindle thread
M14
Required backing flange dia.
Ø 22.2 mm
Maximum rotational speed
12,000 rpm
Minimum sphere diameter
Ø 90 mm
Dust extraction vacuum hose
Suits vacuum hose with 35mm
diameter external taper fitting.
Weight
0.72 kg
Dimensions
250 mm x 210 mm x 120 mm
cause the seizure of bearings.
If the shaft does not spin freely, do not use the SpheroPlane™ and seek
maintenance to prevent injury.
2. Ensure that the SpheroPlane™ shaft is seated firmly on the backing
flange for the angle grinder.
3. Rotate the SpheroPlane™ cutting dis c by hand, and ensure that the tool h as
no runout or wobble when rotated. If runout or wobble is present, the
SpheroPlane™ is not installed correctly , Do not use the tool in this
condition.
4. Ensure that the Torque Arm is seated against t he body of the angle grinder
and that it does not interfere with hand positions on the angle grinder (see
Figure F).
5. Always ensure that the angle grinder is f itted with an auxiliary handle.
User instructions
WARNING: Always ensure that both hands are holding the angle grinder
in the designated handhold positions and hands are clear of the Torque Arm.
WARNING: Always ensure that the workpiece is firmly held in a work
holder. Do not use hands to move, support or rotate the workpiece while
operating the tool, as this may result in serious injury from contact with the
cutting disc.
WARNING: Always wear pro tective hearing and eye protection
when using the SpheroPlane™. It is recommended that the SpheroPlane™ is
used with suitable dust extraction system t o prevent excessive wood dust from
becoming airborne. If no dust extraction syst em is used, breathing protection
should be worn.
WARNING: Ensure that long hair, loose clothing and jewellery are away from
the tool. These items can be caught in moving parts and cause serious injury.
WARNING: Cutting discs will become hot during/after use and may
causing burning. Glov es are recommended for changing of cutting discs to
prevent burns.

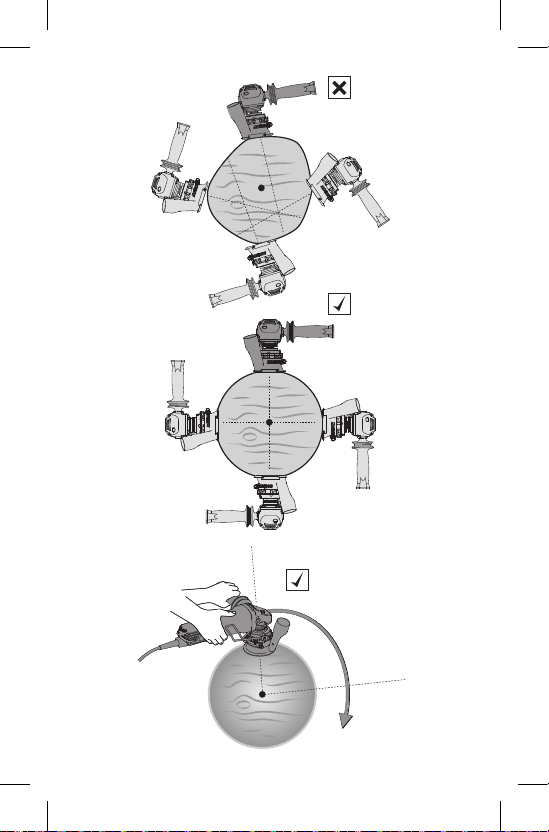

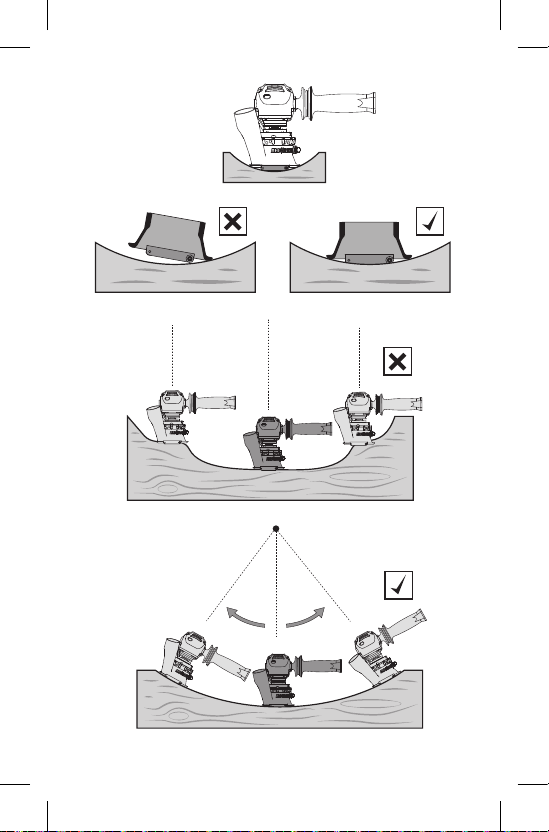

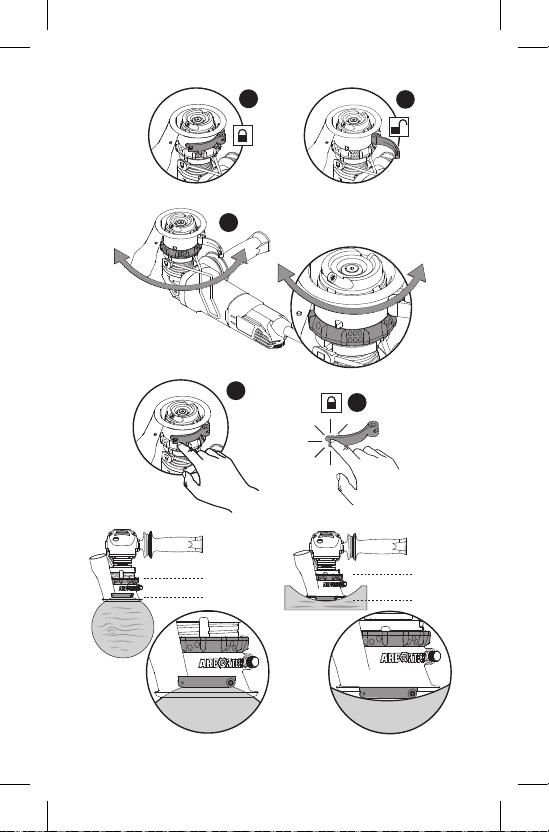

Follow the directions shown in Figure H-I, for inst ruction on the correct use of the
SpheroPlane™. It is recommended that practise is performed t o learn the correct
technique.
For carving of bowls (concave spheres)
Begin with an approximately flat workpiece firmly held in a work holder. Expose
the cutting disc by adjusting the Guide Base up to the desired carving radius .
Mark the centre location of the desired bowl on the workpiece, and sk etch the
approximate diameter as a guide.
Carve from the centre of the bowl, moving outwards in a spiral patt ern. Once a
rough bowl shape is formed, use the full surface of the Guide Base to guide t he
carving into a spherical shape (see Figure H).
Only small incremental adjustments are required t o the height of the Guide Base
to adjust the depth or diameter of the bowl.
Once the desired bowl shape is created, disconnect the power/ battery, and
change the carving disc for the sanding disc. If pos sible, use a lower speed
setting to prevent the wood from burning. Adjust the height of the Guide Base to
match the radius of the bowl. Begin sanding using a low grit number (c oarse) and
progressively change to higher grit numbers ( finer grits) as the surface finish
improves.
SpheroPlane™ Tool Description
The SpheroPlane™ is a tool designed to power c arve and sand spherical objects
in wood. The SpheroPlane™ is designed to carve convex and conc ave spheres,
such as balls and bowls. The radius of curvature can be controlled by adj ustment
to the height of the Guide Base (see Figure G for detailed instruc tions).
The SpheroPlane™ is designed for attachment to an angle grinder with t he
following specifications:
• 115-125 mm angle grinder with M14 spindle and a maximum speed of
12,000 rpm or less.
An angle grinder with variable speed is also recommended for sanding
performance, but not essential.
The SpheroPlane™ comes fitted with several func tional components to be
familiar with:
1. The Guide Base – which moves up and down relative to t he cutting or sanding
disc fitted.
2. Locking Clamp – designed to rigidly aff ix the Guide Base after height
adjustments are made.
3. Adjustment Collar – rotated by the user to adjust the height of the Guide Base.
4. Torque Arm, designed to rest against t he body of the angle grinder and
prevent rotation of the tool. The torque arm also includes a shaft rotation lock,
to allow the installation and removal of the tool (see Figure B).
The SpheroPlane™ comes fitted with a purpose built 50 mm diameter Tungsten
Carbide carving disc, intended for bulk carving and fine carving work. The
SpheroPlane™ is also packaged with a 50 mm sanding pad and a range of
sanding grit discs, for finishing work.
SPECIFICATIONS
interface
diameter internal taper fitting, or 38mm
OPERATION

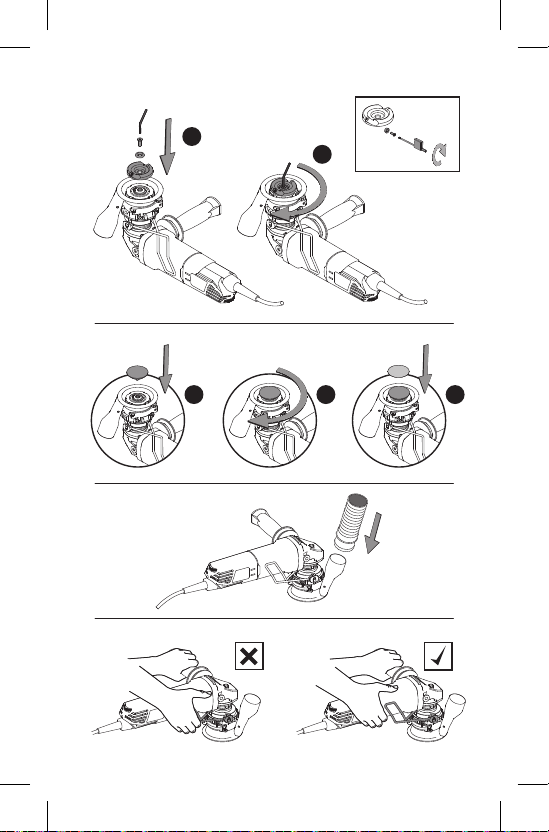

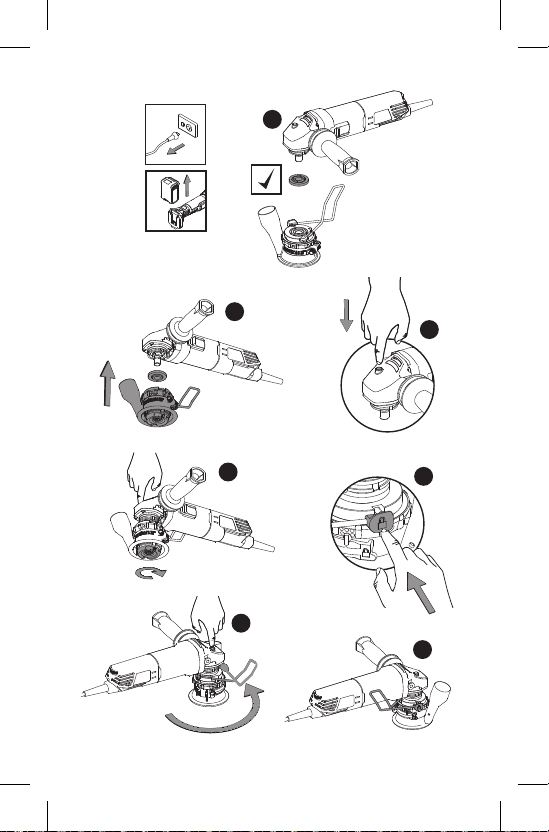

Setup
WARNING: Before installing the SpheroPlane™ onto an angle grinder or
changing discs, disconnect the power plug or remove the battery from the
angle grinder.
Ensure that the angle grinder is fitted with a backing f lange.
Thread the shaft of the SpheroPlane™ on to the spindle of the angle gr inder until
the shaft is seated level and centrally on the backing flange.
If necessary, use the Torque Arm and locking button to apply a tightening torque
to the SpheroPlane™ shaft (see Figure B).
WARNING: Before connecting power to the angle grinder and using the
SpheroPlane™, conduct the following pre-start safety checks:
1. Ensure that the SpheroPlane™ shaft (3) spins freely within the
SpheroPlane™ sleeve (4). Damage due to improper storage or handling may
Page 13
cause the seizure of bearings.
If the shaft does not spin freely, do not use the SpheroPlane™ and seek
maintenance to prevent injury.
2. Ensure that the SpheroPlane™ shaft is seated firmly on the backing
flange for the angle grinder.
3. Rotate the SpheroPlane™ cutting dis c by hand, and ensure that the tool h as
no runout or wobble when rotated. If runout or wobble is present, the
SpheroPlane™ is not installed correctly , Do not use the tool in this
condition.
4. Ensure that the Torque Arm is seated against t he body of the angle grinder
and that it does not interfere with hand positions on the angle grinder (see
Figure F).
5. Always ensure that the angle grinder is fit ted with an auxiliary handle.
User instructions
WARNING: Always ensure that both hands are holding the angle grinder
in the designated handhold positions and hands are clear of the Torque Arm.
WARNING: Always ensure that the workpiece is firmly held in a work
holder. Do not use hands to move, support or rotate the workpiece while
operating the tool, as this may result in serious injury from contact with the
cutting disc.
WARNING: Always wear pro tective hearing and eye protection
when using the SpheroPlane™. It is recommended that the SpheroPlane™ is
used with suitable dust extraction system t o prevent excessive wood dust from
becoming airborne. If no dust extraction syst em is used, breathing protection
should be worn.
WARNING: Ensure that long hair, loose clothing and jewellery are away from
the tool. These items can be caught in moving parts and cause serious injury.
WARNING: Cutting discs will become hot during/after use and may
causing burning. Glov es are recommended for changing of cutting discs to
prevent burns.
Follow the directions shown in Figure H-I, for inst ruction on the correct use of the
SpheroPlane™. It is recommended that practise is performed t o learn the correct
technique.

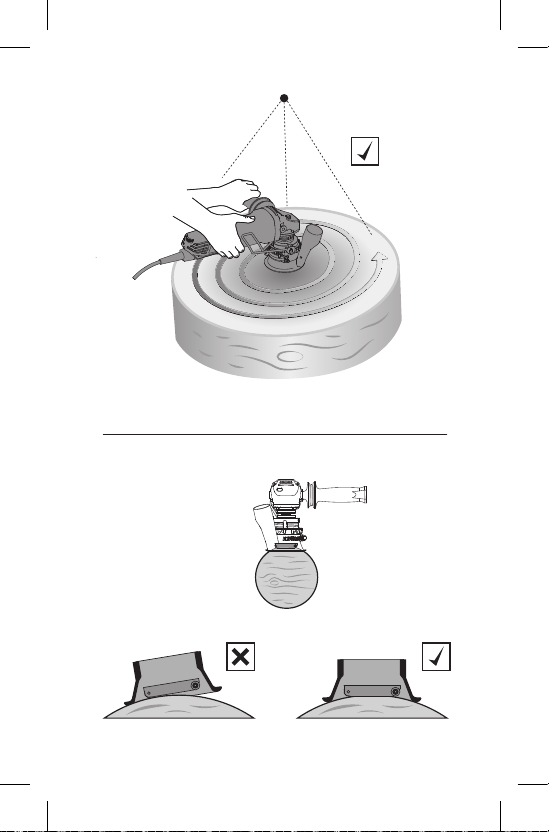

For carving of bowls (concave spheres)
Begin with an approximately flat workpiece firmly held in a work holder. Expose
the cutting disc by adjusting the Guide Base up to the desired carving radius .
Mark the centre location of the desired bowl on the workpiece, and sk etch the
approximate diameter as a guide.
Carve from the centre of the bowl, moving outwards in a spiral patt ern. Once a
rough bowl shape is formed, use the full surface of the Guide Base to guide t he
carving into a spherical shape (see Figure H).
Only small incremental adjustments are required t o the height of the Guide Base
to adjust the depth or diameter of the bowl.
Once the desired bowl shape is created, disconnect the power/ battery, and
change the carving disc for the sanding disc. If pos sible, use a lower speed
setting to prevent the wood from burning. Adjust the height of the Guide Base to
match the radius of the bowl. Begin sanding using a low grit number (c oarse) and
progressively change to higher grit numbers ( finer grits) as the surface finish
improves.
Page 14
For carving of balls (convex spheres)
WARRANTY AND SERVICE
Arbortech provides a 12-month limited warr anty for defects from workmanship or
faulty materials on the motor and/or mechanism of our products from the date of
original purchase.
For specific warranty details for your region, please consult the Arbortech
website:
www.arbortechtools.com
For warranty repair, inspection, serv ice and spare parts, please contact your
place of purchase, or contact us directly at:
AUSTRALIA:
T: +61 (0) 8 9249 1944
E: arbortech@arbortech.com.au
EUROPE and UK
T: +49 2724 2880474
E: info@arbortech-europa.de
UK- Declaration of Conformity
Arbortech declares that the product described in t his manual under “Technical
Specifications” is manufactur ed in compliance with standardised documents and
following UK regulations:
Supply of Machinery (Safety) Regulations 2008 -The Restriction of the Use of
Certain Hazardous Substances in Elect rical and Electronic Equipment
Regulations 2012
Technical file at: Arbortech Pt y Ltd, 67 Westchester Road, Malaga, WA 6090,
Australia
_____
Sven Blicks
Chief Executive Officer
Arbortech Pty Ltd
EC - Declaration of Conformity
Arbortech declares that the product described in t his manual under “Technical
Specifications” is manufactured in compliance wit h standardised documents and
in conformity with Machinery Directives : 2006/42/EC; 2011/65/EU.
Technical file at: Arbortech Pty. Ltd, 67 W estchester Road, Malaga, WA
_____
Sven Blicks
Chief Executive Officer
Arbortech Pty Ltd
Disposal
The machine, accessories and packaging should be sor ted for
environmental-friendly recycling. O nly for EC countries: Do not dispose
of power tools into household waste! According to the European
Directive 2012/19/EU for Waste Electric al and Electronic Equipment
and its implementation into national law, power t ools that are no longer
usable must be collected separately and disposed of in an environmentally
correct manner.
Begin with the workpiece pre-prepared into an approximat e cube or cylinder of
the desired proportions and firmly hold the wor kpiece in a work holder. Set the
Guide Base below the height of the cutting disc and t o the desired sphere radius
(see Figure I). Begin carving the sphere from the edges and working inwards .
Rotate the workpiece in the work holder as needed to expose un-carved regions.
Once the desired ball shape is created, disconnect the power/battery, and change
the carving disc for the sanding disc. If possible, us e a lower speed setting to
prevent the wood from burning. Adjust the height of the Guide Base to match the
radius of the sphere. Begin sanding using a low grit number (c oarse) and
progressively change to higher grit numbers (finer grits) as the surface finish
improves.
Dust extraction
The SpheroPlane™ is provided with a dust extraction guar d (see Figure E),
suitable for connection to common vacuum hose s with 35 mm diameter internal
taper fittings, or 38 mm diameter external taper fittings.
It is recommended that a dust extraction system, suit able for wood dust, is used
to prevent airborne dust when using the tool.
MAINTENANCE
WARNING: To reduce the risk of serious personal injur y, turn the tool off and
disconnect the power plug or batter y pack from the angle grinder before making
any adjustments or removing/installing att achments or accessories.
Cleaning
CAUTION: Blow dust and wood chips off the SpheroPlane™ after each use.
Use only dry compressed air or a clean dry cloth to clean the t ool.
CAUTION: Always wear safety glasses and a mask when cleaning this
tool. Never use solvents or other harsh chemicals f or cleaning the tool.
Inspection
Inspect the tool before and after every use. Inspect the tool for the following:
• Free rotation of the shaft relative to the Guide Bas e and bearings. If the shaft
does not rotate freely, the tool is damaged and will requir e repair or
replacement.
• Excessive wear of the Guide Base. If the Guide Base has worn signific antly, it
may affect the behaviour of the SpheroPlane™. A replacem ent Guide Base
may be sourced from Arbortech or an authorised serv ice centre.
Accessories
To reduce the risk of injury, only Arbortec h accessories should be used with this
product. Recommended accessories for use wit h your tool are available from your
local dealer or authorised service centre.
Repairs
If the SpheroPlane™ is damaged, or excessively worn, then r epair or
replacement may be necessary. Replacement parts may be sourced from
Arbortech or an authorised service centre.
If you need any assistance in locating any accessor y, or general tool query
please contact Arbortech: www.arbor techtools.com
STORAGE
The SpheroPlane™ is supplied with a permanent carry case that is
recommended for storage. Store the SpheroPlane ™ in temperatures between
0°C and 40°C in a dry location, away from water and excessive humidit y.
Page 15
WARRANTY AND SERVICE
Arbortech provides a 12-month limited warr anty for defects from workmanship or
faulty materials on the motor and/or mechanism of our products from the date of
original purchase.
For specific warranty details for your region, please consult the Arbortech
website:
www.arbortechtools.com
For warranty repair, inspection, serv ice and spare parts, please contact your
place of purchase, or contact us directly at:
AUSTRALIA:
T: +61 (0) 8 9249 1944
E: [email protected]
EUROPE and UK
T: +49 2724 2880474
E: [email protected]
UK- Declaration of Conformity
Arbortech declares that the product described in t his manual under “Technical
Specifications” is manufactur ed in compliance with standardised documents and
following UK regulations:
Supply of Machinery (Safety) Regulations 2008 -The Restriction of the Use of
Certain Hazardous Substances in Elect rical and Electronic Equipment
Regulations 2012
Technical file at: Arbortech Pt y Ltd, 67 Westchester Road, Malaga, WA 6090,
Australia
_____
Sven Blicks
Chief Executive Officer
Arbortech Pty Ltd
EC - Declaration of Conformity
Arbortech declares that the product described in t his manual under “Technical
Specifications” is manufactured in compliance wit h standardised documents and
in conformity with Machinery Directives : 2006/42/EC; 2011/65/EU.
Technical file at: Arbortech Pty. Ltd, 67 W estchester Road, Malaga, WA
_____
Sven Blicks
Chief Executive Officer
Arbortech Pty Ltd
Disposal
The machine, accessories and packaging should be sor ted for
environmental-friendly recycling. Only for EC countries: Do not dispose
of power tools into household waste! According to the European
Directive 2012/19/EU for Waste Electric al and Electronic Equipment
and its implementation into national law, power t ools that are no longer
usable must be collected separately and disposed of in an environmentally
correct manner.
Page 16
SPP.PK.BOOK1000.00
REV 240806
Copyright Arbortech PTY LTD, 2024
ARBORTECH PTY LTD
67 Westchester Rd, Malaga,
Perth, WA, AUSTRALIA 6090
Ph: +61 8 9249 1944
Fax: +61 8 9249 2936
ARBORTECH EUROPE GMBH
57413 Finnentrop, Germany
(Germany) +49 2724 2880474
30 Corporate Park Dr, Suite 210
(USA) Toll Free: (866) 517 7869
AUS: [email protected]
EUR: [email protected]
USA: [email protected]
CANADA: salescanada@arbortecht ools.com
www.facebook.com/ArbortechTools
www.arbortechtools.com
Esloher Str. 188,
USA
Pembroke, MA 02359
CANADA
120 Saunders Rd, Unit 4
Barrie, Ontario L4N 9A8
Email
Facebook
Loading...
