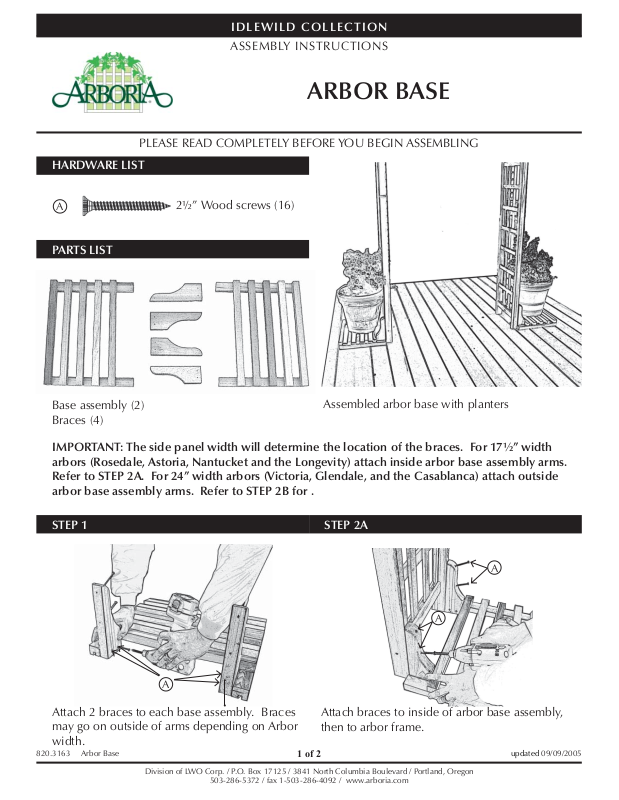

HARDWARE LIST
IDLEWILD COLLECTION
ASSEMBLY INSTRUCTIONS
ARBOR BASE
PLEASE READ COMPLETELY BEFORE YOU BEGIN ASSEMBLING
A
2½” Wood screws (16)
PARTS LIST
Base assembly (2)
Assembled arbor base with planters
Braces (4)
IMPORTANT: The side panel width will determine the location of the braces. For 17½” width
arbors (Rosedale, Astoria, Nantucket and the Longevity) attach inside arbor base assembly arms.
Refer to STEP 2A. For 24” width arbors (Victoria, Glendale, and the Casablanca) attach outside
arbor base assembly arms. Refer to STEP 2B for .
STEP 1
A
Attach 2 braces to each base assembly. Braces
may go on outside of arms depending on Arbor
STEP 2A
A
A
Attach braces to inside of arbor base assembly,
then to arbor frame.
width.
820.3163 Arbor Base updated 09/09/2005
Division of LWO Corp. / P.O. Box 17125 / 3841 North Columbia Boulevard / Portland, Oregon
503-286-5372 / fax 1-503-286-4092 / www.arboria.com
1 of 2
Page 2
STEP 2B STEP 3
A
Attach braces to the outside of arbor base assembly,
then to arbor frame.
Place large planters (minimum of 40 lbs. per side
recommended) on both sides of the arbor. This
will help to keep the arbor secure and plumb.
820.3163 Arbor Base updated 09/09/2005
Division of LWO Corp. / P.O. Box 17125 / 3841 North Columbia Boulevard / Portland, Oregon
503-286-5372 / fax 1-503-286-4092 / www.arboria.com
2 of 2
