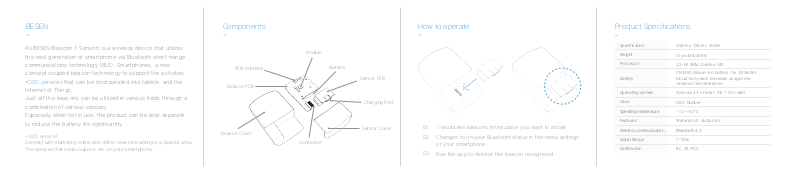

Page 1
BESEN
Components How to operate
Product Specifications
As BESEN(Beacon + Sensor) is a wireless device that utilizes
the next generation of smartphone via Bluetooth short-range
communications technology (BLE), Smartphones, a new
concept coupled beacon technology to support the activities
*O2O services that can be incorporated into tablets, and the
Internet of Things.
Just off the beacons can be utilized in various fields through a
combination of various sensors.
Especially when not in use, the product can be kept separate
to reduce the battery life significantly.
* O2O service?
Connect with marketing online and offline, real-time writing in a specific area
The services that send coupons, etc. on your smartphone.
PCB Antenna
Beacon PCB
Beacon Cover
Module
Connector
Battery
Sensor PCB
Charging Port
Sensor Cover
0102 I would like beacons in the place you want to install.
Changes to on your Bluetooth status in the menu settings
of your smartphone.
03
Run the app to monitor the beacon recognized.
Specification
Weight
Processor
battery
Operating system
Case
Operating temperature
Features
Wireless communication
Signal Range
Certification
45mm x 72mm x 20mm
12g with battery
32-bit ARM Coretex-M0
CR2450 lithium-ion battery (3v, 620mAh)
About two years maximum usage time
(Interval 1ms reference)
Android 4.3 or later, IOS 7.0 or later
ABS, Rubber
-10 ~ 60 ℃
Waterproof, dustproof
Bluetooth 4.0
1~70m
KC, CE, FCC
Page 2
The sensor module can be combined Please Note
Methane, LPG (sensing range: 300 ~ 10000 ppm)
Benzene, toluene, ammonia (detection range: 10 ~ 1000ppm)
Carbon monoxide (sensing range: 10 ~ 500ppm)
Carbon dioxide (sensing range: 450 ~ 2000 ppm)
Volatile Organic Compound (sensing range: 125 ~ 600 ppb)
Vibration sensor
Whole, the humidity sensors
Flame Sensor
Ambient light sensor
Fine dust sensor
※ If you purchased a separate sensor module can be used
for various applications.
01. Wireless equipment that has the possibility of radio wave
interference can not be management is life-saving services.
02. This device is intended primarily for use as a home from
home (B grade) EMC devices.
03. This figure may differ from the actual product and are
subject to change without notice, product specifications
according to manufacturer's conditions.
04. Should you have a cause of poor workmanship If this
occurs, we will replace the same product.
Product name: Wireless device for wireless data communication system
Designation:BESEN Model name: ABP-1000
Seller: Aram Solution Country: KOREA
The production is designed as a "convergence SW small hidden champion nurturing business"
supported by JEONBUK TECHNOPARK. Issue Date: 2016. 08. 19.
Customer Service Center - Aram Solution Inc.
202, Venture Dong, JBTP, 109, Ballyoung-ro, Deokjin-gu, Jeonju-si, Jeollabuk-do, Korea
Tel: +82. 236. 1941 Fax: +82. 236. 1942 www.uaram.co.kr
User Manual
Page 3
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
The antennas used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
Page 4

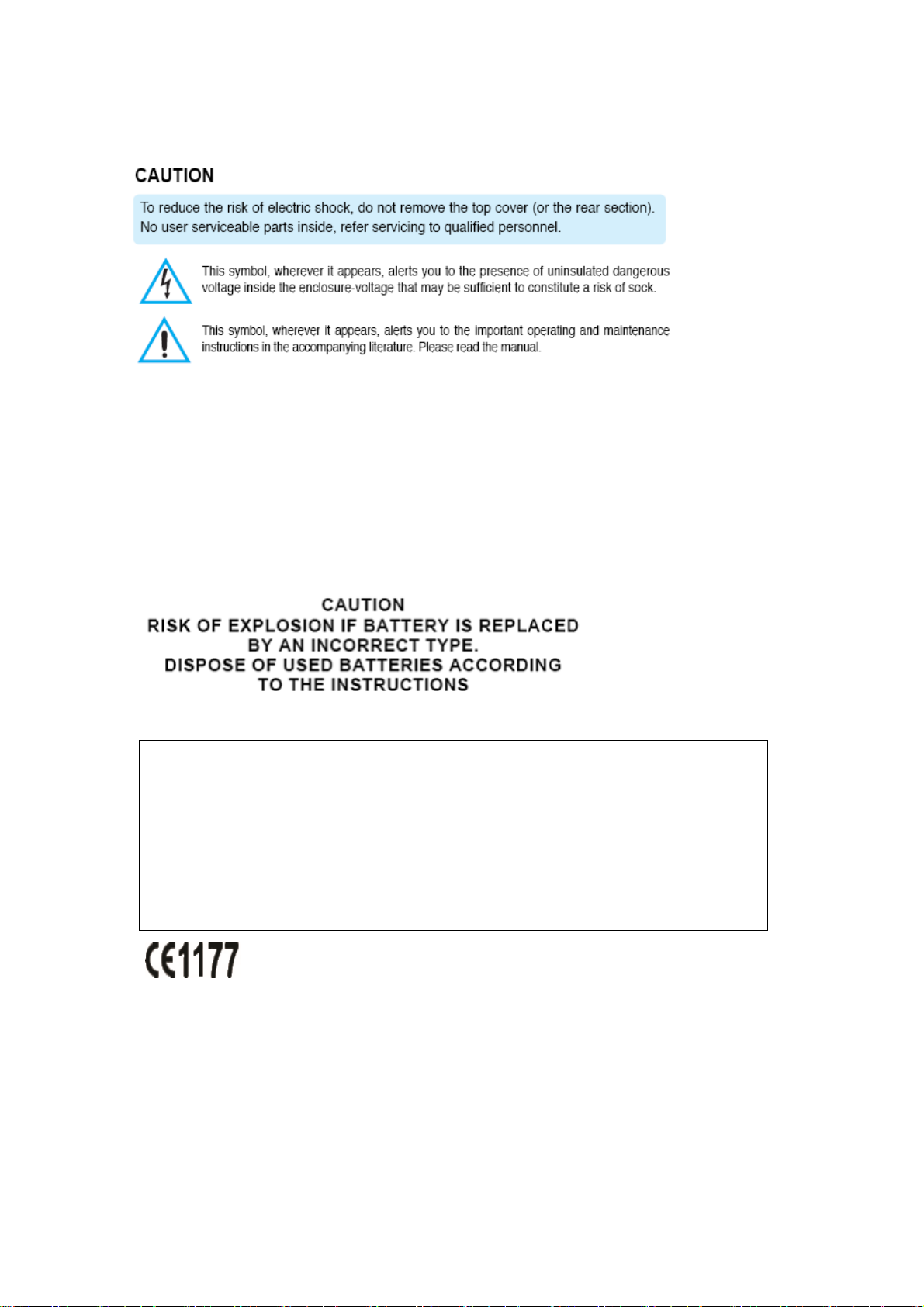

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
European CE notice to users and product statements
This product is CE marked according to the provisions of the R&TTE
Directive(1999/5/EC). Hereby, ARAM Solution Co.,Ltd declares that this
product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
For further information, please contact http://
wwww.uaram.co.kr
ARAM Solution Co.,Ltd
Venture-dong #202, jeonbuk technopark,109, Ballyong-ro, Deokjin-gu, Jeonju-si,
Jeollabuk-do, Korea
Tel: +82-63-236-1941
Fax: +82-63-236-1942
URL: wwww.uaram.co.kr
Page 5
CONTACT INFORMATION
Manufacturer Address : Venture-dong #202, jeonbuk technopark,109, Ballyong-ro, Deokjin-gu, Jeonj u-si,
Jeollabuk-do, Korea
To locate in-country ARAM SOLUTION CO.,LTD, distributors of the BESEN please refer to the ARAM
SOLUTION CO.,LTD Website http:// www.uaram.co.kr
These distributor(s) represent local contacts for this product.
CORPORATE HEADQUARTERS:
ARAM SOLUTION CO.,LTD
Venture-dong #202, jeonbuk technopark,109, Ballyong-ro, Deokjin-gu, Jeonju-si, Jeollabuk-do, Korea
Tel: +82-63-236-1941
Fax: +82-63-236-1942
Web: http://www.uaram.co.kr
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is Subject to the following two condition: (1) this device may not cause interference
,and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Page 6
EUROPEAN UNION “DECLARATION OF CONFORMITY”
DECLARATION OF CONFORMITY
ARAM SOLUTION CO.,LTD
Venture-dong #202, jeonbuk technopark,109, Ballyong-ro, Deokjin-gu, Jeonju-si, Jeollabuk-do, Korea
declare under our sole responsibility that the product(s)
BESEN – ABP-1000
to which this declaration relate(s) is in conformance with the following standards:
EN 301 489-1 V1.9.2:2011
EN 301 489-17 V2.2.1:2012
EN 60950-1:2006/A2:2013
EN 300 328 V1.9.1:2015
following the provisions of the 1999/5/EC Directives.
