Page 1

WAVE 2 AC WIRELESS ACCESS POINT

Quick Start Guide

AN-510-AP-I-AC AN-810-AP-I-AC

Page 2

Araknis Networks Wireless Access Point

Quick Start Guide

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device is designed for indoor use only.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

In the North American market, only channels 1–11 can be operated. Other channels cannot be selected.

Industry Canada Statement

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Caution:

(i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

(ii) For product available in the USA/Canada market, only channel 1–11 can be operated. Selection of other channels is not possible.

Avertissement:

(i) Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur aﬁn de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

(ii) Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.

Page 3

Araknis Networks Wireless Access Point

Quick Start Guide

Araknis Networks Wireless Access Point

Quick Start Guide

Industry Canada Statement, Continued

Radiation Exposure Statement:

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement on contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

CE Statement

This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

All operational modes:

2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80)

The frequency and the maximum transmitted power in EU are listed below:

AN-510-AP-I-AC AN-810-AP-I-AC

2412-2472MHz: 14.7 dBm 5180-5240MHz: 17.4 dBm

2412-2472MHz: 2.4G: 17dBm 5180-5240MHz: 5G:18dBm

Industry Canada Warning

This product meets the applicable Innovation, Science and Economic Development Canada technical speciﬁcations. Ce produit repond aux speciﬁcations techniques applicables a l'innovation, Science et Développement economique

Canada

CE Warning

This is a product with CE certiﬁcation. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

These products are intended to be powered by either PoE/PoE+ or a 12V/2A power supply

These products use PoE/+ - IN(48V/0.53A) for both the AN-510-AP-I-AC and AN-810-AP-I-AC.

The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range..

AT BE BG HR CY CZ DK

EE FI FR DE EL HU IE

IT LV LT LU MT NL PL

PT RO SK SI ES SE UK

Page 4

Araknis Networks Wireless Access Point

Quick Start Guide

Welcome to Araknis Networks™

Thank you for choosing an Araknis™ WAVE 2 AC Wireless Access Point (WAP). With newly designed circular housing, an ingeniously easy new mounting system, convenient PoE power, and the latest WAVE-2 AC wireless technologies, these products are ideal as staples in both residential and commercial applications.

Features

• Sleek Circular Design

• Unobtrusive recessed lighting

• 1 x Gigabit LAN Port (w/802.11af PoE-IN)

• 1 x Gigabit LAN Port (as jumper)

• Fanless

• AN-510-AP-I-AC: 2x2 Dual-Band Wave 2-AC 1300Mbps

• AN-810-AP-I-AC: 4x4 Dual-Band Wave 2-AC 2600Mbps

• 1 x USB 2.0

• OvrC Enabled with SSID Management!

AN-510-AP-I-AC

Step 1: Unbox

Wireless Access Point

(WAP)*

Male-to-Female

Jumper Cable

Mounting Bracket

Tile Ceiling

Mounting Hardware

Tile Ceiling Backing Plate

Drywall

Mounting Hardware

Wood Surface

Mounting Hardware

(510 has 2 screws)

AN-810-AP-I-AC

*This manual uses the 810 WAP for illustrative purposes throughout. .

Page 5

Araknis Networks Wireless Access Point

Quick Start Guide

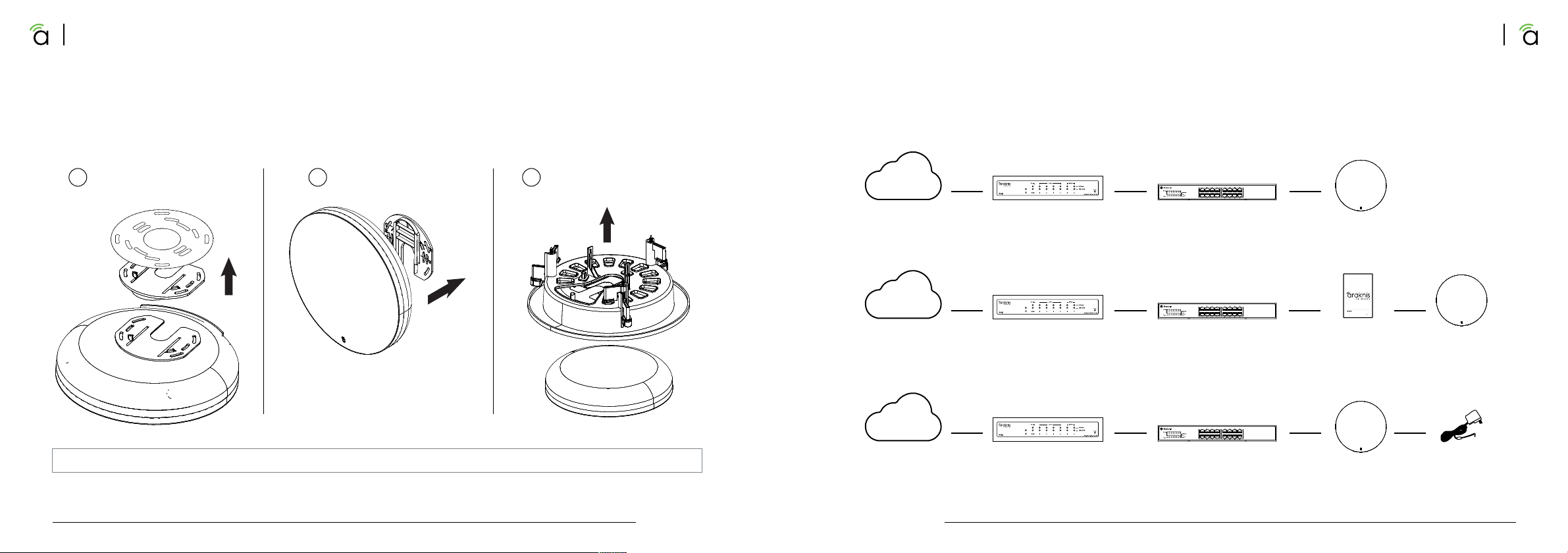

Step 2: Install

A B C

Ceiling Mount Wall Mount In-Ceiling Mount

NOTE: Use the ceiling backing plate on top of acoustic ceiling tiles to prevent the mounting nuts from pulling through.

Step 3: Connect

ENABLED

Internet

Router

ENABLED

Router

ENABLED

Router

PoE Switch

Switch

WAP

POWER + DATA (OUT)

AN-ACC-INJ-30W

DATA (IN)DC 48V Input Power

PoE Injector

(not included)

WAP

DC Power Supply

(not included)

Page 6

Araknis Networks Wireless Access Point

Quick Start Guide

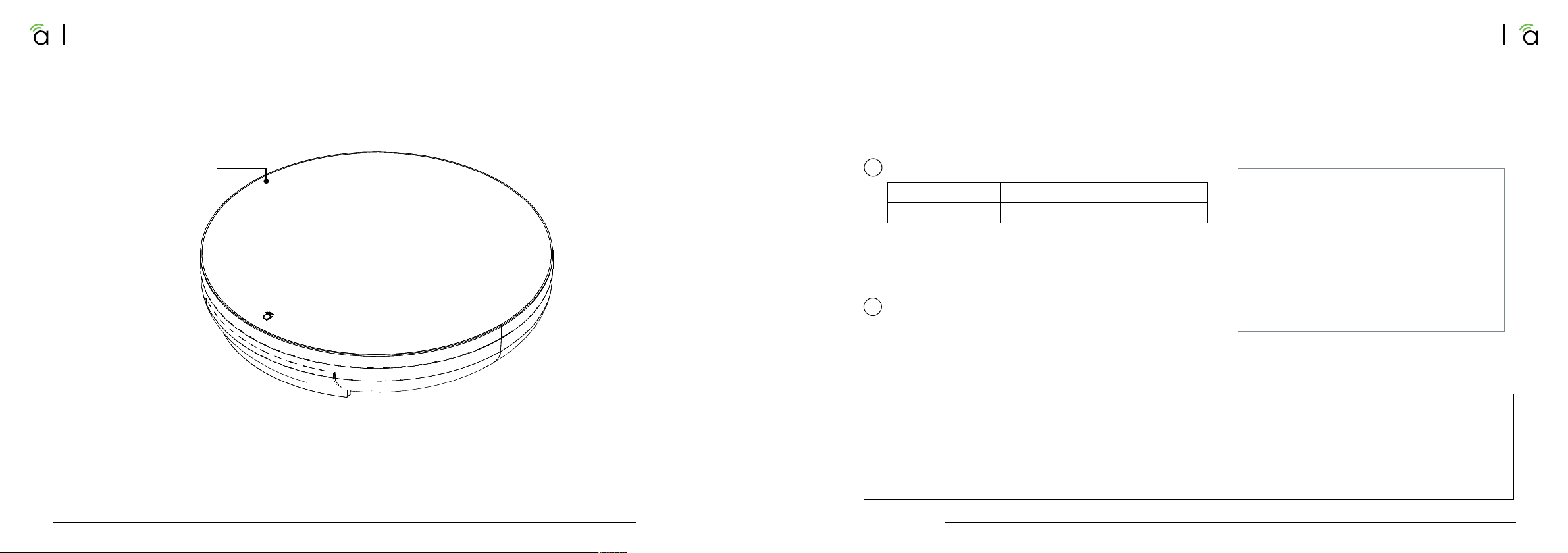

Step 4: Verify

LED*

*NOTE: The LED is located on the side of the device.

LED Status:

• Blinking: WAP is not working correctly. Refer to the full manual or contact Araknis technical support.

• Solid: WAP is operating correctly.

Step 6: Log Into Web Interface

Username araknis Password araknis

NOTE: If you can’t connect to the WAP using this method, or need to conﬁgure the device before connecting it to the network, try these options for accessing your device:

• DHCP IP address – Page 11

• Default IP Address – Page 12

• OvrC – Page 15

Page 7

Araknis Networks Wireless Access Point

Quick Start Guide

Pro Tip: Save and Apply Changes

After making changes to settings on a menu page, left-click the “Save” button on the menu to hold the new settings in the Apply Changes ﬁeld.

After all desired changes have been made, left-click “Apply Changes” to review the new settings. Left-click "Apply" to make the changes or "Revert" to cancel the changes.

NOTE: Settings will take aect after the progress bar completes 100%.

Other Access Methods: DHCP IP Address

The WAP is conﬁgured to DHCP by default so that the DHCP server can assign an IP address when the WAP is connected to the network (the DHCP server is usually the router). This address can be used for accessing the web interface.

Use one of these methods to ﬁnd the IP address of the WAP:

• Check the client table on your router

• Use a network scanner (e.g. Fing) to sni the network. The Araknis WAP manufacturer ﬁeld will display “Snap AV”

See the highlighted ﬁeld in the "Fing" screenshot to the right for an example of an Araknis device being identiﬁed.

Page 8

Araknis Networks Wireless Access Point

Quick Start Guide

Other Access Methods: Default IP Address

If the WAP is not issued an IP address on the network, or needs to be accessed while not connected to a network, you can conﬁgure your computer's network connection to allow access using the default IP address, “192.168.20.253”.

Windows 7 screenshots shown for reference.

Connect your PC to the WAP

A B C

using a network patch cable.

Computer WAP

On your PC, open the Control Panel and left-click “Network and Internet”.

Left-click “Network and Sharing Center”.

Other Access Methods: Default IP Address

Windows 7 screenshots shown for reference.

In the left bar, left-click “Change

D E F

adapter settings”.

Right-click the icon for the wired network connection and left-click "Properties".

Left-click to highlight “Internet Protocol Version 4 (TCP/IPv4), then left-click “Properties”.

Page 9

Araknis Networks Wireless Access Point

Quick Start Guide

Other Access Methods: Default IP Address

Windows 7 screenshots shown for reference.

In the “General” tab, left-click

G H I

"Use the following IP address:" and enter the IP address and subnet mask.

IP Address 192.168.20.2

Subnet Mask 255.255.255.0

Left-click “OK” to close Internet Protocol Version 4 (TCP/IPv4) Properties, then left-click "OK" to close wireless network connection properties.

Open a web browser and navigate to “http://192.168.20.253/”. Log in using the default credentials:

Username araknis

Password araknis

Other Access Methods: OvrC

OvrC gives you remote device management, real-time notiﬁcations, and intuitive customer management, right from your computer or mobile device. Setup is plug-and-play, with no port forwarding or DDNS address required. To add this device to your OvrC account:

Connect the WAP to the Internet

Log Into OvrC (www.ovrc.com)

Add the Device (MAC address and Service Tag numbers needed for authentication)

Web Browser

Access

1 2 3 4 5 6 7 8

1 Gbps

Link/Act

AN-110-SW-R-8

Mobile

Apps

Internet

OvrC Server

ENABLED

Page 10

Contacting Technical Support

(866) 838-5052

[email protected]

2-Year Limited Warranty

Araknis Networks® products have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modiﬁed, or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notiﬁcation and an assigned return authorization (RA) number.

US local representative information:

Company: Araknis Networks Address: 1800 Continental Blvd. Suite 300,

Charlotte, North Carolina, 28273, United States

Tel：704-945-7974 Fax: 800.782.2410
