Page 1
E650FS-BK
CPSIA#2-E650FS-BK- -MW

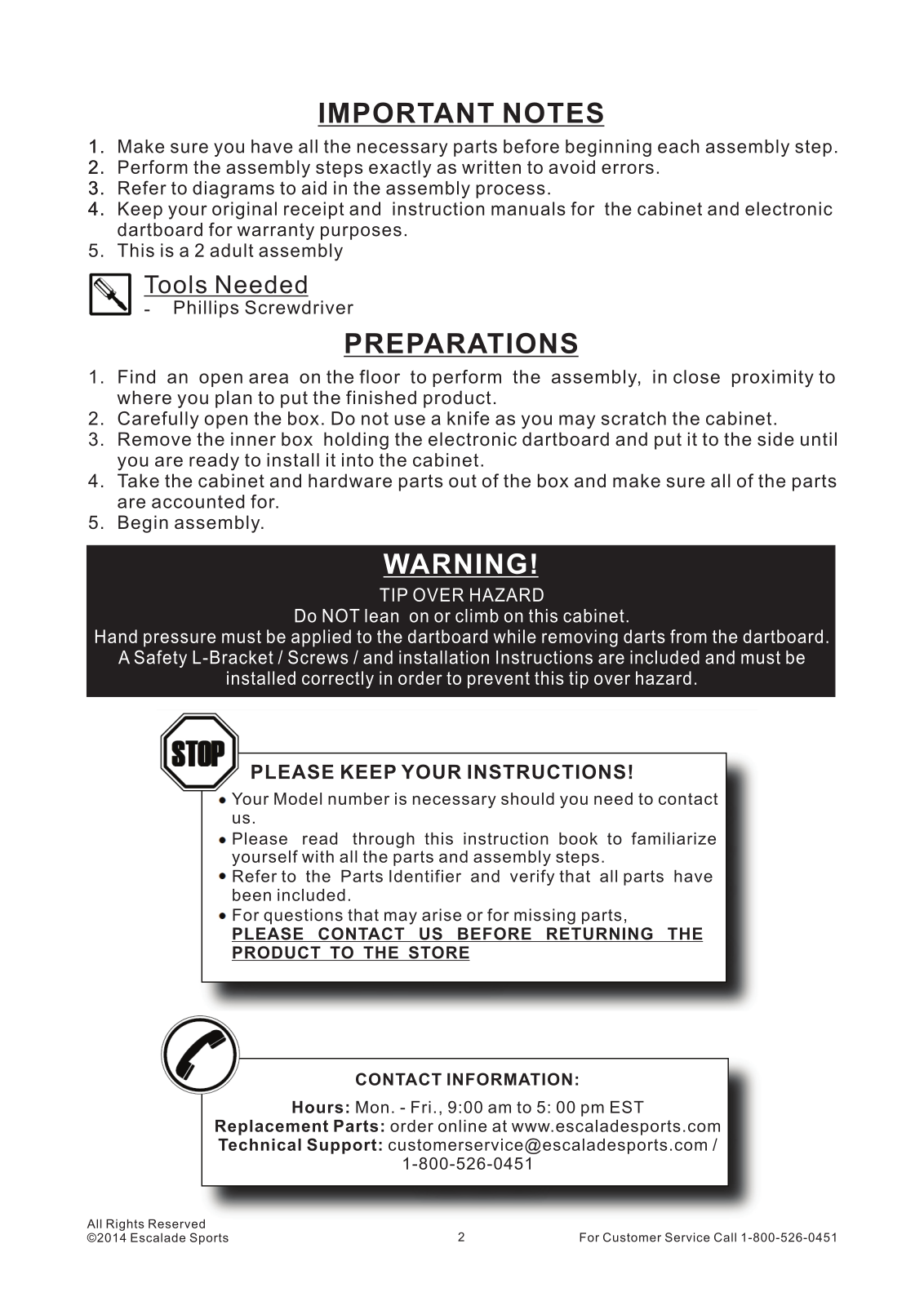

Page 2

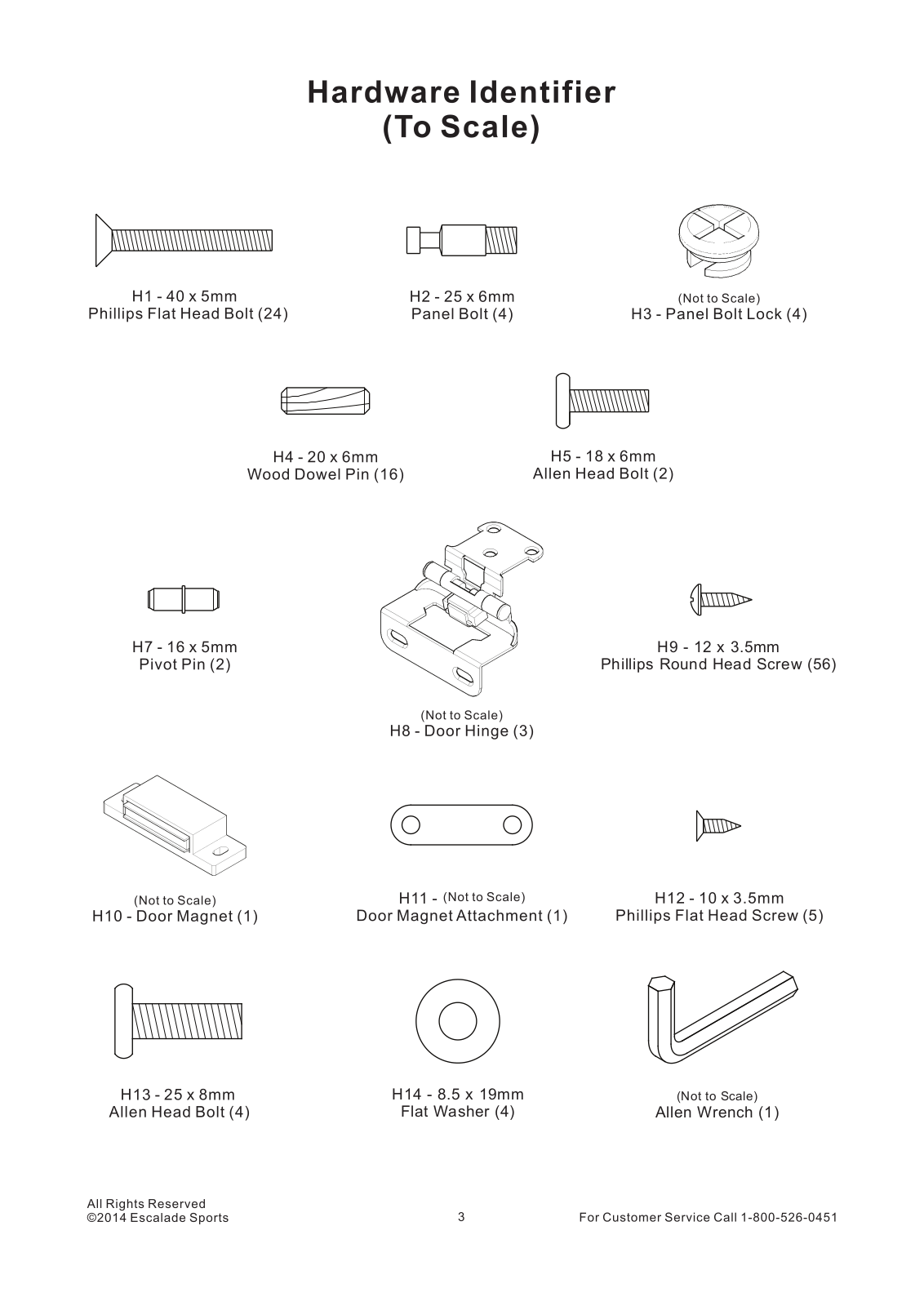

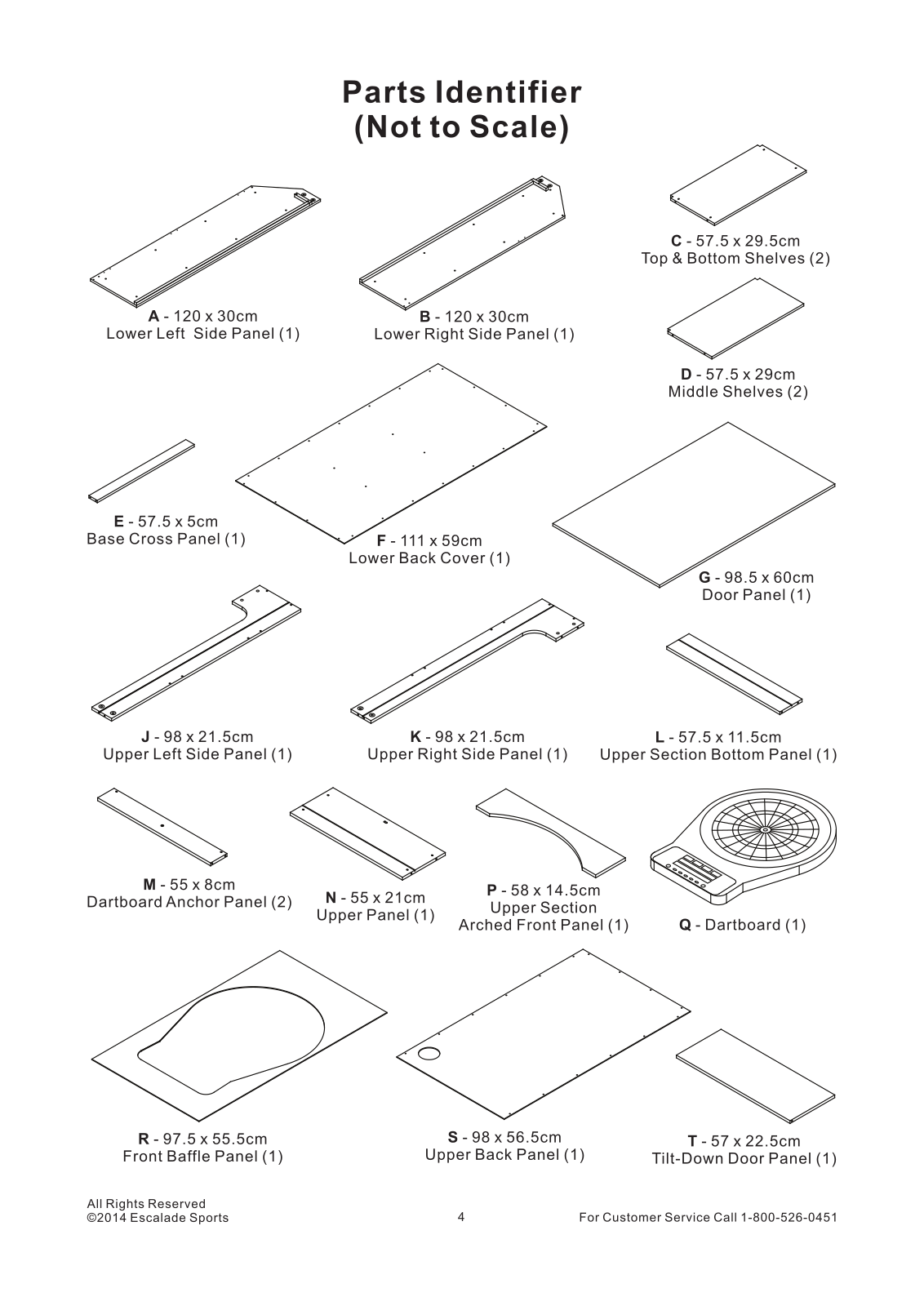

Page 3
H9 - 12 x 3.5mm
Phillips Round Head Screw (56)
H14 - 8.5 x 19mm
Flat Washer (4)
(Not to Scale)
Allen Wrench (1)
Page 4

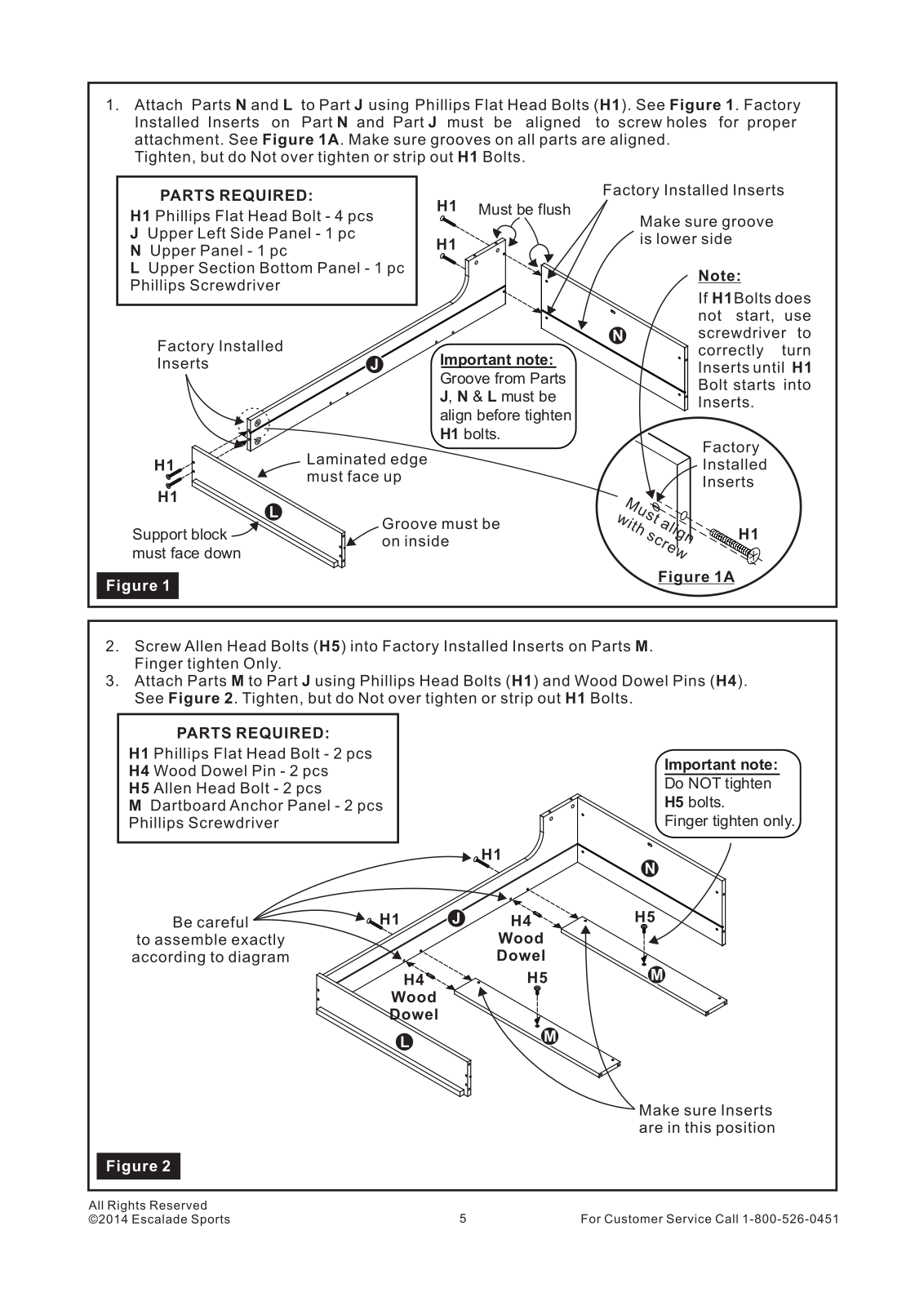

Page 5
Support block
must face down
Must be flush
Important note:
Groove from Parts
J, N & L must be
align before tighten
H1 bolts.
Important note:
Do NOT tighten
H5 bolts.
Finger tighten only.

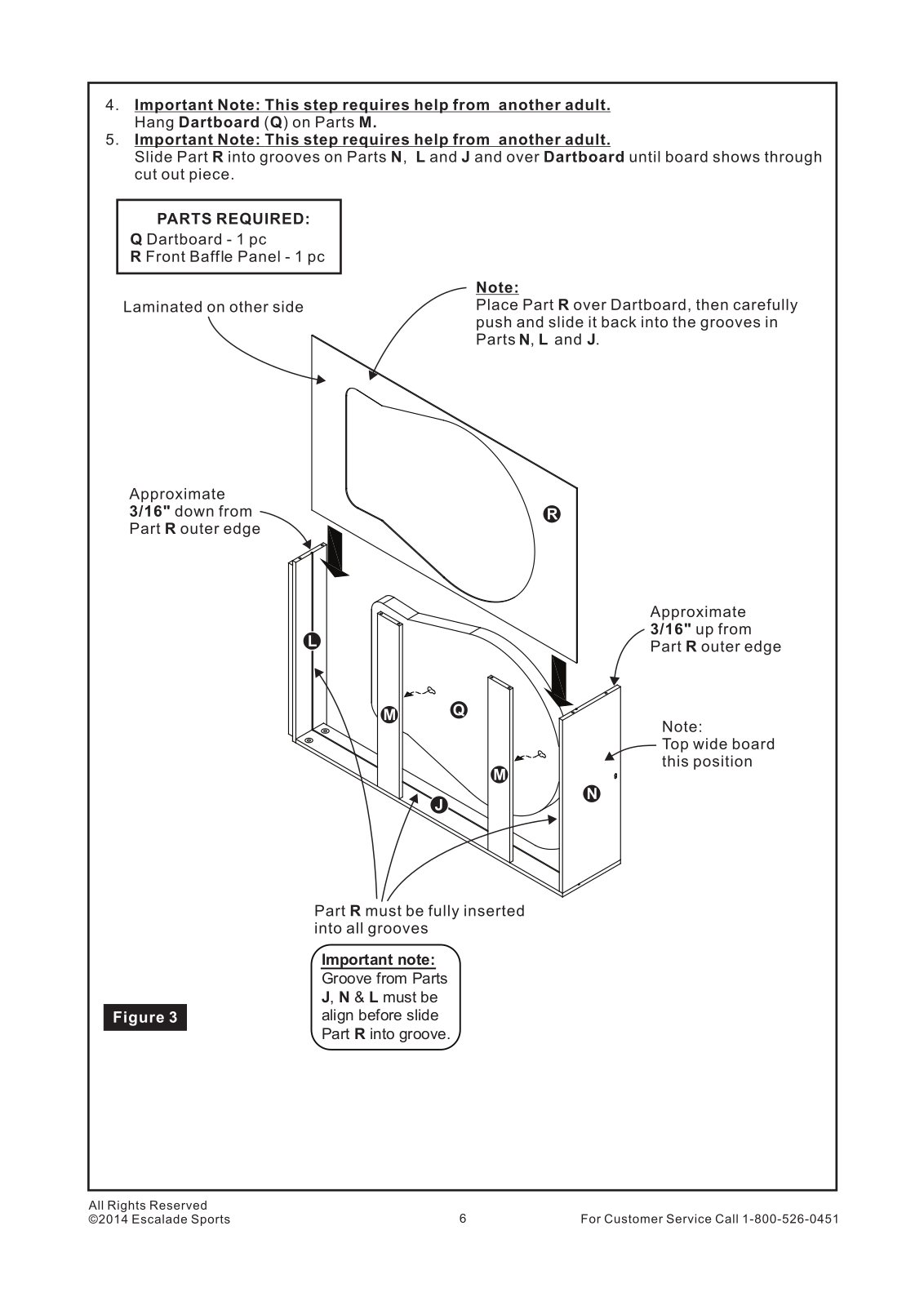

Page 6
Important note:
Groove from Parts
J, N & L must be
align before slide
Part R into groove.

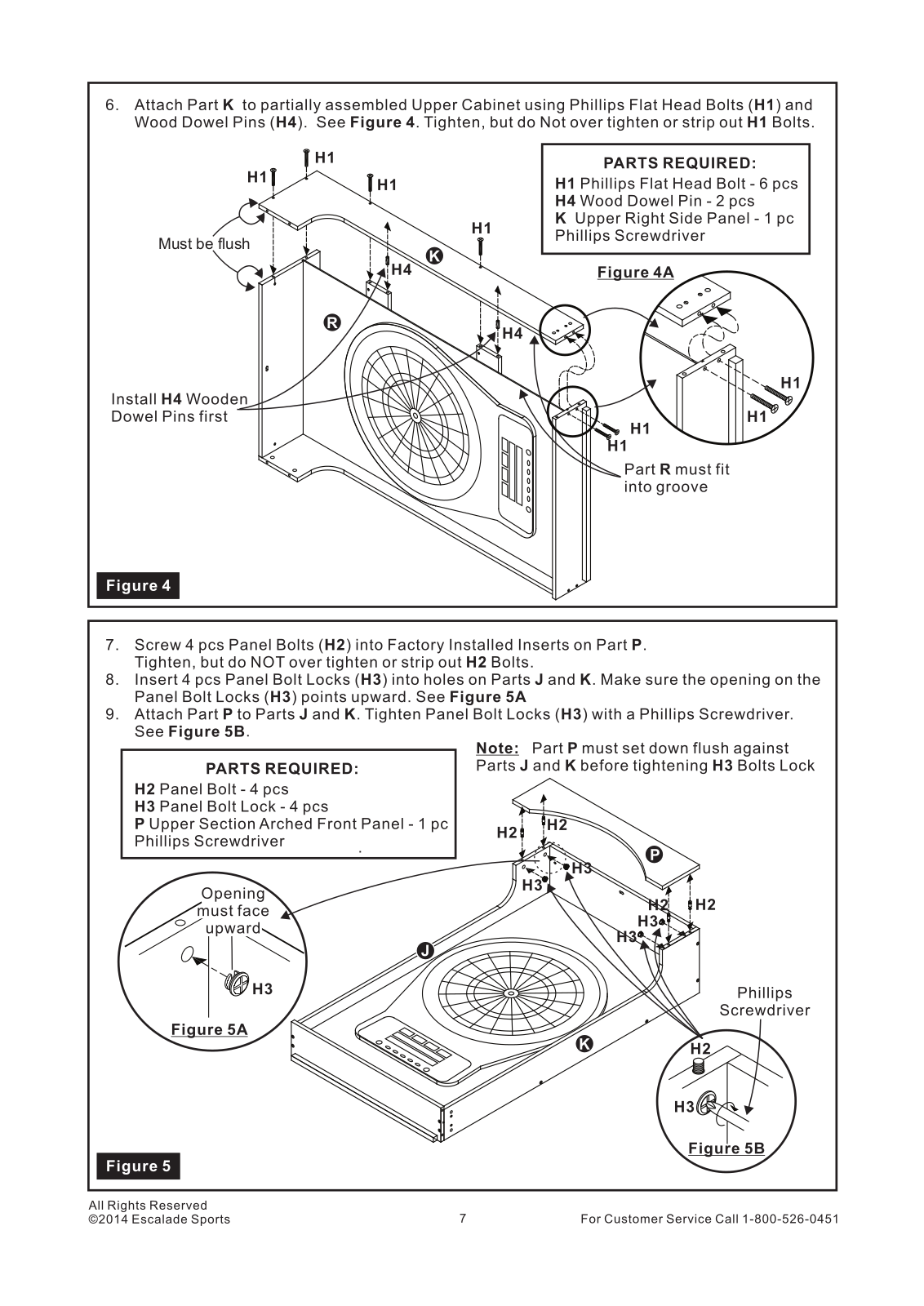

Page 7
Must be flush

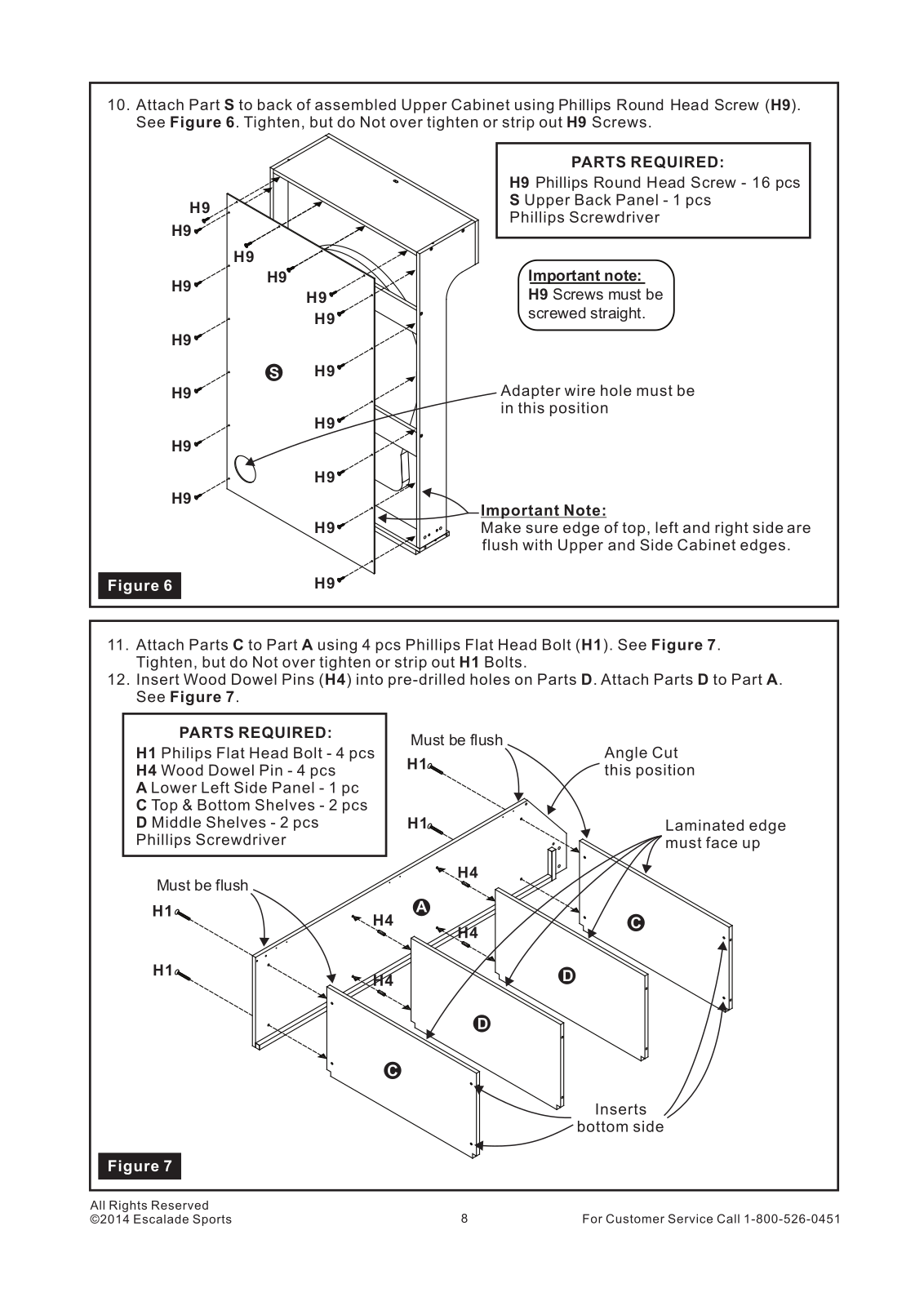

Page 8
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
Phillips Round Head Screw (H9).
H9
H9 Phillips Round Head Screw - 16 pcs
Important note:
H9 Screws must be
screwed straight.
Must be flush
H9
Must be flush

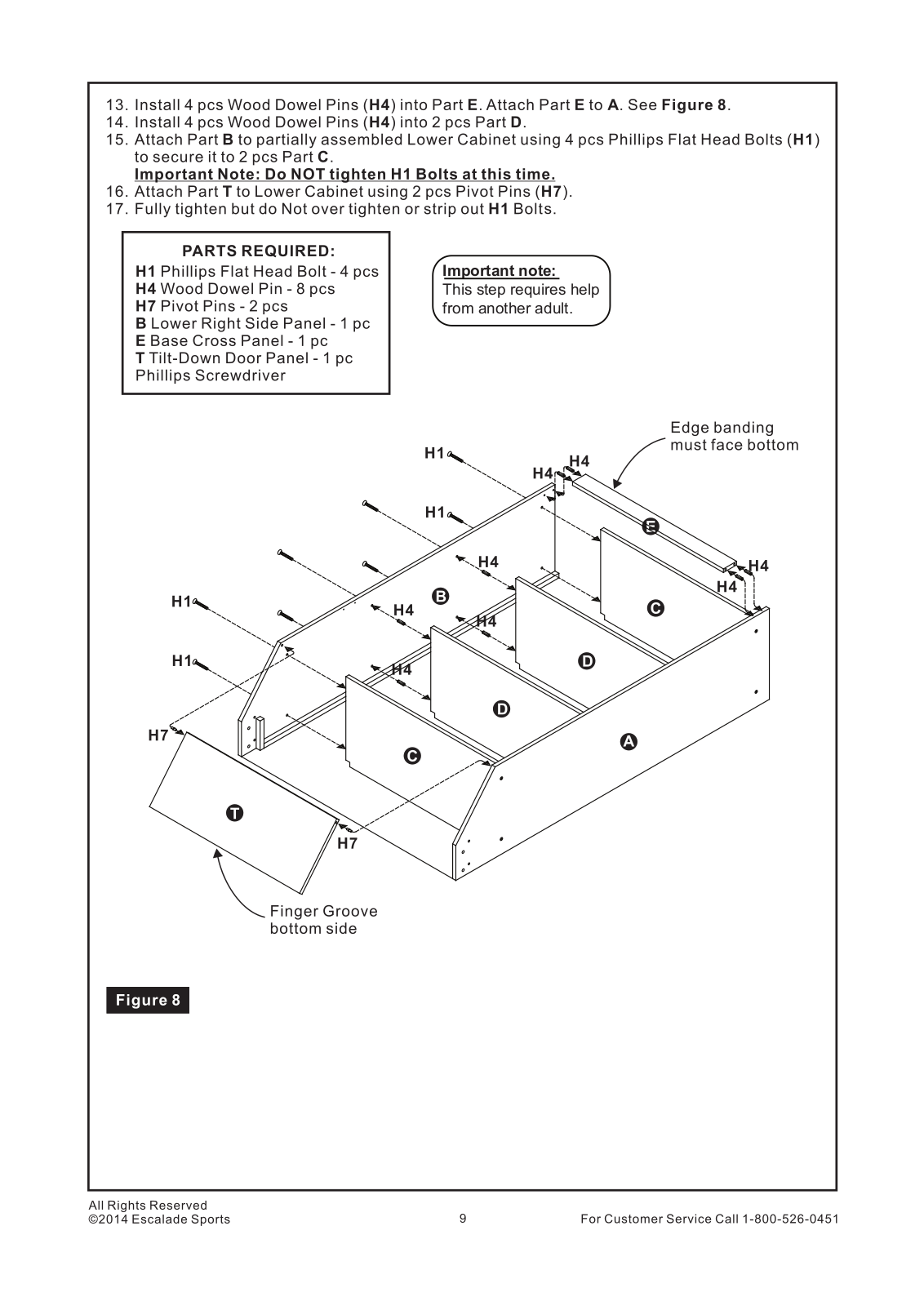

Page 9
Important note:
This step requires help
from another adult.

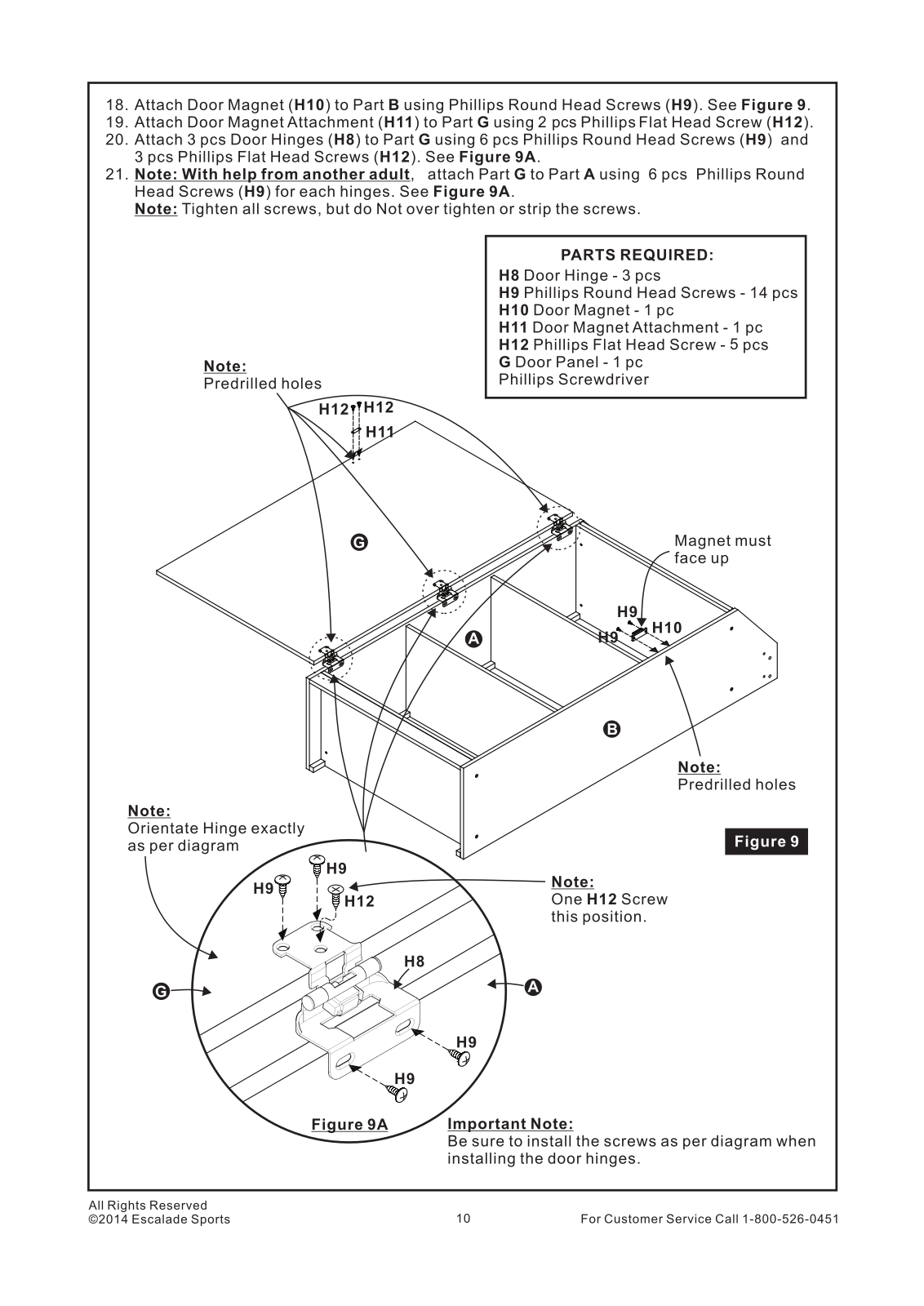

Page 10
2 pcs
5
Page 11

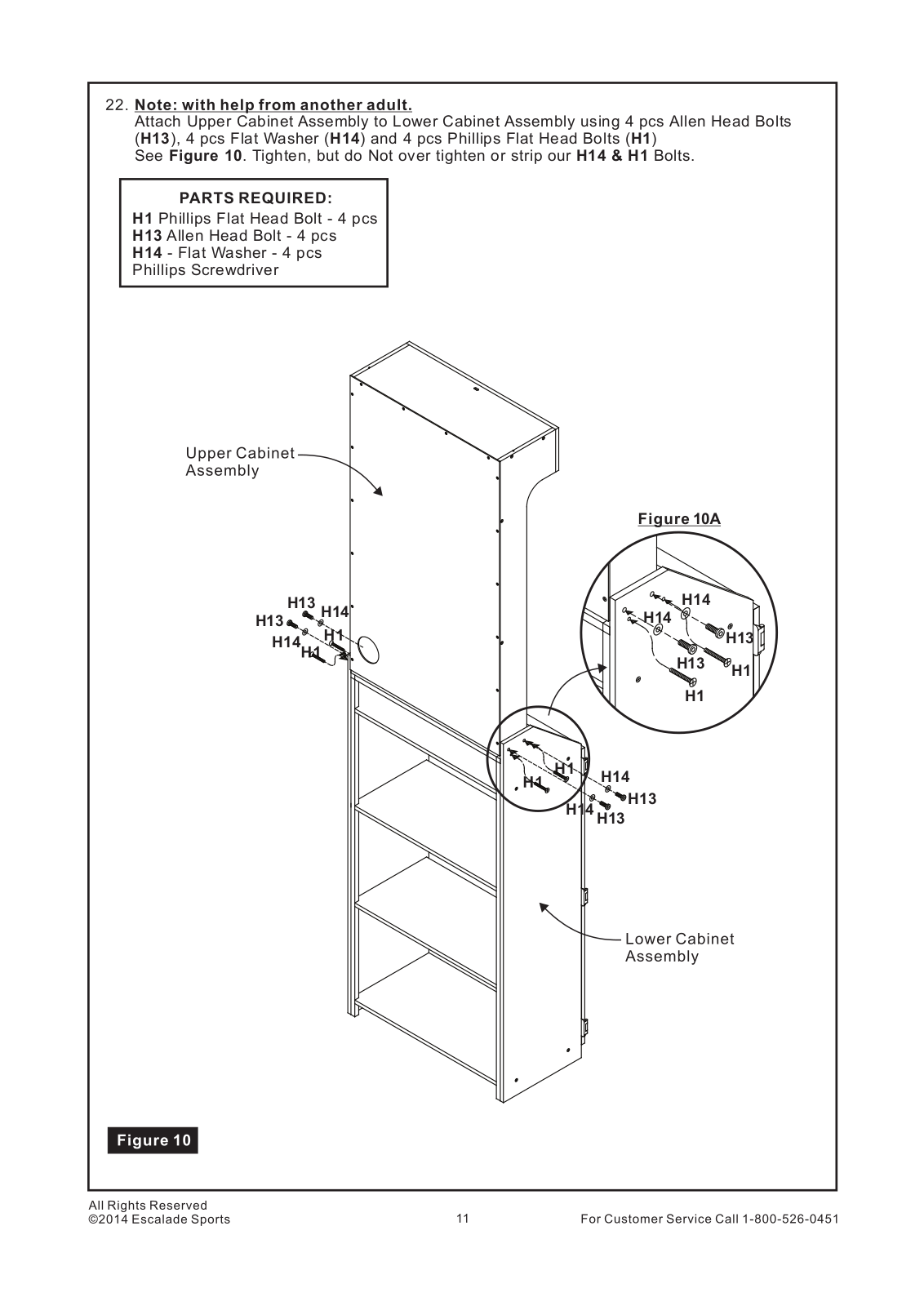

Attach Upper Cabinet Assembly to Lower Cabinet Assembly using 4 pcs Allen Head Bolts
(H13), 4 pcs Flat Washer (H14) and 4 pcs Phillips Flat Head Bolts (H1)
See Figure 10. Tighten, but do Not over tighten or strip our H14 & H1 Bolts.
H1 Phillips Flat Head Bolt - 4 pcs
H13 Allen Head Bolt - 4 pcs
H14 - Flat Washer - 4 pcs
Phillips Screwdriver
10
H13
H13
H14
H14
H14
H14
H13
H14
H13
H14
H13
H1
H13
H1
Page 12

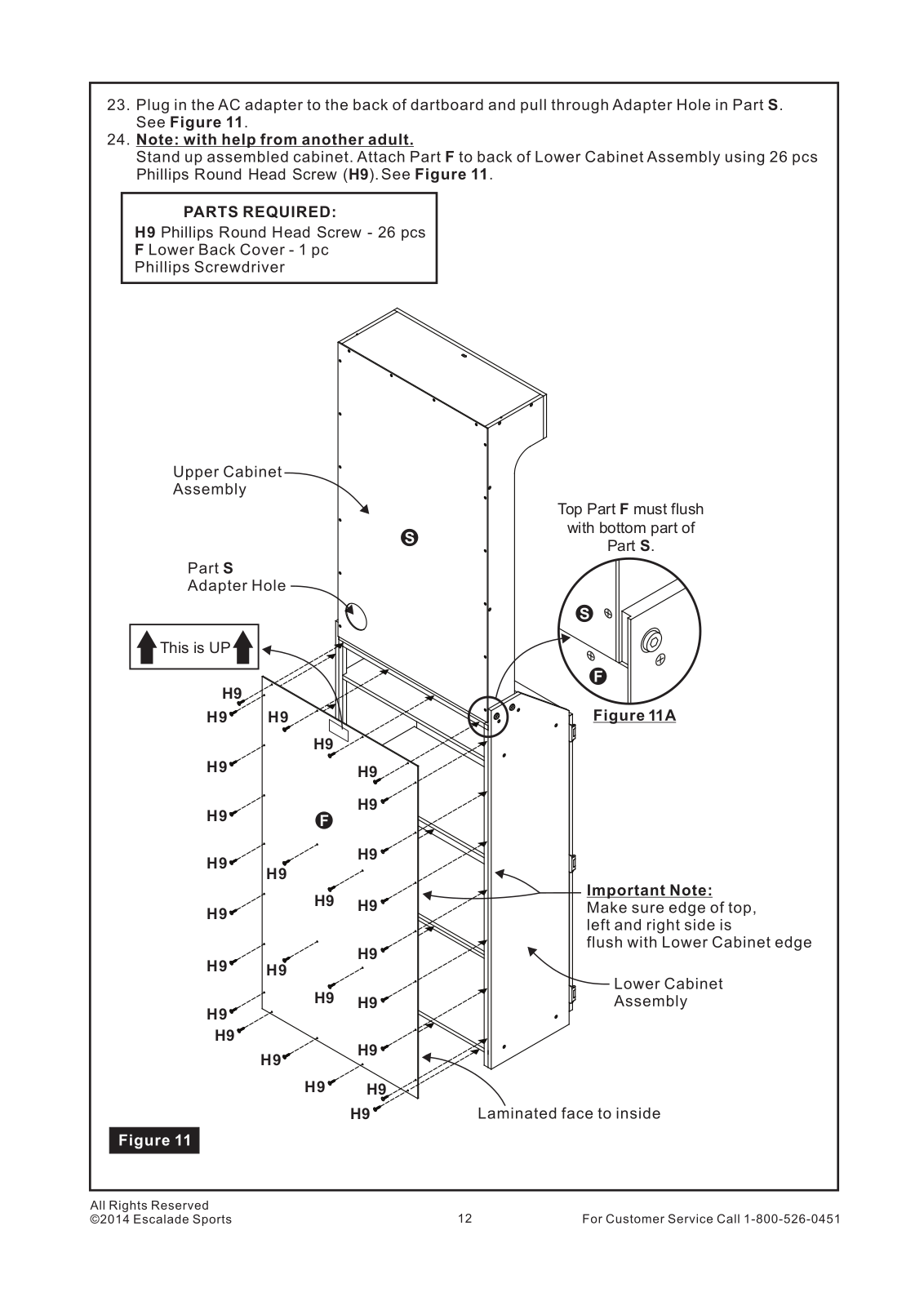

Phillips Round Head Screw (H9).
H9 Phillips Round Head Screw - 26 pcs
Top Part F must flush
with bottom part of
Part S.
This is UP
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
H9
11
H9
H9
H9
H9
H9
H9
H9
H9
H9

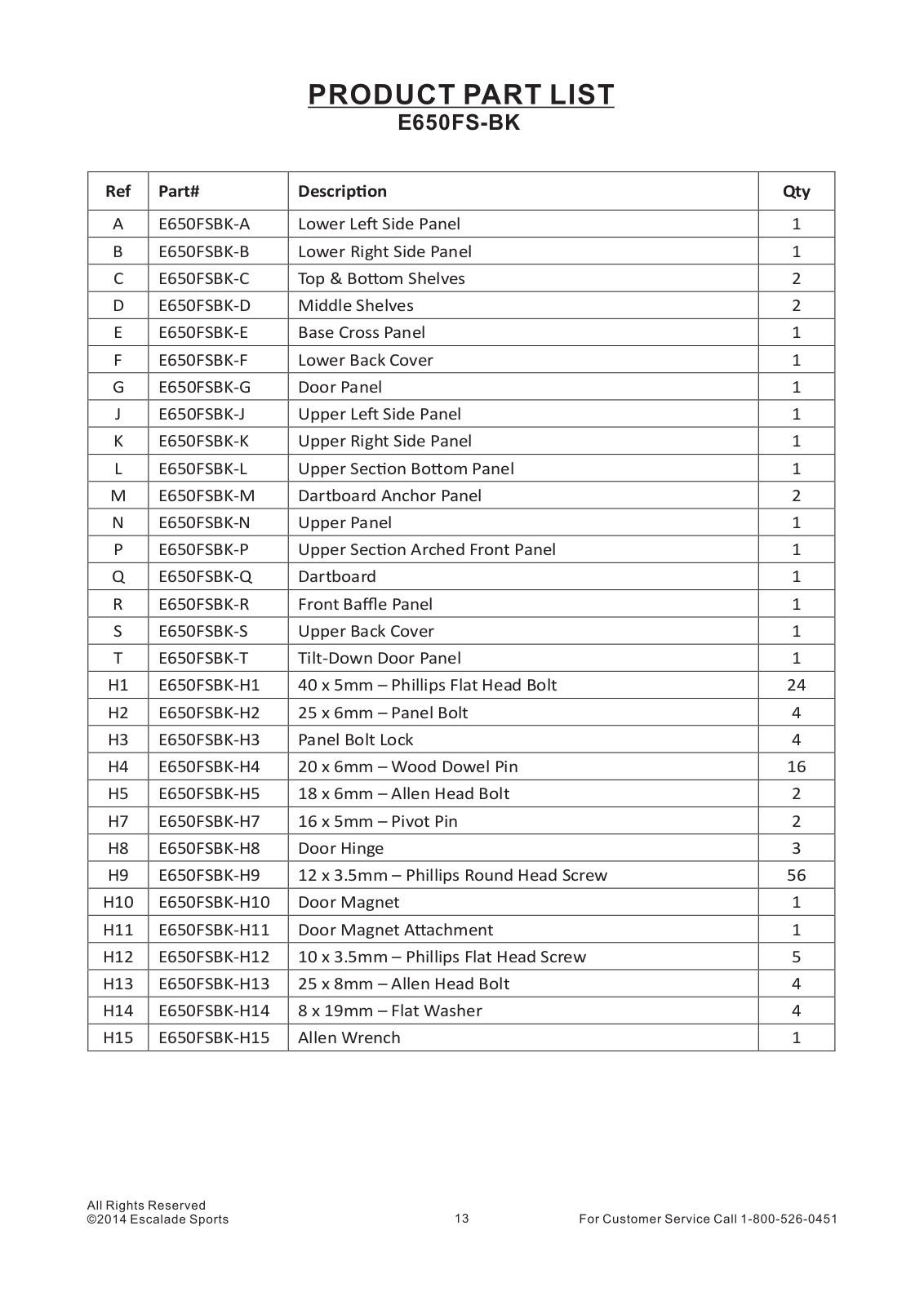

Page 13
Ref Part# DescripƟon Qty
A E650FSBK-A Lower LeŌ Side Panel 1
B E650FSBK-B Lower Right Side Panel 1
C E650FSBK-C Top & BoƩom Shelves 2
D E650FSBK-D Middle Shelves 2
E E650FSBK-E Base Cross Panel 1
F E650FSBK-F Lower Back Cover 1
G E650FSBK-G Door Panel 1
J E650FSBK-J Upper LeŌ Side Panel 1
K E650FSBK-K Upper Right Side Panel 1
L E650FSBK-L Upper SecƟon BoƩom Panel 1
M E650FSBK-M Dartboard Anchor Panel 2
N E650FSBK-N Upper Panel 1
P E650FSBK-P Upper SecƟon Arched Front Panel 1
Q E650FSBK-Q Dartboard 1
R E650FSBK-R Front BaŋĞPanel 1
S E650FSBK-S Upper Back Cover 1
T E650FSBK-T Tilt-Down Door Panel 1
H1 E650FSBK-H1 40 x 5mm – Phillips Flat Head Bolt 24
H2 E650FSBK-H2 25 x 6mm – Panel Bolt 4
H3 E650FSBK-H3 Panel Bolt Lock 4
H4
E650FSBK-H4
20 x 6mm – Wood Dowel Pin
16
H5 E650FSBK-H5 18 x 6mm – Allen Head Bolt 2
H7 E650FSBK-H7 16 x 5mm – Pivot Pin 2
H8 E650FSBK-H8 Door Hinge 3
H9 E650FSBK-H9 12 x 3.5mm – Phillips Round Head Screw 56
H10 E650FSBK-H10 Door Magnet 1
H11 E650FSBK-H11 Door Magnet AƩachment 1
H12 E650FSBK-H12 10 x 3.5mm – Phillips Flat Head Screw 5
H13 E650FSBK-H13 25 x 8mm – Allen Head Bolt 4
H14 E650FSBK-H14 8 x 19mm – Flat Washer 4
H15 E650FSBK-H15 Allen Wrench 1
E650FS-BK

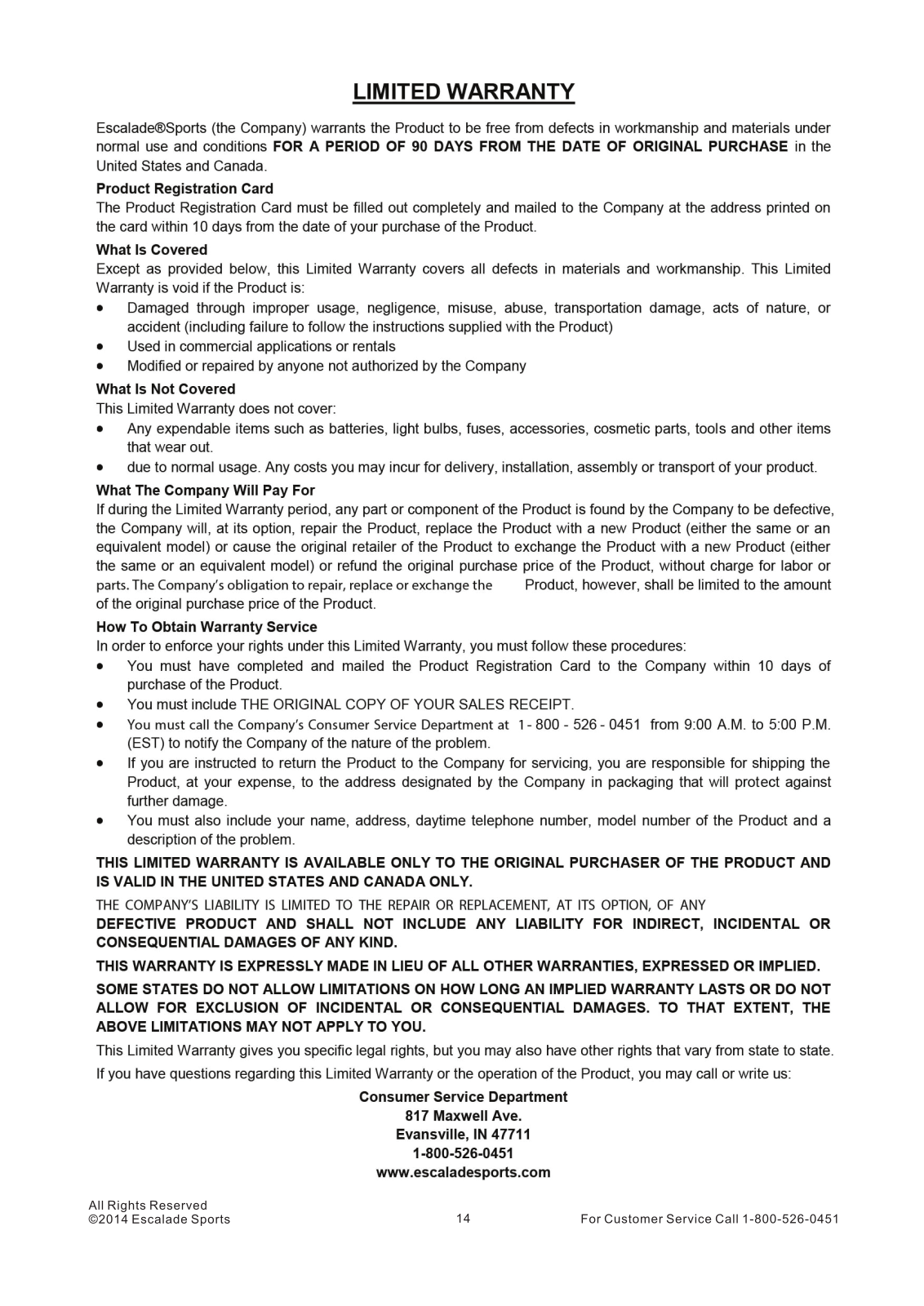

Page 14
Page 15
Page 16
