Page 1

E650ARA-2

For Customer Service Call 1-800-526-0451

Ver. 2

CPSIA#2 – E650ARA-2 – – VJ

Page 2

E650ARA-2

For Customer Service Call 1-800-526-0451

Congratulations! We hope you will have many hours of enjoyable use

Index

……………………………………………………………………

Mounting Instruction

……………………………………………………………………

General Device Operation

……………………………………………………………………

Game Table

……………………………………………………………………

Game Instructions

……………………………………………………………………

Trouble Shooting

……………………………………………………………………

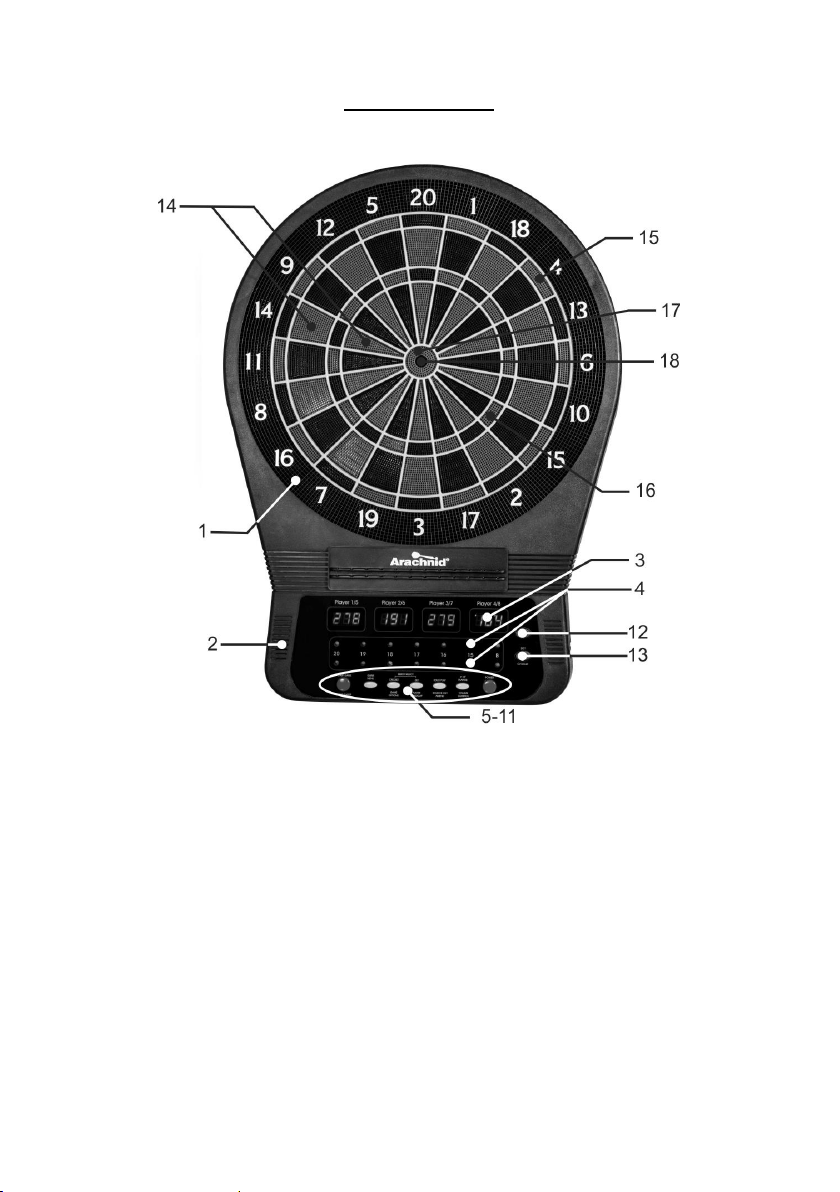

Description

……………………………………………………………………

with your new product!

INDEX

Page 3

E650ARA-2

For Customer Service Call 1-800-526-0451

WARNING!

Electronic Dart Boards are designed to be used with Soft (Plastic) Tipped Darts.

DO NOT USE STEEL TIPPED DARTS or DARTS OVER 20 GRAMS TOTAL WEIGHT

Use of Steel Tipped Darts or Darts weighting more than 20 grams will damage

the electronic board and automatically voids the warranty.

THE ORIGINATOR OF ELECTRONIC DARTS: ARACHNID, INC.

The high technology electronic dart games we play today bear little resemblance to the medieval versions that evolved from the pastime of the royal courts. Arachnid, Inc. invented the state-ofthe-dart technology that brought the popular pub game into the home, in the process earning a stellar reputation for quality and innovation, recognized today all over the world.

Your electronic soft-tip dart game is a precision engineered product manufactured with the highest quality materials, and is designed to provide years of action-packed fun to players of all skill levels and ages.

DART HISTORY

The first “dart” was most likely thrown by prehistoric man some 35,000 years ago. A sharpened antler attached to a wooden shaft allowed hunters to kill an animal from a distance, even as it ran. In one form or another, from spears, to arrows, to the present dart we use for games of skill, the art of throwing a pointed shaft with accuracy has been a part of almost every culture.

Later in history, Henry VIII of England and Charles VI of France were both avid enthusiasts of dart throwing games derived from warfare and archery contests.

The modern game evolved during the nineteenth century in English pubs. Often a barrel head was used as the target, with the centrally located cork becoming the bull’s-eye. The term “cork” is still occasionally used today when referring to the bull’s-eye.

At one time darts were considered a game of chance, and were actually illegal in England until 1908, when a Leeds innkeeper went to court to challenge the law. Fortunately he was able to demonstrate to the court’s satisfaction that darts were indeed a game of skill.

Between the two World Wars playing darts for fun and relaxation became more and more popular in England. American servicemen stationed there in World War II often brought the game home with them where it eventually became popular in the United States as well.

Page 4

E650ARA-2

For Customer Service Call 1-800-526-0451

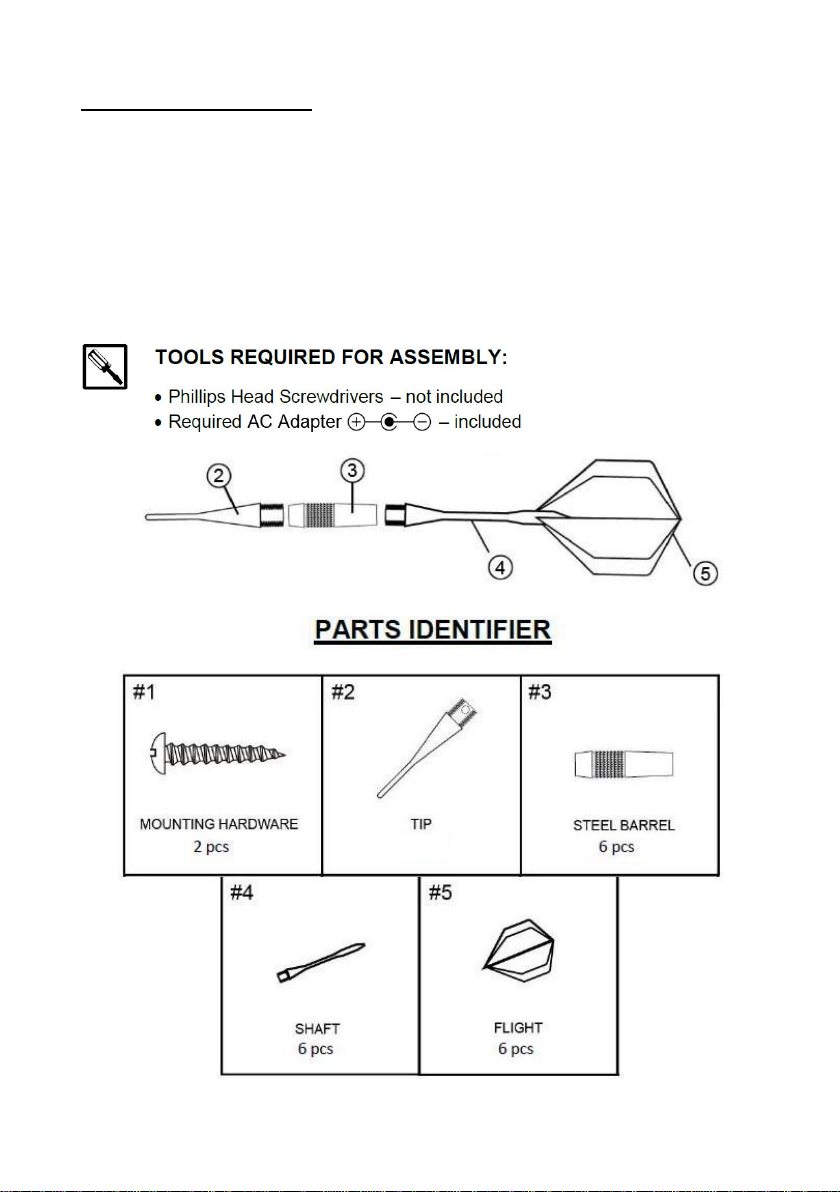

UNPACKING THE GAME

50 pcs

After unpacking the game, it is important to save the original box, all packaging, and receipts. These items will be needed if it ever proves necessary to return game to factory for service. Unpack your new dartboard carefully, making sure all parts are included. The following components are included in this set:

 1 Electronic Dartboard  6 Darts (unassembled)  Soft tip replacement pack  Owner’s Manual

Page 5

E650ARA-2

For Customer Service Call 1-800-526-0451

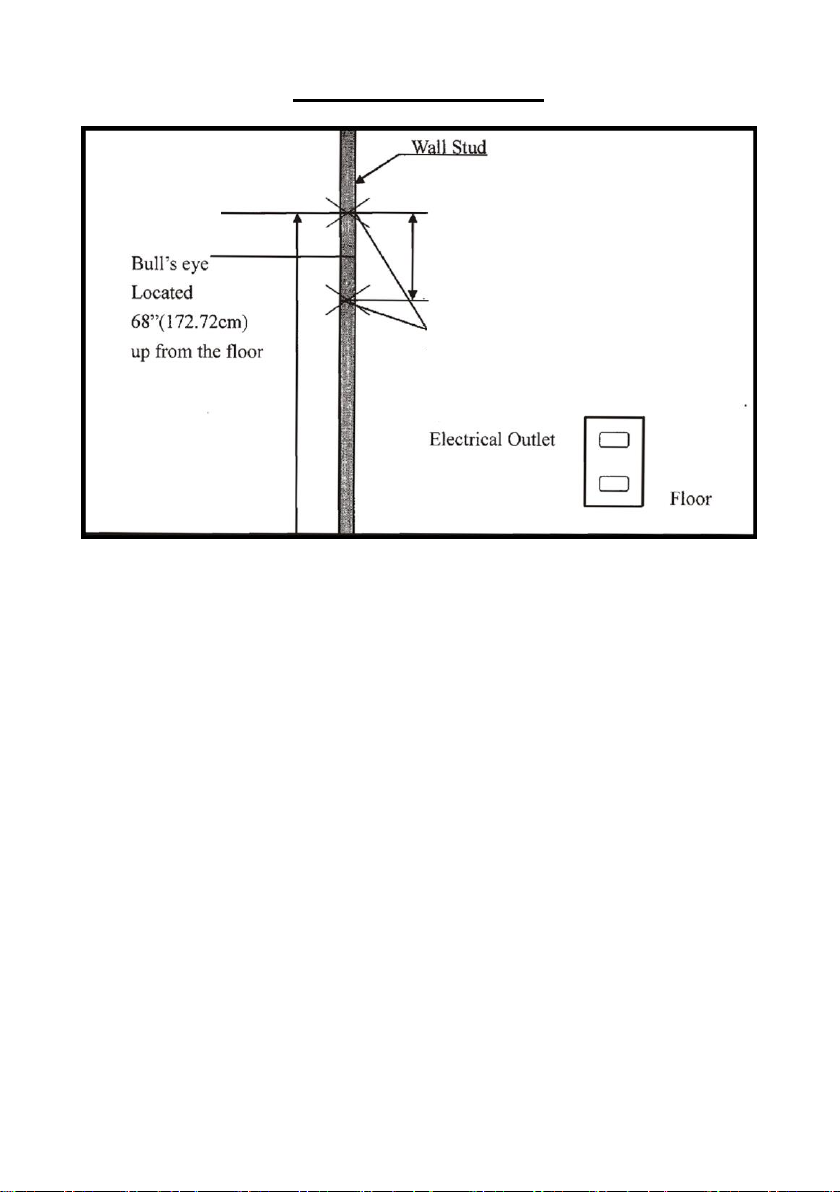

MOUNTING INSTRUCTION

1. Choose a location to hang the board that is near an electrical outlet, and that has at least 10 feet of open floor space in front of the board.

2. Locate a wall stud, and place a mark 76 3/8” (194cm) up from the floor along the stud (see illustration above). Place another mark 16” (40.64cm) below the first mark. Drill a small pilot hole into each reference mark, then screw in a # 10-16x1 3/4” long slotted truss-head mounting screw (provided) into each pilot hole until the screw head is protruding about 1/2” (12.7mm) from the wall.

3. Line up the slotted mounting holes on the back of the game with the screw heads, and then mount the game.

4. It may be necessary to adjust the screw until the board fits snugly against the wall. After the board is mounted, the bulls’-eye should be 68” (172.72cm) above the floor.

5. Place a toe line 97 1/2” (248cm) from the wall as a guide for throwing distance. In tournament play adhesive tape 2 feet long be 2 1/2 inches wide is used, but if it is not available, a strip of household masking tape will suffice.

6. The game is powered by an AC to DC adapter supplied with the game. To connect, insert

the round barrel-type power plug into the lower left side of the dart board (as you face it) and the two prong power adapter plug into an electrical outlet.

Page 6

E650ARA-2

For Customer Service Call 1-800-526-0451

GENERAL DEVICE OPERATION

1. Press POWER button to turn on the dartboard.

2. The dartboard will play a welcoming melody and show “ArAchnid” on the player score displays.

3. Press ENTER first then Press UP or DOWN button to select game. The selection is shown on the 1st/ 5th player score display. Then press ENTER button to confirm.

4. Press UP or DOWN button to select the designed options or difficulties of the game for all players. The selection is shown on the 2nd/6th player score display. Then press ENTER button to confirm. For 01 games and 01 Leagues, In/Out options will be displayed by the cricket lights as indicated on the panel.

5. Select Single or Double Bull options by pressing UP or DOWN button. There are two parts to the bulls-eye, the outer bulls-eye and the inner bulls-eye. Normally, the outer bulls-eye counts as 25 points (single) and the inner bulls-eye counts for 50 points (double). You can choose to have the outer bulls-eye for 25 points (single) or 50 points (double) for some games. The inner bulls-eye will always counts for 50 points (double). The selection will display by the cricket light as indicated on the panel. Then press ENTER button to confirm.

6. Press UP or DOWN button to select the number of players. The selection is shown on the 3rd/7th player score display. If there are more than 4 players, they have to share their score displays as indicated on the panel and for more than 2 players, cricket displays will be shared as well. Press ENTER button to start a game.

7. You can select to play against the computer. Press SOLO PLAY button during the selection of number of players to set computer player and repeatedly to select its skill level. Only one computer player can be set in a game and the last player will be computer. (Correct) For example, if you choose 4 players and computer mode, 3 human players will play against the

computer. There are five levels of computer player and a “oFF” option for your selection

flashing on the 4th/8th player score display. Then press ENTER button to start a game.

L1 : Novice L2 : Beginner L3 : Intermediate L4 : Advance L5 : Professional

8. Before starting the game, you can press HANDICAP button and jump to the handicap options. Press HANDICAP button repeatedly to switch the player and press UP or DOWN button at the same time to select the handicap points. Press ENTER button to confirm all selections and start a game.

9. For easier access to popular 501 game and CRICKET games, press 501/CRICKET button to jump to the corresponding game with preset options. Press the button once will lead to 501 (G02 501 with option L03 and 25/50 Bull), and twice will lead to Cricket (G15 CRICKET with options C00).

Note: The setting will be defaulted at 2 players mode and you can add more players by pressing PLAYER button.

Page 7

E650ARA-2

For Customer Service Call 1-800-526-0451

10. Press NEXT PLAYER button when you have already thrown three darts or your turn is over

and change to next player’s turn. All segments would not be triggered within 10 seconds

until the NEXT PLAYER button is pressed. The dartboard will also change to the next player automatically after 10 seconds.

11. Press MISS button to score 0 and record one dart when a dart hits on the WEB dart catcher or misses the board altogether.

12. During the game, if a dart thrown on the board scores but does not stick to the board, press BOUNCE OUT button to eliminate the score gained by this dart.

13. The dartboard will announce “WINNER” once a player wins the game. The remaining players can continue to play to determine the ranking.

14. Press ENTER button to play again the game with the same options after the game ended.

15. Press VOLUME button continuously to select the volume of sound or mute. There are 4 choice for your selection:

Hi (High) Nor (Medium) Lo (Low) Off (Off)

16. Press and hold RESET button for approximately 2 seconds to quit the game and go back to the game selection.

17. If the device has not been played for approximately 5 minutes, it will change to sleep mode and keep all the records of current games and scores for another 30 minutes. Players can return to the game with the stored scores from the sleep mode simply by pressing any key.

18. Press and hold POWER button for approximately 2 seconds to turn off device.

Page 8

E650ARA-2

For Customer Service Call 1-800-526-0451

GAME TABLE

No.

Game

Difficulty / Options

No. of Players

G01

301

6 / 12

1 – 8

G02

501

6 / 12

1 – 8

G03

601

6 / 12

1 – 8

G04

701

6 / 12

1 – 8

G05

801

6 / 12

1 – 8

G06

901

6 / 12

1 – 8

G07

301 League

6 / 12

G08

501 League

6 / 12

G09

601 League

6 / 12

G10

701 League

6 / 12

G11

801 League

6 / 12

G12

901 League

6 / 12

G13

GOTCHA!

2 / 4

2 – 8

G14

Quick Cricket

2 – 8

G15

Cricket 3 2 – 8

G16

Shanghai

2 – 8

G17

Cut Throat Cricket

2 – 8

G18

Scram Cricket

G19

Double Only Cricket

2 – 8

G20

All Fives

5 / 10

1 – 8

G21

Double Down

1 – 8

G22

Forty One 1 1 – 8

G23

High Score

10 / 20

1 – 8

G24

Ace 6 1 – 8

G25

Killer

2 – 8

G26

Count-Up

9 / 18

1 – 8

G27

Round The Clock

1 – 8

G28

Shoot Out

1 – 8

G29

Bermuda Triangle

1 – 8

G30

Overs

3 / 6

2 – 8

G31

Unders

3 / 6

2 – 8

G32

Big-6 5 2 – 8

G33

Bingo 4 1 – 8

Page 9

E650ARA-2

For Customer Service Call 1-800-526-0451

GAME INSTRUCTIONS

G01 301 – G06 901 (Game options of L01, L02, L03, L04, L05, L06, 25/50 & 50/50 Bull)

Before starting the game you must select the number of players and your desired option. The starting score for each player is 301/501/601/701/801/901. The score will be deducted for each dart that scores. The first player who reaches exactly zero wins.

For Single In or Single Out options, the game can be started or ended by throwing at any segment, regardless if single, double or triple. If you select Double In, you must hit a double segment to start the game. If you select Double Out you must hit a double segment, which brings your score to zero, to end the game.

L01: Single In/Single Out (No LED will be on during the game) L02: Double In/Single Out (Double In LED will be on during the game) L03: Single In/Double Out (Double Out LED will be on during the game) L04: Double In/Double Out (Both Double In and Double Out LED will be on during the game) L05: Single In/Master Out (Master Out LED will be on during the game) L06: Double In/Master Out (Both Double In and Master Out LED will be on during the game)

To make games more enjoyable, the game will also display the ppd (point per dart) of each player after the ranking by pressing the NEXT PLAYER button.

G07 301 LEAGUE – G12 901 LEAGUE (Game options L01, L02, L03, L04, L05, L06, 25/50 & 50/50 Bull)

Before starting the game you must select your desired option. This game is played by 2 teams who compete with each other. Each team has 2 members. Team 1 is made up of Player 1 and Player 3. Team 2 is made up of Player 2 and Player 4. Similar to the 301-901 games, the team will win when one player's score reaches exactly zero, but his/her teammate's score must be lower than or equal to the sum of the score of the opposing team. Otherwise the score of the current player returns to the beginning of the turn. That team cannot win at that time.

Once a player's score is below 181 for Single or Expert Out option, or below 171 for Double Out option, if his/her teammate's score is lower than or equal to the sum of the score of the opposing

team, the dartboard will announce “Go For Out”. It will confirm he/she has a chance to win in this

round. Otherwise the dartboard will announce “Freeze”, even if his/her score comes to exactly zero in this round, that team cannot win at that time.

G13 GOTCHA! (Game options of L01, L02, 25/50 & 50/50 Bull)

Each player begin with 0 point and must reach 301 exactly to win. Players can “Bomb” other

players which reduce their score to zero. This happen when the shooting player equals another

player’s score with any dart thrown. Therefore it is possible to bomb 3 players in 1 turn. Example:

Player 1‟s score is 20 Player 2‟s score is 50 Player 3‟s score is 30 Player 4‟s score is up. The first dart thrown hits the 20 – Player 1 gets bombed and goes to

zero. The second dart hits the 10 (score now 30) – Player 3 gets bombed and goes to zero. The third dart hits a 20 (total score is 50) – Player 2 gets bombed and goes to zero.

Page 10

E650ARA-2

For Customer Service Call 1-800-526-0451

If a player exceeds 301 points that player will bust and the following occurs:

Option

Description

000

Hit and 'open' numbers 15-20 and bull's eye in any order.

020

Hit and 'open' the number 20 first, then in order 'open' numbers 19, 18, 17, 16, 15 and bull's eye

025

Hit and 'open' bull's eye first, then in order 'open' numbers 15, 16, 17, 18, 19 and 20.

Option

Description

C00

Hit and 'open' numbers 15-20 and bull's eye in any order.

C20

Hit and 'open' the number 20 first, then in order 'open' numbers 19, 18, 17, 16, 15 and bull's eye

C25

Hit and 'open' bull's eye first, then in order 'open' numbers 15, 16, 17, 18, 19 and 20.

L01 : The player’s score reverts to what it was before and darts were thrown in that round L02 : That score will be deducted from current score.

G14 QUICK CRICKET (Game options of 000, 020, 025)

Before starting the game you must select the number of players and your desired option. The options are described in the table below.

In this game only the numbers 15-20 and bulls-eye are used. The first player to hit each number 3 times and 'open' (number closed and opens for scoring) them all is the winner. All valid hits will be confirmed and displayed by the cricket display.

NOTE: 1. To 'open' a number means the number closed and opens for scoring.

2. A single segment counts as one hit, a double segment counts as two hits and a triple segment counts as three hits.

G15 CRICKET (Game options of C00, C20, C25)

Before starting the game you must select the number of players and your desired option. The options are described in the table below.

Same as the Quick Cricket game, EXCEPT more complicated scoring and winning procedures as follows:  When a number has been hit 3 times by a player, it is then 'open' to that player and any

further hits by that player will score points.

 Once a number has been hit 3 times by all the players, that number is then 'close' and can

no longer be scored upon by any player. At that time, the signal of cricket display will change to 'close' for that number.

 A player who has 'opened' a number can continue to score on that number until it

becomes 'close'.

Page 11

E650ARA-2

For Customer Service Call 1-800-526-0451

 A player wins the game when he first 'opens' all the numbers and has an equal or greater

Option

L01

L05

L10

L15

H01

H05

H10

H15

P01

P05

P10

P15

Game starts on number

1 5 10

15 1 5

15 Can hit any segment

Must hit double or triple segments

Various doubles and triples must be hit as specified by the computer

Option

Description

00C

Hit and 'open' numbers 15-20 and bull's eye in any order.

20C

Hit and 'open' the number 20 first, then in order 'open' numbers 19,18,17,16,15 and bull's eye

25C

Hit and 'open' bull's eye first, then in order 'open' numbers 15,16,17,18,19 and 20

score than the other players. However, if players are tied on points or have no points, the first player to 'open' all numbers wins.

If a player has 'opened' all numbers first, but is behind on points, scoring continues on 'open' numbers. If that player has not accumulated the highest point total by the time another player 'closes', the player with the most points will be the winner.

G16 SHANGHAI (Game options of L01, L05, L10, L15, H01, H05, H10, H15, P01, P05, P10, P15)

Before starting the game you must select the number of players and your desired option. The options are described in the table below.

Each player must follow the order of numbers 1 through 20 and the bull's eye. Throw 3 darts for each number and the player who gets the most points at the end of the game wins. Your score is the number of the segment you are on. Hitting a double segment in the number you are on will double your points, likewise triple will triple your points.

G17 CUT THROAT CRICKET (Game options of 00C, 20C, 25C)

Before starting the game you must select the number of players and your desired options. The options are described in the table below.

Same rules as the Cricket game EXCEPT the points are added to your opponents who have not 'opened' the number. The player who first 'opens' all numbers with the lower score wins.

G18 SCRAM CRICKET

This game is a variation of Cricket game. The game consists of 2 rounds. In the first round, player 1 must close 15 through 20 and bull's eye while player 2 attempts to get as high a score as he can by scoring the 'open' numbers. Round 1 will be finished when all numbers have been 'closed'. For round 2, the reverse is done. The player with the highest score after both rounds is the winner.

Page 12

E650ARA-2

For Customer Service Call 1-800-526-0451

G19 DOUBLE ONLY CRICKET (Game options of C00, C20, C25)

Options

Description

C00

Hit and open numbers 15-20 and bullseye in any order.

C20

Hit and open the number 20 first, then in order, open numbers 19, 18, 17, 16, 15 and bullseye.

C25

Hit and open bullseye first, then in order, open numbers 15, 16, 17, 18, 19 and 20.

Option

551

561

571

581

591

Total Points

Round

1 2 3 4 5 6 7 8 9

Target Number

Double

Triple

Bull's Eye

The options are described in the chart below.

This game is the same as Cricket EXCEPT that you have to hit a double segment for each number first, in order for hits or scoring to be possible. For example, to start with the number 20, you must hit the double 20 segment. Any hits before you do this will count as a miss. Once you’ve hit your double 20 you have three possibilities for that number:

• If you hit a single 20 it will open the 20 for scoring.

• If you hit a double 20 it will open the 20 for scoring and score you 20 points.

• If you hit a triple 20 it will open the 20 for scoring and score you 40 points.

Once all players have opened a number that number will close and no one can score on it anymore.

G20 ALL FIVES (Game options of 551, 561, 571, 581, 591, 25/50 & 50/50 Bull)

Before starting the game you must select the number of players and your desired option. The options are the total points you need to win, see the chart below.

During each round the player's total scores must be divisible by 5. Every divisible 5 counts as one point. For instance, 2, 8, 5 totals 15. A player will get 3 points as 15 divided by 5 equals 3. There will be no points if the total scores of 3 darts are not divisible by 5 or if any darts miss, even though the sum of the other darts scores are divisible by 5. The display will show the best segment to hit and score points. The first player who scores or gets over 51, 61, 71, 81, or 91 will be the winner.

G21 DOUBLE DOWN

This game starts with a base score of 60 points for each player. There are 9 rounds for each player. Each round has a number or segment that you must hit in order to score. The dartboard will display what number you must hit for that round. The designated numbers for each round are:

Each dart that hits the correct number will score points based on the number and the segment. For example, if you hit number 15 single segment you will get 15 points. If you hit the number 15 double segment you would get 30 points. If you hit the number 15 triple segment you would get 45 points. If the player does not hit the designated number during his/her round, his/her score is cut in half and he/she moves on to the next round on his/her next turn. For the Double and Triple, the player must hit any double and triple segment. The player with the highest score after the last round is the winner.

Page 13

E650ARA-2

For Customer Service Call 1-800-526-0451

G22 FORTY-ONE

Round

1 2 3 4 5 6 7 8 9

Target Number

Any Double

Any Triple

'41' Points

Bull's Eye

Option

H03

H04

H05

H06

H07

H08

H09

H10

H11

H12

No. of Rounds

3 4 5 6 7 8 9

12 Option Code

A01

A02

A03

A04

A05

A06

No. of Round

5 6 7 8 9

This game is the same as the Double Down game EXCEPT the sequence for the rounds is reversed from number 20 to the bull's eye. The dartboard will display what number you must hit for that round. The designated numbers for each round are:

The additional round of 41 points is included before the bull's eye, and a player must hit total 41 points within one round. The player with the highest score after the last round is the winner.

G23 HIGH SCORE (Game options of H03, H04, H05, H06, H07, H08, H09, H10, H11, H12, 25/50 & 50/50 Bull)

Before starting the game you must select the number of players and your desired option. The options are the number of rounds, see the chart below.

A player must rack up the most points in 3, 4, 5...or 12 rounds (each round is 3 darts) to win. Doubles and triples count as 2 times and 3 times that number's score respectively. The player with the highest score at the end of all the rounds wins.

G24 ACE (Game Options of A01, A02, A03, A04, A05, A06)

Ace is a practice game to increase accuracy. A random number will appear for each player for each turn. A player must hit the number shown to score points. Point values are as follows: Single segment = 1 point; double = 2 points; triple = 3 points, single bulls-eye = 4 points; double bulls-eye = 6 points. No score will be gained if the desired number is missed. The player with the highest score wins.

G25 KILLER (Game options of 003, 005, 007, 009, 011, 013, 015, 017, 019, 021, 203, 205, 207, 209, 211, 213, 215, 217, 219, 221, 303, 305, 307, 309, 311, 313, 315, 317, 319, 321)

To start, each player must select his/her number by throwing a dart at the target area. The display

will indicate “SEL” at this point. The number, each player gets, is his/her assigned number

throughout the game. No two players can have the same number. Once each player has a number, the action starts.

Each player tries to hit his/her own number to attain the qualification for a “killer”. When becoming a killer, the objective of the player is to “kill” his/her opponents by hitting their segment number

until all their “lives” are lost. If a killer hits his/her own segment number, the killer will lose the

qualification for “killer” and also lose one “life”. He/She should hit his/her own segment number

again for “killer” qualification. The last player to remain alive is declared the winner. For more

difficult play, hit the double (or triple) for his/her own scoring number to attain the qualification for a “killer”.

Page 14

E650ARA-2

For Customer Service Call 1-800-526-0451

Option

Lives

Shoot area ( Killer )

003 3 Single , Double, Triple

005 5 Single , Double, Triple

……

Single , Double, Triple

021

Single , Double, Triple

203 3 Double

205 5 Double

……

Double

221

Double

303 3 Triple

305 5 Triple

……

Triple

321

Triple

G26 COUNT UP (Game options of 100, 200, 300, 400, 500, 600, 700, 800,

Option

100

200

300

400

500

600

700

800

900

Set Points

100

200

300

400

500

600

700

800

900

Option

105

110

115

120

205

210

215

220

305

310

315

320

Last Segment Thrown

20 5 10

Can hit any segments

Must hit double segments

Must hit triple segments

Option

-11

-12

-13

-14

-15

-16

-17

-18

-19

-20

No. of Marks

900, 25/50 & 50/50 Bull)

Before starting the game you must select the number of players and your desired option. The option is the set points which are the points needed to win, see the chart below.

Your score will be accumulated for each dart. The first player to reach or go over the set points will be the winner.

G27 ROUND THE CLOCK (Game options of 105, 110, 115, 120, 205, 210, 215, 220, 305, 310, 315, 320)

Before starting the game you must select the number of players and your desired option. The options are described in the table below.

Players must hit in strict order of 1, 2, 3...until 5, 10, 15, or 20, single, double or triple, depending on the option selected. The first player to reach the final number in the sequence will be the winner. Should a wrong number or segment be hit during the round, the player has to continue with the same target for the next darts. The player score display will show the number or segment the player must hit.

G28 SHOOT OUT (Game options of -11, -12, -13, -14, -15, -16, -17, -18, -19,

-20)

Before starting the game you must select the number of players and your desired option. The options are the number of marks you must hit, see the chart below.

Page 15

E650ARA-2

For Customer Service Call 1-800-526-0451

The dartboard will randomly display a number for the player to hit. The starting marks for each

Option

O-7

O-8

O-9

No. of Lives

7 8 9

Option

U-7

U-8

U-9

No. of Lives

7 8 9

player are 11, 12, 13...20 marks depending on the option selected. One mark will be deducted for each correct hit. The first player who reaches zero wins. If a player does not hit the dartboard within 10 seconds, the dart is regarded as a miss and the dartboard will automatically change to another random number for the player to hit for the next dart.

G29 BERMUDA TRIANGLE

Each round calls out a designated number or area to hit. They are:

Round 1 – 12 Round 6 – 16 Round 10 – 19 Round 2 – 13 Round 7 – 17 Round 11 – 20 Round 3 – 14 Round 8 – Triple (any) Round 12 – Bullseye Round 4 – Double (any) Round 9 – 18 Round 13–Double Bullseye Round 5 – 15

Points are accumulated by any segment of the designated number for each round. For example: In the first round, a player must hit 12. Single 12 = 12 points, Double 12 = 24 points, and Triple 12 = 36 points. In round 4 player can choose any double (all three darts can hit a different double and score), and in round 8, player can choose any triple. If player misses the designated number

or area with all three darts in any round, the player’s total score is cut in half. The winner is the

player with highest score.

G30 OVERS (Game options of O-7, O-8, O-9, 25/50 & 50/50 Bull )

Before starting the game you must select the number of players and your desired option. The options are the number of lives, see the chart below.

Each player takes turn throwing 3 darts, the highest score will become the “leader's score”.

Players are required to hit equal or over the “leader's score” to save their life. If a player's score is over the “leader's score”, a life is safe and the “leader's score” will be updated as the new

target for all the players. The leader has an opportunity to choose whether he/she want to

challenge the “leader's score” or not. If he/she fail to challenge the “leader's score”, a life is lost.

The leader can directly press the NEXT PLAYER button to pass his/her turn. If a player loses all his/her lives he/she is out of the game. The remaining players continue the game until one player is left with lives. That player is the winner.

G31 UNDERS (Game options of U-7, U-8, U-9, 25/50 & 50/50 Bull)

Before starting the game you must select the number of players and your desired option. The options are the number of lives, see the chart below.

The rules follow exactly as the Overs game EXCEPT the “leader's score” is the lowest score for each turn. A missed dart should be counted as 60 by pressing the Miss button.

Page 16

E650ARA-2

For Customer Service Call 1-800-526-0451

G32 BIG-6 (Game options of L03, L04, L05, L06, L07)

Option

L03

L04

L05

L06

L07

No. of Lives

3 4 5 6 7

Before starting the game you must select the number of players and your desired option. The options are the number of lives, see the chart below.

This game allows a player to challenge opponents to hit the targets of the players choice. However, players must earn the chance of picking the next target for their opponent by making a hit on the current target first. The game begins with the single 6 segment as the target. The player that hits this segment first saves a life and can then hit any segment he/she wants. That segment then becomes the target.

In any turn if the player does not hit the target he/she loses one life. If a player hits the target with the first or second dart, the next dart then determines the next target and his/her turn is over. If a player hits the target with the third dart, his/her turn is over and the target stays the same, he/she will not lose a life. If a player loses all his/her lives, he/she is out of the game. The remaining players continue the game until one player is left with lives. That player is the winner.

G33 BINGO (Game option of 132, 141, 168, 189)

The board will display the target number automatically. The player who first finishes hitting the particular sequence wins the game.

132- Hit the number with the sequence of 15, 4, 8, 14, 3. 141- Hit the number with the sequence of 17, 13, 9, 7, 1. 168- Hit the number with the sequence of 20, 16, 12, 6, 2. 189- Hit the number with the sequence of 19, 10, 18, 5, 11.

The player should hit a number three times to enter into the next number. Hitting the single segment counts as one time; the double segment counts as two times; the triple segment counts as three times.

Page 17

E650ARA-2

For Customer Service Call 1-800-526-0451

TROUBLE SHOOTING

We are proud of being the originator of the electronic dart board, so we build our boards to be rugged and durable. However, with the delicate electronics in our device, and with the high usage the device may receive, there is a chance that a problem may eventually occur.

No Power

POOR OUTLET CONNECTION. Check the power cord to make sure that it is properly plugged in. Check the circuit breaker (or fuse) in the home to verify that there is power to the electrical outlet.

Devices will not score or no sound

Check to see if a segment is stuck. Also be sure that all buttons are not stuck.

Stuck Segment

If a segment is stuck, player 2 window will display exactly which segment is stuck and player 3 window will display “Err”.

03 : single segment #3 =03 : double 3 segment ≡03 : triple 3 segment

This is usually caused by a broken tip. A long tip that sticks out from the segment surface may be pulled out with pliers. A short tip that is broken off flush with the segment surface can be pushed through the hole into the device without damaging the electronics in the dart-head. Push the tip with an object that is smaller in diameter than the tip.

Electrical storms, power line surges, rolling brown outs, broadcast radio/TV transmitters:

Notice

Under extreme electrical interference conditions of these types, the dart game can show erratic behavior and fail to continue to perform. To restore device to normal operation, disconnect all power sources from the device unit. Unplug adapter and wait for 3 seconds. Reconnect power sources.

Cleaning the Device

The Arachnid, Inc. dart board will provide many hours of fun if cared for properly. Do not use spray cleaners, or cleaners that contain ammonia, acetone, or other harsh chemicals as they may cause damage. Instead, we suggest regular dusting with a damp cloth. Use a mild detergent and damp cloth for more vigorous cleansing. It is a good idea to first test cleaning solutions on an inconspicuous area of the game. Note: Spilling liquids onto the game, exposure to weather, or user abuse (such as dropping the game) can result in permanent damage, and are not covered by the warranty.

Page 18

E650ARA-2

For Customer Service Call 1-800-526-0451

DESCRIPTIONS

Catch Ring

10.

Reset / Volume Button

Speaker

11.

Solo Play / Next Player Button

LED Display

12.

Bounce Out Button

Cricket Display

13.

501 / Cricket Button

Power Button

14.

Single Ring

Up Button

15.

Double Ring

Down Button

16.

Triple Ring

Enter Button

17.

Bullseye

Handicap / Miss Button

18.

Double Bullseye

*Dartboard shown above may differ slightly from actual product.

Page 19

E650ARA-2

For Customer Service Call 1-800-526-0451

Page 20

E650ARA-2

For Customer Service Call 1-800-526-0451
