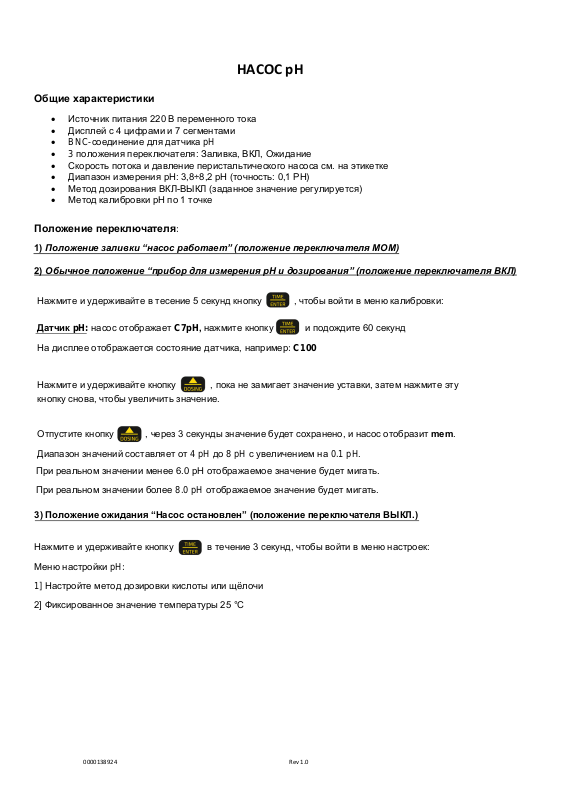

Page 1
pH
• 220
• 4 7
• BNC- pH
• 3 : , ,
• .
• pH: 3,8÷8,2 pH (: 0,1 PH)
• - ( )
• pH 1
:
1) “ ” ( MOM)
2) “ pH ” ( )
5 , :
pH: C7pH, 60
, : C100
, ,
, .
, 3 , mem.
4 pH 8 pH 0.1 pH.
6.0 pH .
8.0 pH .
3) “ ” ( .)
3 , :
pH:
1]
2] 25 °C
0000138924 Rev 1.0
Page 2
pH PUMP
General Features
• Power Supply 220 Vac
• Display 4 digits with 7 segments
• Bnc connection for probe pH
• Switch 3 position Priming, ON, Stand by
• Peristaltic pump flowrate and pressure look at label on product
• Measure Range pH: 3,8÷8,2 pH (resolution: 0.1 PH)
• Dosage method ON-OFF ( Set Point adjustable)
• Calibration method pH 1 Point
Switch position:
1) Priming position “the pump running” (Switch position MOM)
2) Normal position “the instrument measure pH and dosing. (Switch position ON)
Keep Press key for 5 seconds to run calibration menu:
pH probe: the pump displays C7pH press key and wait 60 seconds
Displays quality probe ex: C100
Keep Press key until flashing Setpoint value press again to increase the value
when you are ready to leave a key after 3 seconds the unit save the value and flashing mem.
Value to set from 4 pH until 8 pH increase step by step 0.1 pH,
When the real measure is less than 6.0 pH Flashing the value
When the real measure is more than 8.0 pH Flashing the value
3) Stand by position “The pump is stop” (Switch position OFF)
Keep Press key for 3 seconds to run Setup menu:
pH setup menu:
1] Adjust dosage method for pH Acid or Alka
2] Temperature fixed Value 25°C
0000138924 Rev 1.0
