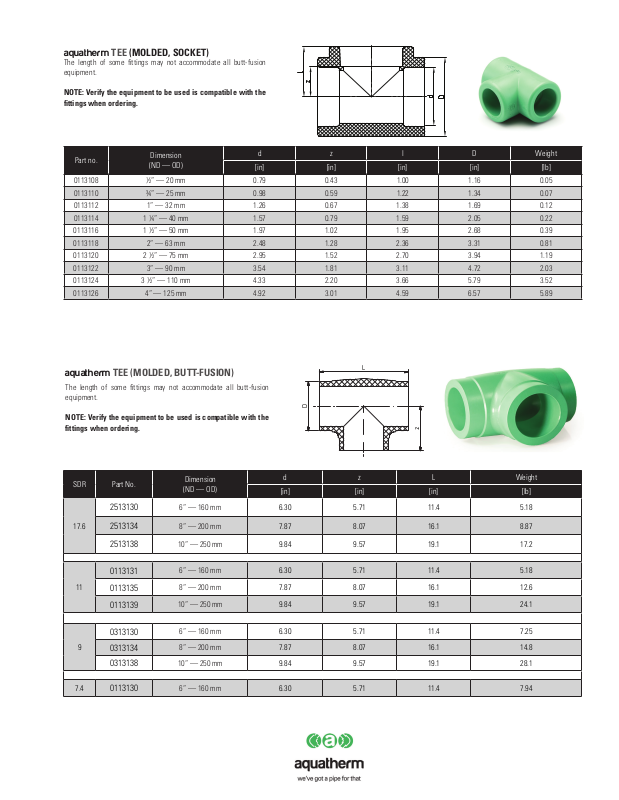

aquatherm TEE (MOLDED, SOCKET)
Art.N. 13131
Artikelliste 2015
Seite 25
The length of some fittings may not accommodate all butt-fusion
equipment.
NOTE: Verify the equipment to be used is compatible with the
fittings when ordering.
Part no.
0113108 ½” — 20 mm 0.79 0.43 1.00 1.16 0.05
0113110 ¾” — 25 mm 0.98 0.59 1.22 1.34 0.07
0113112 1” — 32 mm 1.26 0.67 1.38 1.69 0.12
0113114 1 ¼” — 40 mm 1.57 0.79 1.59 2.05 0.22
0113116 1 ½” — 50 mm 1.97 1.02 1.95 2.68 0.39
0113118 2” — 63 mm 2.48 1.28 2.36 3.31 0.81
0113120 2 ½” — 75 mm 2.95 1.52 2.70 3.94 1.19
0113122 3” — 90 mm 3.54 1.81 3.11 4.72 2.03
0113124 3 ½” — 110 mm 4.33 2.20 3.66 5.79 3.52
0113126 4” — 125 mm 4.92 3.01 4.59 6.57 5.89
aquatherm TEE (MOLDED, BUTT-FUSION)
The length of some fittings may not accommodate all butt-fusion
equipment.
NOTE: Verify the equipment to be used is compatible with the
fittings when ordering.
Dimension
(ND — OD)
d z l D Weight
[in] [in] [in] [in] [lb]
L
D
z
SDR Part No.
2513130
17.6
2513134
2513138
0113131
11
0113135
0113139
0313130
9
0313134
0313138
7.4
0113130
Dimension
(ND — OD)
6” — 160 mm 6.30 5.71 11.4 5.18
8” — 200 mm 7.87 8.07 16.1 8.87
10” — 250 mm 9.84 9.57 19.1 17.2
6” — 160 mm 6.30 5.71 11.4 5.18
8” — 200 mm 7.87 8.07 16.1 12.6
10” — 250 mm 9.84 9.57 19.1 24.1
6” — 160 mm 6.30 5.71 11.4 7.25
8” — 200 mm 7.87 8.07 16.1 14.8
10” — 250 mm 9.84 9.57 19.1 28.1
6” — 160 mm 6.30 5.71 11.4 7.94
d z L Weight
[in] [in] [in] [lb]
