Page 1

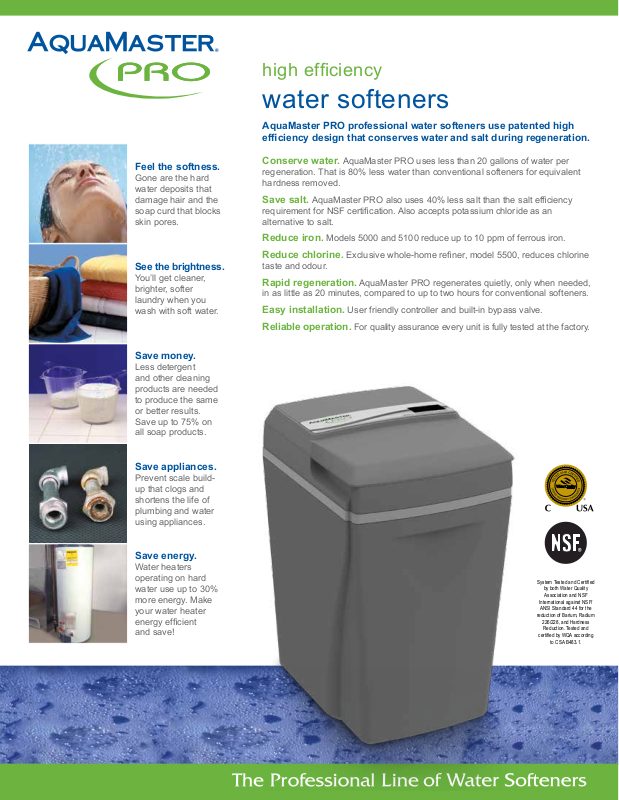

high efciency
water softeners
AquaMaster PRO professional water softeners use patented high
efciency design that conserves water and salt during regeneration.
Feel the softness.
Gone are the hard
water deposits that
damage hair and the
soap curd that blocks
skin pores.
See the brightness.
You’ll get cleaner,
brighter, softer
laundry when you
wash with soft water.
Save money.
Less detergent
and other cleaning
products are needed
to produce the same
or better results.
Save up to 75% on
all soap products.
Conserve water. AquaMaster PRO uses less than 20 gallons of water per
regeneration. That is 80% less water than conventional softeners for equivalent
hardness removed.
Save salt. AquaMaster PRO also uses 40% less salt than the salt efciency
requirement for NSF certication. Also accepts potassium chloride as an
alternative to salt.
Reduce iron. Models 5000 and 5100 reduce up to 10 ppm of ferrous iron.
Reduce chlorine. Exclusive whole-home rener, model 5500, reduces chlorine
taste and odour.
Rapid regeneration. AquaMaster PRO regenerates quietly, only when needed,
in as little as 20 minutes, compared to up to two hours for conventional softeners.
Easy installation. User friendly controller and built-in bypass valve.
Reliable operation. For quality assurance every unit is fully tested at the factory.
Save appliances.
Prevent scale buildup that clogs and
shortens the life of
plumbing and water
using appliances.
Save energy.
Water heaters
operating on hard
water use up to 30%
more energy. Make
your water heater
energy efcient
and save!
System Tested and Certied
by both Water Quality
Association and NSF
International against NSF/
ANSI Standard 44 for the
reduction of Barium, Radium
226/228, and Hardness
Reduction. Tested and
certied by WQA according
to CSA B483.1.
Page 2
2" Air gap
Well water
City water meter
Shut-off
valve
Hard water to
outside faucets
Cold soft
water
Hot soft
water
Water
heater
Outlet
Inlet
Overflow line
and drain line
115 Volt
outlet
Ground wire and clamps
(copper pipe only)
Water
softener
1
2
3
4
SPECIFICATIONS AMP5000 AMP5100 AMP5500
Max. compensated hardness: 70 grains per gallon (gpg) 90 grains per gallon (gpg) 70 grains per gallon (gpg)
Maximum capacity: 22,100 grains 36,400 grains 22,100 grains
Maximum ferrous iron reduction: 10 ppm 10 ppm 0
Minimum pH (standard units): 7 7 7
Salt used per regeneration: 2.5 Ibs* 3 Ibs* 2.5 Ibs*
Length of regeneration cycle: 20 minutes* 21 minutes* 20 minutes*
Water used per regeneration: 16.4 gallons* 17.5 gallons* 20.2 gallons*
Hardness removed per regeneration: 10,400 grains
Plumbing connections: 3/4” or 1” MNPT 3/4”or 1” MNPT 3/4”or 1” MNPT
Valve size: 1” 1” 1”
Salt storage capacity: 120 lbs. 160 lbs. 160 lbs.
Electrical requirements: 110/120 VAG, 12V 50/60 cycle 110/120 VAG, 12V 50/60 cycle 110/120 VAG, 12V 50/60 cycle
Maximum water temperature: 120ºF 120ºF 120ºF
Water pressure (min-max psi): 20 -120 20 -120 20 -120
Footprint (WxD): 15” x 26” 15” x 26” 15” x 26”
Height: 25.5” 30.5” 30.5”
Shipping Weight: 85 lbs. 105 lbs. 105 lbs.
Operational maintenance & replacement requirements are essential for the product to perform to specication. *Average at High Efciency setting. Dependent on water hardness level & water usage.
5
6
Innovative features that save water, salt and money.
1. User friendly controller
Just enter your water
hardness number and the
controller does the rest
automatically.
2. Bypass valve
Factory installed, easy to
operate and accepts
standard copper ttings.
Reduce Ferrous Iron Reduce Chlorine
* 15,400 grains* 10,400 grains*
Water Softeners
3. Built-in dirt and sediment lter
Exclusive self-cleaning media lter
to 20 microns, never buy another
cartridge lter.
4. High capacity ne mesh resin
5. Exclusive distribution system
6. Unique safety shut-off valve
System Tested and Certied by both Water Quality Association and NSF International against NSF/ANSI Standard 44 for
the reduction of Barium, Radium 226/228, and Hardness Reduction. Tested and certied by WQA according to CSA B483.1.
Made In
USA
Toll-free technical support
1.800.437.8993
www.aquamasterpro.ca
