appEB03TG
Complete User’s Guide
APPEB03TG User Manual
i
Safety Precautions
On Battery
Charge the battery only in temperature that ranges
from 0 to 35 degree Celsius.
Do not charge reader if the battery is found damaged
or leaking.
On Operation
Never subject reader to extremes of light, temperature,
moisture or vibration.
Do not use or store reader in a location subject:
A. Extreme high temperature, such as in a sun-heated car
B. Direct sunlight
C. High humidity or places with corrosive substances
D. Sub-zero condition, especially during winter.
. On Micro SD/SDHC card
After inserting a Micro SD/SDHC card, if the reader
has no response, please take out and insert again.
Do not remove Micro SD/SDHC card or turn off reader
during data writing or reading to prevent damage to
data and to the reader.
Make sure the Micro SD/SDHC card is unlocked
before writing or deleting data in the Micro SD/SDHC
card.
Backup your files and data before formatting the Micro
SD/SDHC card. Please format the Micro SD/SDHC
card in FAT.
APPEB03TG User Manual
ii
Contents
SAFETY PRECAUTIONS .............................................. I
CONTENTS ................................................................... II
CHPATER 1 BASICS ..................................................... 1
PARTS AND CONTROL ........................................... 1
POWER ON AND OFF THE READER ........................ 2
CHARGING THE READER ....................................... 3
IMPORTING CONTENTS .......................................... 4
IMPORTING DRM CONTENTS ................................ 5
HOME SCREEN....................................................... 8
MAIN MENU ......................................................... 9
SWITCHING SCREEN ORIENTATION ..................... 11
CHPATER 2 GETTING STARTED ........................... 13
READING BOOKS ................................................. 13
PLAYING MUSIC ................................................. 18
WATCHING VIDEOS(OPTIONAL) ........................... 19
VIEWING PHOTOS ................................................ 21
FILE EXPLORER ................................................... 22
CHPATER 3 SETTINGS ........................................... 23
LANGUAGE ......................................................... 23
RESTORE DEFAULTS ........................................... 23
APPEB03TG User Manual
iii
DATE & TIME ..................................................... 23
DISPLAY SETTINGS ............................................. 23
DEVICE STANDBY .......... ¡ERROR! MARCADOR NO
DEFINIDO.
ABOUT PRODUCT ................................................ 24
POWER MANAGEMENT ....................................... 24
CALIBRATE TOUCH SCREEN ............................... 24
SCREEN ROTATE ................................................. 24
VIBRATION(OPTIONAL) ........................................ 24
CHPATER 4 TROUBLESHOOTING ...................... 25
CHPATER 5 APPENDIX ........................................... 26
MAINTENANCE ................................................... 26
PRODUCT SPECIFICATIONS .................................. 26
CERTIFICATION INFORMATION ............................ 28
COPYRIGHTS AND TRADEMARK NOTICE ............. 29
DISPOSAL AND RECYCLING INFORMATION ......... 30
DISCLAIMER ....................................................... 30
Chapter 1 Basics
1

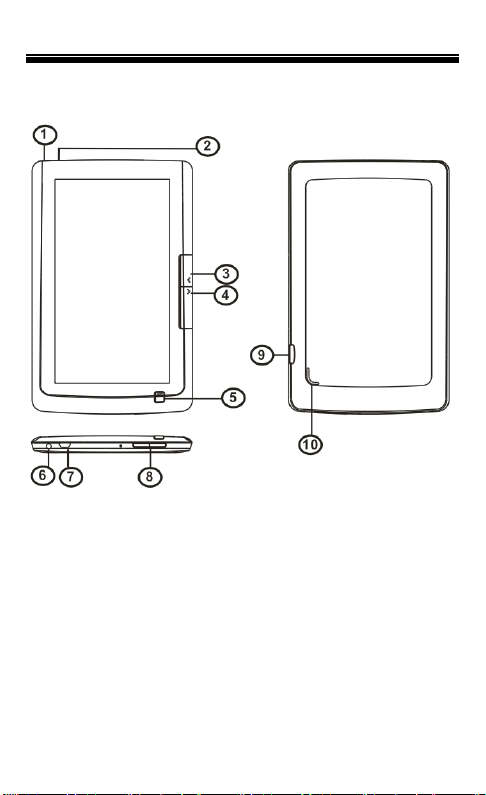

Parts and Control
1. Power button – press and hold for 3 seconds to turn
on/off. Press and hold for 6 seconds to restart.
2. Charging indicator
3,4. Page up/Page down button
5. Return button – press once to return to previous menu,
press and hold to return to Main menu.
Chapter 1 Basics
2
6. Earphone jack
7. Micro USB jack – for data transfer and charging
8. VOL + /- button
9. Mini SD/SDHC card slot – supports Mini SD/SDHC card
10. Speaker
Power On and Off the Reader
Press and hold the [Power] button for 3 seconds to turn
on reader.
It may take a few moments for reader to turn on and
loading the content.
If Reader does not turn on, charging is required.
To turn off reader, press and hold [Power] button for 3
seconds.
Chapter 1 Basics
3
Charging the Reader
You need to charge the reader prior to using it for the first
time or when battery power is low.
Charge the reader using AC adapter with output 5V,
1.2A.
Charging through PC may not be able to fully charge the
reader due to the low output charging current from PC
USB port.
Please turn the reader to standby mode to shorten the
charging process.
It will take about 6 hours to fully charger the reader in
standby mode (LCD off)
When DC /USB power cable is connected to the reader
for charging, the reader will enter into standby mode after
remains idle for 60 s. Press the [Power] button to wake up

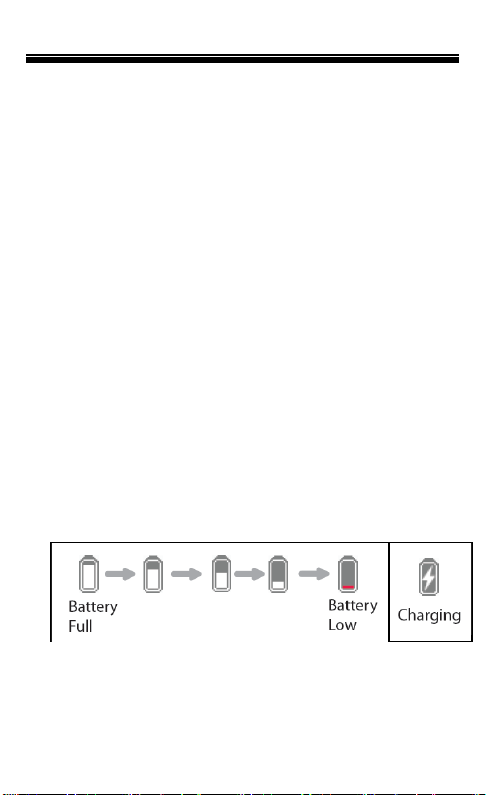

the reader. The battery status is displayed at the bottom
left corner.
Chapter 1 Basics
4
Importing contents
From Computer
The Reader supports USB Mass Storage Device
function.
To import contents (ebooks, video, audio, photo etc) into
the reader, connect the reader to PC via the supplied
USB cable.
Upon successful connection to PC, the reader will enter
USB mode and all operation will be halted.
Go to [My Computer], double click on the reader’s disk to
open.
Perform the file management operation like USB device.
From memory card
This device supports Micro SD/SDHC card up to 16GB

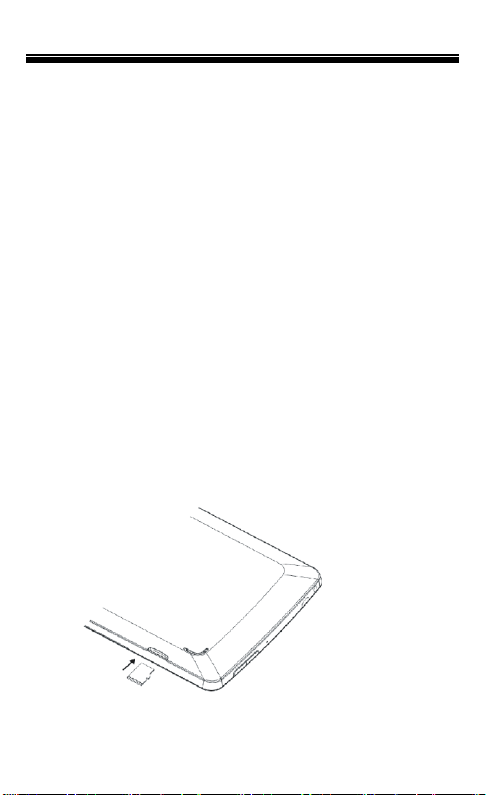

To insert a Memory card
Insert the card correctly with the contact pin facing
downwards as illustrated below. Pushing the card in, then
you should hear a click when the reader is seated correctly.
You may damage the card and the reader if Micro SD/SDHC
card is not inserted correctly.
To remove Micro SD/SDHC card, push the card once
Chapter 1 Basics
5
again until it contact the back of the slot.
When the card is inserted or removed, it will take several
seconds to update content.
Please avoid inserting or ejecting the card when other
operation is running as this may cause the system hang.
Do not remove the card if the content inside the card is being
played. This will halt the operation of the reader and cause
the reader to restart.
Importing DRM Contents
The Reader supports Adobe DRM contents. Adobe Digital
Editions (ADE) is required.
Installing Adobe Digital Editions (ADE)
The ADE installer is preloaded into the Reader.
Connect the Reader to PC via the supplied USB cable
and open the reader as removable disk. Go to [My
Computer], double click on the reader’s disk to open.
Make sure your computer is connected to internet
Double click on the [digitaleditions_172] file to open the
installer.
Alternatively, you can download the installer from
http://www.adobe.com/products/digitaleditions/#fp.
For first time user, you will need to get a free adobe ID
from adobe website. click on the [get an Adobe ID online]
link as illustrated:
Chapter 1 Basics
6
Enter your email address and complete the online form
as per instructed.

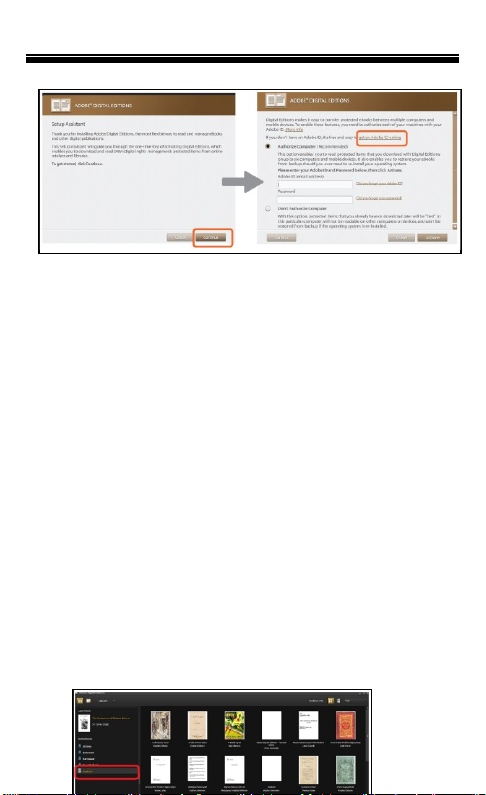

Authorizing PC and Reader
Upon registration, return to the ADE window. Enter the
user name and password to activate your Adobe account.
After activation, connect the Reader to PC. ADE will
detect the Reader and you are prompted to authorize
device.
After authorization, you will be able to find the Reader
recognized in ADE as below. Contents inside the Reader
will be displayed on the right hand windows.
Chapter 1 Basics
7
You can now start downloading or buying ebooks from
online Ebook stores supporting Adobe DRM.
Purchased or downloaded ebooks will be stored in [My
Digital Editions] in [My Documents].

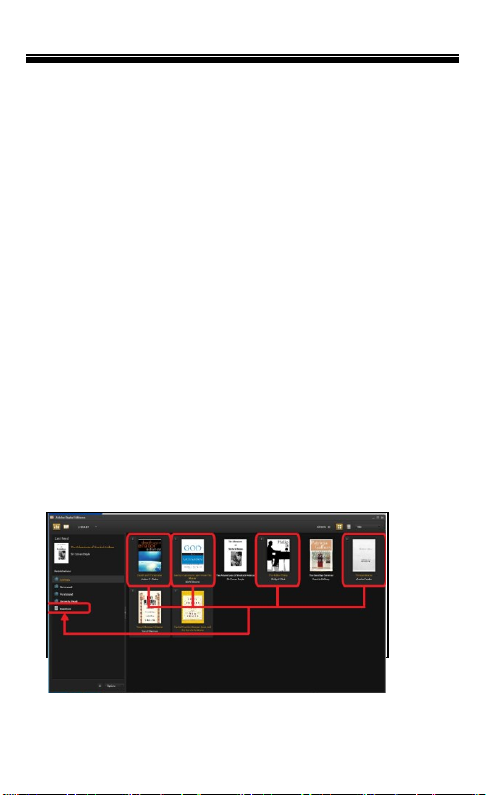

Transferring DRM ebooks to Reader
From ADE menu, click on [All Items] on the left hand
column.
Items in [My Digital Editions] will be listed down in right
window.
Select the desired item(s) to be transferred, <Shift> +
<Left click> to select multiple files.
Drag and drop the selected item(s) into the Reader’s
Drive located on the last row of the left side column as
illustrated below.
Notes For using ADE
Each ADE ID supports only 6 devices, this includes the
master device (the reader) and the slave device (Micro
Chapter 1 Basics
8
SD/SDHC card).
When the reader is restored to default settings, ALL DRM
activation record and data (including DRM books purchased)
will be erased from the reader. You are required to authorize
the device with your ADE ID again.

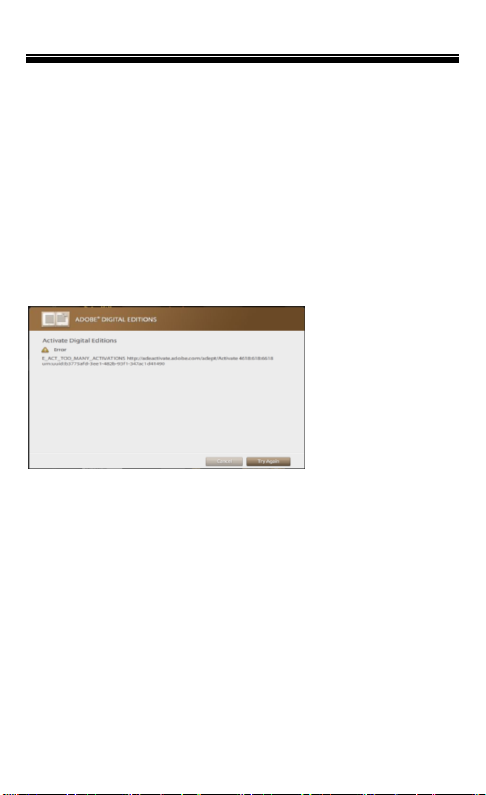

When the number of authorized device has exceeded the
allowable amount, you will come across the following error
message:
To request for extension and reset of your ADE ID, go to
http://www.adobe.com/support/digitaleditions/ [Submit
a web case]. You are required to key in your ADE ID info.
Home screen
When the reader is turned on, it will enter the Home screen.
Press the Return button anytime to return to the Home
screen.
Chapter 1 Basics
9
1.Continue Reading
-displays the page of last
read book. Tap to open
the last read page.
2. Book Categories
-to sort books by different
categories: Title, Author,
File Format, Date.
3. File Directory
- Indicates the location of
the file.
Micro SD/SDHC –Micro
SD/SDHC card
INT –Internal memory.
4. Library
-displays the list of books
available. Tap the desired
book to open it.
5. Battery Indicator
-displays battery status
during operation
6. Page Number
-displays current page
Number and total available
pages.
7. Time & Date
-displays current time and
Date. You can set this from
the [Settings].
Main Menu
Shows the list of available function.
Tap on the upper right to display the Main
menu.
Chapter 1 Basics
10
Tap the desired item to open.Selected item will be
highlighted in grey.
To exit from Main menu, tap on the bottom of the Main
menu.
Read from previously added
Bookmarks.
Chapter 1 Basics
11
Allows you configure display
settings.
Enter into Music Player
Enter into Photo Viewer.
Enter into Video Player.
Enter into File Explorer for
advanced file management.
Enter into System settings.
Shows the User Manual for
BK7007 ebook reader.
Open your favorite book list.
Switching Screen orientation
Via G sensor (optional)
Chapter 1 Basics
12
From Main menu, tap [Settings][Screen Rotate], then
select [Automatic].
Rotate the unit and the screen rotates too, automatically
adjusting to fit the screen.
Manually Rotate
From Main menu, tap [Settings][Screen Rotate], then
select [Manual].
Tap [Rotate] in the corresponding option menu to
manually rotate.
Chapter 2 Getting Started
13
Reading books
Swipe on the booklist or press page up/page down button to
scroll the ebook list.
Supported format：TXT, PDF, EPUB, FB2, PDB.
Chapter 2 Getting Started
14

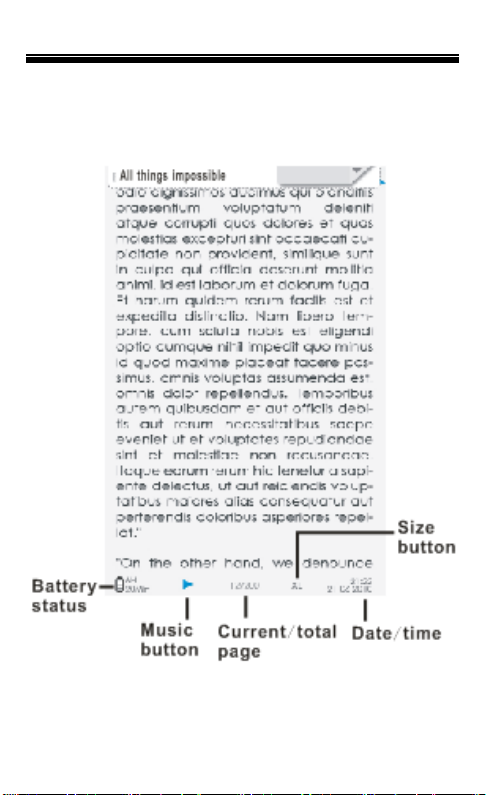

Page turning
On reading page, flick on the left/right side or press page
up/down button to turn to previous/next page.
Go to Page
You can jump to pages by taping on the page indicator.
Input page number by onscreen keyboard. Tap [Apply] to
apply settings.

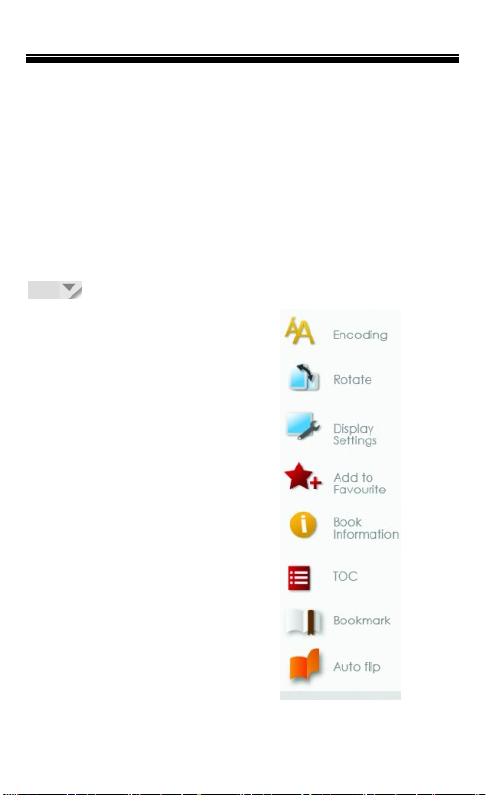

Using Option Menu in Reading
In Reading page, tap to display the title bar, then tap
to enter Option Menu. Options available:
1. Encoding
2. Rotate
3. Display Settings
4. Add to Favorite
5. Book Information
6. TOC
7. Bookmark
8. Auto flip
Chapter 2 Getting Started
15
Adjusting Font Size
In reading page, tap Font Size button at the bottom of the
page or select Font size from option menu to enter
setting.
There a 4 font sizes available: Medium, Large, X-Large,
XX-Large.
Tap on the desired font size to adjust the font size.
It will take several seconds for the fonts to be resized.
Zooming In/Out
You will need to use zooming function to enlarge images
available in the ebook.
Tap Font Size button at the bottom of the page or from
Main menu, tap Font size and select [Enlarge].
Zoom menu will appear.
Tap the desired zoom level.
In zoom mode, tap the directional icons to pan across the
zoomed page.
Page turning is disabled in zoom mode.
Press <Return> button to exit zoom mode and return to
original size and resume normal book reading functions.
Chapter 2 Getting Started
16
Encoding
If garbled characters are displayed, you are required to
manually select the correct decode scheme from the list.
In the Encoding menu, tap to select the appropriate
decode scheme.
Rotate
[Rotate] allows you to rotate the display orientation.
In landscape view, the Option Menu is divided into 2
pages. To access options in the second page, tap ▲ at
the top of the Option Menu and then enter.
To return to previous page, tap ▲ again.
Display Settings
To adjust font color, background color, brightness during
reading.
Add to Favorite
You can add books to your Favorite List. In Option menu,
tap [Add to Favorite] to add current book into Favorite
List.
To view books in Favorite List, from Main Menu, select
[Favorite].
To remove book from Favorite:
Enter Favorite List from Main menu, tap to display a
deletion screen.
Select the desired items to be deleted, then tap .
Displaying the book Information
You can check the information of the current book from
the [Book Information]. This will show Title, Author, File
type, Date added, File size, Publisher and Expiration.
Depends on the source of ebook that you download
/purchase, some of the information may not be available.
Chapter 2 Getting Started
17
Showing the Table of Contents
From Main menu, select [TOC] to show the ebook’s table of
contents.
About the bookmark
Adding Bookmark
When reading, turn to the desired page, tap to add
bookmark. And the icon will turn blue.
Reading from Bookmarks in Main menu
From Main menu, select [Bookmarks] to enter Bookmark
List.
In the Bookmark List, tap the desired bookmark to open.
Reading from Bookmarks in Current Book
In reading page, tap and select [Bookmarks] to
enter into Bookmark List.
In Bookmark List, tap the desired page to open.
Deleting Bookmark
You can choose any of the following methods to delete
bookmark.
Turn to the bookmarked page to be deleted, then tap
.
In the Bookmark list, tap to display a deletion
screen.
Tap to select the desired items to be deleted, then tap
.
Auto flip
You can set the Reader to [Auto Flip] mode. The auto flip
duration available are: Disabled 5s,10s, 20s, 30s, 40s, 50s,
1 min.
Chapter 2 Getting Started
18
Reading books while playing music
On reading page, tap at the bottom of the page to
start reading with background music playback.
Tap Music to enter into music playing menu during
background music playing.
Note: To exit from the option menu, tap on the bottom of the
menu.
Playing Music
From the Main Menu, tap [Music] to enter into music player.
● In the Music player, tap / to play/pause music
Chapter 2 Getting Started
19
playing.
● Tap / to play previous/next song.
● Touch and hold / or slide the progress bar to
Fast Rewind / Fast Forward
● Press< Vol+/-> button on the unit or drag the volume
slider to adjust volume level.
● Tap on EQ icon to set sound effect.
● Tap on Play mode icon to change play mode.
● To sort the song lists, tap on the tab from the song.
categories, the available options: title, artists, album,
genres.
Tap to update the media library.
Tap to return to home screen.
Watching Videos
From Main menu, select [Video] and enter into the video
library.
In video library, press page up/down button or drag your
finger up and down on the screen to scroll the video list.
Tap your desired video file to start playing.
Chapter 2 Getting Started
20
Pause or play a video
Tap / .
Go to previous/next
video
Tap / .
Rewind or fast
forward
Touch and hold / .
Skip to any point in a
video
Tap anywhere or drag the
playhead on the progress bar.
Adjust the volume
level
Drag the volume slider on the
the screen or use the buttons
on the side of BK7007.
Adjust the screen
display format
Tap .
Return to the video
browser screen
Tap or press Return
button on the unit.
Controlling Video Playback
When playing video, tap on the screen to pop up control
toolbar.
Chapter 2 Getting Started
21
start / stop slide show
Tap / .
View the previous / next
photo.
Tap / or
swipe on screen.
zoom in or zoom out
Tap / .
Notice：
Video player supports subtitle file, please load the subtitle
file to be displayed on the current video, unless the
subtitle is integrated into the video itself.
The reader supports subtitle of sub, ssa, srt, lrc
format,encoded in UTF8 format.
The file name of the subtitle must be identical to that of
the video file. The subtitle will be loaded automatically
during video playback.
Viewing photos
From Main menu, select [Photo], and enter into the
Photo viewer.
Thumbnail View
All photos available in the internal memory and SD card
will be listed in thumbnail view.
In full screen mode, press the Return button to return to
thumbnail view mode.
Start to view photo
In full screen mode, tap on the screen to show / hide the
control bar.
Chapter 2 Getting Started
22
Rotate the photo by 90
degrees clockwise
Tap .
Display photo
information
Tap .
Return to thumbnail
mode
Tap .
Notes:
In zoom in /out mode, tap the directional icons to move
the zoomed photo.
To return to original size, press <Return> button and
resume normal operation.
File Explorer
From Main menu, select [Explorer].
Tap to select Internal / Micro SD/SDHC card memory to
enter.
Drag your finger up and down to scroll through the file
list.
Deleting File
From File Explorer, tap to display a deletion screen.
Select the desired files to be deleted, then tap .
Note: it may take longer time to delete files/folder with big file
size and quantity.
Chapter 3 Settings
23
These setting items allow you to customize BK7007, set the
date, time and enter other preferences for the unit.
Language
To set system language for the reader.
Restore Defaults
To restore the Reader’s settings to defaults.
All settings will be restored. All DRM contents and activation
will be deleted. You are required to authorize the reader
again through ADE after system restored.
Date & Time
To set the clock and date, time zone, daylight saving time
Tap on the desired item, then flick up/down to adjust the
desired value.
Press Apply button to confirm, press Cancel button to
cancel the setting.
Note: Time zone setting is needed to calculate the expiry
duration for book borrowing / returning.
Display Settings
To set the display brightness for the reader.
Device Standby
To enable / disable auto standby mode, also set the time
for the auto standby mode
Press <Power> button to manually set the reader to
standby mode. Press <Power> button once to wake up
the reader from standby mode.
Chapter 3 Settings
24
About Product
Displays product information about the reader, such as
Manufacturer, Model No., Firmware version and so on.
Power Management
Displays real time battery status of the Reader.
Calibrate Touch Screen
Allows you to do touch screen calibration. Use your finger or
stylus to carefully press on the center of target. Repeat as
the target around the screen to calibrate touch screen.
Screen Rotate(optional)
To enable or disable display Screen Rotate mode.
Vibration (optional)
To enable or disable vibration mode for the reader.
Chapter 4 Troubleshooting
25
The Reader is not responding or can’t be turned on.
Reset the reader by press and hold the power button
for 6 seconds. The reader will be forced shutdown if it is
on and you are required to restart the reader again.
Battery has been fully depleted. Please charge the
reader via USB or USB AC Adapter.
Battery Life seems short
The operating temperature is below 5oC. this is due to
the characteristics of battery and not a malfunction
The battery is not used for prolonged period. Please
recharge the battery of the reader again
The battery is not fully charged. Please charge the
reader for 4 hours.
The battery needs to be replaced. Please consult the
authorized dealer for service.
A Book cannot be read
Copyright protected books cannot be read on any
device other than the authorized one.
Check if the book has expired.
Check if the book format is supported by the reader.
The reader cannot be operated during USB connection
The reader cannot be operated while it is connected to
PC.
Eject the reader from computer to resume operation.
To use the reader while charging, click on the [Safely
Remove Hardware] icon located on the left lower
corner to disconnect data connection with computer.
After the reader is safely removed, computer will only
charge the reader and you can now resume normal
operation.
Chapter 5 Appendix
26
Maintenance
If reader does get wet, turn off reader immediately. Wait
for reader to dry completely before turning on again.
Clean the screen with a soft cloth; be careful not to
wipe it with anything abrasive. When carrying your
reader in bag, keep reader in the protecting case
supplied to avoid scratches.
If reader needs service, please consult the authorized
dealer through the contact information provided in the
warranty card. Faulty service may void the warranty.
Product Specifications
Display
7 inch TFT LCD Display, 800x480 pixels
Brightness: 200cd/m2
Storage memory
Built in memory: xxx GB (FAT format)
Supports Micro SD/SDHC card up to 16GB (FAT32 format)
Media File Format supported
Ebook: epub, pdf, txt, fb2,pdb
Audio: mp3, wma, wav, ogg, aac,flac
Photo: jpg, bmp, gif,png
Video: mpeg 1, mpeg 2, mpeg 4, xvid, divx, h.263, h.264,
wmv9/vc-1,rmvb, up to HD 1080p resolution
Connectivity
Data transfer: USB 2.0 High Speed
Audio: 3.5mm audio jack
Power: USB jack
Chapter 5 Appendix
27
Miscellaneous
Built in speaker
Clock / Date
Real time battery indication
Battery life
Reading – up to 6 hours
Music – up to 30 hours (with backlight off)
Charging
Power supply: 5.0V, 1.2A
Duration: 6 hours (approx)
Minimum system requirement (USB Mass Storage)
Windows 2K, XP, Vista, Win 7, Linux, Mac OS 10x and
above
Physical properties
Dimension: 202.8 x 124.7 x 12.8 mm (approx)
Weight: 280g (approx)
※ Optional Features are not available in all models unless
specified.
※ Design and specifications are subject to change without
prior notice
Chapter 5 Appendix
28
Certification information
On FCC
This equipment has been tested and found to comply with
limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in
residential installations. This equipment generates, uses,
and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
WARNING: THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THE DEVICE. ANY SUCH
MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
On CE
The symbol means that the unit complies with
Chapter 5 Appendix
29
European safety and electrical interference directives.
Copyrights and Trademark Notice
Copyright laws prohibit copying the data of this product or
the contents of this manual (illustrations, related documents,
etc.) in whole or in part without the permission of the
copyright holder. Additionally, use of the data of this product
or the contents of this manual is not allowed without vendor’s
permission except for personal use.
Microsoft, Windows, Windows Vista and Windows Media are
trademarks or registered trademarks of Microsoft
Corporation in the United States and / or other countries.
Macintosh and Mac OS are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Adobe, the Adobe logo, Reader and PDF are either
registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
MPEG Layer-3 audio coding technology and patents
licensed from Fraunhofer IIS and Thomson.
The Reader contains Adobe® Reader® Mobile software
under license from Adobe Systems Incorporated, Copyright
© 1995-2009 Adobe Systems Incorporated. All rights
reserved. Adobe and Reader are trademarks of Adobe
Systems Incorporated.
Chapter 5 Appendix
30
Disposal and Recycling Information
Your Reader must be disposed of properly according to local
laws and regulations.
Because this product contains a battery, the product must be
disposed of separately from household waste. When your
eBook reader reaches its end of life, contact your local
authorities to learn about recycling options.
Battery Replacement:
The rechargeable battery in it should be replaced only by an
authorized service provider.
This symbol on the product or in the instruction
means that your electrical or electric equipment should be
disposed at the end of its life separately from your household
waste. There are separate collection systems for recycling in
the EU,For more information, please contact the local
authority or your retailer where you purchased the product.
Disclaimer
All the information, design and specifications contained in
this manual were correct at the time of publication. However,
as the product is under continuously upgrading, the final
device may have a slightly difference in appearance or
modified functionality than presented in this manual.
Contains Reader® Mobile technology by Adobe Systems Incorporated
Loading...
