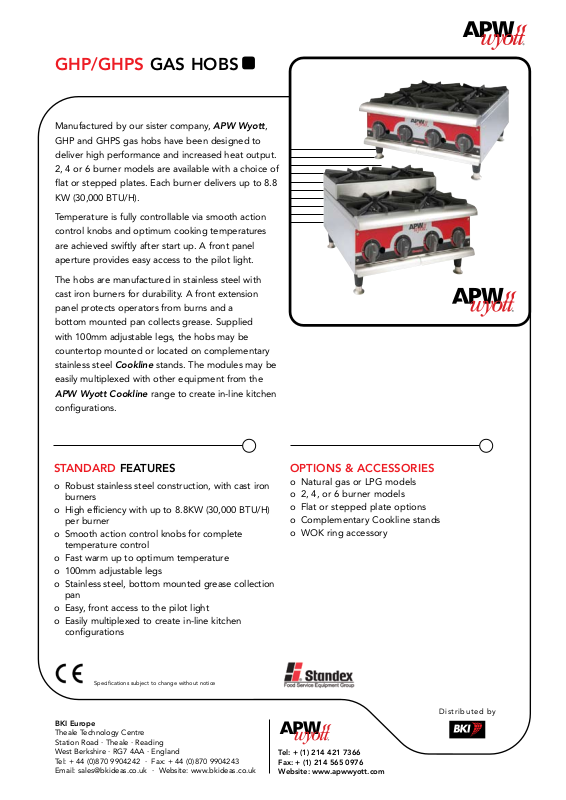

APW Wyott GHP Specifications
GHP/GHPS GAS HOBS
The APW Wyott logo must alway s be displayed and printed as
shown. APW red is PMS # 485 C
For 4 c olor print of the logo over black For black only print of the logo over black
The APW Wyott logo must alway s be displayed and printed as
shown. APW red is PMS # 485 C
For 4 c olor print of the logo over black For black only print of the logo over black
The APW Wyott logo must alway s be displaye d and printed as
shown. APW red is PMS # 485 C
For 4 co lor print of the log o over black For black only print of the logo over black
Manufactured by our sister company, APW Wyott,
GHP and GHPS gas hobs have been designed to
deliver high performance and increased heat output.
2, 4 or 6 burner models are available with a choice of
flat or stepped plates. Each burner delivers up to 8.8
KW (30,000 BTU/H).
Temperature is fully controllable via smooth action
control knobs and optimum cooking temperatures
are achieved swiftly after start up. A front panel
aperture provides easy access to the pilot light.
The hobs are manufactured in stainless steel with
cast iron burners for durability. A front extension
panel protects operators from burns and a
bottom mounted pan collects grease. Supplied
with 100mm adjustable legs, the hobs may be
countertop mounted or located on complementary
stainless steel Cookline stands. The modules may be
easily multiplexed with other equipment from the
APW Wyott Cookline range to create in-line kitchen
configurations.
STANDARD FEATURES
o Robust stainless steel construction, with cast iron
burners
o High efficiency with up to 8.8KW (30,000 BTU/H)
per burner
o Smooth action control knobs for complete
temperature control
o Fast warm up to optimum temperature
o 100mm adjustable legs
o Stainless steel, bottom mounted grease collection
pan
o Easy, front access to the pilot light
o Easily multiplexed to create in-line kitchen
configurations
BKI Europe
Theale Technology Centre
Station Road · Theale · Reading
West Berkshire · RG7 4AA · England
Tel: + 44 (0)870 9904242 · Fax: + 44 (0)870 9904243
Email: sales@bkideas.co.uk · Website: www.bkideas.co.uk
Specifications subject to change without notice
OPTIONS & ACCESSORIES
o Natural gas or LPG models
o 2, 4, or 6 burner models
o Flat or stepped plate options
o Complementary Cookline stands
o WOK ring accessory
Distributed by
Tel: + (1) 214 421 7366
Fax: + (1) 214 565 0976
Website: www.apwwyott.com
GHP/GHPS GAS HOBS
279.40
(11.0)
201.60
(7.94)
346.73
(13.65)
304.60 (12.00)
628.65 (24.75)
156.12
(6.15)
609.60 (24.00)
914.40 (36)
59.72 (2.35)
346.73
(13.65)
429.93
(16.93)
628.65 (24.75)
156.12
(6.15)
The APW Wyott logo must alway s be displayed and printed as
shown. APW red is PMS # 485 C
For 4 c olor print of the logo over black For black only print of the logo over black
The APW Wyott logo must alway s be displaye d and printed as
shown. APW red is PMS # 485 C
For 4 co lor print of the log o over black For black only print of the logo over black
TOP VIEW GHP-2H/ GHP-4H/ GHP-6H/
GHPS-2H GHPS-4H GHPS-6H
DIMENSIONS
FRONT VIEW GHP-2H GHP-4H GHP-6H
FRONT VIEW GHPS-2H GHPS-4H GHPS-6H
SPECIFICATIONS
GAS
SIDE VIEW GHP-2H/GHP-4H/GHP-6H GHPS-2H/GHPS-4H/GHPS-6H
Dimensions in mm (inches in brackets)
MODEL NO. GHP-2H GHP-4H GHP-6H GHPS-2H GHPS-4H GHPS-6H
BURNERS 2 4 6 2 4 6
PLATE FLAT FLAT FLAT STEPPED STEPPED STEPPED
NET
WEIGHT
28.6kg 58.6kg 85.4kg 30.9kg 59.9kg 85.4kg
GAS SPECIFICATIONS
MODEL NO. GHP-2H GHP-4H GHP-6H GHPS-2H GHPS-4H GHPS-6H
HEAT
CAPACITY
GAS INLET 3/4ins 3/4ins 3/4ins 3/4ins 3/4ins 3/4ins
17.6KW 35.2KW 52.8KW 17.6KW 35.2KW 52.8KW
© BKI Ref BKI/LDP/036/08.07. Specifications subject to change without notice
