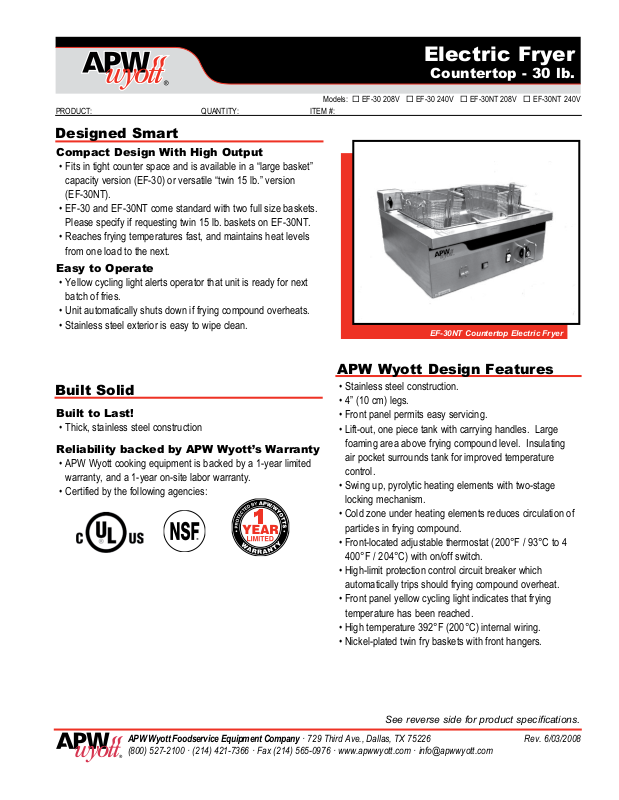

APW Wyott EF-30NT, EF-30 User Manual

Models: ¨ EF-30 208V ¨ EF-30 240V ¨ EF-30NT 208V ¨ EF-30NT 240V

PRODUCT: QUANTITY: ITEM #:

Designed Smart

Compact Design With High Output

• Fits in tight counter space and is available in a “large basket”
capacity version (EF-30) or versatile “twin 15 lb.” version
(EF-30NT).

• EF-30 and EF-30NT come standard with two full size baskets.
Please specify if requesting twin 15 lb. baskets on EF-30NT.

• Reaches frying temperatures fast, and maintains heat levels
from one load to the next.

Easy to Operate

• Yellow cycling light alerts operator that unit is ready for next
batch of fries.

• Unit automatically shuts down if frying compound overheats.

• Stainless steel exterior is easy to wipe clean.

Electric Fryer

Countertop - 30 lb.

EF-30NT Countertop Electric Fryer

Built Solid

Built to Last!

• Thick, stainless steel construction

Reliability backed by APW Wyott’s Warranty

• APW Wyott cooking equipment is backed by a 1-year limited
warranty, and a 1-year on-site labor warranty.

• Certified by the following agencies:

APW Wyott Design Features

• Stainless steel construction.

• 4” (10 cm) legs.

• Front panel permits easy servicing.

• Lift-out, one piece tank with carrying handles. Large
foaming area above frying compound level. Insulating
air pocket surrounds tank for improved temperature
control.

• Swing up, pyrolytic heating elements with two-stage
locking mechanism.

• Cold zone under heating elements reduces circulation of
particles in frying compound.

• Front-located adjustable thermostat (200°F / 93°C to 4
400°F / 204°C) with on/off switch.

• High-limit protection control circuit breaker which
automatically trips should frying compound overheat.

• Front panel yellow cycling light indicates that frying
temperature has been reached.

• High temperature 392°F (200°C) internal wiring.

• Nickel-plated twin fry baskets with front hangers.

See reverse side for product specifications.

APW Wyott Foodservice Equipment Company · 729 Third Ave., Dallas, TX 75226
[phone] · [phone] · Fax [phone] · www.apwwyott.com · [e-mail]

Rev. 6/03/2008

Electric Fryer

Countertop - 30 lb.

PRODUCT: QUANTITY: ITEM #:

Models: ¨ EF-30 208V ¨ EF-30 240V ¨ EF-30NT 208V ¨ EF-30NT 240V

PRODUCT SPECIFICATIONS

Construction:

Heavy-duty stainless steel body. Fry baskets are con­structed of nickel-plated steel. 4” adjustable chrome legs.

Electrical Information:

Units are wired for hard wiring in the field.

Electrical Specifications:

EF-30-208V: 208V, 12 KW, 57.7 Amps -1 Phase
208V, 12 KW, 50 Amps -3 Phase
EF-30-240V: 240V, 12 KW, 50 Amps -1 Phase
240V, 12 KW, 43.3 Amps -3 Phase
EF-30NT-208V: 208V, 8.56 KW, 41.2 Amps -1 Phase
EF-30NT-240V: 240V, 11.4 KW, 47.7 Amps -1 Phase

Capacity:

EF-30: 30 lbs. (13.6). Produces up to 60 lbs. of
raw-to-done potatoes per hour.
EF-30NT: 30 lbs. (13.6). Produces up to 60 lbs. of
raw-to-done potatoes per hour.

Basket Size:

Full Size 6 1/4” H x 7 1/4” W x 11 2/5” D

Overall Dimensions:

EF-30: 17” H x 24” W x 24 1/2” D
(43.2 cm x 61 cm x 62.2 cm)
EF-30NT: 16 3/8” H x 24” W x 24” D
(41.6 cm x 61 cm x 61 cm)

Shipping:

EF-30: 92 lbs. (41.8 kg)
EF-30NT: 75 lbs. (34 kg)

Freight Class: 85
FOB: Cheyenne, WY

*APW Wyott reserves the right to modify specifications or discontinue models without incurring obligation.
