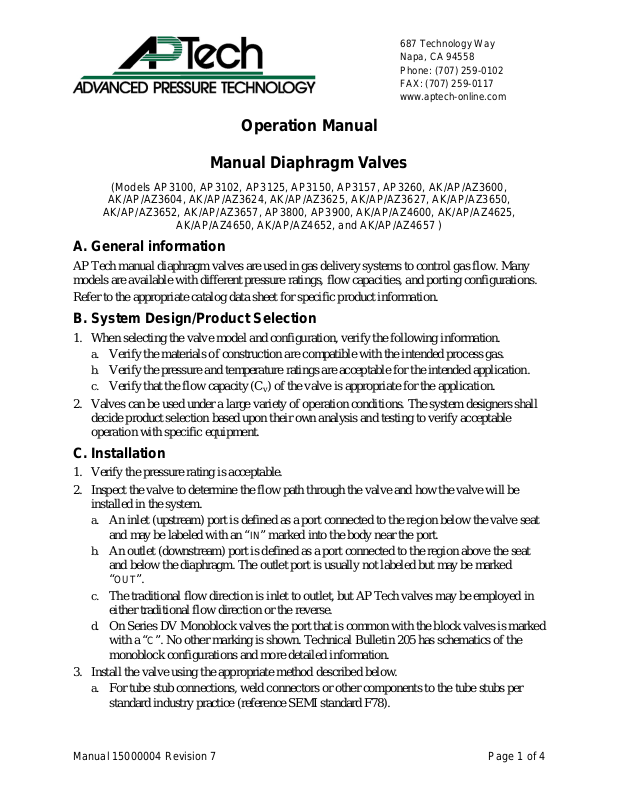

Operation Manual
Manual Diaphragm Valves
(Models AP3100, AP3102, AP3125, AP3150, AP3157, AP3260, AK/AP/AZ3600,
AK/AP/AZ3604, AK/AP/AZ36 24, AK/AP/AZ3625, AK/AP/AZ3 627 , AK/AP/AZ3650,
AK/AP/AZ3652, AK/AP/AZ3657, AP3800, AP3900, AK/AP/AZ4600, AK/AP/AZ4625,
AK/AP/AZ4650, AK/AP/AZ4652, and AK/AP/AZ4657 )
A. General information
AP Tech manual diaphragm valves are used in gas delivery systems to control gas flow. Many
models are available with different pressure ratings, flow capacities, and porting configurations.
Refer to the appropriate catalog data sheet for specific product information.
B. System Design/Product Selection
1. When selecting the valve model and configuration, verify the following information.
a. Verify the materials of construction are compatible with the intended process gas.
b. Verify the pressure and temperature ratings are acceptable for the intended application.
c. Verify that the flow capacity (C
) of the valve is appropriate for the application.
v
2. Valves can be used under a large variety of operation conditions. The system designers shall
decide product selection based upon their own analysis and testing to verify acceptable
operation with specific equipment.
C. Installation
1. Verify the pressure rating is acceptable.
2. Inspect the valve to determine the flow path through the valve and how the valve will be
installed in the system.
a. An inlet (upstream) port is defined as a port connected to the region below the valve seat
and may be labeled with an “
b. An outlet (downstream) port is defined as a port connected to the region above the seat
and below the diaphragm. The outlet port is usually not labeled but may be marked
“OUT”.
c. The traditional flow direction is inlet to outlet, but AP Tech valves may be employed in
either traditional flow direction or the reverse.
d. On Series DV Monoblock valves the port that is common with the block valves is marked
with a “C”. No other marking is shown. Technical Bulletin 205 has schematics of the
monoblock configurations and more detailed information.
IN” marked into the body near the port.
3. Install the valve using the appropriate method described below.
a. For tube stub connections, weld connectors or other components to the tube stubs per
standard industry practice (reference SEMI standard F78).
Manual 15000004 Revision 7 Page 1 of 4
Operation Manual Manual Diaphragm Valves
Switch model
Honeywell 2SS52M
Switch type
NPN (current sinking)
Operating temperature
-40 to 150 C
Supply voltage
3.8 to 30.0 VDC
Output voltage
0.4 VDC max.
Supply current
11 mA max.
Output current
20 mA max.
Life expectancy
up to 5,000,000 cycles at 1.2 VA
Connectors
Stranded 24 AWG wire (blue, black, and
b.
For metal face seal connectors, assemble connections per standard practice described by
fitting supplier (typically 1/8 turn past finger tight).
c. For compression-type connectors, insert the tube into the fitting until it stops. Tighten the
fitting by applying 1-1/4 turns of nut rotation.
i) For reinstallation, mark the nut and the valve body before disassembly. This will
allow the nut to be returned to the original assembly position. Insert the tube and
attached ferrules into the fitting until fully seated. Rotate the nut until it is returned to
the original assembly position, and tighten slightly beyond marked position.
d. Most valves can be attached to panels or mounting plates using the 10-32 or M5 female
thread mounting holes located in the bottom of the body (valves with M5 mounting holes
will be marked with a “5” on the bottom of the body). Special configurations or multivalve blocks may not have mounting holes or may have different size holes. Refer to the
specific data sheet or Technical Bulletin for detailed mounting information.
4. After installation, perform a leak test of all connections and welds per standard industry
practice (reference SEMI standard F1).
D. Indicating S witch Opt ion Installation
1. ISH option for AK/AP/AZ3650 or AK/AP/AZ4650 (refer to Figure 1):
a. Review the following specifications to verify the switch is appropriate for the installation.
b. Connect black (BK) lead to ground.
c. Connect brown (BN) lead to supply voltage.
d. Connect blue lead (BL) to load that is connected to supply voltage.
Manual 15000004 Revision 7 Page 2 of 4
brown leads)

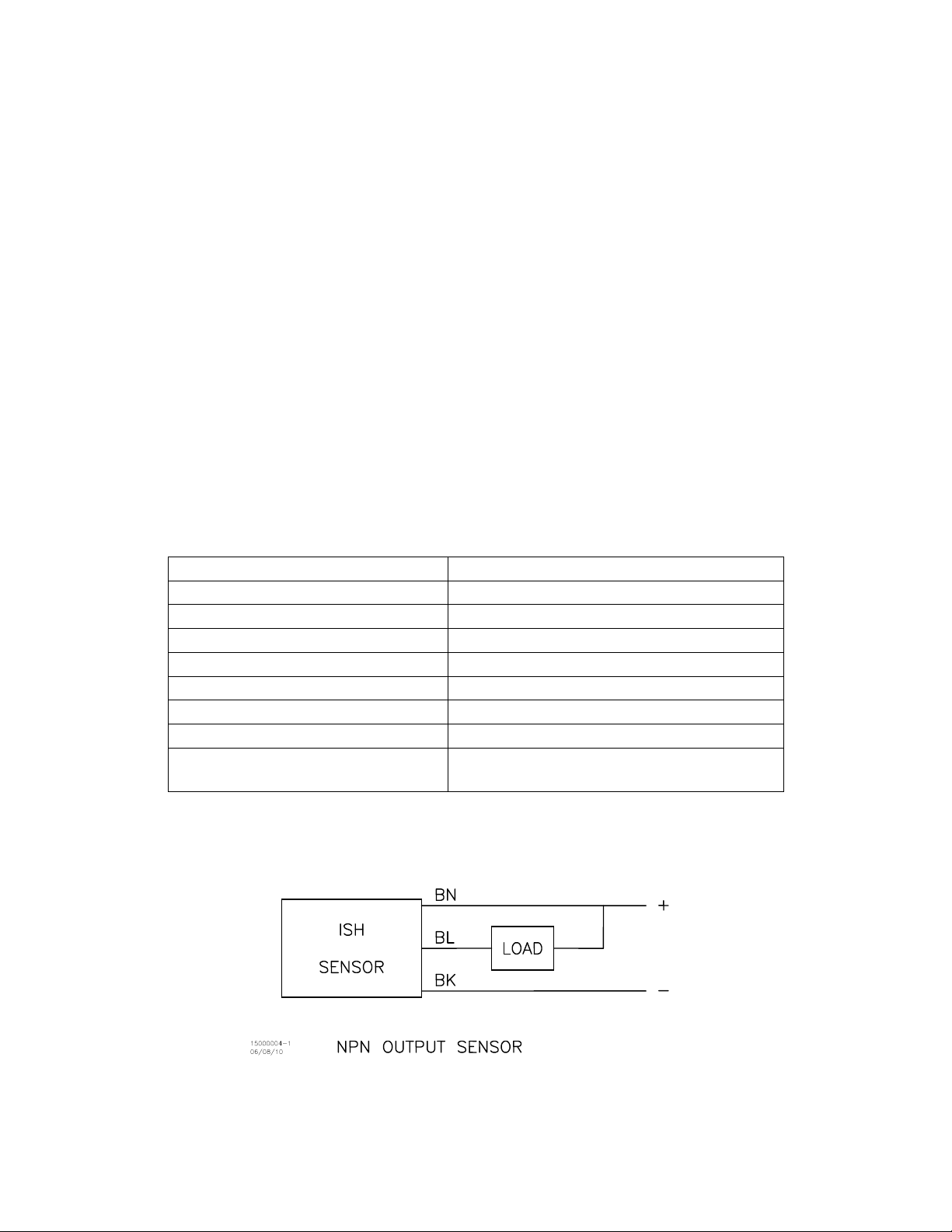

Figure 1. ISH Sensor Wiring Diagram
Operation Manual Manual Diaphragm Valves
E. Operation
1. Perform the following to close the valve.
a. Rotate the valve handle clockwise as viewed from the top until a sudden, large increase in
torque indicates that the internal hard stop in the actuator or in the valve body is reached.
Caution: Torque to operate a valve may noticeably increase as the valve is closed due to
load from the internal pressure. Higher internal pressure will require higher operation
torque. Do not mistake an actuation torque increase due to the internal pressure with that
due to contacting the valve internal stop. This could result in the valve being left in the
open position when the intention was to close the valve.
b. For valves with OPEN/CLOSED status indication, verify that handle indicator shows the
valve is in the CLOSED position.
c. For AP3157, AK/AP/AZ3657, and AK/AP/AZ4657 valves, turn the handle fully
clockwise until the handle drops down. AP3157, AK/AP/AZ3657, and AK/AP/AZ4657
valves have a small detent in the open position, which requires a slightly higher torque at
the initial portion of the valve travel to exit the detent.
d. For AP3900 valves, turn the handle fully clockwise until the handle drops all the way
down. The top edge of the flange on the lock stem (the part at the center of the handle)
should be flush with the top surface of the handle when the valve is in the closed position.
e. If an ISH switch option was installed, verify that the output signal changed states.
2. Perform the following to open the valve.
a. Rotate the valve handle counterclockwise until an increase in torque indicates that the
internal stop in the actuator is reached.
b. For AP3157, AK/AP/AZ3657, AK/AP/AZ4657, and AP3900 valves, pull the handle up
and turn counterclockwise to open the valve. This feature prevents the valve from being
accidentally opened.
c. For valves with OPEN/CLOSED status indication, verify that handle rotation has reached
the OPEN indication. On AP3800 and AP3900 valves, only solid dots of increasing size
will be visible through the handle window when the valve is fully open.
d. If an ISH switch option was installed, verify that the output signal changed states.
Caution: Do not use a tool to apply excessive opening or closing torque to the valve handle as
damage may result.
3. When a valve is in the closed position, the inlet ports are isolated from the outlet ports. When
a valve is in the open position, all ports are common.
Manual 15000004 Revision 7 Page 3 of 4
Operation Manual Manual Diaphragm Valves
F. Lock Out Tag Out Valves
1. AP3157, AK/AP/AZ3657, AK/AP/AZ4657, and AP3900 valves have a built in lock out tag
out (LOTO) capability. A non-interlocking scissor type padlockable safety lockout hasp with
a 1/8 inch or thinner hasp arm thickness is required to use this feature. A Master Lock® No.
420 safety lockout hasp is suggested.
2. If the lock out tag out feature is to be used, verify that the lock stem center piece slot
clearances are compatible with the available safety hasp as follows.
a. Turn the knob fully clockwise to close the valve. Verify that the lockout hasp can be
inserted through the lock stem slot and closed. Remove the hasp.
b. Lift up on the knob and turn fully counter-clockwise to open the valve. Verify that the
lockout hasp cannot be inserted through the lock stem slot.
3. The valves can be locked out as follows.
a. Turn the handle fully clockwise to close the valve. Insert an arm of the safety lockout
hasp through the slot in the lock stem located on top of the valve. Close the safety lockout
hasp and insert a padlock through one of the padlock holes in the safety lockout hasp.
Please contact the factory or your local representative to answer questions or for further
information.
Manual 15000004 Revision 7 Page 4 of 4
