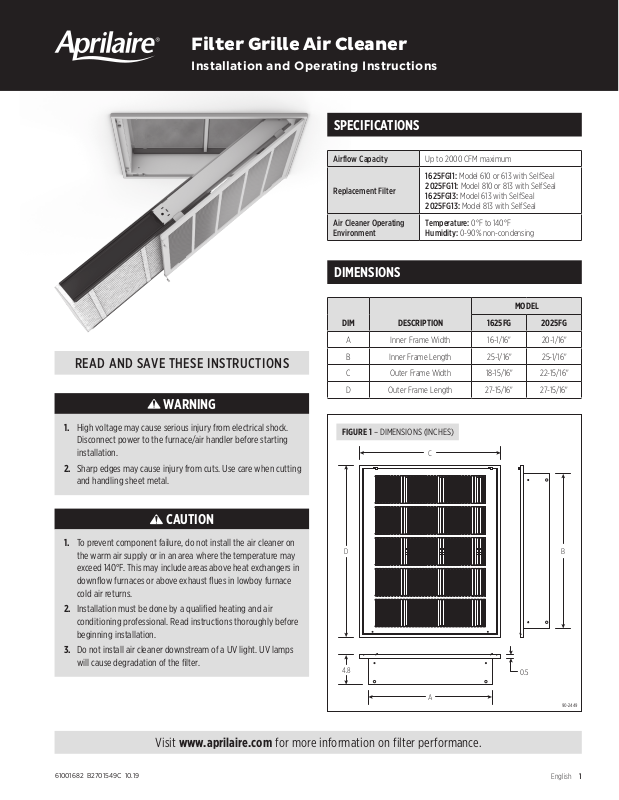

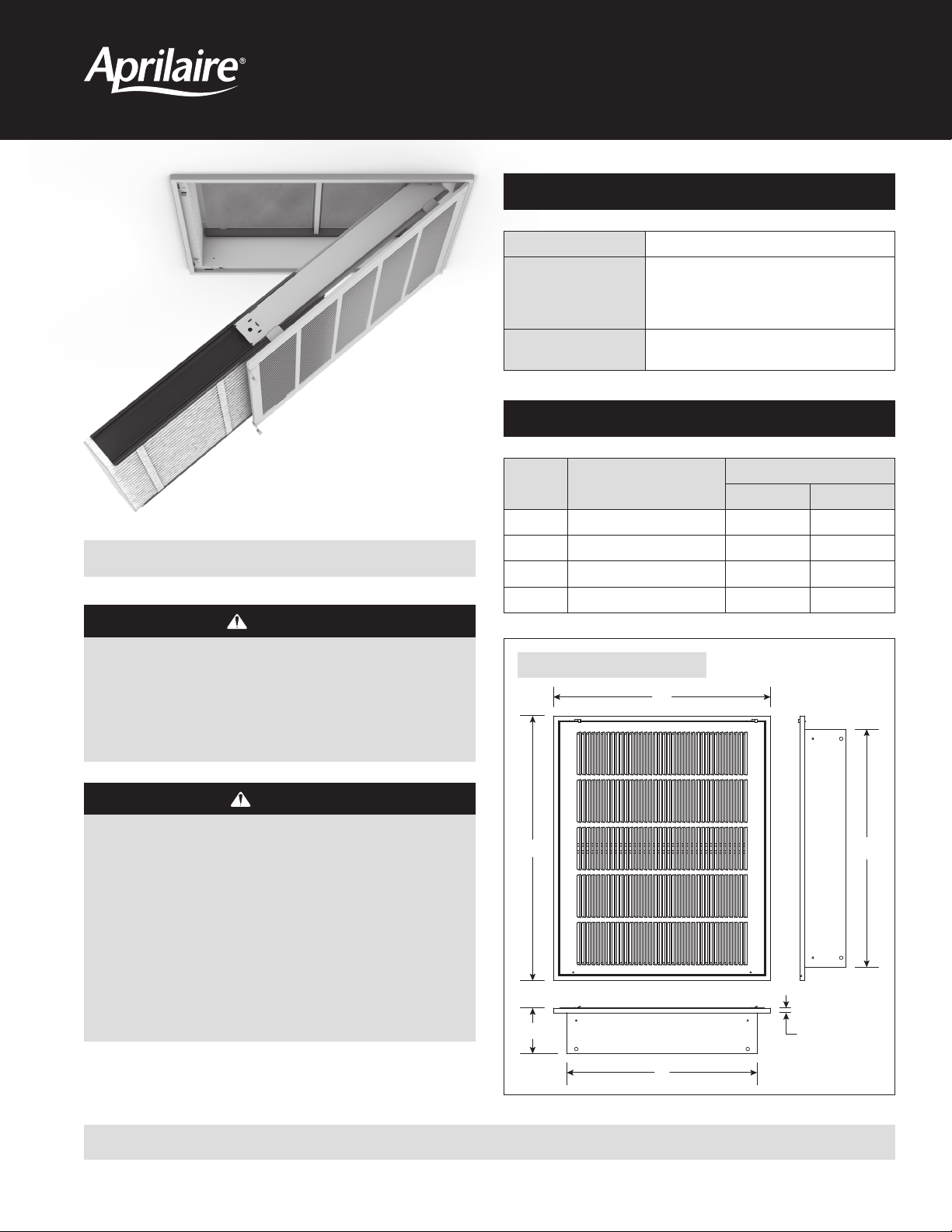

Page 1
Filter Grille Air Cleaner
Installation and Operating Instructions
READ AND SAVE THESE INSTRUCTIONS
WARNING
SPECIFICATIONS
Airflow Capacity Up to 2000 CFM maximum
1625FG11: Model 610 or 613 with SelfSeal
Replacement Filter
Air Cleaner Operating
Environment
2025FG11: Model 810 or 813 with SelfSeal
1625FG13: Model 613 with SelfSeal
2025FG13: Model 813 with SelfSeal
Temperature: 0°F to 140°F
Humidity: 0-90% non-condensing
DIMENSIONS
MODEL
DIM DESCRIPTION
A Inner Frame Width 16-1/16" 20-1/16"
B Inner Frame Length 25-1/16" 25-1/16"
C Outer Frame Width 18-15/16" 22-15/16"
D Outer Frame Length 27-15/16" 27-15/16"
1625FG 2025FG
1. High voltage may cause serious injury from electrical shock.
Disconnect power to the furnace/air handler before starting
installation.
2. Sharp edges may cause injury from cuts. Use care when cutting
and handling sheet metal.
CAUTION
1. To prevent component failure, do not install the air cleaner on
the warm air supply or in an area where the temperature may
exceed 140°F. This may include areas above heat exchangers in
downflow furnaces or above exhaust flues in lowboy furnace
cold air returns.
2. Installation must be done by a qualified heating and air
conditioning professional. Read instructions thoroughly before
beginning installation.
3. Do not install air cleaner downstream of a UV light. UV lamps
will cause degradation of the filter.
FIGURE 1 – DIMENSIONS (INCHES)
C
D
4.8
A
B
0.5
90-2449
61001682 B2701549C 10.19
Visit www.aprilaire.com for more information on filter performance.
English 1
Page 2

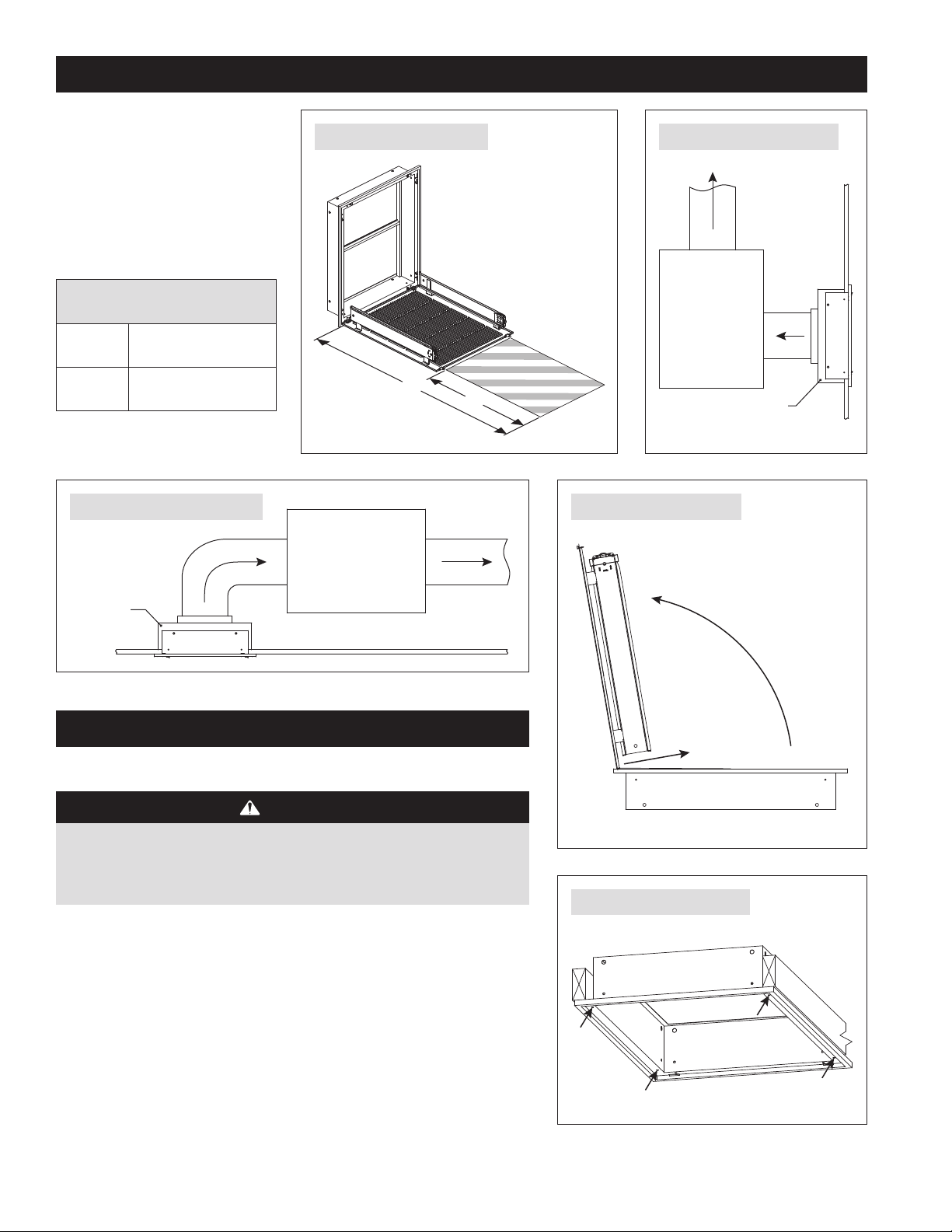

LOCATING THE AIR CLEANER
SEE
1. Leave sufficient space in front of the
air cleaner for the removal of the
filter (see FIGURE 2).
2. DO NOT INSTALL NEAR A UV
LIGHT. UV lamps will cause
degradation of the filter.
3. FIGURES 3 & 4 show typical
applications.
TABLE 1 – RECOMMENDED RETURN BOX
SIZING (FIELD SUPPLIED)
1625FG11/13
16.25" x 25.25" x 6" (min)
with 14" round takeoff collar
FIGURE 2 – FILTER CLEARANCE FIGURE 3 – WALL INSTALLATION
HVAC
2025FG11/13
FIGURE 4 – CEILING INSTALLATION
TABLE 1
90-2460
20.25" x 25.25" x 6" (min)
with 18" round takeoff collar
HVAC
52"
25"
INSTALL THE AIR CLEANER FRAME
1. Disconnect power to the furnace or air handler at the electrical service panel.
WARNING
SEE TABLE 1
90-246190-2459
FIGURE 5 – REMOVING GRILLE
120 Volts may cause serious injury from electrical shock. Disconnect power to the
furnace/air handler before starting installation. Leave power disconnected until
installation is completed.
2. Remove the grille door from the frame by opening more than 90 degrees and
sliding the hinge hooks out of the frame (see FIGURE 5).
3. Use screws (field supplied) to mount the grille frame to the building structure.
There are mounting holes located on the outside and inside faces of the frame (see
FIGURE 6). The frame must be secured to the structure on at least two sides.
4. Reattach the grille door to the frame by inserting the hinge hooks into the frame
while holding the door more than 90 degrees open (see FIGURE 5).
5. Install the filter (see FIGURE 8 on page 3).
6. Close and latch the grille door.
7. Reconnect power to the furnace or air handler at the electrical service panel.
2 English
90-2484
FIGURE 6 – INSTALL THE FRAME
90-2456
Page 3

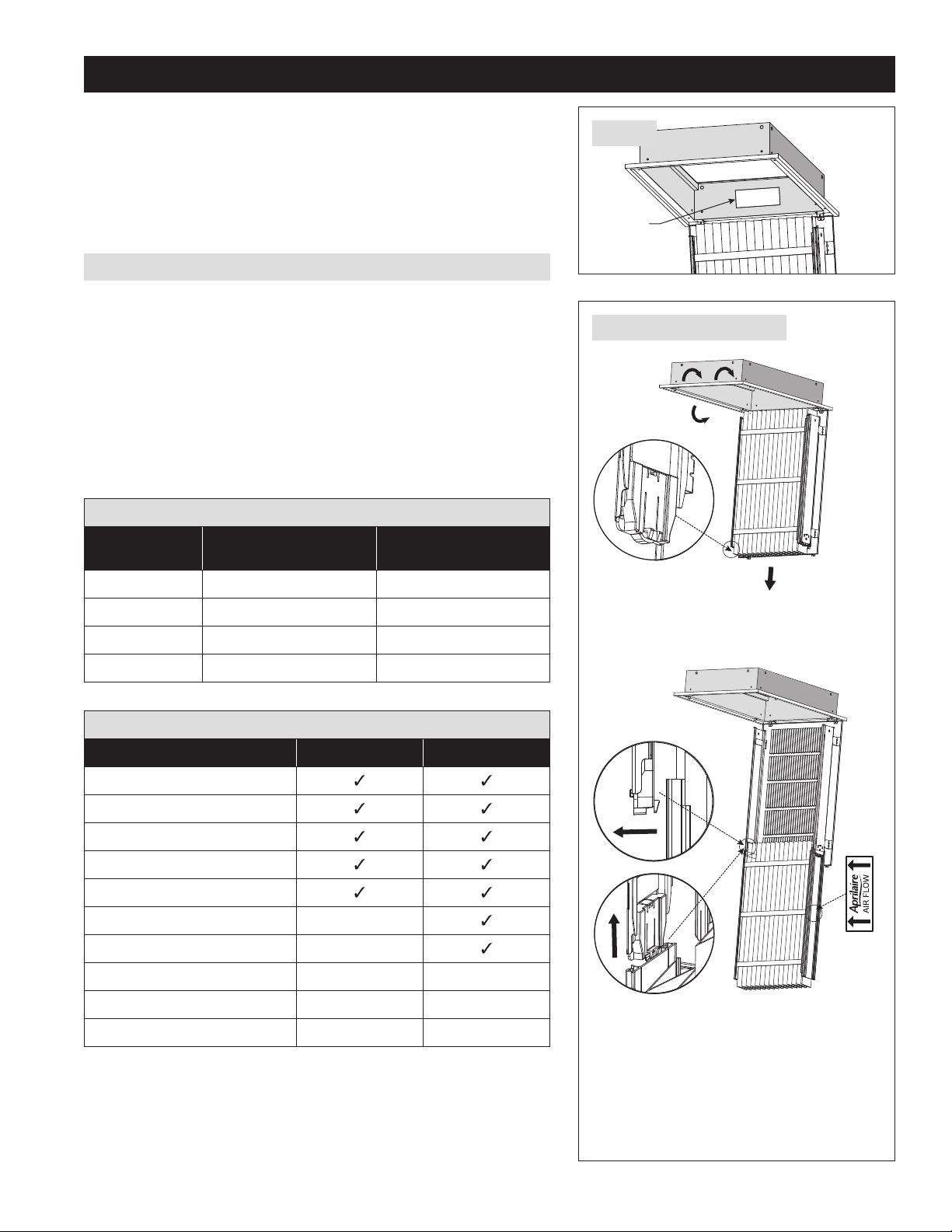

MAINTENANCE
FILTER
REPLACEMENT
LABEL
The only maintenance required is the periodic replacement of the disposable Aprilaire
filter which you can do in a few minutes. The frequency of replacement will vary with
operation time, the number of particles generated in the home and is affected by:
number of people and their activities, the amount of carpeting, pets, size of home,
number of smokers, the pollution level of the area. Aprilaire recommends replacing
the filter each year. However, all HVAC installations are different. Your contractor may
recommend more or less frequent filter replacement.
FIGURE 7
CHANGING THE FILTER
Coordinate filter replacement with an HVAC system maintenance agreement from
your local HVAC professional or visit shop.aprilaire.com. IMPORTANT: Follow the
step by step directions on the filter replacement label to ensure that it is installed in
the proper orientation – the outlet side of the filter is the expanded metal.
This label can be found on the inside frame of the filter grille (see FIGURE 7). The
model number of the correct replacement filter is also listed on this label. The steps
for changing the filter are also shown in FIGURE 8.
IMPORTANT: Turn the thermostat mode to off and the fan to auto before opening the
air cleaner door.
REPLACEMENT FILTER
Model
1625FG11 610 613
2025FG11 810 813
1625FG13 — 613
2025FG13 — 813
Best for Clean Home and
Equipment Protection
Best for Healthy Home and
Equipment Protection
90-2455
FIGURE 8 – REPLACING THE FILTER
Open the latches while
supporting the face of the grille and swing open.
Remove the old filter by pressing the orange
locking tabs and sliding the filter out.
CHOOSE THE FILTER THAT’S BEST FOR YOUR HOME AND YOUR FAMILY
Captures Model 610 / 810 Model 613 / 813
Dust
Pollen
Fungi
Mold
Pet Dander
Virus Size Particles
Bacteria
Virus Size Particles 0.3 - 1 Microns 45% 63%
Dust 1 - 3 Microns 78% 88%
Pollen and Mold Spores 3 - 10 Microns 92% 92%
Align new filter in both rails and slide into place with
“Air Flow” pointing away from the grille. The end cap of the
filter should be placed on top of the orange locking tab to
depress it before sliding into the rail.
Slide the filter all the way on the rails until the orange locking
tabs pop out. Close the grille and swing the latches shut.
Return thermostat to original settings.
B2701548A
English 3
Page 4
FILTER PERFORMANCE
610
810
MERV (μm) 0.30-1.0 1.0-3.0 3.0-10 Airflow (cfm) 600 900 1200 1500 1600
11 PSE (%) 45 78 92 Initial ∆P (in w.c.) 0.06 0.11 0.18 0.25 0.28
MERV (μm) 0.30-1.0 1.0-3.0 3.0-10 Airflow (cfm) 600 900 1200 1500 2000
11 PSE (%) 45 78 92 Initial ∆P (in w.c.) 0.05 0.08 0.12 0.17 0.27
O
C
T
O
D
M
E
P
S
L
U
Y
E
B
N
A
C
2019
W
I
T
H
MERV (μm) 0.30-1.0 1.0-3.0 3.0-10 Airflow (cfm) 600 900 1200 1500 1600
613
13 PSE (%) 63 88 92 Initial ∆P (in w.c.) 0.09 0.16 0.24 0.33 0.36
TITLE 24
PART 6
AIR FILTER PARTICLE REMOVAL EFFICIENCY
REQUIREMENTS - MERV 13
APRILAIRE 10-YEAR CLEAN COIL COMMITMENT
Aprilaire Air Cleaners are so effective at removing particles and contaminants that are harmful to your family and your HVAC equipment, we offer you
this guarantee. Should your new indoor air conditioning coil require professional cleaning in the next 10 years while properly using an Aprilaire Air
Cleaner, we will pay $100 toward the cost of having the indoor coil cleaned by a licensed contractor.
This commitment applies to new HVAC equipment with a new indoor air conditioner coil (less than six months old) installed with an Aprilaire Air
Cleaner. The Aprilaire Air Cleaner must be installed by a licensed HVAC contractor. The Aprilaire Air Cleaner must be properly maintained as per
directions in this owner’s manual including use of only Aprilaire brand filter replacement.
For redemption details, please visit www.aprilaire.com/cleancoil or call 1-800-334-6011.
LIMITED WARRANTY
Your Research Products Corporation Aprilaire® Air Cleaner is expressly warranted for five (5) years from date of installation to be free from defects in materials or workmanship.
Research Products Corporation’s exclusive obligation under this warranty shall be to supply, without charge, a replacement for any component which is found to be defective within such
five (5) year period and which is returned not later than thirty (30) days after said five (5) year period by you to either your original supplier or to Research Products Corporation, Madison,
Wisconsin 53701, together with the model number and installation date of the air cleaner.
THIS WARRANTY SHALL NOT OBLIGATE RESEARCH PRODUCTS CORPORATION FOR ANY LABOR COSTS AND SHALL NOT APPLY TO DEFECTS IN WORKMANSHIP OR MATERIALS
FURNISHED BY YOUR INSTALLER AS CONTRASTED TO DEFECTS IN THE AIR CLEANER ITSELF.
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE AFORESAID FIVE YEAR PERIOD. RESEARCH PRODUCTS
CORPORATION’S LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, OTHER THAN DAMAGES FOR PERSONAL INJURIES, RESULTING FROM ANY BREACH OF THE AFORESAID
IMPLIED WARRANTIES OR THE ABOVE LIMITED WARRANTY IS EXPRESSLY EXCLUDED. THIS LIMITED WARRANTY IS VOID IF DEFECTS(S) RESULT FROM FAILURE TO HAVE THIS UNIT
INSTALLED BY A QUALIFIED HEATING AND AIR CONDITIONING CONTRACTOR. IF THE LIMITED WARRANTY IS VOID DUE TO FAILURE TO USE A QUALIFIED CONTRACTOR, ALL DISCLAIMERS
OF IMPLIED WARRANTIES SHALL BE EFFECTIVE UPON INSTALLATION.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages so the above exclusion or limitations may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
MERV (μm) 0.30-1.0 1.0-3.0 3.0-10 Airflow (cfm) 600 900 1200 1500 2000
813
13 PSE (%) 63 88 92 Initial ∆P (in w.c.) 0.07 0.11 0.17 0.23 0.35
WARRANTY REGISTRATION
Visit us online at www.aprilaire.com to register your Aprilaire product. If you do not have online access, please mail a postcard with your name, address, phone number, email address, product
purchased, model number, date of purchase, and dealer name and address to: Research Products Corporation, P.O. Box 1467, Madison, WI 53701.
Your warranty registration information will not be sold or shared outside of this company.
Aprilaire.com
P.O. Box 1467
Madison, WI 53701-1467
800.334.6011 F: 608.257.4357
Printed in USA
©2019 Aprilaire – Division of Research Products Corporation
4 English
