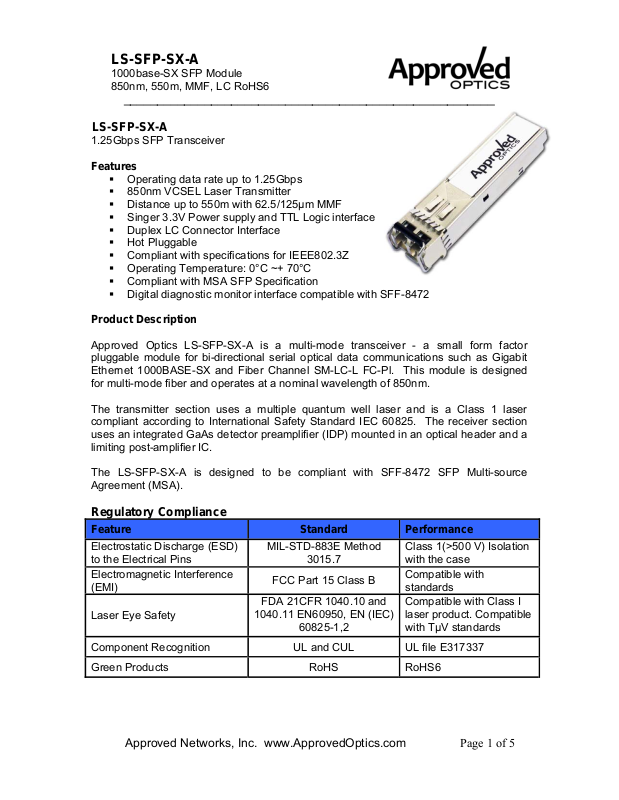

Approved Optics LS-SFP-SX User Manual

LS-SFP-SX-A

1000base-SX SFP Module
850nm, 550m, MMF, LC RoHS6

_______________________________________________________

LS-SFP-SX-A

1.25Gbps SFP Transceiver

Features

 Operating data rate up to 1.25Gbps
 850nm VCSEL Laser Transmitter
 Distance up to 550m with 62.5/125µm MMF
 Singer 3.3V Power supply and TTL Logic interface
 Duplex LC Connector Interface
 Hot Pluggable
 Compliant with specifications for IEEE802.3Z
 Operating Temperature: 0°C ~+ 70°C
 Compliant with MSA SFP Specification
 Digital diagnostic monitor interface compatible with SFF-8472

Product Description

Approved Optics LS-SFP-SX-A is a multi-mode transceiver - a small form factor
pluggable module for bi-directional serial optical data communications such as Gigabit
Ethernet 1000BASE-SX and Fiber Channel SM-LC-L FC-Pl. This module is designed
for multi-mode fiber and operates at a nominal wavelength of 850nm.

The transmitter section uses a multiple quantum well laser and is a Class 1 laser
compliant according to International Safety Standard IEC 60825. The receiver section
uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a
limiting post-amplifier IC.

The LS-SFP-SX-A is designed to be compliant with SFF-8472 SFP Multi-source
Agreement (MSA).

Regulatory Compliance

Feature Standard Performance

Electrostatic Discharge (ESD)
to the Electrical Pins

Electromagnetic Interference
(EMI)

Laser Eye Safety

Component Recognition UL and CUL UL file E317337

Green Products RoHS RoHS6

MIL-STD-883E Method

3015.7

FCC Part 15 Class B

FDA 21CFR 1040.10 and

1040.11 EN60950, EN (IEC)
60825-1,2

Class 1(>500 V) Isolation
with the case

Compatible with
standards

Compatible with Class I
laser product. Compatible
with TμV standards

Approved Networks, Inc. www.ApprovedOptics.com

Page 1 of 5

LS-SFP-SX-A

1000base-SX SFP Module
850nm, 550m, MMF, LC RoHS6

_______________________________________________________

Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit

Storage Temperature TST -40 +85 °C

Supply Voltage VCC -0.5 3.6 V

Recommended Operating Conditions

Parameter Symbol Min.

Typical

Max. Unit

Operating Case Temperature TOP 0

Power Supply Voltage VCC 3.15 3.3 3.45 V

Power Supply Current ICC

Surge Current ISurge

Baud Rate

1.25

+70 °C

300 mA

+30 mA

GBaud

Performance Specifications - Electrical

Parameter Symbol Min. Typ. Max Unit Notes

TRANSMITTER

LVPECL
Inputs(Differential)

Input Impedance
(Differential)

Tx_DISABLE Input
Voltage - High

Tx_DISABLE Input
Voltage -Low

Tx_FAULT Output
Voltage -- High

Tx_FAULT Output
Voltage --Low

Vin 400

Zin 85 100 115 ohms

2

0

2

0

2500 mVp

3.45 V

0.8 V

Vcc+0.3 V

0.5 V Io = -4.0mA

AC coupled inputs

Rin > 100 kohms
@ DC

Io = 400μA; Host
Vcc

LVPECL Outputs
(Differential)

Output Impedance
(Differential)

Rx_LOS Output Voltage

- High
Rx_LOS Output Voltage

-Low

Approved Networks, Inc. www.ApprovedOptics.com

RECEIVER

Vout 400 800 1200 mVpp

Zout 85 100 115 ohms

2

0

Vcc+0.3 V

0.8 V lo = -4.0mA

AC coupled
outputs

lo = 400μA; Host
Vcc

Page 2 of 5

LS-SFP-SX-A

1000base-SX SFP Module
850nm, 550m, MMF, LC RoHS6

_______________________________________________________

MOD_DEF ( 0:2 )

VoH 2.5

VoL 0

0.5 V

Optical and Electrical Characteristics

Parameter Symbol Min. Typical Max. Unit

V

With Serial ID

62.5μm Core Diameter MMF L

Data Rate

Centre Wavelength

Spectral Width (RMS)

Average Output Power P0ut -9

Extinction Ratio EX 9

Rise/Fall Time(20%~~80%) tr/tf

Output Optical Eye IUT-T G.957 Compliant

Data Input Swing Differential VIN 500

Input Differential Impedance ZIN 90 100 110

Disable

TX Disable

Enable 0

Fault

TX_Fault

Normal 0

Transmitter

λC

σ

820 850 860 nm

550

1.25

2.0

2.0

0.85 nm

-4 dBm

260 ps

2000 mV

VCC+0.3

0.8

VCC+0.3

0.8

m

Gbps

dB

Ω

V

V

TX_Disable Assert Time t_off

Receiver

Centre Wavelength

Receiver Sensitivity PIN

Output Differential Impedance PIN 90 100 110

Data Output Swing Differential VOUT 370

Rise/Fall Time Tr/tf

LOS De-Assert LOSD

LOS Assert LOSA -40

High

LOS

Low

λC

760

2.0

0

10 us

860 nm

-17 dBm

2000 mV

2.2 ns

-20 dBm

VCC+0.3

0.8

Approved Networks, Inc. www.ApprovedOptics.com

Page 3 of 5

Ω

dBm

V

LS-SFP-SX-A

1000base-SX SFP Module
850nm, 550m, MMF, LC RoHS6

_______________________________________________________

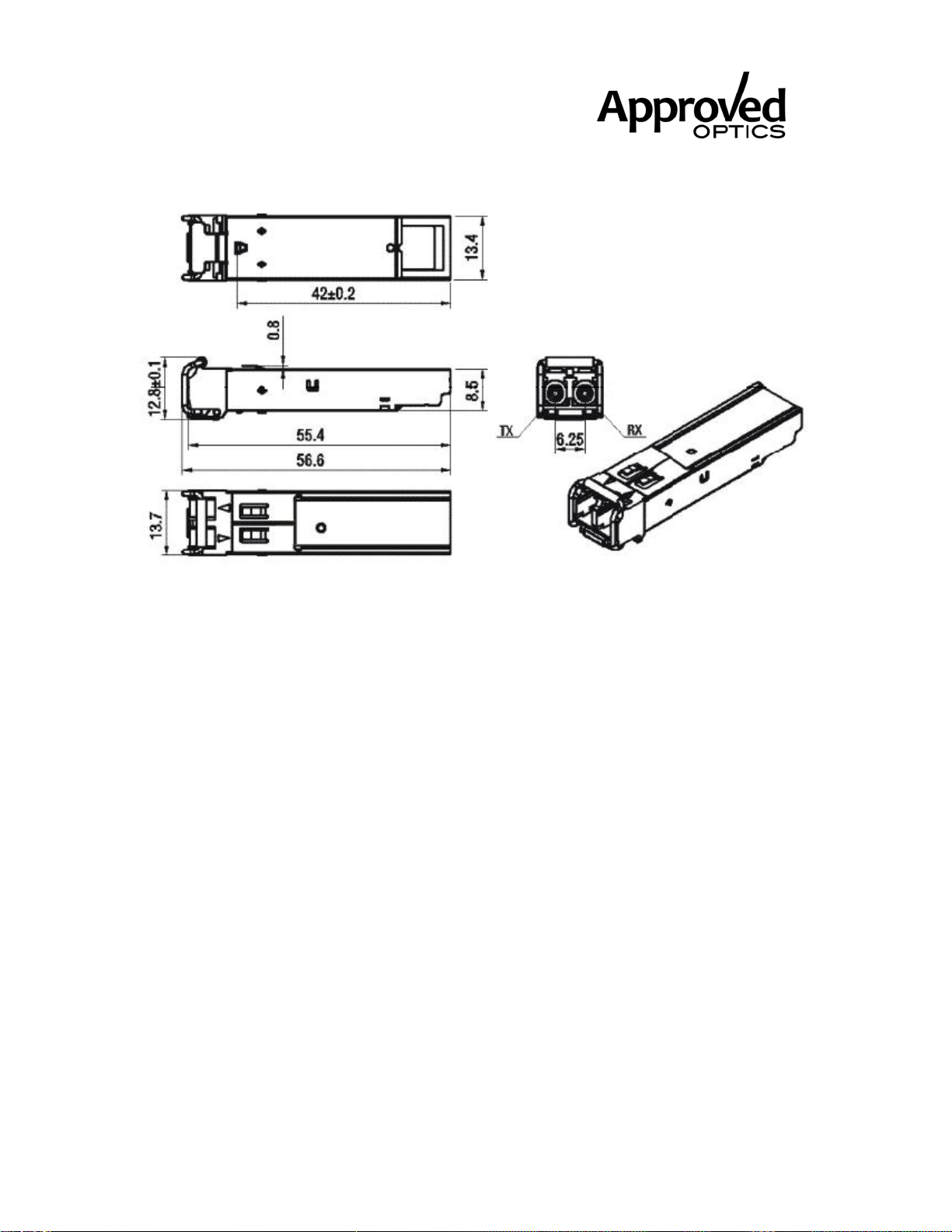

Mechanical Specifications

Approved Networks, Inc. www.ApprovedOptics.com

Page 4 of 5

LS-SFP-SX-A

1000base-SX SFP Module
850nm, 550m, MMF, LC RoHS6

_______________________________________________________

Contact Information

Approved Optics is a leading supplier of Network Transceivers and Connectivity
products to Channel Partners, Resellers, and OEMs. With more than 9 years of direct
industry experience, our products are resident in the most demanding and mission
critical functional networks Worldwide. We serve as a Master Distributor to the largest
CM’s in the world and deploy the most rigorous testing and firmware management
programs to bring the highest level of functional product to the market at a cost that
makes sense.
