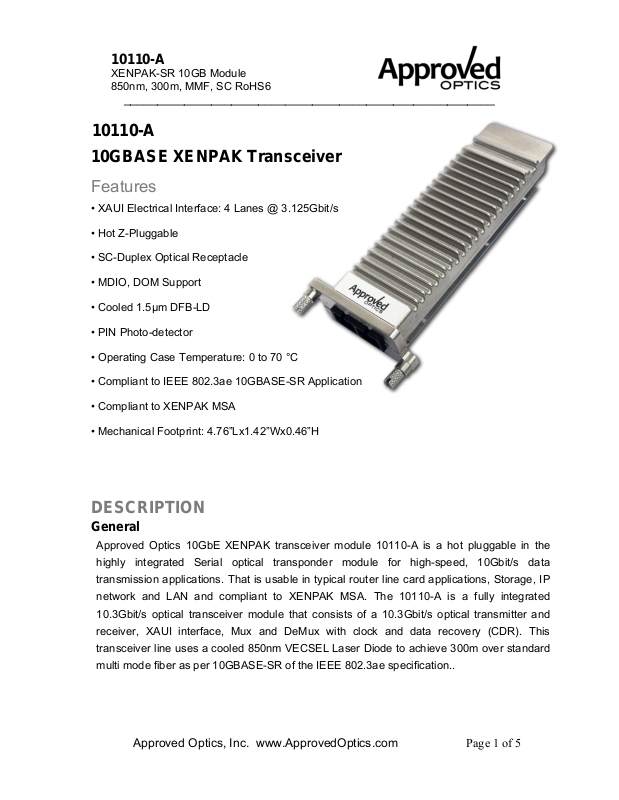

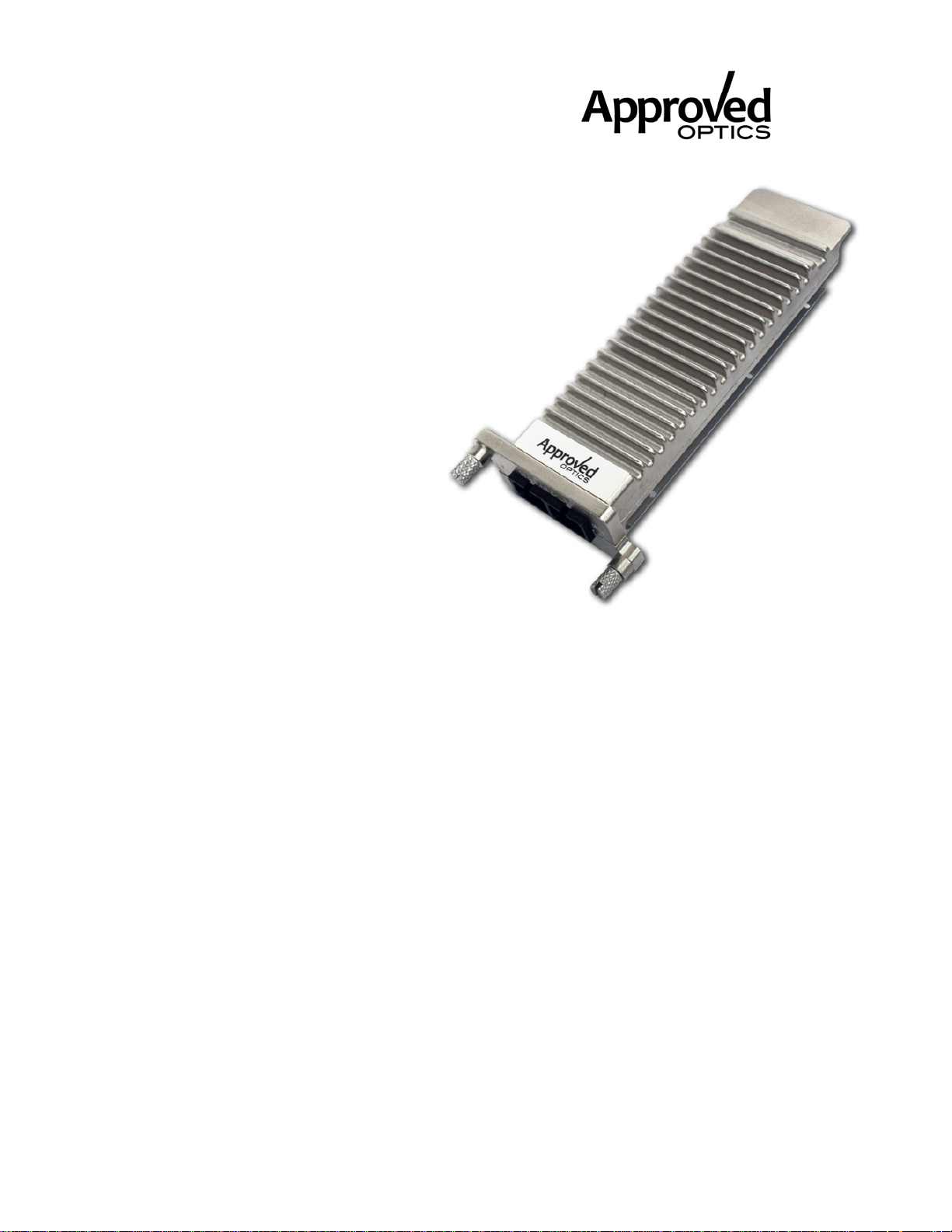

10110-A
XENPAK-SR 10GB Module
850nm, 300m, MMF, SC RoHS6
_______________________________________________________
10110-A
10GBASE XENPAK Transceiver
Features
• XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s
• Hot Z-Pluggable
• SC-Duplex Optical Receptacle
• MDIO, DOM Support
• Cooled 1.5μm DFB-LD
• PIN Photo-detector
• Operating Case Temperature: 0 to 70 °C
• Compliant to IEEE 802.3ae 10GBASE-SR Application
• Compliant to XENPAK MSA
• Mechanical Footprint: 4.76”Lx1.42”Wx0.46”H
DESCRIPTION
General
Approved Optics 10GbE XENPAK transceiver module 10110-A is a hot pluggable in the
highly integrated Serial optical transponder module for high-speed, 10Gbit/s data
transmission applications. That is usable in typical router line card applications, Storage, IP
network and LAN and compliant to XENPAK MSA. The 10110-A is a fully integrated
10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and
receiver, XAUI interface, Mux and DeMux with clock and data recovery (CDR). This
transceiver line uses a cooled 850nm VECSEL Laser Diode to achieve 300m over standard
multi mode fiber as per 10GBASE-SR of the IEEE 802.3ae specification..
Approved Optics, Inc. www.ApprovedOptics.com
Page 1 of 5
Page 2
10110-A
XENPAK-SR 10GB Module
850nm, 300m, MMF, SC RoHS6
_______________________________________________________
Optical Characteristics
Parameters Symbol Min. Typ. Max. Unit
Center Wavelength λC 840 850 860 nm
Signaling speed
Signaling speed variation from
nominal
Optical modulation amplitude OMA -5.2 - - dBm
Optical Output Power Pf -7.3
Optical Waveform -
Side Mode Suppression Ratio Sr 30 - - dB
Extinction Ratio Er 3.0 5.5- - dB
Off Transmit Power Poff - - -30 dBm
Optical Output turn-off Time TTX-OFF - - 100 μs
Receiver Sensitivity in OMA
Receiver Overload Rro +0.5 - - dBm
Receiver Return Loss RL 12 - - dB
OMArmin
-
-100 - +100 ppm
- - -11 dBm
10.3125
- Gbit/s
1 dBm
-
Electrical Performance
Parameter
Symbol
Min. Typ. Max. Unit
Supply Voltage VCC1 3.135 3.300 3.465 V
Supply Voltage VCC2 1.152 1.200 1.248 V
Supply Current ICC1 - - 1.4 A
Supply Current ICC2 - - 1.7 A
Power Consumption PDS - - 2.2 W
Power supply stabilization time TDF - - 500 ms
Initialization Time TINIT - - 5 s
RESET Assert Time TRESET 1 - - ms
Hold Time after rising edge of
RESET
THOLD 500 - - ms
Approved Optics, Inc. www.ApprovedOptics.com
Page 2 of 5
Page 3
10110-A
XENPAK-SR 10GB Module
850nm, 300m, MMF, SC RoHS6
_______________________________________________________
XAUI Driver Characteristics
Parameter
Baud Rate
Baud Rate Tolerance
Differential Amplitude
Symbol
Min. Typ. Max. Unit
- 3.125 - Gbit/s
-100 - +100 ppm
800 - 1600 mVPP
1.2V CMOS Interface Characteristics
Parameter
Baud Rate
Baud Rate Tolerance
Differential Amplitude
Input High Voltage VIH 0.84 - 1.5 V
Input Low Voltage VIL -0.3 - 0.36 V
Input Pull-down Current
Output High Voltage VOH 1.0 - - V
Output Low Voltage VOL - - 0.2 V
Pull up Resistance RLASI 10 - 22 k ohm
Capacitance
Load Capacitance
Symbol
IIn 20 40 120 μA
CLASI
CLoad
Min. Typ. Max. Unit
- 3.125 - Gbit/s
-100 - +100 ppm
200 - 1600 mVpp
- - 10 pF
- -
320 pF
MDIO Bidirectional Interface Characteristics
Parameter
Input High Voltage VIHM 0.84 - 1.5 V
Input Low Voltage VILM -0.3 - 0.36 V
Output High Voltage VOHM 1.0 - 1.5 V
Output Low Voltage VOLM -0.3 - 0.2 V
Pull up Resistance RMDIO 200 - Note 1 Ohm
MDC min high/low time THM,TLM 160 - - ns
MDC Frequency
Setup time
Hold time
Approved Optics, Inc. www.ApprovedOptics.com
Symbol
1/TCK TBD - 2.5 MHz
TDIS 10 - - ns
TDIH 10 - - ns
Min. Typ. Max. Unit
Page 3 of 5
Page 4
10110-A
XENPAK-SR 10GB Module
850nm, 300m, MMF, SC RoHS6
_______________________________________________________
MDIO output delay after rising edge
of MDC
Input Capacitance
Bus Loading CL - - 470 pF
Note 1 : The maximum value of RMDIO depends on bus loading(CL) , input
capacitance(Ci), and MDC frequency(1/TCK)
TPD 0 - 300 ns
Ci - - 10 pF

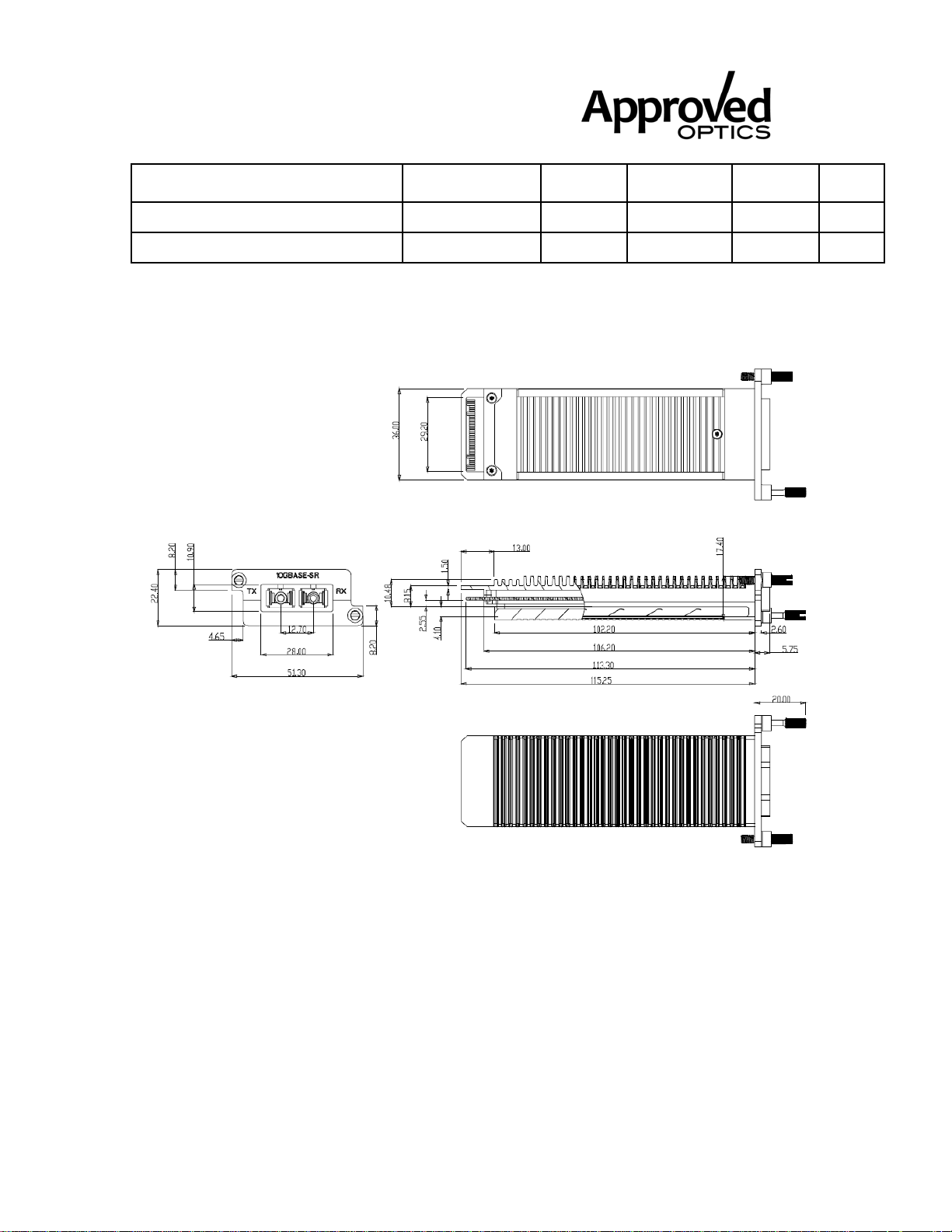

Module Outline
Eye Safety
This laser based multimode transceiver is a Class 1 product. It complies with IEC 608251 Ed.2: 2007 and FDA performance standards for laser products (21 CFR 1040.10 and
1040.11) except for deviations pursuant to Laser Notice 50, dated June 24, 2007.
Approved Optics, Inc. www.ApprovedOptics.com
Page 4 of 5
Page 5
10110-A
XENPAK-SR 10GB Module
850nm, 300m, MMF, SC RoHS6
_______________________________________________________
Contact Information
Approved Optics is a leading supplier of Network Transceivers and Connectivity
products to Channel Partners, Resellers, and OEMs. With more than 9 years of direct
industry experience, our products are resident in the most demanding and mission
critical functional networks Worldwide. We serve as a Master Distributor to the largest
CM’s in the world and deploy the most rigorous testing and firmware management
programs to bring the highest level of functional product to the market at a cost that
makes sense.
